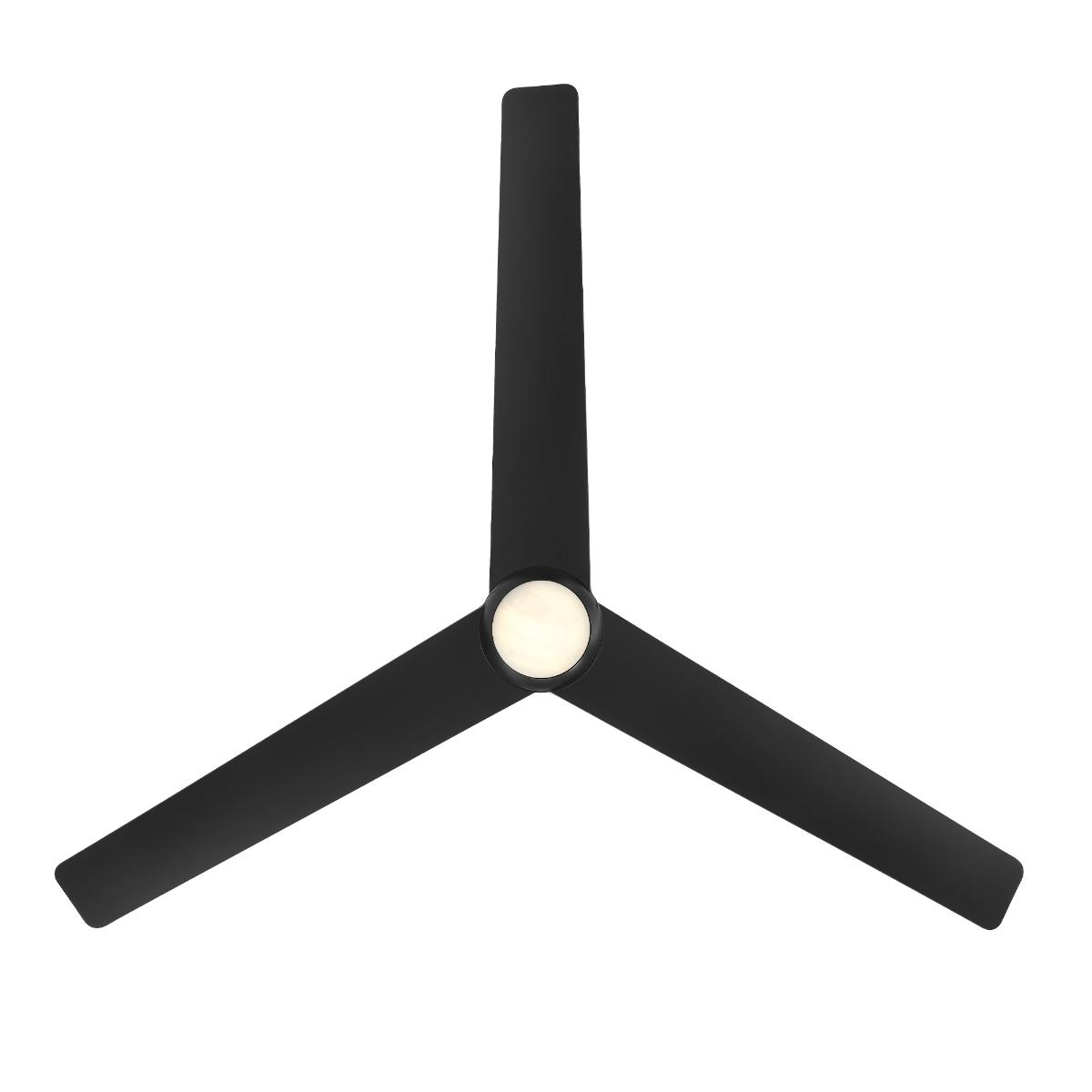

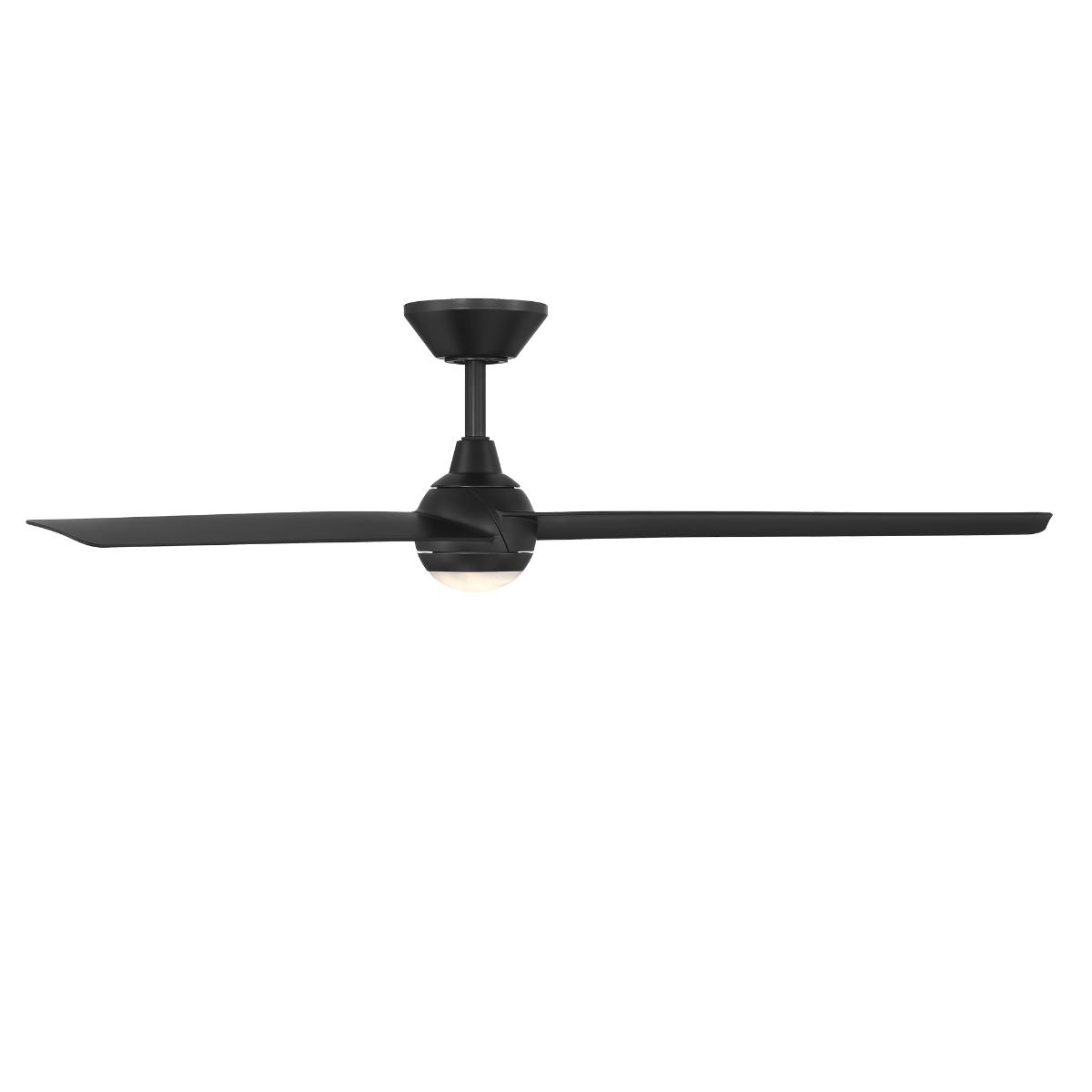

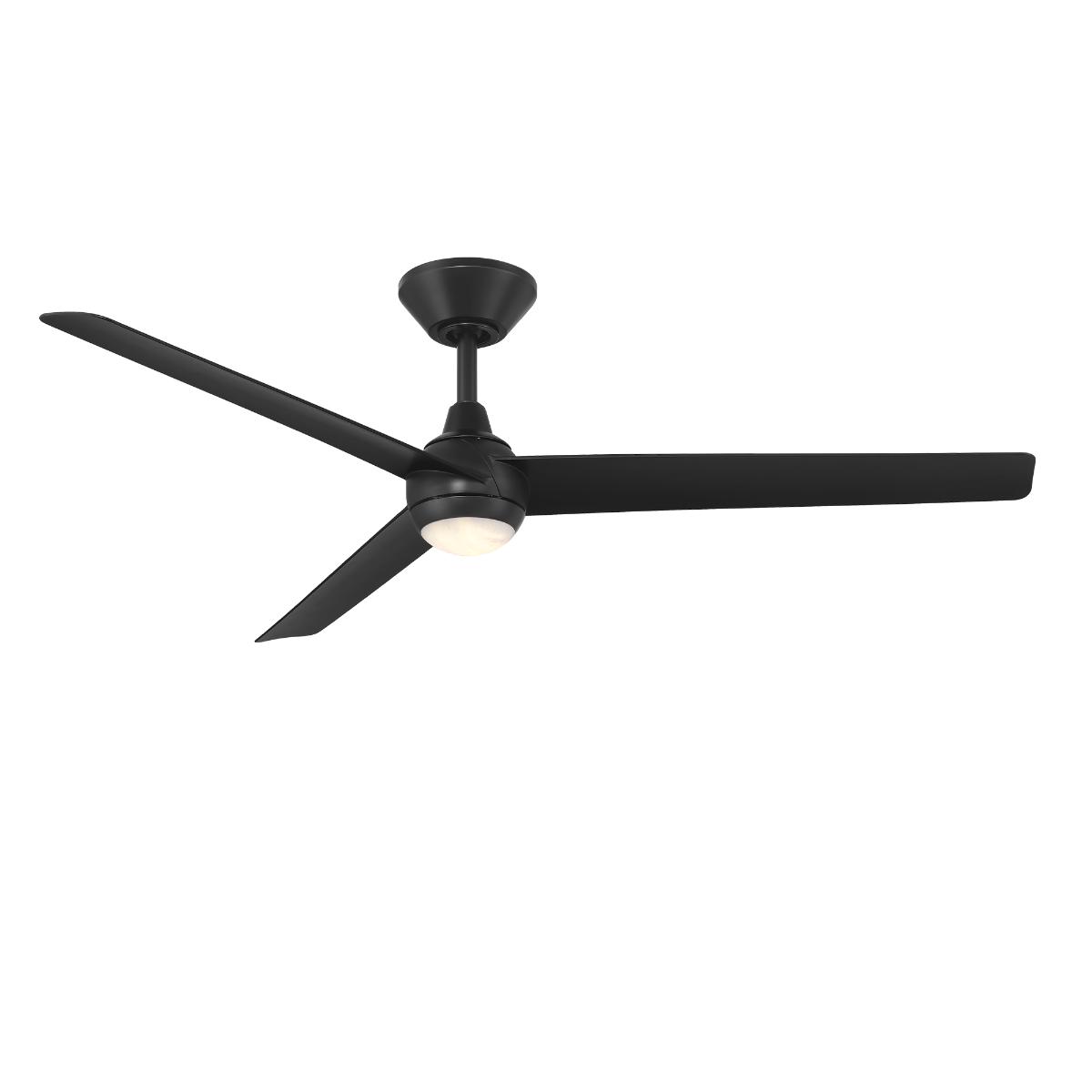

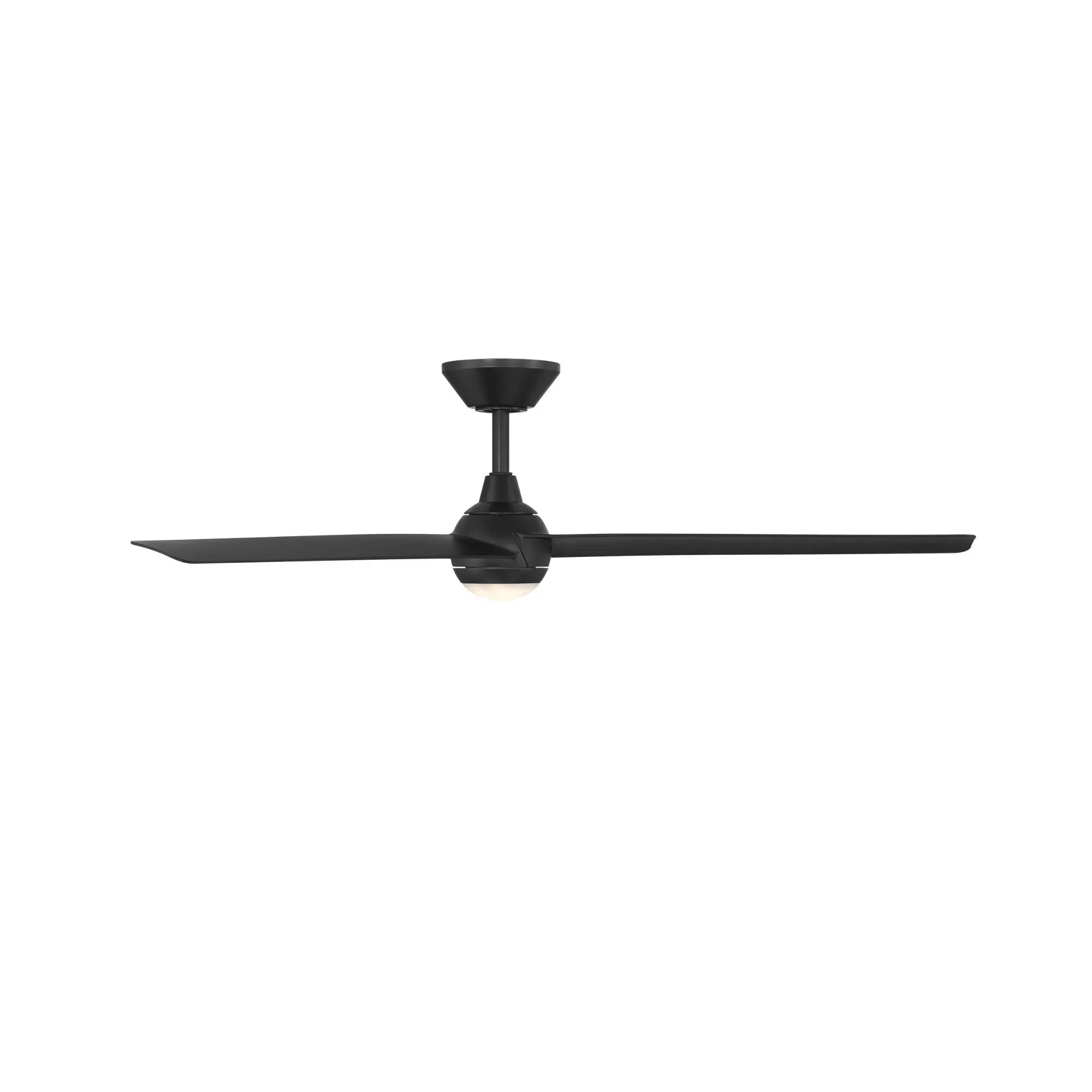

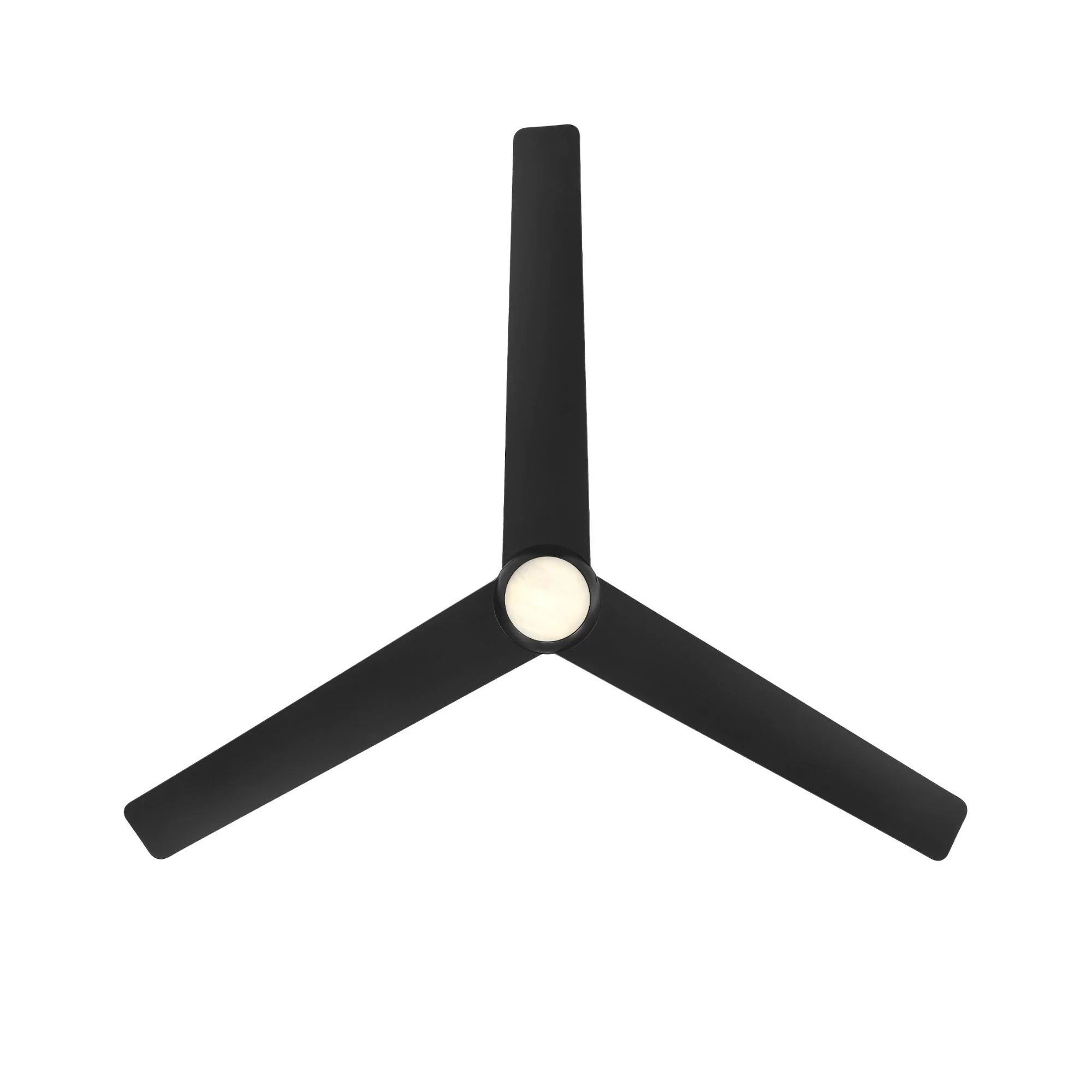

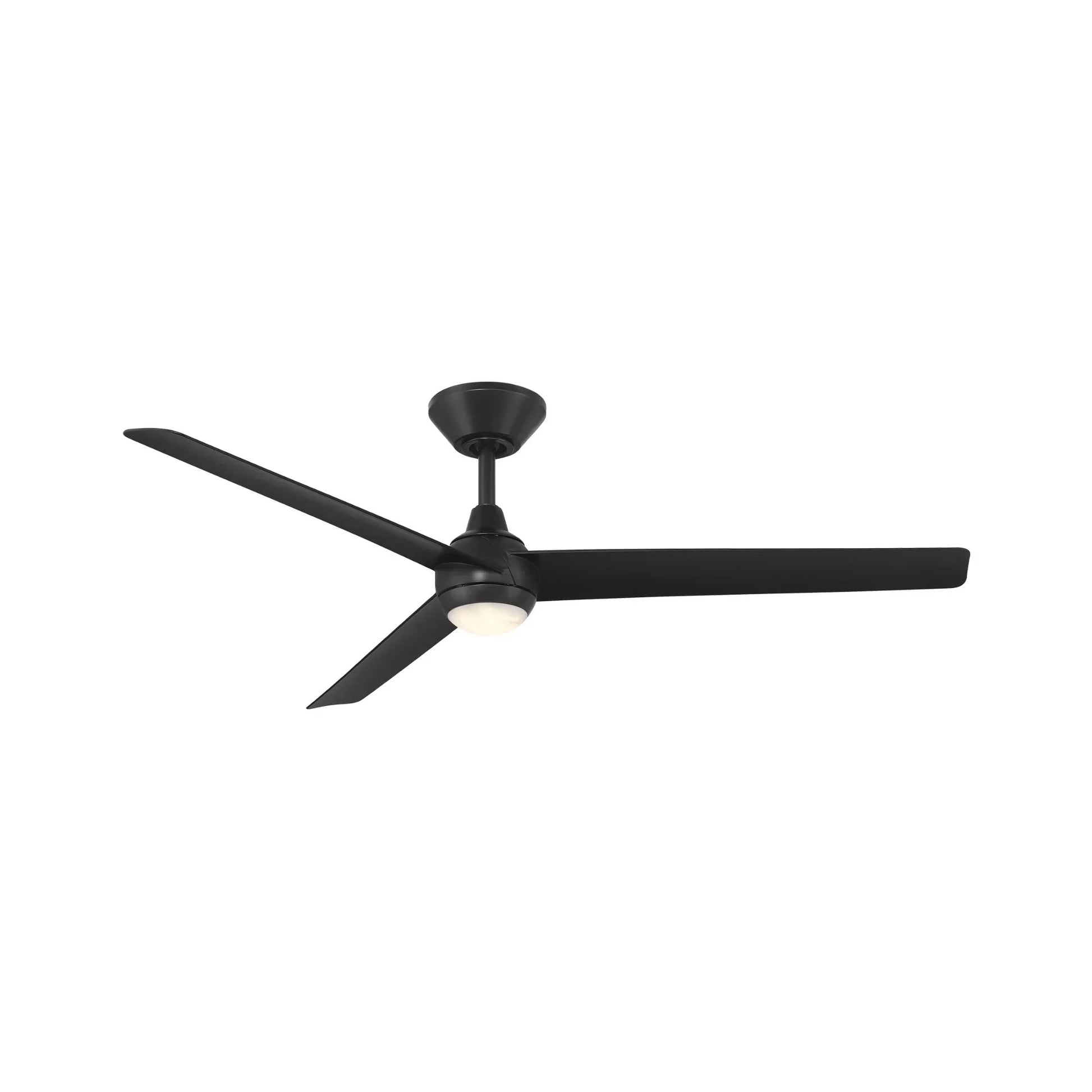

The Modern Forms Pisces FR-W2503-54L-MB is a 54 in wet-rated smart ceiling fan with a sensorless DC motor (108×20mm) delivering 5,700 CFM at high speed and 209 CFM/W efficiency. Three Matte Black ABS blades sweep at a 16-degree pitch. An integrated 16W dimmable LED with a natural Spanish Alabaster diffuser illuminates with selectable 2700K / 4000K / 5000K color temperatures. The all-Matte Black finish delivers a bold, architectural presence that anchors large contemporary, industrial, and modern-transitional indoor and covered outdoor spaces.

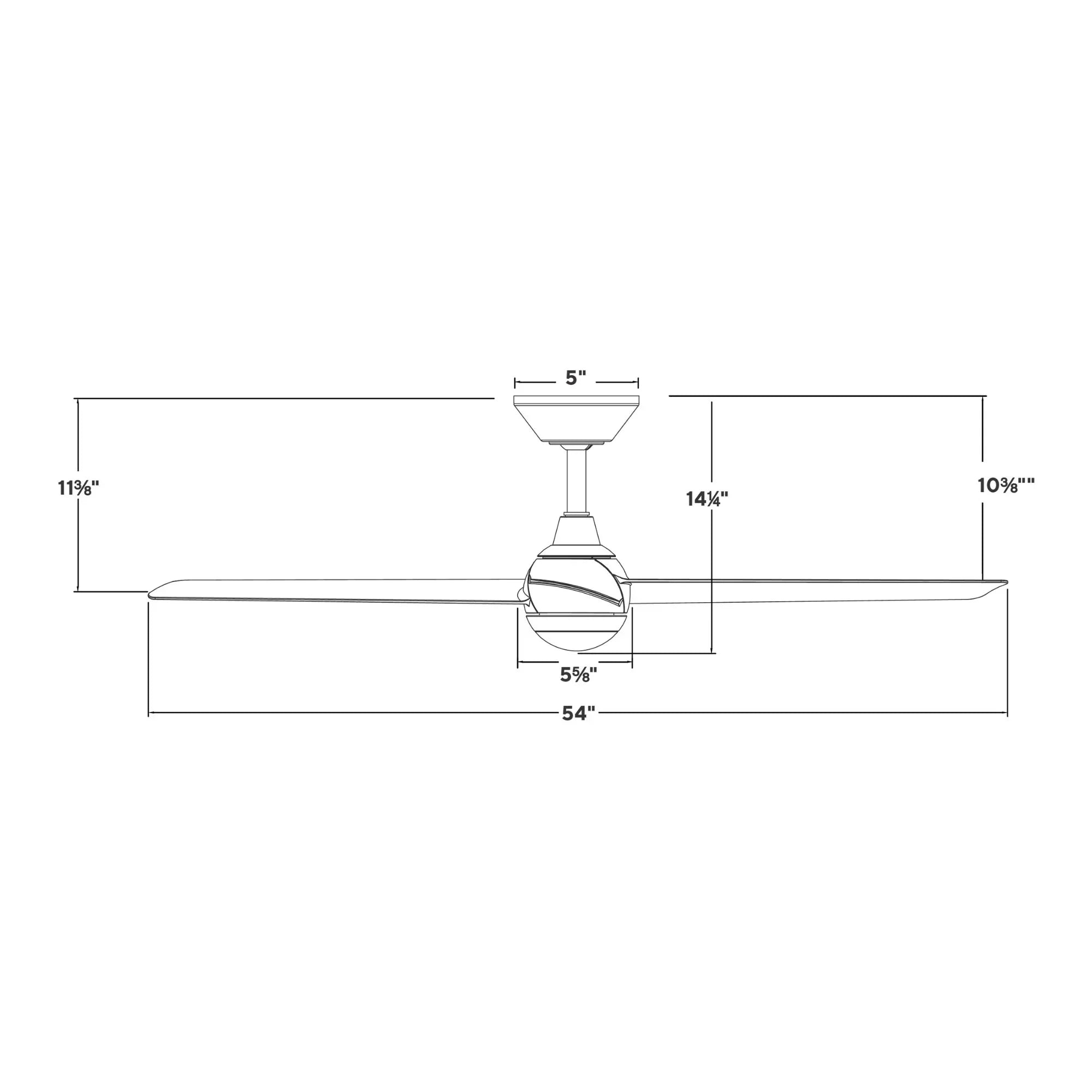

• Blade Span: 54 in — ideal for rooms of 150–225 sq ft
• Blades: 3 Matte Black ABS blades, 16-degree pitch
• Motor: Sensorless DC, 108×20mm, 6-speed, silent, reversible (Summer & Winter)
• Airflow: 5,700 CFM high / 3,606 CFM weighted-average
• Efficiency: 209 CFM/W at high speed
• Wattage: 25W high / 18W weighted-average | Total: 41W
• Max RPM: 169
• Light: 16W LED — 1,497–1,606 lm (CCT dependent), CRI 90, 2700K/4000K/5000K selectable, dimmable, 50,000 hr rated, Spanish Alabaster diffuser
• Location: UL/cUL Wet rated — indoor and outdoor covered use
• Sloped Ceiling: Up to 30° standard; up to 45° with XF-SCK Sloped Ceiling Kit (sold separately)
• Downrod Included: 0.75 in W × 6 in H
• Wire Length: 80 in
• Standards: Title 24 JA8-2016, Title 20, Energy Star

The FR-W2503-54L-MB includes a Bluetooth remote control (F-RCBT-WT) for 6-speed fan control in Forward & Reverse, full-range light dimming, and CCT selection. Optional Bluetooth wall control (F-WCBT-WT) and 3/4-way wall control available separately. Connect to the Modern Forms app (iOS/Android) via native Wi-Fi for full smart home control. Compatible with Amazon Alexa, Google Assistant, Samsung SmartThings, ecobee, Control4, and Josh. Wi-Fi range: up to 150 ft. Bluetooth range: up to 150 ft.

Trim finish: Matte Black. Blades: 3 Matte Black ABS blades at a 16-degree pitch. Motor: 108×20mm sensorless DC. The all-Matte Black silhouette of the Pisces creates a dramatic, sculptural focal point, with the natural Spanish Alabaster diffuser — no two stones alike — providing a striking organic counterpoint to the fan’s bold, dark profile.

The integrated 16W LED delivers 1,497–1,606 lumens (source, CCT dependent) / 630 delivered lumens at CRI 90, diffused through a natural Spanish Alabaster stone shade. Color temperature is selectable: 2700K / 4000K / 5000K. Fully dimmable via remote or app. Rated for 50,000 hours. Fan delivers 5,700 CFM at high speed at 209 CFM/W — Energy Star certified.

Input Voltage: 120V AC. Total Power: 41W (25W fan high + 16W light). Reversible Motor: Yes — 6-speed Summer & Winter modes. Downrod: 0.75 in W × 6 in H included. Wire Length: 80 in. Sloped Ceiling: Up to 30° standard; up to 45° (12/12 pitch) with optional Modern Forms XF-SCK Sloped Ceiling Kit (sold separately). Max recommended downrod: 72 in with 80 in lead wire.

Ships with a 6 in downrod. Ensure at least 7 ft of clearance between the floor and fan blades. Modern Forms downrods are 0.75 in I.D. and threaded on the motor end.

• 9 ft ceiling → 12 in downrod
• 10 ft ceiling → 18 in downrod
• 11 ft ceiling → 24 in downrod
• 12 ft ceiling → 36 in downrod
• 13 ft ceiling → 48 in downrod
• 14 ft ceiling → 60 in downrod
• 15 ft ceiling → 72 in downrod

• Modern Forms Pisces 54 in smart ceiling fan (motor + blades + LED light with Spanish Alabaster diffuser)
• Bluetooth remote control (F-RCBT-WT)
• 6 in downrod (0.75 in W)
• Canopy and mounting hardware
