Modern Forms Smooth 52 in Outdoor Smart LED Ceiling Fan DC Matte Black
Available in stock (214)
About this item
About this item
- Airflow Performance: 5,732 CFM at high speed — 3,584 CFM / 187 CFM/W weighted average, ENERGY STAR® rated, sized for rooms 175–350 sq ft.
- Sensorless DC Motor: 108×20mm silent sensorless DC motor with 6 speeds, Summer & Winter modes — ultra-quiet, energy-efficient operation.

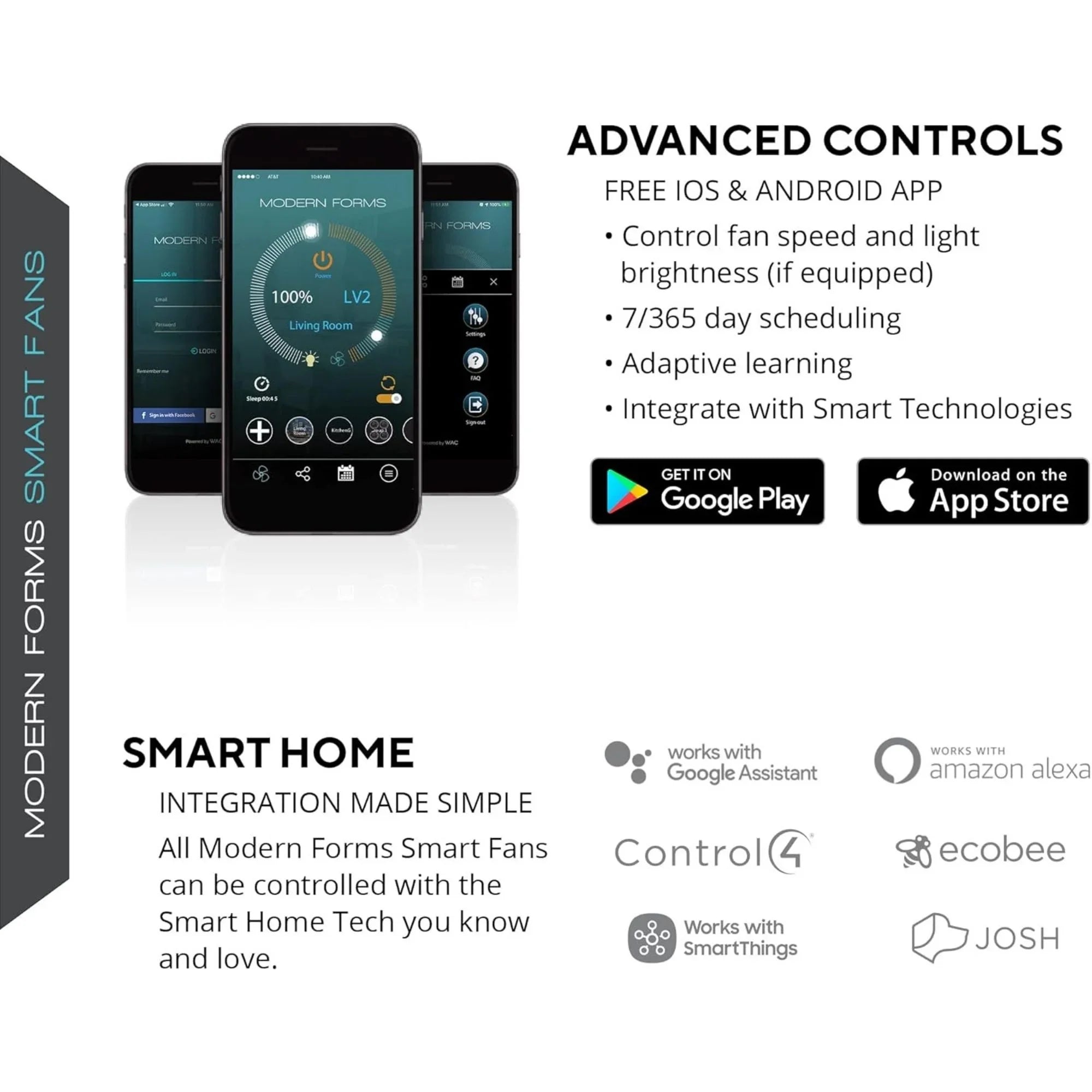

- Smart Home Ecosystem: Native WiFi + Bluetooth (150 ft range) — Modern Forms app, Amazon Alexa, Google Assistant, SmartThings, Control4, JOSH, and Ecobee compatible.
- Sloped Ceiling Ready: Up to 30° standard; up to 45° (12/12 pitch) with optional XF-SCK Sloped Ceiling Kit.

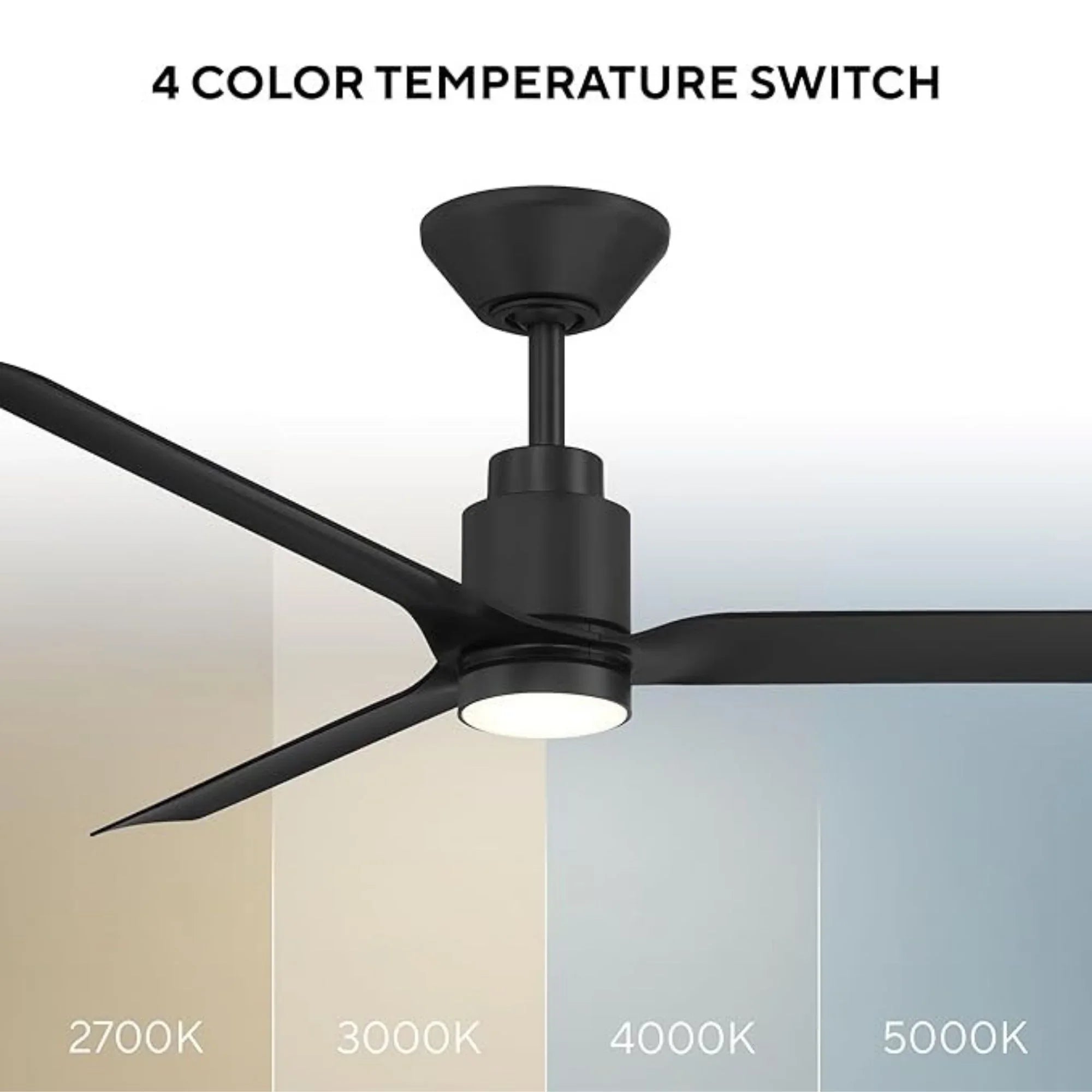

- Integrated LED Light: 16W LED, up to 1,606 lumens, CRI 90, selectable 2700K / 3000K / 4000K / 5000K, fully dimmable, 50,000 hr rated life.
We process payments securely and do not store credit card information.
Description
Description

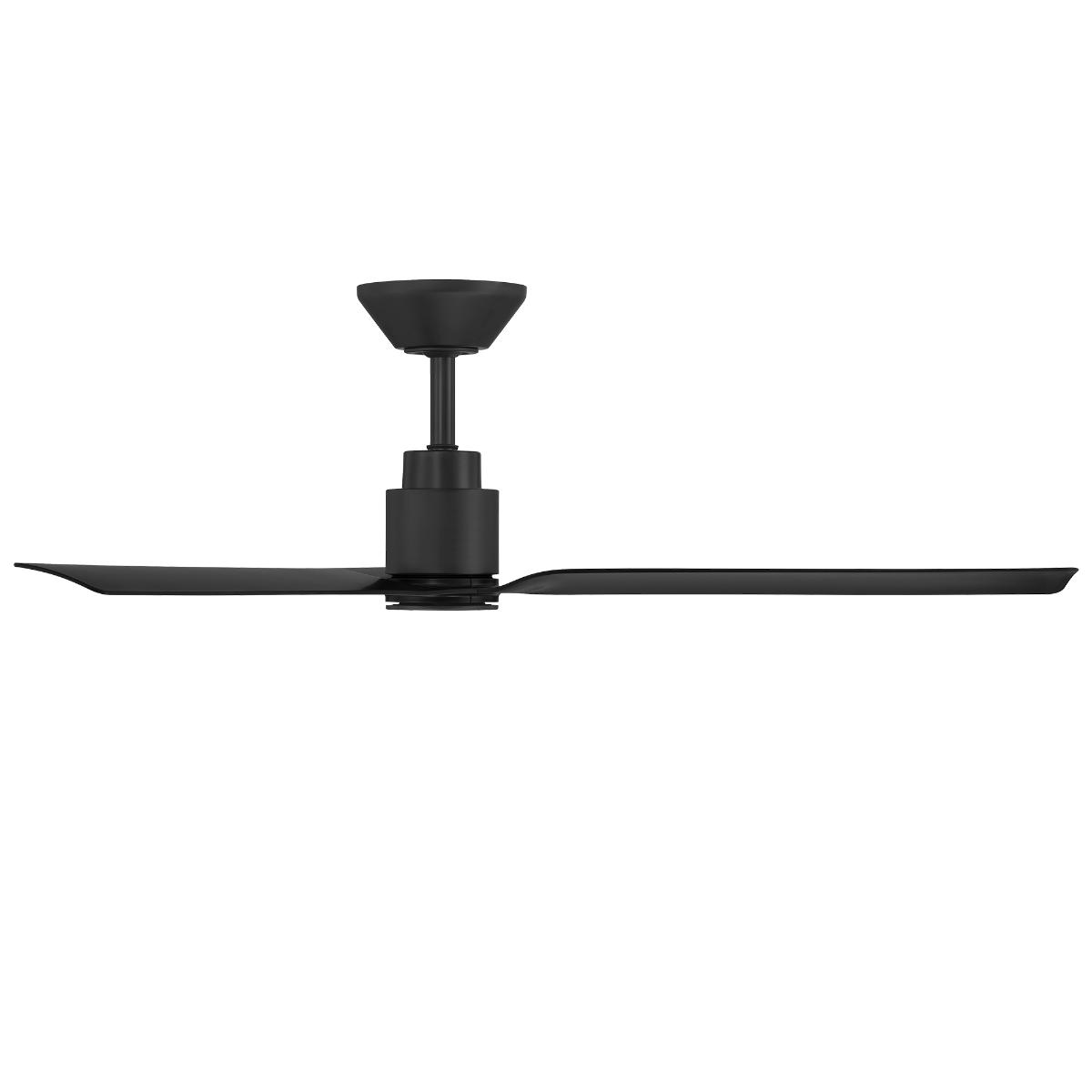

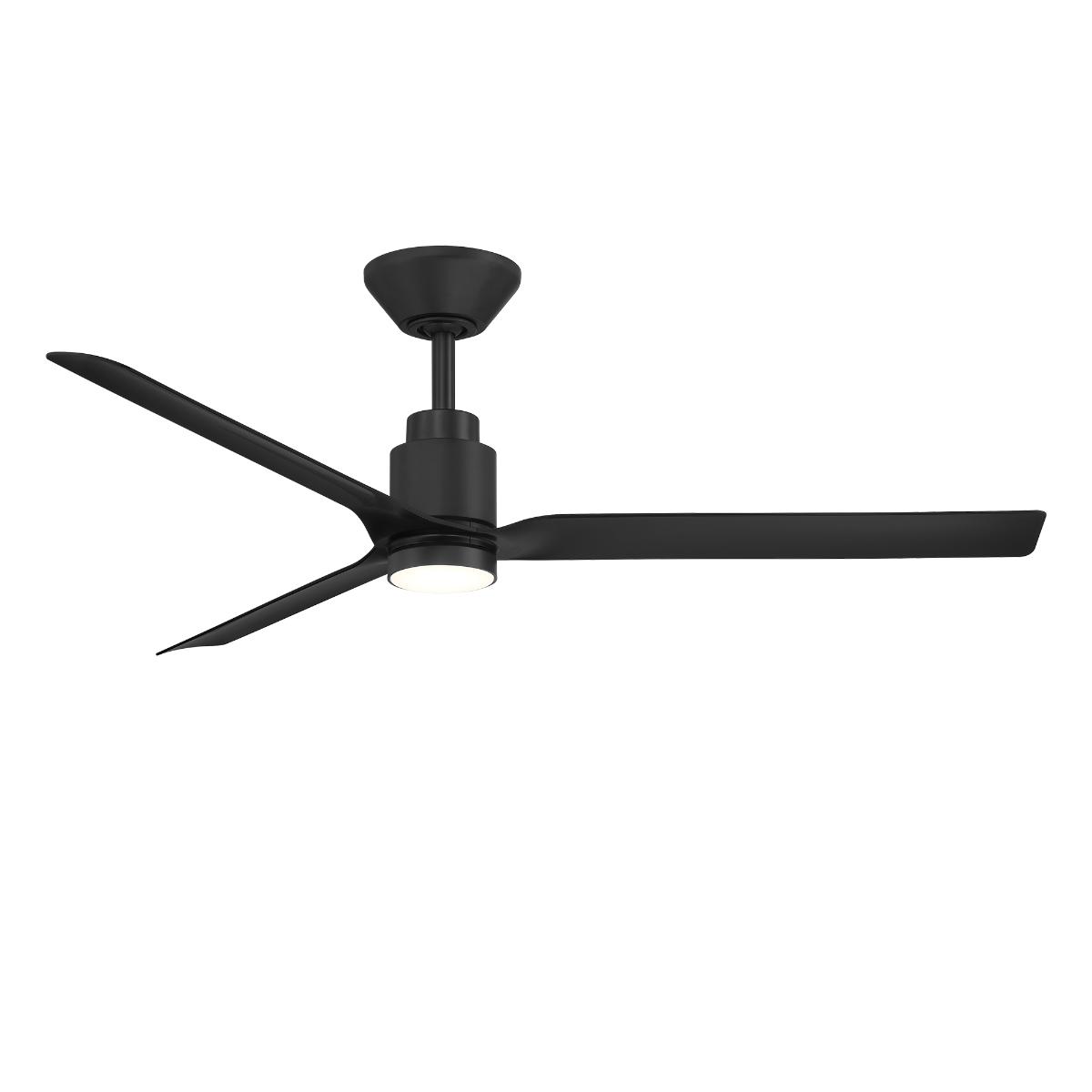

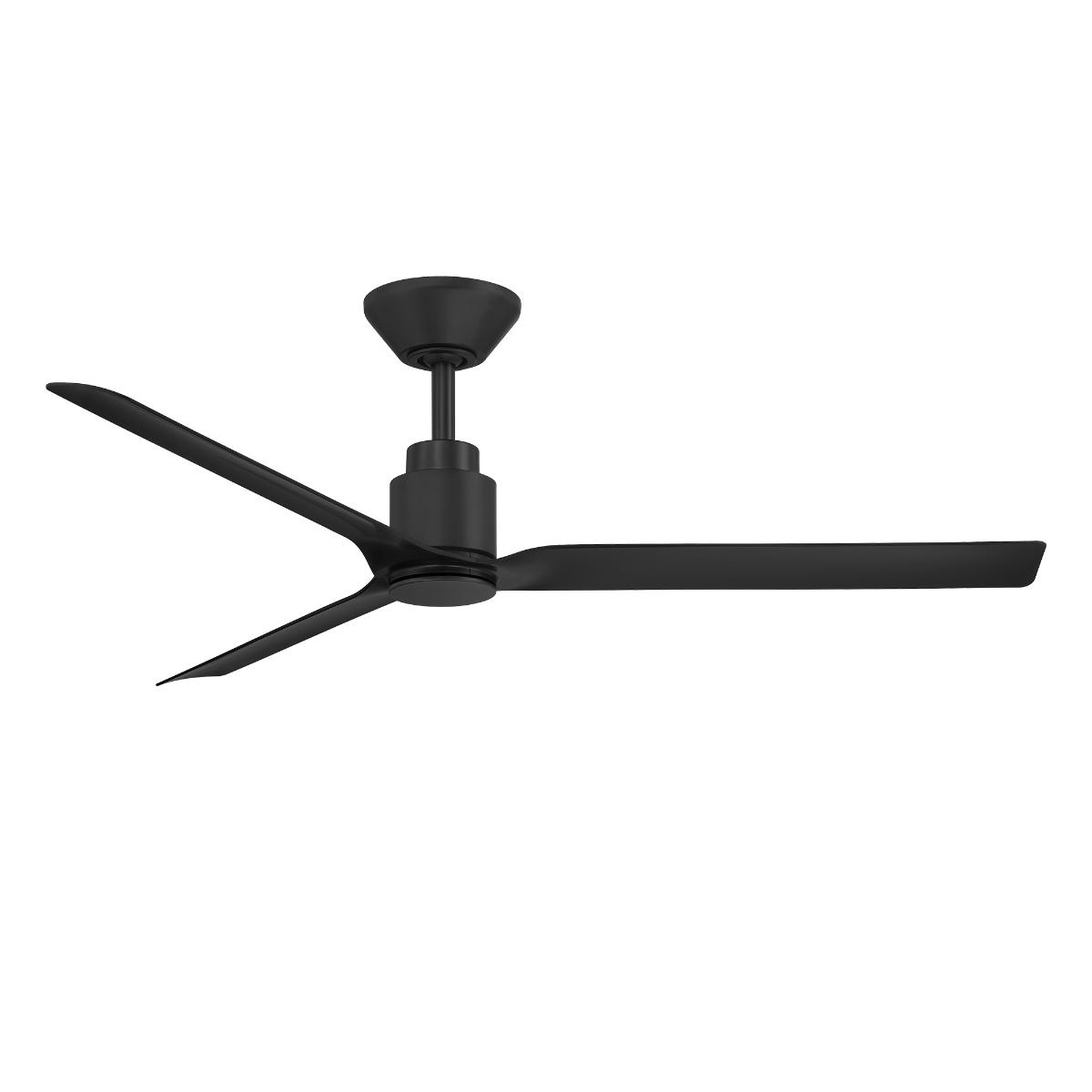

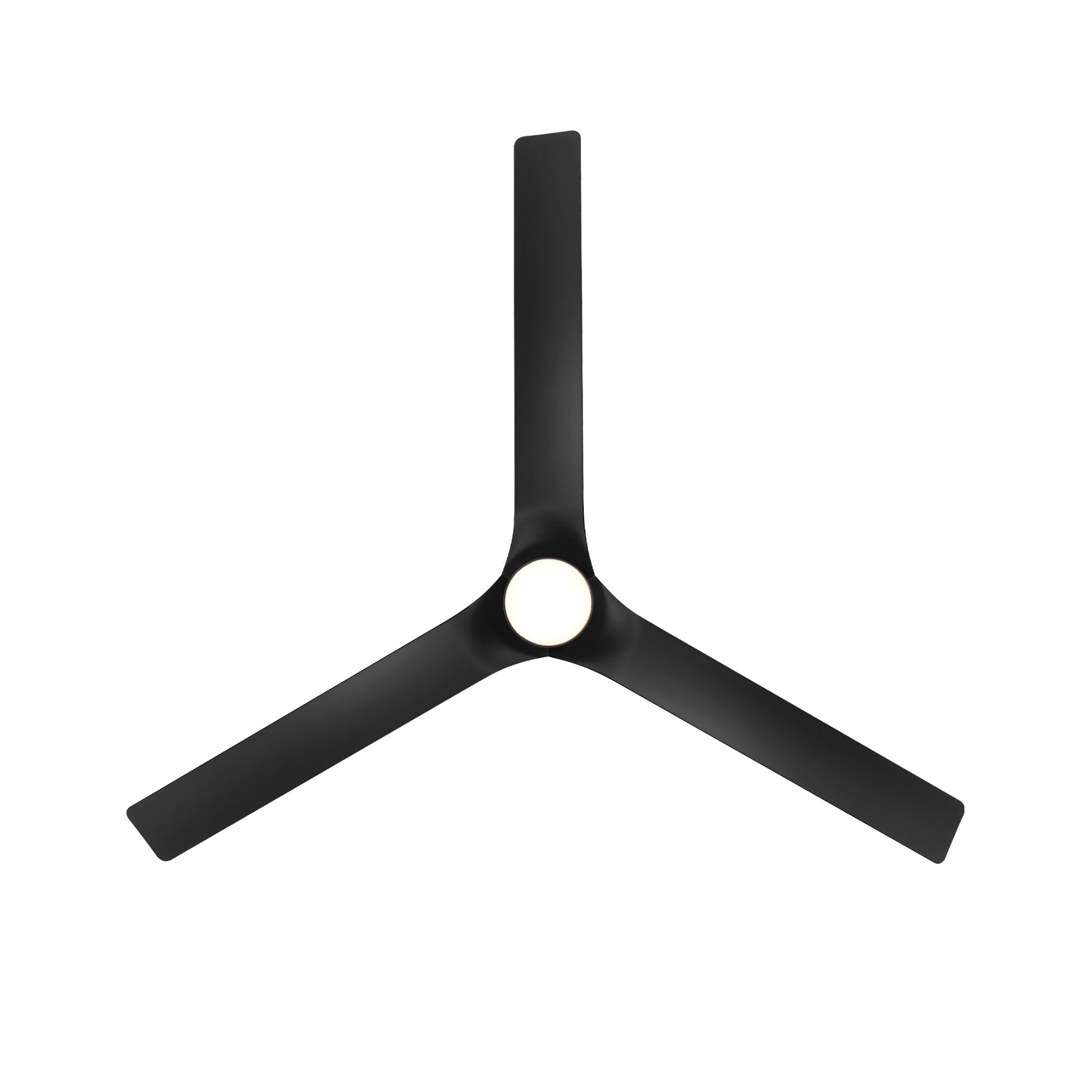

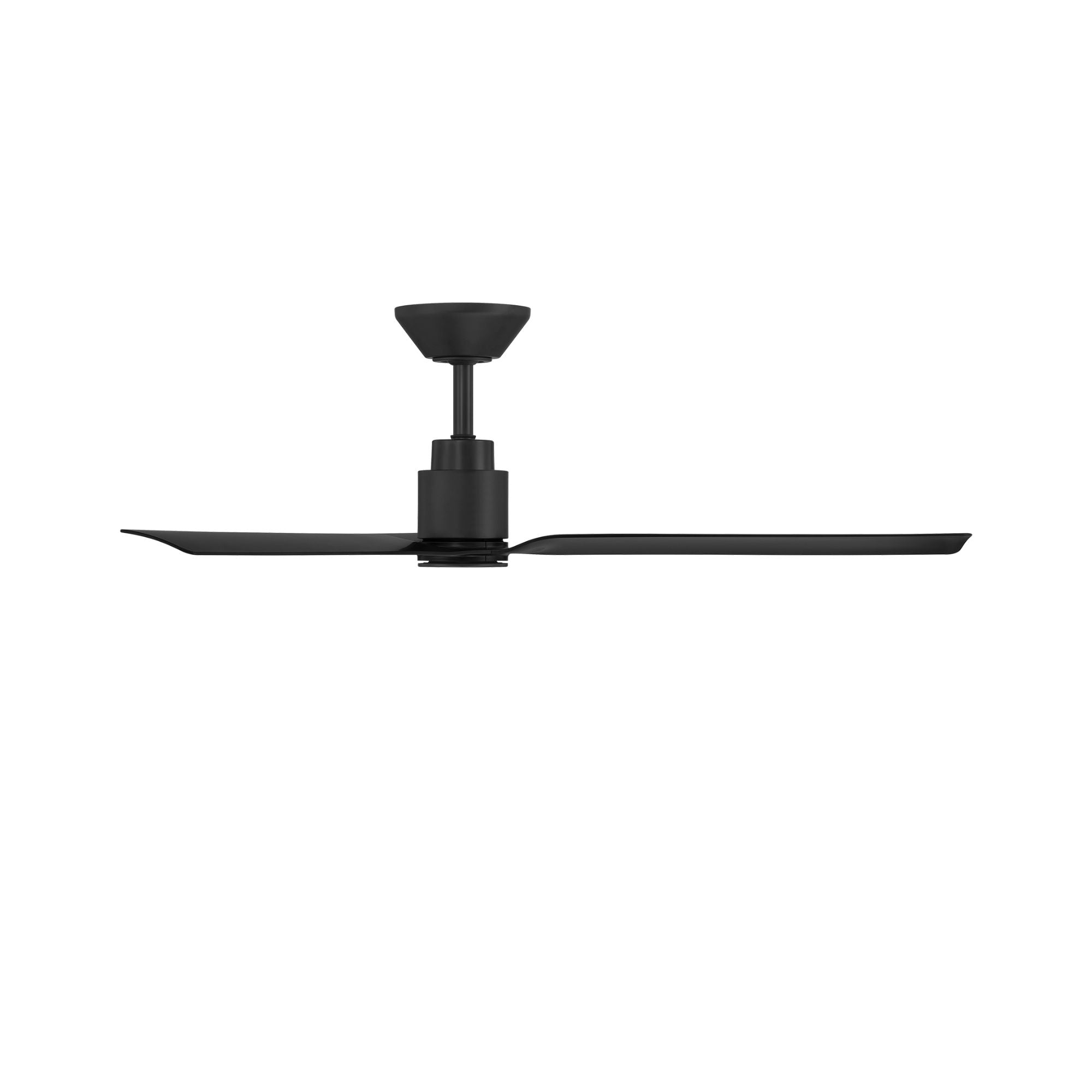

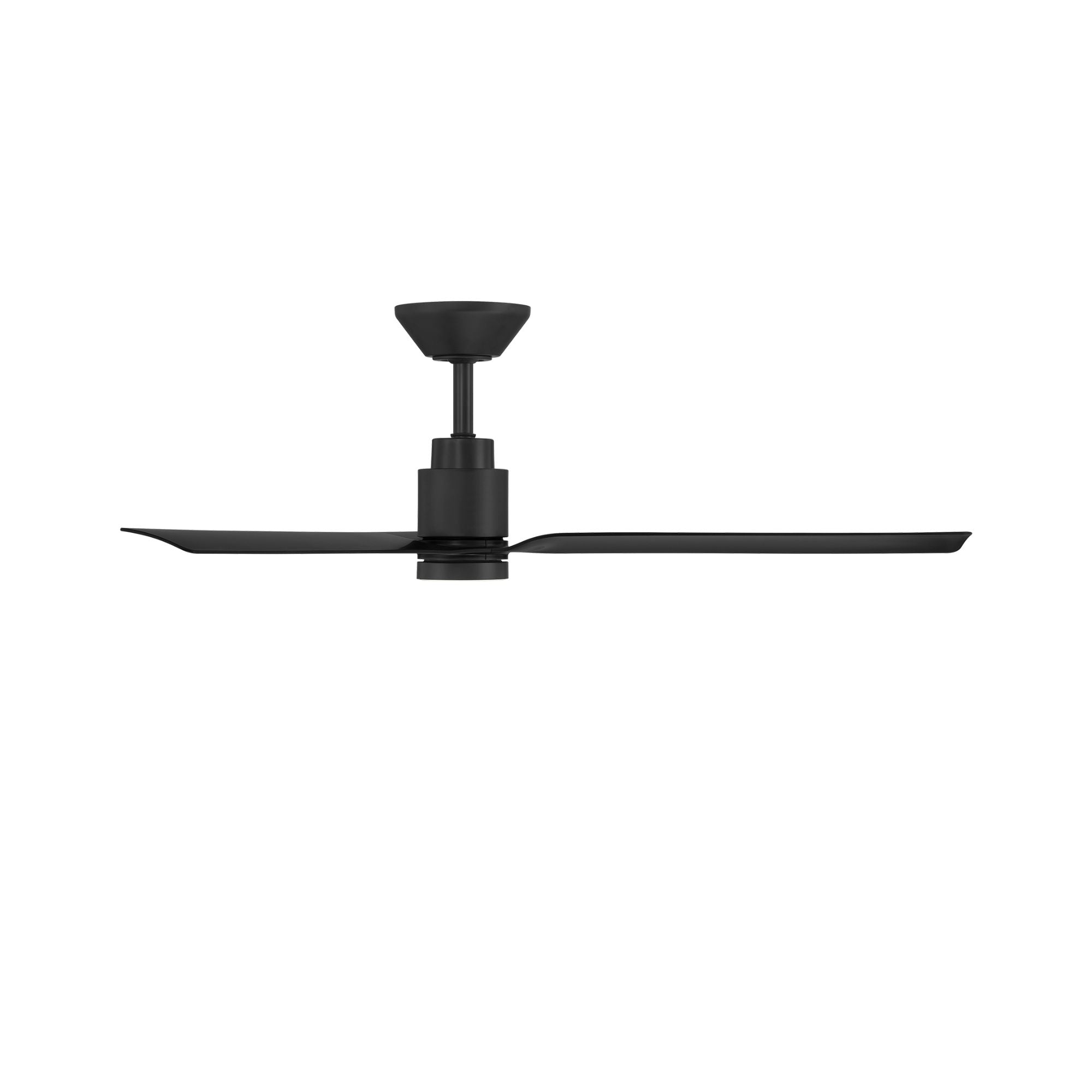

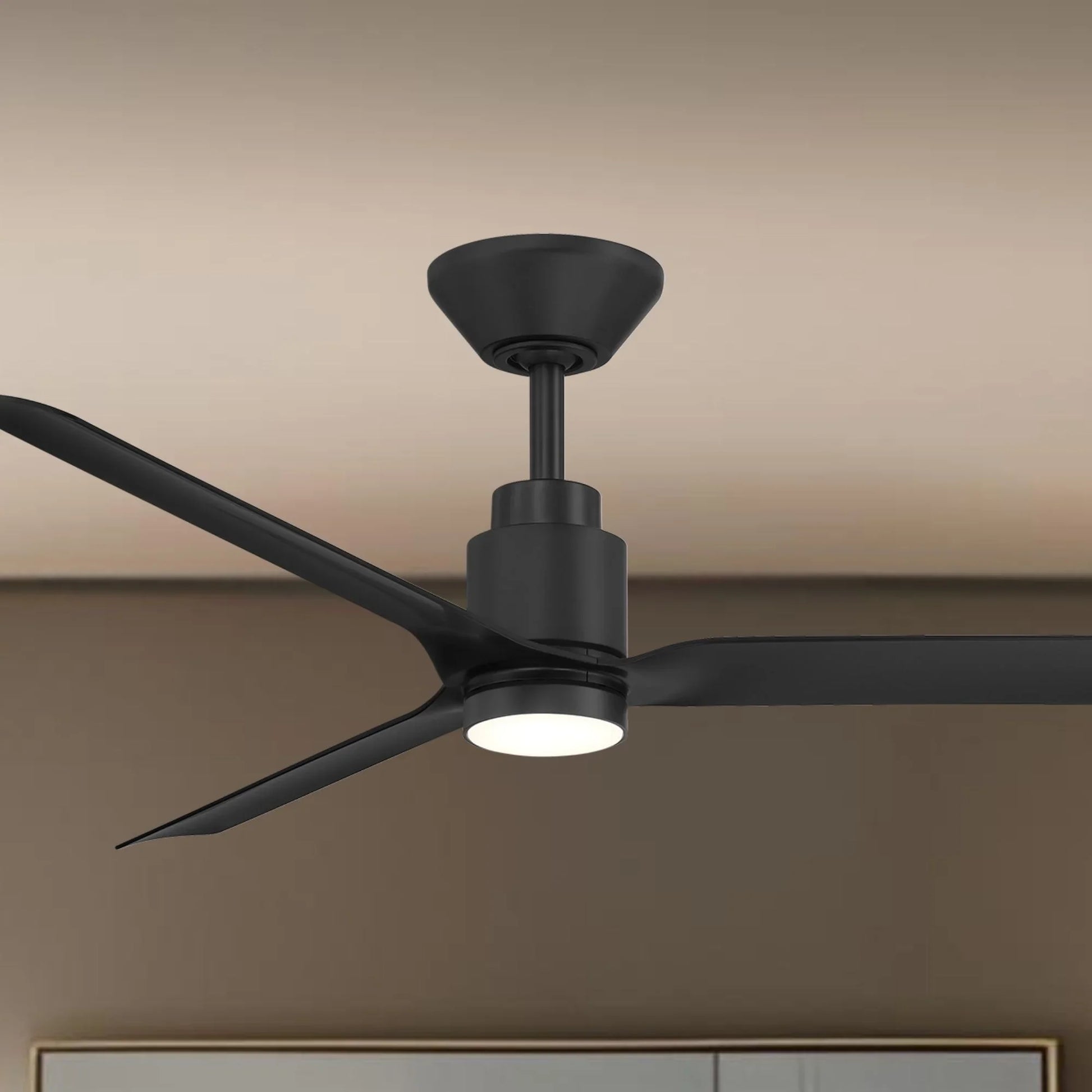

The Modern Forms Smooth FR-W2502-52L-MB is a 52 in wet-rated smart ceiling fan built for low-profile performance. Three curved ABS blades at 16° pitch deliver 5,732 CFM through a silent sensorless DC motor, while the full Modern Forms ecosystem — WiFi, Bluetooth, Alexa, Google, SmartThings, Control4, JOSH, and Ecobee — makes it one of the most connected fans available. All-Matte Black finish. Ships uni-pack.
Key Features- Blade Span: 52 in — ideal for rooms 175–350 sq ft
- Mount Type: Downrod — .75 in W × 6 in H included

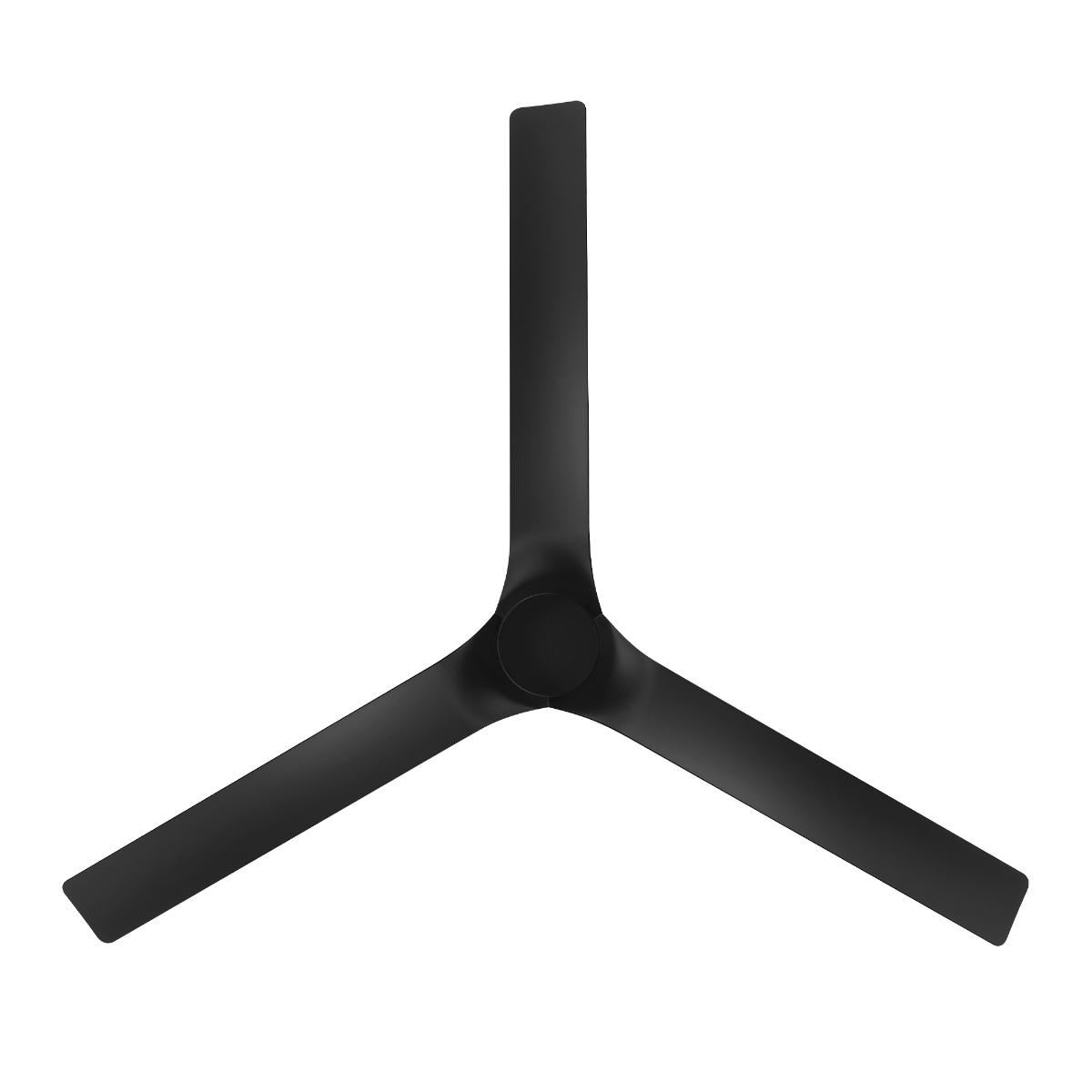

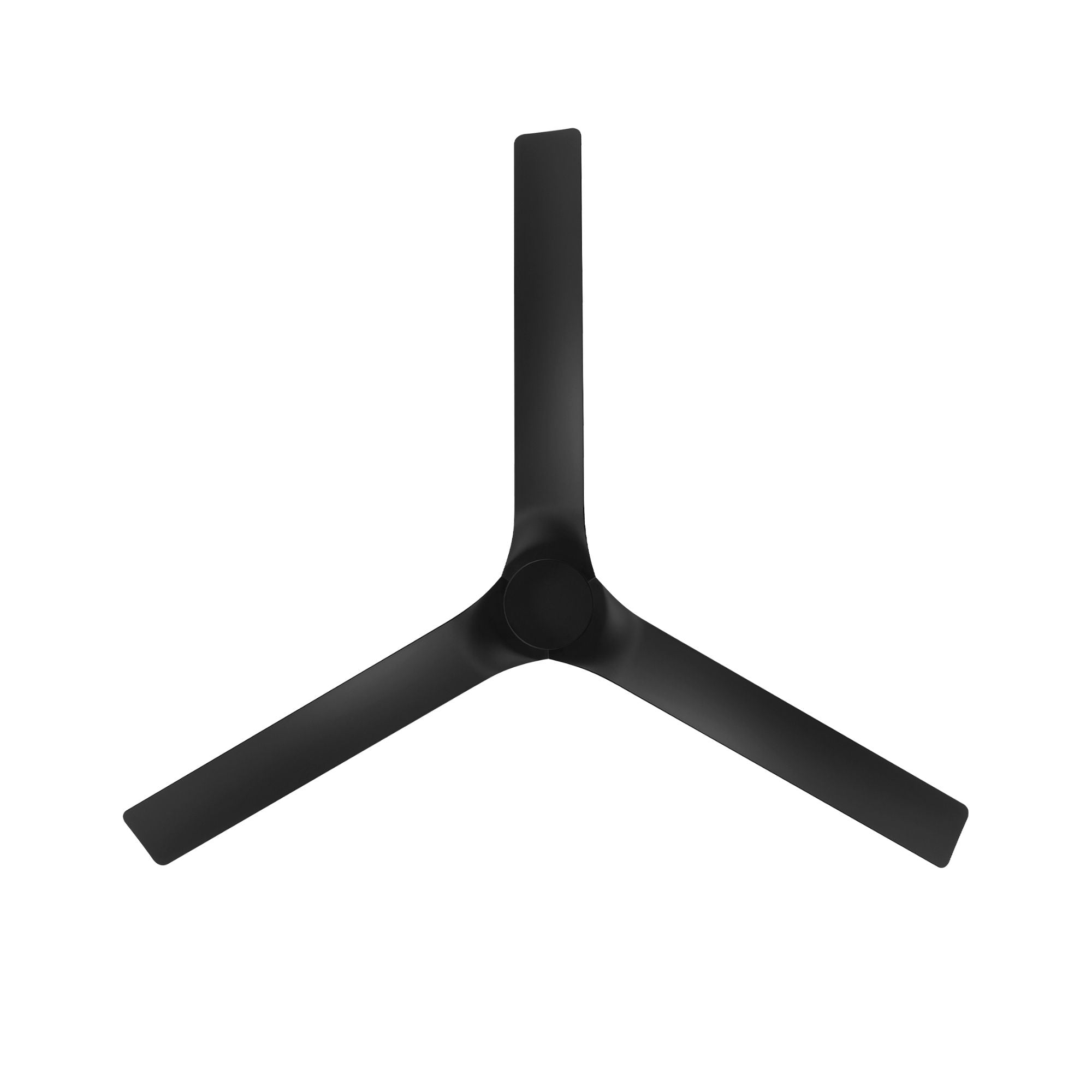

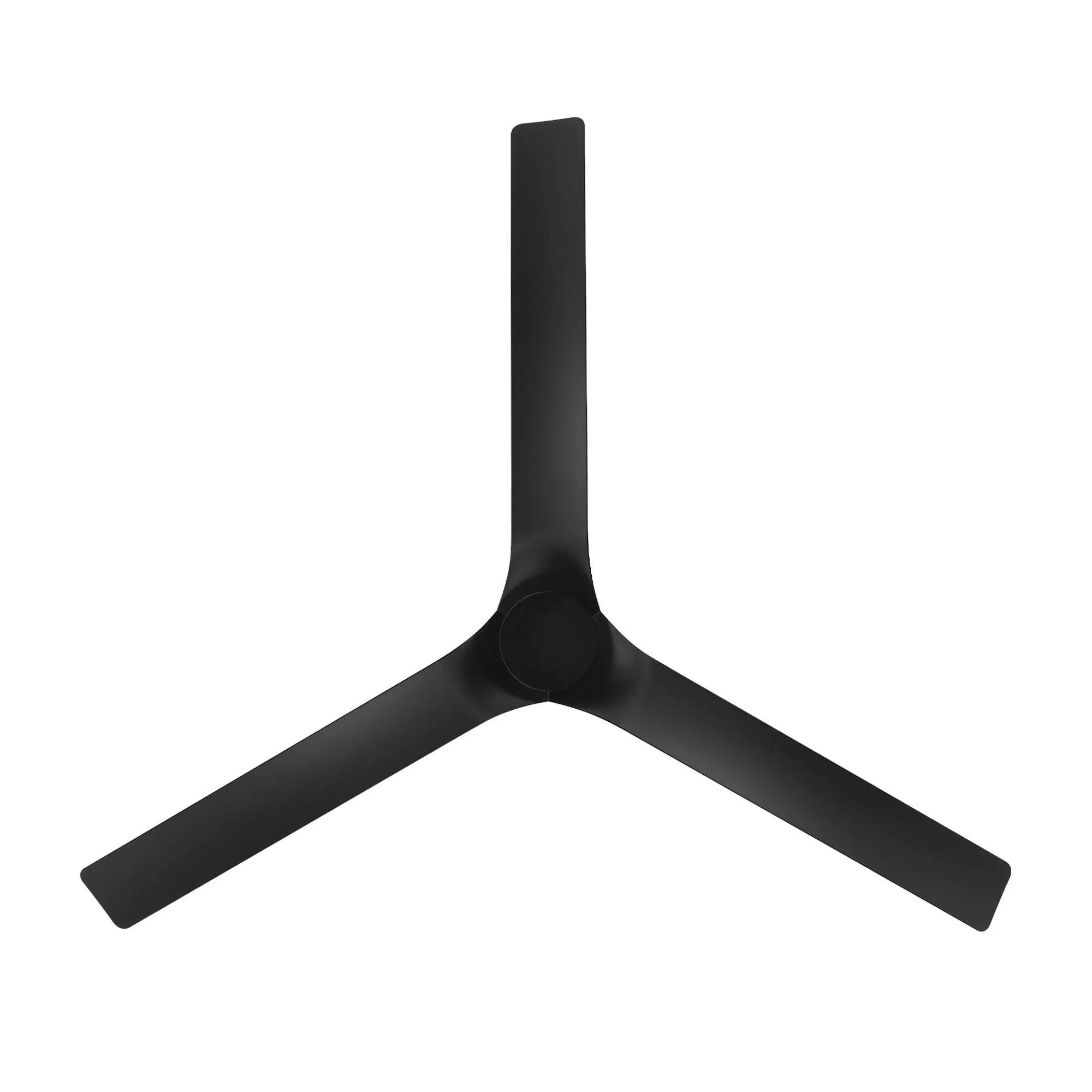

- Blades: 3 ABS blades, 16° pitch — Matte Black, included
- Motor: 108×20mm sensorless DC, 6-speed, Summer & Winter modes
- Airflow: 5,732 CFM high / 3,584 CFM weighted average
- Efficiency: 187 CFM/W high — ENERGY STAR® / Title 20 rated
- Wattage: 27W high / 19W weighted average

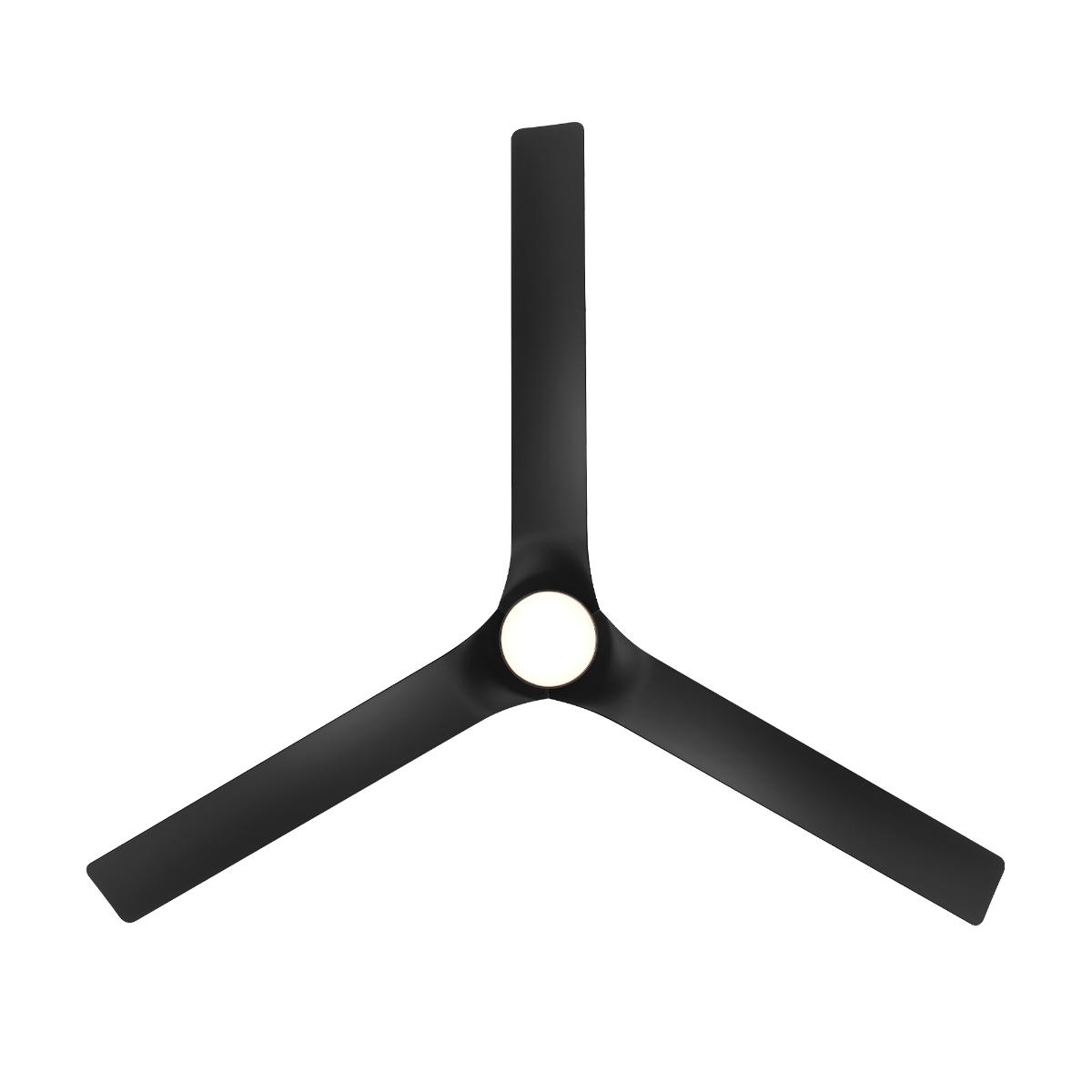

- Light: 16W LED, 1,497–1,606 lm / 707 delivered lm, CRI 90, CCT 2700K–5000K selectable, dimmable, 50,000 hr
- Location: Wet rated — UL/cUL, Title 24 JA8-2016
- Slope: Up to 30° standard / 45° with optional XF-SCK kit
- Wire: 80 in / Weight: 10.8 lbs

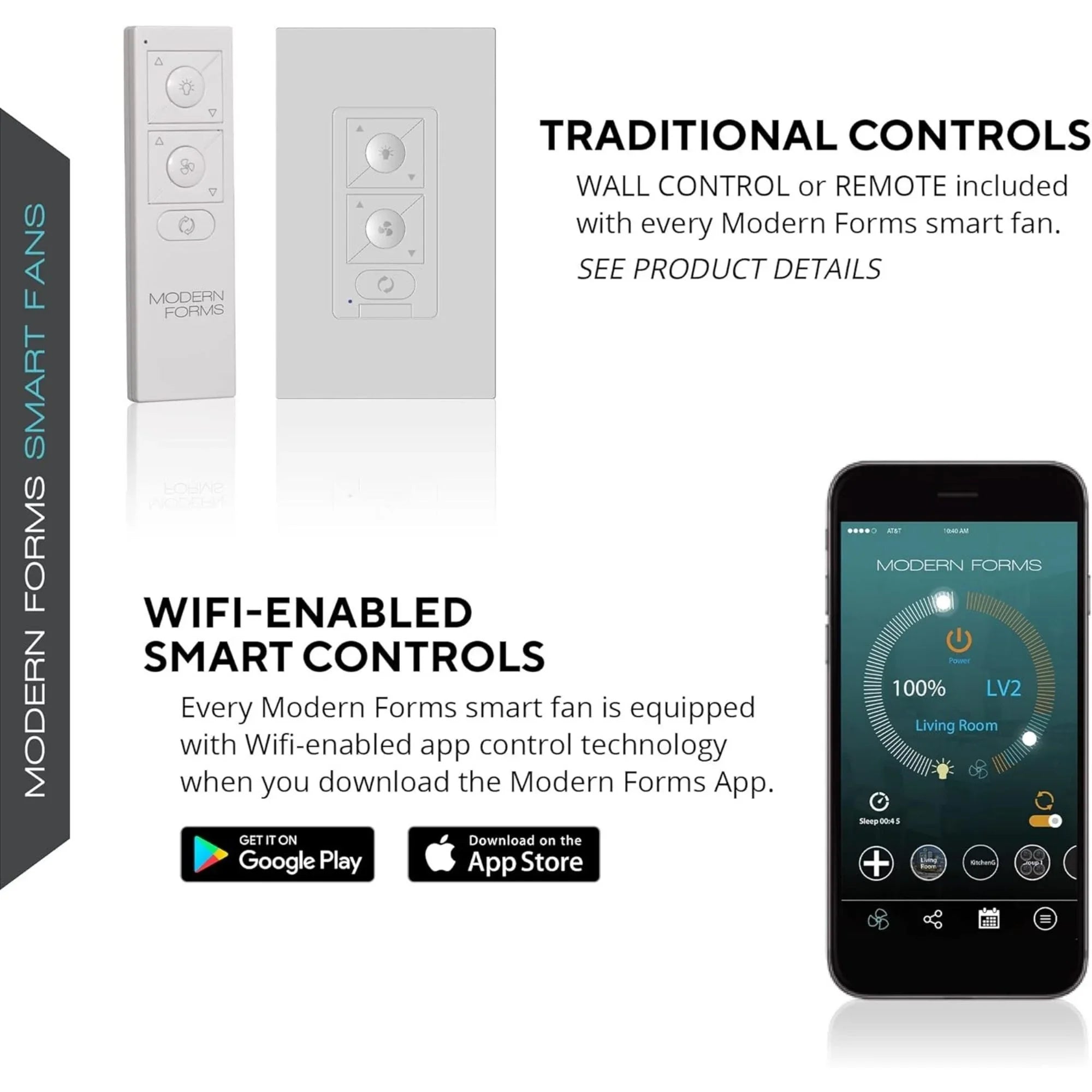

Native WiFi + Bluetooth (150 ft). Modern Forms app, Alexa, Google Assistant, SmartThings, Control4, JOSH, Ecobee. Includes F-RCBT-WT remote — 6-speed, dimmer, Summer/Winter mode. Optional wall control F-WCBT-WT sold separately.
Construction & DesignMatte Black aluminum/ABS housing. 3 Matte Black ABS blades, 16° pitch. Luminaire cover included. Ships uni-pack — blade color is fixed. For a flush mount version, see FH-W2502-52L-MB.
Light Output & Performance16W LED, up to 1,606 lm (707 delivered), CRI 90, CCT 2700K / 3000K / 4000K / 5000K selectable, fully dimmable, 50,000 hr rated life. Fan: 5,732 CFM at 187 CFM/W high speed.
Electrical & Installation120V DC, 27W high / 19W avg. Wet rated — UL/cUL, Title 24 JA8-2016, Title 20, ENERGY STAR®. Downrod: .75 in × 6 in included. Max slope: 30° / 45° with XF-SCK. Wire: 80 in. Weight: 10.8 lbs. Max RPM: 177.
Suggested Downrod by Ceiling HeightShips with 6 in downrod. Maintain 7 ft floor-to-blade clearance. Additional downrods (XF-12-MB through XF-72-MB) available separately. Max recommended: 72 in.
- 9 ft → 12 in
- 10 ft → 18 in
- 11 ft → 24 in
- 12 ft → 36 in
- 13 ft → 48 in
- 14 ft → 60 in
- 15 ft → 72 in
- Modern Forms Smooth 52 in fan (motor + 3 Matte Black blades)
- Integrated LED light kit with opal lens
- Luminaire cover
- Bluetooth remote (F-RCBT-WT)
- 6 in downrod (.75 in W)
- Mounting hardware
