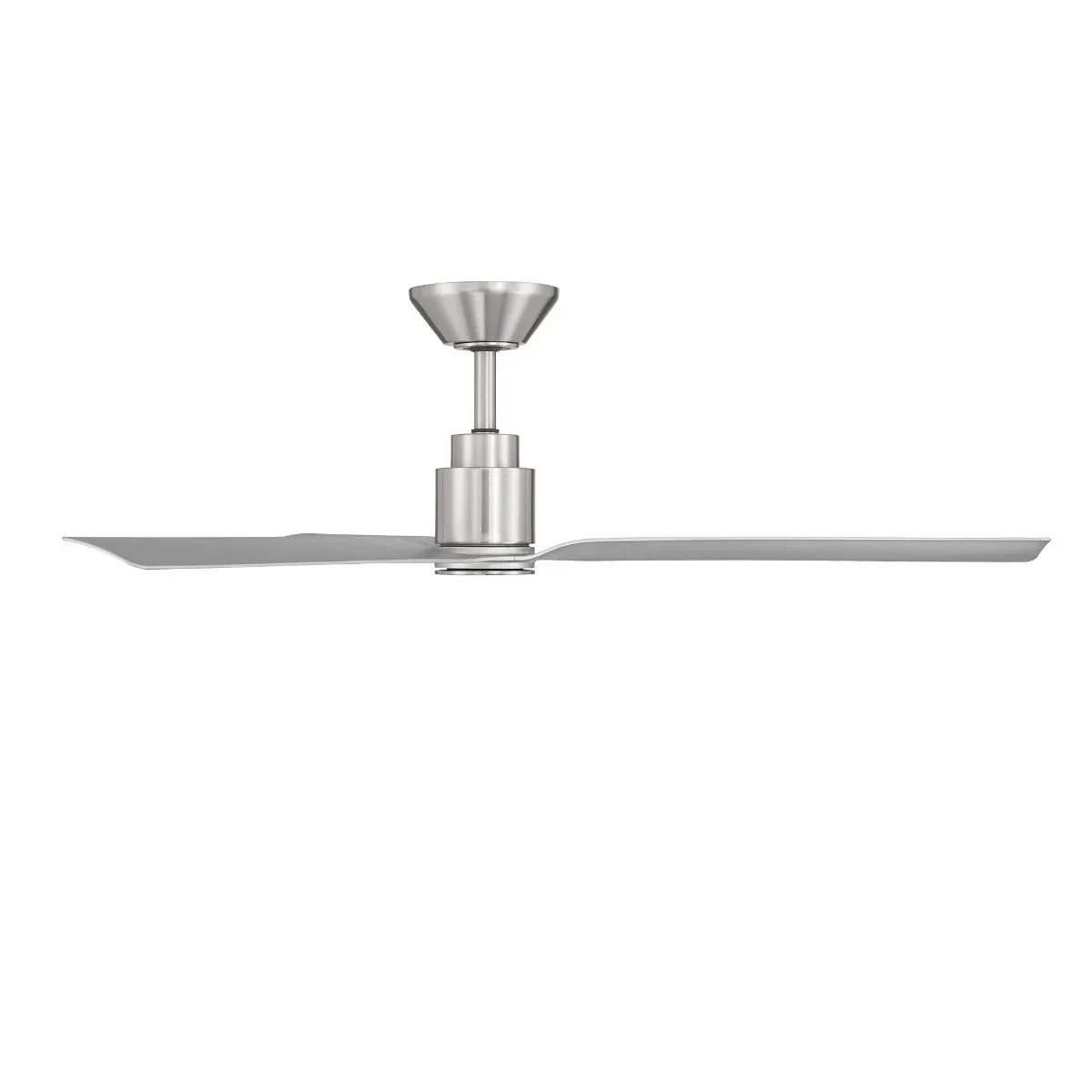

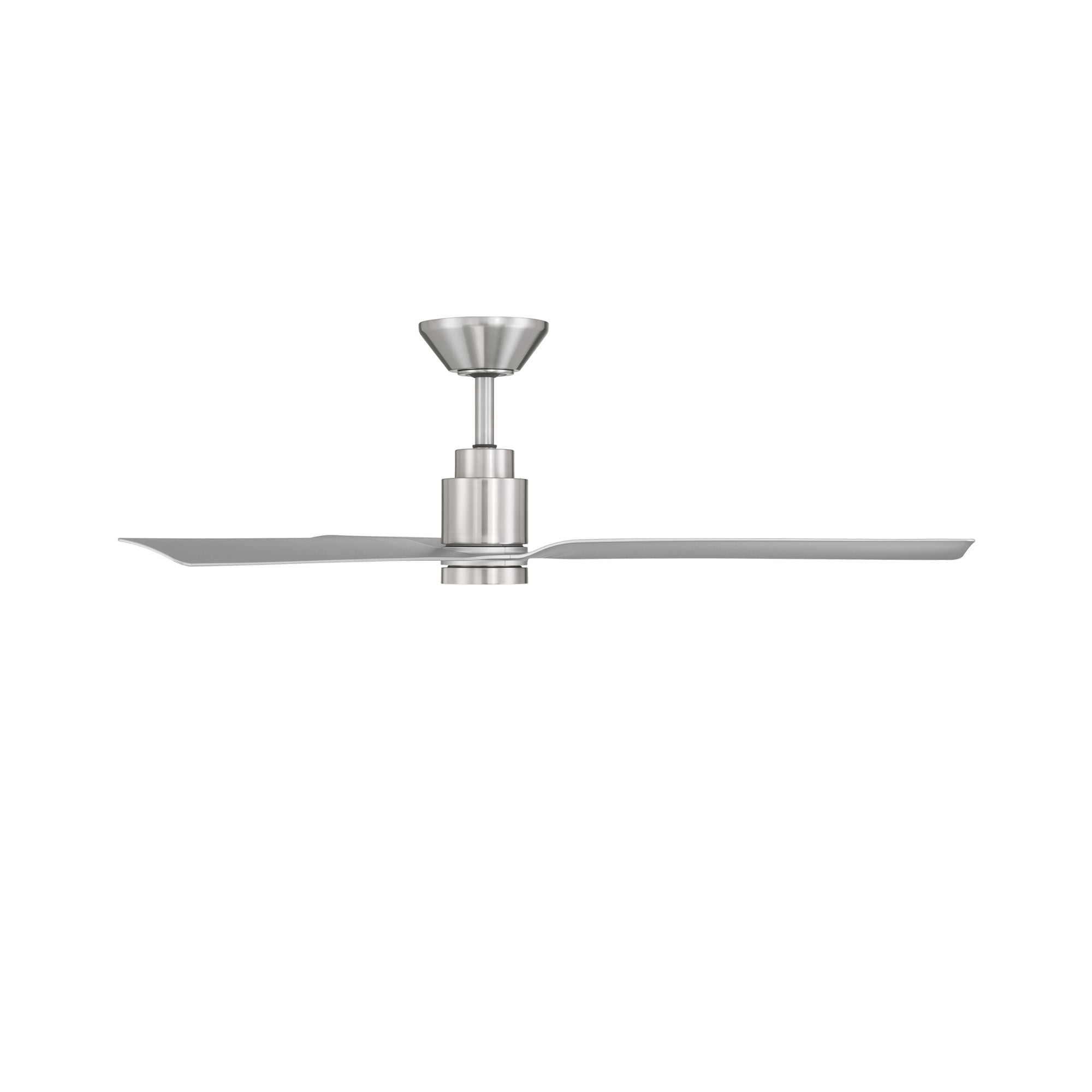

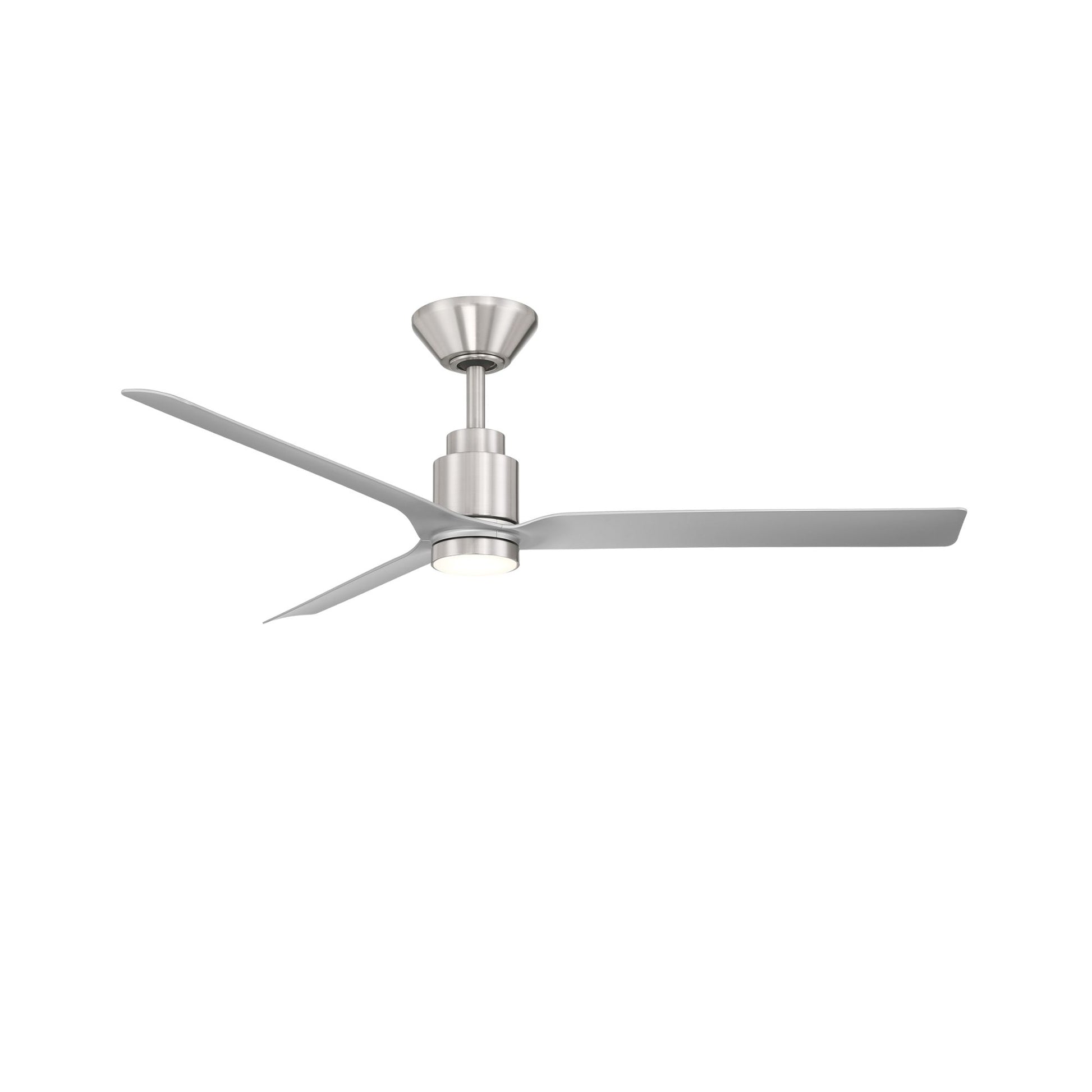

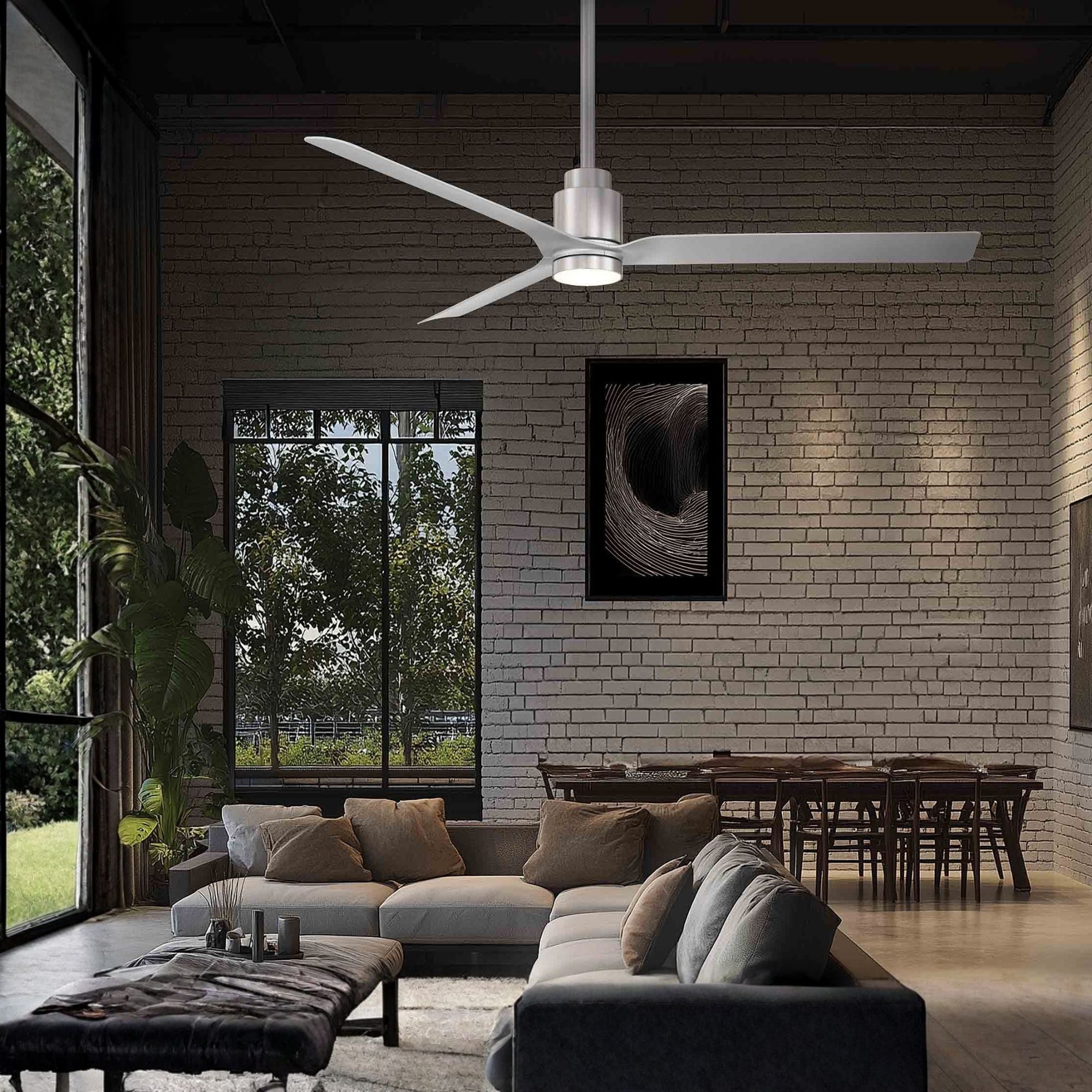

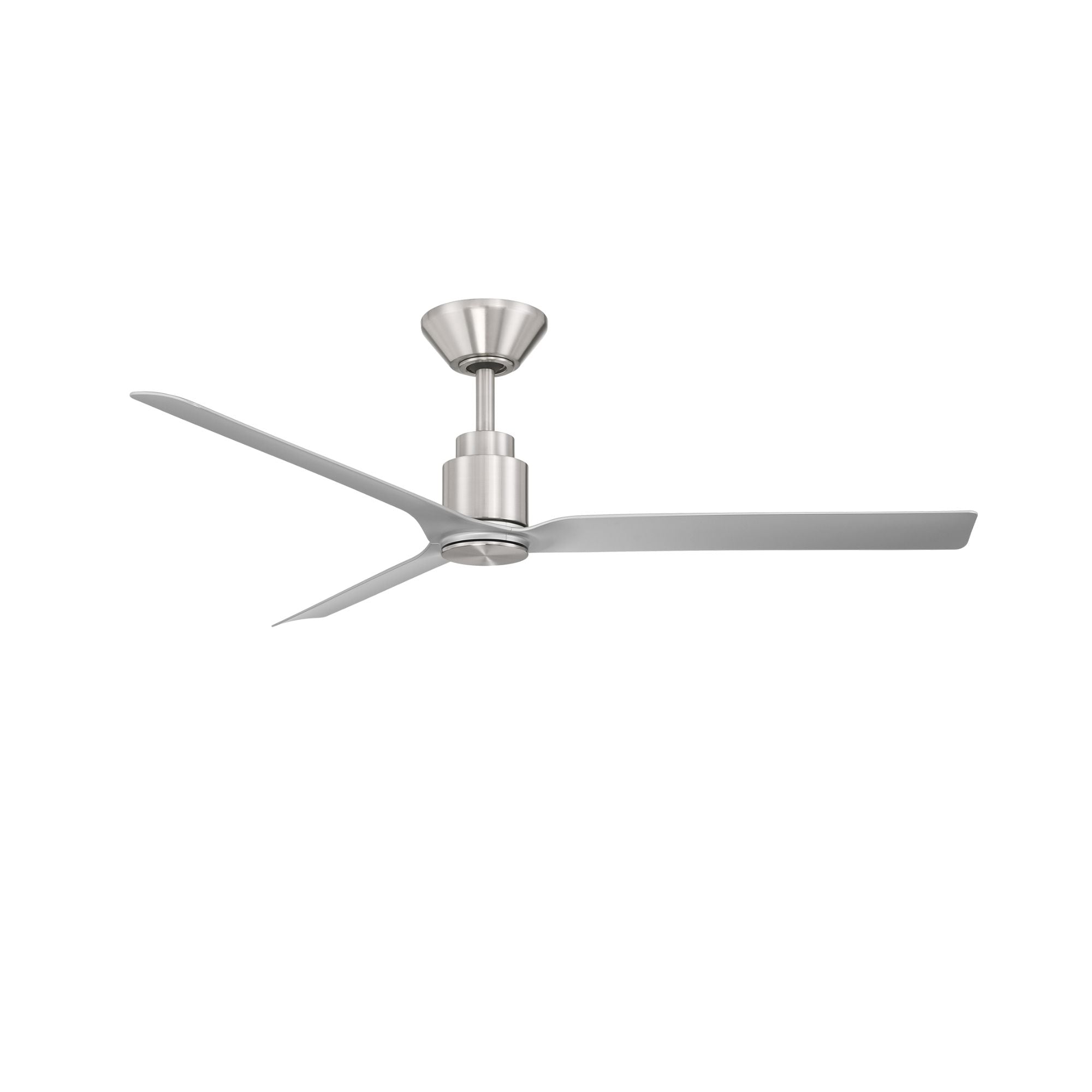

The Modern Forms Smooth FR-W2502-52L-BN/SL is a 52 in wet-rated smart ceiling fan that pairs minimalist design with class-leading smart home connectivity. Three gracefully curved ABS blades at 16° pitch create a seamless 52 in sweep, delivering 5,732 CFM through a silent 108×20mm sensorless DC motor. The integrated CCT LED with opal lens and the full Modern Forms ecosystem — WiFi, Bluetooth, Alexa, Google Assistant, SmartThings, Control4, JOSH, and Ecobee — make the Smooth one of the most connected ceiling fans available. The Brushed Nickel housing paired with Silver blades delivers a clean, contemporary metallic aesthetic. Ships uni-pack — blade color is pre-selected.

• Blade Span: 52 in — ideal for rooms 175–350 sq ft
• Mount Type: Downrod — .75 in W × 6 in H downrod included
• Blades: 3 ABS blades, 16° pitch — Silver finish, included
• Motor: 108×20mm sensorless DC, 6-speed, silent, Summer & Winter modes
• Airflow: 5,732 CFM high / 3,584 CFM weighted average
• Efficiency: 187 CFM/W high — ENERGY STAR® / Title 20 rated
• Wattage: 27W high / 19W weighted average
• Light: Integrated LED, 16W, 1,497–1,606 lm / 707 delivered lm, CRI 90, CCT 2700K–5000K selectable, dimmable, 50,000 hr rated life
• Location: Wet rated — UL/cUL Wet Location listed, Title 24 JA8-2016, suitable for open outdoor use
• Mounting Slope: Up to 30° standard / up to 45° (12/12 pitch) with optional XF-SCK Sloped Ceiling Kit
• Wire: 80 in lead wire / Weight: 10.8 lbs

The FR-W2502-52L-BN/SL features native WiFi + Bluetooth (up to 150 ft range). Control via the Modern Forms app (iOS & Android) or voice with Amazon Alexa, Google Assistant, Samsung SmartThings, Control4, JOSH, and Ecobee. Includes Bluetooth remote control F-RCBT-WT — 6-speed fan control, full-range light dimmer, and Summer/Winter mode switching. Optional Bluetooth wall control F-WCBT-WT available separately for 3- or 4-way control.

Motor housing: Brushed Nickel aluminum/ABS. Blades: 3 Silver ABS, 16° pitch. Includes luminaire cover for a clean, finished look when operating without the light kit. Ships uni-pack — blade color is fixed; alternate blade selections are not available for this finish. For a flush mount version, see the sister model FH-W2502-52L-BN/SL.

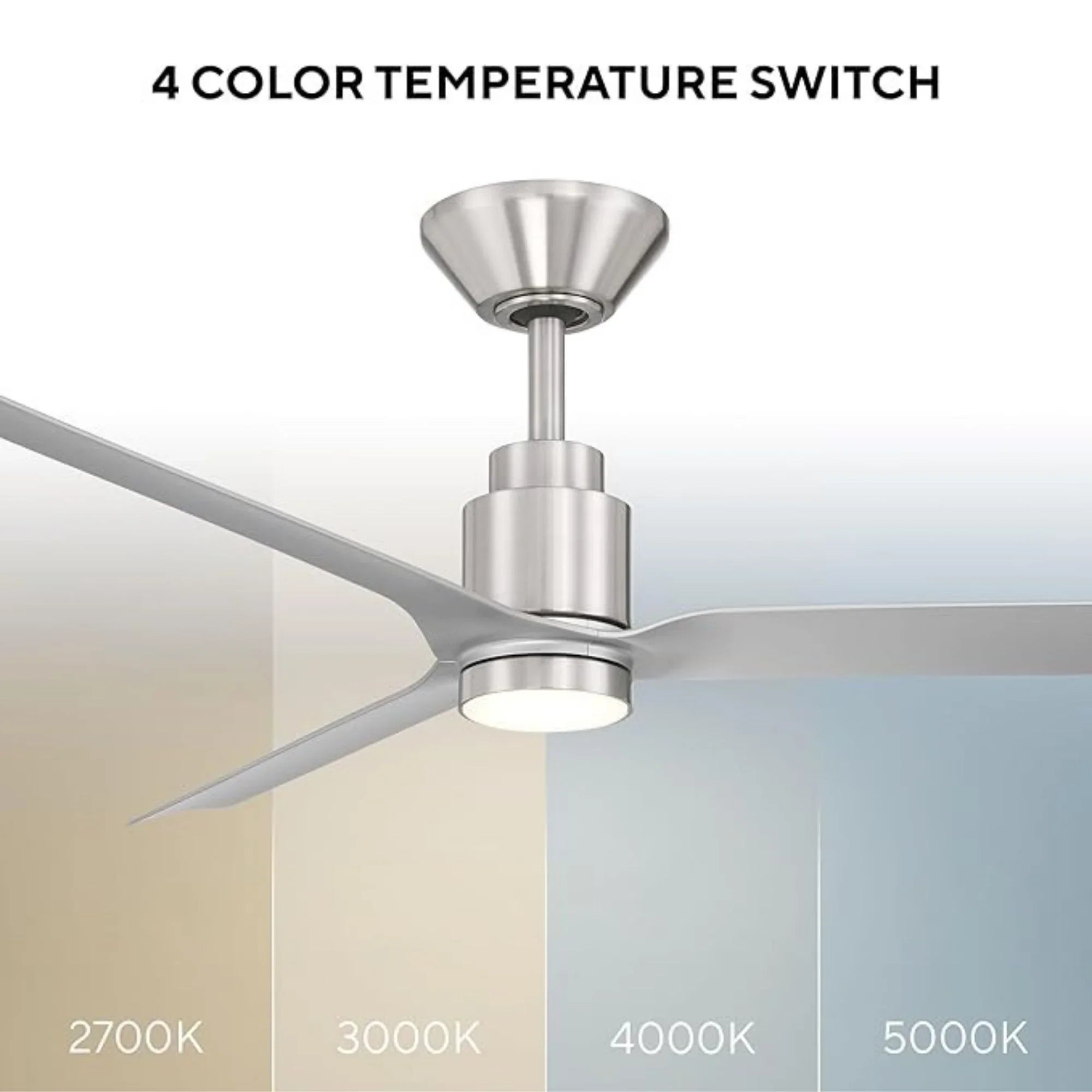

Integrated 16W LED, up to 1,606 lumens (707 delivered) at CRI 90. CCT selectable: 2700K / 3000K / 4000K / 5000K via app or remote. Fully dimmable, 50,000 hr rated life. Fan: 5,732 CFM high speed at 187 CFM/W. Sized for rooms 175–350 sq ft.

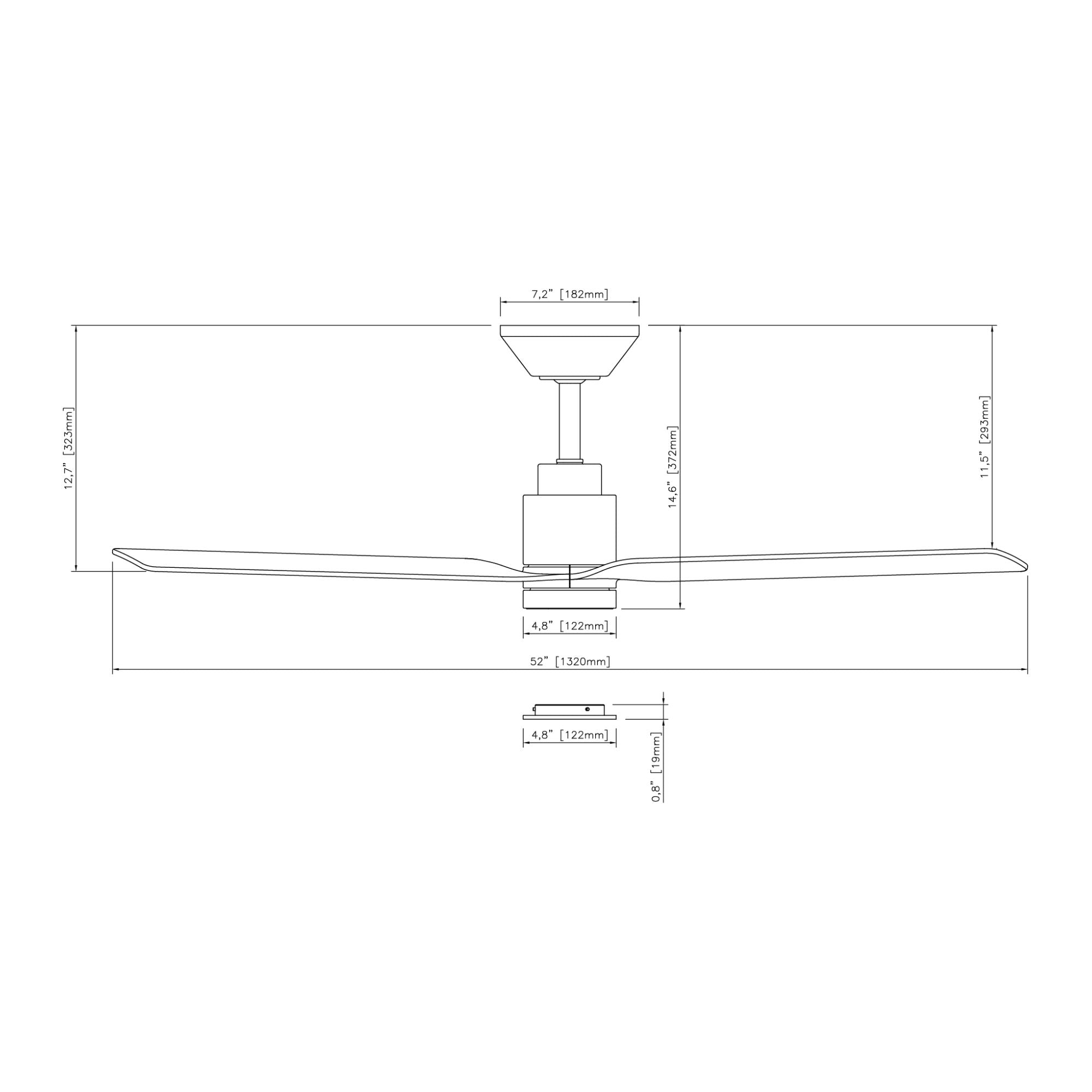

120V DC, 27W high / 19W avg. Wet rated — UL/cUL, Title 24 JA8-2016, Title 20, ENERGY STAR®. Downrod: .75 in W × 6 in H included. Max mounting slope: 30° standard / 45° (12/12 pitch) with optional Sloped Ceiling Kit (XF-SCK). Wire: 80 in. Weight: 10.8 lbs. Max RPM: 177.

Ships with a 6 in downrod. Maintain at least 7 ft clearance from floor to blade. Additional downrods available separately (0.75 in I.D., threaded on motor end): XF-12-BN (12 in), XF-18-BN (18 in), XF-24-BN (24 in), XF-36-BN (36 in), XF-48-BN (48 in), XF-60-BN (60 in), XF-72-BN (72 in). Max recommended downrod: 72 in with 80 in lead wire.

• 9 ft ceiling → 12 in downrod
• 10 ft ceiling → 18 in downrod
• 11 ft ceiling → 24 in downrod
• 12 ft ceiling → 36 in downrod
• 13 ft ceiling → 48 in downrod
• 14 ft ceiling → 60 in downrod
• 15 ft ceiling → 72 in downrod

• Modern Forms Smooth 52 in smart ceiling fan (motor + 3 Silver blades)

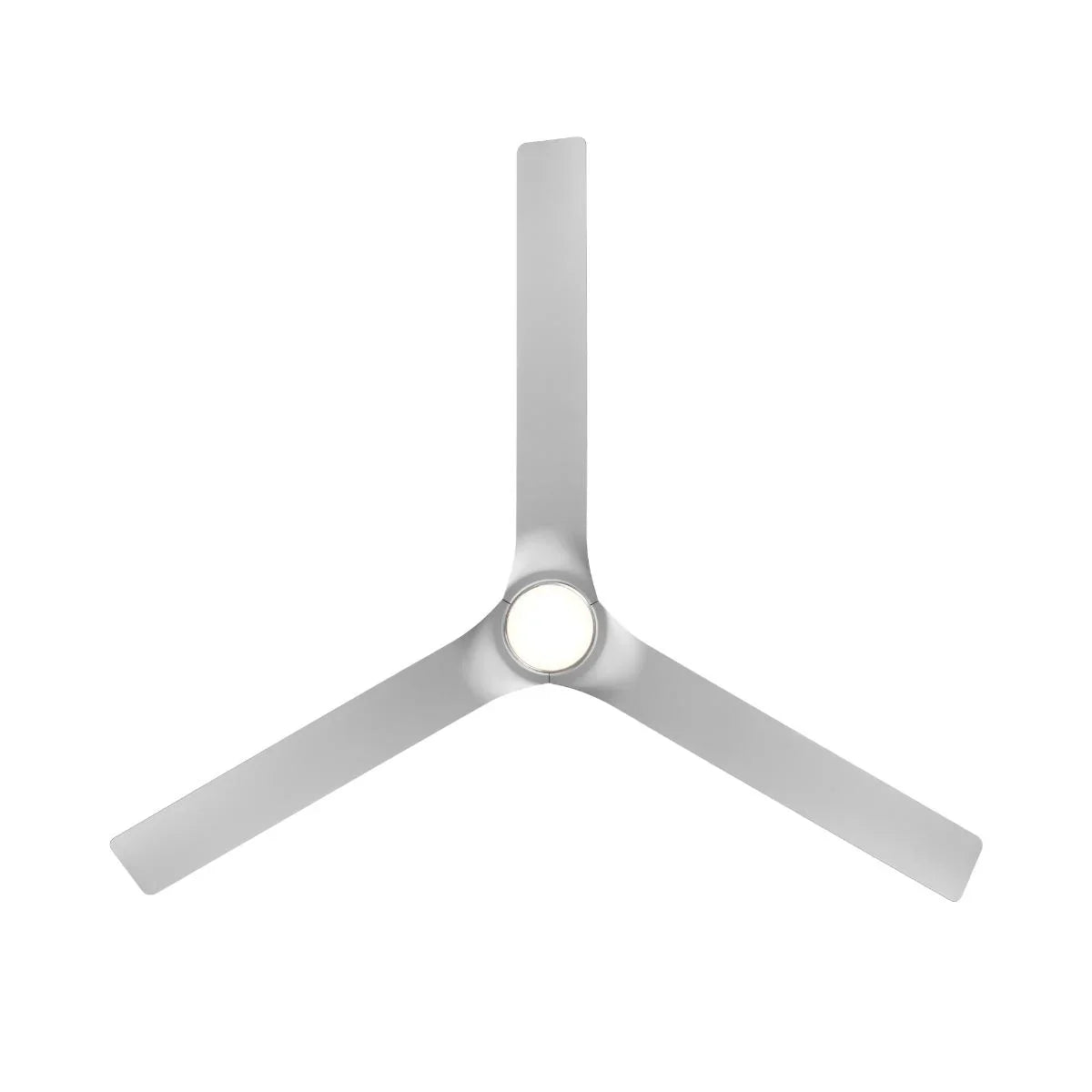

• Integrated LED light kit with opal lens

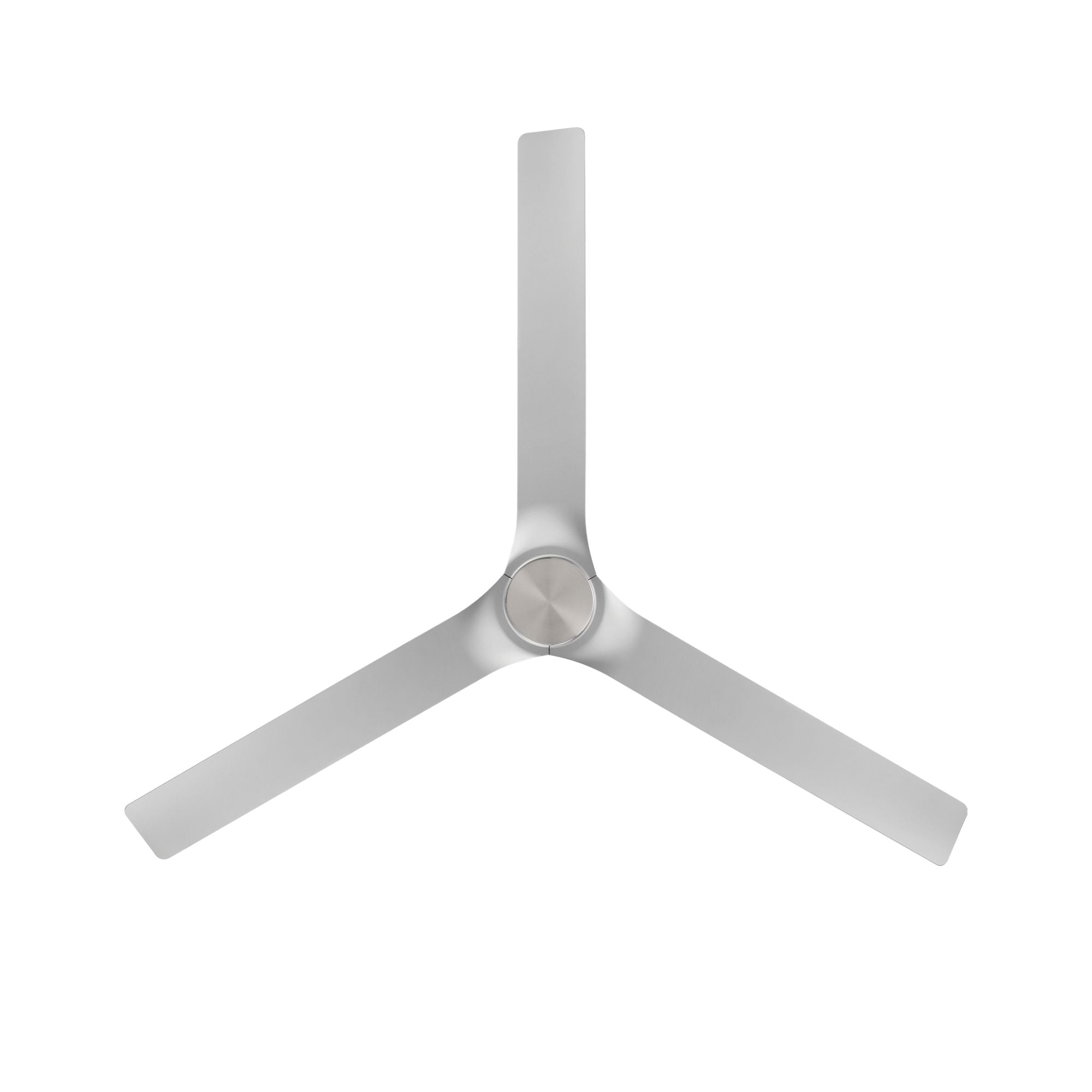

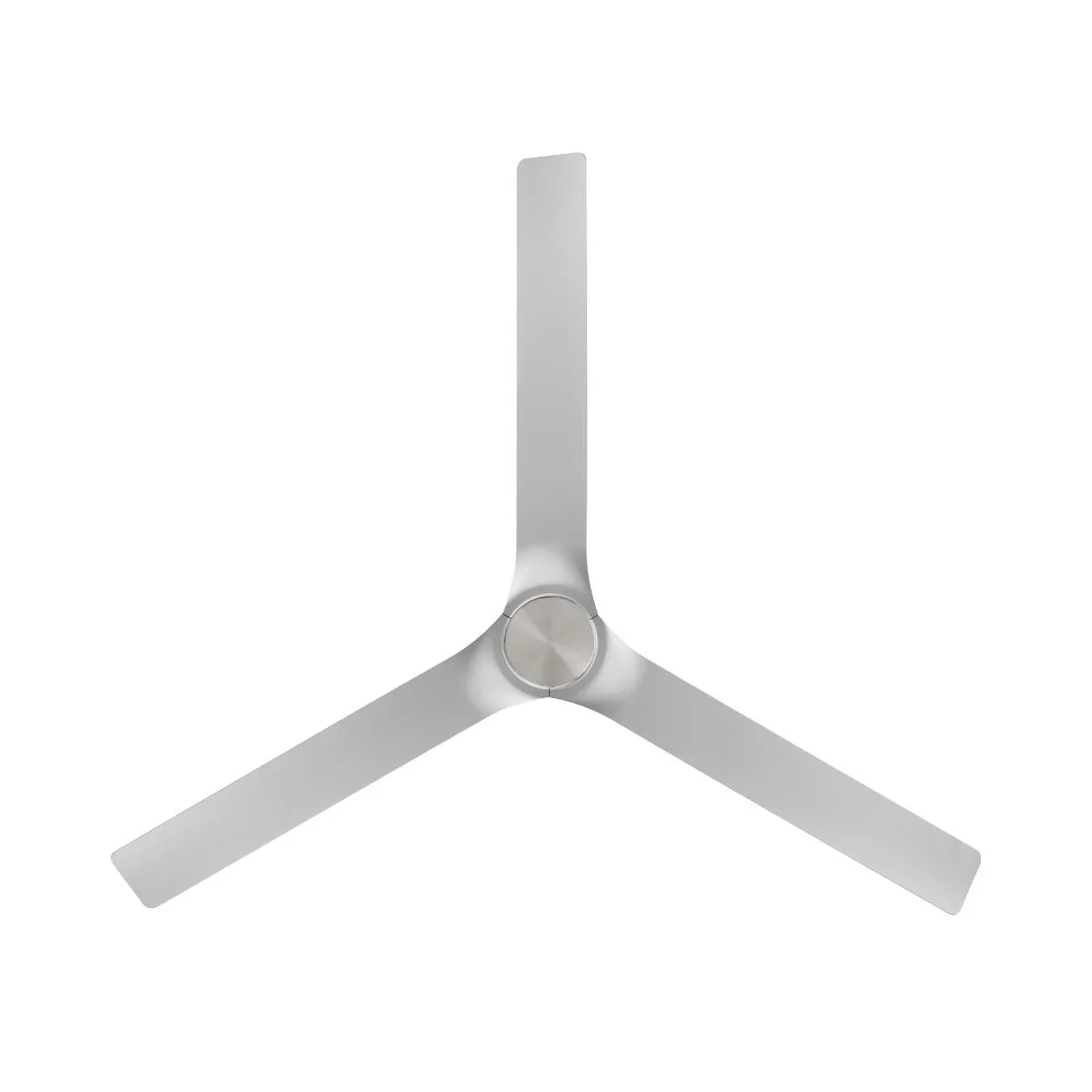

• Luminaire cover (for non-illuminated use)
• Bluetooth remote control (F-RCBT-WT)
• 6 in downrod (.75 in W)
• Mounting hardware
