Modern Forms Bolo 62 in Outdoor Smart LED Ceiling Fan DC Matte Black

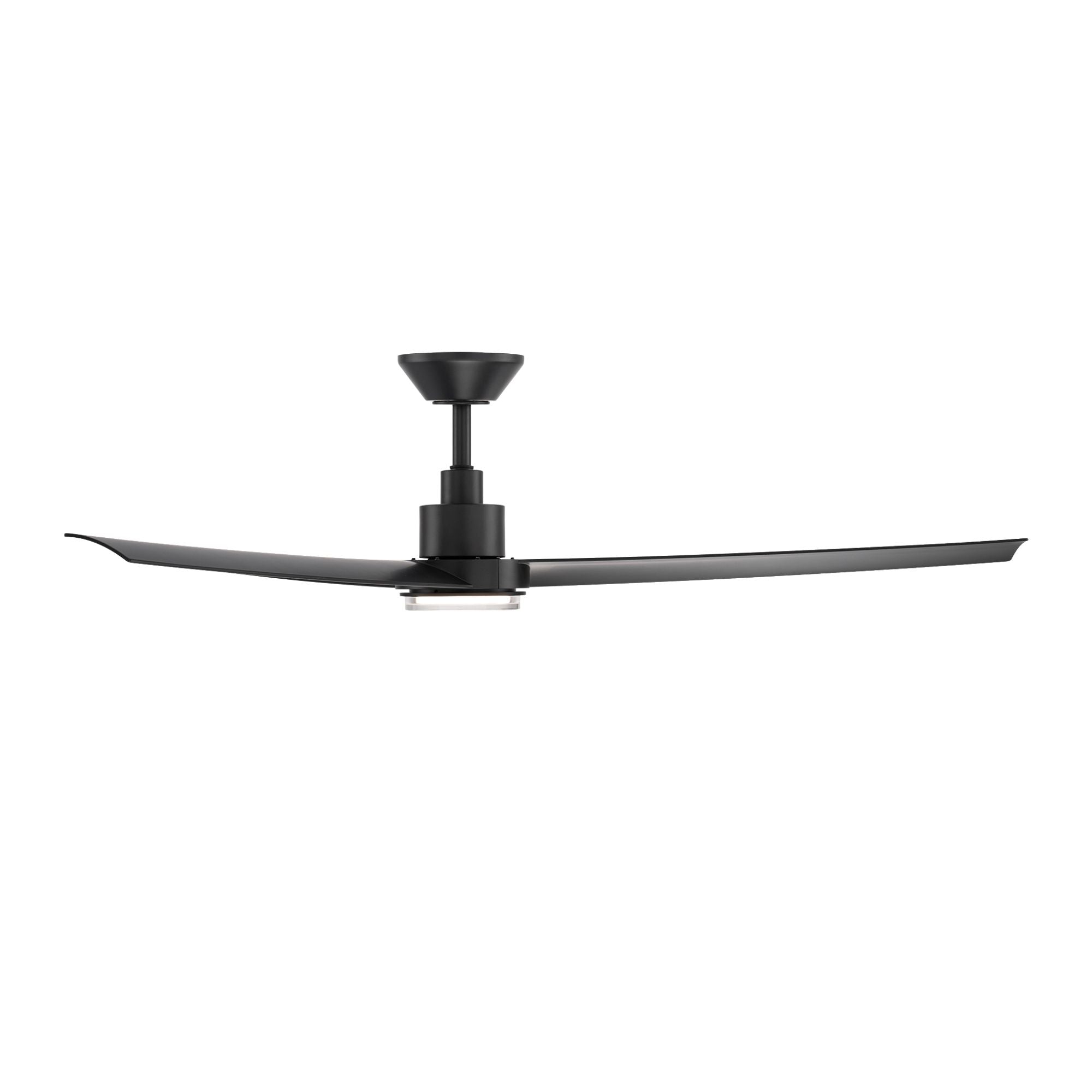

The Modern Forms Bolo FR-W2501-62L-MB features a slim, aerodynamic three-blade design with a petite ring-accented housing and matching Matte Black blades. Its 62 in span and reversible DC motor offer six speeds for summer and winter operation. Wet Rated construction supports indoor and outdoor use, while the included F-RCBT-WT Bluetooth remote and Modern Forms app provide connected control. The 21W dimmable integrated LED offers selectable 2700K, 3000K, 4000K and 5000K lighting with 90 CRI.

Key Features

• Blade Configuration: Three ABS blades; 62 in sweep and 16° pitch.
• Motor: Reversible DC motor with six speeds and summer/winter modes.
• Airflow: 6,921 CFM on high; 4,650 CFM weighted average.
• Airflow Efficiency: 256 CFM/W on high; 245 CFM/W weighted average.
• Total Power: 48W, including 21W LED; 27W motor on high.
• Light Output: 1,991–2,159 lumens depending on CCT; 90 CRI; dimmable.
• Color Temperatures & Life: Selectable 2700K, 3000K, 4000K and 5000K; 50,000-hour rated LED life.
• Location Rating: UL/cUL Wet Location listed for indoor and outdoor use.
• Mounting: Standard slopes up to 30°; optional XF-SCK sloped-ceiling kit supports up to 45°, sold separately.
• Included Downrod: 8 in long with 0.75 in inside diameter.
• Lead Wire & Weight: 80 in lead wire; 13.9 lb hanging weight.
• Controls: Included F-RCBT-WT Bluetooth remote; optional F-WCBT-WT wall control, sold separately.

Smart & Control Features

The included F-RCBT-WT Bluetooth remote controls six speeds, light brightness and summer/winter modes. Integrated Wi-Fi and Bluetooth connectivity supports the Modern Forms app. Confirmed voice integrations include Amazon Alexa and Google Assistant; supported smart-home integrations include Samsung SmartThings, Control4 and JOSH. The compatible F-WCBT-WT Bluetooth wall control is sold separately and supports multiple control locations.

Construction & Design

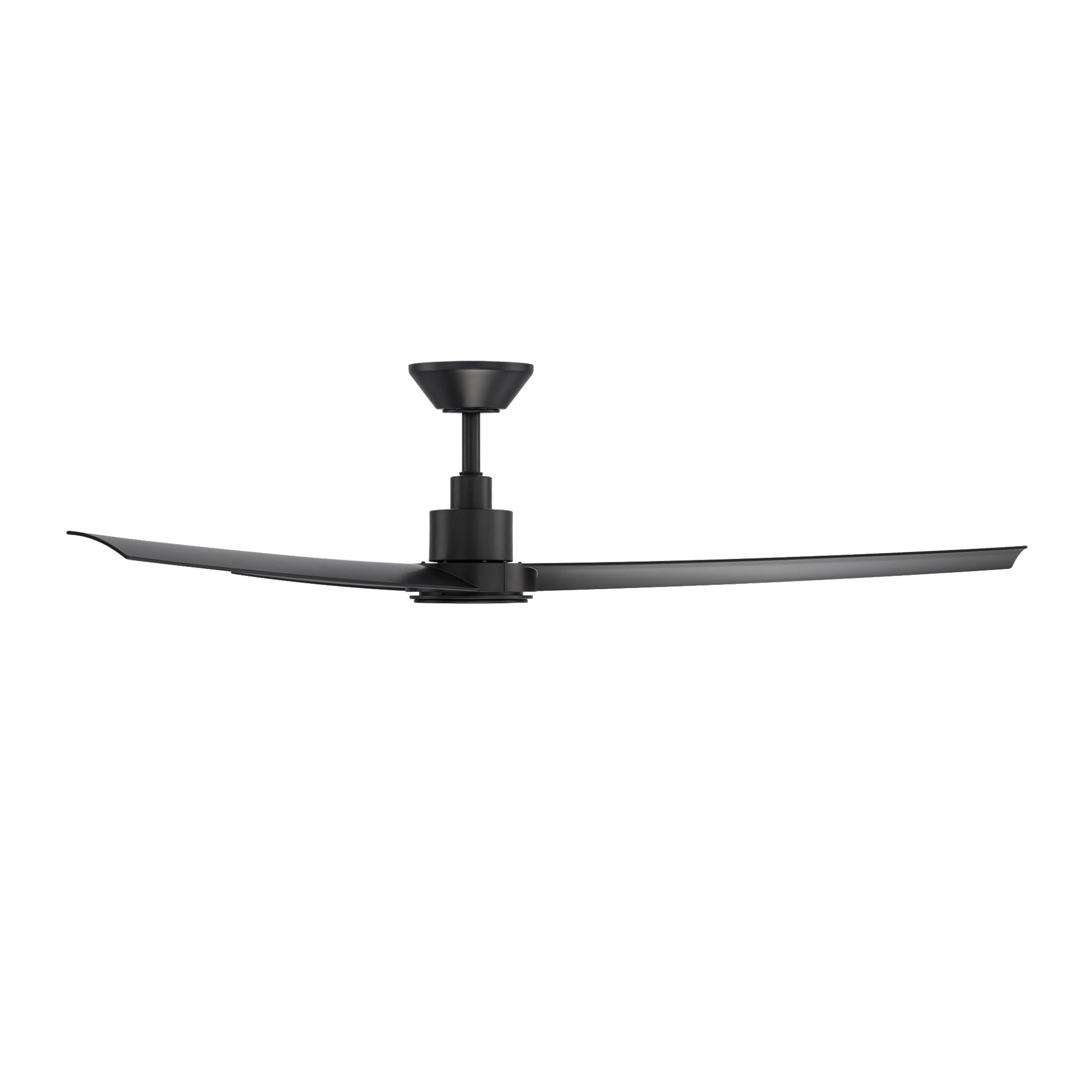

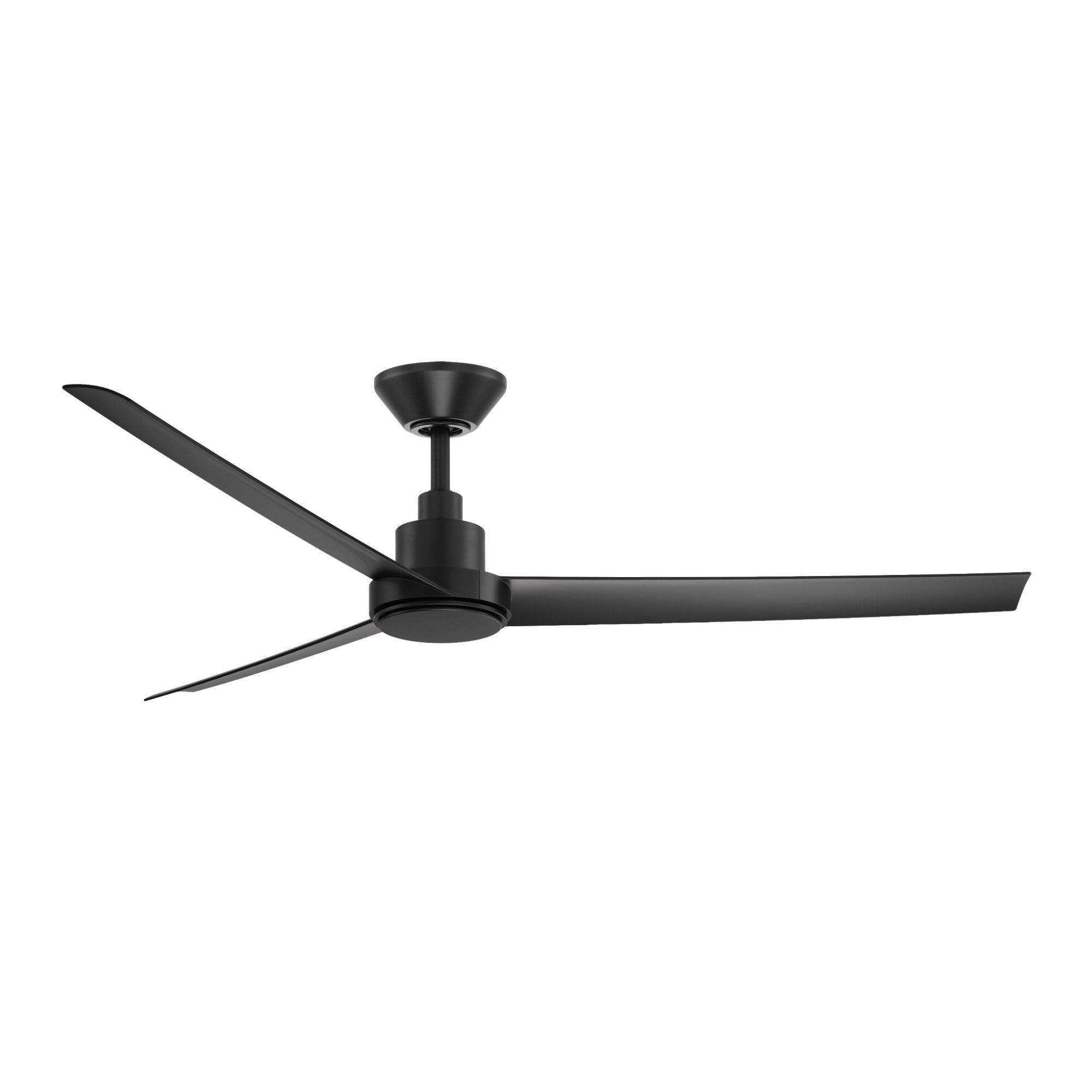

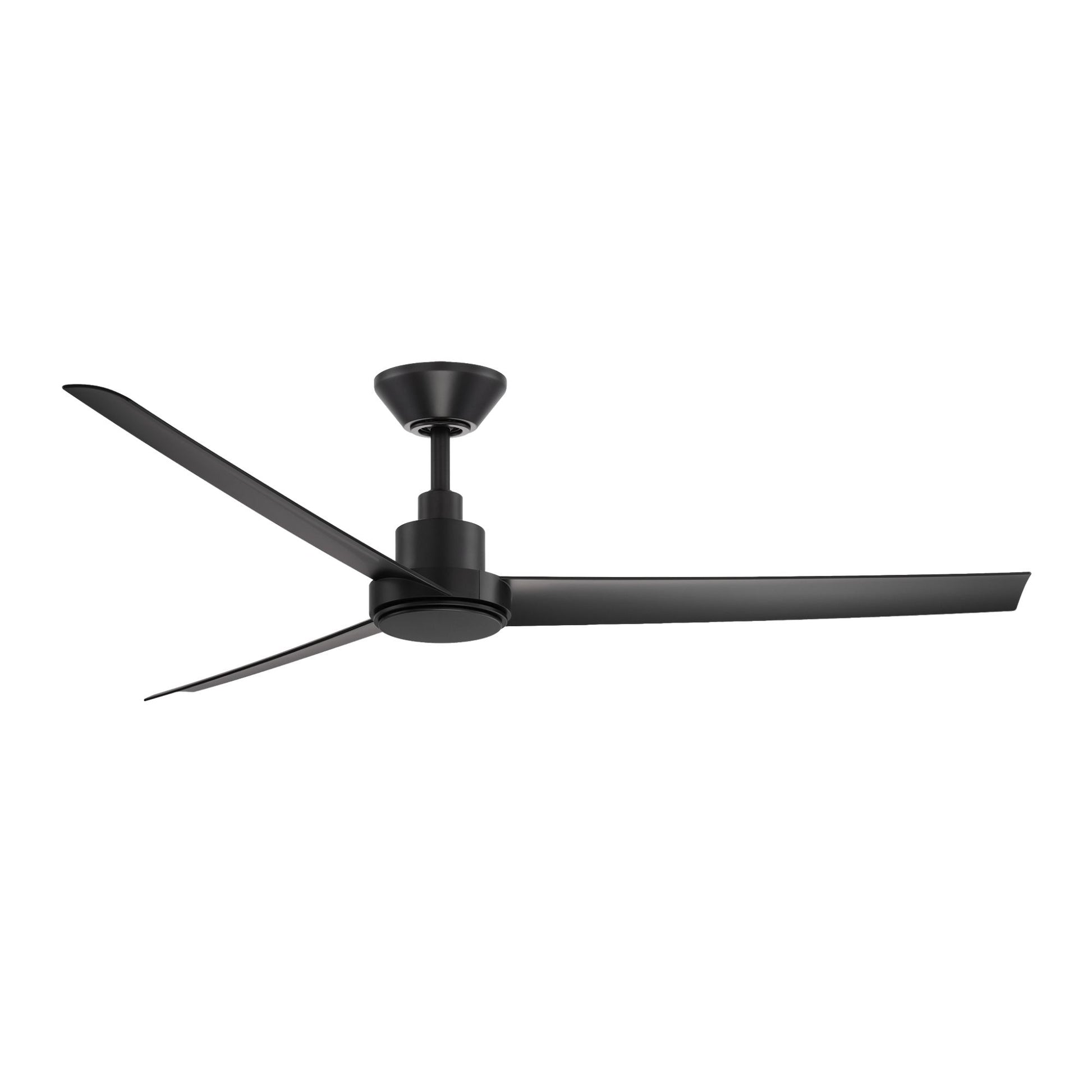

The aluminum housing and three ABS blades are finished in Matte Black. Slim blades and a ring-accented motor housing give Bolo an aircraft-inspired profile. A matching finished cover is included for use without the luminaire.

Light Output & Performance

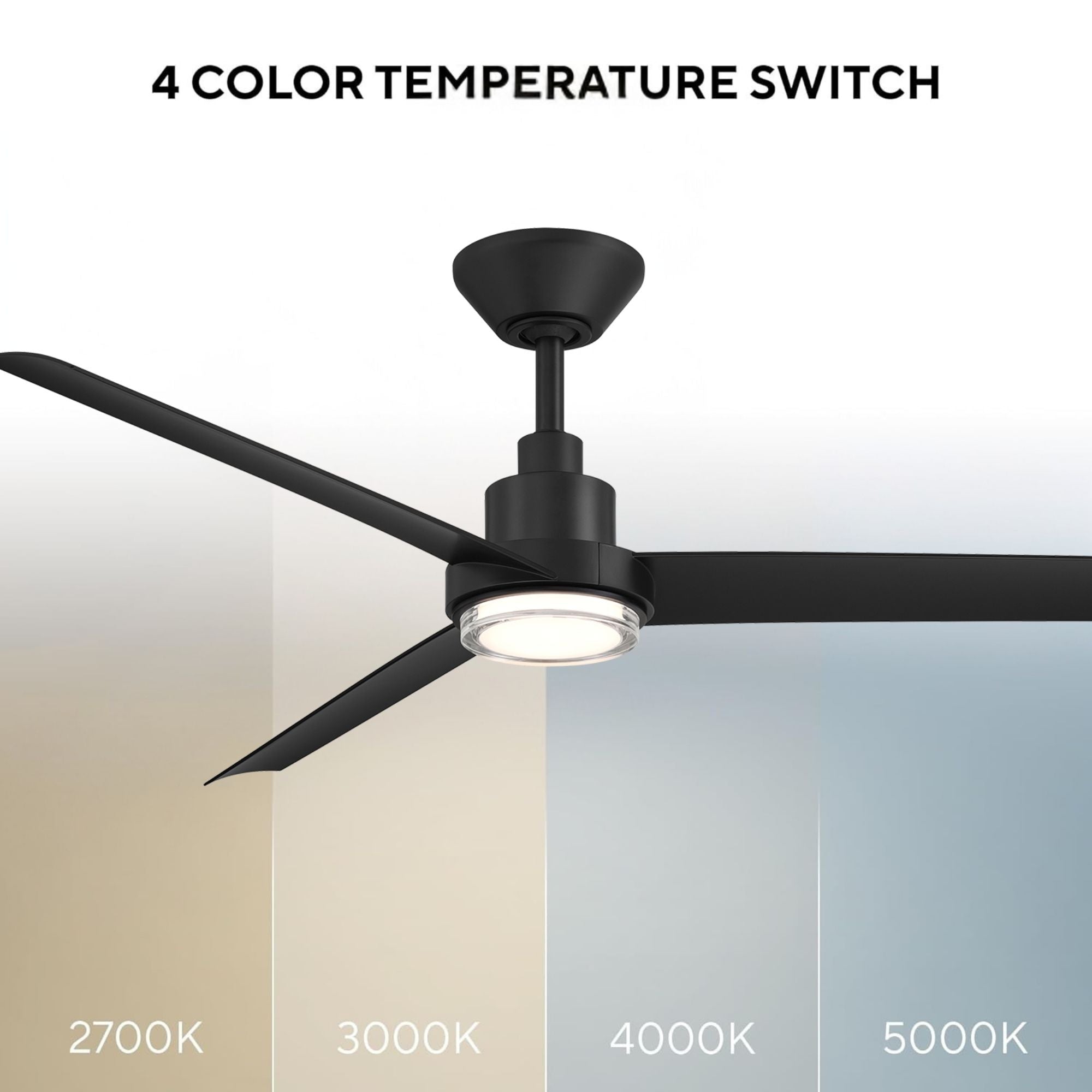

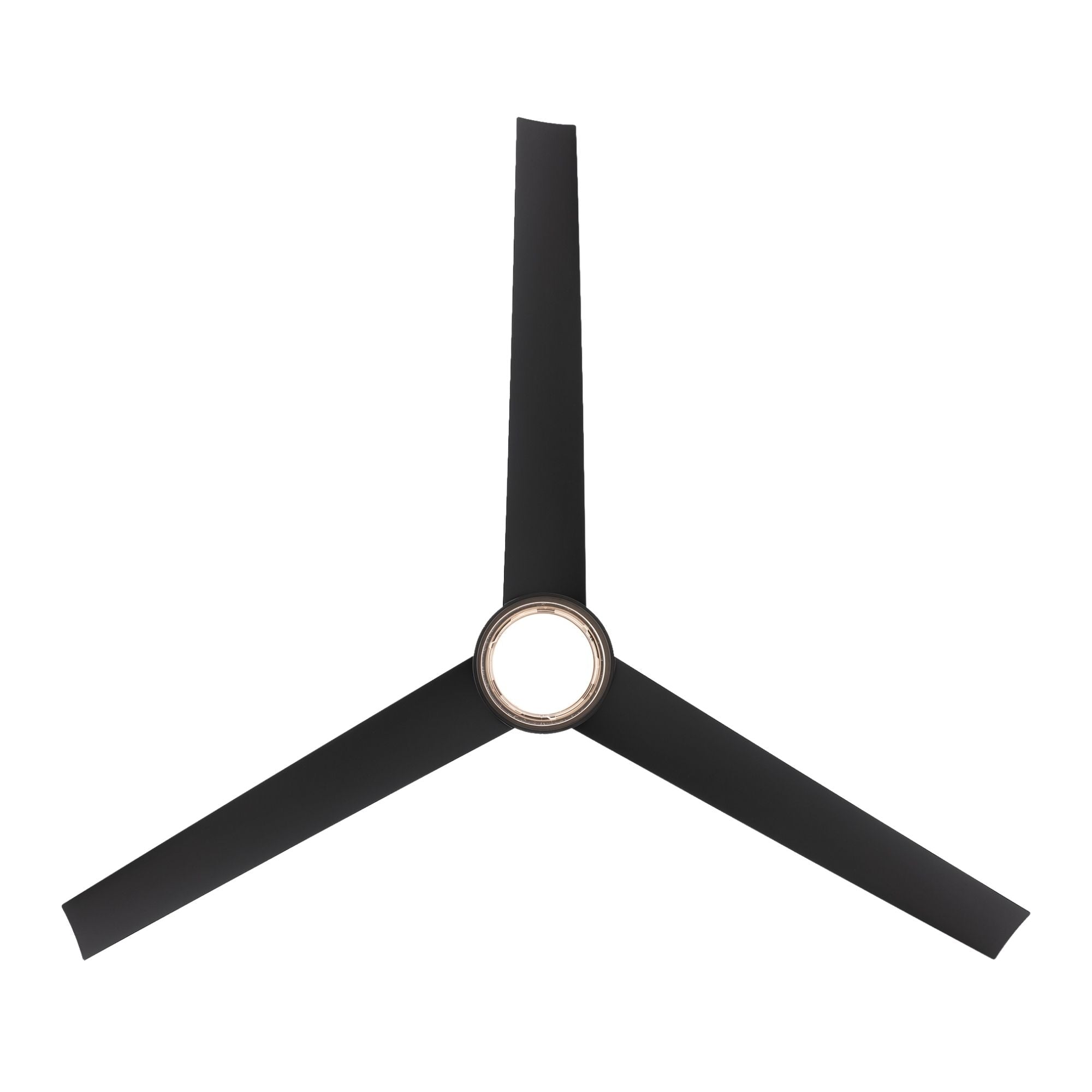

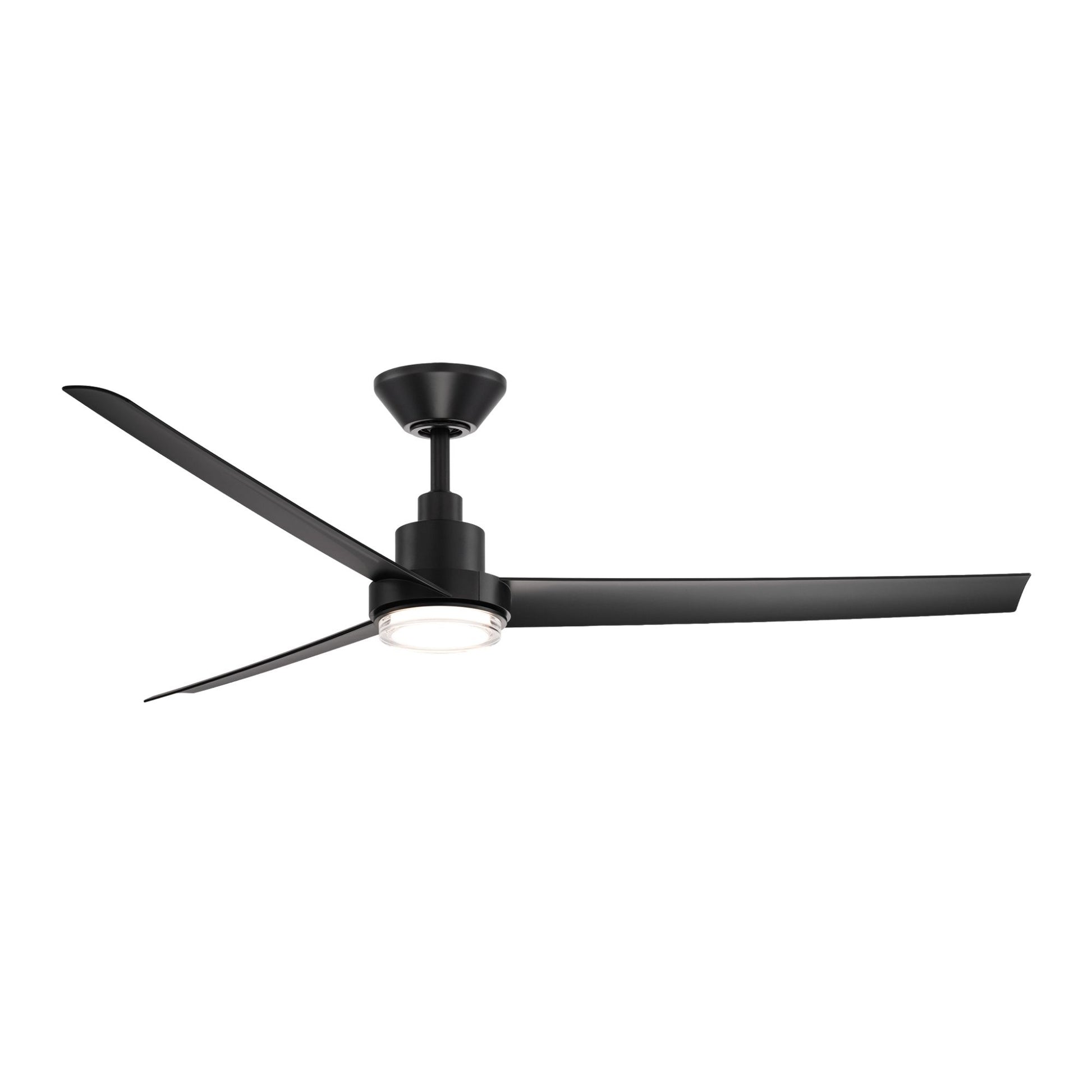

The 21W integrated LED provides 1,991–2,159 lumens depending on the selected 2700K, 3000K, 4000K or 5000K setting, with 90 CRI and a 50,000-hour rated life. The light is dimmable, with brightness control through the included Bluetooth remote, Modern Forms app and compatible optional wall control. Airflow reaches 6,921 CFM on high with 256 CFM/W efficiency.

Electrical & Installation

The reversible DC motor uses 27W on high; total power including the 21W LED is 48W. Includes an 8 in downrod with 0.75 in inside diameter and 80 in lead wire. Standard mounting supports slopes up to 30°. For steeper ceilings up to 45°, use the compatible XF-SCK sloped-ceiling kit, sold separately. Recommended maximum downrod length is 72 in with the supplied 80 in lead wire.

Suggested Downrod by Ceiling Height

Ships with an 8 in downrod. Longer compatible downrods are available separately.

• 9 ft ceiling: 12 in downrod
• 10 ft ceiling: 18 in downrod
• 11 ft ceiling: 24 in downrod
• 12 ft ceiling: 36 in downrod
• 13 ft ceiling: 48 in downrod
• 14 ft ceiling: 60 in downrod
• 15 ft ceiling: 72 in downrod

What's Included

• Bolo fan with Matte Black housing and three matching blades
• Integrated LED light
• F-RCBT-WT Bluetooth remote
• 8 in downrod

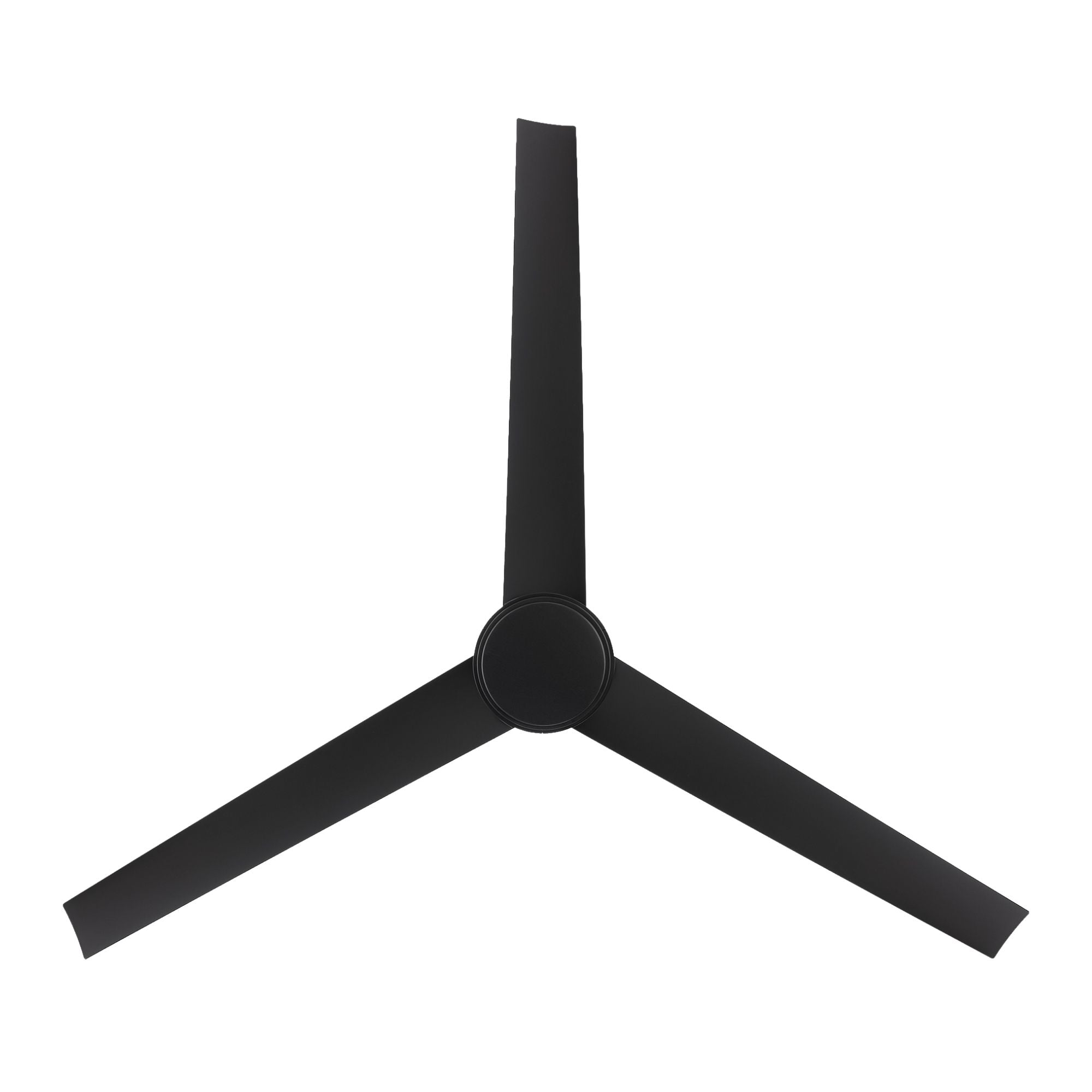

• Matching cover for non-light use
• Mounting Hardware
