Modern Forms Bolo 56 in Outdoor Smart LED Ceiling Fan DC Matte Black

The Modern Forms Bolo FR-W2501-56L-MB pairs a petite ring-accented Matte Black aluminum housing with three matching aerodynamic ABS blades across a 56 in span. Its reversible DC motor offers six speeds and summer/winter modes, delivering 6,383 CFM on high. Wet Rated construction supports indoor and outdoor use. The included Bluetooth remote and Modern Forms app provide connected control, while a 21W dimmable LED offers selectable 2700K, 3000K, 4000K and 5000K lighting with 90 CRI.

Key Features

• Blade Configuration: Three ABS blades; 56 in sweep and 13° pitch.
• Motor: 108 × 20 sensorless DC motor; reversible, six speeds; maximum 156 RPM.
• Airflow: 6,383 CFM on high; 4,118 CFM weighted average.
• Airflow Efficiency: Listed 193 CFM/W on high; 200 CFM/W weighted average.
• Total Power: 51W including 21W LED; 30W motor on high.
• Light Output: 1,991–2,159 source lumens depending on CCT; 1,888 delivered lumens; 90 CRI.

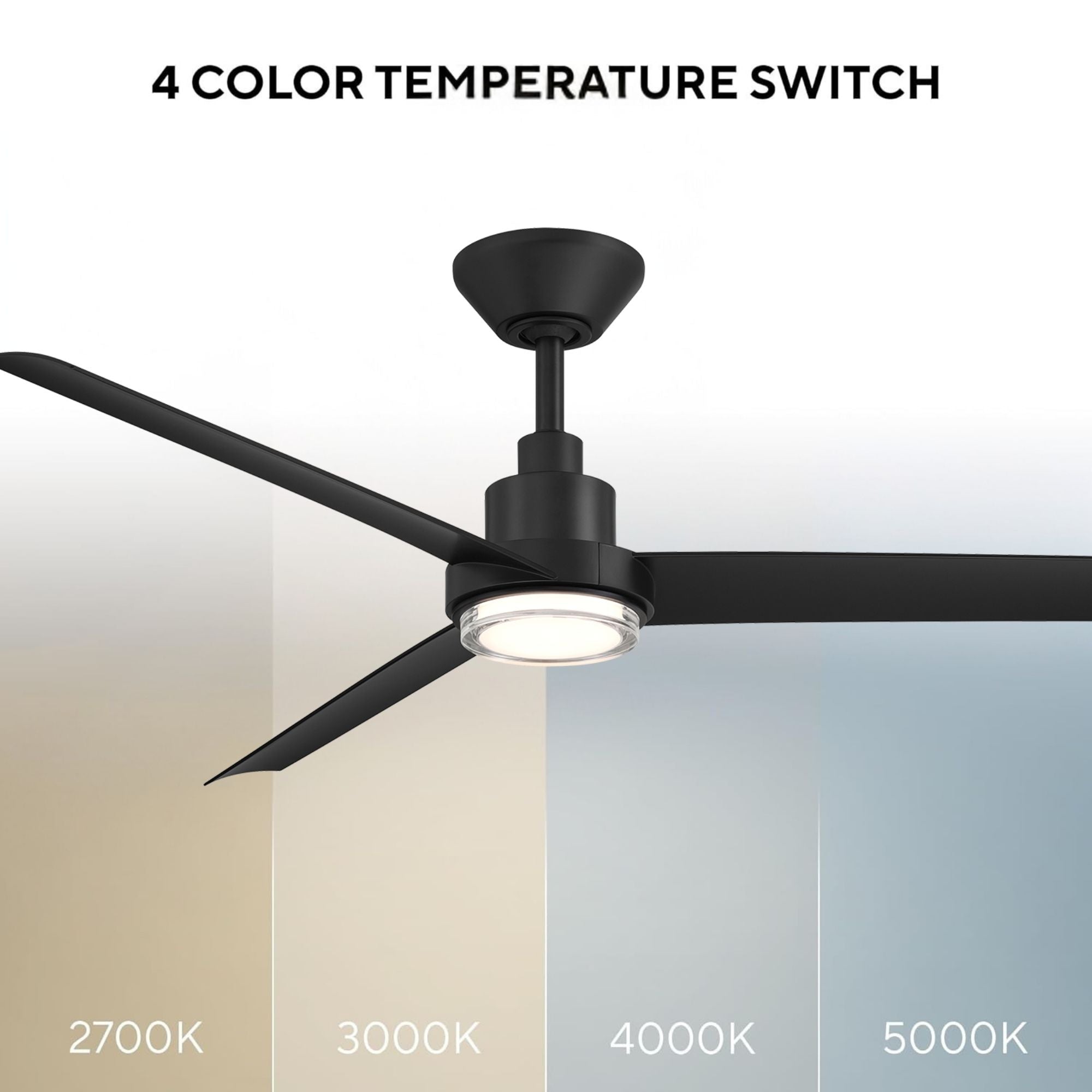

• Color Temperatures & Life: Selectable 2700K, 3000K, 4000K and 5000K; dimmable; 50,000-hour rated life.

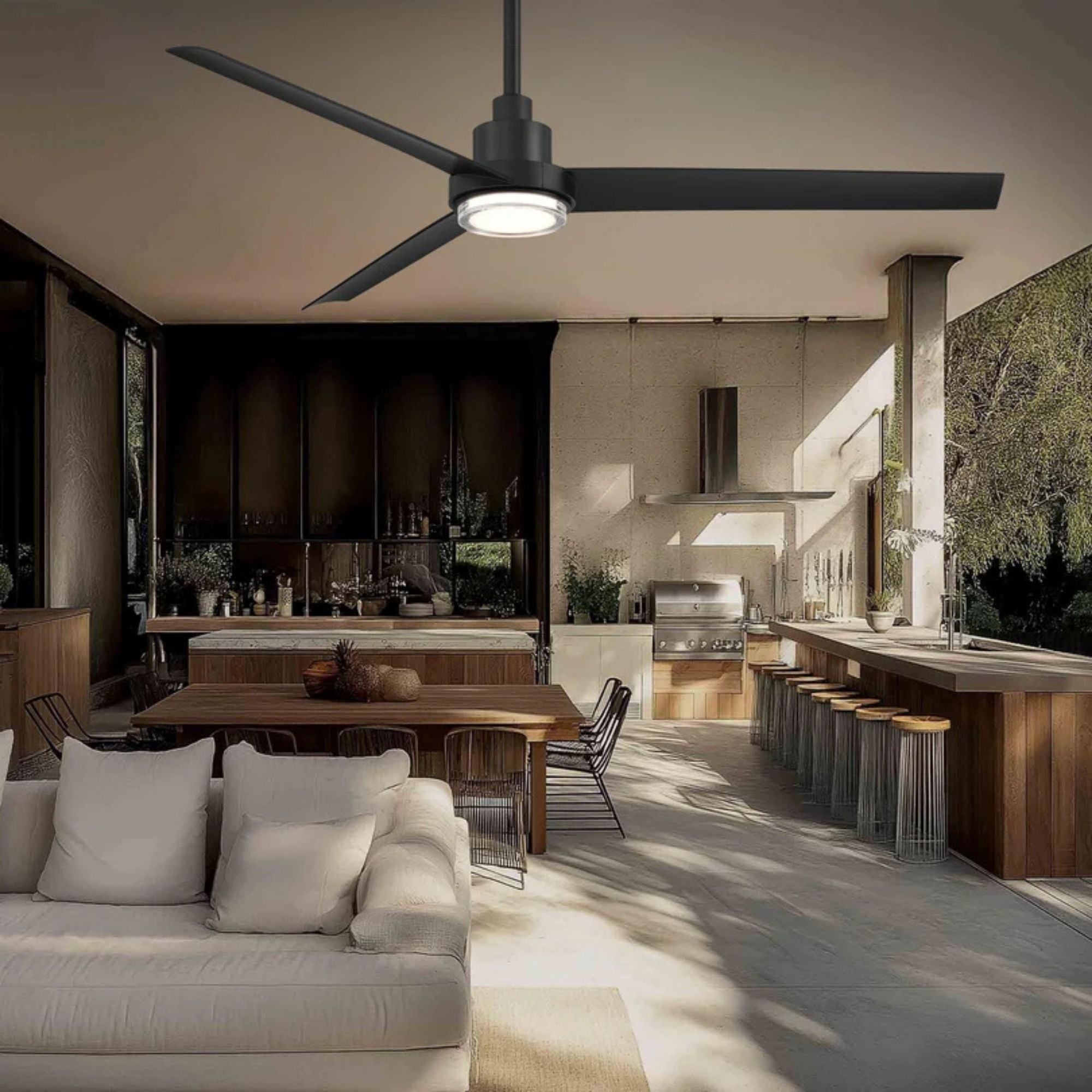

• Location Rating: UL/cUL Wet Location listed for indoor and outdoor use.
• Mounting: Slopes up to 30°; optional XF-SCK kit supports up to 45°, sold separately.
• Included Downrod: 6 in long with 0.75 in inside diameter.
• Lead Wire & Weight: 80 in wire; 10.8 lb hanging weight.
• Controls: Included F-RCBT-WT Bluetooth remote; optional F-WCBT-WT wall control, sold separately.

Smart & Control Features

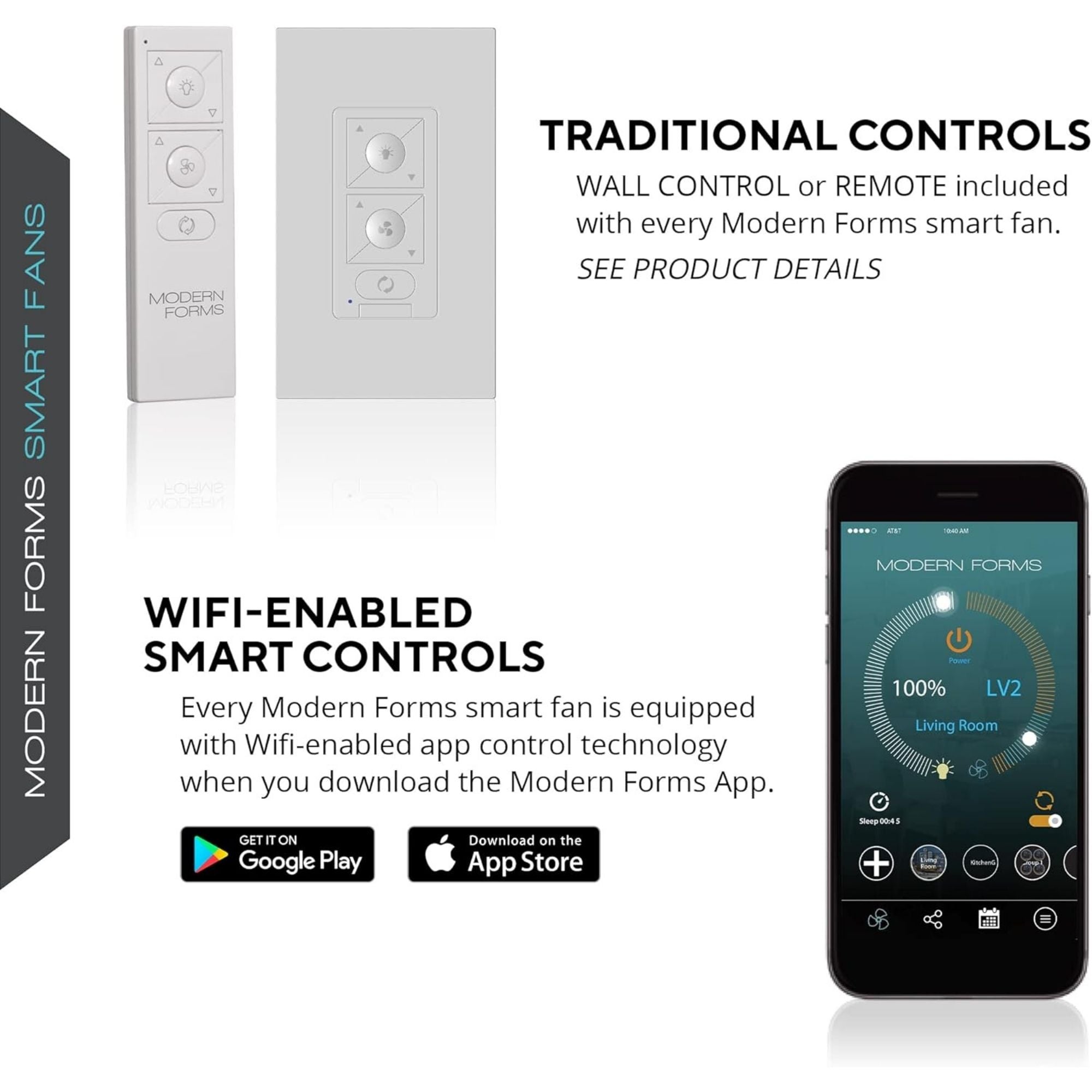

The included F-RCBT-WT Bluetooth remote controls six speeds, light brightness and summer/winter modes. Integrated Wi-Fi and Bluetooth connectivity supports the Modern Forms app. Voice integrations include Amazon Alexa and Google Assistant; smart-home integrations include Samsung SmartThings, Control4 and JOSH. The compatible F-WCBT-WT Bluetooth wall control is sold separately and supports multiple control locations.

Construction & Design

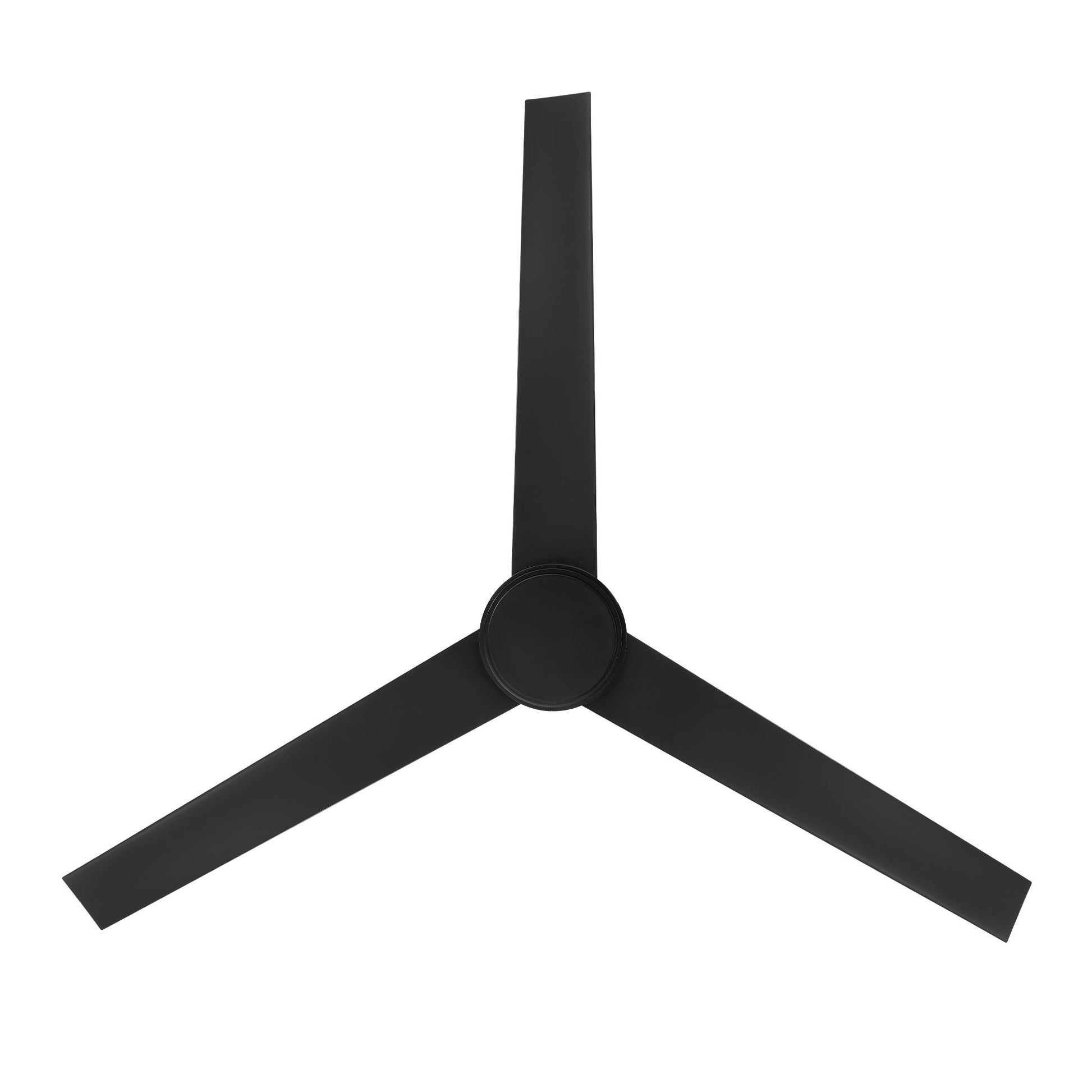

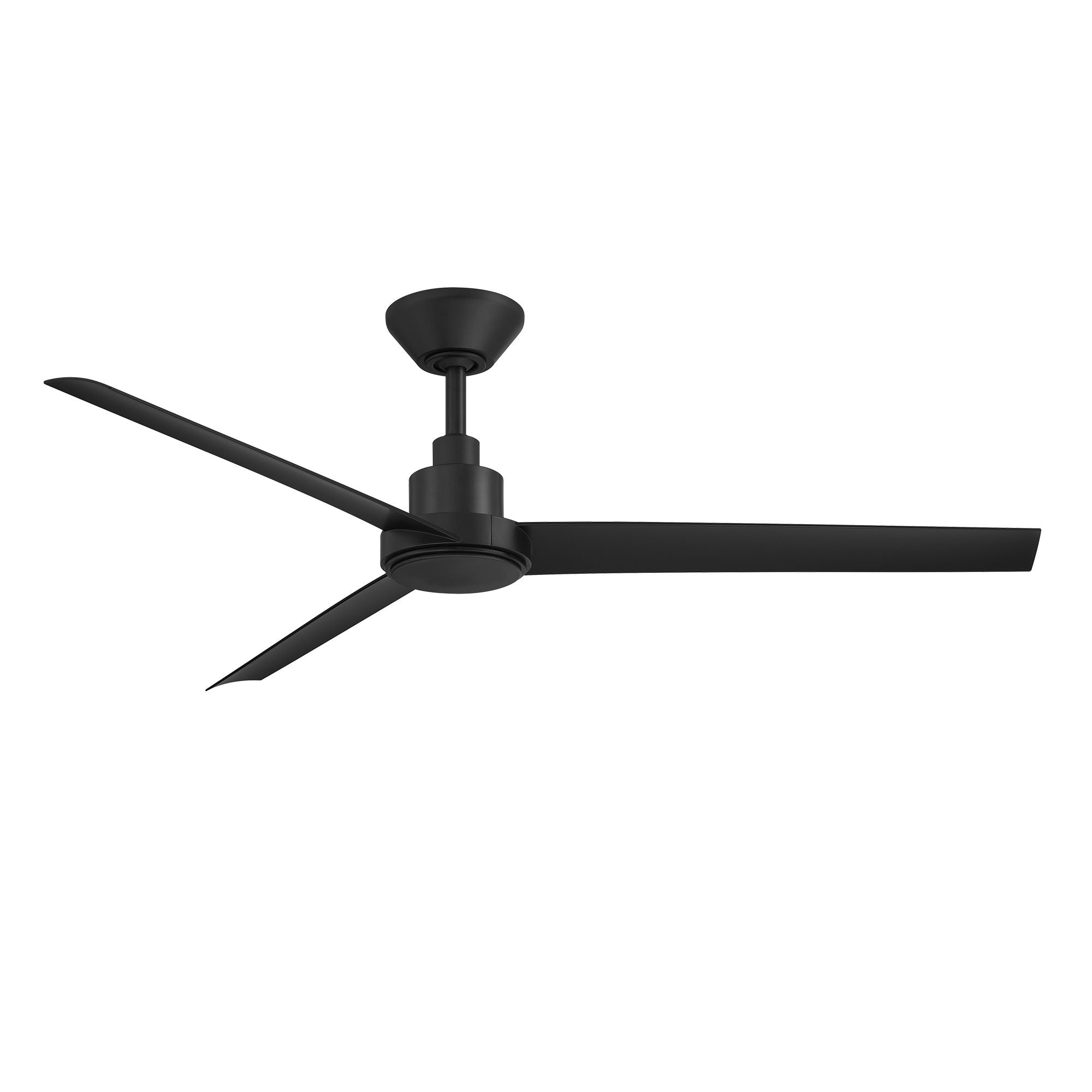

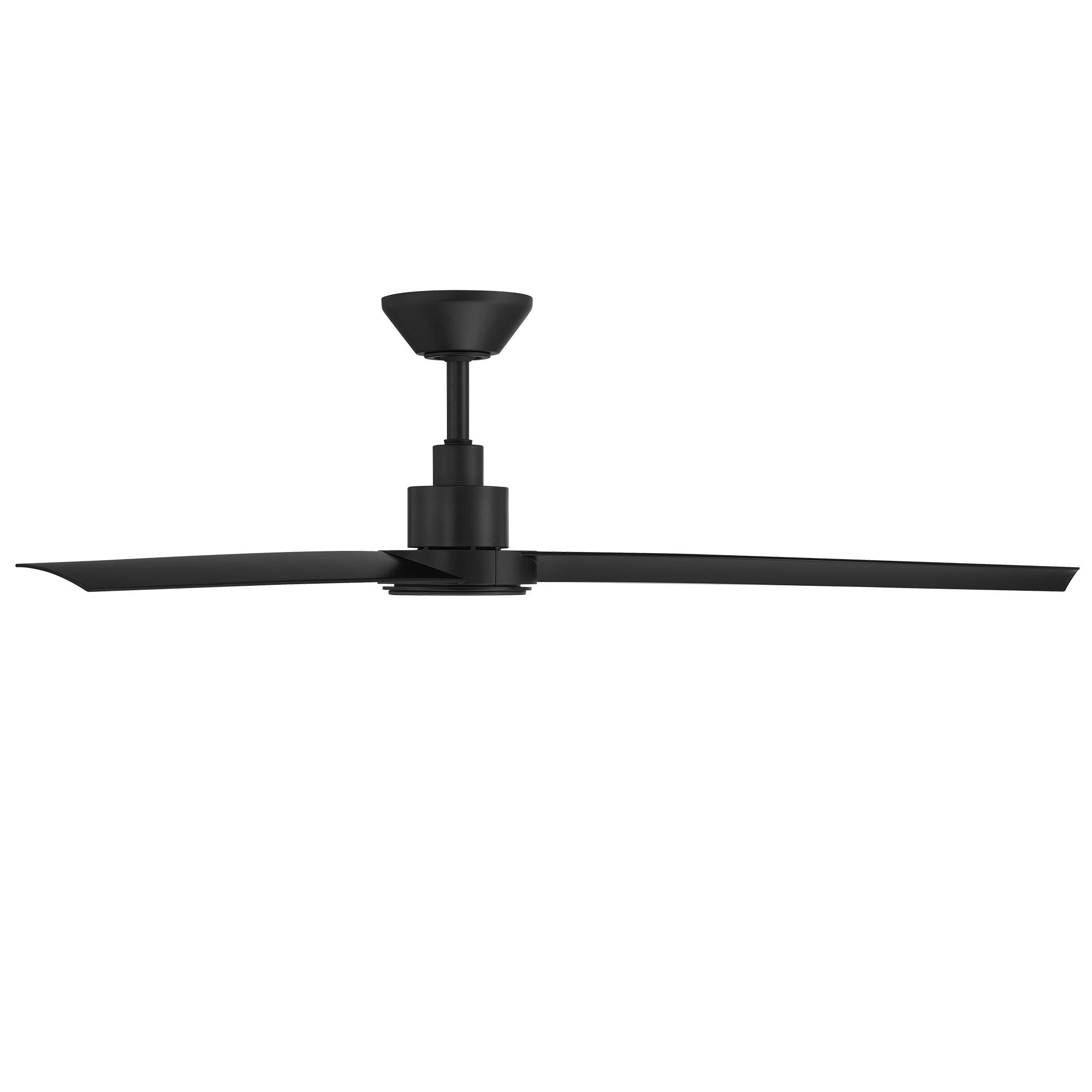

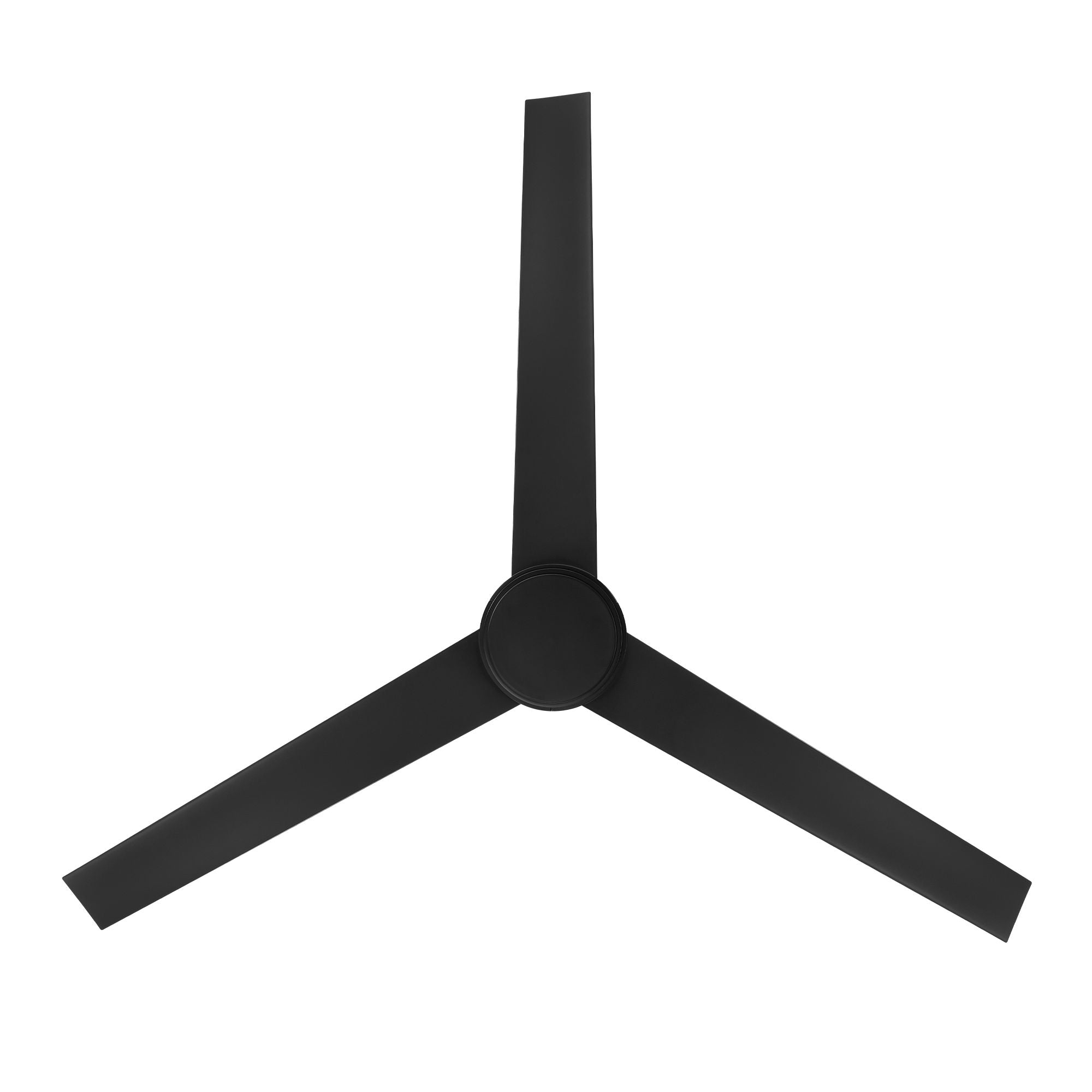

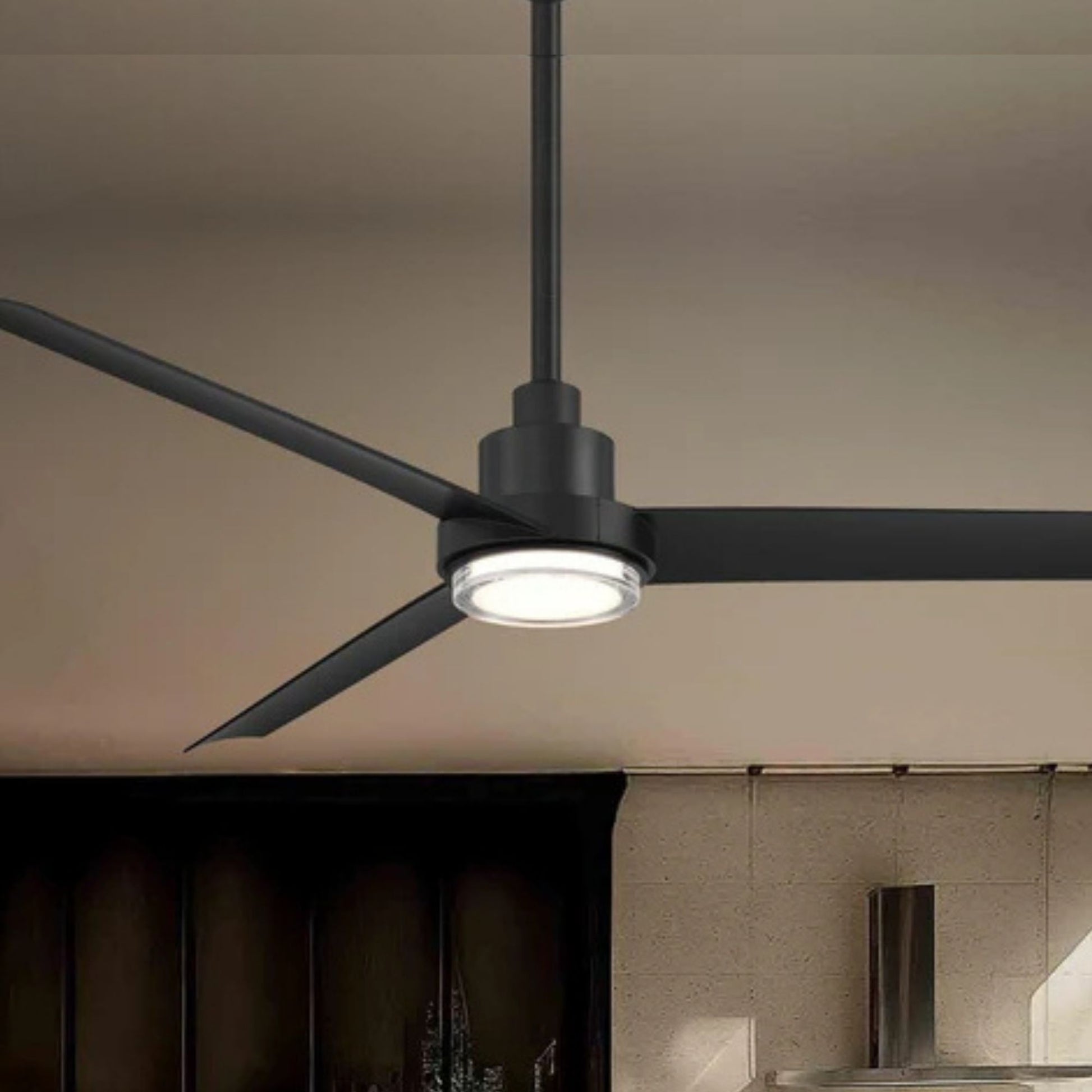

The aluminum housing and three ABS blades are finished in Matte Black. Slim, aircraft-inspired blades have a 13° pitch, and the petite housing features a ring detail. A matching finished cover is included for non-light use.

Light Output & Performance

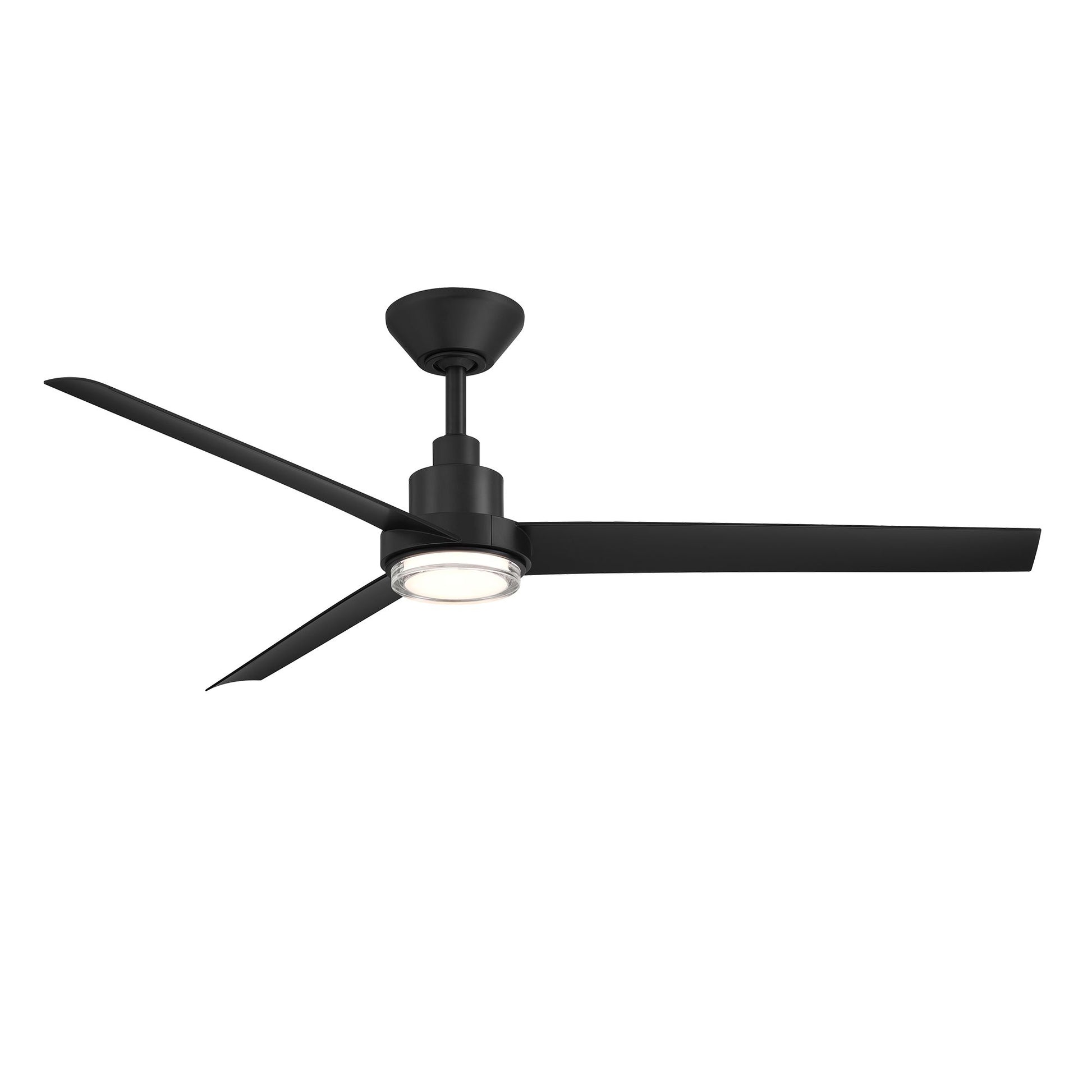

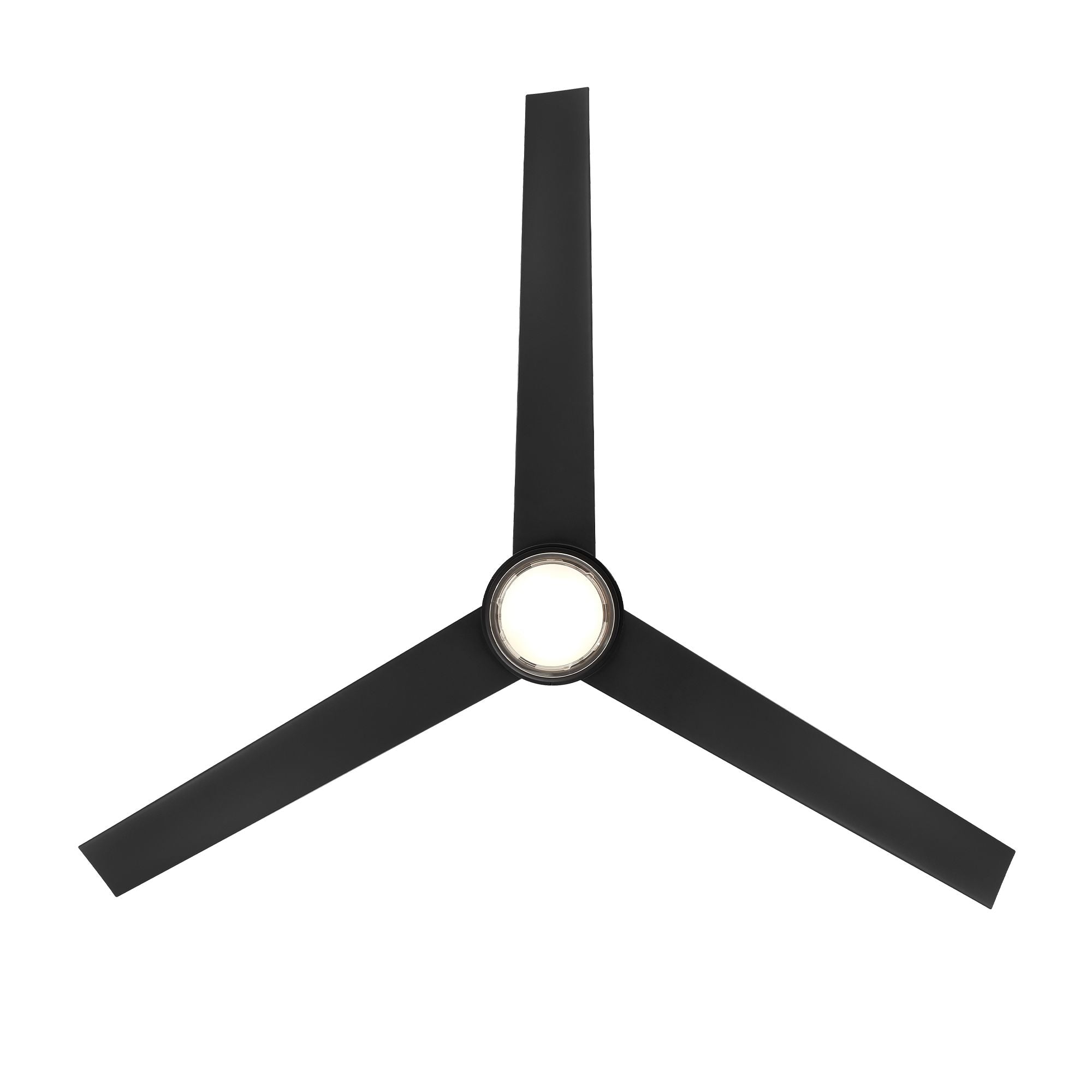

The 21W integrated LED provides 1,991–2,159 source lumens depending on CCT and 1,888 delivered lumens, with 90 CRI and a 50,000-hour rated life. Select 2700K, 3000K, 4000K or 5000K. Integrated dimming allows brightness control through the included Bluetooth remote, Modern Forms app and compatible optional wall control. Airflow reaches 6,383 CFM on high, with a listed 193 CFM/W efficiency.

Electrical & Installation

The reversible DC motor uses 30W on high; total power including the 21W LED is 51W. Includes a 6 in downrod with 0.75 in inside diameter and 80 in lead wire. Standard mounting supports slopes up to 30°. The compatible XF-SCK sloped-ceiling kit, sold separately, supports slopes up to 45°. Recommended maximum downrod length is 72 in with the supplied wire.

Suggested Downrod by Ceiling Height

Ships with a 6 in downrod. Longer compatible downrods are available separately.

• 9 ft ceiling: 12 in downrod
• 10 ft ceiling: 18 in downrod
• 11 ft ceiling: 24 in downrod
• 12 ft ceiling: 36 in downrod
• 13 ft ceiling: 48 in downrod
• 14 ft ceiling: 60 in downrod
• 15 ft ceiling: 72 in downrod

What's Included

• Bolo fan with Matte Black housing and three matching blades
• Integrated LED light
• F-RCBT-WT Bluetooth remote with wall cradle and batteries
• 6 in downrod
• Matching cover for non-light use
• Mounting Hardware
