Modern Forms Spinster 60 in Outdoor Smart LED Ceiling Fan DC Soft Brass Matte Black

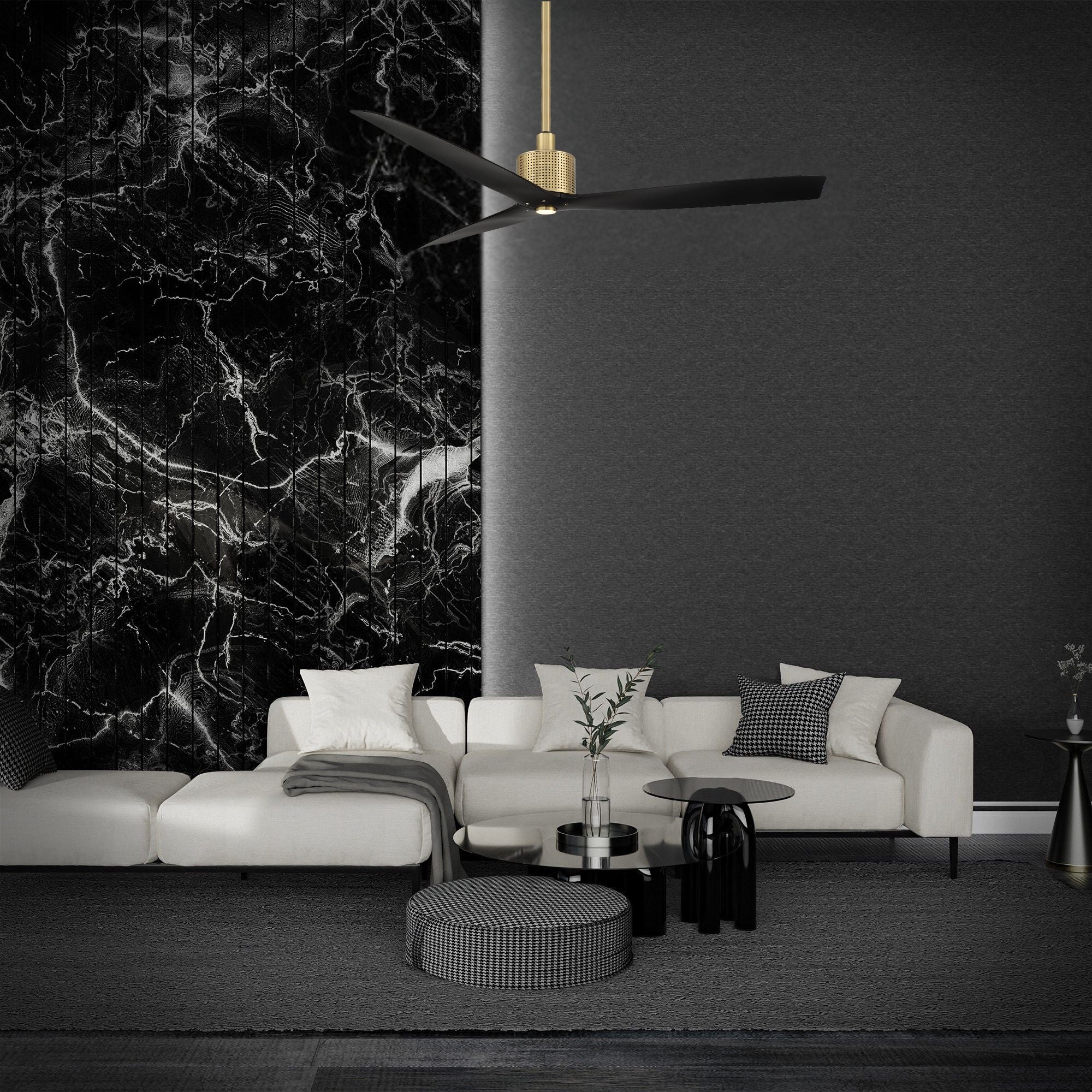

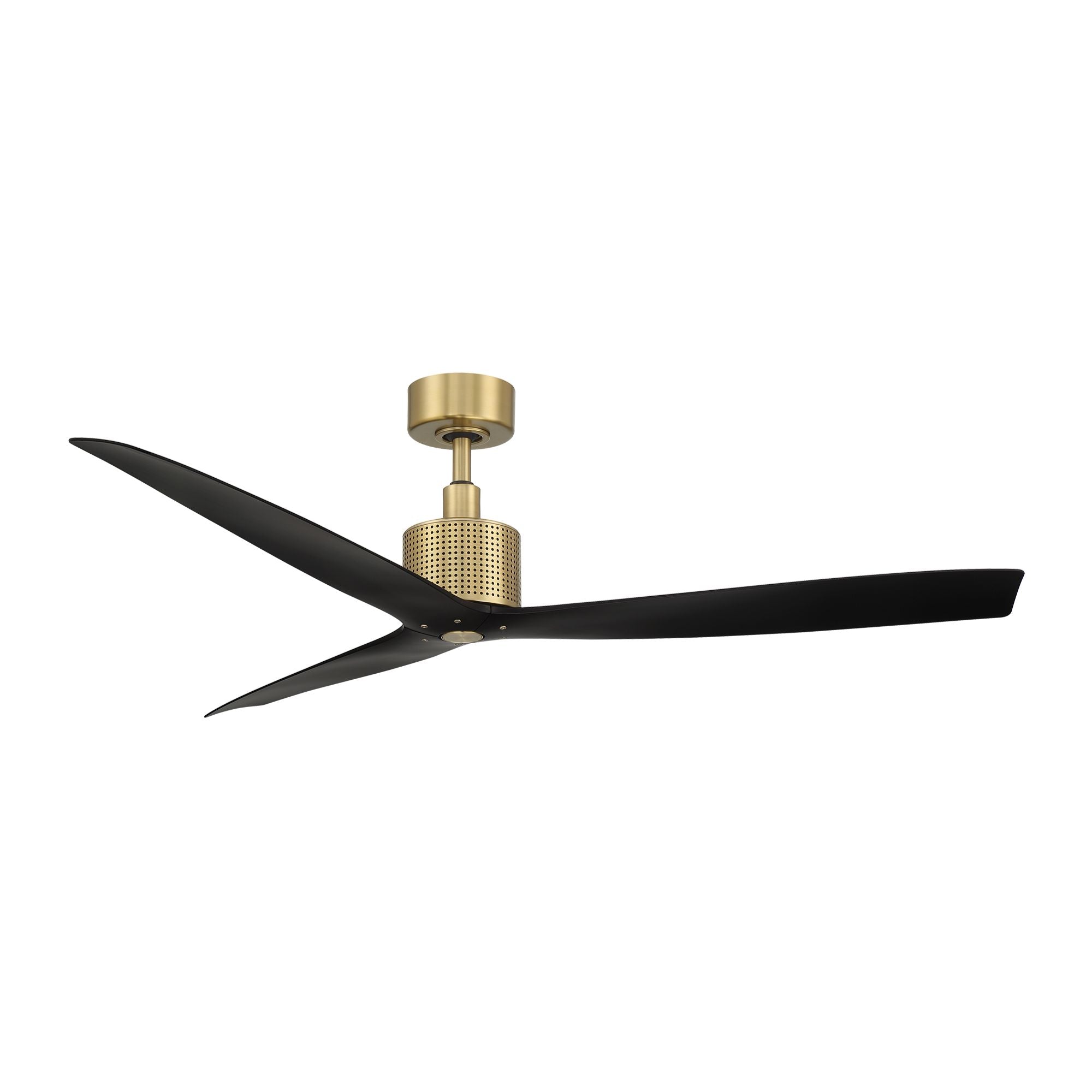

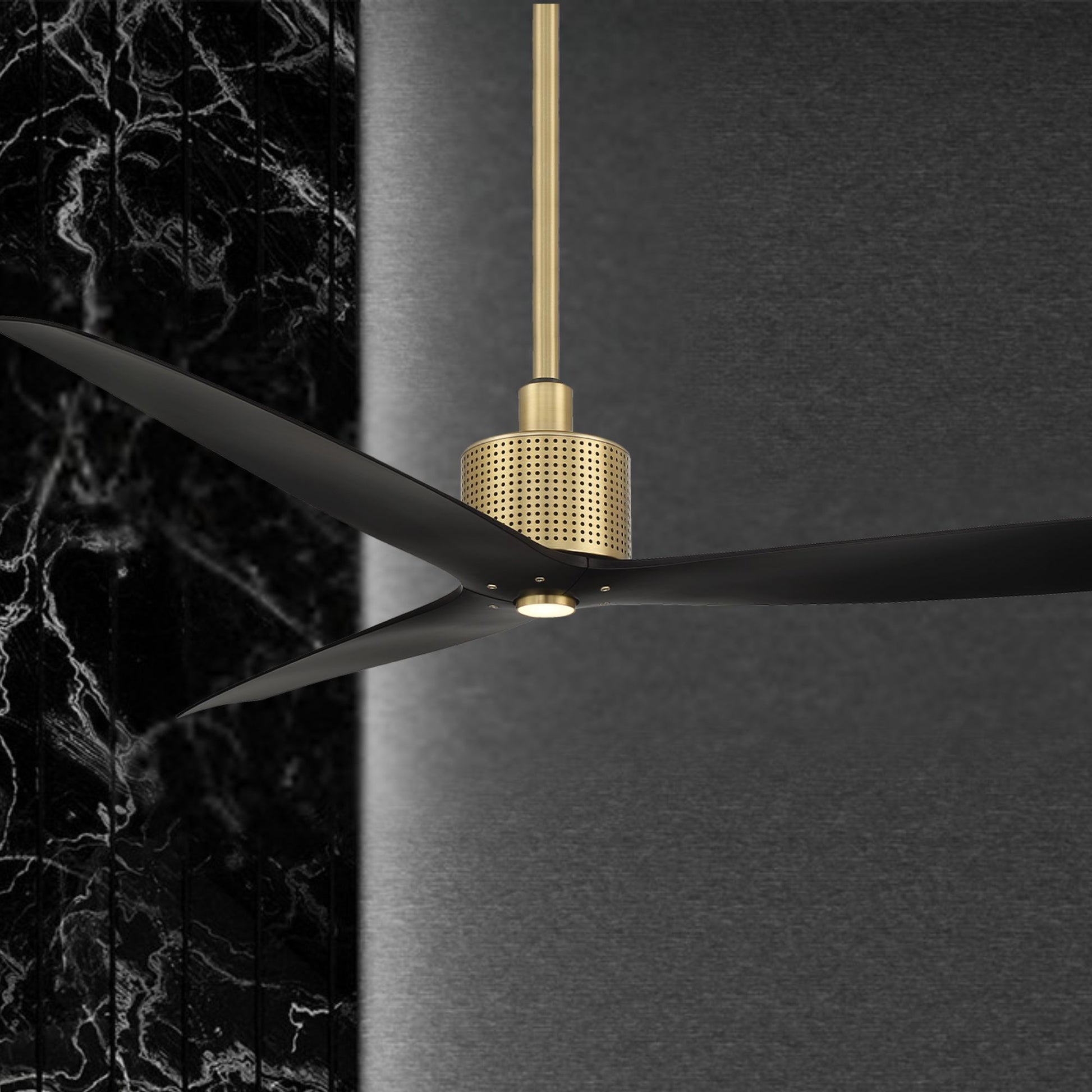

The Modern Forms Spinster FR-W2404-60L-SB/MB showcases an elegant Soft Brass housing adorned with miniature perforations, adding industrial character to its slim, aerodynamic three-blade design. Three Matte Black ABS blades span 60 in, while a quiet, reversible DC motor delivers 6,258 CFM on high with six speeds. A dimmable 3000K LED light and included luminaire cover complete the design. Wet Rated construction supports indoor and outdoor use, excluding coastal environments for this finish. The included Bluetooth remote and Modern Forms Smart Fans app connect Spinster with a compatible smart-home ecosystem, including Google Home, Amazon Alexa and Samsung SmartThings.

Key Features

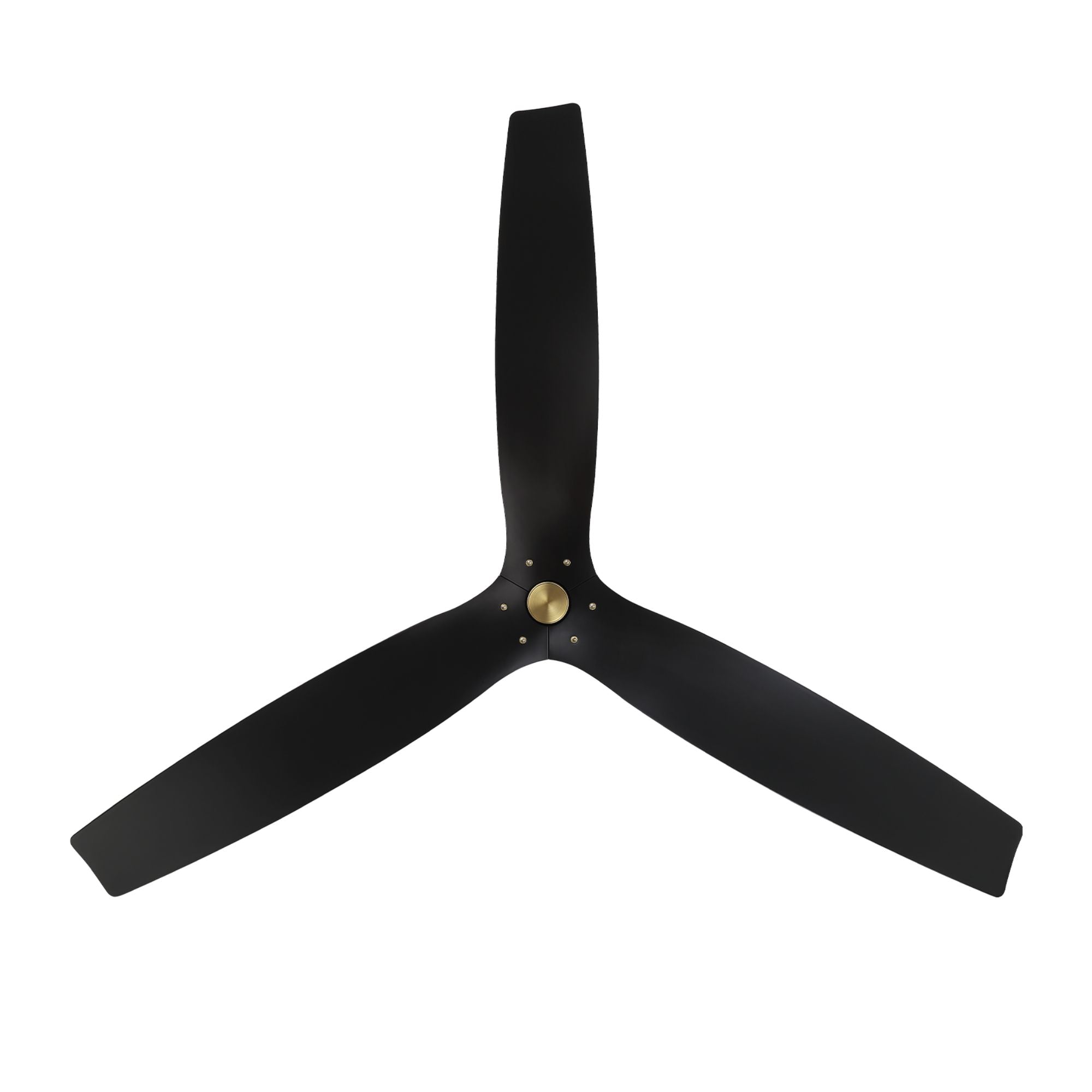

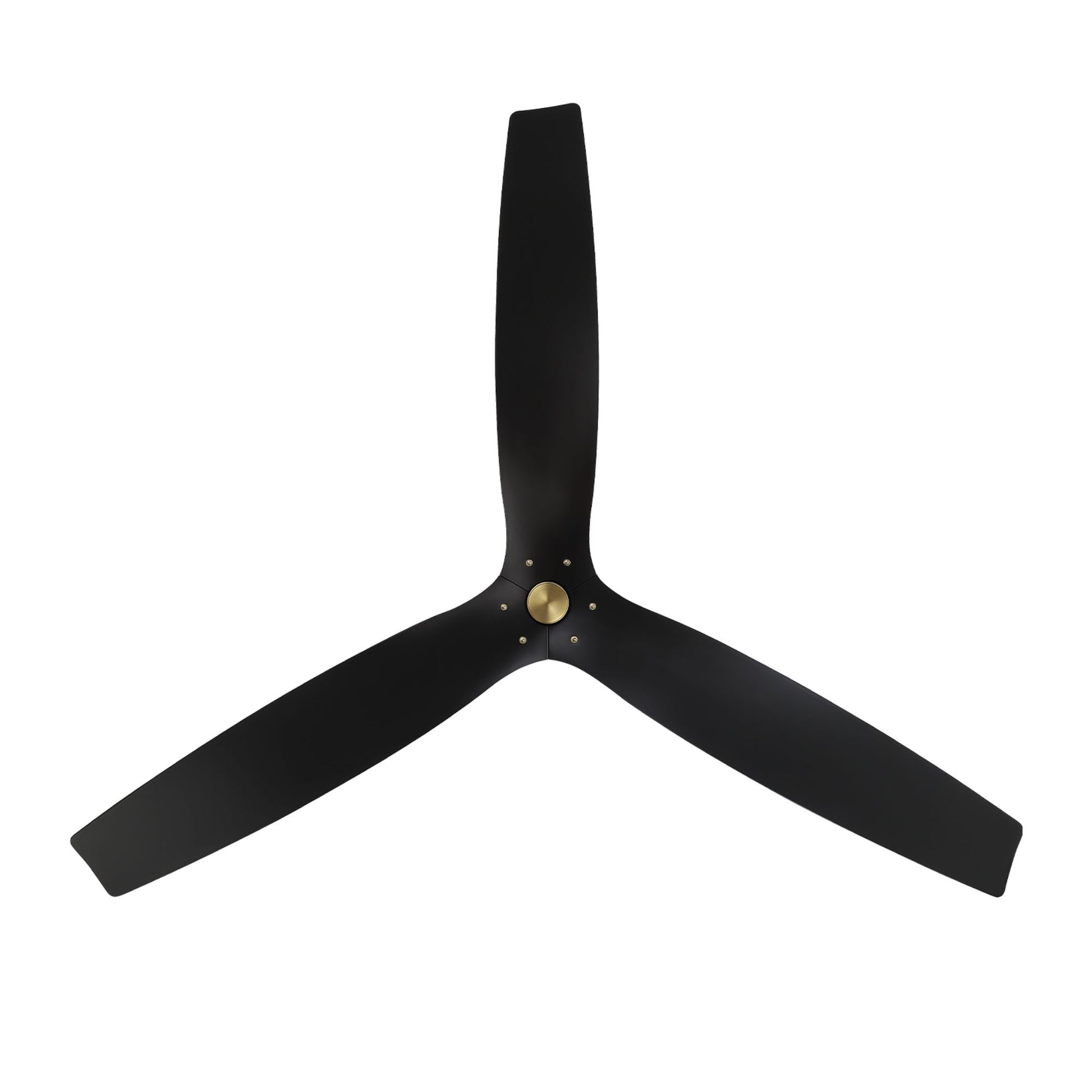

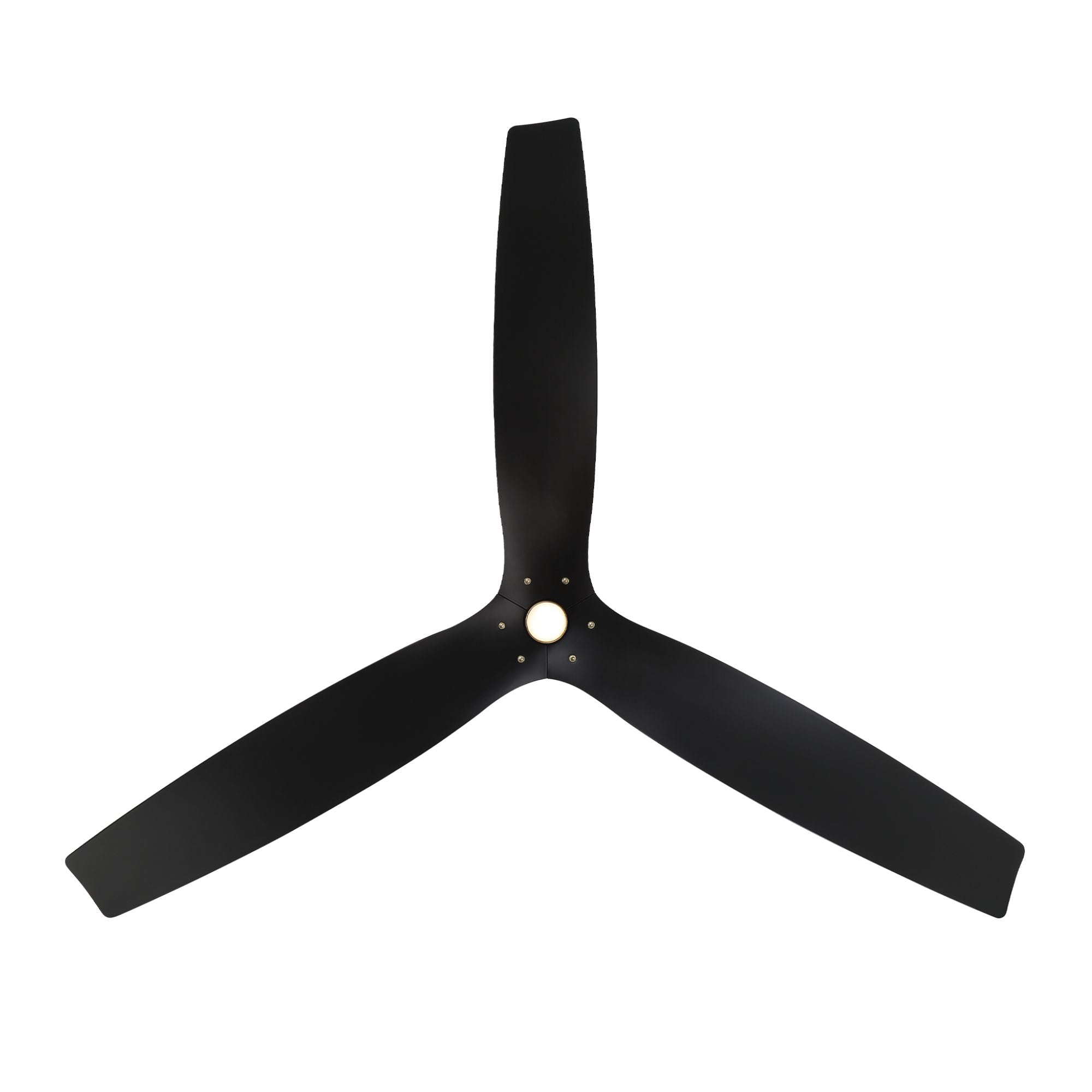

• Blade Configuration: Three ABS blades; 60 in sweep and 16° pitch.
• Motor: 120 × D-25 sensorless DC motor; six speeds, summer/winter modes; maximum 141 RPM.
• Airflow: 6,258 CFM on high; 4,121 CFM weighted average.
• Airflow Efficiency: Listed weighted-average efficiency of 243 CFM/W.
• Total Power: 30W, including 7W LED; motor use is 23W on high and 17W weighted average.
• LED Lighting: 7W, 3000K, 90 CRI; 521 source lumens and 328 delivered lumens.
• Dimming & Life: Integrated dimming; 50,000-hour rated LED life.
• Location Rating: UL/cUL Wet Location listed; Soft Brass is not intended for coastal environments.
• Mounting: Slopes up to 30°; optional XF-SCK kit supports up to 45°, sold separately.
• Downrod & Wire: Included 6 in downrod with 0.75 in inside diameter; 80 in wire.

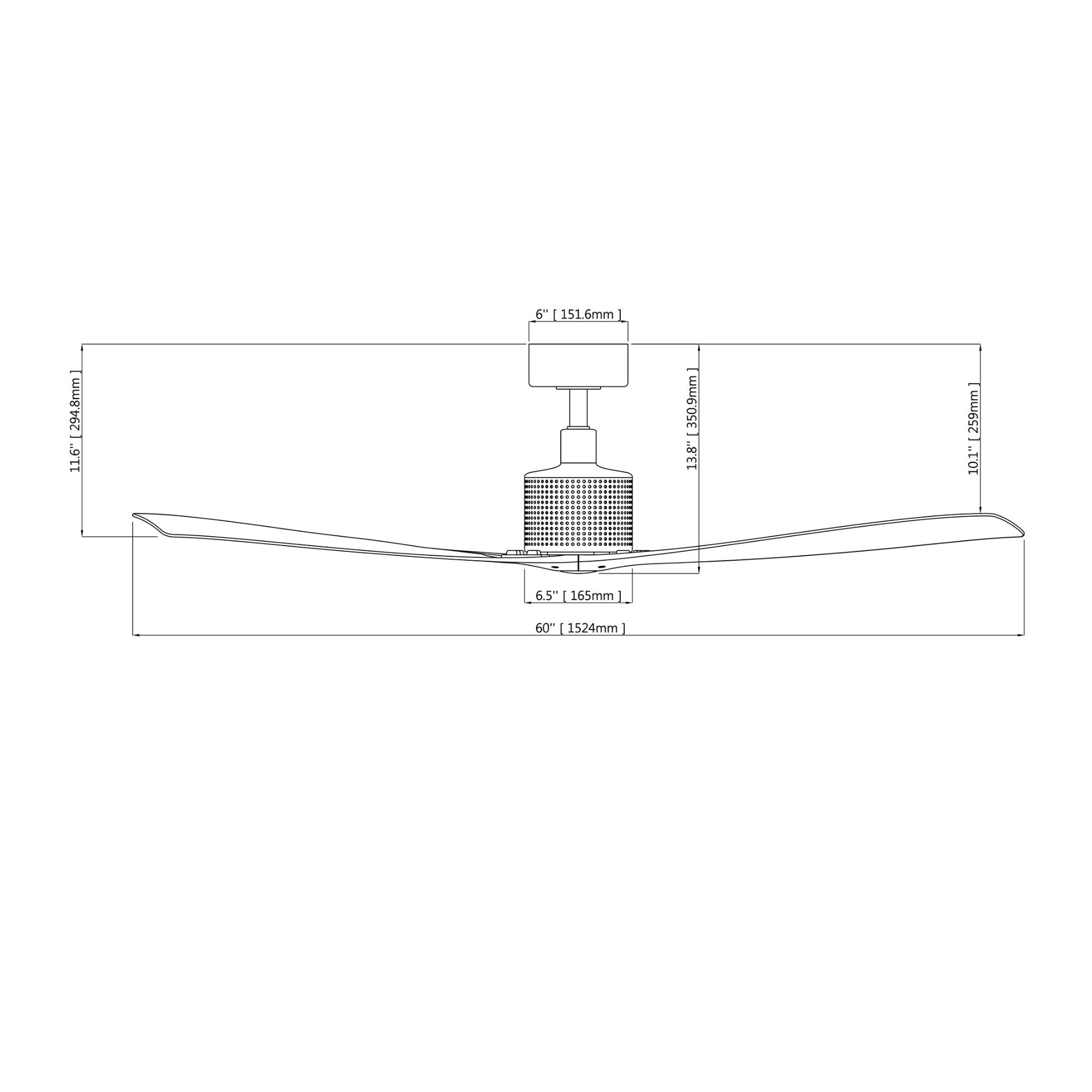

• Dimensions: 60 in diameter × 13.8 in overall height; 6 in canopy diameter.
• Hanging Weight: 17 lb.
• Controls: Included F-RCBT-WT Bluetooth remote; optional F-WCBT-WT wall control sold separately.

Smart & Control Features

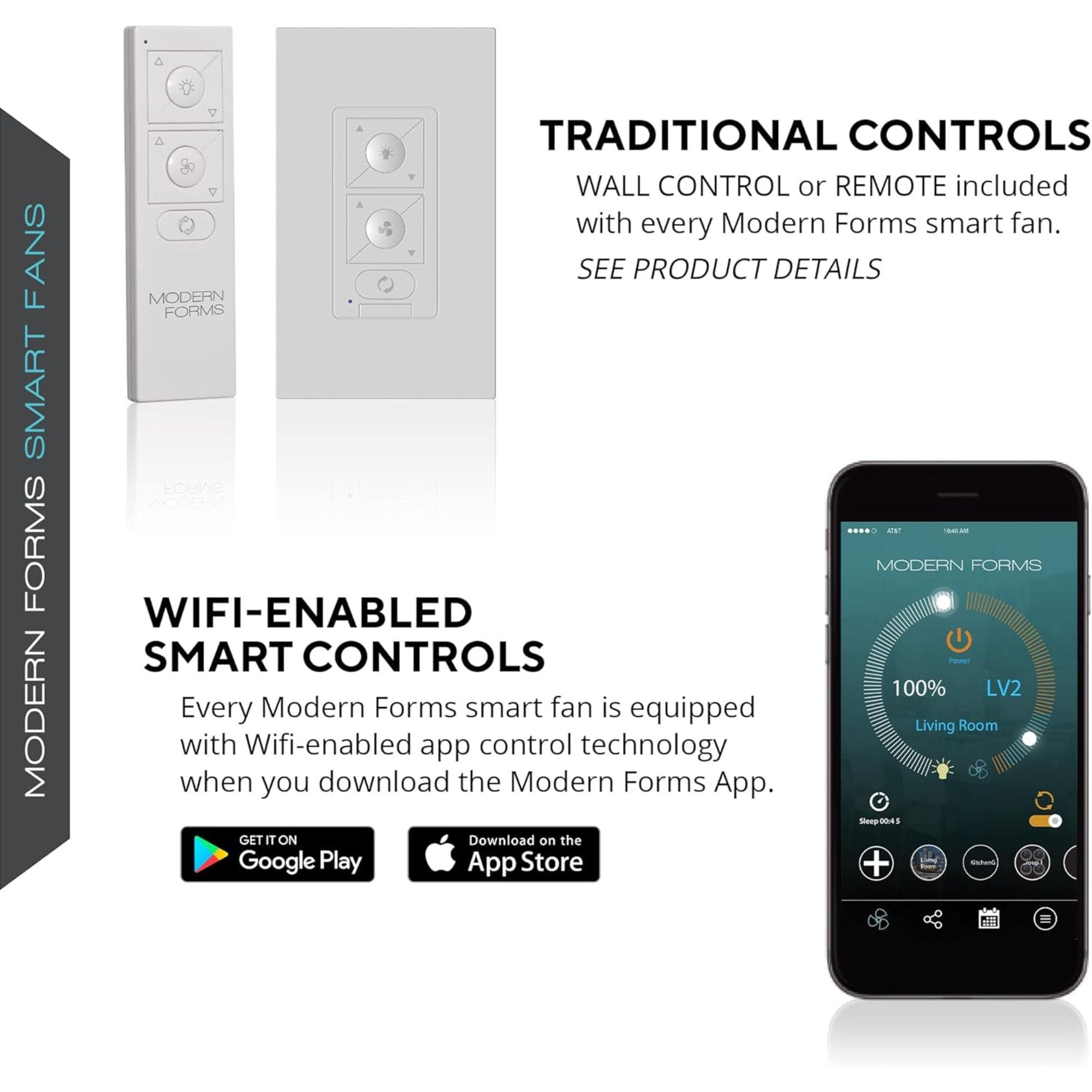

The included F-RCBT-WT Bluetooth remote controls six speeds, light brightness and summer/winter modes. Integrated Wi-Fi and Bluetooth connectivity supports the Modern Forms Smart Fans app. Voice integrations include Amazon Alexa and Google Assistant; smart-home integrations include Samsung SmartThings, Control4 and JOSH. The compatible F-WCBT-WT Bluetooth wall control is sold separately and supports multiple control locations.

Construction & Design

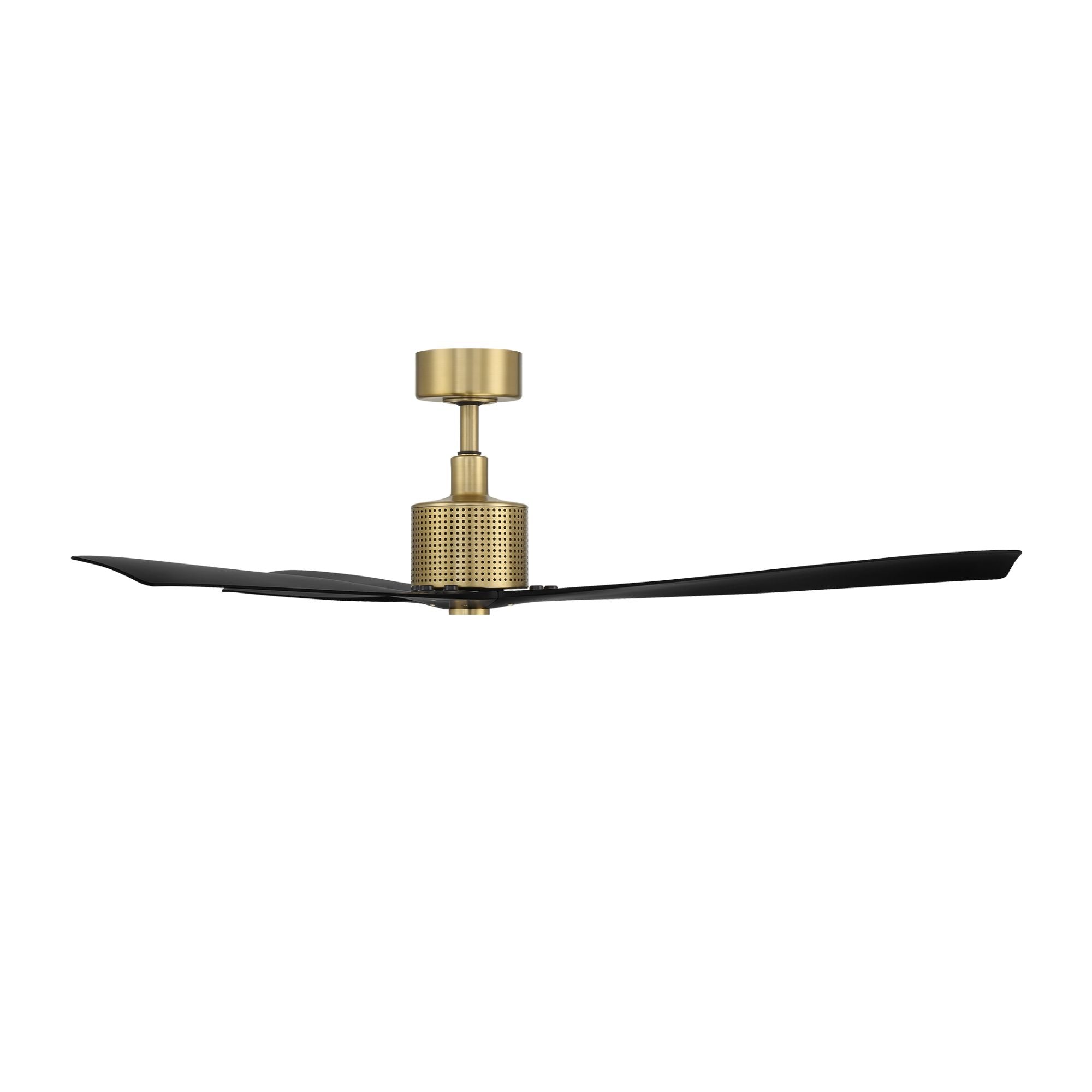

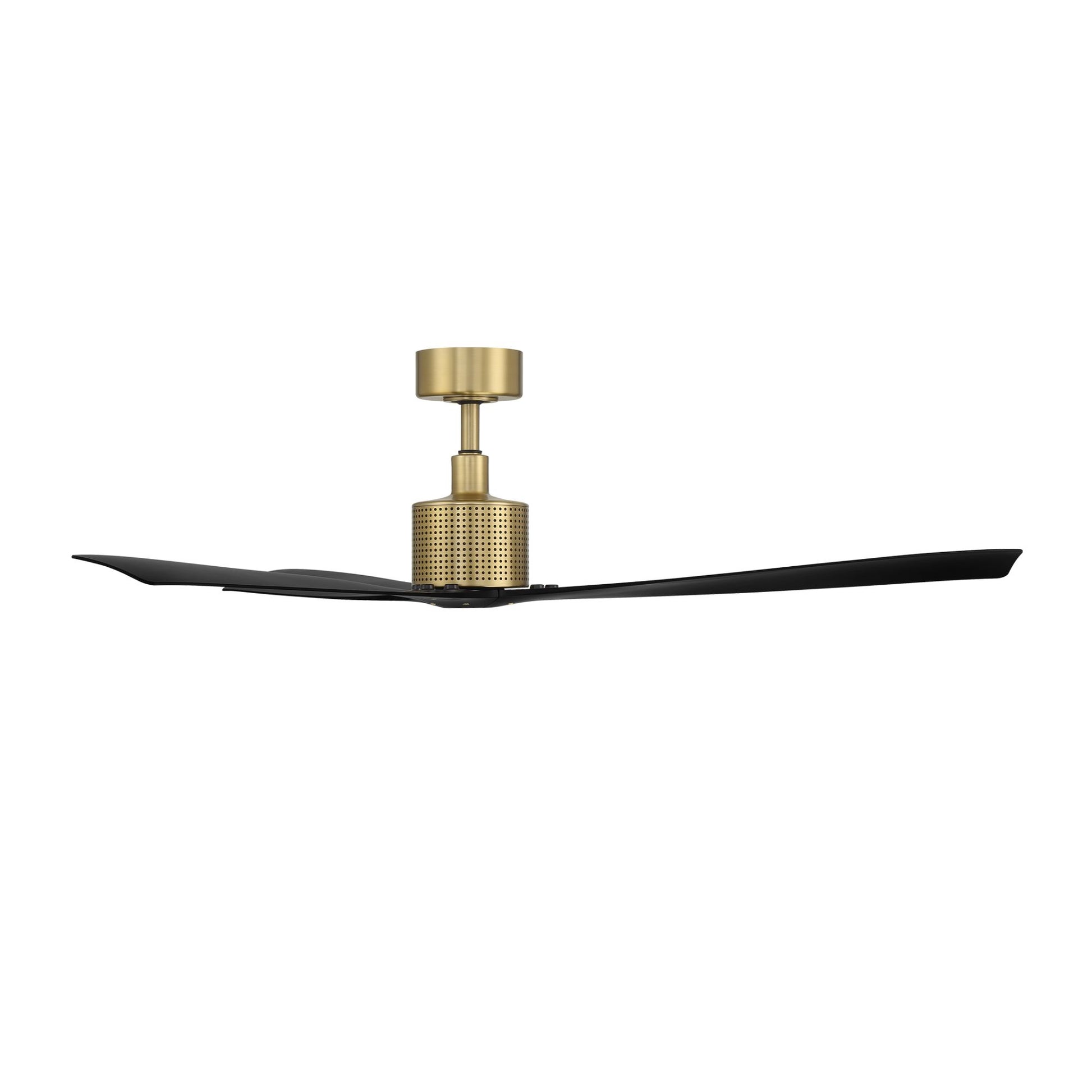

Aluminum, steel and ABS construction pairs a Soft Brass housing with three Matte Black blades. Miniature housing perforations add industrial character, while slim, aerodynamic blades suit contemporary interiors. A luminaire cover is included for non-light use. Soft Brass is not intended for coastal environments.

Light Output & Performance

The 7W integrated LED provides 521 source lumens and 328 delivered lumens at 3000K, with 90 CRI and a 50,000-hour rated life. Integrated dimming supports brightness control through the included Bluetooth remote and Modern Forms app. Fan airflow reaches 6,258 CFM on high; weighted-average airflow is 4,121 CFM with 243 CFM/W listed efficiency.

Electrical & Installation

The reversible DC motor uses 23W on high; total power including the 7W LED is 30W. Includes a 6 in downrod with 0.75 in inside diameter and 80 in wire. Standard mounting supports slopes up to 30°. The compatible XF-SCK sloped-ceiling kit, sold separately, supports up to 45°. Recommended maximum downrod length is 72 in with the supplied wire. Avoid coastal environments for this finish.

Suggested Downrod by Ceiling Height

Ships with a 6 in downrod. Longer compatible downrods are available separately.

• 9 ft ceiling: 12 in downrod
• 10 ft ceiling: 18 in downrod
• 11 ft ceiling: 24 in downrod
• 12 ft ceiling: 36 in downrod
• 13 ft ceiling: 48 in downrod
• 14 ft ceiling: 60 in downrod
• 15 ft ceiling: 72 in downrod

What's Included

• Spinster fan with Soft Brass housing and three Matte Black blades
• Integrated LED light and luminaire cover
• F-RCBT-WT Bluetooth remote with wall cradle and batteries
• 6 in downrod
• Mounting Hardware
