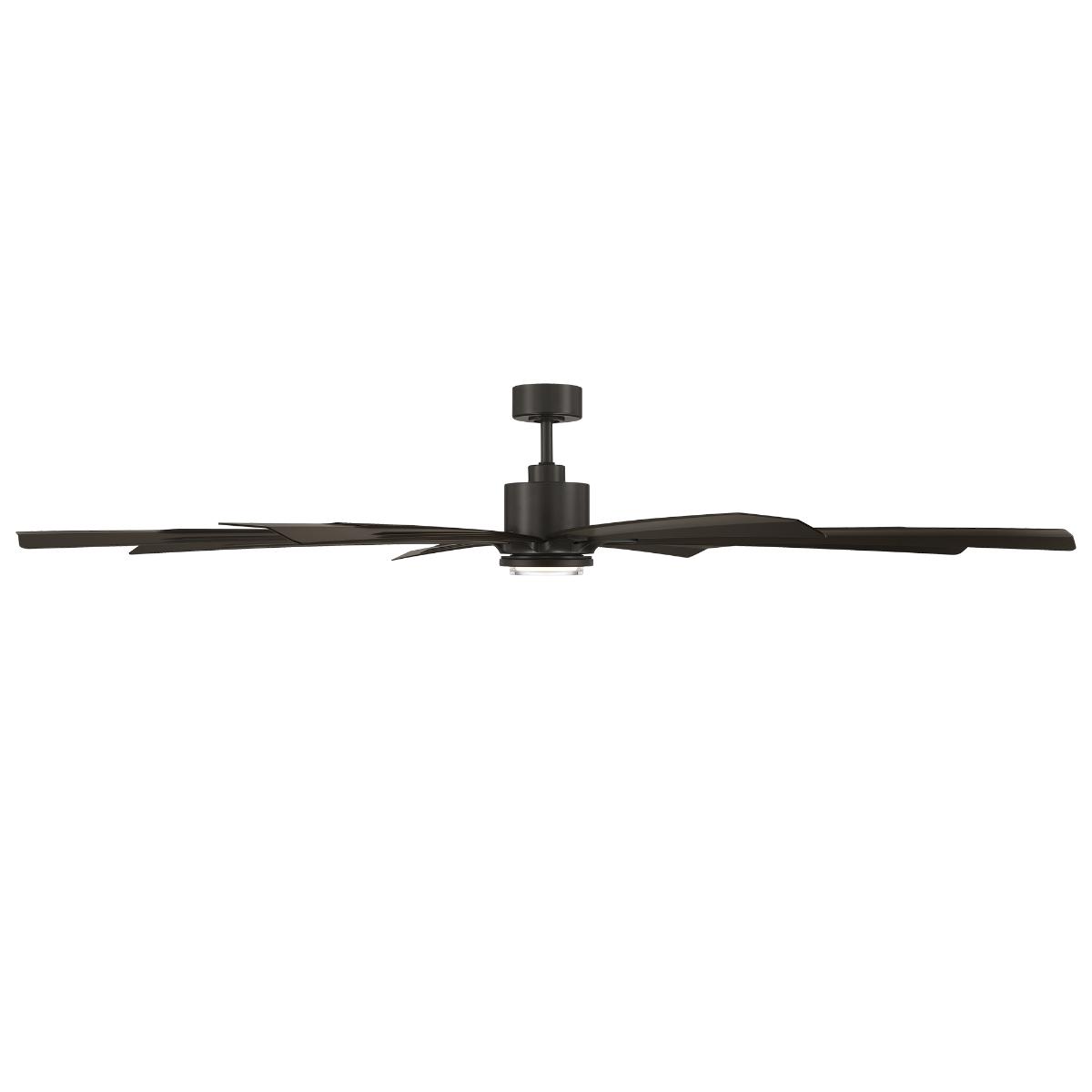

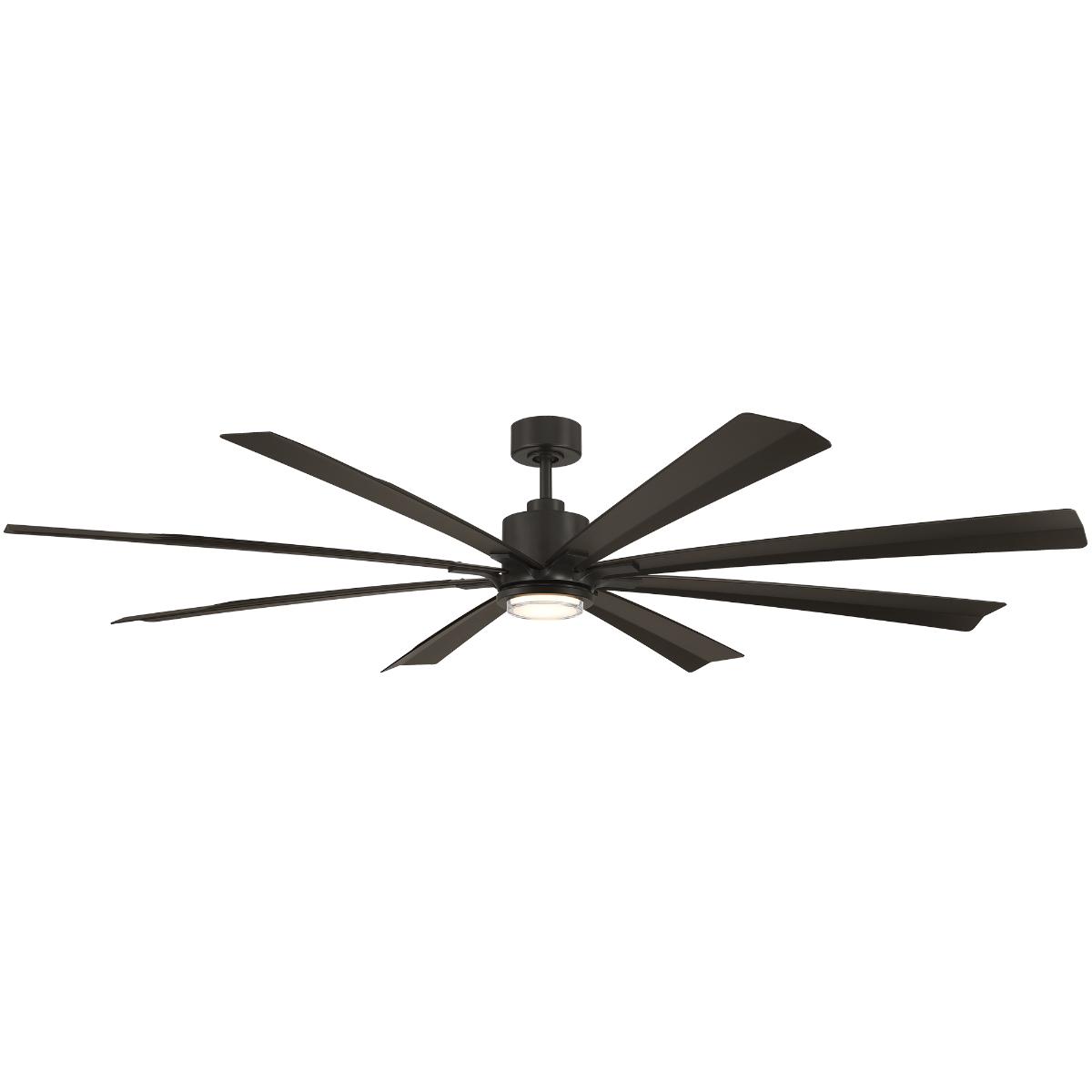

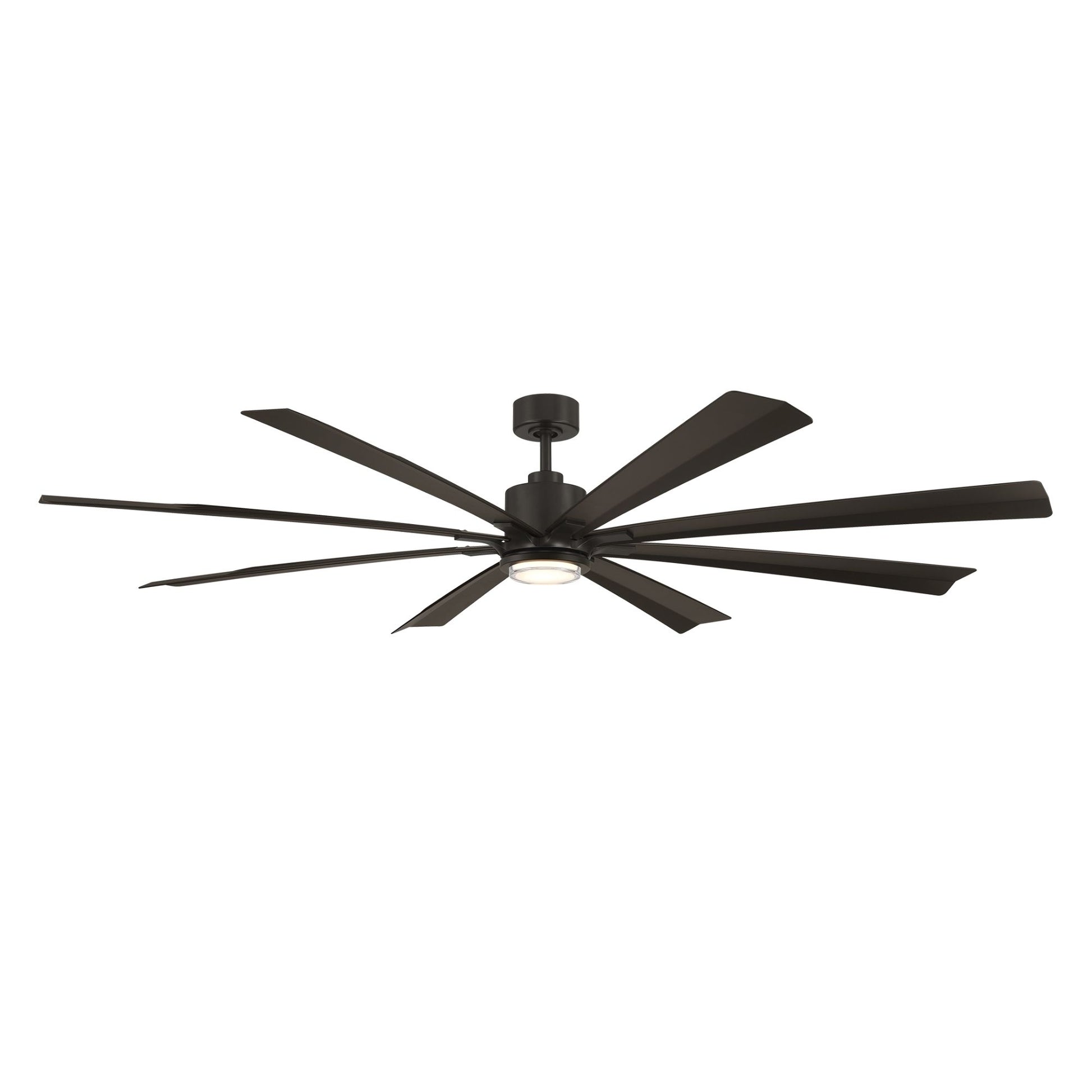

The Modern Forms Size Matters FR-W2403-84L-BZ is a commanding eight-blade 84 in downrod ceiling fan in Bronze with matching Bronze ABS blades and an integrated LED luminaire. Powered by a DC 168×30mm sensorless motor with 6 speeds and native WiFi + Bluetooth smart control, it delivers 10,674 CFM at high speed. Wet rated for indoor and outdoor use. Ships with the F-RCBT-WT Bluetooth remote.

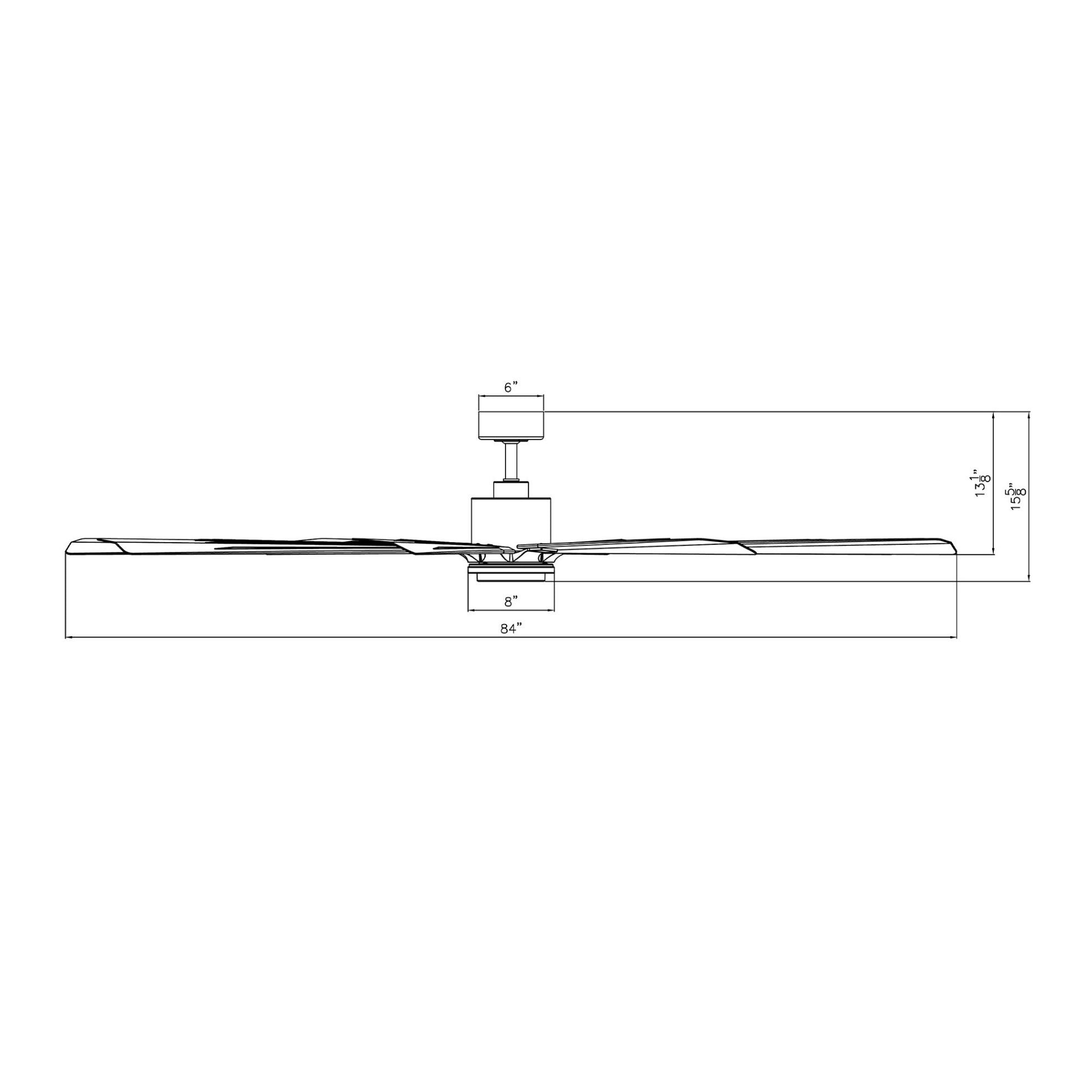

• Blade Span: 84 in / 8 ABS blades / 20° pitch / Bronze
• Motor: DC 168×30mm sensorless, 6 speeds, Summer & Winter modes
• Airflow: 10,674 CFM high / 8,181 CFM weighted average
• Efficiency: 232 CFM/W at high speed / 232 CFM/W weighted average
• Wattage: 50W fan / 21W LED / 70W total
• Light Output: 21W 4-CCT LED included — 1,991–2,159 lm initial (CCT-dependent) / 1,888 lm delivered / 2700K–3000K–4000K–5000K selectable / CRI 90 / integrated dimmer / 50,000 hr rated life
• Location Rating: Wet rated — UL/cUL listed, suitable for indoor and outdoor exposed locations
• Mount Type: Downrod — 6 in downrod included / sloped ceilings up to 30° standard
• Downrod Included: 6 in (0.75 in dia)
• Lead Wire: 80 in
• Weight: 35 lbs
• Certifications: UL/cUL Wet Location listed / Title 24 JA8-2016 / Title 20 / ENERGY STAR

The FR-W2403-84L-BZ features native WiFi + Bluetooth — no hub required. Ships with the F-RCBT-WT Bluetooth remote: 6-speed fan control, Summer & Winter mode switching, On/Off. Control via the Modern Forms app (iOS and Android). WiFi and Bluetooth range: up to 150 ft. Voice control via Amazon Alexa and Google Home. Additional integrations: SmartThings, JOSH, Control4, Crestron, ABiCUS. Optional F-WCBT-WT Bluetooth wall control available separately.

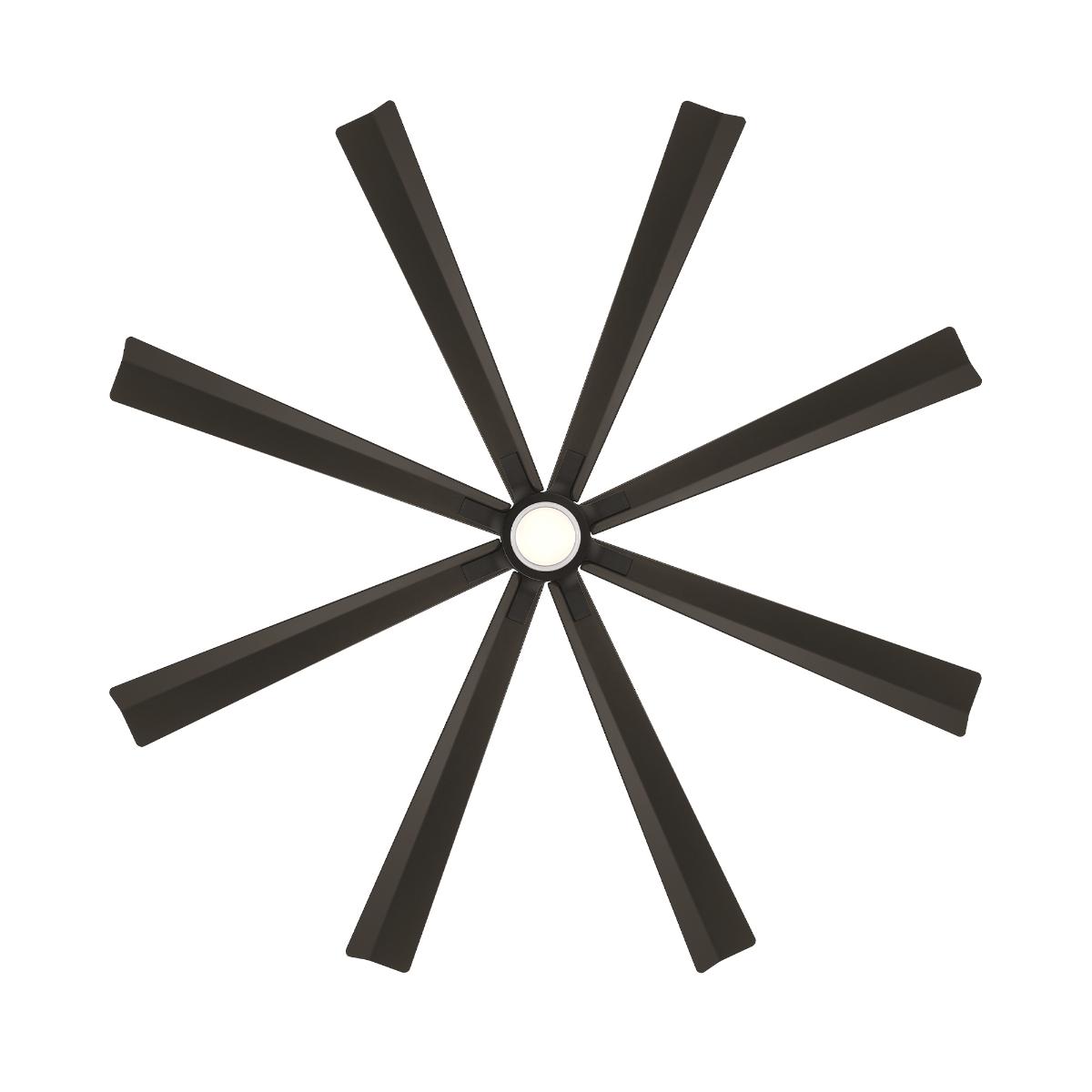

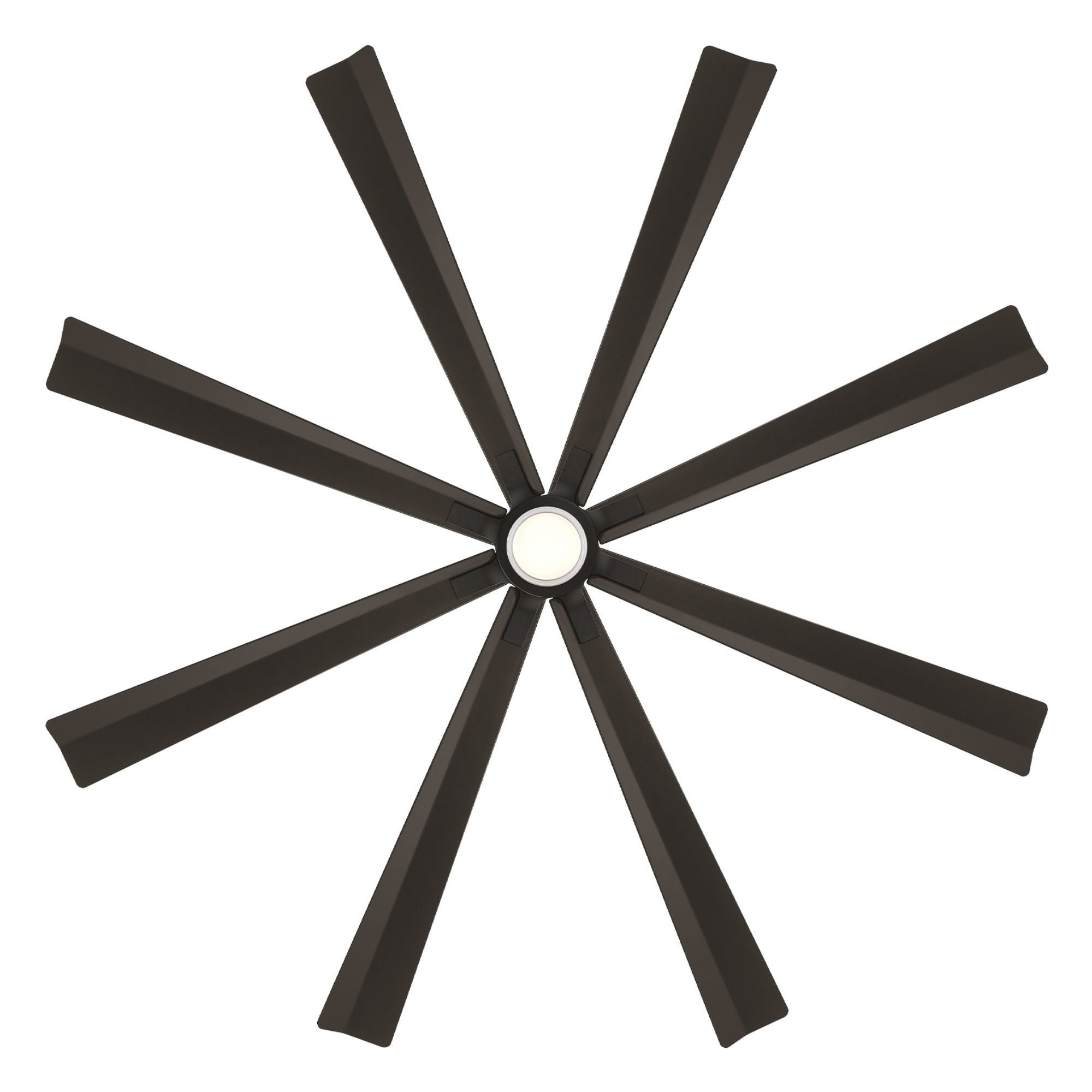

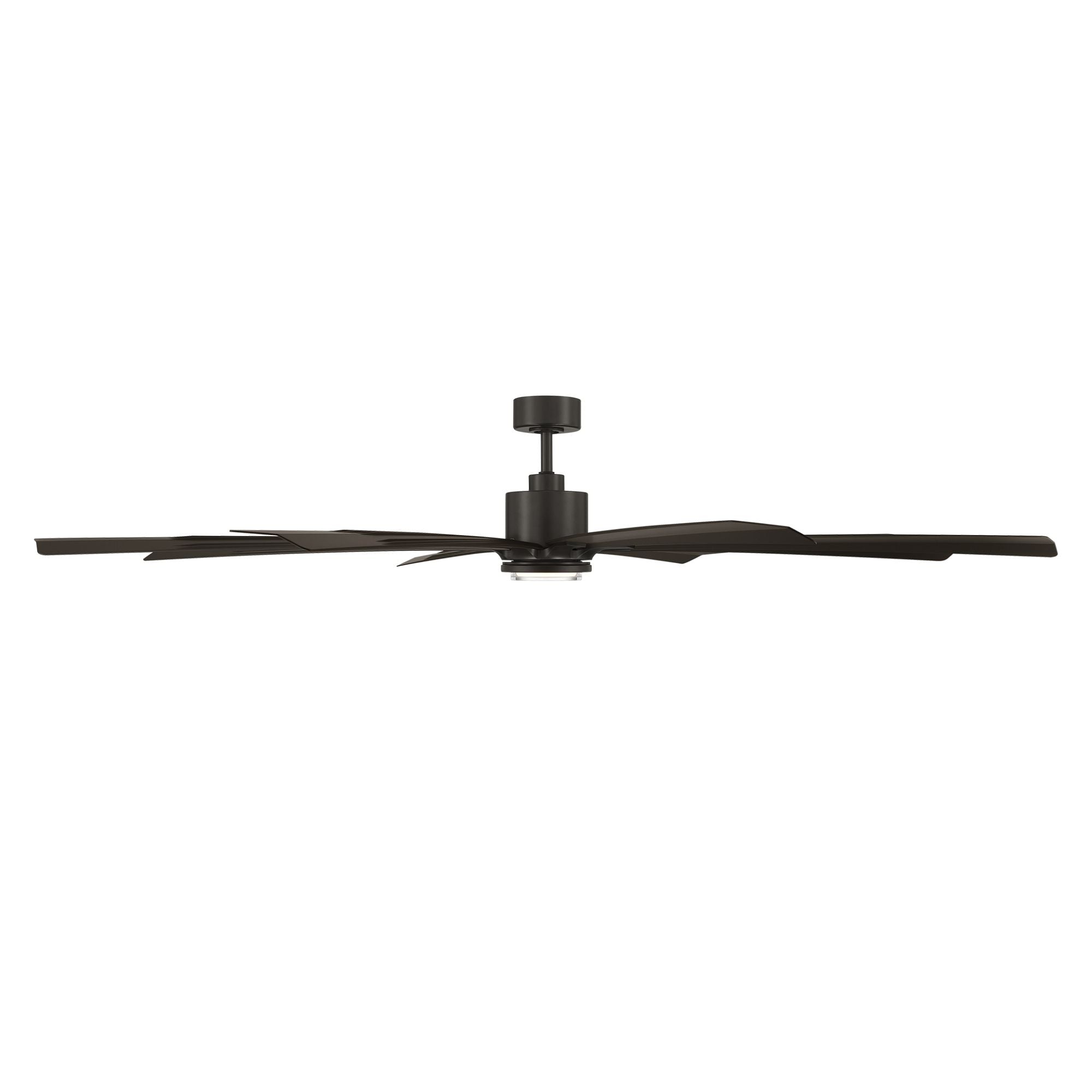

Motor housing in Bronze with eight precision-crafted Bronze ABS blades at 20° pitch. Net weight: 35 lbs. At 84 inches, the Size Matters commands any grand-scale room or outdoor area with its bold angular silhouette — now with integrated illumination for a complete lighting and airflow solution.

Integrated 21W 4-CCT LED luminaire — 1,991–2,159 lm initial (varies by CCT) / 1,888 lm delivered / selectable 2700K, 3000K, 4000K, 5000K / CRI 90 / 50,000 hr rated life / fully dimmable via F-RCBT-WT remote or Modern Forms app. The FR-W2403-84L-BZ delivers 10,674 CFM at high speed (232 CFM/W, 50W) — ideal for very large to grand-scale rooms and outdoor areas up to approximately 900 sq ft. Weighted average: 8,181 CFM at 35W / 232 CFM/W.

120V AC, 60Hz. Total max draw: 50W fan + 21W LED = 70W. Ships with a 6 in downrod (0.75 in dia), 80 in lead wire. Sloped ceiling compatible up to 30° with standard downrod. For steeper slopes up to 45°, the optional sloped ceiling kit XF-SCK is available separately. Fan must be attached to a securely anchored electrical junction box rated for wet locations.

A 6 in downrod is included. Additional downrods (XF-12 through XF-72) available separately. Maximum recommended downrod length: 72 in with 80 in lead wire.

• 9 ft ceiling → 12 in downrod
• 10 ft ceiling → 18 in downrod
• 11 ft ceiling → 24 in downrod
• 12 ft ceiling → 36 in downrod
• 13 ft ceiling → 48 in downrod
• 14 ft ceiling → 60 in downrod
• 15 ft ceiling → 72 in downrod

Ideal distance from floor to fan blades is 7 to 9 feet.

• FR-W2403-84L-BZ ceiling fan with LED luminaire (Bronze body + 8 Bronze ABS blades)
• F-RCBT-WT Bluetooth remote
• 6 in downrod
• Mounting hardware
