Modern Forms Size Matters 84 in Outdoor Smart Ceiling Fan DC Bronze
Available in stock (149)
About this item
About this item
- Airflow for Grand-Scale Spaces: 10,674 CFM high / 8,181 CFM avg at 232 CFM/W — ideal for rooms and outdoor areas up to ~900 sq ft.
- Whisper-Quiet DC Motor: 168×30mm sensorless DC motor, 6 speeds, Summer and Winter modes — near-silent performance at every speed setting.
- Wet Rated — UL/cUL Listed: Suitable for exposed outdoor, covered patios, poolside, and indoor use. ENERGY STAR qualified.
- Smart Control — F-RCBT-WT Remote Included: Native WiFi + Bluetooth, no hub needed. Modern Forms app, Alexa, Google Home, SmartThings, JOSH, Control4, Crestron. Optional F-WCBT-WT wall control sold separately.

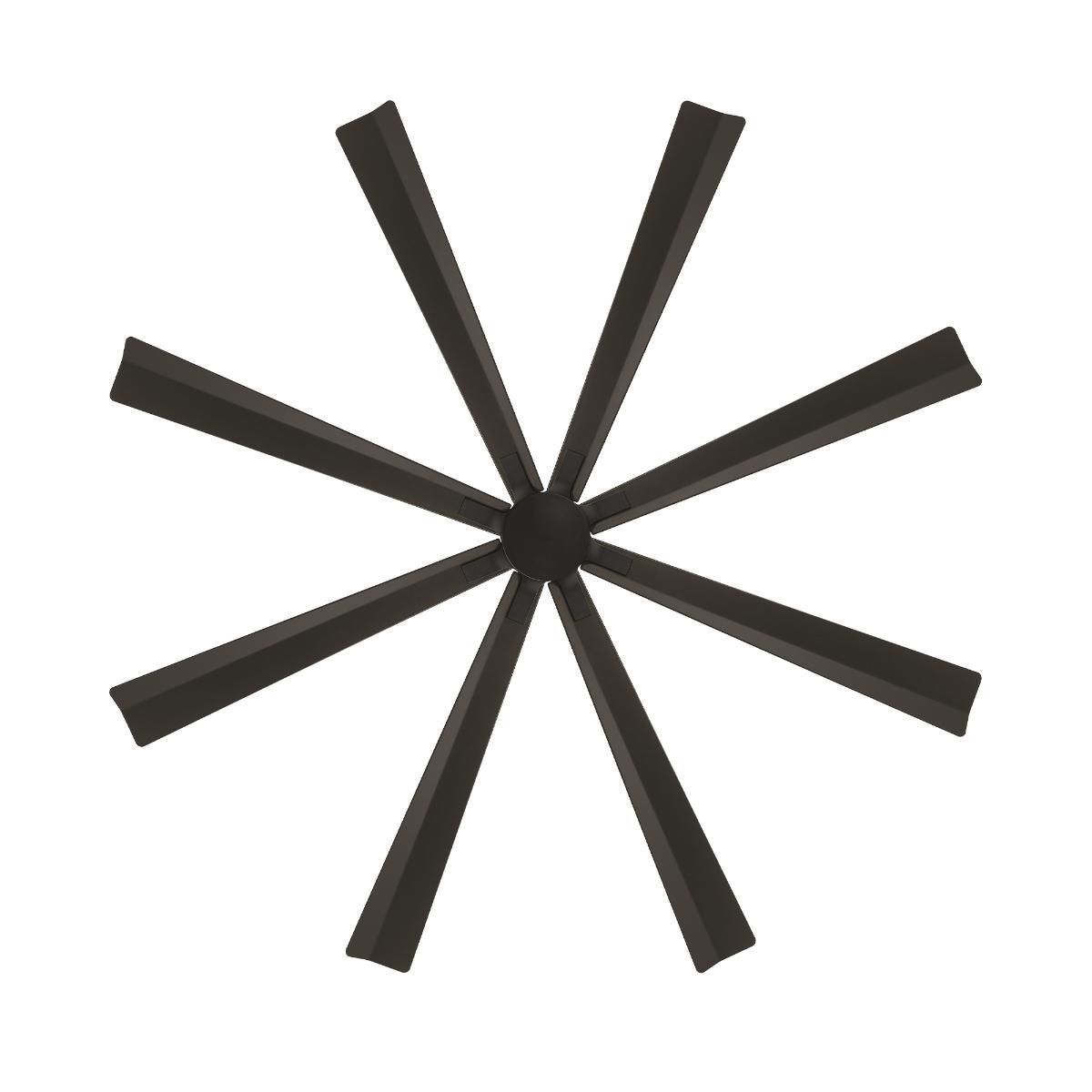

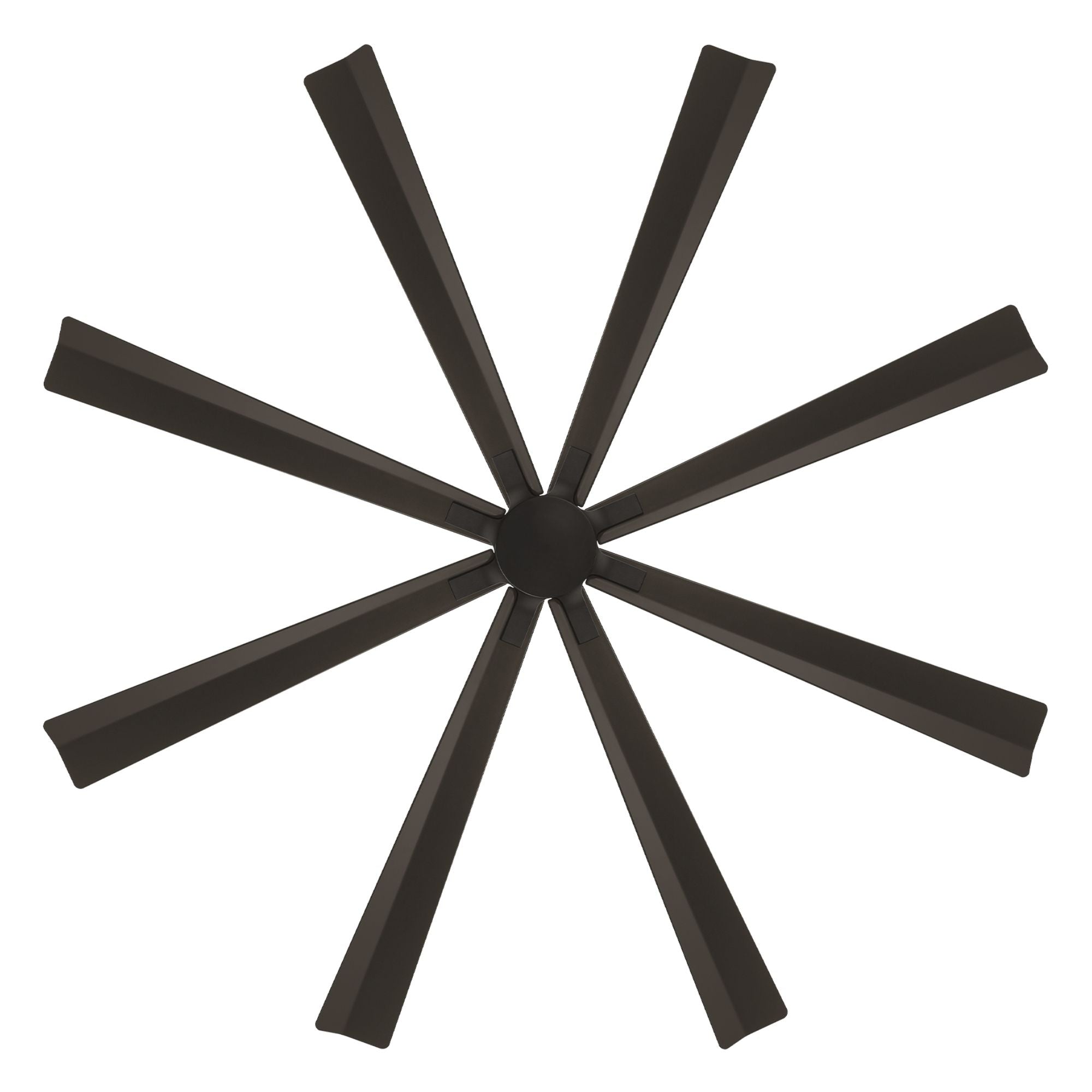

- 8-Blade Bronze Design — Fan Only: Eight sharply angled Bronze ABS blades at 20° pitch. Fan-only model with cover plate; see FR-W2403-84L-BZ for the LED version.
We process payments securely and do not store credit card information.
Description
Description

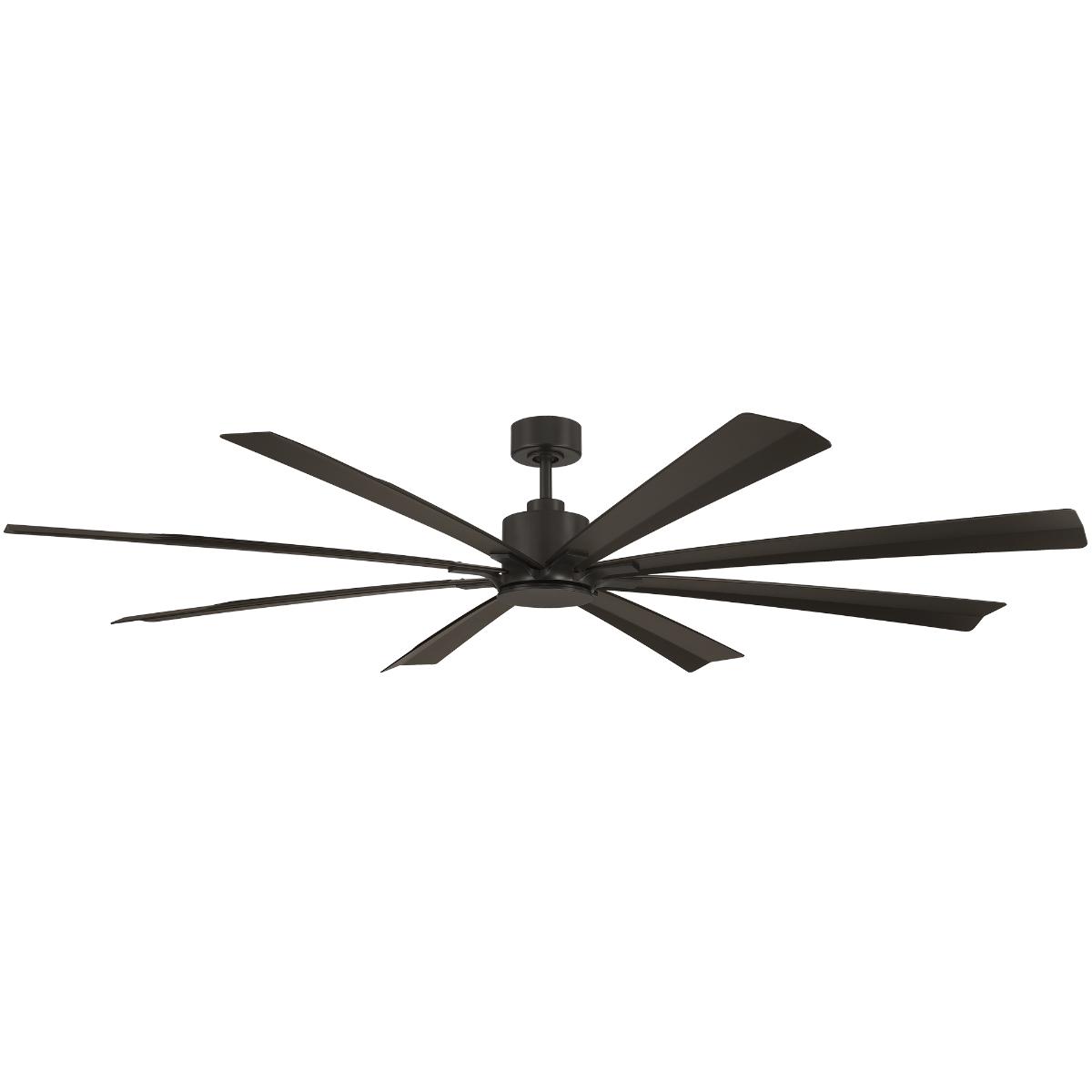

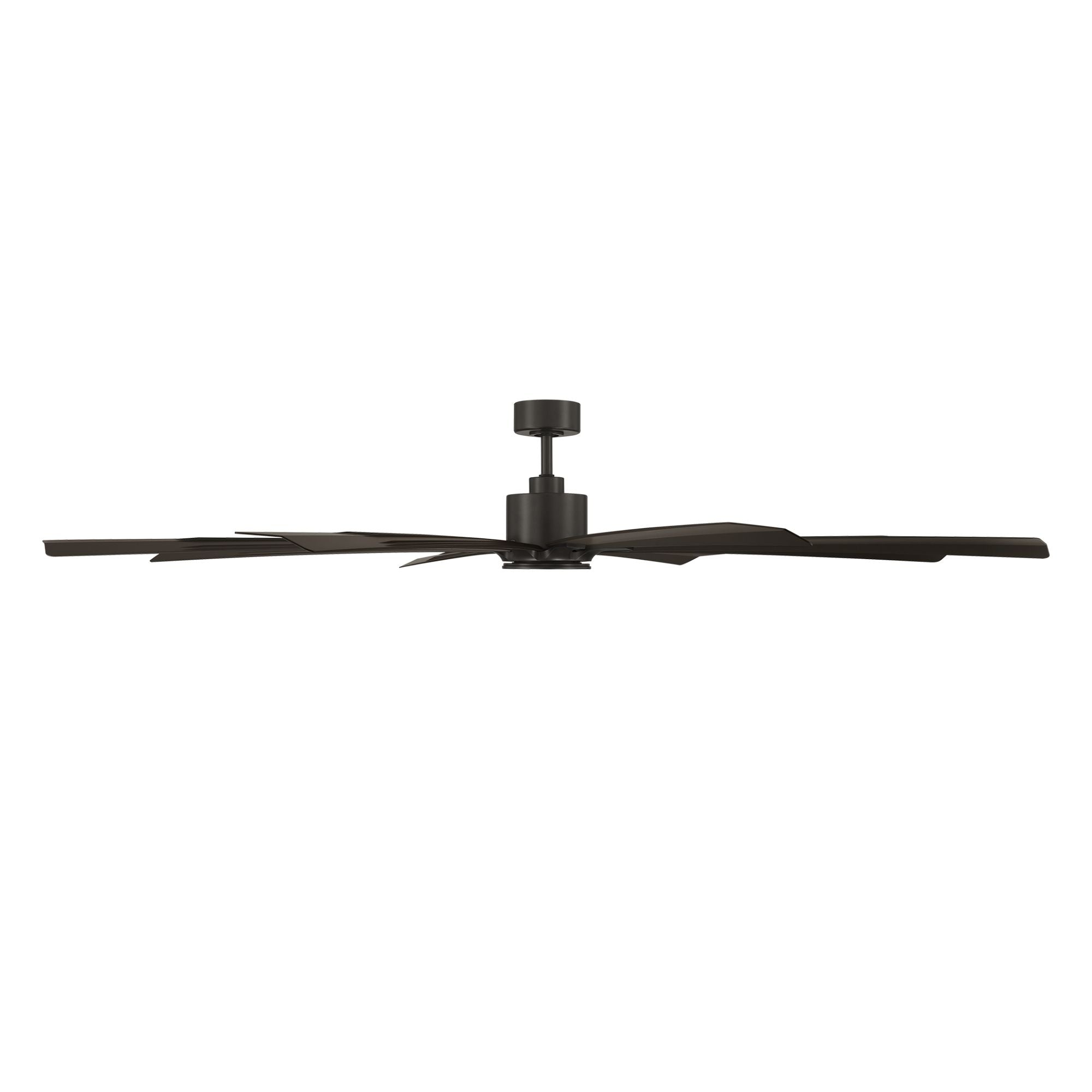

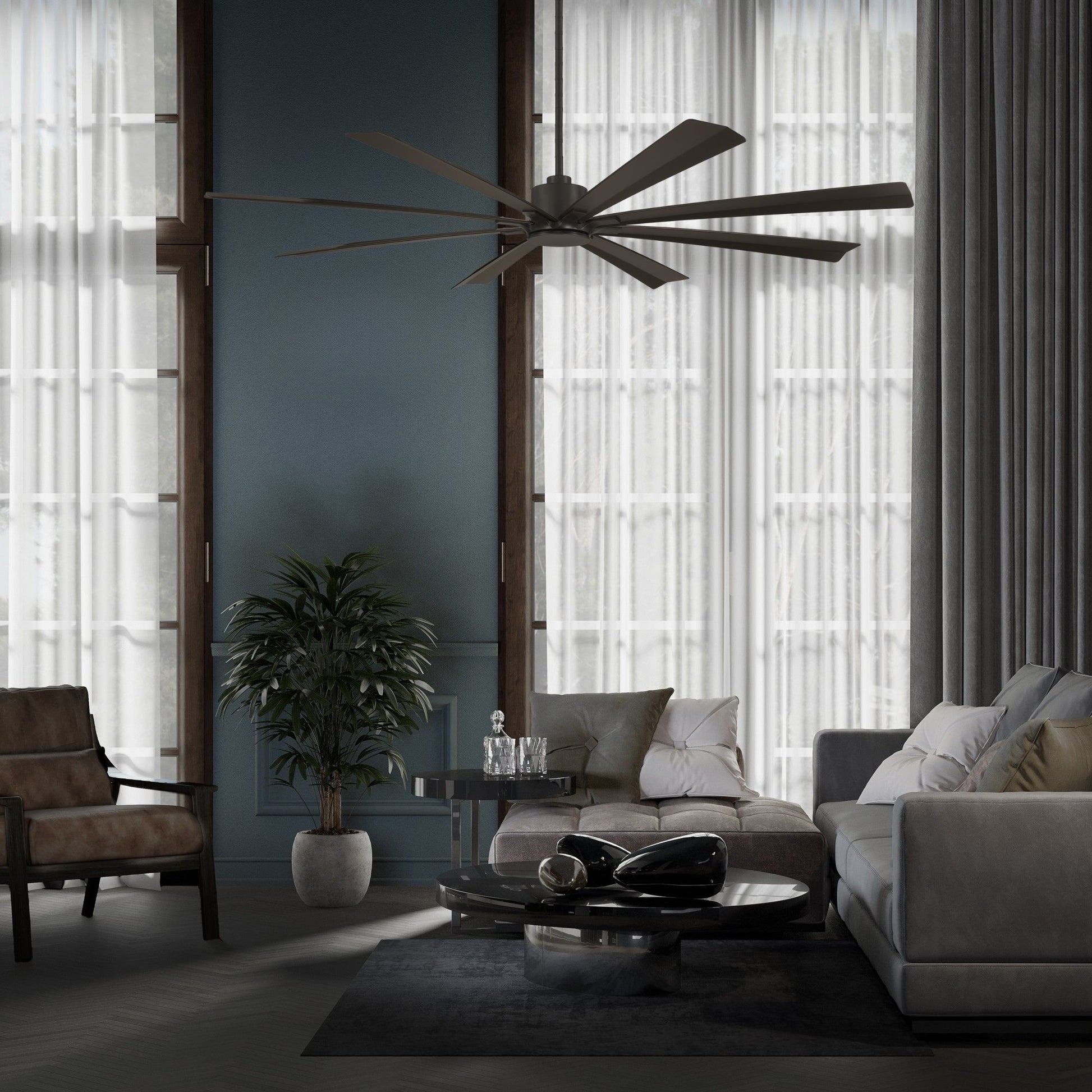

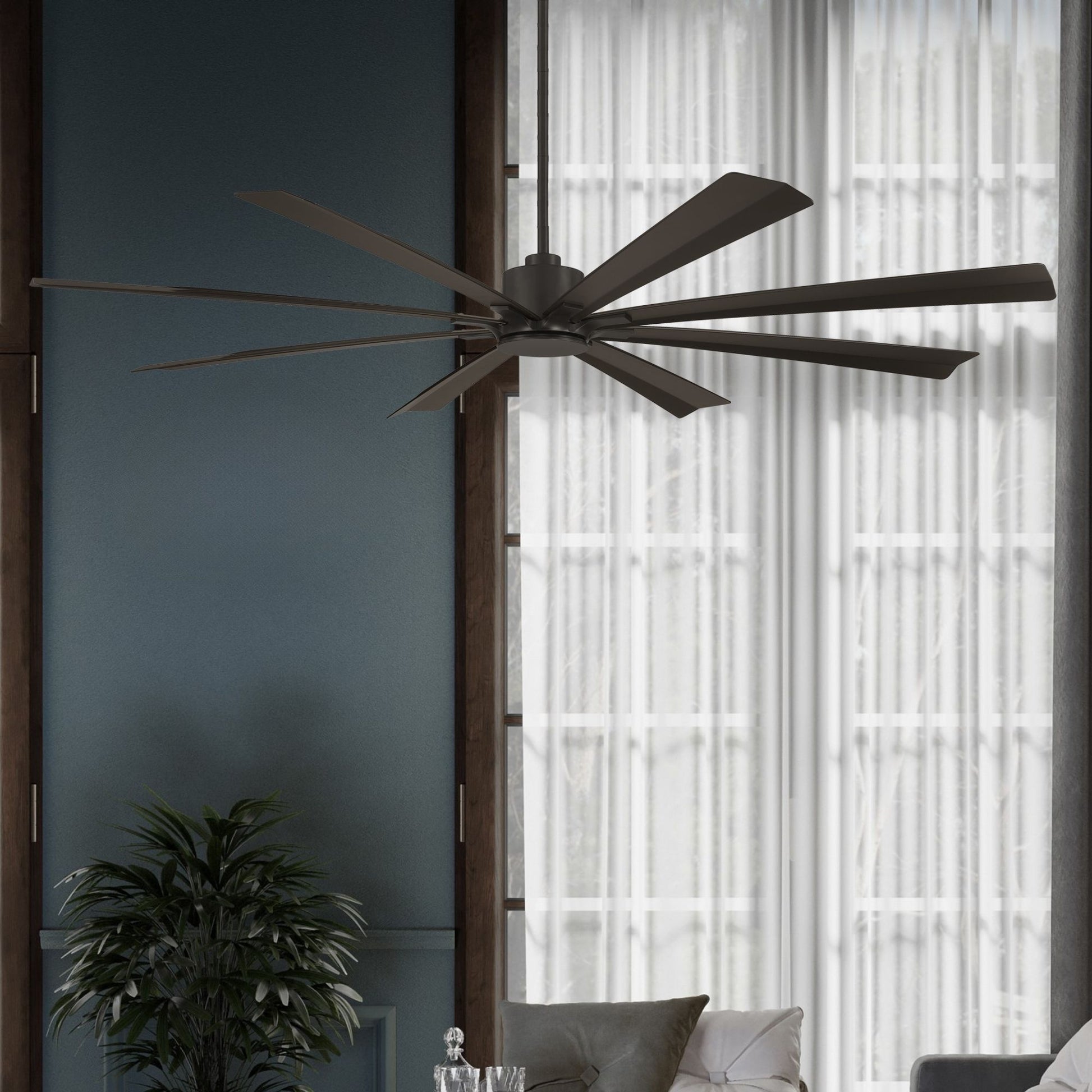

The Modern Forms Size Matters FR-W2403-84-BZ is a commanding eight-blade 84 in downrod ceiling fan in Bronze with matching Bronze ABS blades. Powered by a DC 168×30mm sensorless motor with 6 speeds and native WiFi + Bluetooth smart control, it delivers 10,674 CFM at high speed. Wet rated for indoor and outdoor use. Ships with the F-RCBT-WT Bluetooth remote.

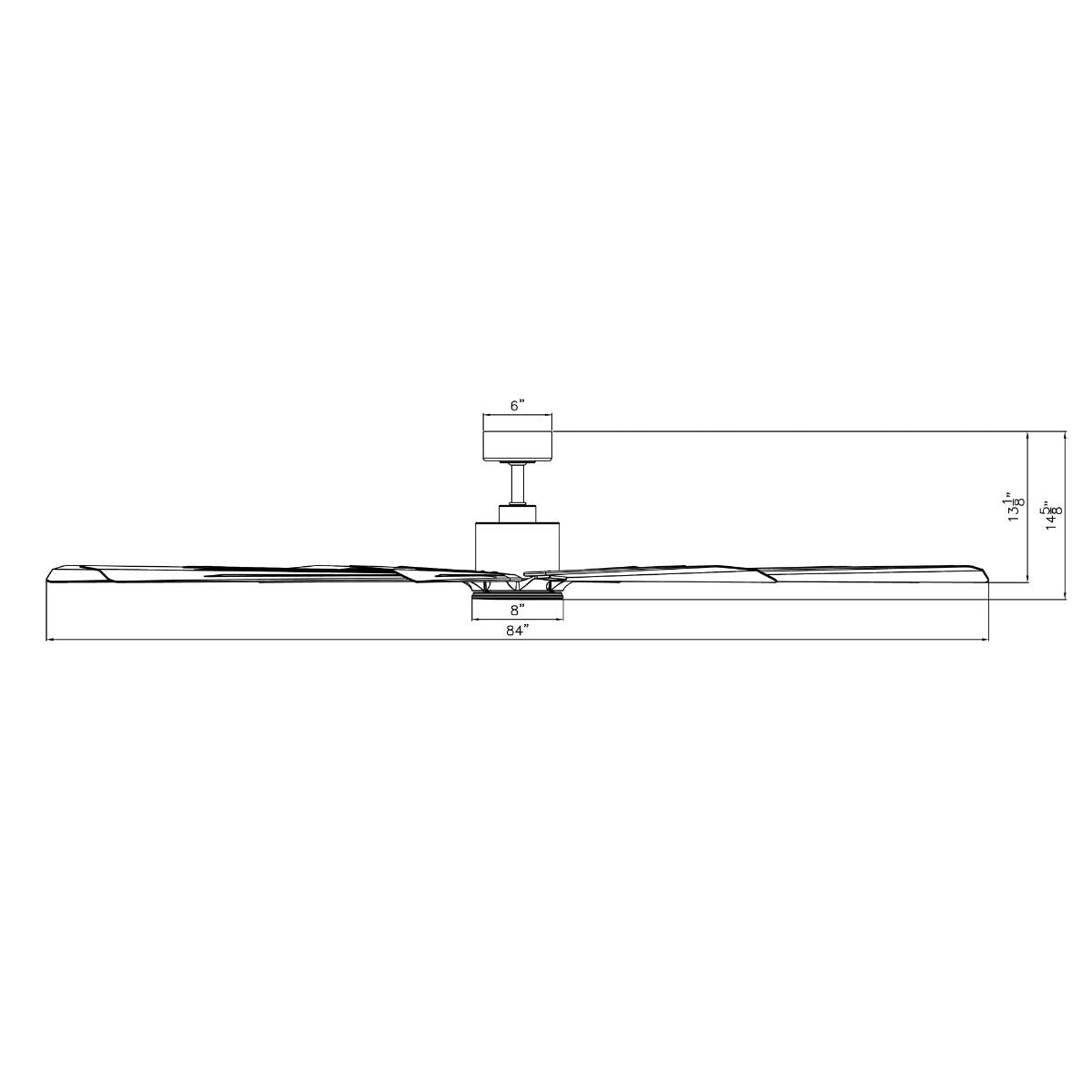

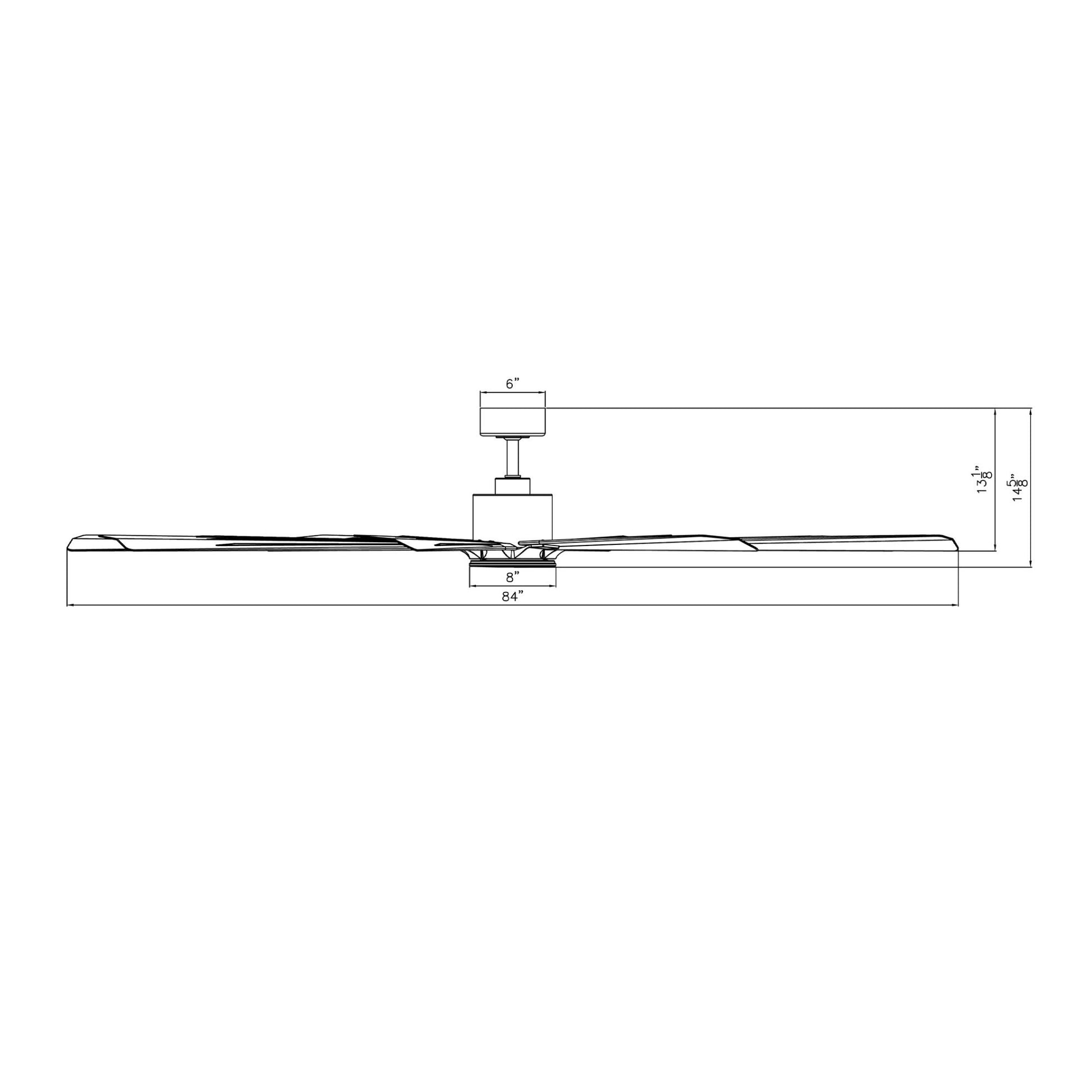

Key Features- Blade Span: 84 in / 8 ABS blades / 20° pitch / Bronze
- Motor: DC 168×30mm sensorless, 6 speeds, Summer & Winter modes
- Airflow: 10,674 CFM high / 8,181 CFM weighted average
- Efficiency: 232 CFM/W at high speed / 232 CFM/W weighted average
- Wattage: 50W high / 35W weighted average
- Light Kit: None — fan-only model with cover plate. See FR-W2403-84L-BZ for integrated LED version
- Location Rating: Wet rated — UL/cUL listed, suitable for indoor and outdoor exposed locations
- Mount Type: Downrod — 6 in downrod included / sloped ceilings up to 30° standard
- Downrod Included: 6 in (0.75 in dia)
- Lead Wire: 80 in
- Weight: 34.8 lbs
- Certifications: UL/cUL Wet Location listed / Title 24 JA8-2016 / Title 20 / ENERGY STAR
The FR-W2403-84-BZ features native WiFi + Bluetooth — no hub required. Ships with the F-RCBT-WT Bluetooth remote: 6-speed fan control, Summer & Winter mode switching, On/Off. Control via the Modern Forms app (iOS and Android). WiFi and Bluetooth range: up to 150 ft. Voice control via Amazon Alexa and Google Home. Additional integrations: SmartThings, JOSH, Control4, Crestron, ABiCUS. Optional F-WCBT-WT Bluetooth wall control available separately.
Construction & DesignMotor housing in Bronze with eight precision-crafted Bronze ABS blades at 20° pitch. Net weight: 34.8 lbs. At 84 inches, the Size Matters is engineered for grand-scale spaces — exceptional airflow output paired with the refined aesthetics of a premium smart fan.
Fan PerformanceThe FR-W2403-84-BZ delivers 10,674 CFM at high speed (232 CFM/W, 50W) — ideal for very large to grand-scale rooms and outdoor spaces up to approximately 900 sq ft. Weighted average: 8,181 CFM at 35W / 232 CFM/W.
Electrical & Installation120V AC, 60Hz. Max draw: 50W. Ships with a 6 in downrod (0.75 in dia), 80 in lead wire. Sloped ceiling compatible up to 30° with standard downrod. For steeper slopes up to 45°, the optional sloped ceiling kit XF-SCK is available separately. Fan must be attached to a securely anchored electrical junction box rated for wet locations.
Suggested Downrod by Ceiling HeightA 6 in downrod is included. Additional downrods (XF-12 through XF-72) available separately. Maximum recommended downrod length: 72 in with 80 in lead wire.
- 9 ft ceiling → 12 in downrod
- 10 ft ceiling → 18 in downrod
- 11 ft ceiling → 24 in downrod
- 12 ft ceiling → 36 in downrod
- 13 ft ceiling → 48 in downrod
- 14 ft ceiling → 60 in downrod
- 15 ft ceiling → 72 in downrod
Ideal distance from floor to fan blades is 7 to 9 feet.
What's Included- FR-W2403-84-BZ ceiling fan (Bronze body + 8 Bronze ABS blades)
- F-RCBT-WT Bluetooth remote
- 6 in downrod
- Mounting hardware
