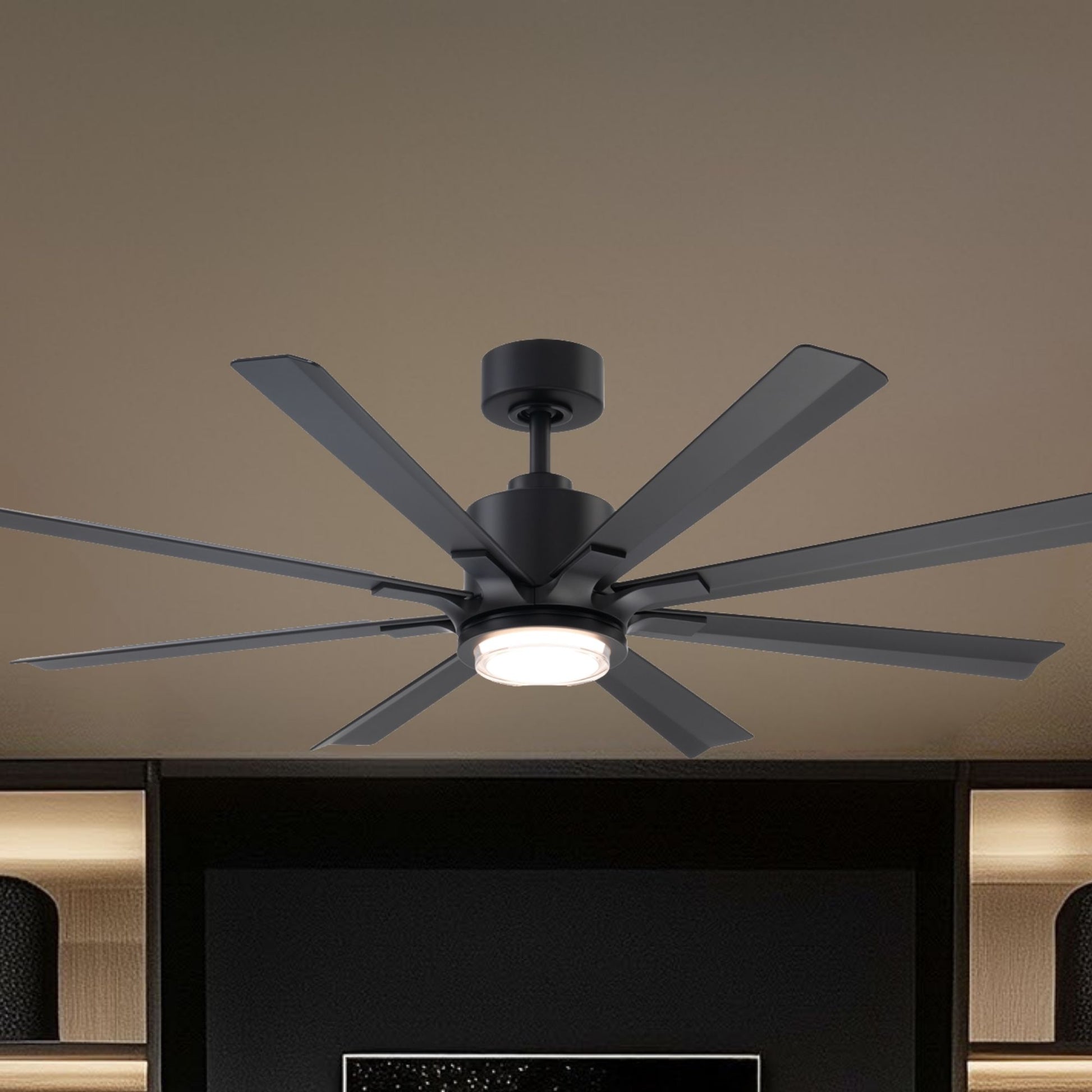

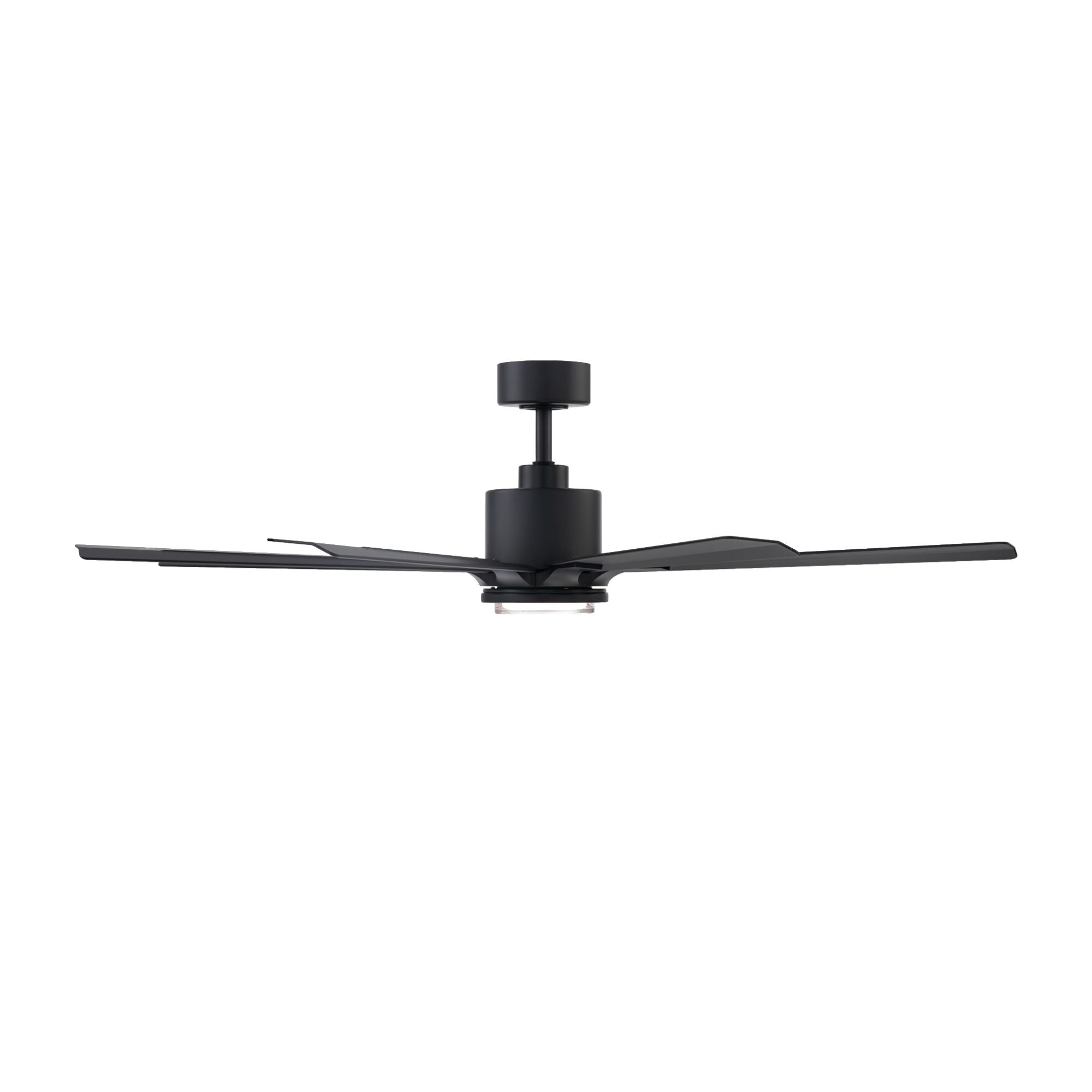

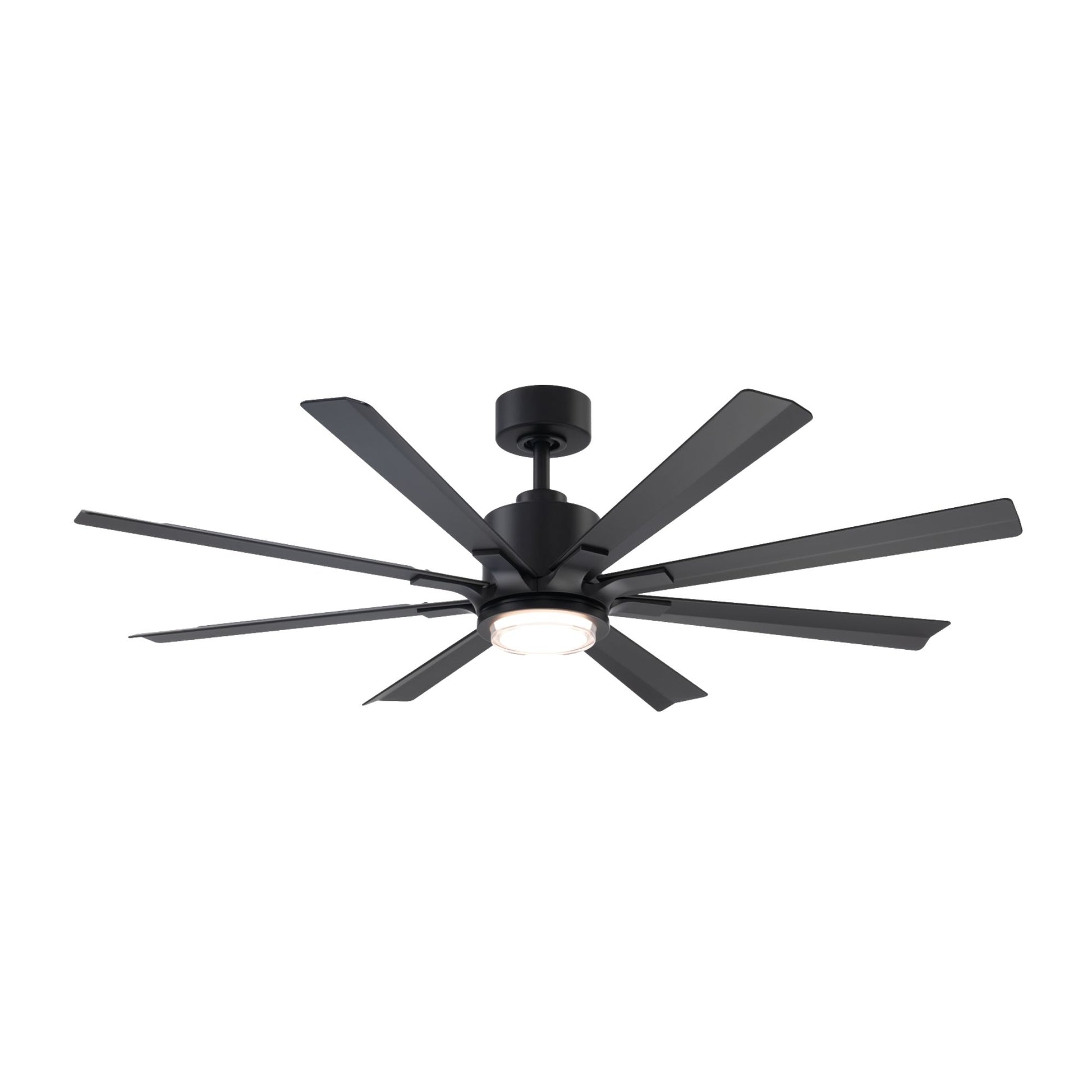

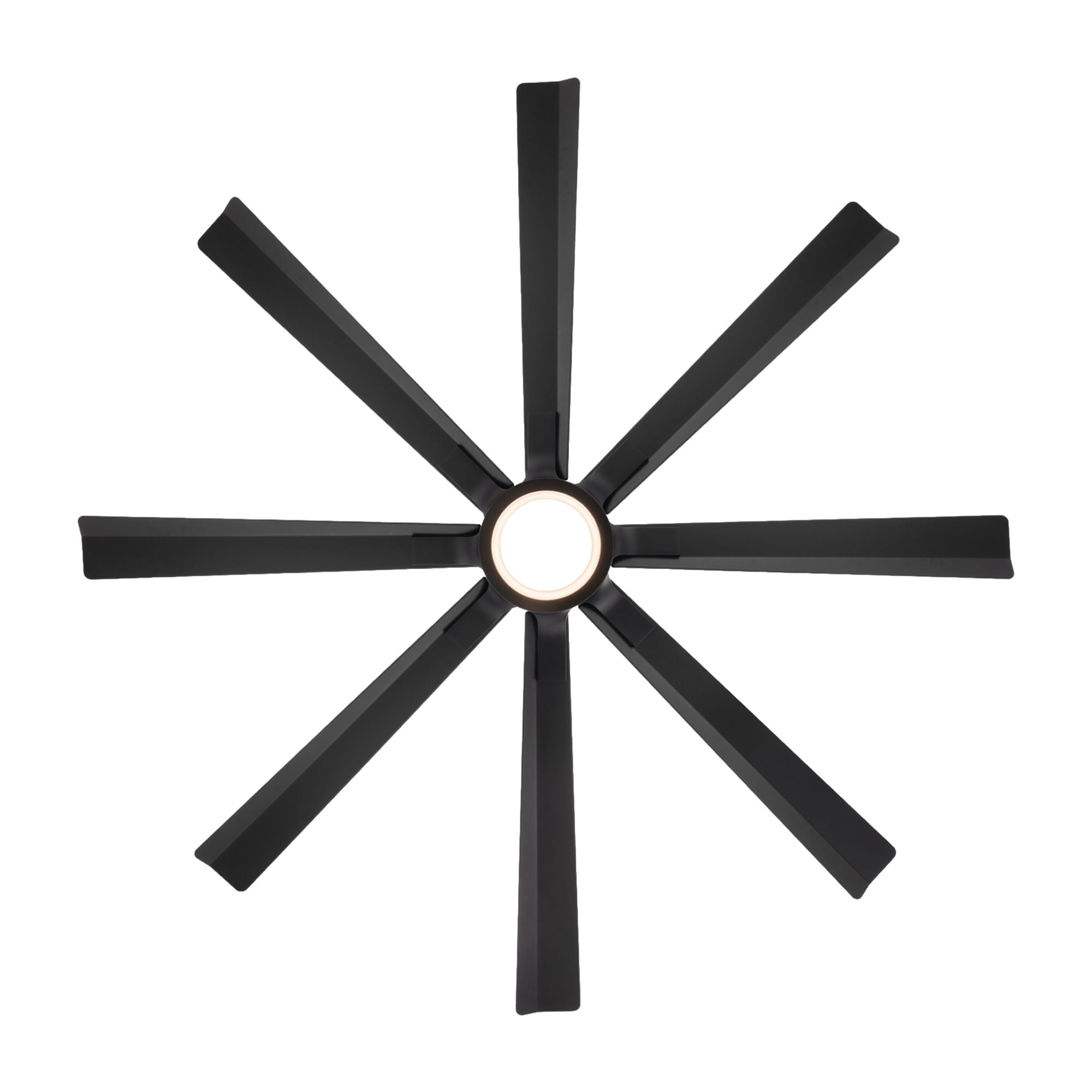

The Modern Forms Size Matters FR-W2403-56L-MB is a bold eight-blade 56 in downrod ceiling fan in an all-Matte Black finish with matching Matte Black ABS blades and an integrated LED luminaire. Powered by a DC 153×20mm sensorless motor with 6 speeds and native WiFi + Bluetooth smart control, it delivers 6,405 CFM at high speed. Wet rated for indoor and outdoor use. Ships with the F-RCBT-WT Bluetooth remote.

• Blade Span: 56 in / 8 ABS blades / 15° pitch / Matte Black
• Motor: DC 153×20mm sensorless, 6 speeds, Summer & Winter modes
• Airflow: 6,405 CFM high / 4,142 CFM weighted average
• Efficiency: 217 CFM/W at high speed / 197 CFM/W weighted average
• Wattage: 29.5W fan / 21W LED / 50.5W total
• Light Output: 21W 4-CCT LED included — 1,991–2,159 lm initial (CCT-dependent) / 1,888 lm delivered / 2700K–3000K–4000K–5000K selectable / CRI 90 / integrated dimmer / 50,000 hr rated life
• Location Rating: Wet rated — UL/cUL listed, suitable for indoor and outdoor exposed locations
• Mount Type: Downrod — 6 in downrod included / sloped ceilings up to 30° standard
• Downrod Included: 6 in (0.75 in dia)
• Lead Wire: 80 in
• Weight: 34 lbs
• Certifications: UL/cUL Wet Location listed / Title 24 JA8-2016 / Title 20 / ENERGY STAR

The FR-W2403-56L-MB features native WiFi + Bluetooth — no hub required. Ships with the F-RCBT-WT Bluetooth remote: 6-speed fan control, Summer & Winter mode switching, On/Off. Control via the Modern Forms app (iOS and Android). WiFi and Bluetooth range: up to 150 ft. Voice control via Amazon Alexa and Google Home. Additional integrations: SmartThings, JOSH, Control4, Crestron, ABiCUS. Optional F-WCBT-WT Bluetooth wall control available separately.

Motor housing and blades in matching Matte Black. Net weight: 34 lbs. The all-black tonal finish amplifies the Size Matters’ sharply angled eight-blade geometry — a seamless, architectural statement for modern and contemporary outdoor and indoor spaces, now with integrated illumination for a complete lighting and airflow solution.

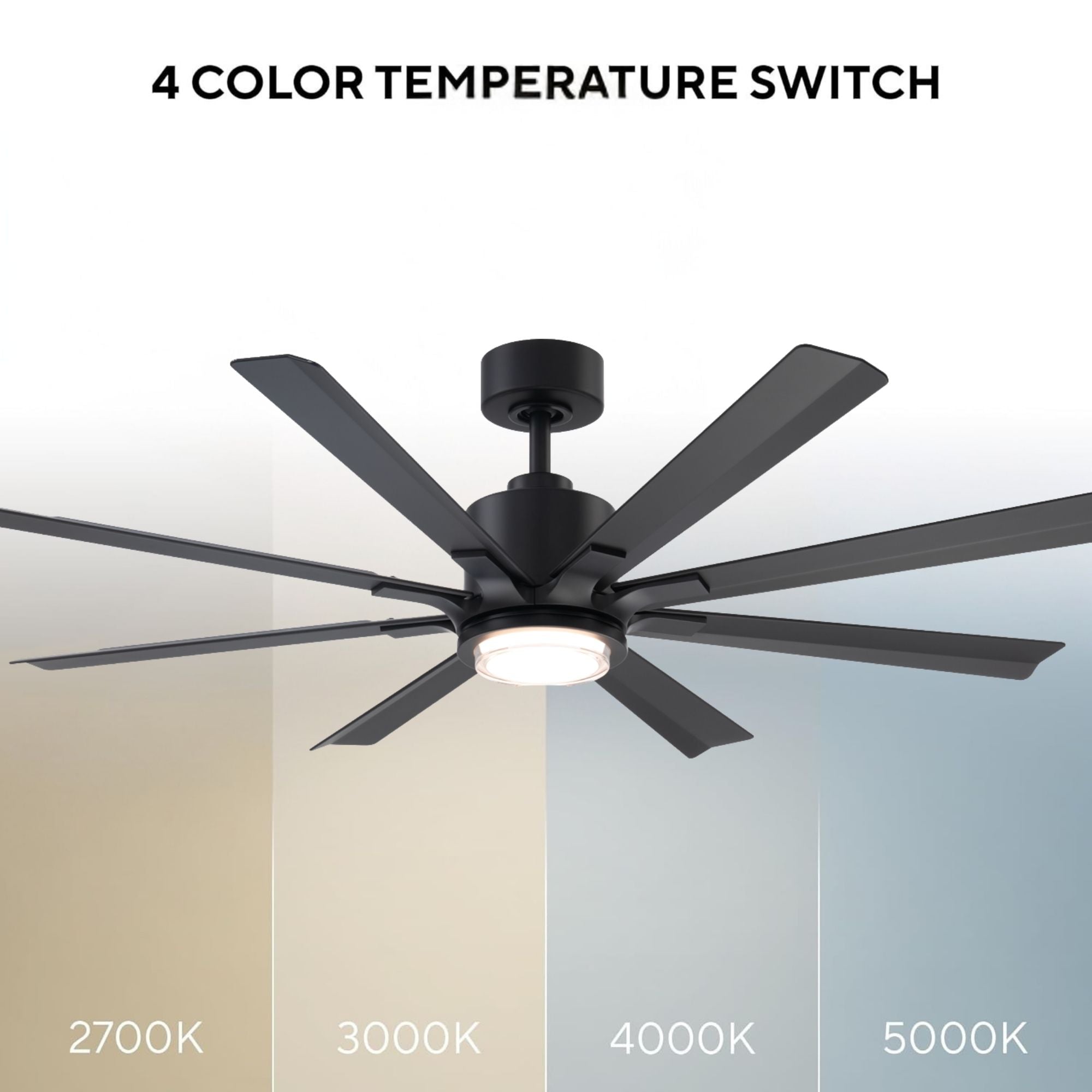

Integrated 21W 4-CCT LED luminaire — 1,991–2,159 lm initial (varies by CCT) / 1,888 lm delivered / selectable 2700K, 3000K, 4000K, 5000K / CRI 90 / 50,000 hr rated life / fully dimmable via F-RCBT-WT remote or Modern Forms app. The FR-W2403-56L-MB delivers 6,405 CFM at high speed (217 CFM/W, 29.5W) — ideal for large to extra-large rooms and outdoor areas up to approximately 500 sq ft. Weighted average: 4,142 CFM at 21W / 197 CFM/W.

120V AC, 60Hz. Total max draw: 29.5W fan + 21W LED = 50.5W. Ships with a 6 in downrod (0.75 in dia), 80 in lead wire. Sloped ceiling compatible up to 30° with standard downrod. For steeper slopes up to 45°, the optional sloped ceiling kit XF-SCK is available separately. Fan must be attached to a securely anchored electrical junction box rated for wet locations.

A 6 in downrod is included. Additional downrods (XF-12 through XF-72) available separately. Maximum recommended downrod length: 72 in with 80 in lead wire.

• 9 ft ceiling → 12 in downrod
• 10 ft ceiling → 18 in downrod
• 11 ft ceiling → 24 in downrod
• 12 ft ceiling → 36 in downrod
• 13 ft ceiling → 48 in downrod
• 14 ft ceiling → 60 in downrod
• 15 ft ceiling → 72 in downrod

Ideal distance from floor to fan blades is 7 to 9 feet.

• FR-W2403-56L-MB ceiling fan with LED luminaire (Matte Black body + 8 Matte Black ABS blades)
• F-RCBT-WT Bluetooth remote
• 6 in downrod
• Mounting hardware
