Modern Forms Size Matters 56 in Outdoor Smart Ceiling Fan DC Matte Black
Available in stock (94)
About this item
About this item
- Airflow for Large to Extra-Large Spaces: 6,405 CFM high / 4,142 CFM weighted average at 217 CFM/W — DC efficiency ideal for large rooms and outdoor areas up to approximately 500 sq ft.
- Whisper-Quiet DC Motor: 153×20mm sensorless DC motor, 6 speeds, Summer and Winter modes — near-silent performance at every speed setting.
- Wet Rated — Indoor/Outdoor: UL/cUL listed for wet locations — suitable for exposed outdoor spaces, covered patios, poolside, and high-humidity indoor environments. ENERGY STAR qualified.
- Native WiFi + Bluetooth + F-RCBT-WT Remote: No hub required. F-RCBT-WT Bluetooth remote included. Modern Forms app (iOS/Android), Alexa, Google Home, SmartThings, JOSH, Control4, Crestron. Optional F-WCBT-WT wall control sold separately.
- 8-Blade Matte Black Design — Fan Only: Eight sharply angled Matte Black ABS blades at 15° pitch — bold tonal statement. Fan-only model; see FR-W2403-56L-MB for the LED version.
We process payments securely and do not store credit card information.
Description
Description

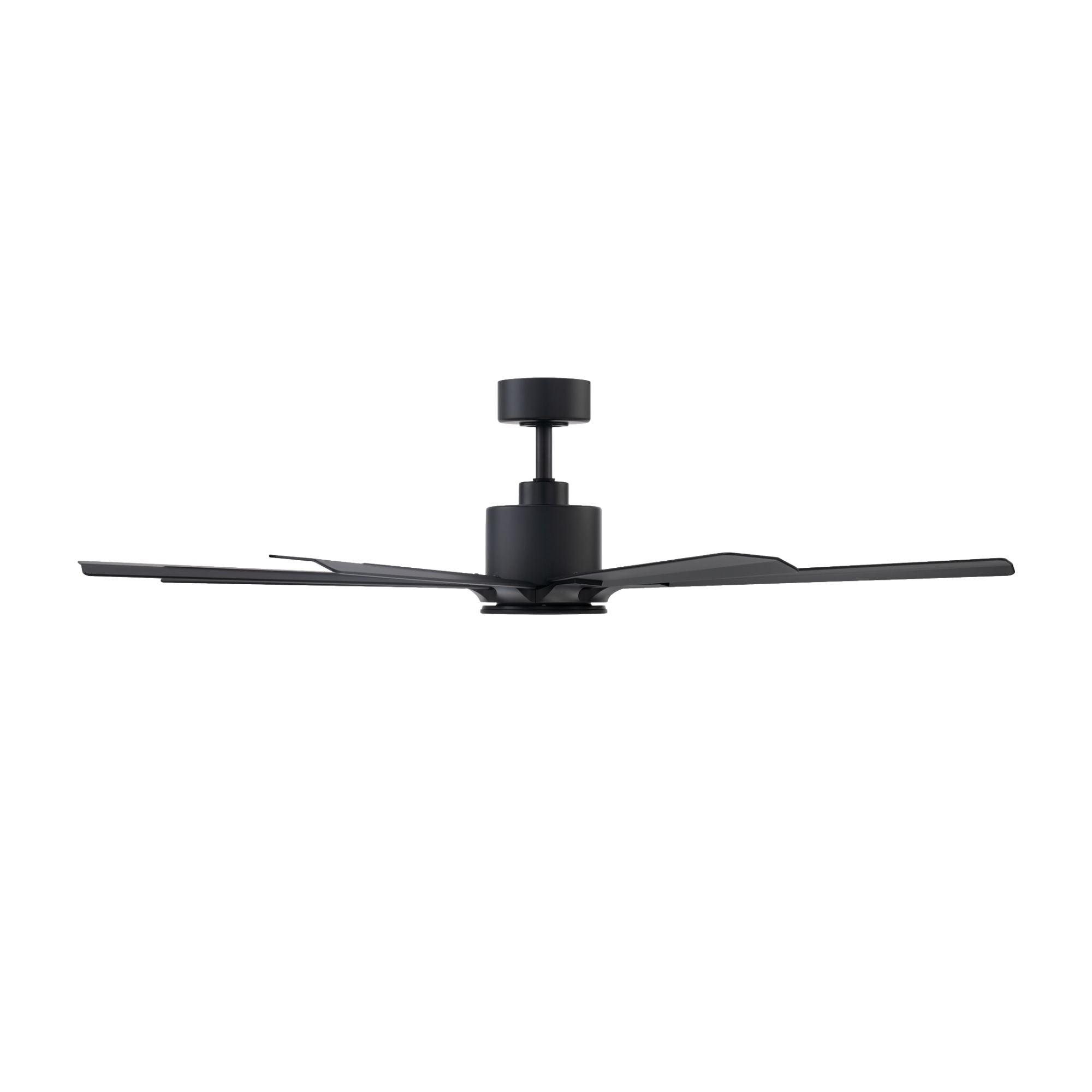

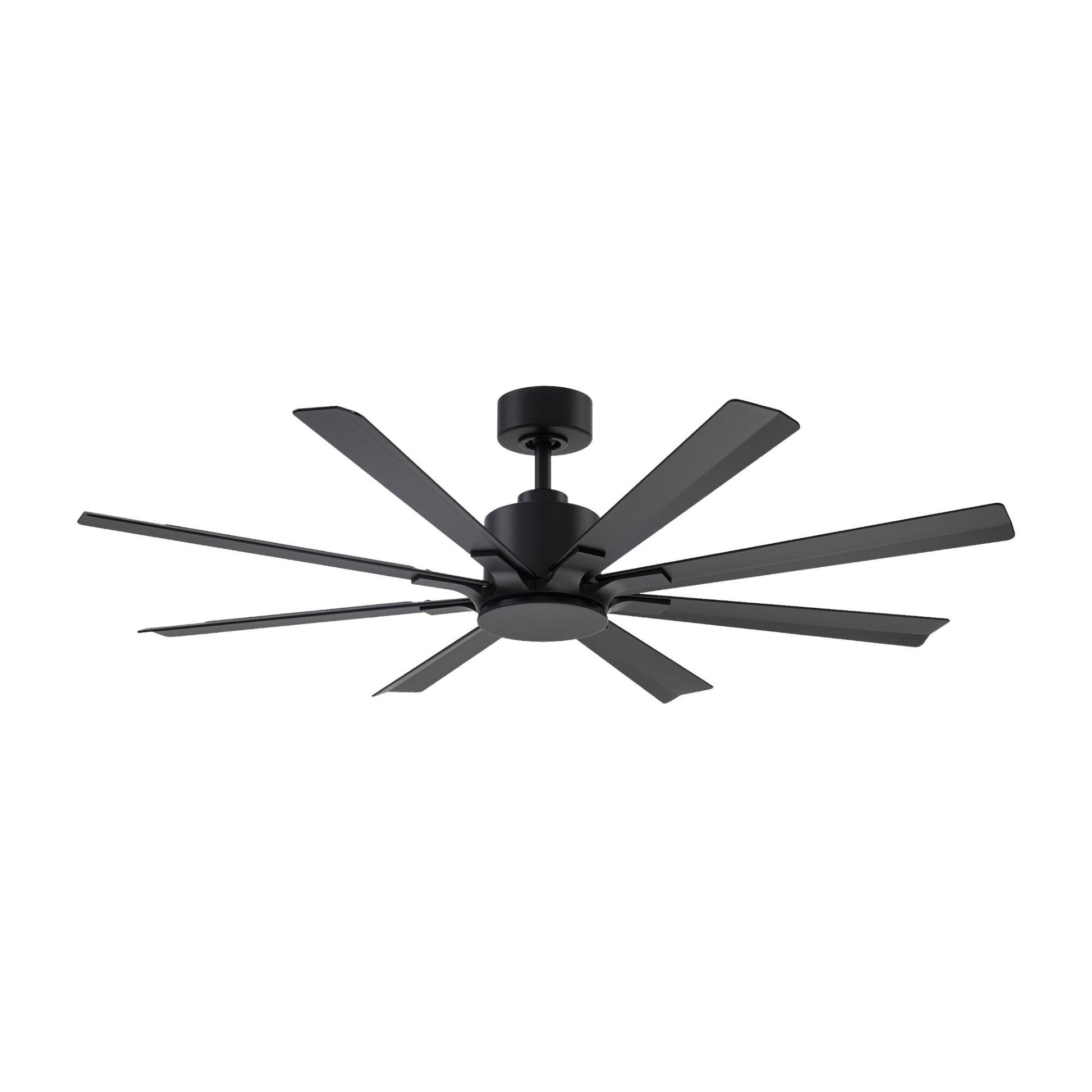

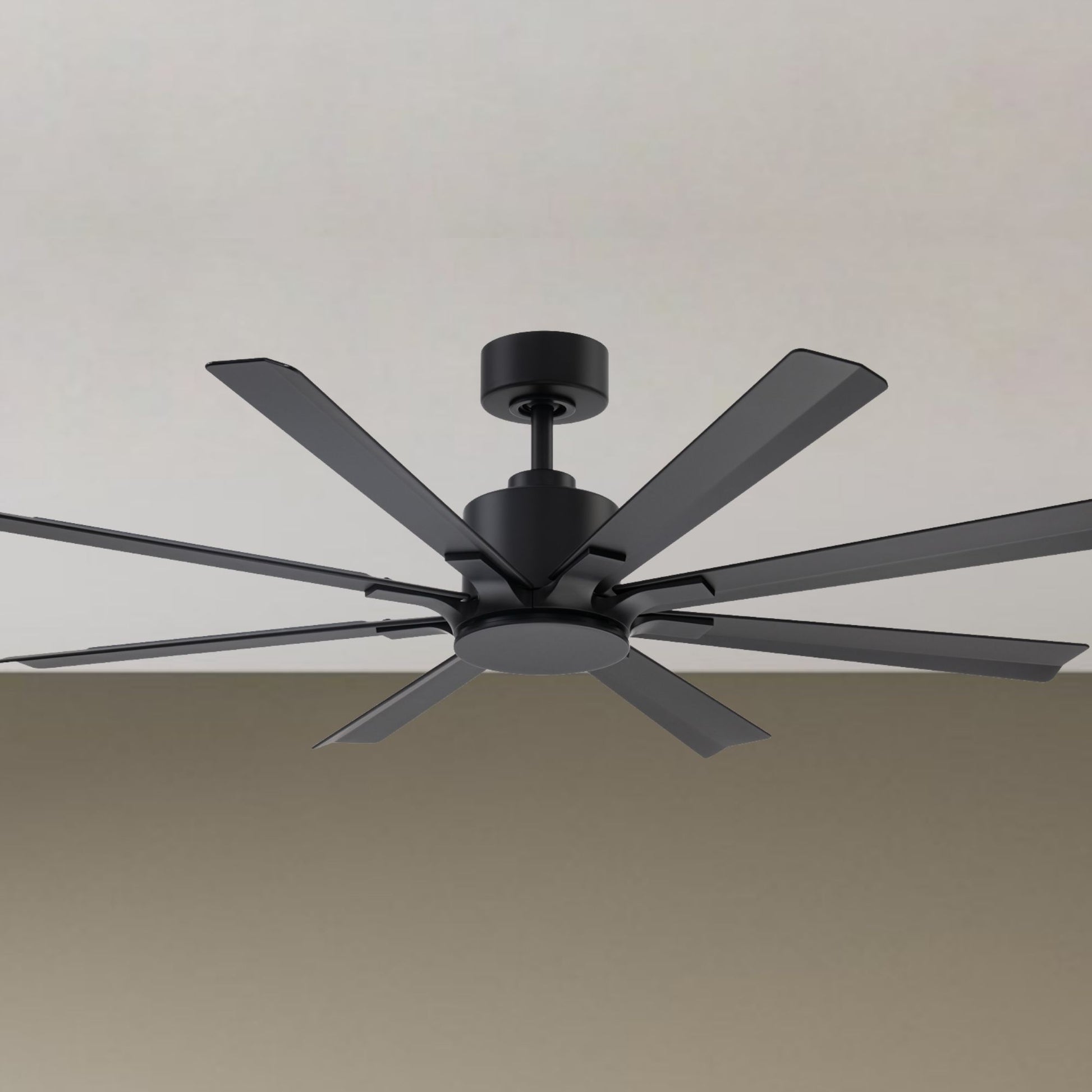

The Modern Forms Size Matters FR-W2403-56-MB is a bold eight-blade 56 in downrod ceiling fan in Matte Black with matching Matte Black ABS blades. Powered by a DC 153×20mm sensorless motor with 6 speeds and native WiFi + Bluetooth smart control, it delivers 6,405 CFM at high speed. Wet rated for indoor and outdoor use. Ships with the F-RCBT-WT Bluetooth remote.
Key Features- Blade Span: 56 in / 8 ABS blades / 15° pitch / Matte Black
- Motor: DC 153×20mm sensorless, 6 speeds, Summer & Winter modes
- Airflow: 6,405 CFM high / 4,142 CFM weighted average
- Efficiency: 217 CFM/W at high speed / 197 CFM/W weighted average
- Wattage: 29.5W high / 21W weighted average
- Light Kit: None — fan-only model. See FR-W2403-56L-MB for LED version
- Location Rating: Wet rated — UL/cUL listed, suitable for indoor and outdoor exposed locations
- Mount Type: Downrod — 6 in downrod included / sloped ceilings up to 30° standard
- Downrod Included: 6 in (0.75 in dia)
- Lead Wire: 80 in
- Weight: 20.7 lbs
- Certifications: UL/cUL Wet Location listed / Title 24 JA8-2016 / Title 20 / ENERGY STAR
The FR-W2403-56-MB features native WiFi + Bluetooth — no hub required. Ships with the F-RCBT-WT Bluetooth remote: 6-speed fan control, Summer & Winter mode switching, On/Off. Control via the Modern Forms app (iOS and Android). WiFi and Bluetooth range: up to 150 ft. Voice control via Amazon Alexa and Google Home. Additional integrations: SmartThings, JOSH, Control4, Crestron, ABiCUS. Optional F-WCBT-WT Bluetooth wall control available separately.

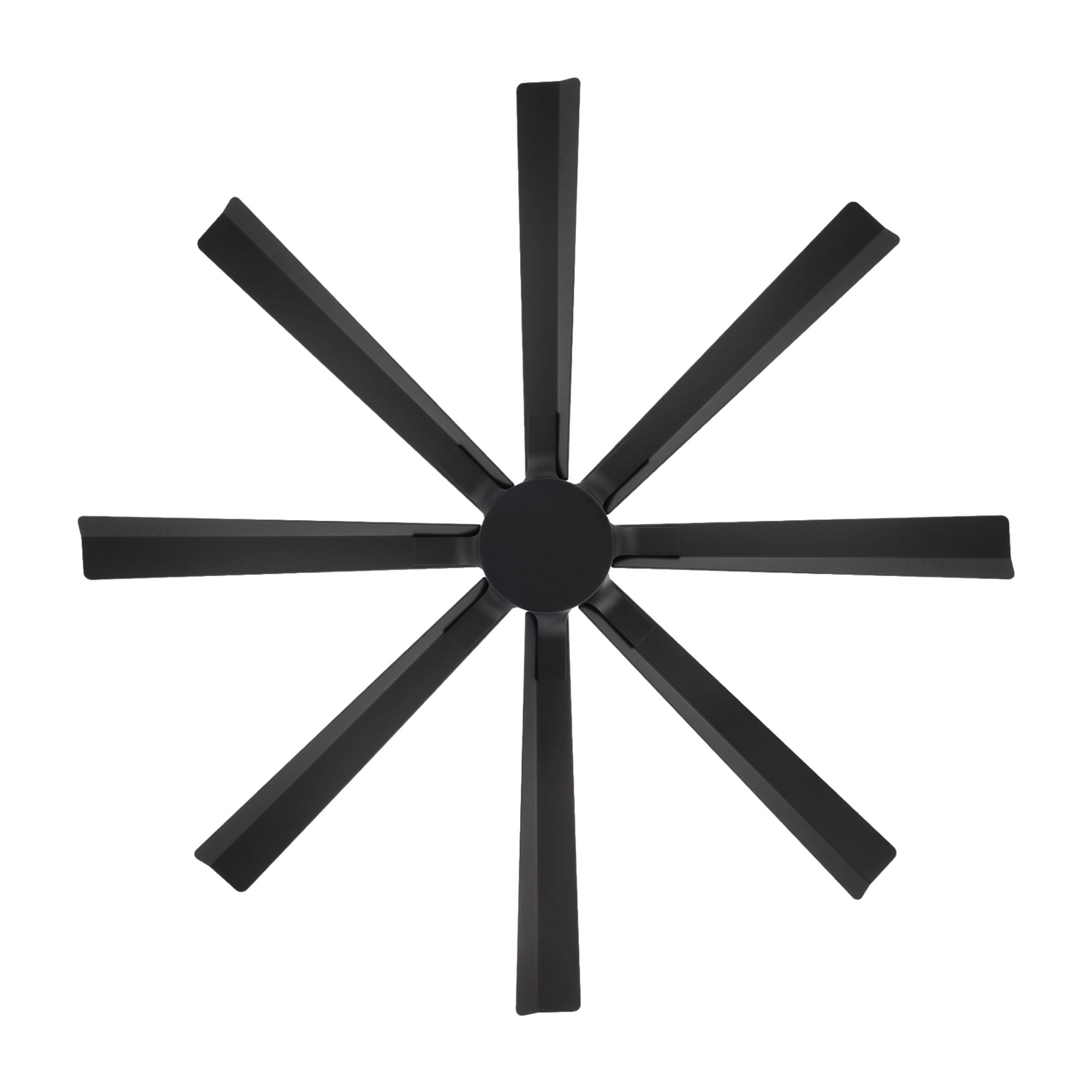

Construction & DesignMotor housing in Matte Black with eight precision-crafted Matte Black ABS blades at 15° pitch. Net weight: 20.7 lbs. The all-black tonal finish amplifies the Size Matters’ sharply angled eight-blade geometry — a seamless, architectural statement for modern, industrial, and contemporary outdoor and indoor spaces.
Fan PerformanceThe FR-W2403-56-MB delivers 6,405 CFM at high speed (217 CFM/W, 29.5W) — ideal for large to extra-large rooms and outdoor areas up to approximately 500 sq ft. Weighted average: 4,142 CFM at 21W / 197 CFM/W. Fan-only model — see FR-W2403-56L-MB for the integrated LED version.
Electrical & Installation120V AC, 60Hz. Max draw: 29.5W. Ships with a 6 in downrod (0.75 in dia), 80 in lead wire. Sloped ceiling compatible up to 30° with standard downrod. For steeper slopes up to 45°, the optional sloped ceiling kit XF-SCK is available separately. Fan must be attached to a securely anchored electrical junction box rated for wet locations.
Suggested Downrod by Ceiling HeightA 6 in downrod is included. Additional downrods (XF-12 through XF-72) available separately. Maximum recommended downrod length: 72 in with 80 in lead wire.
- 9 ft ceiling → 12 in downrod
- 10 ft ceiling → 18 in downrod
- 11 ft ceiling → 24 in downrod
- 12 ft ceiling → 36 in downrod
- 13 ft ceiling → 48 in downrod
- 14 ft ceiling → 60 in downrod
- 15 ft ceiling → 72 in downrod
Ideal distance from floor to fan blades is 7 to 9 feet.
What's Included- FR-W2403-56-MB ceiling fan (Matte Black body + 8 Matte Black ABS blades)
- F-RCBT-WT Bluetooth remote
- 6 in downrod
- Mounting hardware
Specifications
Specifications

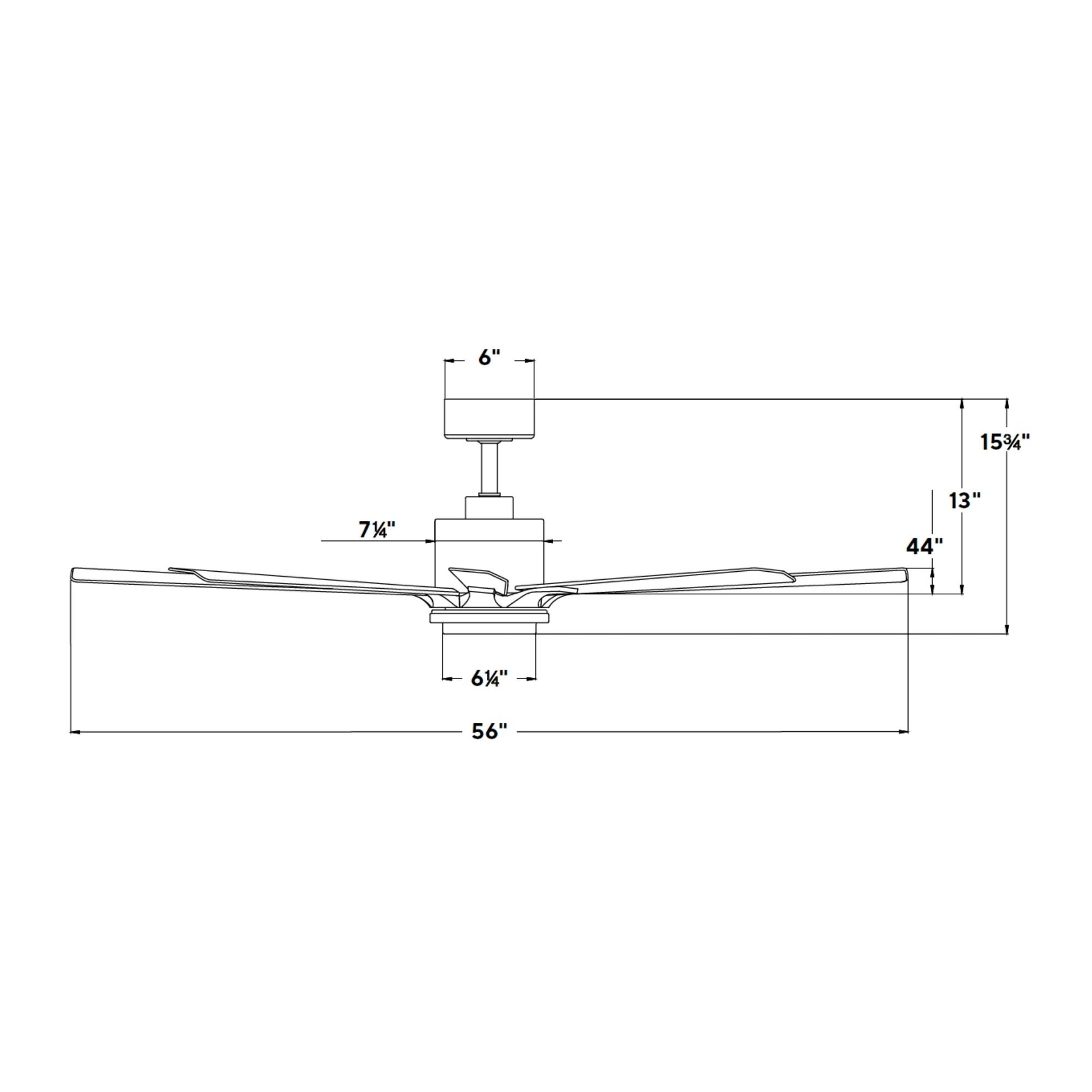

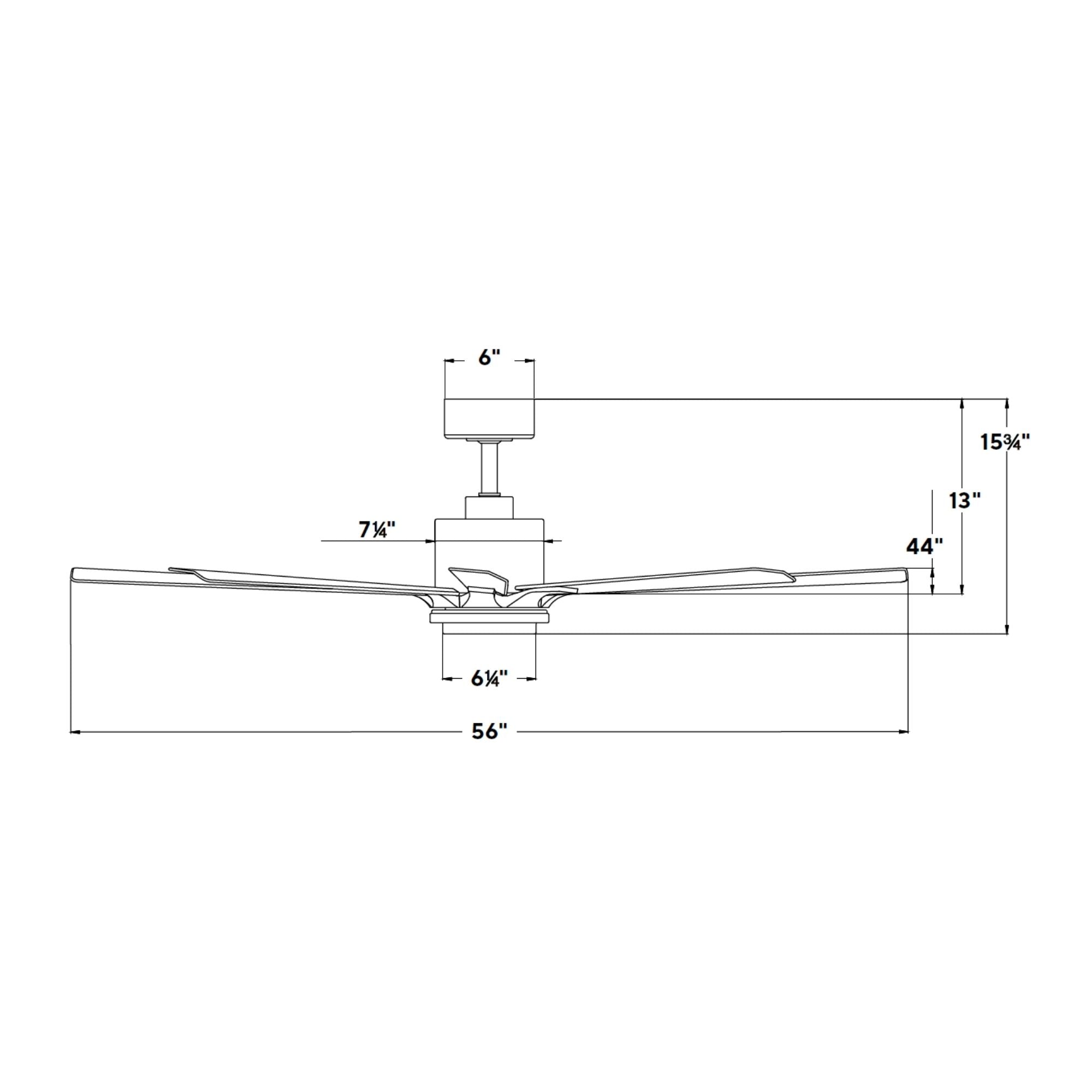

Dimensions
Documents
Style & Materials
Characteristics & Features
Fan Information
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
