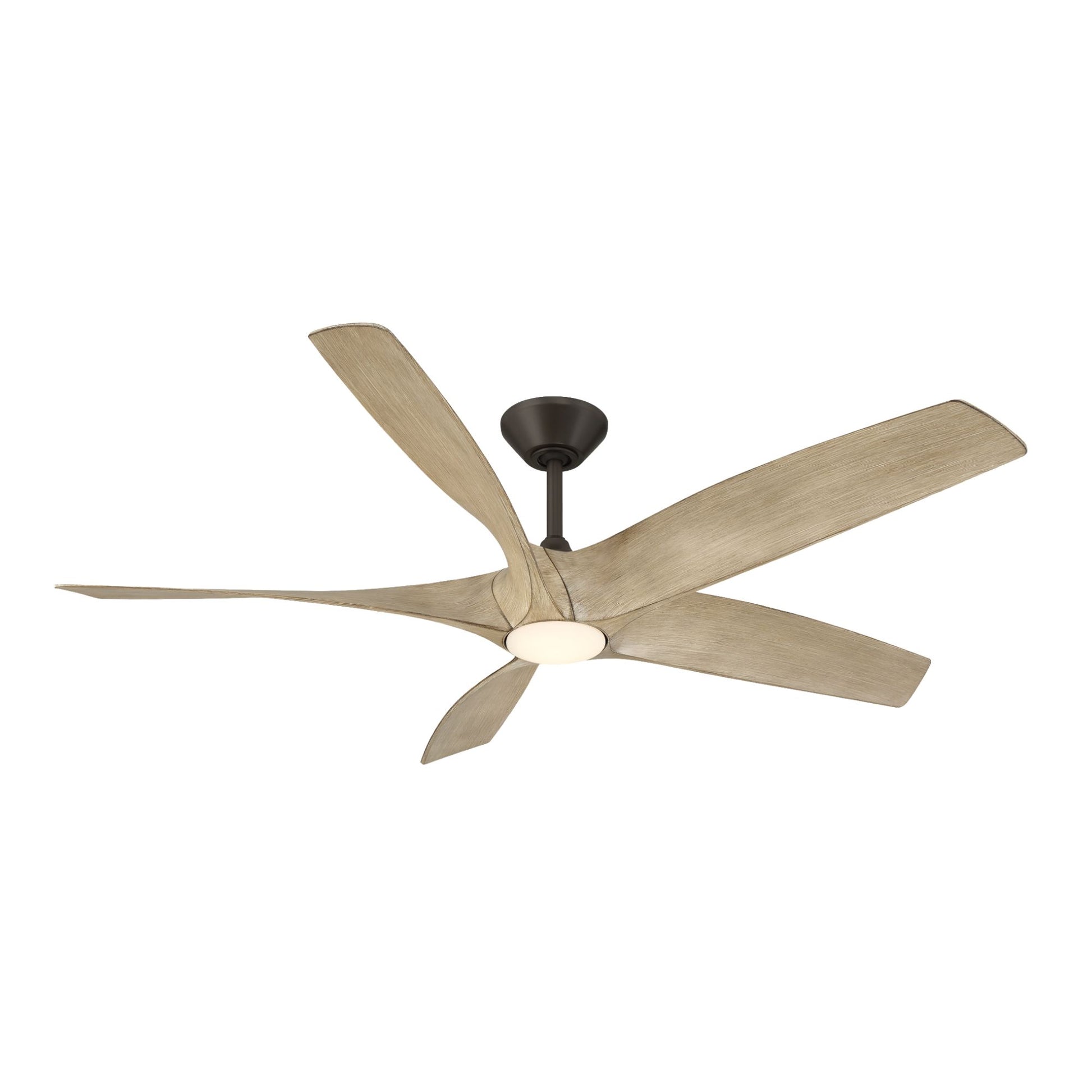

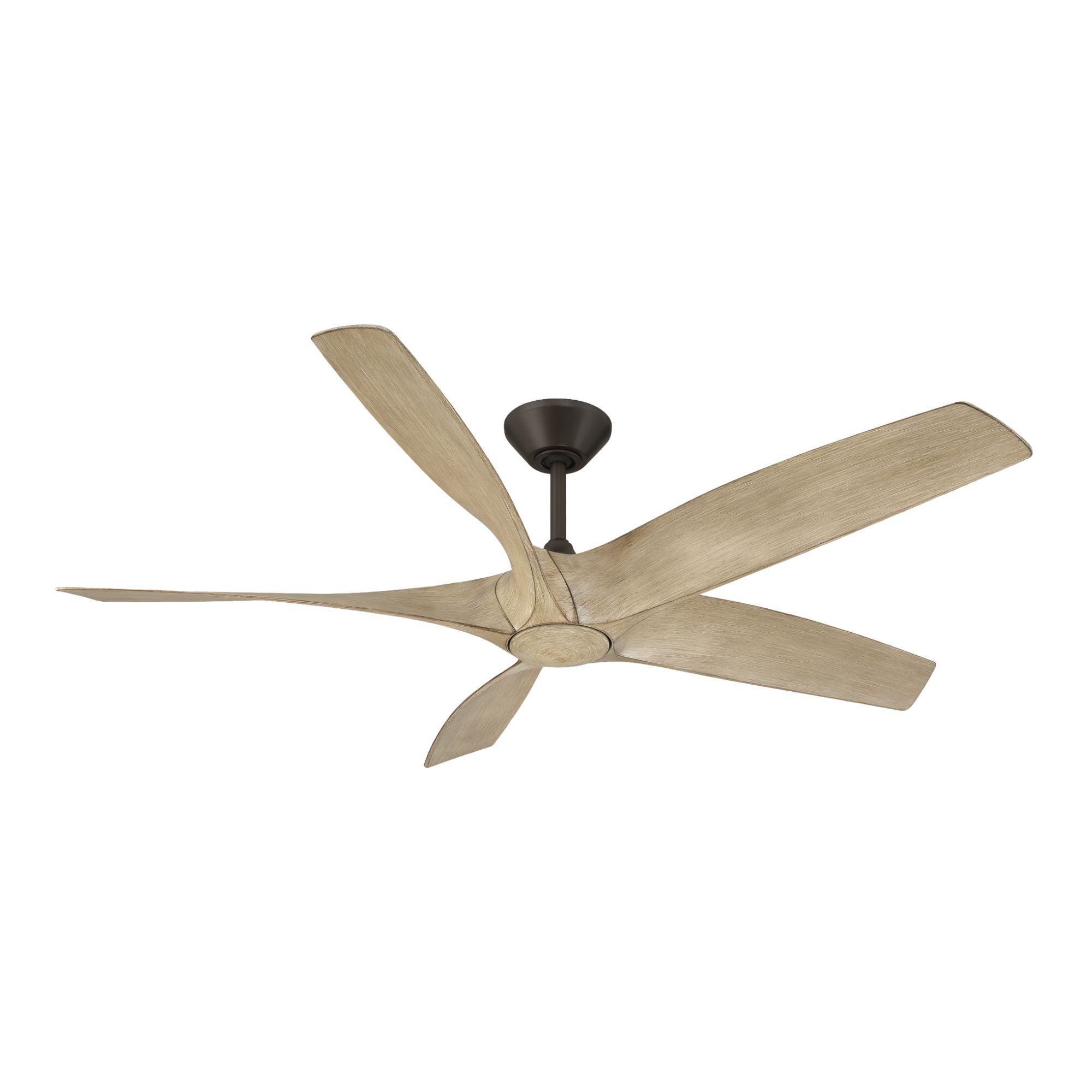

Modern Forms Zephyr 5 62 in Outdoor LED Smart Ceiling Fan — Bronze / White Oak

The Modern Forms Zephyr 5 (model FR-W2401-62L-BZ/WO) is a 62-inch, 5-blade smart ceiling fan engineered for large covered outdoor spaces and expansive open-plan interiors demanding maximum airflow with architectural presence. Powered by a whisper-quiet 120×25 sensorless DC motor running 6 fan speeds, it delivers an impressive 7,307 CFM at just 34W — finished in a warm Bronze motor housing paired with natural White Oak blades that bring an earthy, refined character to any ceiling.

Key Features

• Blade Span: 62 in | 16° pitch | 5 aerodynamic ABS blades
• Motor: Silent 120×25 sensorless DC | 6 speeds | Summer & Winter modes
• Airflow: 5,220 CFM (avg) / 7,307 CFM (high)
• Efficiency: 210 CFM/W at high speed
• Total Power: 54W (fan 34W + light 20W)
• Light Output: 1,600 lumens delivered | CRI 90 | 2700K, 3000K, 4000K, 5000K selectable
• Location Rating: UL/cUL Wet Location | Title 24 JA8-2016 | Title 20 | Energy Star rated
• Mounting Slope: Up to 30° included | Up to 45° with optional XF-SCK
• Downrod: 3/4 in W × 8 in H included | Wire: 80 in | Hanging Weight: 17 lbs

Smart & Control Features

Includes a Bluetooth remote control (F-RCBT-WT) for fan speed, light brightness, and Summer/Winter mode switching from anywhere in the room. Pairs seamlessly with the Modern Forms app for full scheduling, dimming, and scene control. Integrates with Amazon Alexa, Google Assistant, Samsung SmartThings, ecobee, Control4, and JOSH. Bluetooth and Wi-Fi range up to 150 ft. Optional wall control (F-WCBT-WT) available separately for fixed-location control.

Construction & Design

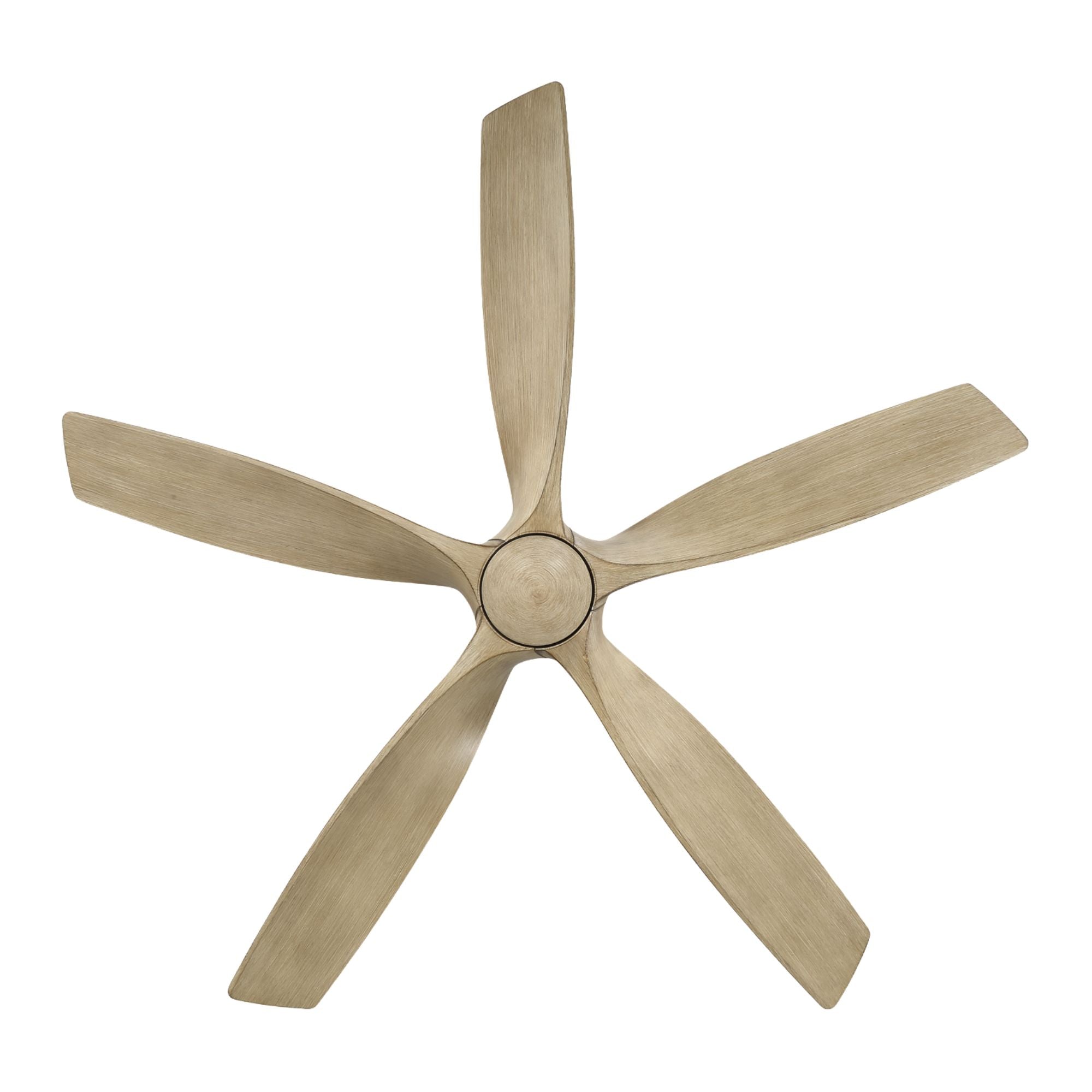

Bronze motor housing paired with natural White Oak blades at a 16° pitch — a warm, organic combination that suits transitional, Mediterranean, and nature-inspired interiors. Five sweeping ABS blades crafted from durable aluminum and ABS with thick, aerodynamically soundless construction. At just 17 lbs hanging weight, it installs cleanly with the included 8 in downrod.

Light Output & Performance

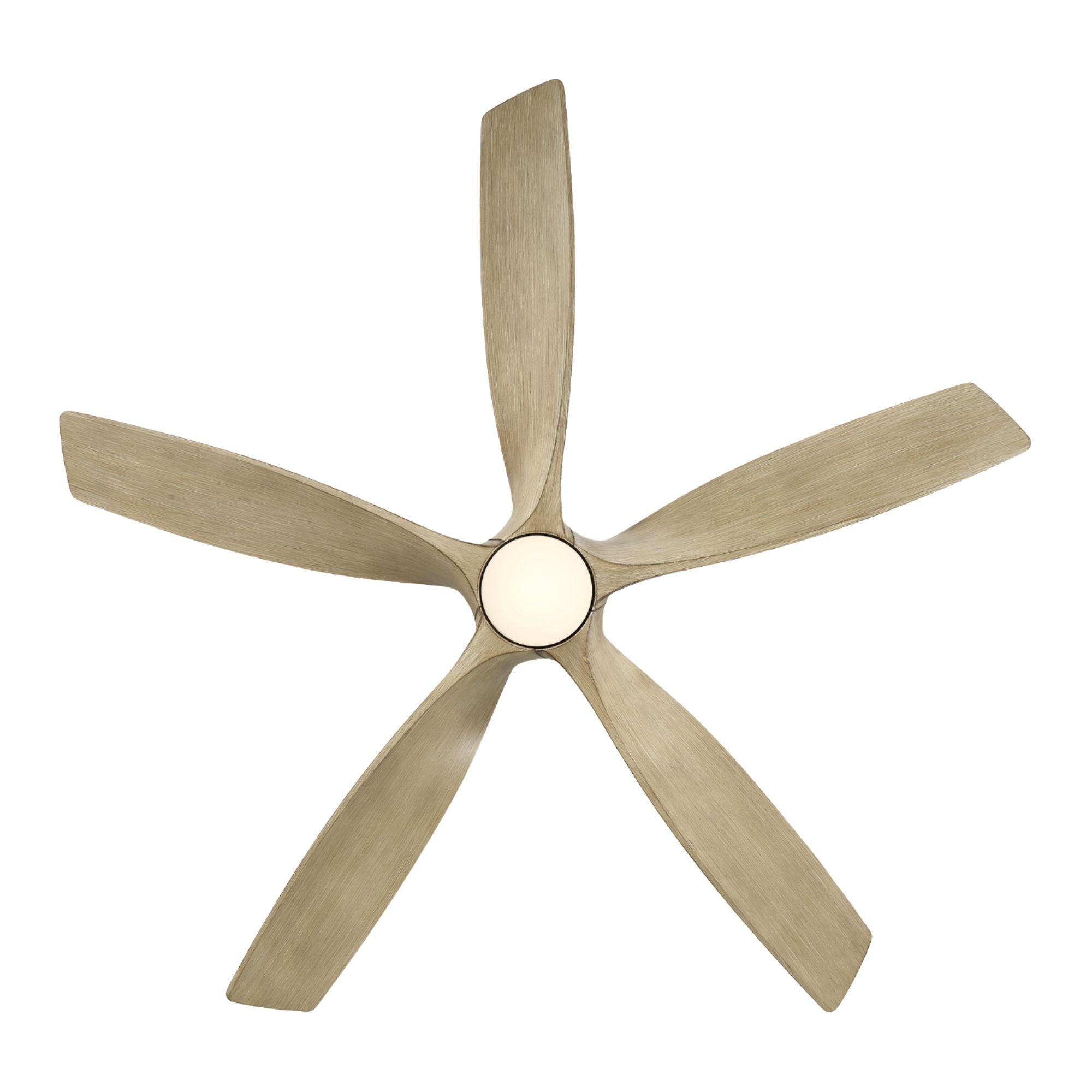

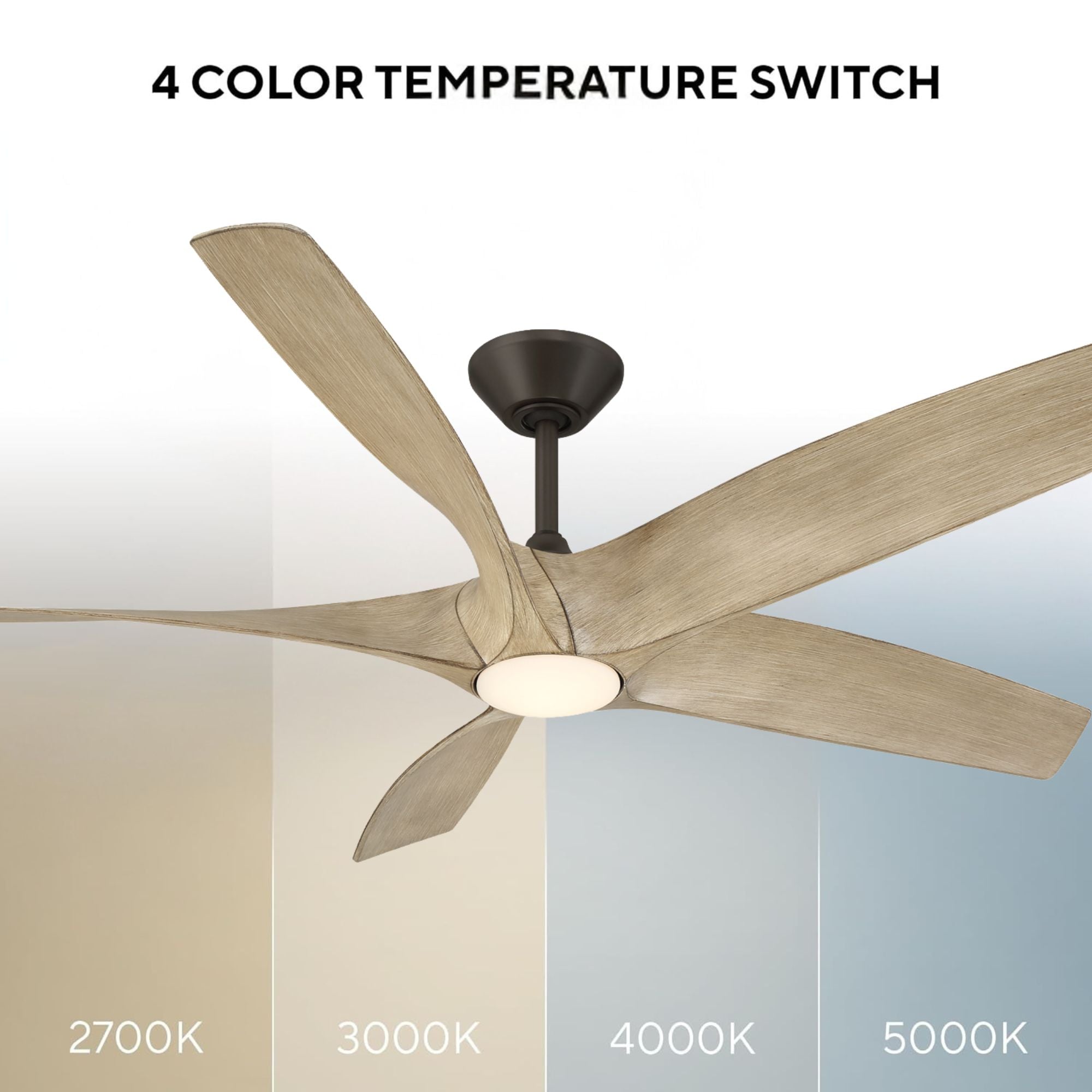

The integrated opal glass LED luminaire delivers 1,600 lumens, CRI 90, with a rated life of 50,000 hours. Selectable color temperatures between 2700K, 3000K, 4000K, and 5000K let you dial in warm candlelight or crisp daylight. Fully dimmable via remote or app — no separate dimmer required.

Electrical & Installation

Operates at 120V. Total power draw of 54W (34W fan + 20W light). Includes 8 in downrod for flat or gently sloped ceilings up to 30°. The optional XF-SCK Sloped Ceiling Kit supports installations up to 45° (12/12 pitch). Max downrod length 72 in with 80 in lead wire.

Suggested Downrod by Ceiling Height

• 9 ft ceiling → 12 in downrod
• 10 ft ceiling → 18 in downrod
• 11 ft ceiling → 24 in downrod
• 12 ft ceiling → 36 in downrod
• 13 ft ceiling → 48 in downrod
• 14 ft ceiling → 60 in downrod
• 15 ft ceiling → 72 in downrod

Optional Accessories

• F-WCBT-WT — Bluetooth Wall Control (White)
• XF-12 through XF-72 — Downrods (12 in to 72 in, 3/4 in diameter)
• XF-I — Downrod Coupler
• XF-SCK — Sloped Ceiling Kit (up to 45° / 12/12 pitch)

What's Included

• 62 in ceiling fan with integrated opal glass LED luminaire
• Bluetooth remote control (F-RCBT-WT)
• 8 in downrod (3/4 in diameter)
• Mounting hardware
