Modern Forms Aura 72 in Outdoor Smart LED Ceiling Fan DC Soft Brass Matte Black
Available in stock (189)
About this item
About this item
- Airflow Performance: 9,420 CFM at high speed — 7,188 CFM / 250 CFM/W weighted average, ENERGY STAR® rated, sized for large rooms 400–500 sq ft.
- Sensorless DC Motor: 125×25mm silent sensorless DC motor with 6 speeds, Summer & Winter modes — up to 70% more efficient than AC motors.
- Wet Rated: UL/cUL Wet Location listed — suitable for open outdoor installations, covered patios, pool areas, and coastal environments.
- Smart Home Ecosystem: Native WiFi + Bluetooth (150 ft range) — Modern Forms app (iOS/Android), Amazon Alexa, Google Assistant, SmartThings, ecobee, Control4, and JOSH compatible.
- Integrated LED Light: 19.5W LED, 1,600 lumens, CRI 90, selectable 3000K / 4000K / 5000K, fully dimmable, 50,000 hr rated life.
We process payments securely and do not store credit card information.
Description
Description

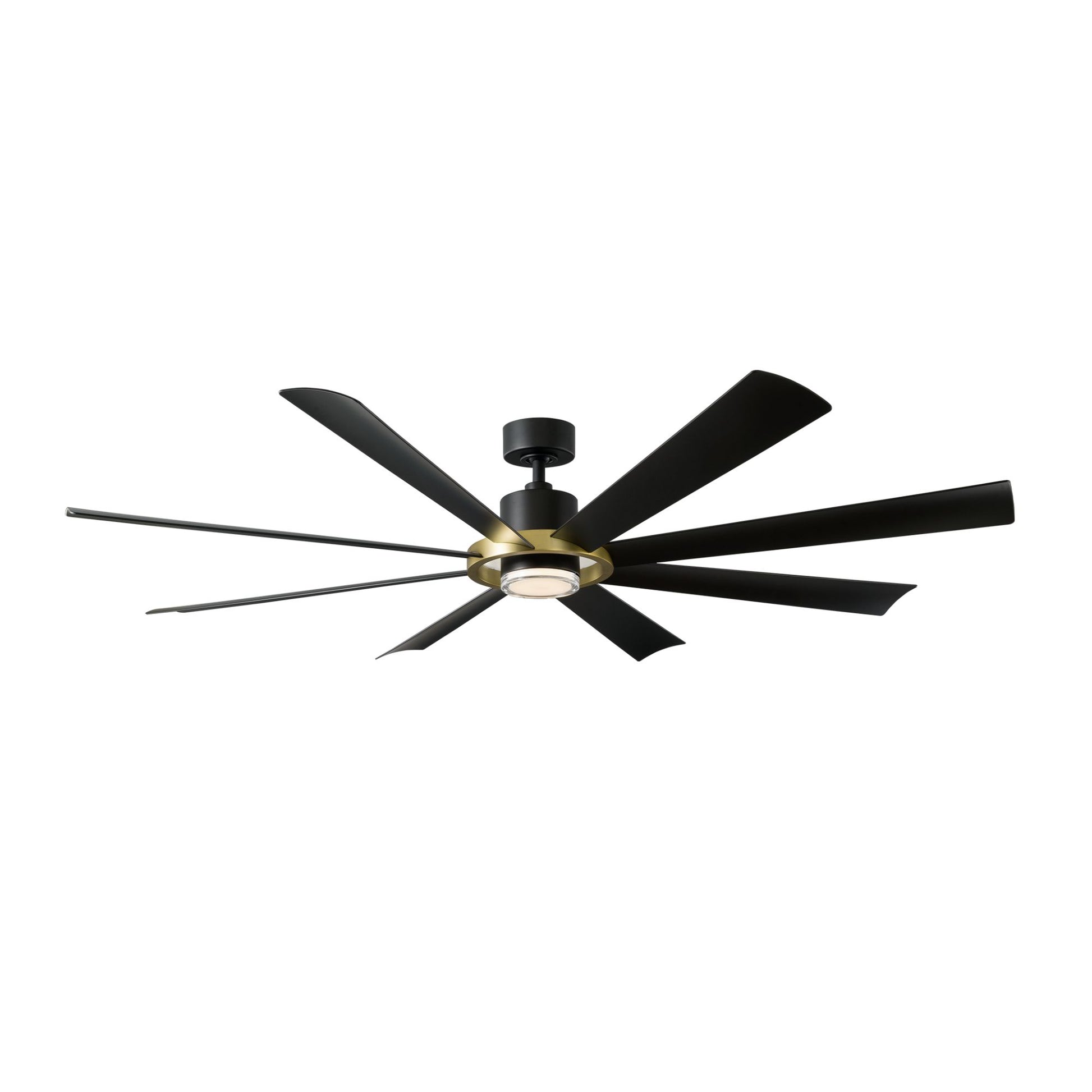

The Modern Forms Aura FR-W2303-72L-SB/MB is a 72 in wet-rated smart ceiling fan engineered for large outdoor and indoor environments. Eight tapered matte black ABS blades at 16° pitch sweep 9,420 CFM with a silent sensorless DC motor, while the integrated CCT LED light and full smart-home ecosystem — WiFi, Bluetooth, Alexa, Google Assistant, SmartThings, ecobee, Control4, and JOSH — make the Aura the most connected fan in its class. A Soft Brass decorative ring surrounds the light kit, adding warm golden warmth to the Matte Black motor housing and blades.

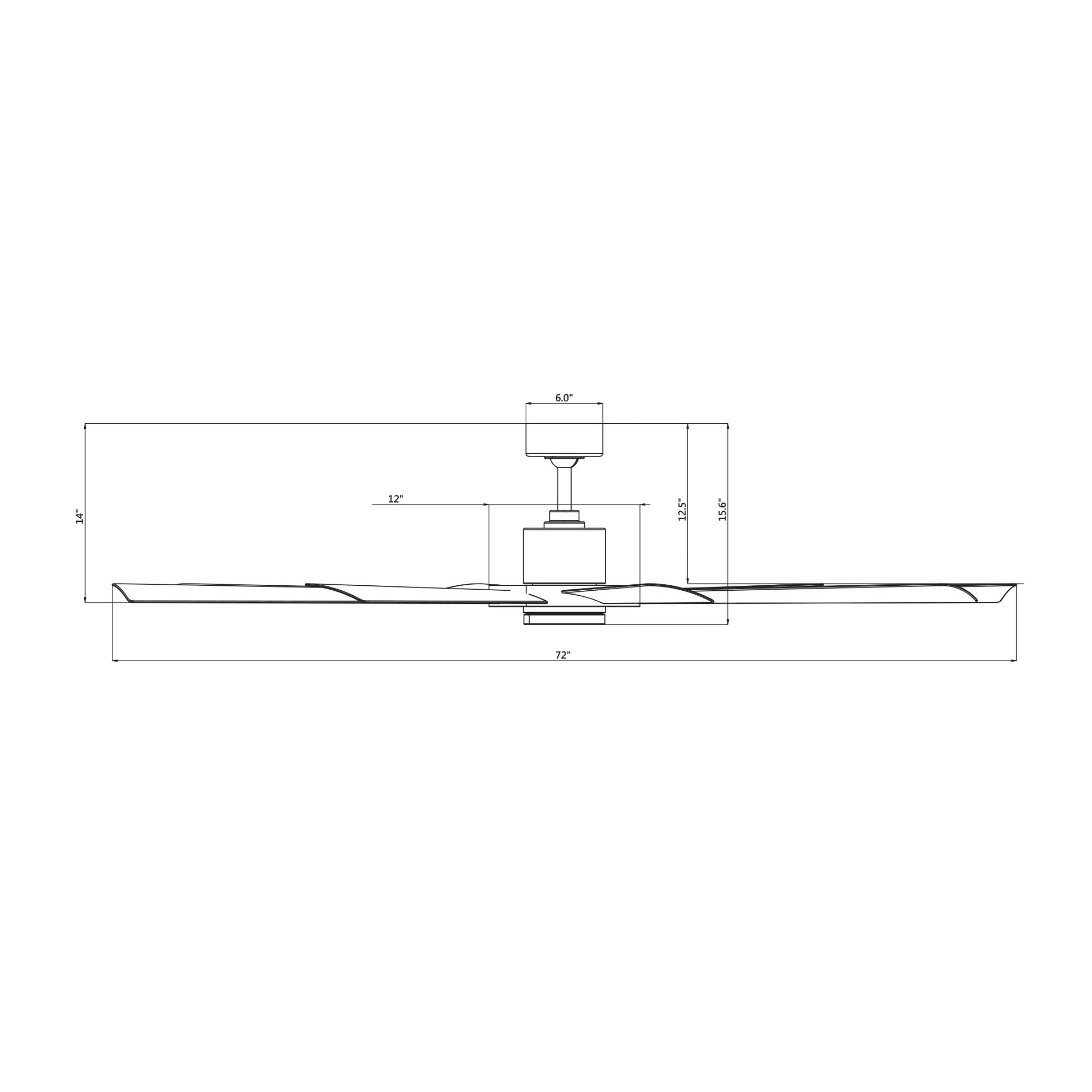

Key Features- Blade Span: 72 in — ideal for large rooms 400–500 sq ft
- Mount Type: Downrod — 6.0 in downrod included (0.75 in dia, max 72 in)
- Blades: 8 matte black ABS blades, 16° pitch, included
- Motor: 125×25mm sensorless DC, 6-speed, silent, Summer & Winter modes
- Airflow: 9,420 CFM high / 7,188 CFM weighted average
- Efficiency: 250 CFM/W weighted average — ENERGY STAR® / Title 20 rated
- Wattage: 43W high / 29W weighted average
- Light: Integrated LED, 19.5W, 1,600 lm / 944 delivered lm, CRI 90, CCT 3000K–5000K selectable, dimmable, 50,000 hr rated life
- Location: Wet rated — UL/cUL Wet Location listed, suitable for open outdoor use
- Mounting Slope: Up to 30° standard / up to 45° with XF-SCK slope kit
- Wire: 80 in lead wire / Weight: 33.5 lbs
The FR-W2303-72L-SB/MB features native WiFi + Bluetooth (up to 150 ft range). Control via the Modern Forms app (iOS & Android) or voice with Amazon Alexa, Google Assistant, Samsung SmartThings, ecobee, Control4, and JOSH. Includes Bluetooth remote control F-RCBT-WT — 6-speed fan control, full-range light dimmer, and Summer/Winter mode switching. Optional Bluetooth wall control F-WCBT-WT available separately for 3- or 4-way control.
Construction & DesignMotor housing: Matte Black aluminum/steel. Blades: 8 matte black ABS, 16° pitch. Light kit accent ring: Soft Brass — a decorative ring surrounding the integrated LED light kit. Downrod: 0.75 in dia. Weight: 33.5 lbs. The Soft Brass accent ring introduces warm golden contrast against the all-black body — a refined detail for transitional, art deco, and luxury outdoor living environments.
Light Output & PerformanceIntegrated 19.5W LED, 1,600 lumens (944 delivered) at CRI 90. CCT selectable: 3000K / 4000K / 5000K via app or remote. Fully dimmable, 50,000 hr rated life. Fan: 9,420 CFM high speed at 250 CFM/W weighted average. Sized for 400–500 sq ft.
Electrical & Installation120V DC, 43W high / 29W avg. Wet rated — UL/cUL, Title 24 JA8-2016, Title 20, ENERGY STAR®. Slope: 30° standard / 45° with XF-SCK. Downrod max 72 in. Weight: 33.5 lbs.
Suggested Downrod by Ceiling HeightShips with a 6 in downrod. Maintain at least 7 ft clearance floor to blades. Max: 72 in. Optional: XF-12, XF-18, XF-24, XF-36, XF-48, XF-60, XF-72.
- 9 ft → 12 in downrod
- 10 ft → 18 in downrod
- 11 ft → 24 in downrod
- 12 ft → 36 in downrod
- 13 ft → 48 in downrod
- 14 ft → 60 in downrod
- 15 ft → 72 in downrod (max)
- Modern Forms Aura 72 in smart ceiling fan (motor + 8 blades)
- Integrated LED light kit
- Bluetooth remote control (F-RCBT-WT)
- 6.0 in downrod (0.75 in dia)
- Canopy and mounting hardware
