Modern Forms Roboto XL 70 in Outdoor Smart LED Ceiling Fan DC Matte White

The Modern Forms Roboto XL FR-W2301-70L-MW combines a broad 70 in span with a Matte White housing and matching ABS blades for contemporary indoor and outdoor spaces. Its quiet, reversible DC motor delivers 8,258 CFM on high with six speeds and summer/winter modes. An included dimmable 3000K LED adds illumination, while Wet Rated construction supports outdoor use. The included Bluetooth remote and Modern Forms app offer fan control, scheduling and smart-home integration.

Key Features

• Blade Configuration: 70 in sweep with 13° pitch; ABS blades.
• Motor: 165 × 30 sensorless DC motor; six speeds, reversible summer/winter modes; maximum 128 RPM.
• Airflow: 8,258 CFM on high; 5,612 CFM weighted average.
• Airflow Efficiency: Manufacturer-listed weighted-average efficiency of 189 CFM/W.
• Total Power: Listed 65W including lighting; motor energy use is 45W on high and 30W weighted average.
• LED Lighting: 19.5W, 3000K, 90 CRI; 1,600 source lumens and 702 delivered lumens.
• Dimming & Life: Integrated dimming; 50,000-hour rated LED life.
• Location Rating: UL/cUL Wet Location listed for indoor and outdoor use.
• Mounting: Slopes up to 30°; optional XF-SCK kit supports up to 45°, sold separately.
• Downrod & Wire: Included 6 in downrod; 80 in wire; recommended maximum downrod length of 72 in with supplied wire.

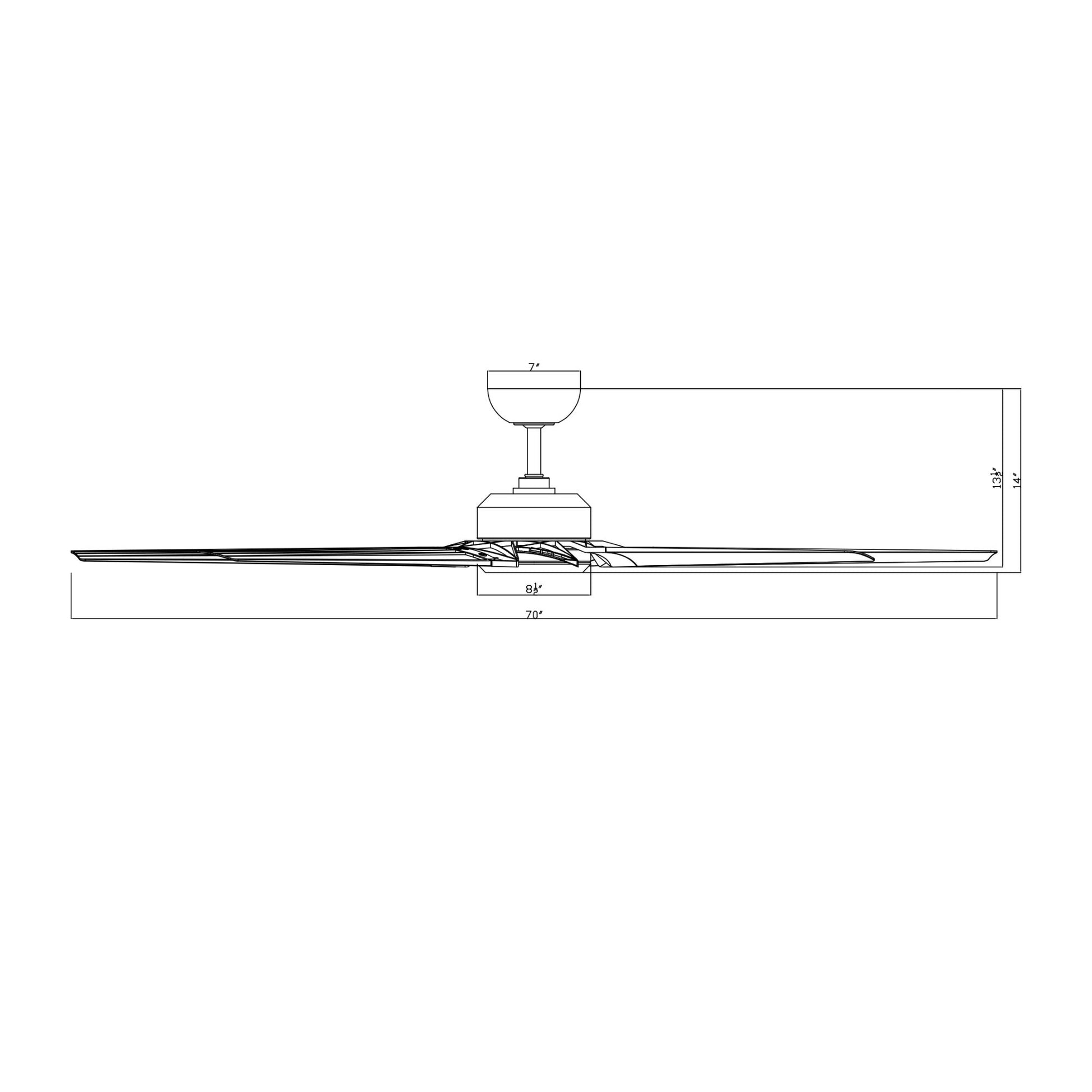

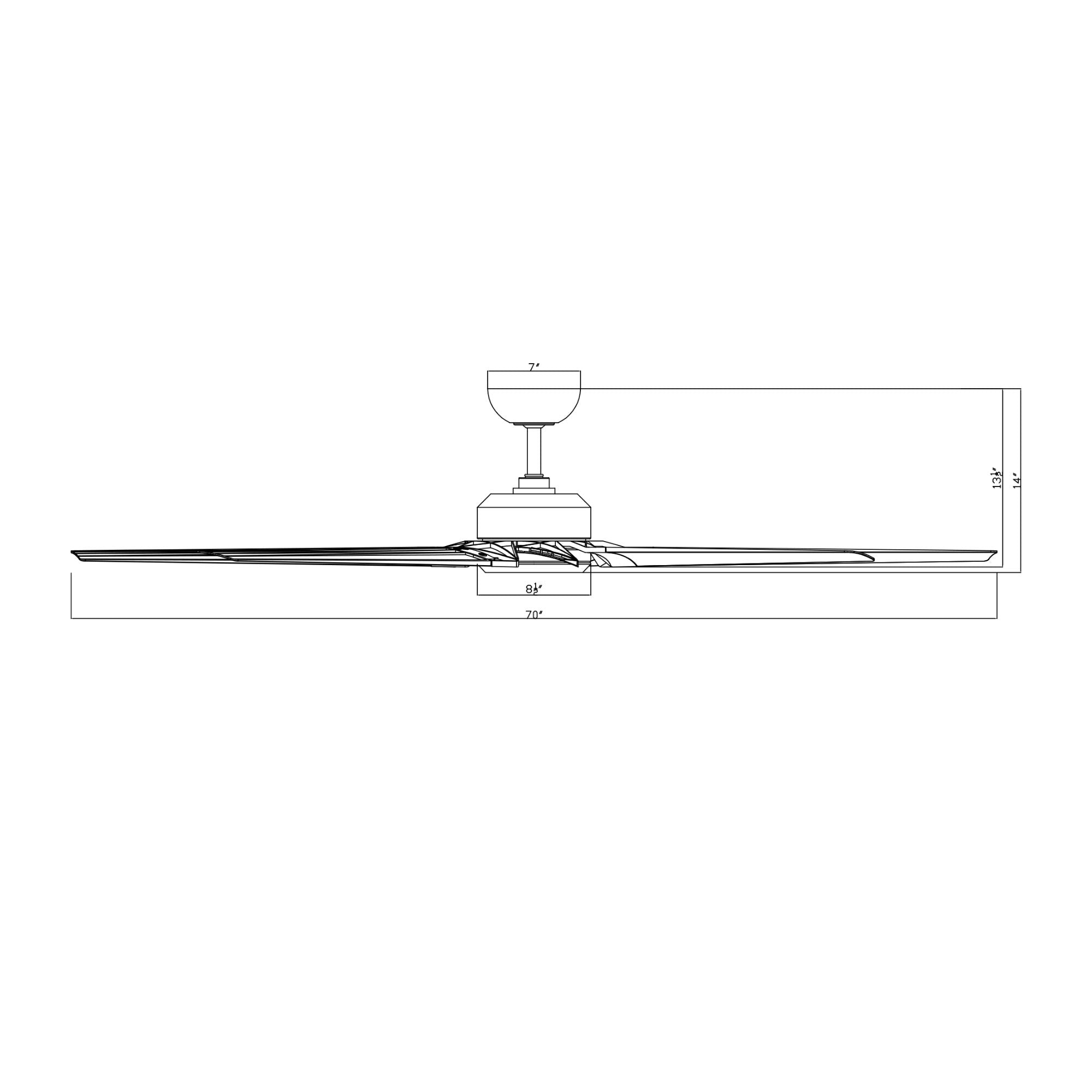

• Dimensions: 70 in diameter × 14 in overall height; 13.5 in blade drop; 7 in canopy diameter.
• Hanging Weight: 35 lb.
• Controls: Included F-RCBT-WT Bluetooth remote; optional F-WCBT-WT wall control sold separately.

Smart & Control Features

The included F-RCBT-WT Bluetooth remote controls fan speed, light brightness and summer/winter modes. Wi-Fi and Bluetooth connectivity supports the Modern Forms app for fan-speed control and scheduling. Voice integrations include Amazon Alexa and Google Assistant; smart-home integrations include Samsung SmartThings, Control4 and JOSH. The compatible F-WCBT-WT Bluetooth wall control is sold separately and supports multiple control locations.

Construction & Design

Aluminum and ABS construction pairs a Matte White housing with matching Matte White blades. The expansive blade profile and integrated LED create a contemporary design.

Light Output & Performance

The 19.5W integrated LED provides 1,600 source lumens and 702 delivered lumens at 3000K, with 90 CRI and a 50,000-hour rated life. Integrated dimming allows brightness adjustment using the included Bluetooth remote or compatible wall control. Fan airflow reaches 8,258 CFM on high and 5,612 CFM weighted average.

Electrical & Installation

Listed total power is 65W including lighting. The reversible DC motor uses 45W on high. Includes a 6 in downrod, 80 in lead wire and a 7 in canopy. Standard mounting supports slopes up to 30°. The compatible XF-SCK sloped-ceiling kit, sold separately, supports up to 45°. Recommended maximum downrod length is 72 in with supplied wire; compatible accessory downrods have 0.75 in inside diameter.

Suggested Downrod by Ceiling Height

Ships with a 6 in downrod. Longer compatible downrods are available separately.

• 9 ft ceiling: 12 in downrod
• 10 ft ceiling: 18 in downrod
• 11 ft ceiling: 24 in downrod
• 12 ft ceiling: 36 in downrod
• 13 ft ceiling: 48 in downrod
• 14 ft ceiling: 60 in downrod
• 15 ft ceiling: 72 in downrod

What's Included

• Roboto XL fan with Matte White housing and matching blades
• Integrated LED luminaire
• F-RCBT-WT Bluetooth remote with wall cradle and batteries
• 6 in downrod
• Mounting Hardware
