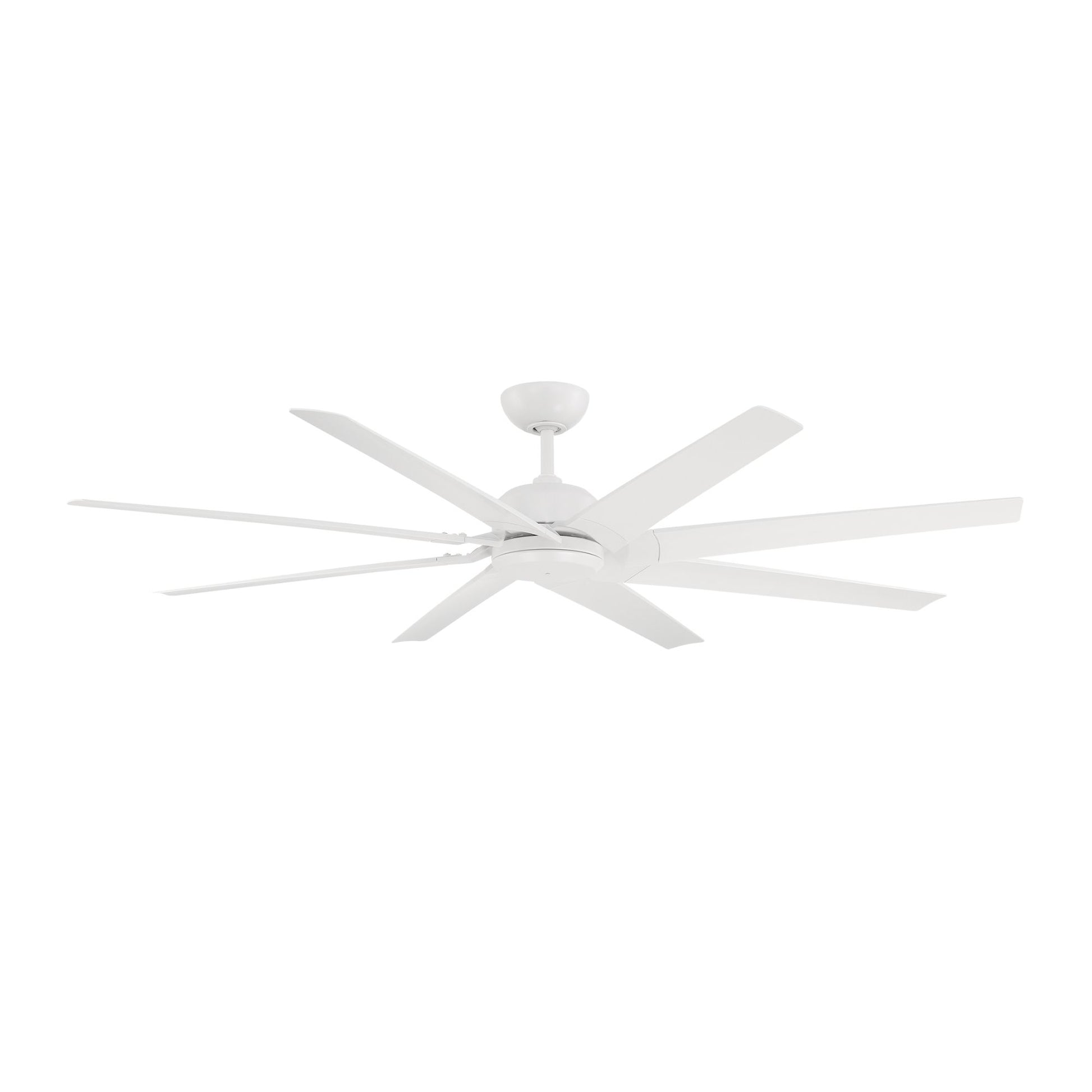

Modern Forms Roboto XL 70 in Outdoor Smart Ceiling Fan DC Matte White

The Modern Forms Roboto XL FR-W2301-70-MW brings a broad 70 in span to indoor and outdoor spaces with a Matte White housing and matching blades. A quiet, reversible DC motor delivers 8,258 CFM on high with six speeds and summer/winter modes. Wet Rated construction suits outdoor environments, while the included Bluetooth remote and Modern Forms app provide speed control, scheduling and smart-home integration. This non-light model includes a cover, not an LED luminaire.

Key Features

• Blade Configuration: 70 in sweep with 13° blade pitch.
• Motor: 165 × 30 sensorless DC motor; six speeds and reversible summer/winter modes; maximum 128 RPM.
• Airflow: 8,258 CFM on high; 5,612 CFM weighted average.
• Airflow Efficiency: Manufacturer-listed 189 CFM/W weighted average.
• Power: 45W total; 45W high-speed and 30W weighted-average energy use.
• Lighting: LED luminaire not included; cover included.
• Location Rating: UL/cUL Wet Location listed for indoor and outdoor use.
• Mounting: Slopes up to 30°; optional XF-SCK kit supports up to 45°, sold separately.
• Included Downrod: 6 in long; compatible accessory downrods have 0.75 in inside diameter.
• Lead Wire: 80 in; recommended maximum downrod length of 72 in with supplied wire.

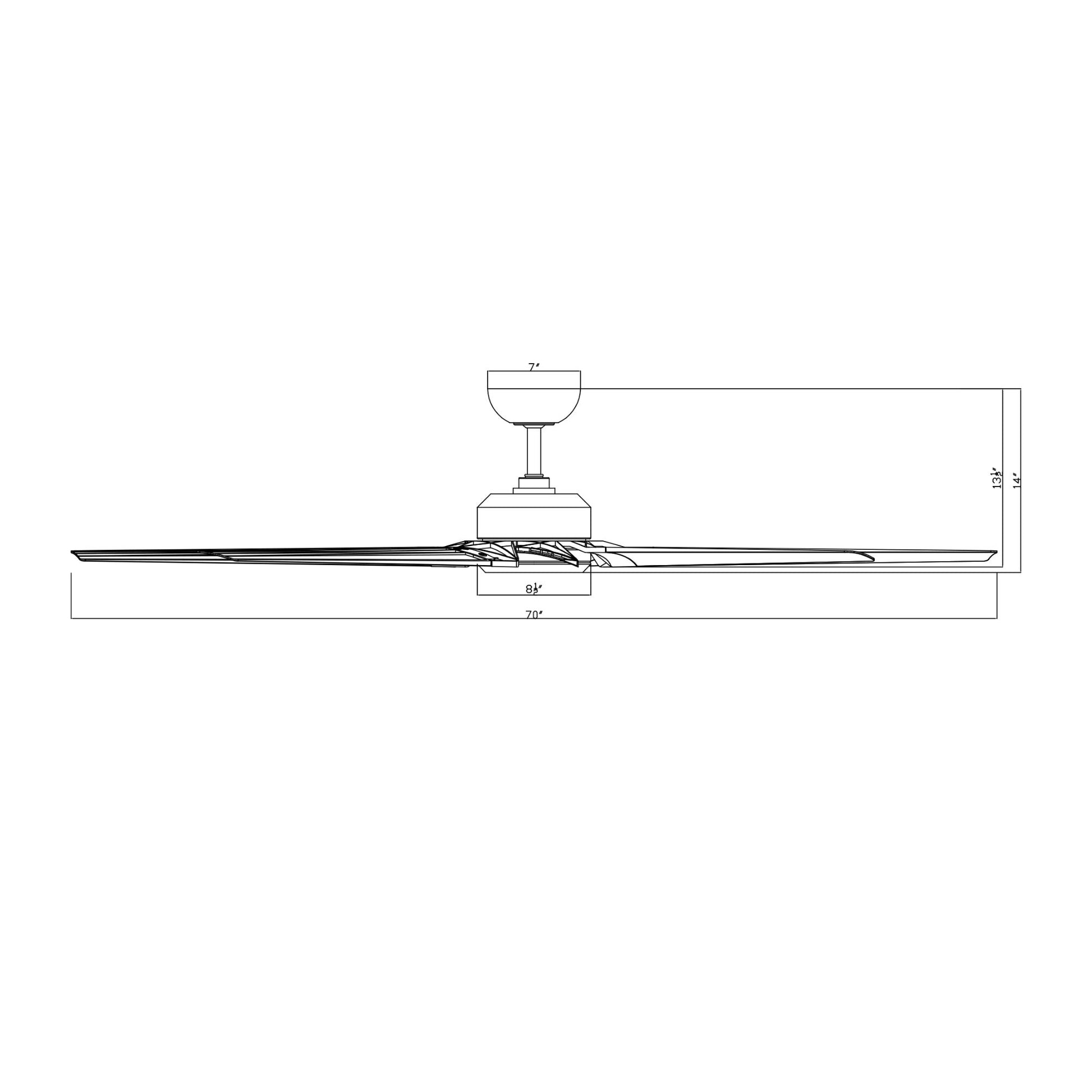

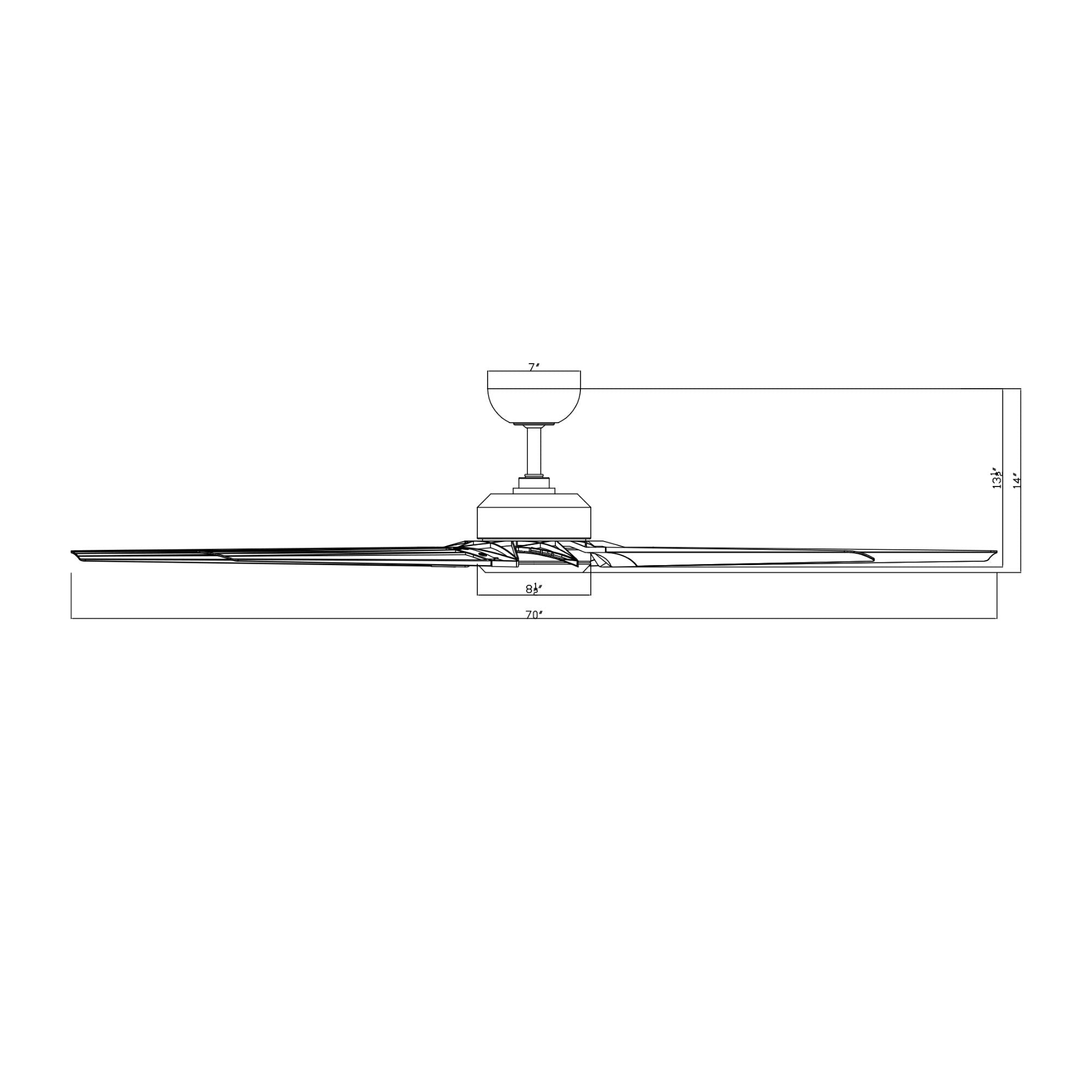

• Dimensions: 70 in diameter × 14 in overall height; 13.5 in blade drop; 7 in canopy diameter.
• Hanging Weight: 35 lb.
• Controls: Included F-RCBT-WT Bluetooth remote; optional F-WCBT-WT wall control sold separately.

Smart & Control Features

The included F-RCBT-WT Bluetooth remote controls fan speed and summer/winter modes. Wi-Fi and Bluetooth connectivity supports the Modern Forms app for speed control and scheduling. Voice integrations include Amazon Alexa and Google Assistant; smart-home integrations include Samsung SmartThings, Control4 and JOSH. The compatible F-WCBT-WT Bluetooth wall control is sold separately and supports multiple control locations.

Construction & Design

Aluminum and ABS construction pairs a Matte White housing with matching Matte White blades. The expansive blade profile creates a contemporary look, with an included cover completing the non-light configuration.

Fan Performance

Roboto XL delivers 8,258 CFM on high and 5,612 CFM weighted-average airflow. Weighted-average efficiency is listed at 189 CFM/W. Six speeds and reversible summer/winter modes provide adjustable circulation; this version includes a cover rather than an LED luminaire.

Electrical & Installation

The reversible DC motor has 45W total power. Includes a 6 in downrod, 80 in lead wire and a 7 in canopy. Standard mounting supports slopes up to 30°. The compatible XF-SCK sloped-ceiling kit, sold separately, supports ceilings up to 45°. Recommended maximum downrod length is 72 in with the supplied wire.

Suggested Downrod by Ceiling Height

Ships with a 6 in downrod. Longer compatible downrods are available separately.

• 9 ft ceiling: 12 in downrod
• 10 ft ceiling: 18 in downrod
• 11 ft ceiling: 24 in downrod
• 12 ft ceiling: 36 in downrod
• 13 ft ceiling: 48 in downrod
• 14 ft ceiling: 60 in downrod
• 15 ft ceiling: 72 in downrod

What's Included

• Roboto XL fan with Matte White housing and matching blades
• Cover for non-light configuration
• F-RCBT-WT Bluetooth remote with wall cradle and batteries
• 6 in downrod
• Mounting Hardware
