Modern Forms Torque 70 in Outdoor Smart Ceiling Fan DC Soft Brass Matte White

The Modern Forms Torque FR-W2204-70-SB/MW pairs a minimalist Soft Brass housing with uniquely formed Matte White ABS blades across a 70 in span. Its distinctive silhouette makes a contemporary design statement while a quiet, reversible DC motor delivers 8,581 CFM on high with six speeds. Wet Rated construction supports indoor and outdoor use, although Soft Brass is not intended for coastal environments. The included Bluetooth remote and Modern Forms app via Wi-Fi provide speed control, scheduling and smart-home integration.

Key Features

• Blade Configuration: 70 in sweep and 17° pitch; ABS blades.
• Motor: 120 × D-25 sensorless DC motor; six speeds and reversible summer/winter modes; maximum 106 RPM.
• Airflow: 8,581 CFM on high; 6,154 CFM weighted average.
• Airflow Efficiency: Manufacturer-listed weighted-average efficiency of 245 CFM/W.
• Power: 38W total/high-speed use; 25W weighted-average energy use.
• Location Rating: UL/cUL Wet Location listed; Soft Brass not intended for coastal environments.
• Mounting: Slopes up to 30°; optional XF-SCK kit supports up to 45°, sold separately.
• Included Downrod: 8 in long, 0.75 in wide.
• Lead Wire: 80 in; recommended maximum downrod length of 72 in with supplied wire.

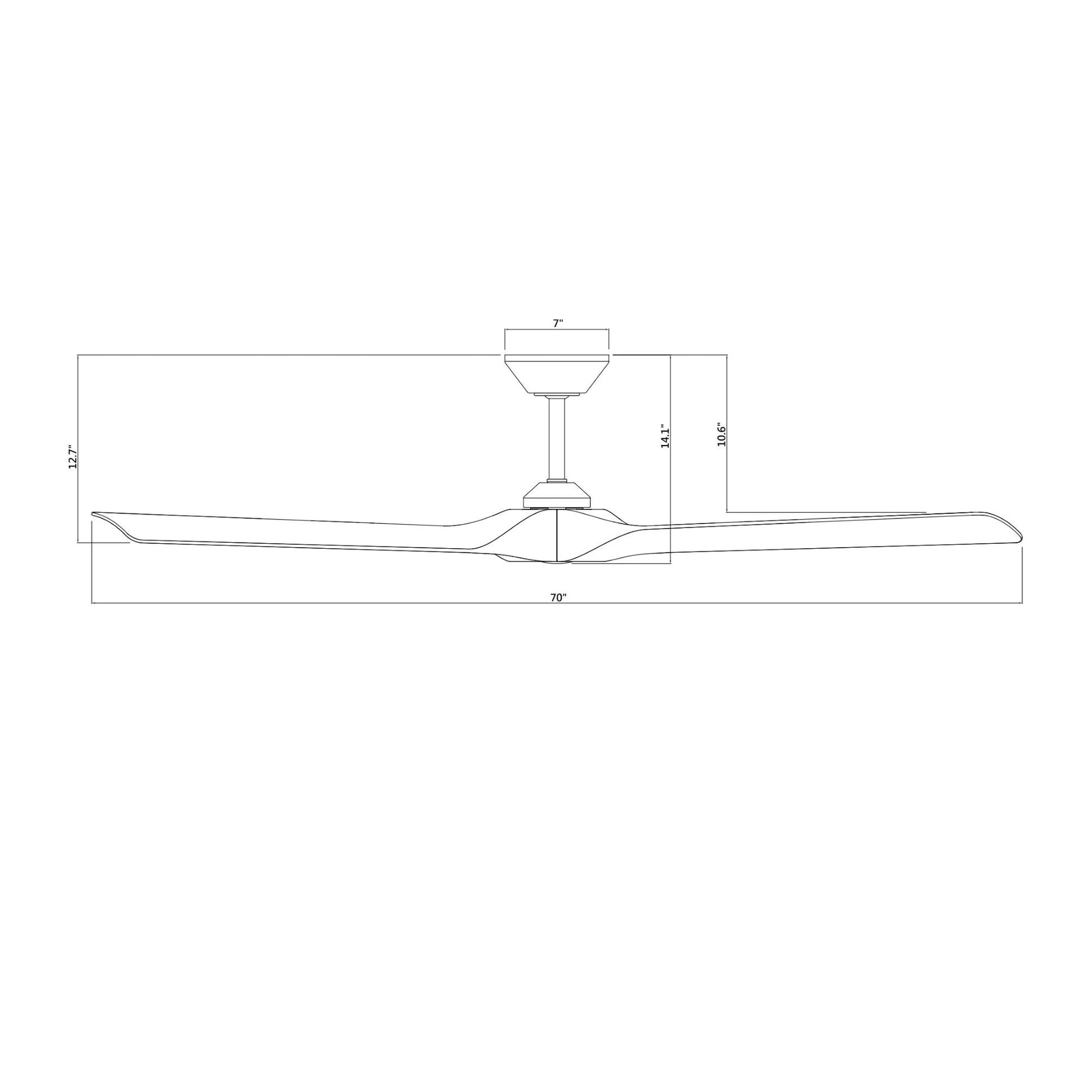

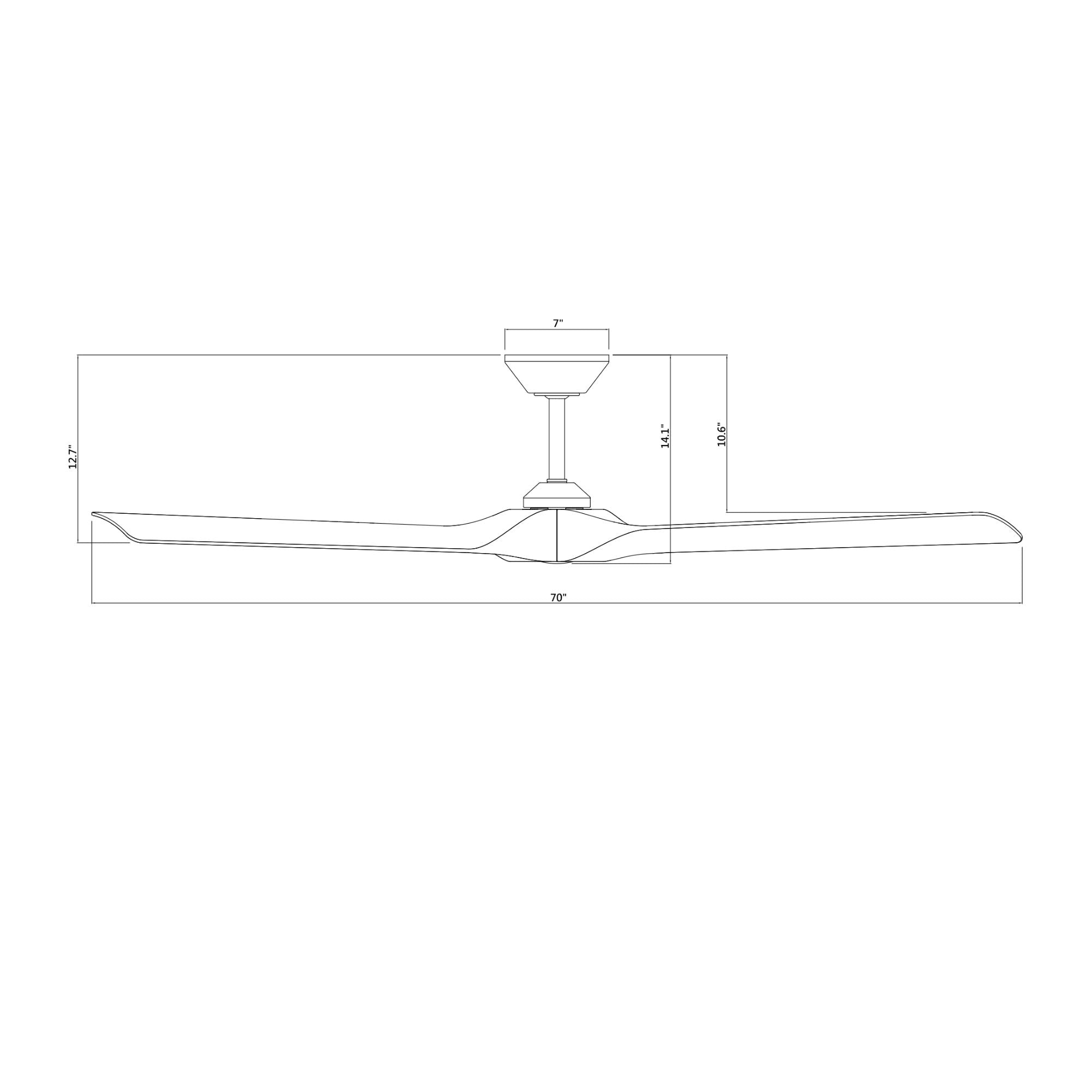

• Dimensions: 70 in diameter × 14.1 in overall height; 12.7 in blade drop; 7 in canopy diameter.
• Hanging Weight: 19 lb.
• Controls: Included F-RCBT-WT Bluetooth remote; optional F-WCBT-WT wall control sold separately.

Smart & Control Features

The included F-RCBT-WT Bluetooth remote controls fan speed and summer/winter modes. Wi-Fi and Bluetooth connectivity supports the Modern Forms app for speed control and scheduling. Voice integrations include Amazon Alexa and Google Assistant; smart-home integrations include Samsung SmartThings, Control4 and JOSH. The compatible F-WCBT-WT Bluetooth wall control is sold separately and supports multiple control locations.

Construction & Design

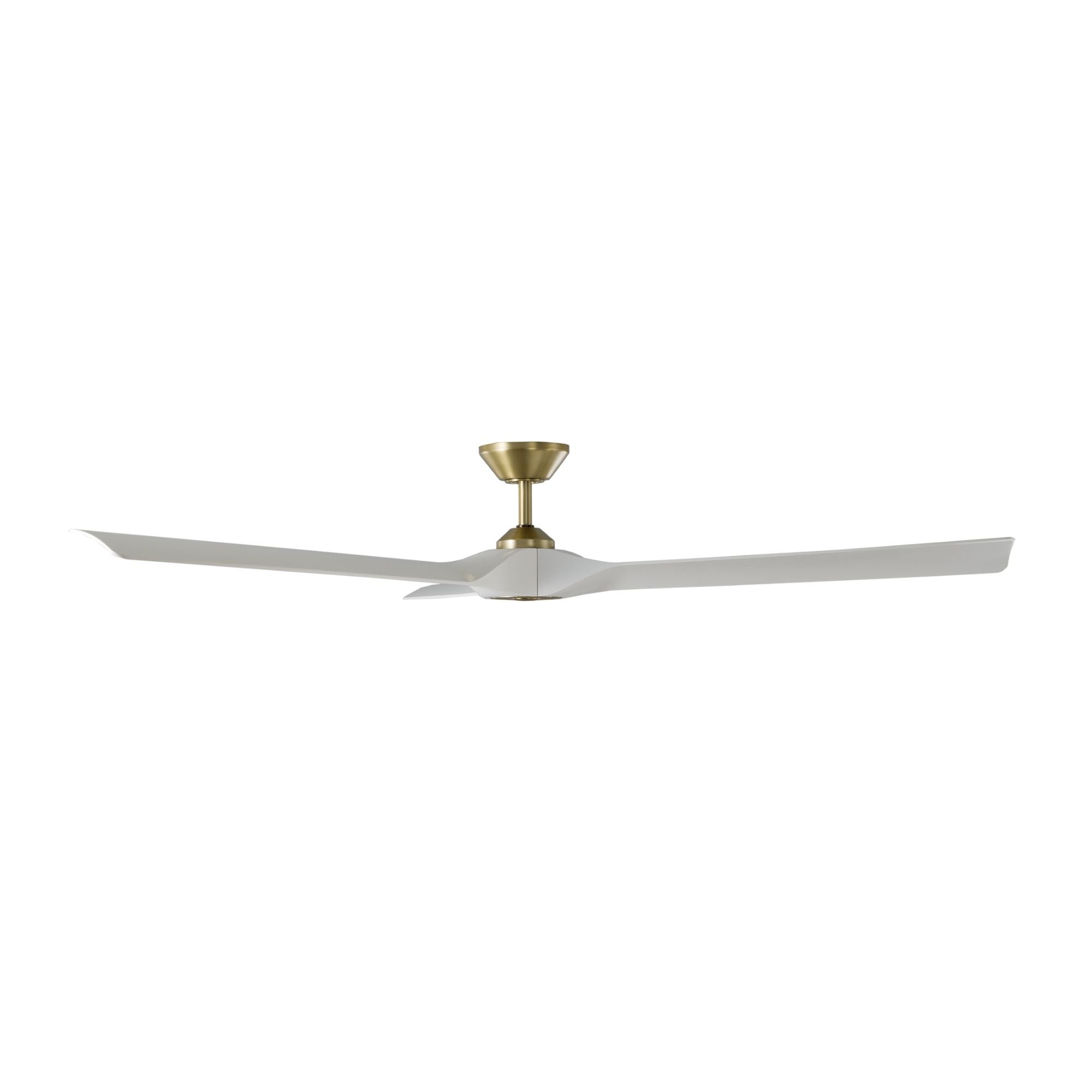

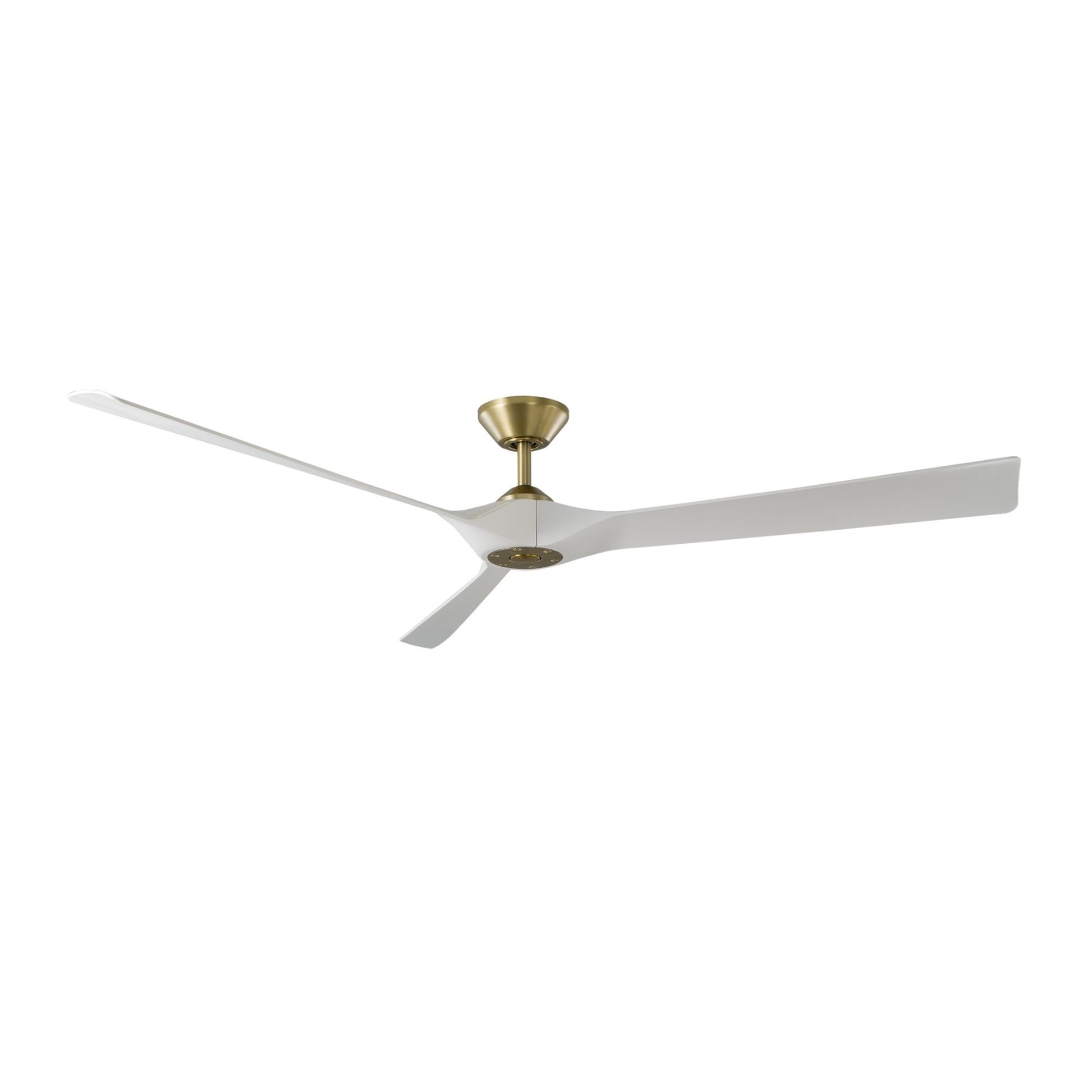

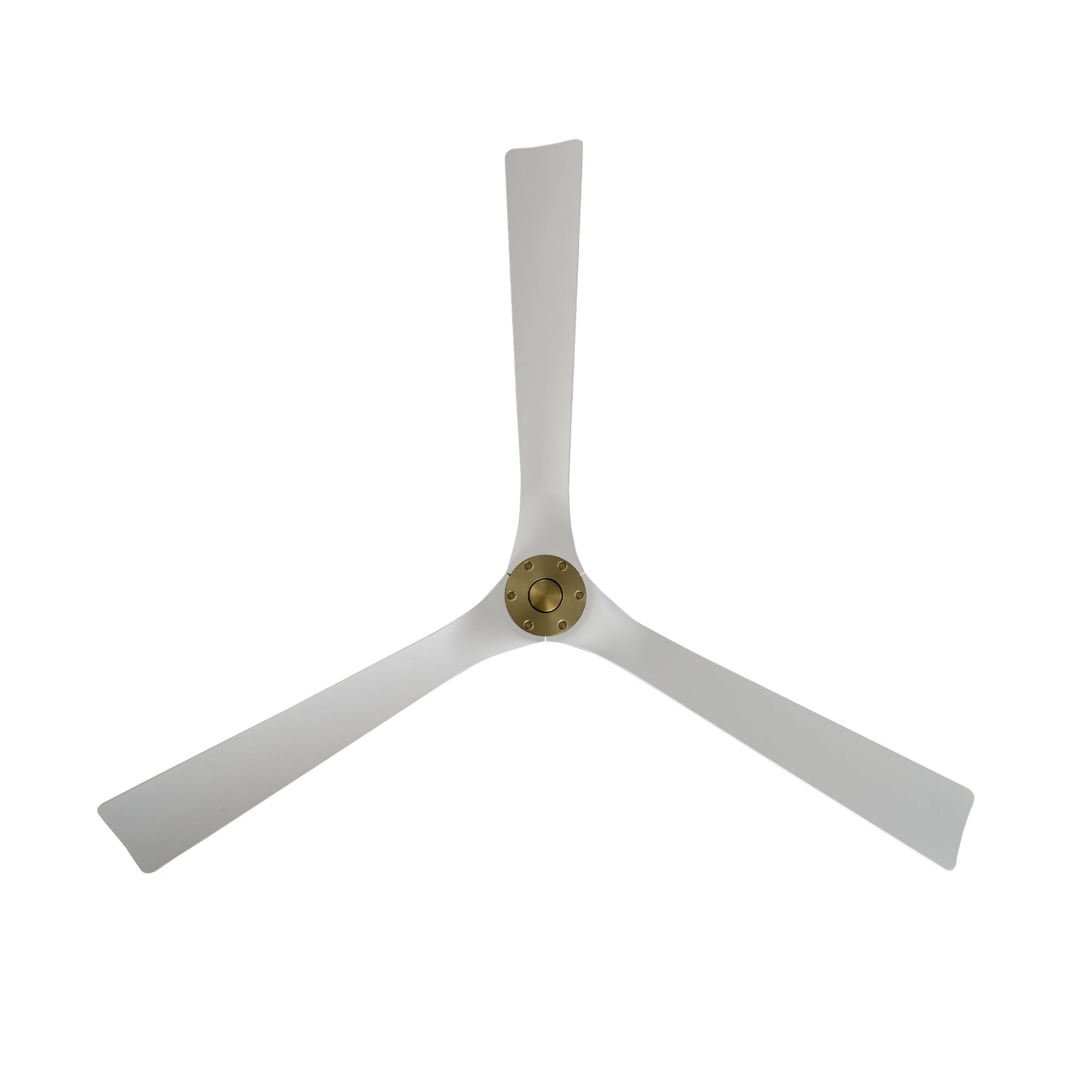

Aluminum, steel and ABS construction pairs a Soft Brass housing with Matte White blades. A minimalist body and uniquely formed blades create Torque's distinctive silhouette. The Soft Brass finish is not intended for coastal environments.

Fan Performance

Torque delivers 8,581 CFM on high and 6,154 CFM weighted-average airflow, with 245 CFM/W listed weighted-average efficiency. Six speeds and reversible summer/winter modes provide adjustable circulation.

Electrical & Installation

The reversible DC motor uses 38W on high and 25W weighted average. Includes an 8 in downrod, 80 in lead wire and a 7 in canopy. Standard mounting supports slopes up to 30°. The compatible XF-SCK sloped-ceiling kit, sold separately, supports up to 45°. Recommended maximum downrod length is 72 in with supplied wire; compatible accessory downrods have 0.75 in inside diameter.

Suggested Downrod by Ceiling Height

Ships with an 8 in downrod. Longer compatible downrods are available separately.

• 9 ft ceiling: 12 in downrod
• 10 ft ceiling: 18 in downrod
• 11 ft ceiling: 24 in downrod
• 12 ft ceiling: 36 in downrod
• 13 ft ceiling: 48 in downrod
• 14 ft ceiling: 60 in downrod
• 15 ft ceiling: 72 in downrod

What's Included

• Torque fan with Soft Brass housing and Matte White blades
• F-RCBT-WT Bluetooth remote with wall cradle and batteries
• 8 in downrod
• Mounting Hardware
