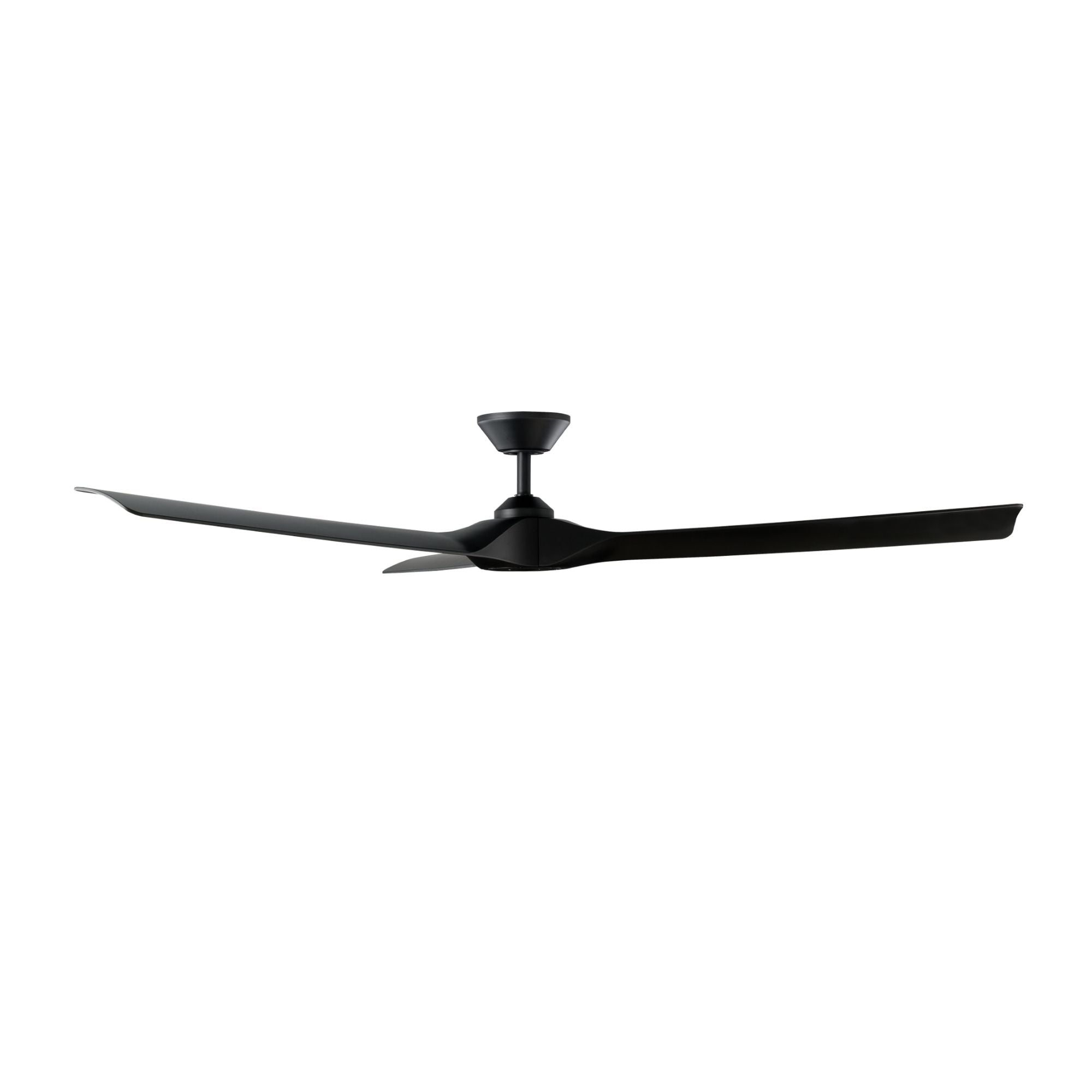

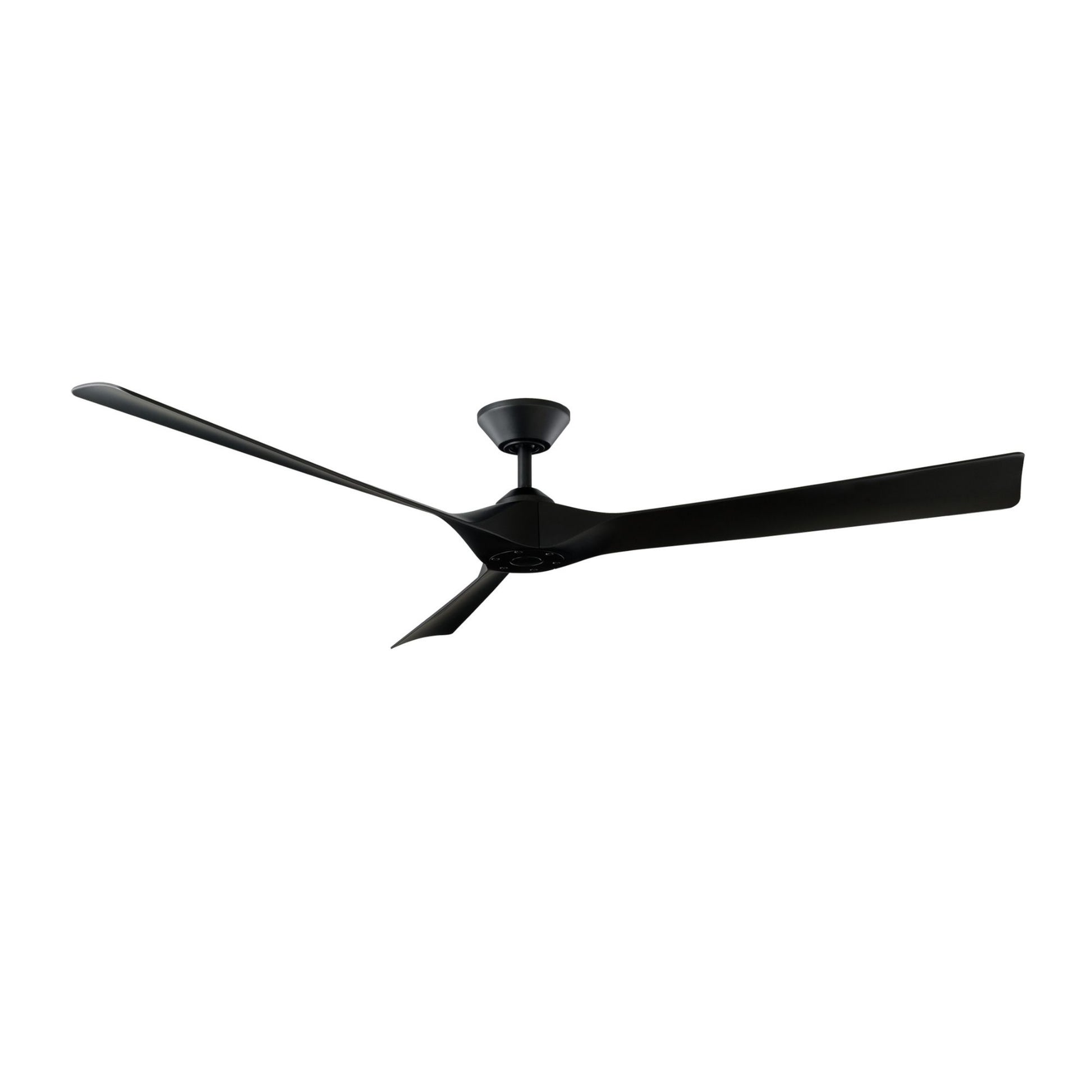

Modern Forms Torque 70 in Outdoor Smart Ceiling Fan DC Matte Black

The Modern Forms Torque FR-W2204-70-MB pairs a minimalist Matte Black housing with uniquely formed Matte Black ABS blades across a 70 in span. Its distinctive silhouette makes a contemporary design statement while a quiet, reversible DC motor delivers 8,581 CFM on high with six speeds. Wet Rated construction supports indoor and outdoor use. The included Bluetooth remote and Modern Forms app via Wi-Fi provide speed control, scheduling and smart-home integration.

Key Features

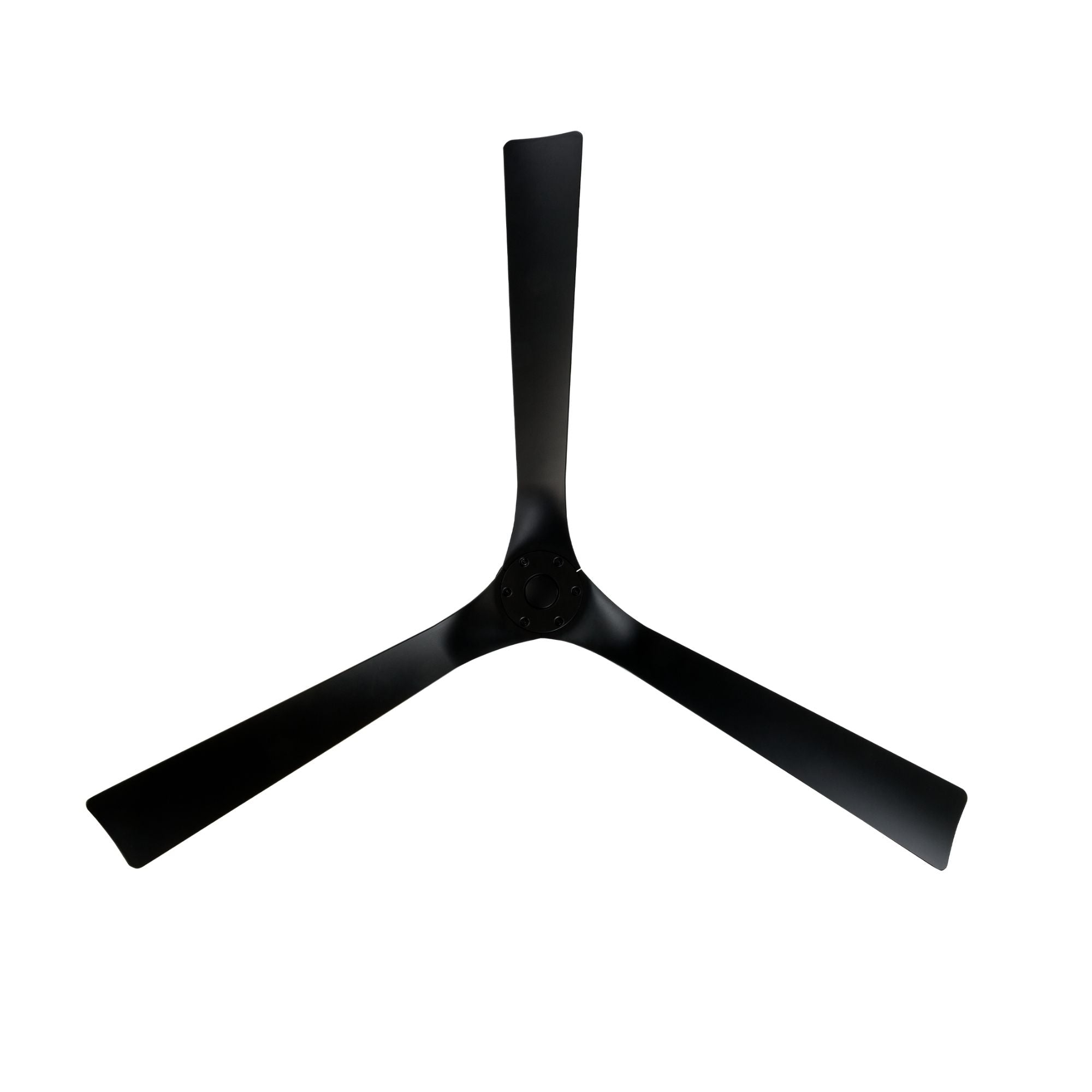

• Blade Configuration: 70 in sweep and 17° pitch; ABS blades.
• Motor: 120 × D-25 sensorless DC motor; six speeds and reversible summer/winter modes; maximum 106 RPM.
• Airflow: 8,581 CFM on high; 6,154 CFM weighted average.
• Airflow Efficiency: Weighted-average efficiency of 245 CFM/W.
• Power: 38W total/high-speed use; 25W weighted-average energy use.
• Location Rating: UL/cUL Wet Location listed for indoor and outdoor use.
• Mounting: Slopes up to 30°; optional XF-SCK kit supports up to 45°, sold separately.
• Included Downrod: 8 in long, 0.75 in wide.
• Lead Wire: 80 in; recommended maximum downrod length of 72 in with supplied wire.

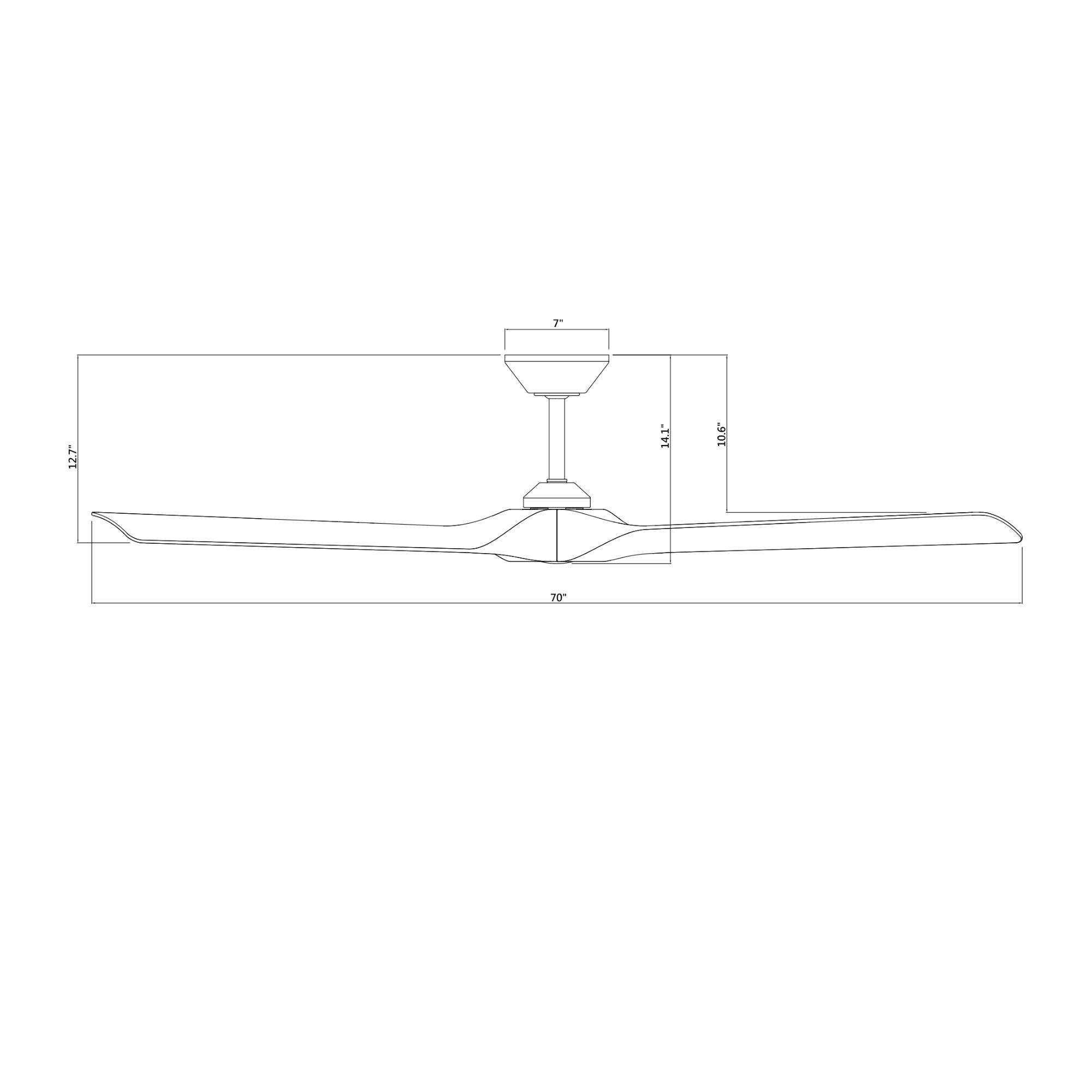

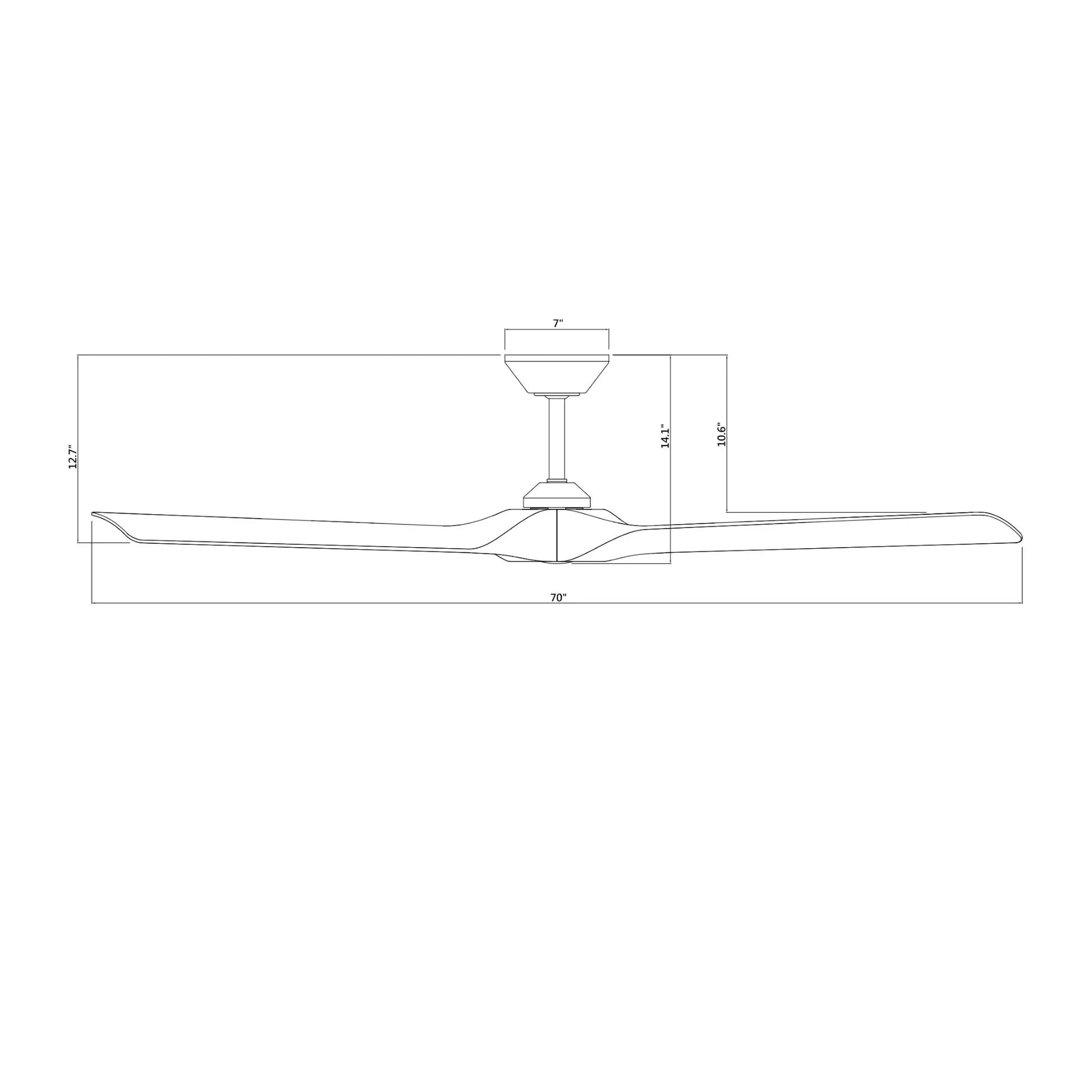

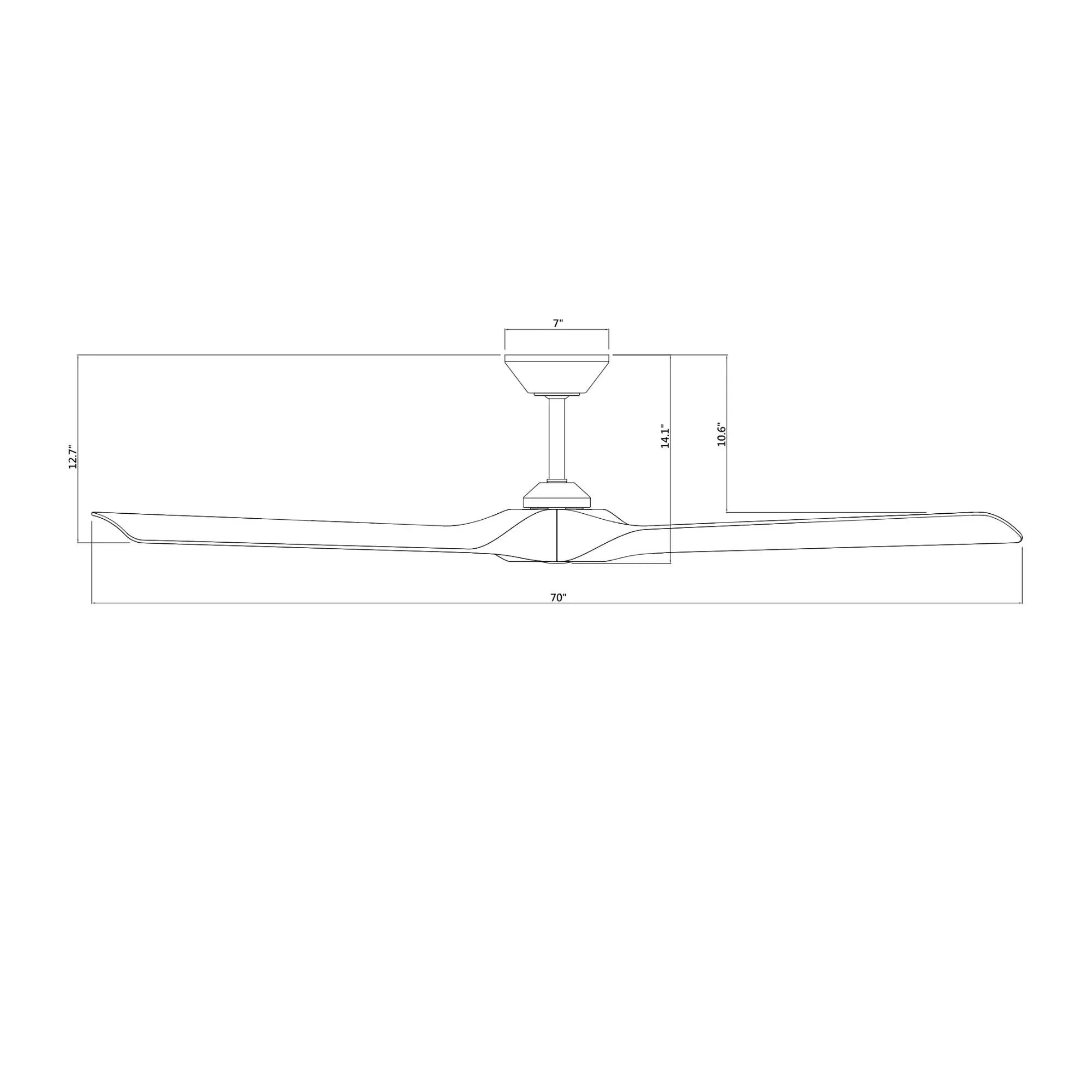

• Dimensions: 70 in diameter × 14.1 in overall height; 12.7 in blade drop; 7 in canopy diameter.
• Hanging Weight: 19 lb.
• Controls: Included F-RCBT-WT Bluetooth remote; optional F-WCBT-WT wall control sold separately.

Smart & Control Features

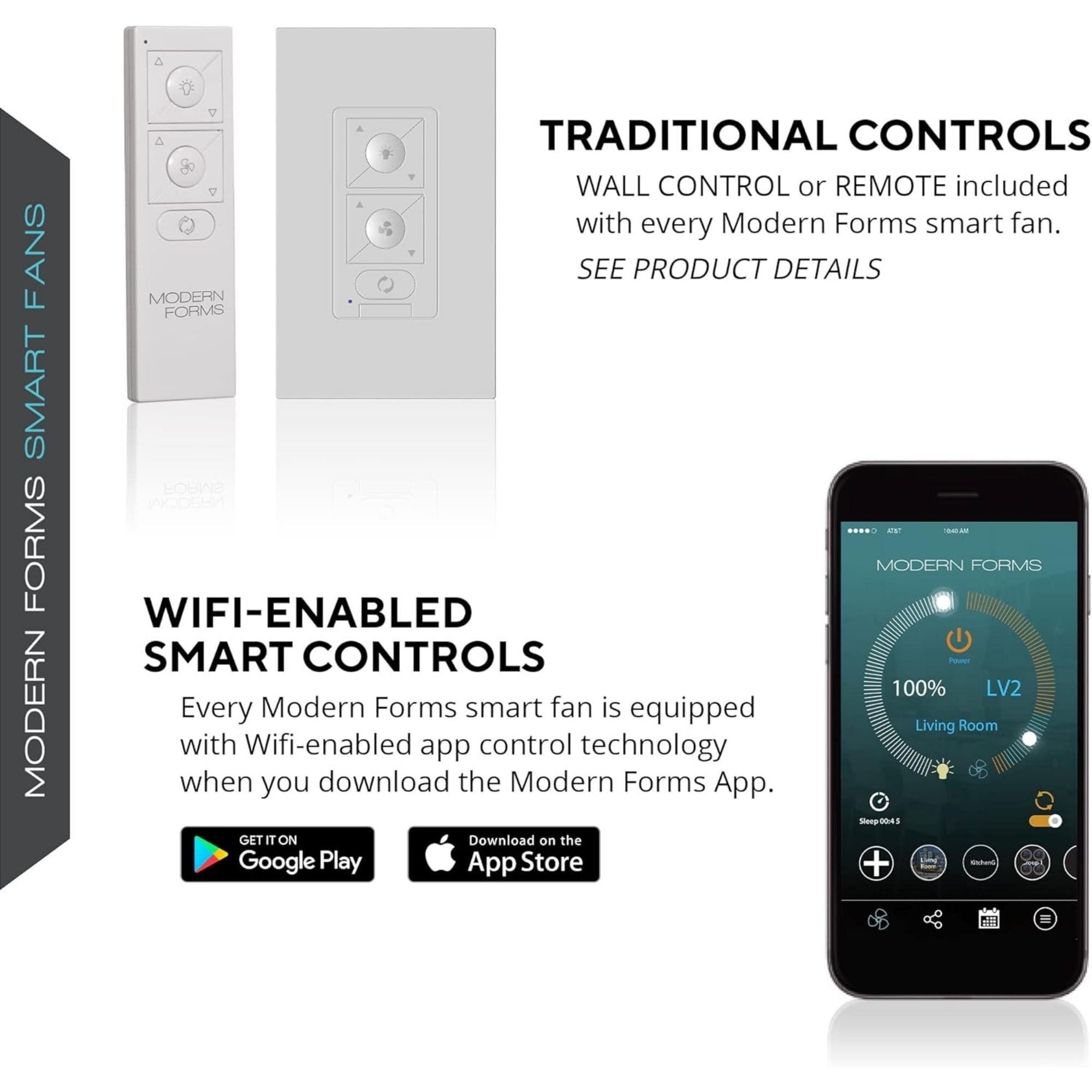

The included F-RCBT-WT Bluetooth remote controls fan speed and summer/winter modes. Wi-Fi and Bluetooth connectivity supports the Modern Forms app for speed control and scheduling. Voice integrations include Amazon Alexa and Google Assistant; smart-home integrations include Samsung SmartThings, Control4 and JOSH. The compatible F-WCBT-WT Bluetooth wall control is sold separately and supports multiple control locations.

Construction & Design

Aluminum, steel and ABS construction pairs a Matte Black housing with Matte Black blades. A minimalist body and uniquely formed blades create Torque's distinctive silhouette.

Fan Performance

Torque delivers 8,581 CFM on high and 6,154 CFM weighted-average airflow, with 245 CFM/W weighted-average efficiency. Six speeds and reversible summer/winter modes provide adjustable circulation.

Electrical & Installation

The reversible DC motor uses 38W on high and 25W weighted average. Includes an 8 in downrod, 80 in lead wire and a 7 in canopy. Standard mounting supports slopes up to 30°. The compatible XF-SCK sloped-ceiling kit, sold separately, supports up to 45°. Recommended maximum downrod length is 72 in with supplied wire; compatible accessory downrods have 0.75 in inside diameter.

Suggested Downrod by Ceiling Height

Ships with an 8 in downrod. Longer compatible downrods are available separately.

• 9 ft ceiling: 12 in downrod
• 10 ft ceiling: 18 in downrod
• 11 ft ceiling: 24 in downrod
• 12 ft ceiling: 36 in downrod
• 13 ft ceiling: 48 in downrod
• 14 ft ceiling: 60 in downrod
• 15 ft ceiling: 72 in downrod

What's Included

• Torque fan with Matte Black housing and Matte Black blades
• F-RCBT-WT Bluetooth remote with wall cradle and batteries
• 8 in downrod
• Mounting Hardware
