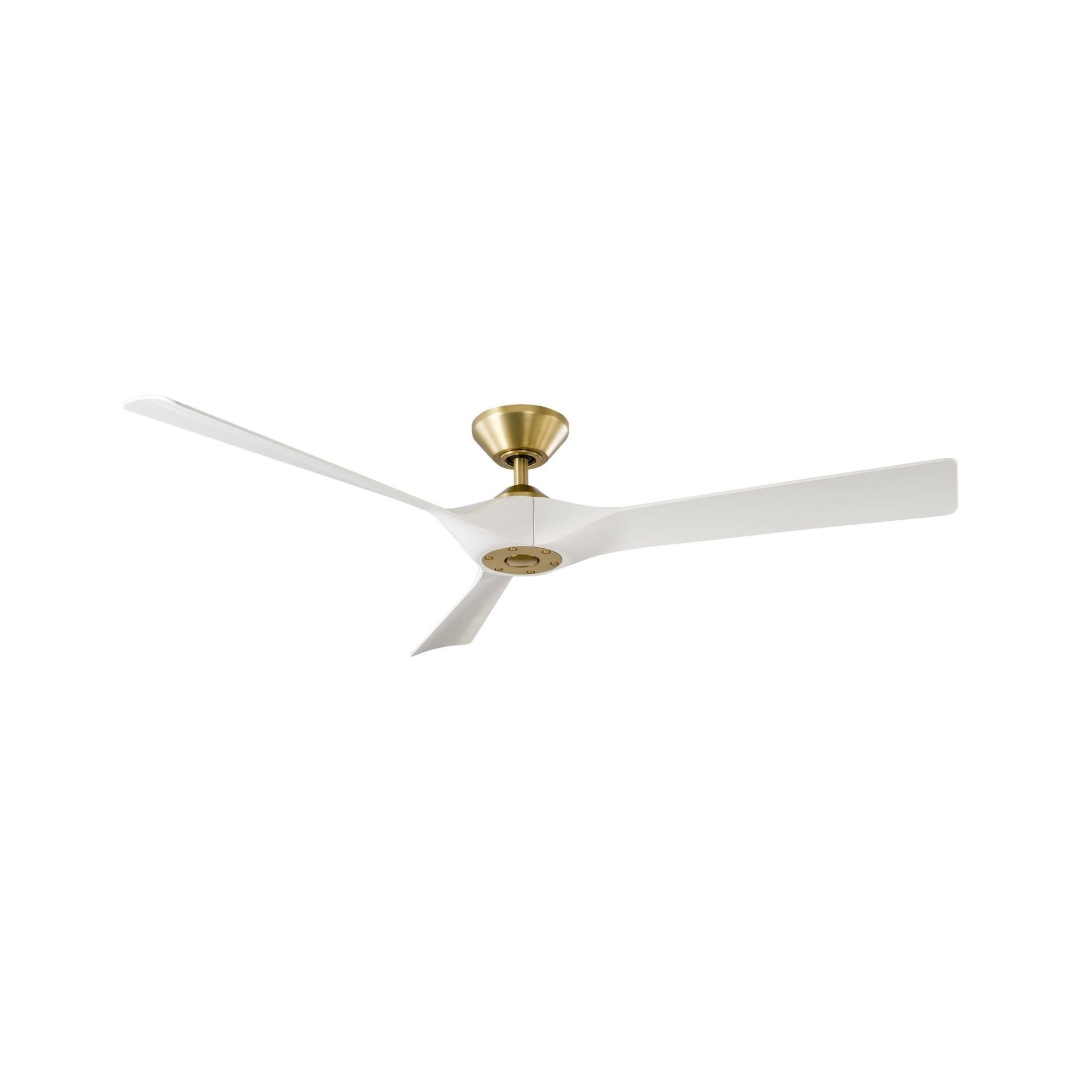

Modern Forms Torque 58 in Outdoor Smart Ceiling Fan DC Soft Brass Matte White

The Modern Forms Torque FR-W2204-58-SB/MW pairs a minimalist Soft Brass housing with uniquely formed Matte White blades across a 58 in span. Its distinctive silhouette makes a contemporary design statement while a quiet, reversible DC motor delivers 5,765 CFM on high with six speeds. Wet Rated construction supports indoor and outdoor use, although Soft Brass is not intended for coastal environments. The included Bluetooth remote and Modern Forms app via Wi-Fi provide speed control, scheduling and smart-home integration.

Key Features

• Blade Configuration: 58 in sweep and 16° pitch.
• Motor: 120 × D-25 sensorless DC motor; six speeds and reversible summer/winter modes; maximum 162 RPM.
• Airflow: 5,765 CFM on high; 3,917 CFM weighted average.
• Airflow Efficiency: Specification sheet lists 191 CFM/W.
• Power: 33W total/high-speed use; 23W weighted-average energy use.
• Location Rating: UL/cUL Wet Location listed; Soft Brass not intended for coastal environments.
• Mounting: Slopes up to 30°; optional XF-SCK kit supports up to 45°, sold separately.
• Included Downrod: 4.5 in long, 0.75 in outside diameter.
• Lead Wire: 80 in; recommended maximum downrod length of 72 in with supplied wire.

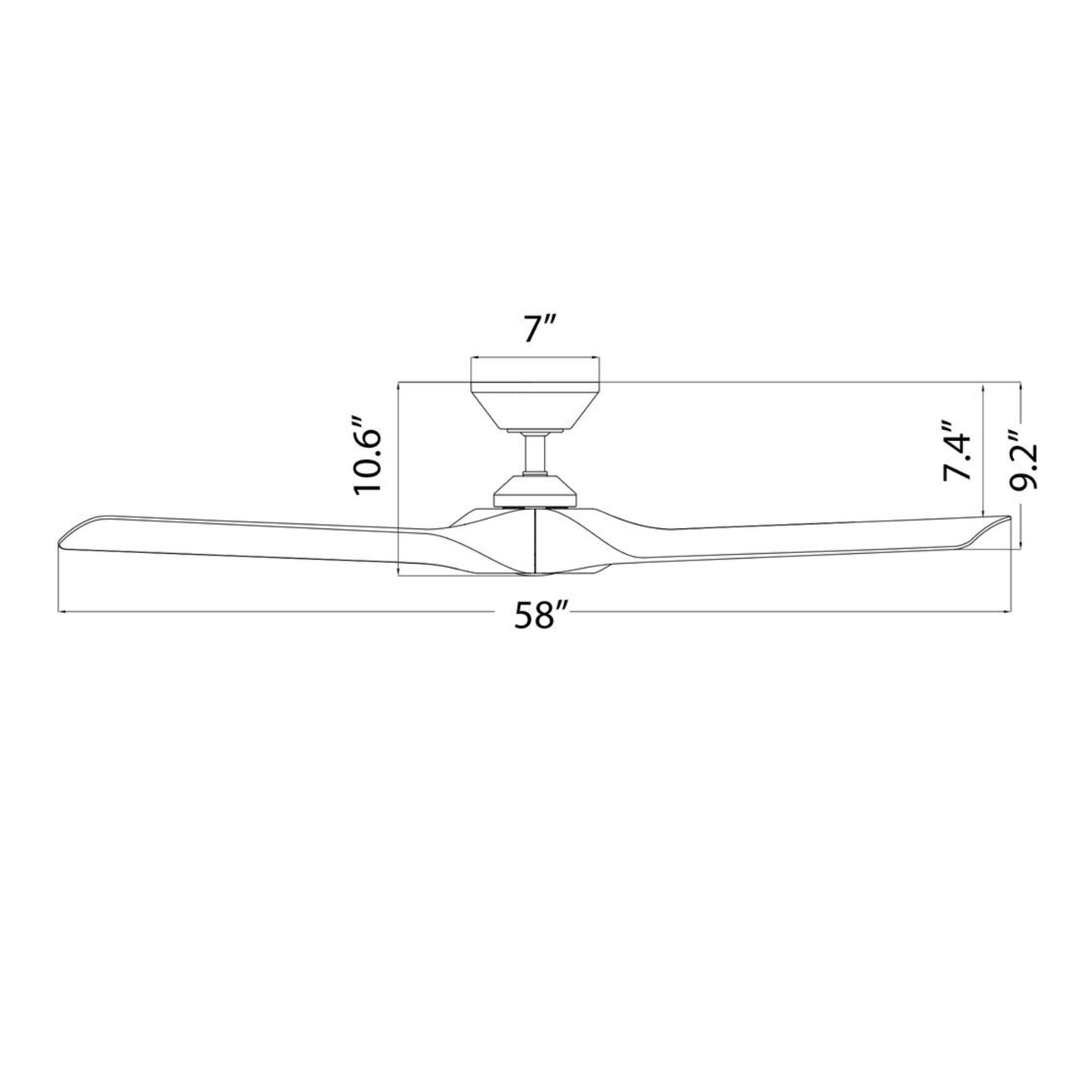

• Dimensions: 58 in diameter × 10.6 in overall height; 7 in canopy diameter.
• Hanging Weight: 19 lb.
• Standards: Energy Star; Title 24 JA8-2016 compliant; Title 20.

Smart & Control Features

The included F-RCBT-WT Bluetooth remote controls fan speed and summer/winter modes. Wi-Fi and Bluetooth connectivity supports the Modern Forms app for control and scheduling. Voice integrations include Amazon Alexa and Google Assistant; smart-home integrations include Samsung SmartThings, Control4 and JOSH. The compatible F-WCBT-WT Bluetooth wall control is sold separately; additional wall controls are available for multiple control locations.

Construction & Design

Aluminum, steel and ABS construction pairs a Soft Brass housing with Matte White blades. A minimalist body and uniquely formed blades create Torque's distinctive silhouette. The Soft Brass finish is not intended for coastal environments.

Fan Performance

Torque delivers 5,765 CFM on high and 3,917 CFM weighted-average airflow. The specification sheet lists 191 CFM/W efficiency. Six speeds and reversible summer/winter modes provide adjustable circulation, with a maximum speed of 162 RPM.

Electrical & Installation

Operates at 120V. The reversible DC motor uses 33W on high and 23W weighted average. Includes a 4.5 in downrod with 0.75 in outside diameter, 80 in lead wire and a 7 in canopy. Standard mounting supports slopes up to 30°. The compatible XF-SCK sloped-ceiling kit, sold separately, supports up to 45°. Recommended maximum downrod length is 72 in with supplied wire. Compatible accessory downrods have 0.75 in outside diameter and threaded motor ends.

Suggested Downrod by Ceiling Height

Ships with a 4.5 in downrod. Longer compatible downrods are available separately.

• 9 ft ceiling: 12 in downrod
• 10 ft ceiling: 18 in downrod
• 11 ft ceiling: 24 in downrod
• 12 ft ceiling: 36 in downrod
• 13 ft ceiling: 48 in downrod
• 14 ft ceiling: 60 in downrod
• 15 ft ceiling: 72 in downrod

What's Included

• Torque fan with Soft Brass housing and Matte White blades
• F-RCBT-WT Bluetooth remote with wall cradle and batteries
• 4.5 in downrod
• Mounting Hardware
