Modern Forms Torque 58 in Outdoor Smart Ceiling Fan DC Matte Black

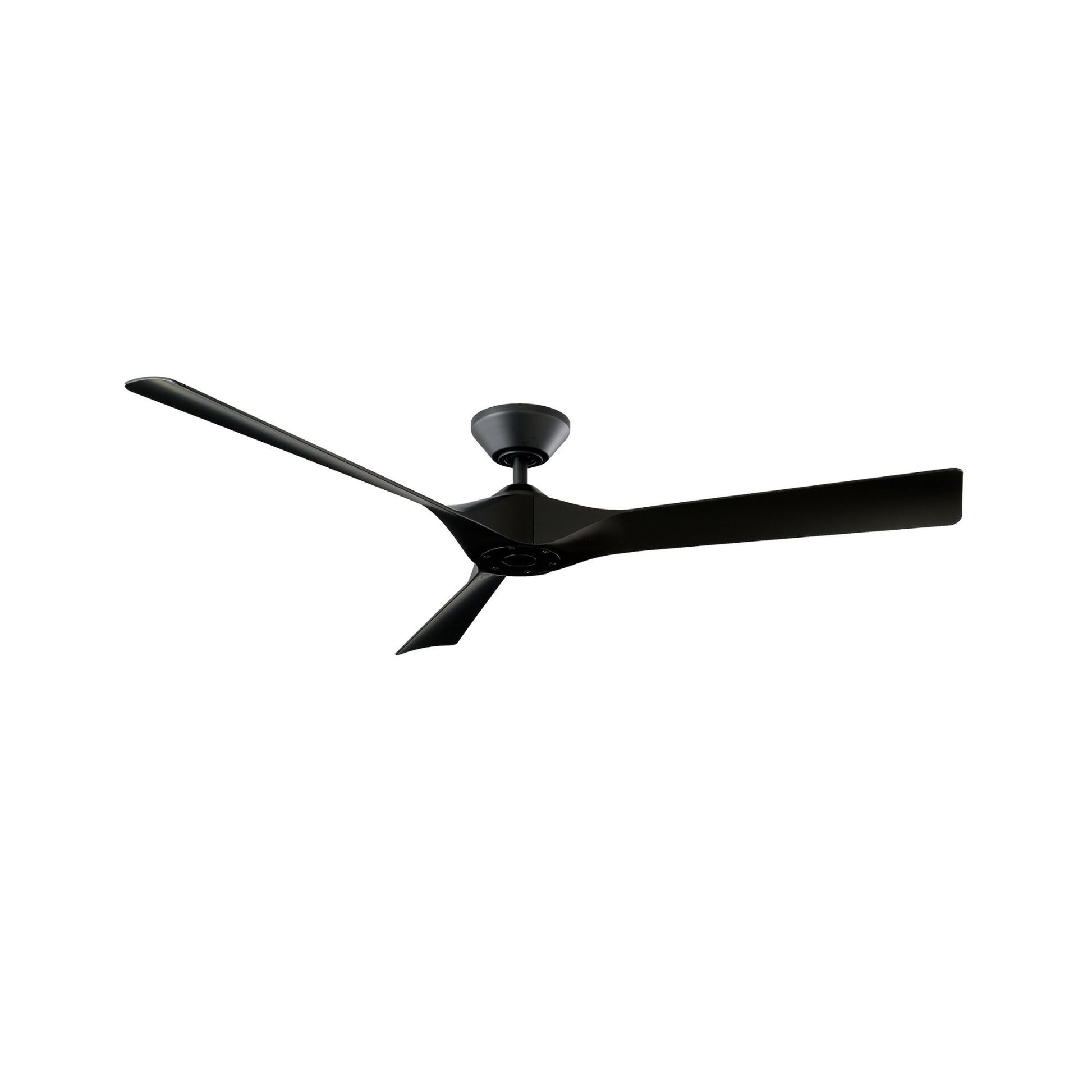

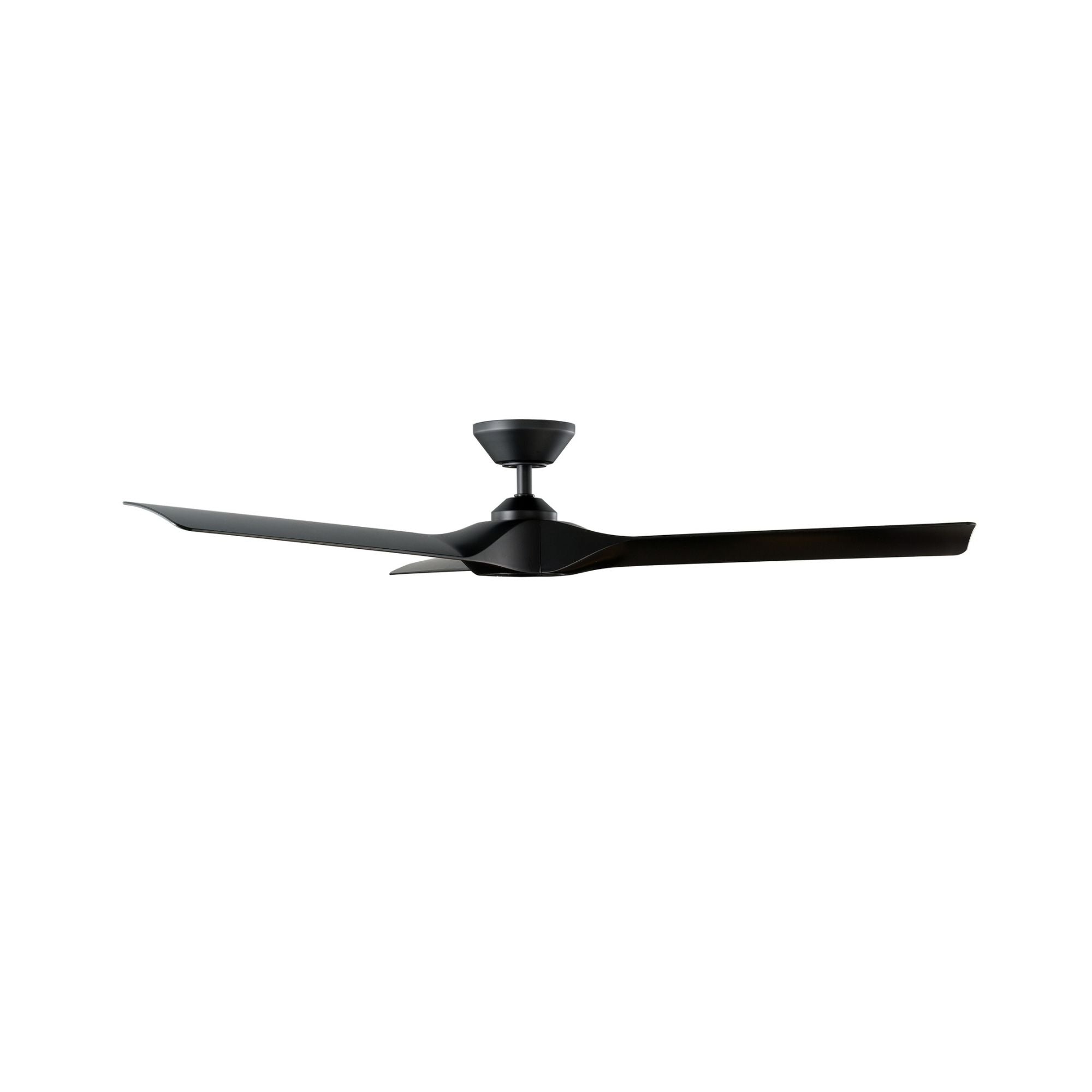

The Modern Forms Torque FR-W2204-58-MB pairs a minimalist Matte Black housing with uniquely formed Matte Black blades across a 58 in span. Its distinctive silhouette makes a contemporary design statement while a quiet, reversible DC motor delivers 5,765 CFM on high with six speeds. Wet Rated construction supports indoor and outdoor use. The included Bluetooth remote and Modern Forms app via Wi-Fi provide speed control, scheduling and smart-home integration.

Key Features

• Blade Configuration: 58 in sweep and 16° pitch.
• Motor: 120 × D-25 sensorless DC motor; six speeds and reversible summer/winter modes; maximum 162 RPM.
• Airflow: 5,765 CFM on high; 3,917 CFM weighted average.
• Airflow Efficiency: Specification sheet lists 191 CFM/W.
• Power: 33W total/high-speed use; 23W weighted-average energy use.
• Location Rating: UL/cUL Wet Location listed for indoor and outdoor use.
• Mounting: Slopes up to 30°; optional XF-SCK kit supports up to 45°, sold separately.
• Included Downrod: 4.5 in long, 0.75 in outside diameter.
• Lead Wire: 80 in; recommended maximum downrod length of 72 in with supplied wire.

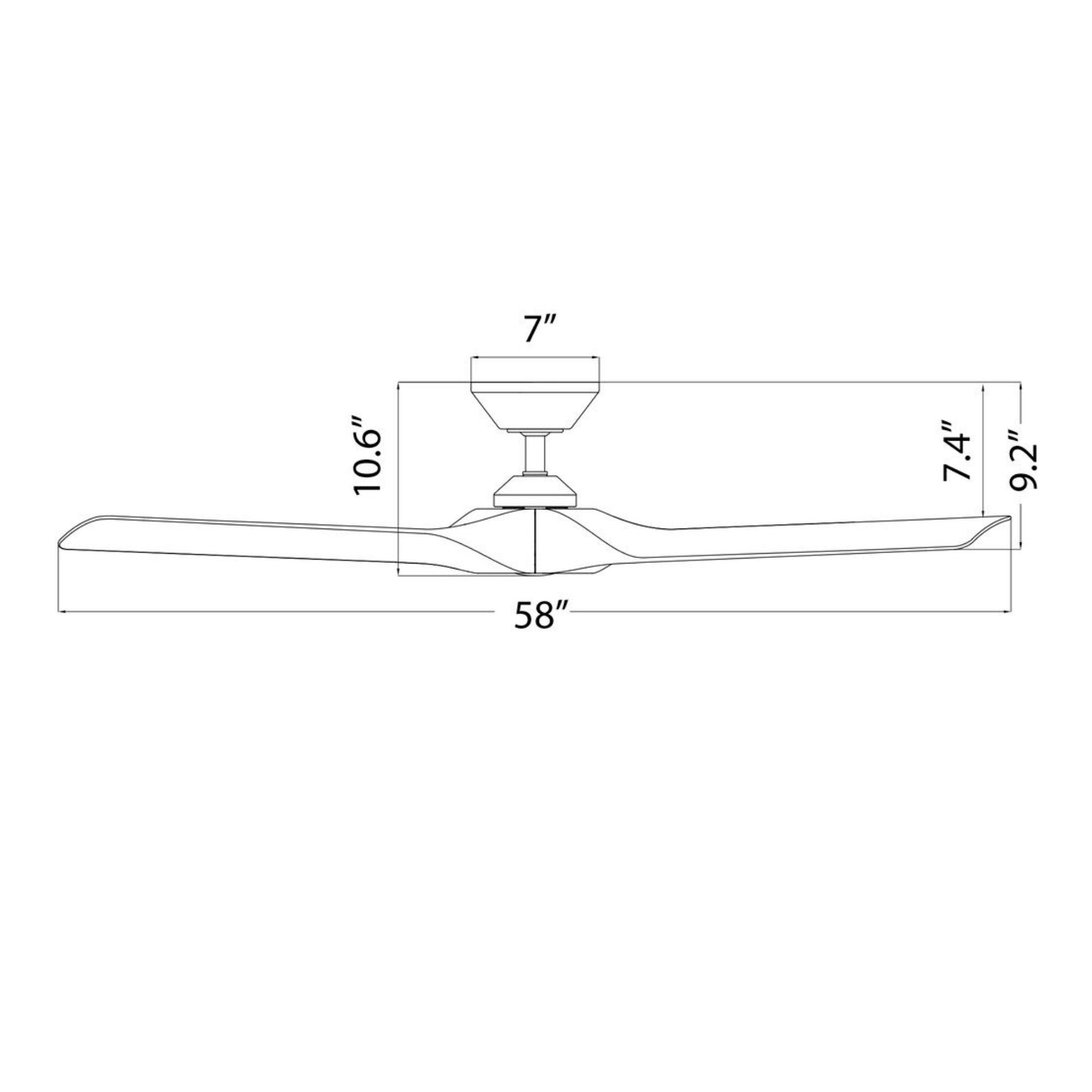

• Dimensions: 58 in diameter × 10.6 in overall height; 7 in canopy diameter.
• Hanging Weight: 19 lb.
• Standards: Energy Star; Title 24 JA8-2016 compliant; Title 20.

Smart & Control Features

The included F-RCBT-WT Bluetooth remote controls fan speed and summer/winter modes. Wi-Fi and Bluetooth connectivity supports the Modern Forms app for control and scheduling. Voice integrations include Amazon Alexa and Google Assistant; smart-home integrations include Samsung SmartThings, Control4 and JOSH. The compatible F-WCBT-WT Bluetooth wall control is sold separately; additional wall controls are available for multiple control locations.

Construction & Design

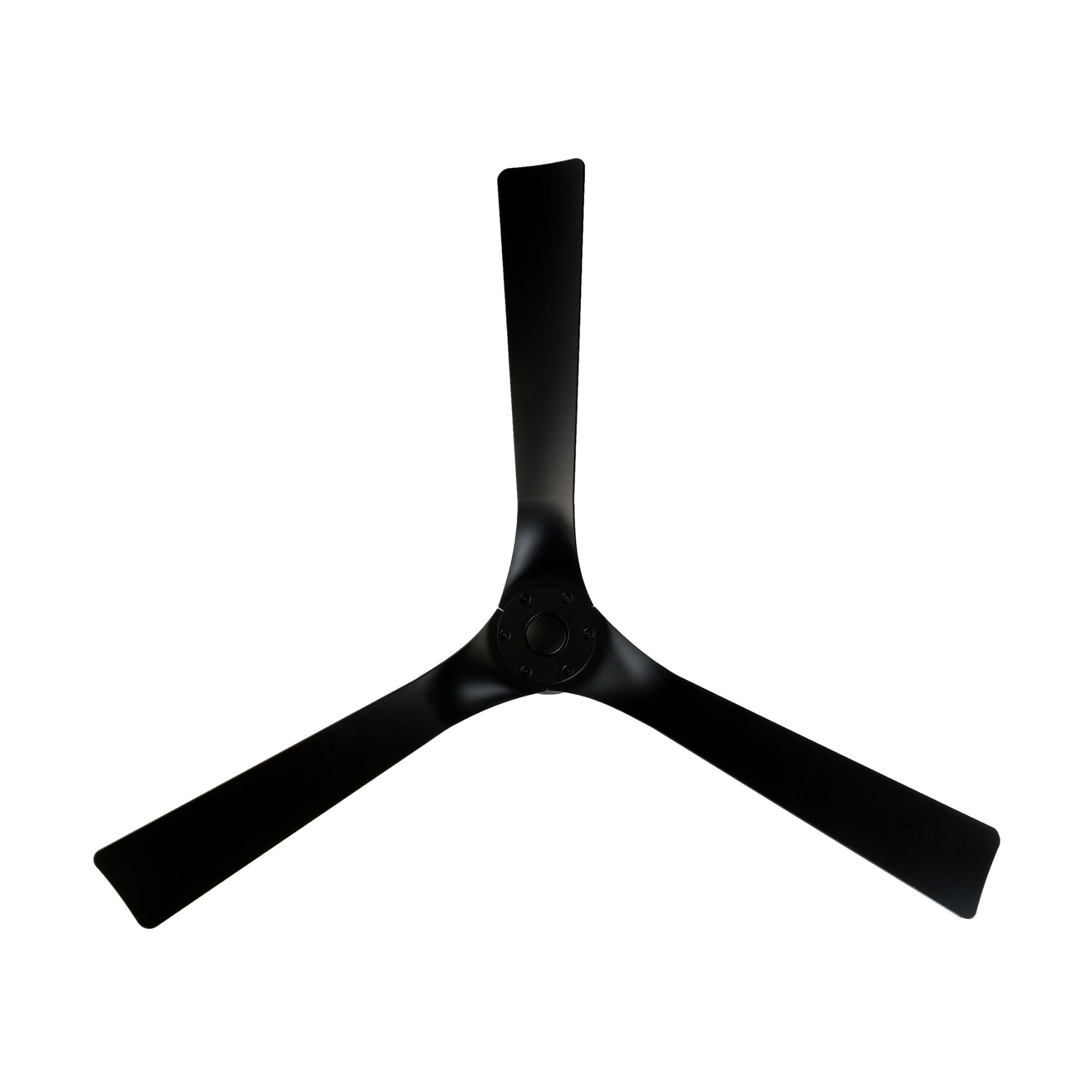

Aluminum, steel and ABS construction pairs a Matte Black housing with Matte Black blades. A minimalist body and uniquely formed blades create Torque's distinctive silhouette.

Fan Performance

Torque delivers 5,765 CFM on high and 3,917 CFM weighted-average airflow. The specification sheet lists 191 CFM/W efficiency. Six speeds and reversible summer/winter modes provide adjustable circulation, with a maximum speed of 162 RPM.

Electrical & Installation

The reversible DC motor uses 33W on high and 23W weighted average. Includes a 4.5 in downrod with 0.75 in outside diameter, 80 in lead wire and a 7 in canopy. Standard mounting supports slopes up to 30°. The compatible XF-SCK sloped-ceiling kit, sold separately, supports up to 45°. Recommended maximum downrod length is 72 in with supplied wire. Compatible accessory downrods have 0.75 in outside diameter and threaded motor ends.

Suggested Downrod by Ceiling Height

Ships with a 4.5 in downrod. Longer compatible downrods are available separately.

• 9 ft ceiling: 12 in downrod
• 10 ft ceiling: 18 in downrod
• 11 ft ceiling: 24 in downrod
• 12 ft ceiling: 36 in downrod
• 13 ft ceiling: 48 in downrod
• 14 ft ceiling: 60 in downrod
• 15 ft ceiling: 72 in downrod

What's Included

• Torque fan with Matte Black housing and Matte Black blades
• F-RCBT-WT Bluetooth remote with wall cradle and batteries
• 4.5 in downrod
• Mounting Hardware
