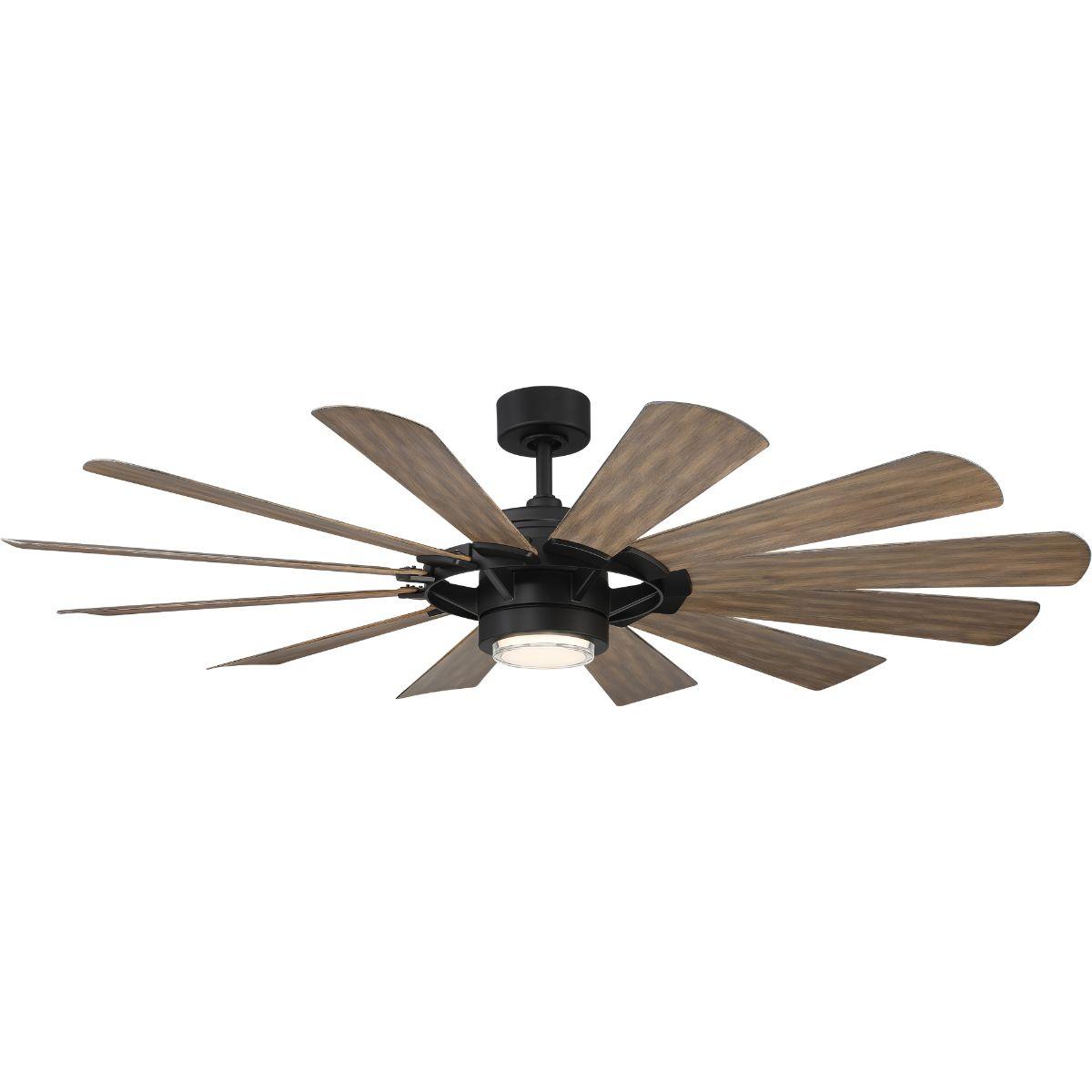

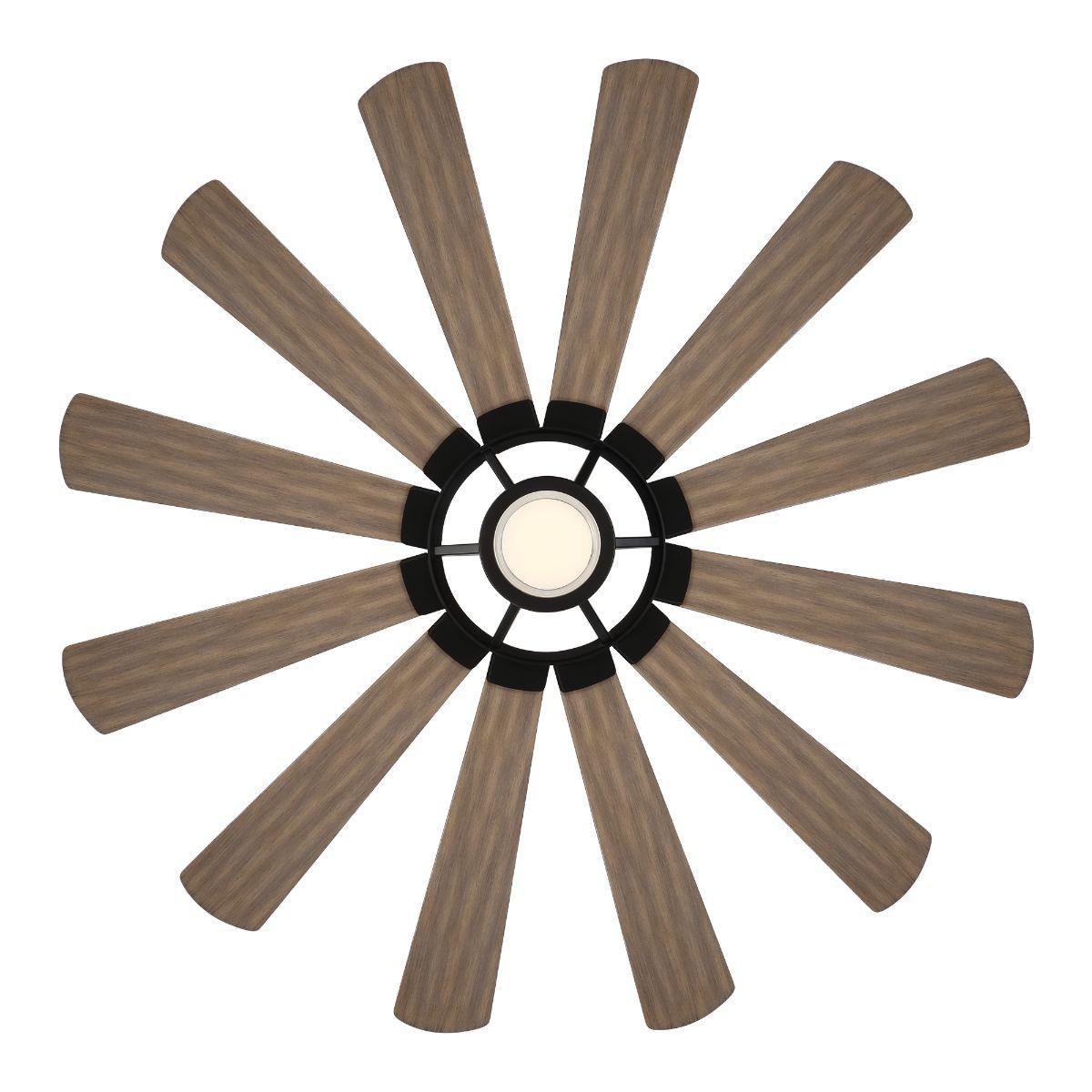

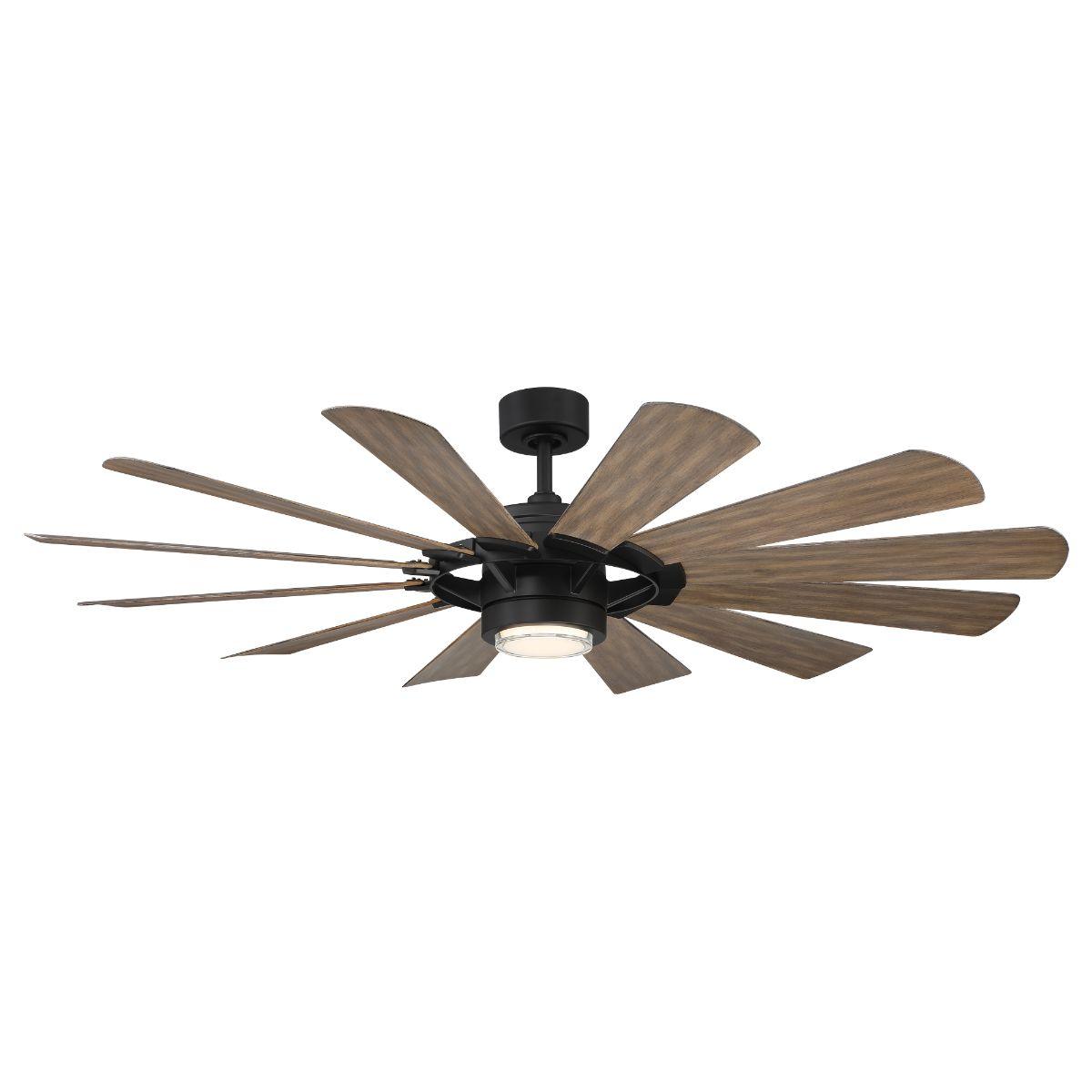

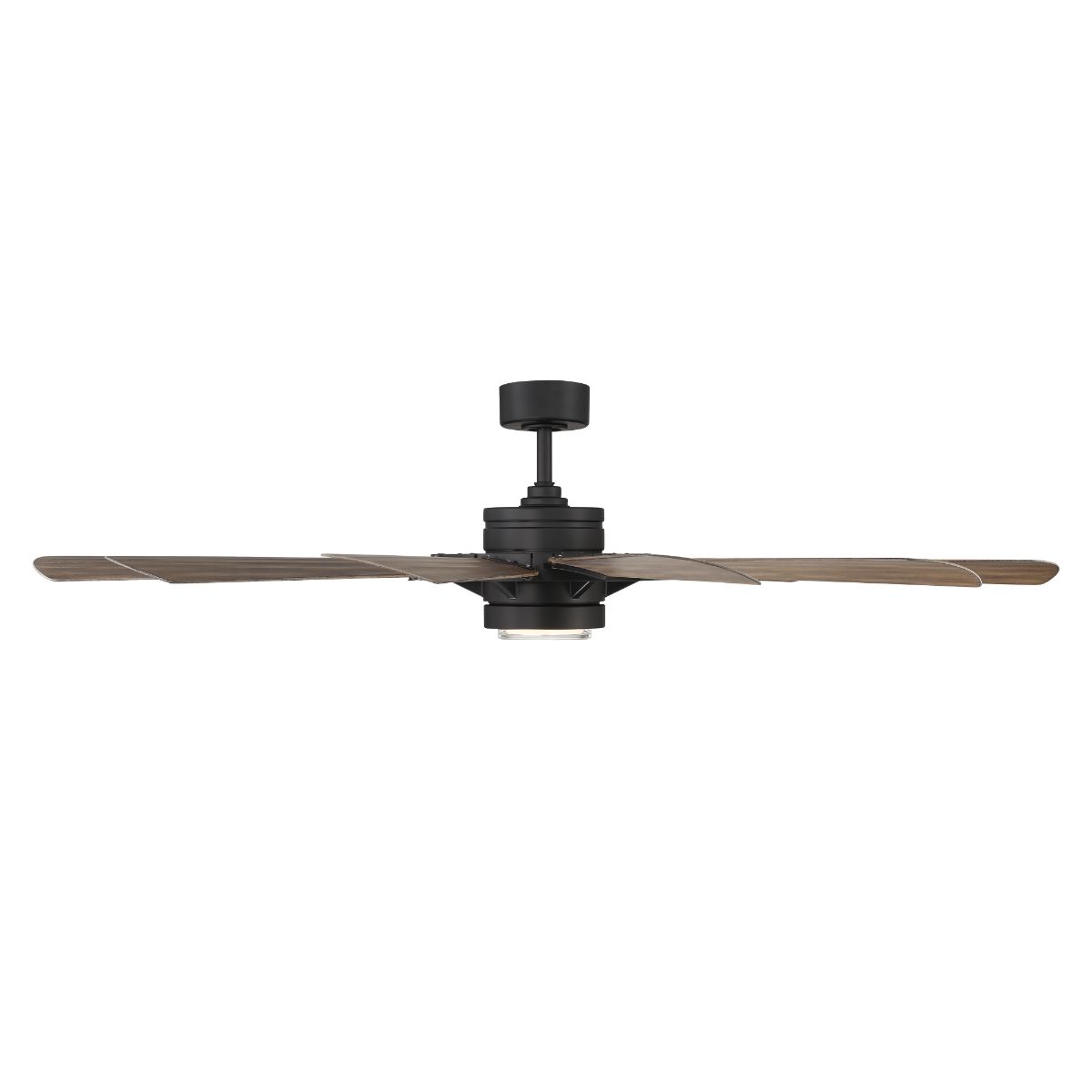

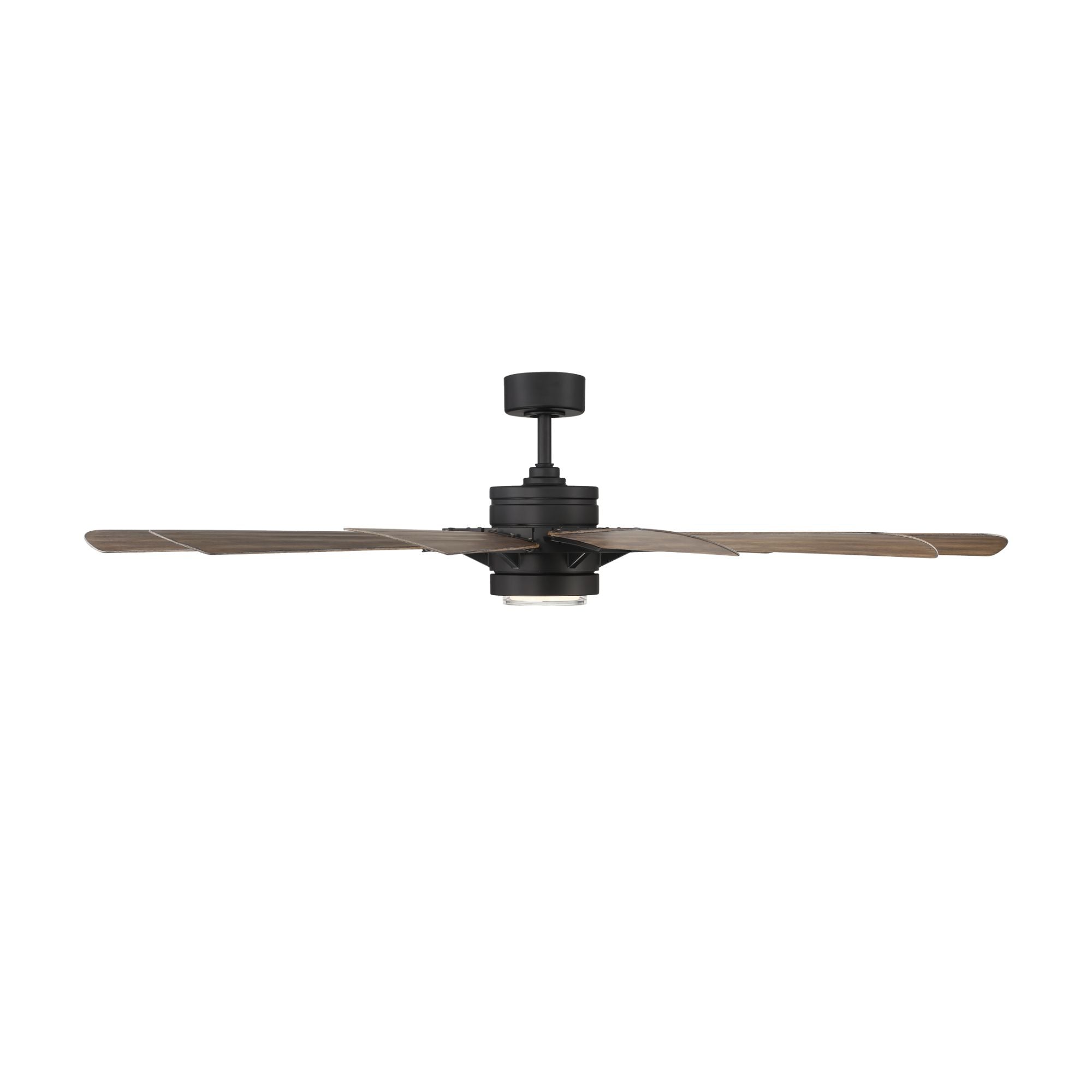

Modern Forms Wyndmill 65 in Outdoor Smart LED Ceiling Fan DC Matte Black Barnwood

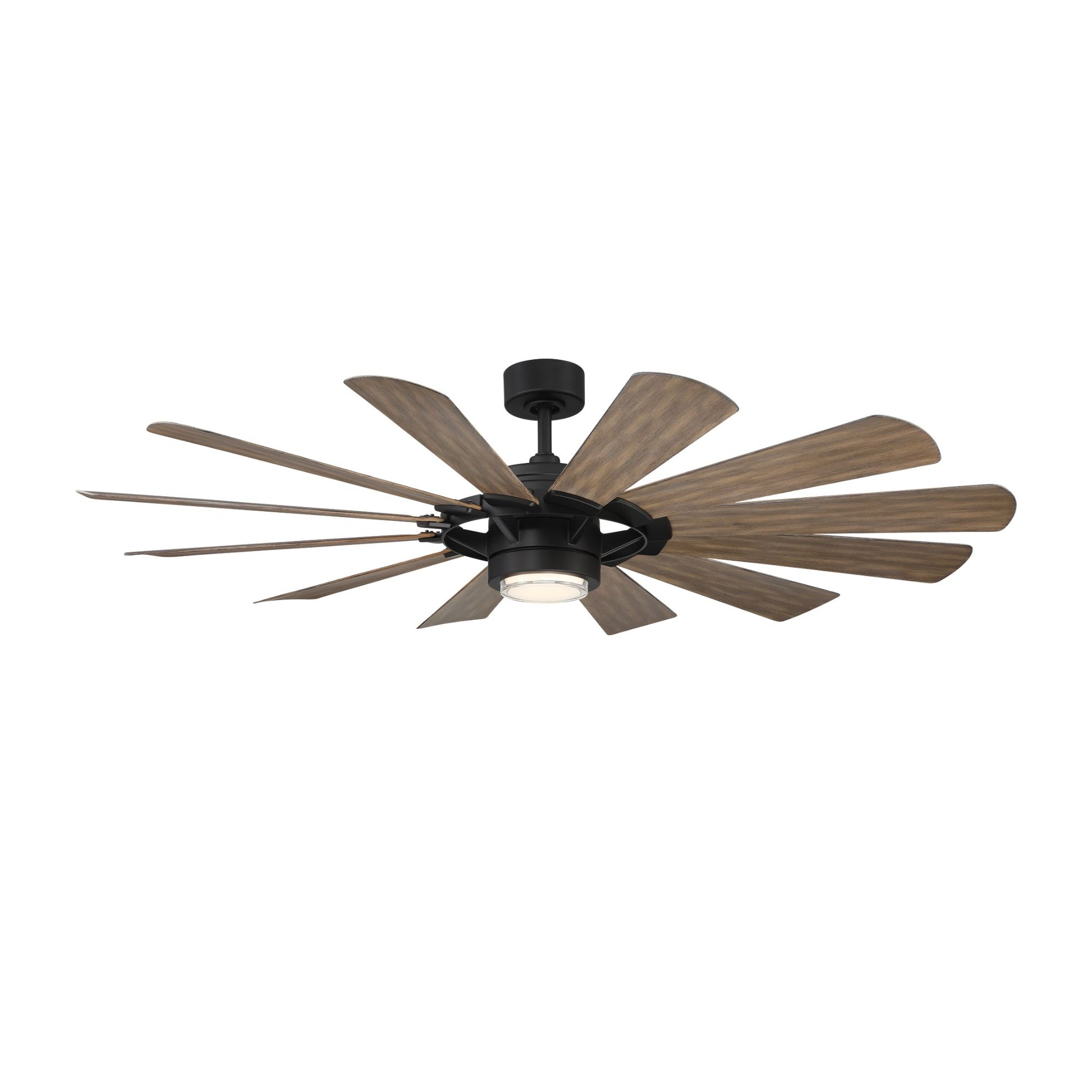

The Modern Forms Wyndmill FR-W2201-65L-MB/BW combines a modern industrial windmill silhouette with a Matte Black housing and Barnwood-finished blades. Its broad 65 in span and quiet, reversible DC motor deliver 9,505 CFM on high with six speeds. Wet Location-rated construction supports indoor and outdoor use, while an integrated dimmable 3000K LED adds illumination. The included Bluetooth remote and Modern Forms app via Wi-Fi provide convenient control and scheduling.

Key Features

• Blade Configuration: 65 in sweep and 14° pitch.
• Motor: 168 × 30 sensorless DC motor; six speeds and reversible summer/winter modes; maximum 117 RPM.
• Airflow: 9,505 CFM on high; 6,625 CFM weighted average.
• Airflow Efficiency: Specification sheet lists 218 CFM/W.
• Power: 66W listed total power; 46W high-speed and 30W weighted-average energy use.
• Location Rating: UL/cUL Wet Location listed.
• Mounting: Slopes up to 30°; optional XF-SCK kit supports up to 45°, sold separately.
• Included Downrod: 6 in long, 0.75 in wide.
• Lead Wire: 80 in; recommended maximum downrod length of 72 in with supplied wire.

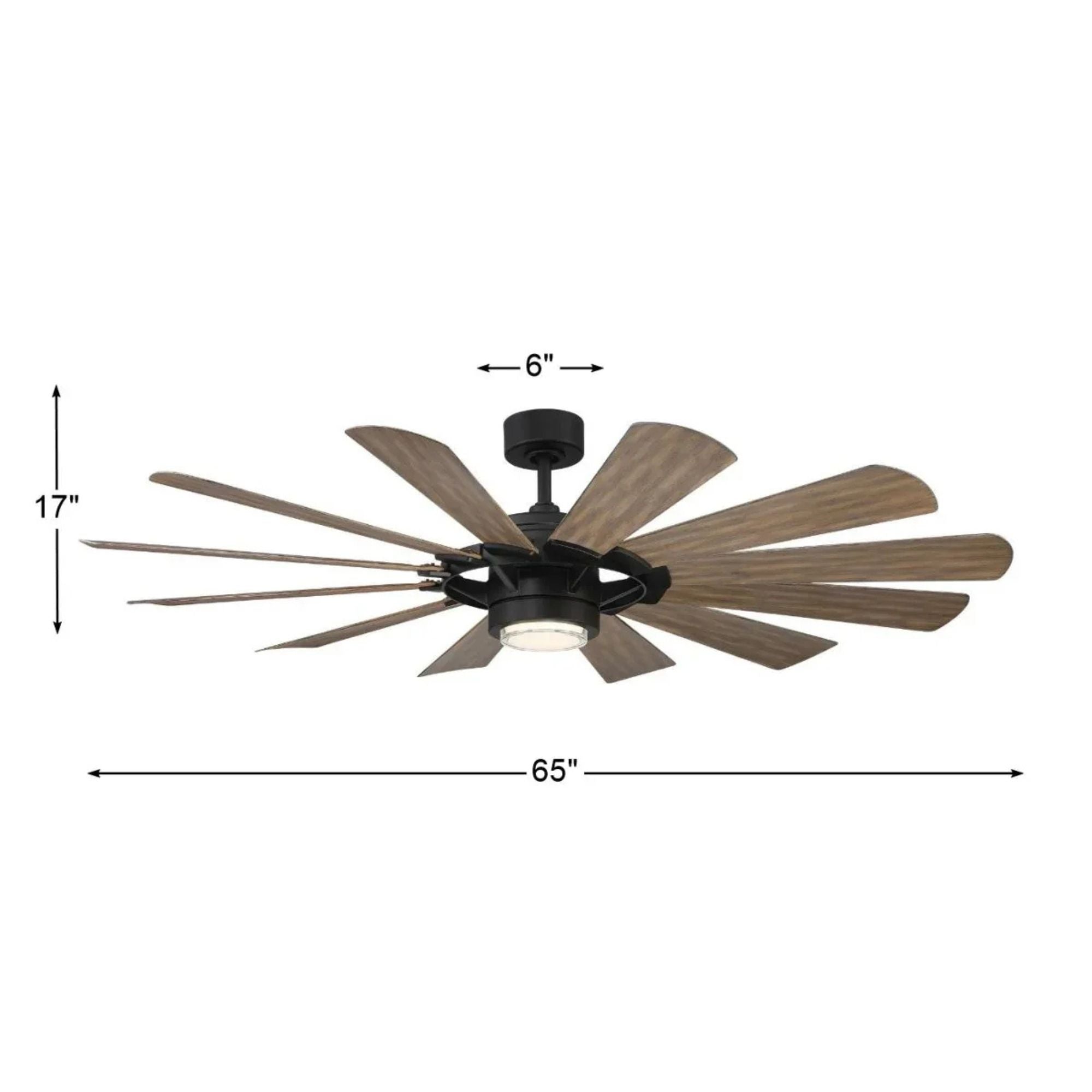

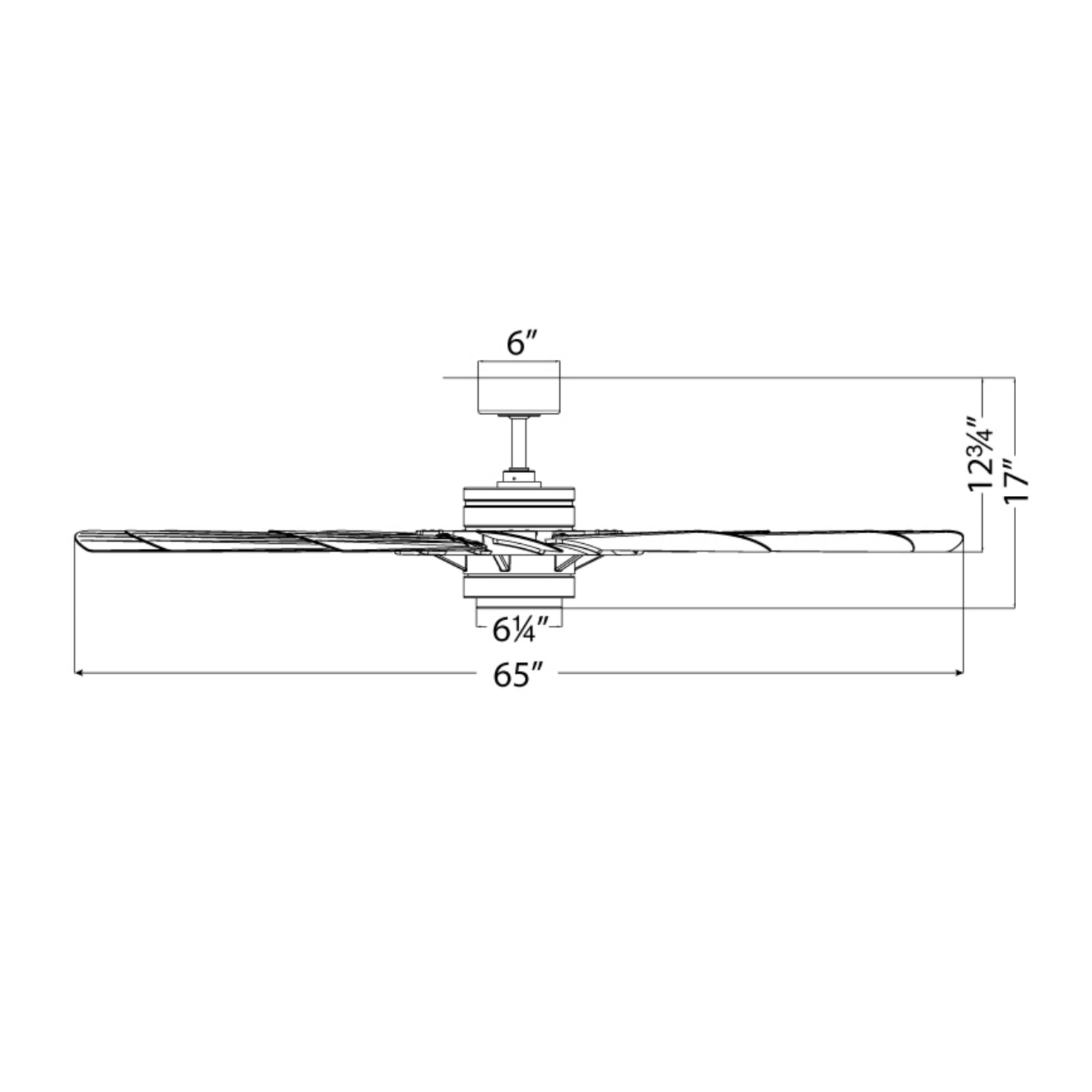

• Dimensions: 65 in diameter × 17 in overall height; 12.75 in blade drop; 6 in canopy diameter.
• Hanging Weight: 38 lb; requires a cUL/UL outlet box rated for more than 35 lb.
• LED: 19.5W; 3000K; 90 CRI; 1,600 source lumens and 702 delivered lumens; integrated dimming; 50,000-hour rated life.

Smart & Control Features

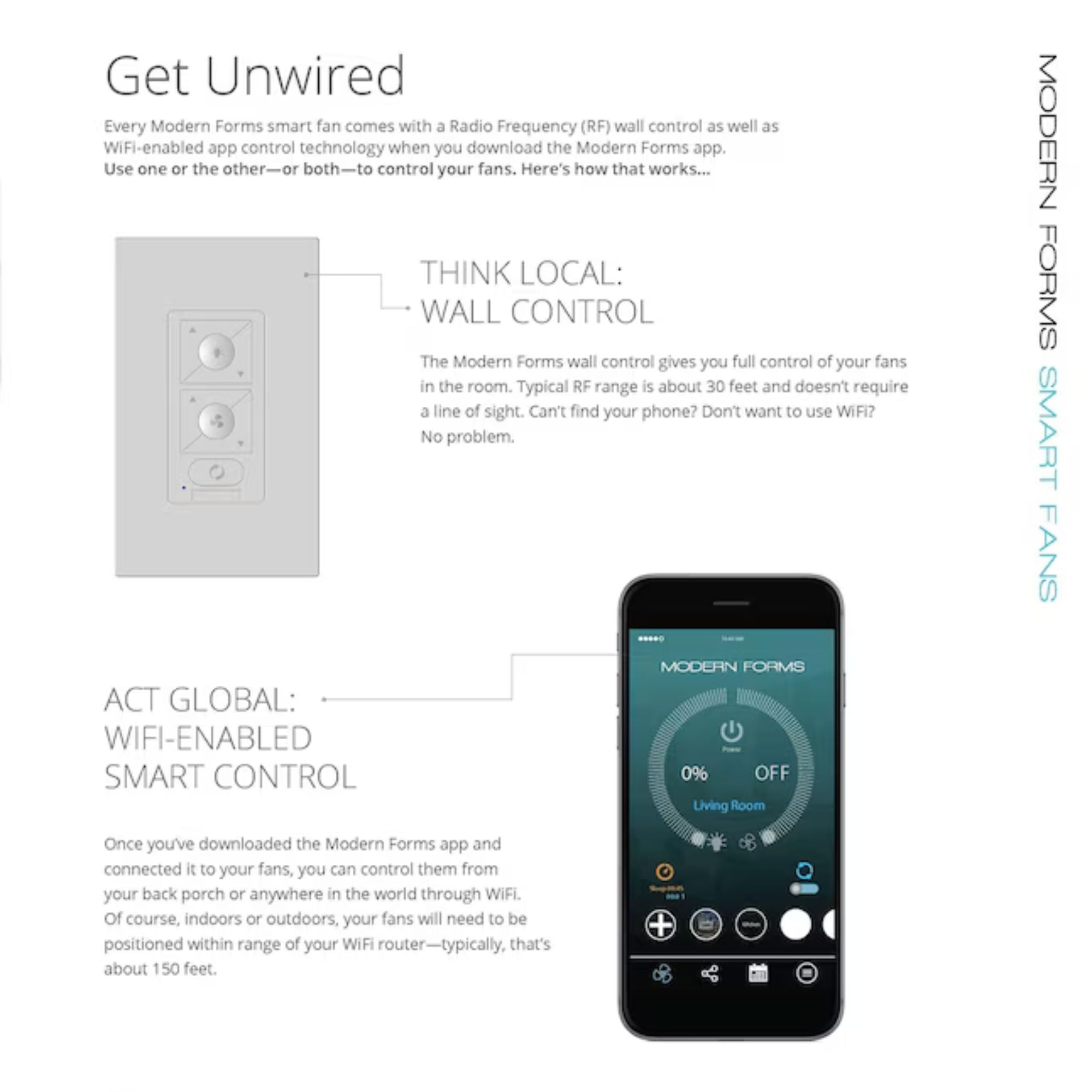

The included F-RCBT-WT Bluetooth remote controls fan speed, light brightness and summer/winter modes. Wi-Fi and Bluetooth connectivity supports the Modern Forms app for control and scheduling. Voice integrations include Amazon Alexa and Google Assistant; smart-home integrations include Samsung SmartThings, Control4 and JOSH. The compatible F-WCBT-WT Bluetooth wall control is sold separately; additional wall controls are available for multiple control locations.

Construction & Design

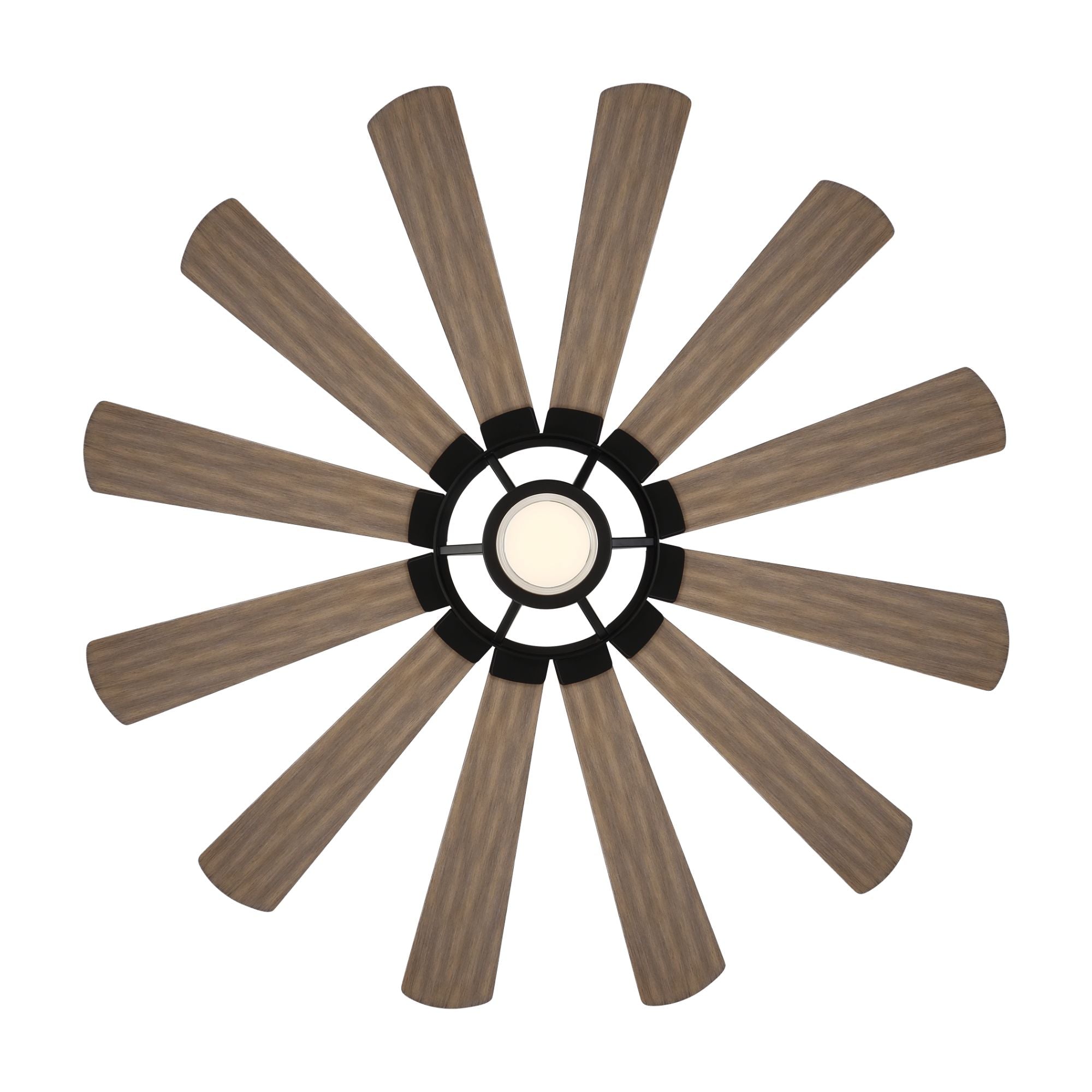

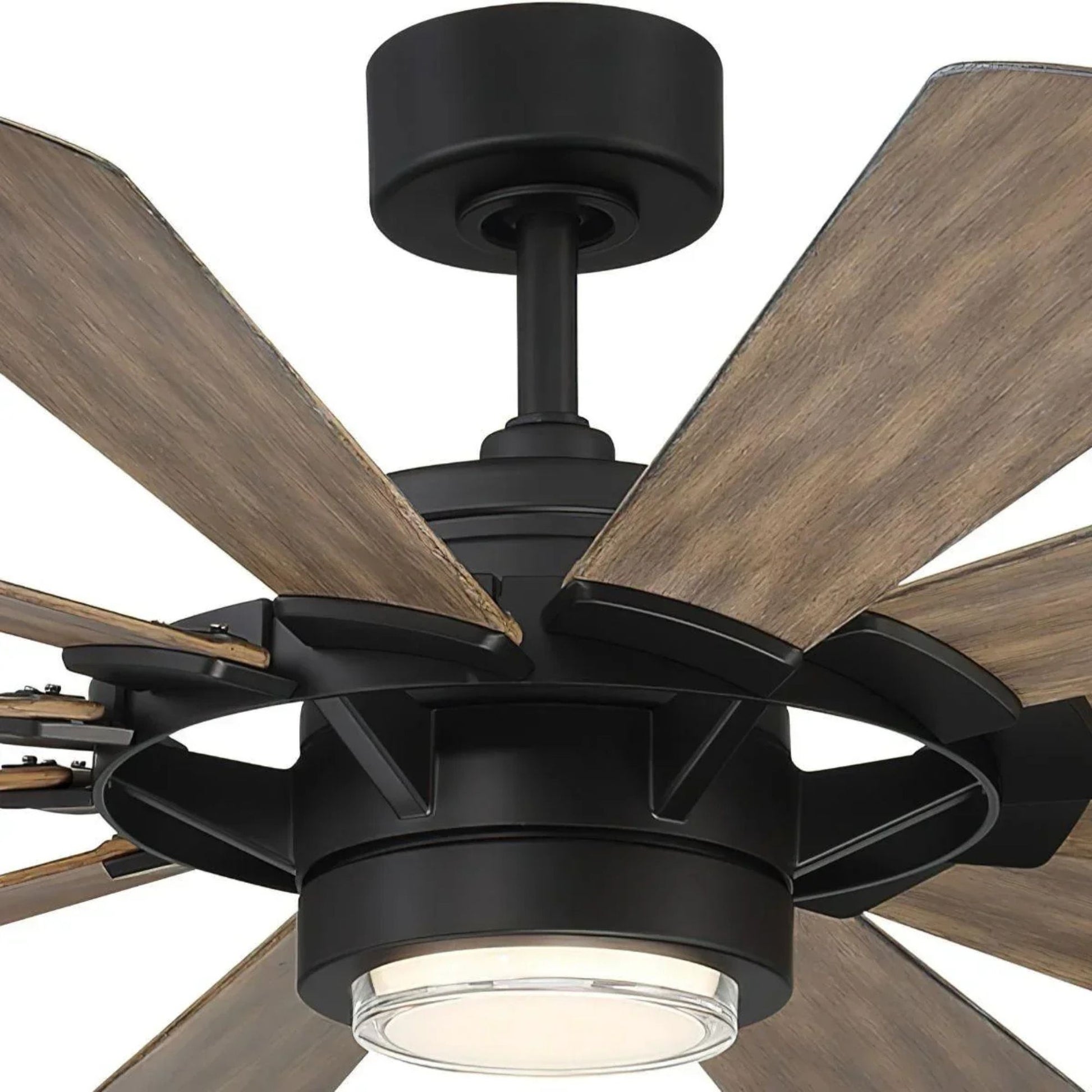

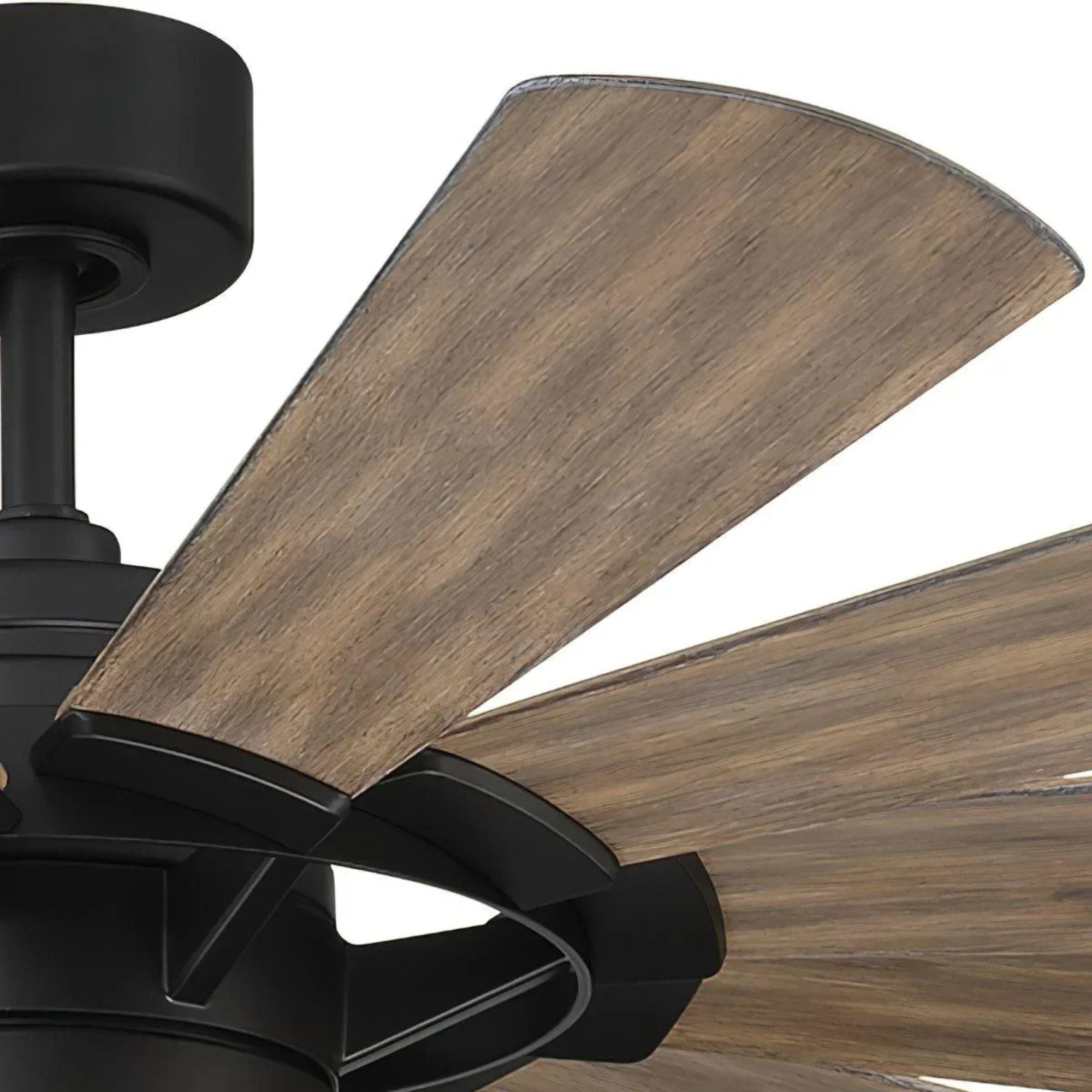

Aluminum and ABS construction pairs a Matte Black housing with Barnwood-finished blades. The windmill-inspired profile brings modern industrial character to indoor and outdoor spaces. The fan is Energy Star rated, Title 24 JA8-2016 compliant and Title 20 listed.

Light Output & Performance

The integrated 19.5W LED produces 1,600 source lumens and 702 delivered lumens at 3000K, with 90 CRI and a 50,000-hour rated life. Integrated dimming and brightness control through the included remote or optional wall control let you adjust illumination; the Modern Forms app provides smart control. The fan delivers 9,505 CFM on high and 6,625 CFM weighted-average airflow.

Electrical & Installation

Operates at 120V with a reversible DC motor. The sheet lists 66W total power, 46W high-speed and 30W weighted-average energy use, with a 19.5W LED. Includes a 6 in downrod, 80 in lead wire and 6 in canopy. Standard mounting supports slopes up to 30°; the XF-SCK sloped-ceiling kit, sold separately, supports up to 45°. Recommended maximum downrod length is 72 in with supplied wire. Compatible accessory downrods are 0.75 in wide with threaded motor ends. The 38 lb fan requires a cUL/UL outlet box rated for more than 35 lb.

Suggested Downrod by Ceiling Height

Ships with a 6 in downrod. Longer compatible downrods are available separately.

• 9 ft ceiling: 12 in downrod
• 10 ft ceiling: 18 in downrod
• 11 ft ceiling: 24 in downrod
• 12 ft ceiling: 36 in downrod
• 13 ft ceiling: 48 in downrod
• 14 ft ceiling: 60 in downrod
• 15 ft ceiling: 72 in downrod

What's Included

• Wyndmill fan with Matte Black housing and Barnwood-finished blades
• Integrated 3000K LED
• F-RCBT-WT Bluetooth remote with wall cradle and batteries
• 6 in downrod
• Mounting Hardware
