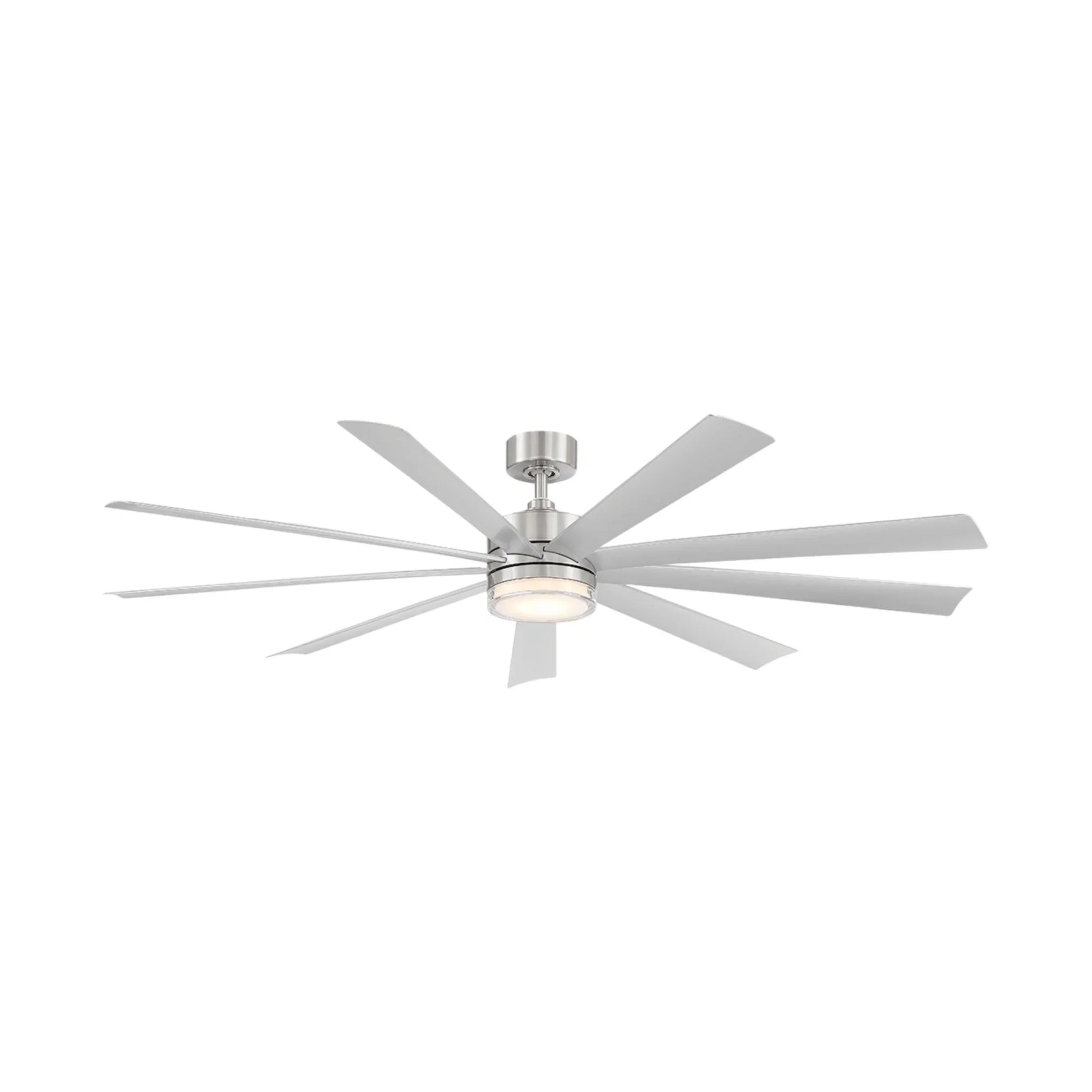

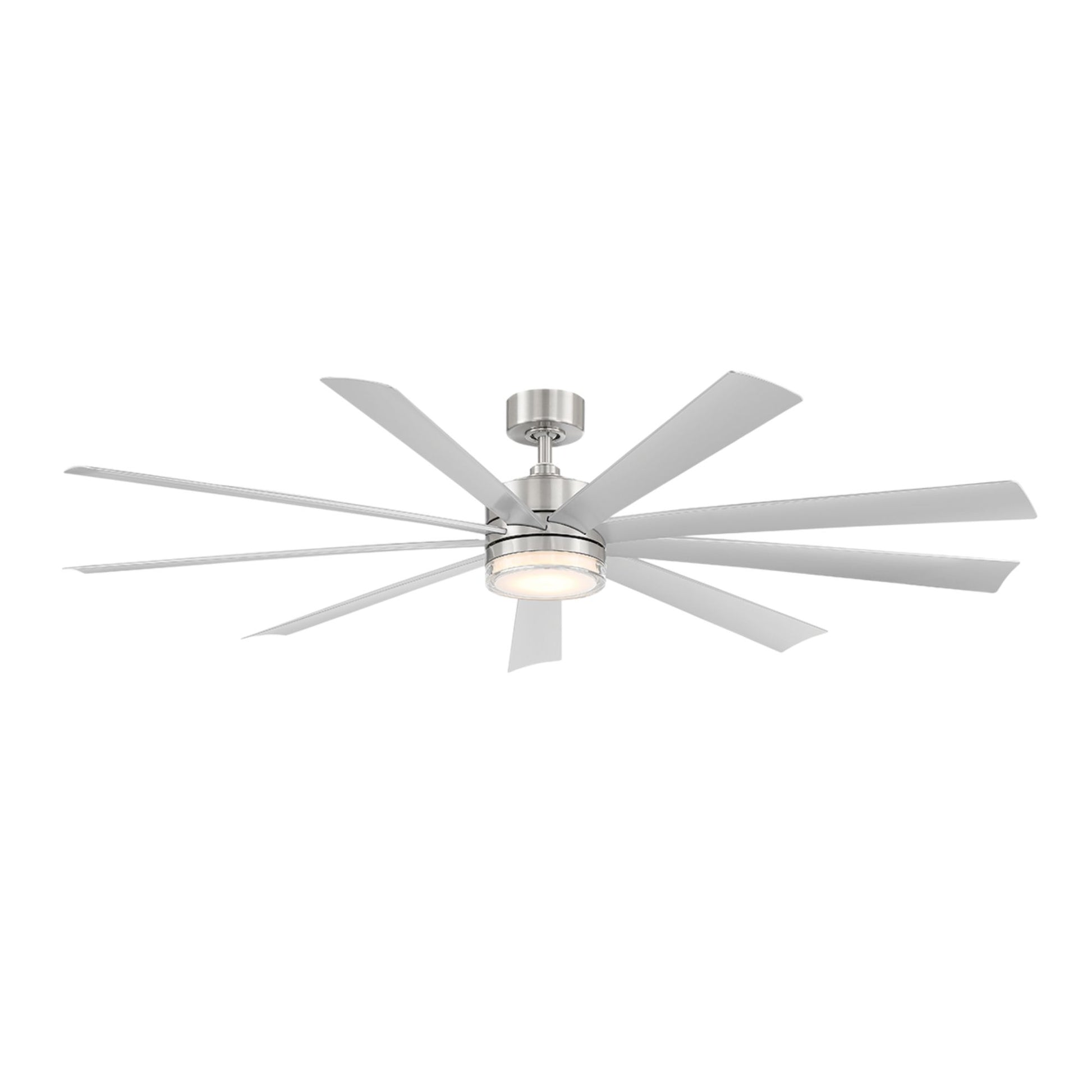

Modern Forms Wynd XL 72 in Outdoor Smart LED Ceiling Fan DC Stainless Steel

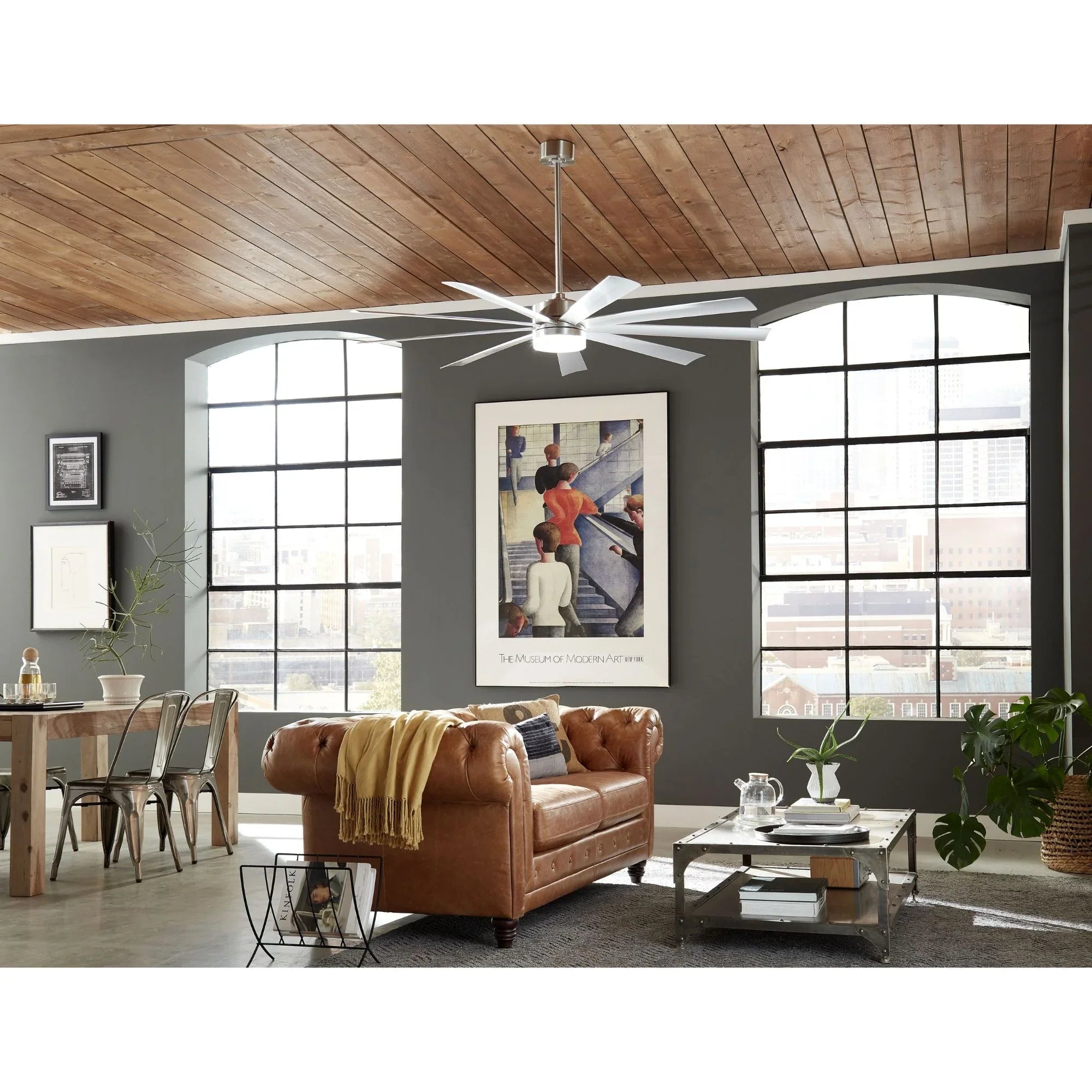

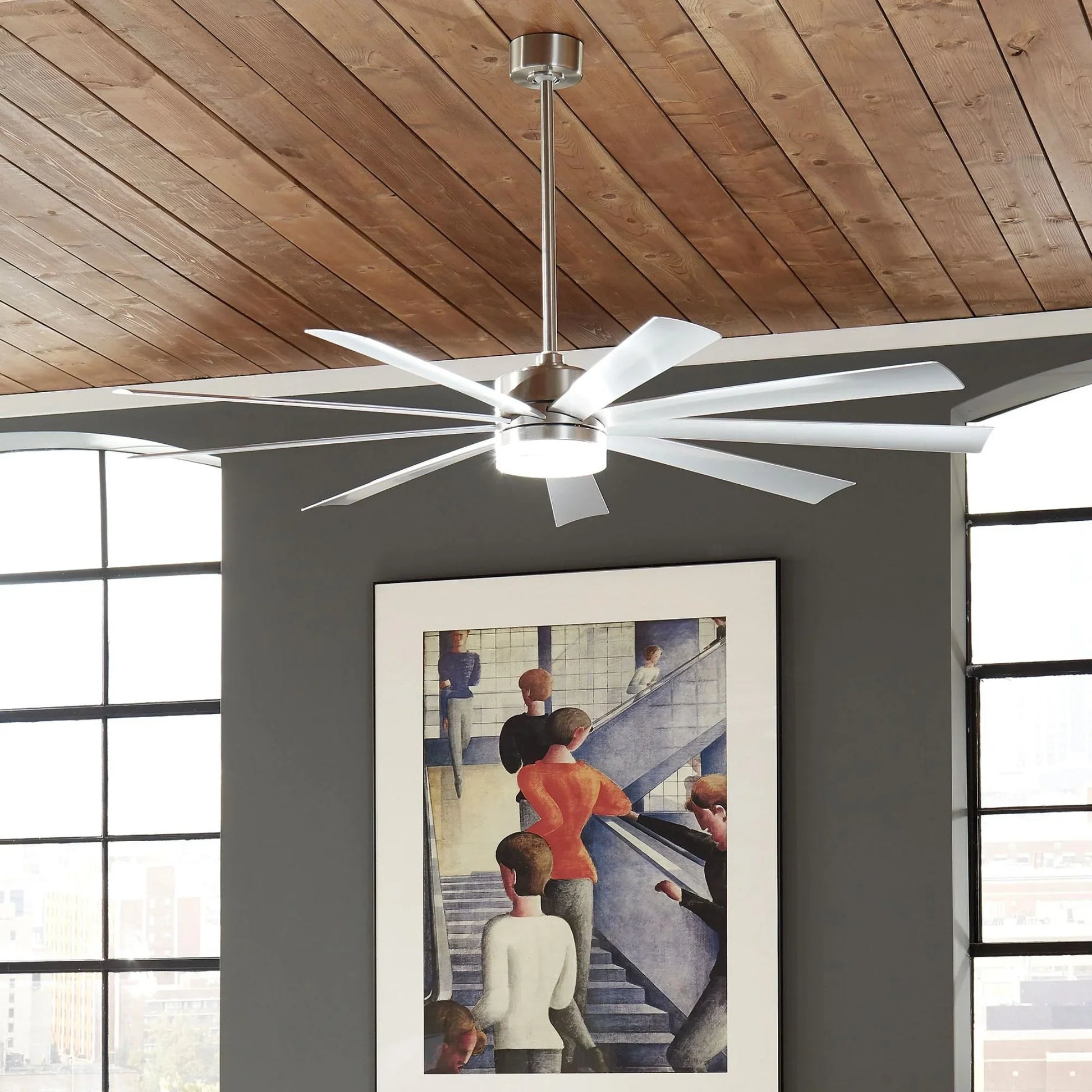

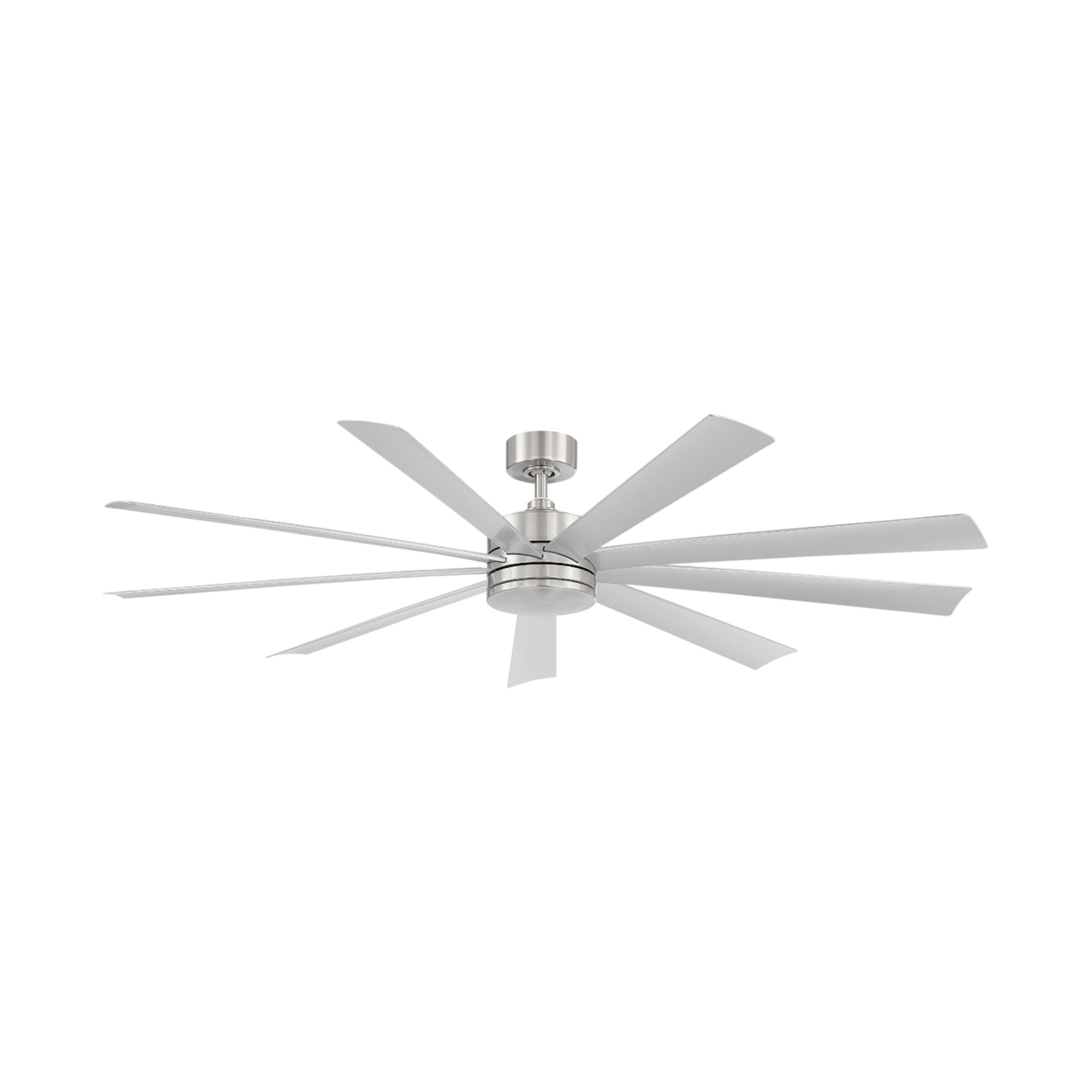

The Modern Forms Wynd XL FR-W2101-72L-SS pairs transitional styling with a Stainless Steel housing and matching blades. Its expansive 72 in sweep suits living rooms and large bedrooms, while Wet Location-rated construction supports indoor and outdoor use. A quiet sensorless DC motor delivers 11,926 CFM on high with six speeds and summer/winter modes. Integrated dimmable LED lighting, an included Bluetooth remote and the Modern Forms app bring convenient control to everyday comfort.

Key Features

• Blade Configuration: Six blades; 72 in sweep and 13° pitch.
• Motor: 168 × 30 sensorless DC motor; six speeds, summer/winter modes and maximum 110 RPM.
• Airflow: 11,926 CFM high; 8,821 CFM weighted average.
• Efficiency: Listed at 272 CFM/W high and 266 CFM/W weighted average.
• Power: Listed total power 80.5W; fan energy use 35W high and 27W weighted average.
• Rating: UL/cUL Wet Location listed for indoor and outdoor use.
• Mounting: Slopes up to 30°; optional XF-SCK kit supports up to 45°, sold separately.
• Downrod & Wire: 4.5 in × 0.75 in downrod included; 80 in lead wire; recommended maximum downrod length 72 in.

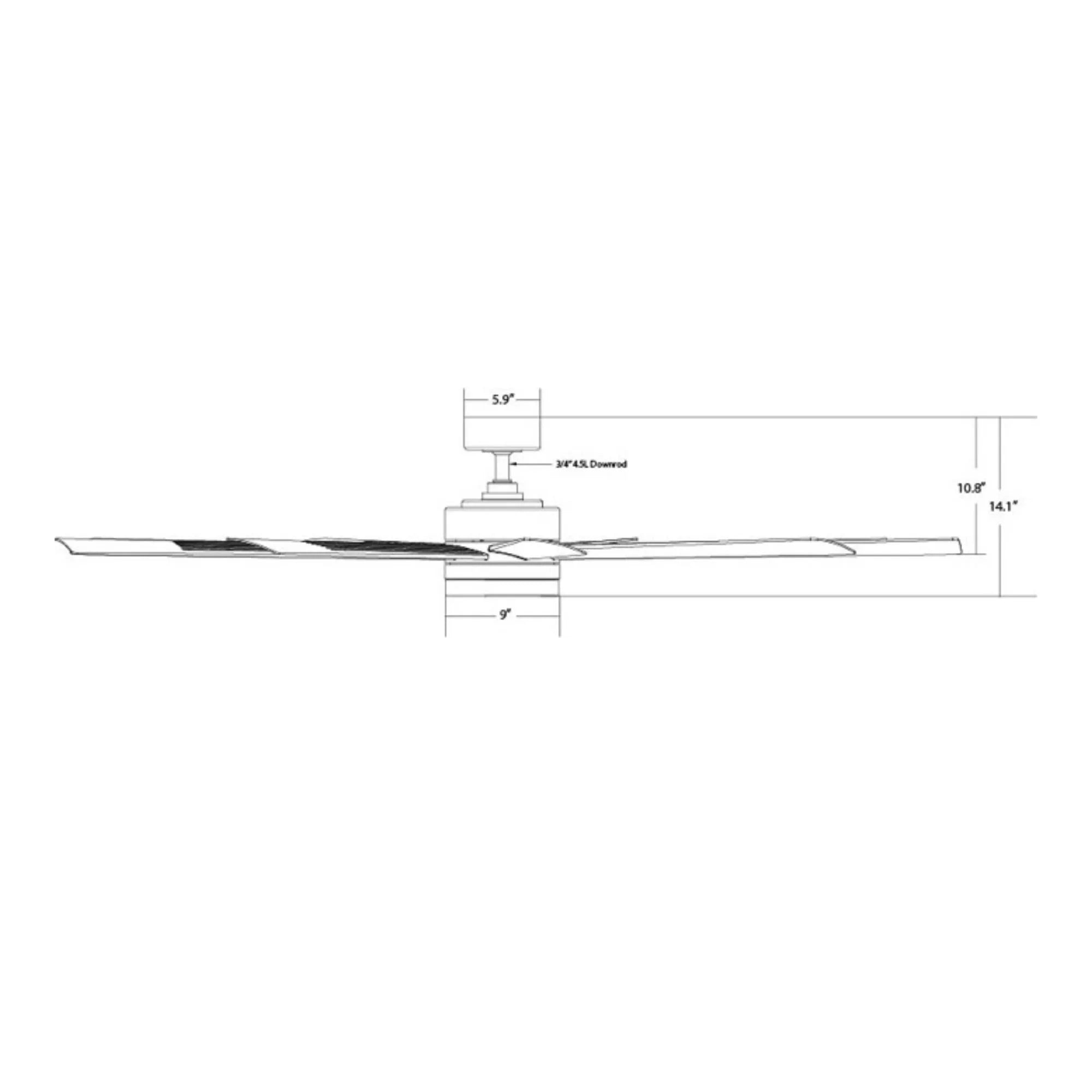

• Dimensions: 72 in sweep; 14.1 in overall height; 10.8 in blade drop; 5.9 in canopy diameter.
• Hanging Weight: 33.5 lb.
• LED: 21W integrated dimmable light; 90 CRI; 1,124 delivered lumens; 50,000-hour rated life.

Smart & Control Features

The included F-RCBT-WT Bluetooth remote controls fan speed, light brightness and summer/winter modes and includes a wall cradle and batteries. The Modern Forms app supports smart fan and light control. Wi-Fi and Bluetooth ranges are listed up to 150 ft, depending on surroundings. Voice integrations include Amazon Alexa and Google Assistant; smart-home integrations include Samsung SmartThings, Control4 and JOSH. The optional F-WCBT-WT Bluetooth wall control, sold separately, controls speed, brightness and motor modes and supports 3-way/4-way and multiple-location control.

Construction & Design

Aluminum and ABS construction combines a Stainless Steel housing with matching Stainless Steel-finished blades. The Stainless Steel version features 316 marine-grade stainless steel for harsh outdoor climates. The transitional profile works with contemporary and traditional spaces. The fan is Energy Star rated, Title 24 JA8-2016 compliant and Title 20 listed.

Light Output & Performance

The integrated 21W LED provides 3000K light, 90 CRI and 1,124 delivered lumens, with a 50,000-hour rated life. Integrated dimming lets you adjust brightness through the included Bluetooth remote, Modern Forms app or optional wall control. Fan performance reaches 11,926 CFM on high and 8,821 CFM weighted average. The family specification lists source output of 1,991–2,159 lumens across its CCT options.

Electrical & Installation

Operates at 120V with a reversible DC motor. Listed total power is 80.5W, with 35W high-speed and 27W weighted-average fan energy use. Includes a 4.5 in downrod, 80 in lead wire and 5.9 in canopy. Standard mounting supports slopes up to 30°; the XF-SCK sloped-ceiling kit, sold separately, supports up to 45°. Compatible accessory downrods are 0.75 in wide with threaded motor ends. Recommended maximum downrod length is 72 in with the supplied wire.

Suggested Downrod by Ceiling Height

A 4.5 in downrod is included. Longer compatible downrods are sold separately.

• 9 ft ceiling: 12 in downrod
• 10 ft ceiling: 18 in downrod
• 11 ft ceiling: 24 in downrod
• 12 ft ceiling: 36 in downrod
• 13 ft ceiling: 48 in downrod
• 14 ft ceiling: 60 in downrod
• 15 ft ceiling: 72 in downrod

What's Included

• Wynd XL fan with Stainless Steel housing and matching blades
• Integrated LED light
• F-RCBT-WT Bluetooth remote, wall cradle and batteries
• 4.5 in downrod
• Mounting Hardware
