Modern Forms Mykonos 5 60 in Outdoor Smart LED Ceiling Fan DC Bronze Dark Walnut

The Modern Forms Mykonos 5 FR-W2008-60L-BZ/DW pairs a Bronze aluminum housing with five Dark Walnut-finished ABS blades for a transitional look. Its 60 in span and reversible DC motor deliver 6,970 CFM on high with six speeds. Wet Rated construction supports indoor and outdoor use, while the included Bluetooth remote and Modern Forms app provide connected control. The included 13W dimmable 3000K LED light kit offers warm illumination with 90 CRI.

Key Features

• Blade Configuration: Five ABS blades; 60 in sweep and 14° pitch.
• Motor: 153 × 13 sensorless DC motor; six speeds, summer/winter modes; maximum 135 RPM.
• Airflow: 6,970 CFM on high; 4,593 CFM weighted average.
• Airflow Efficiency: 174 CFM/W on high; 172 CFM/W weighted average.
• Total Power: 53W; 40W high-speed motor use plus 13W LED. Weighted-average motor energy use is 27W.
• LED Lighting: Included 13W light kit; 3000K, 90 CRI; 1,110 source lumens and 381 delivered lumens.
• Dimming & Life: Integrated dimming; 50,000-hour rated LED life.
• Location Rating: UL/cUL Wet Location listed for indoor and outdoor use.
• Mounting: Slopes up to 30°; optional XF-SCK kit supports up to 45°, sold separately.
• Downrod & Wire: Included 6 in downrod with 1 in outside diameter; 80 in lead wire.

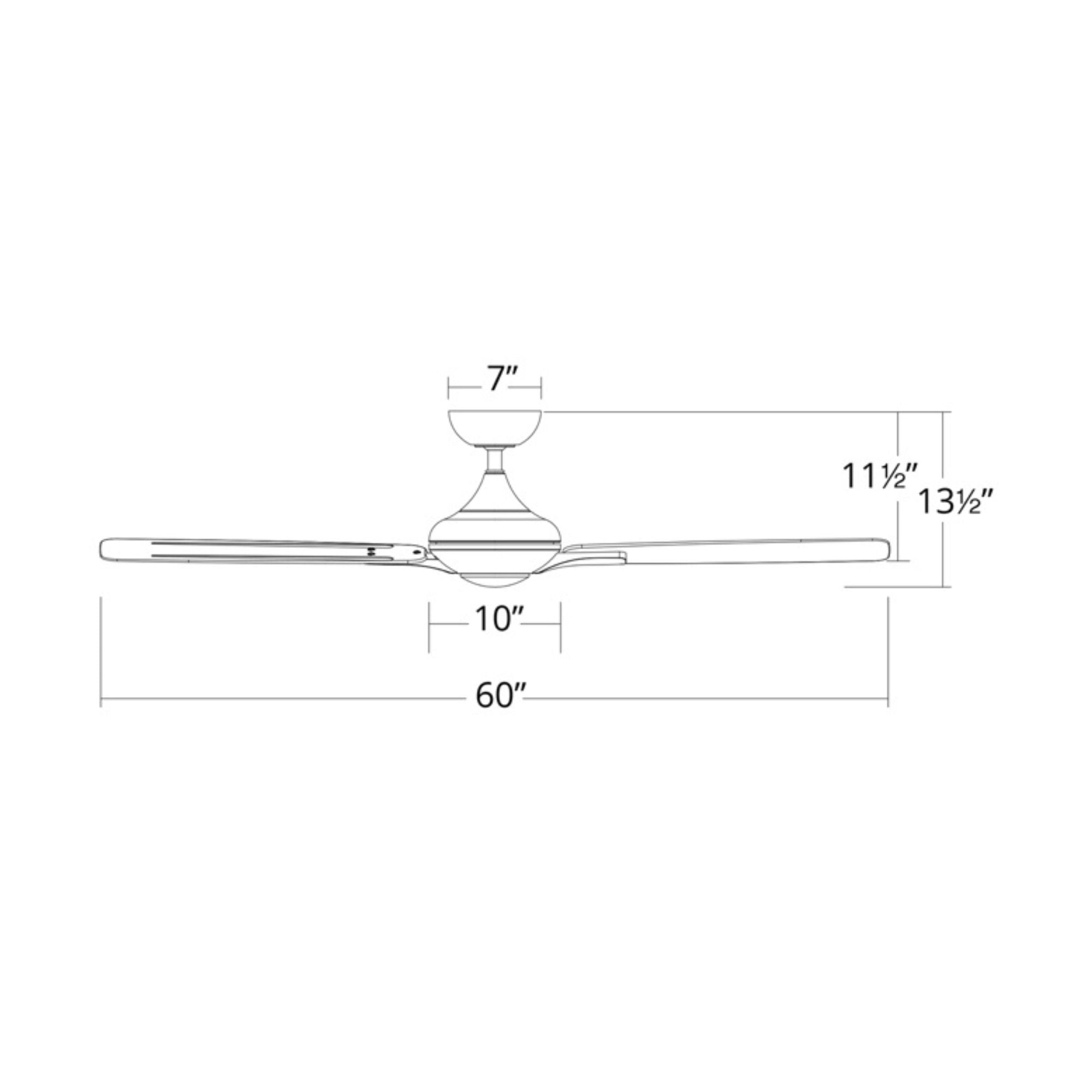

• Dimensions: 60 in diameter × 13.5 in overall height; 11.5 in blade drop; 7 in canopy diameter.
• Hanging Weight: 23 lb.
• Controls: Included F-RCBT-WT Bluetooth remote; optional F-WCBT-WT wall control sold separately.

Smart & Control Features

The included F-RCBT-WT Bluetooth remote controls six speeds, light brightness and summer/winter modes. Integrated Wi-Fi and Bluetooth connectivity supports the Modern Forms app, including scheduling. Voice integrations include Amazon Alexa and Google Assistant; smart-home integrations include Samsung SmartThings, Control4 and JOSH. The compatible F-WCBT-WT Bluetooth wall control is sold separately and supports multiple control locations.

Construction & Design

An aluminum housing in Bronze contrasts with five Dark Walnut-finished ABS blades. Broad wood-look blades and a sculpted housing create a streamlined transitional profile.

Light Output & Performance

The included 13W LED light kit provides 1,110 source lumens and 381 delivered lumens at 3000K, with 90 CRI and a 50,000-hour rated life. Integrated dimming supports brightness control through the included Bluetooth remote and Modern Forms app. The 2700K and 3500K versions are separate ordering options, not selectable settings on this SKU. Fan airflow reaches 6,970 CFM on high with 174 CFM/W efficiency.

Electrical & Installation

The reversible DC motor uses 40W on high; total power with the 13W LED is 53W. Includes a 6 in downrod with 1 in outside diameter and 80 in wire. Standard mounting supports slopes up to 30°. The compatible XF-SCK sloped-ceiling kit, sold separately, supports ceilings up to 45°. Recommended maximum downrod length is 72 in with the supplied wire.

Suggested Downrod by Ceiling Height

Ships with a 6 in downrod. Longer compatible downrods are available separately.

• 9 ft ceiling: 12 in downrod
• 10 ft ceiling: 18 in downrod
• 11 ft ceiling: 24 in downrod
• 12 ft ceiling: 36 in downrod
• 13 ft ceiling: 48 in downrod
• 14 ft ceiling: 60 in downrod
• 15 ft ceiling: 72 in downrod

What's Included

• Mykonos 5 fan with Bronze housing and five Dark Walnut-finished blades
• LED light kit
• F-RCBT-WT Bluetooth remote with wall cradle and batteries
• 6 in downrod
• Mounting Hardware
