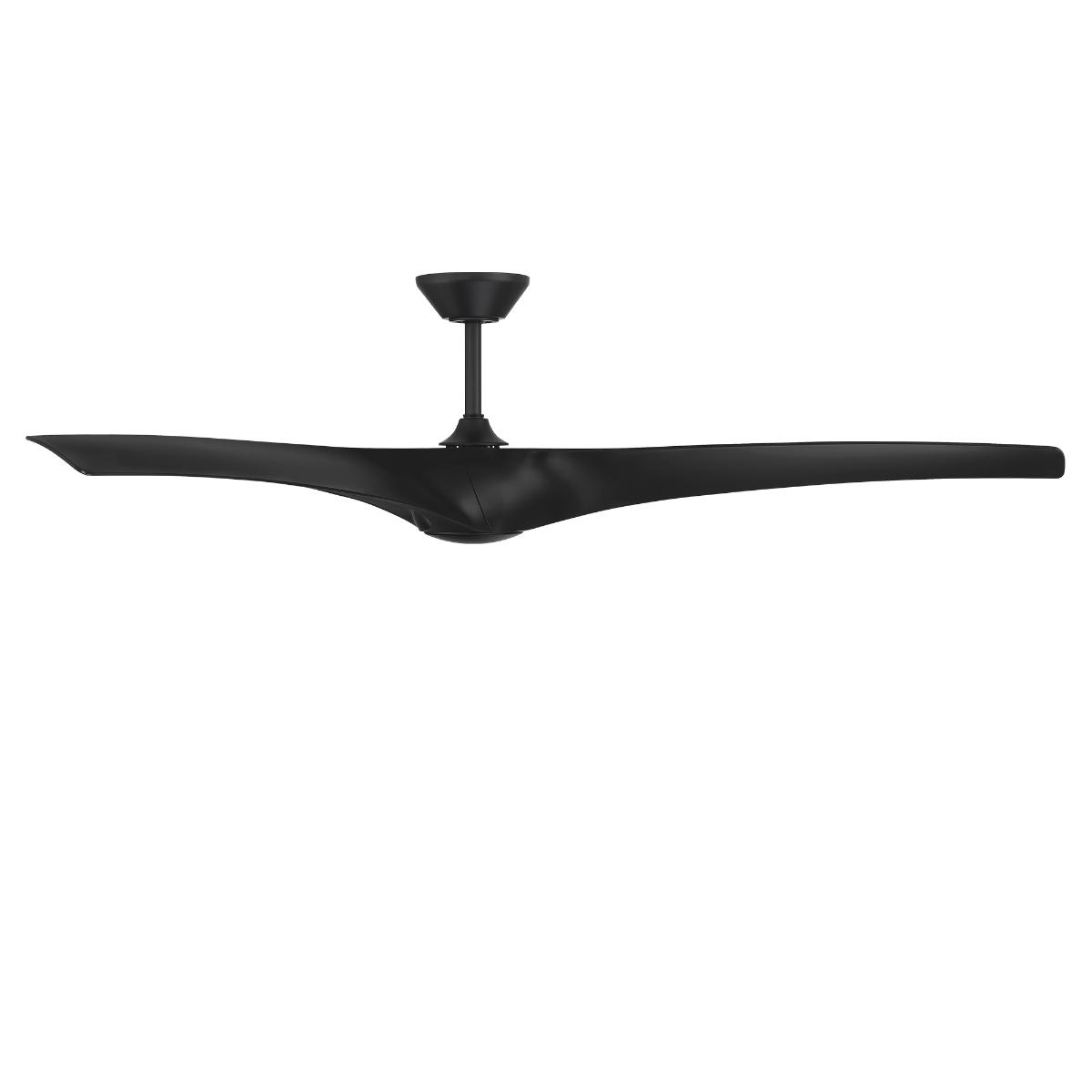

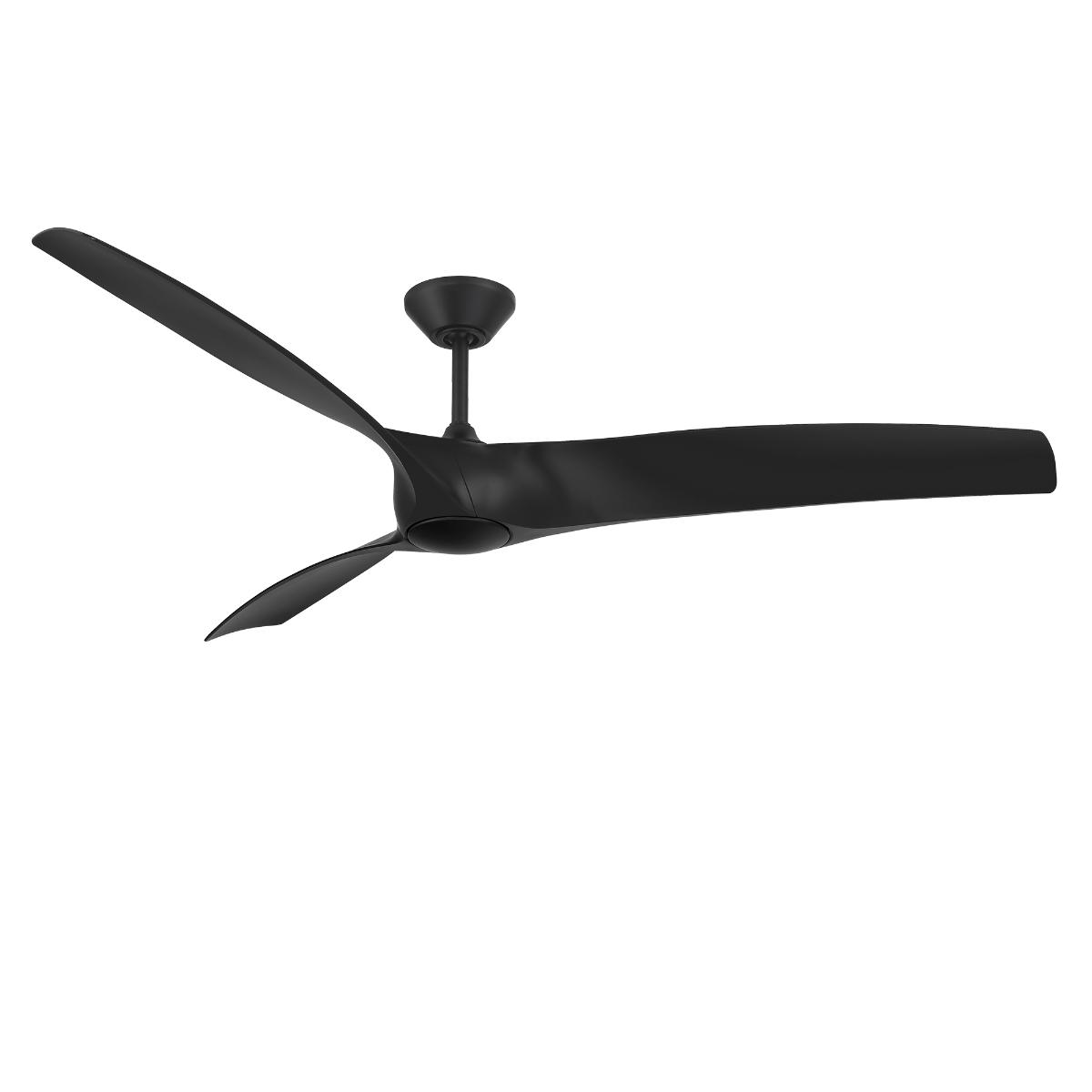

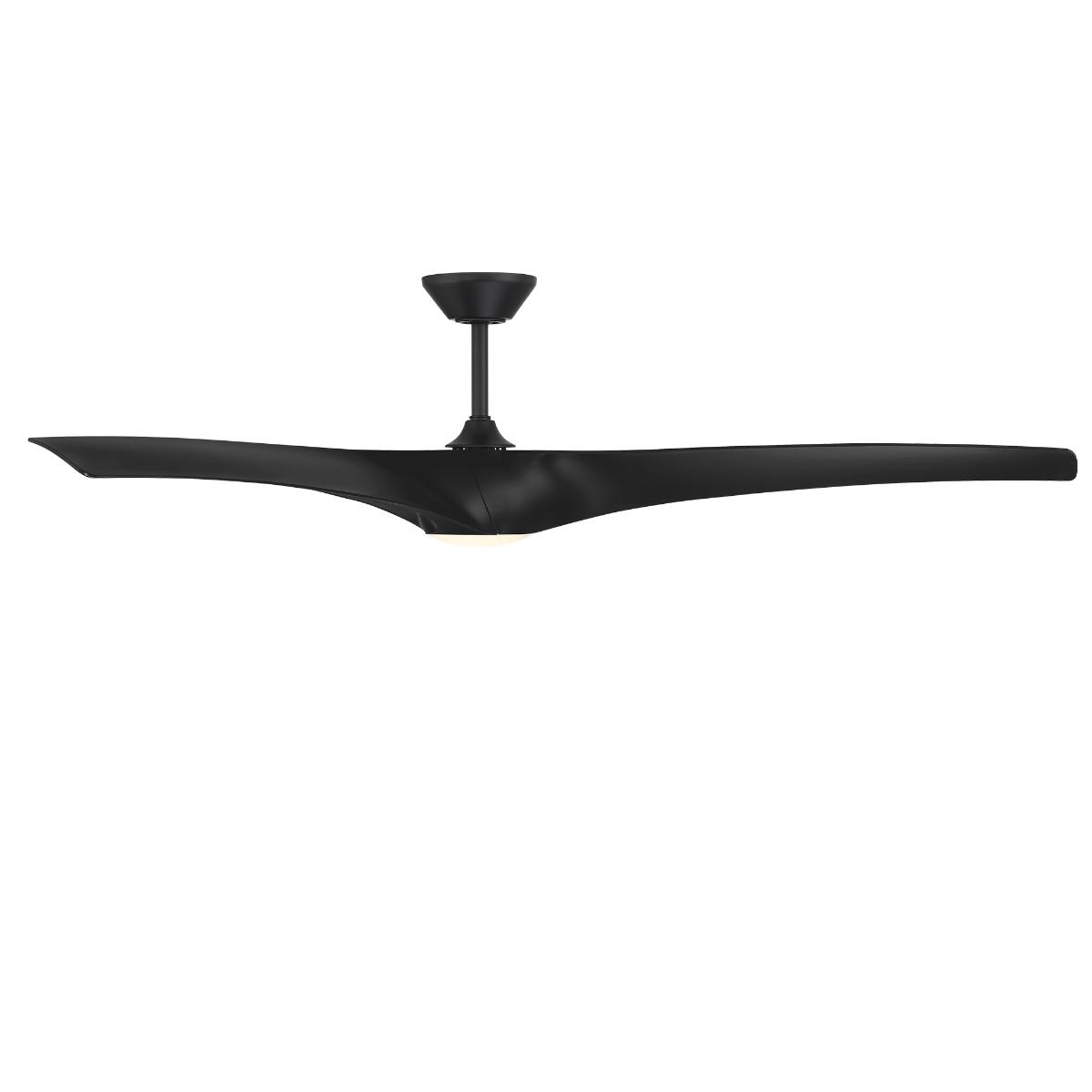

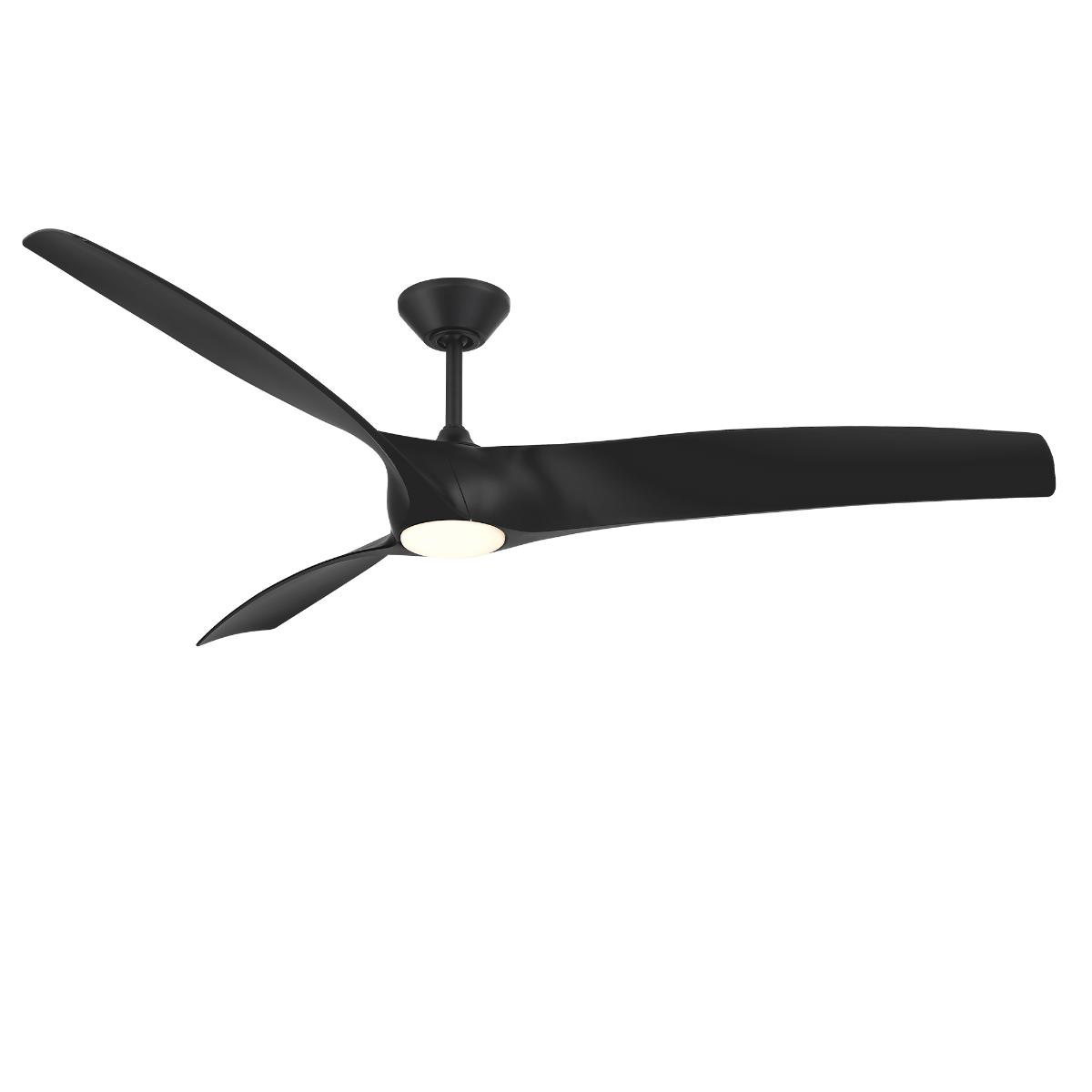

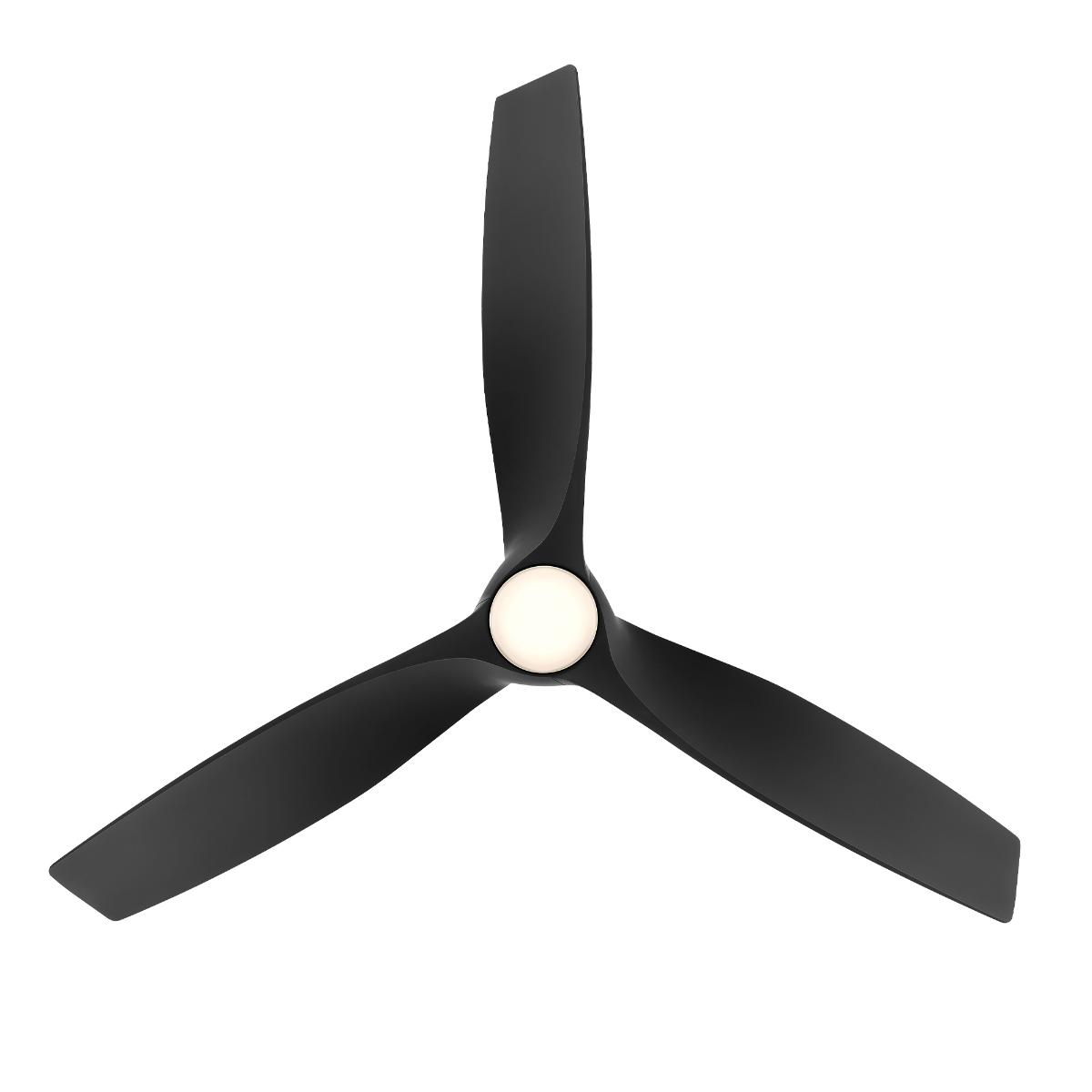

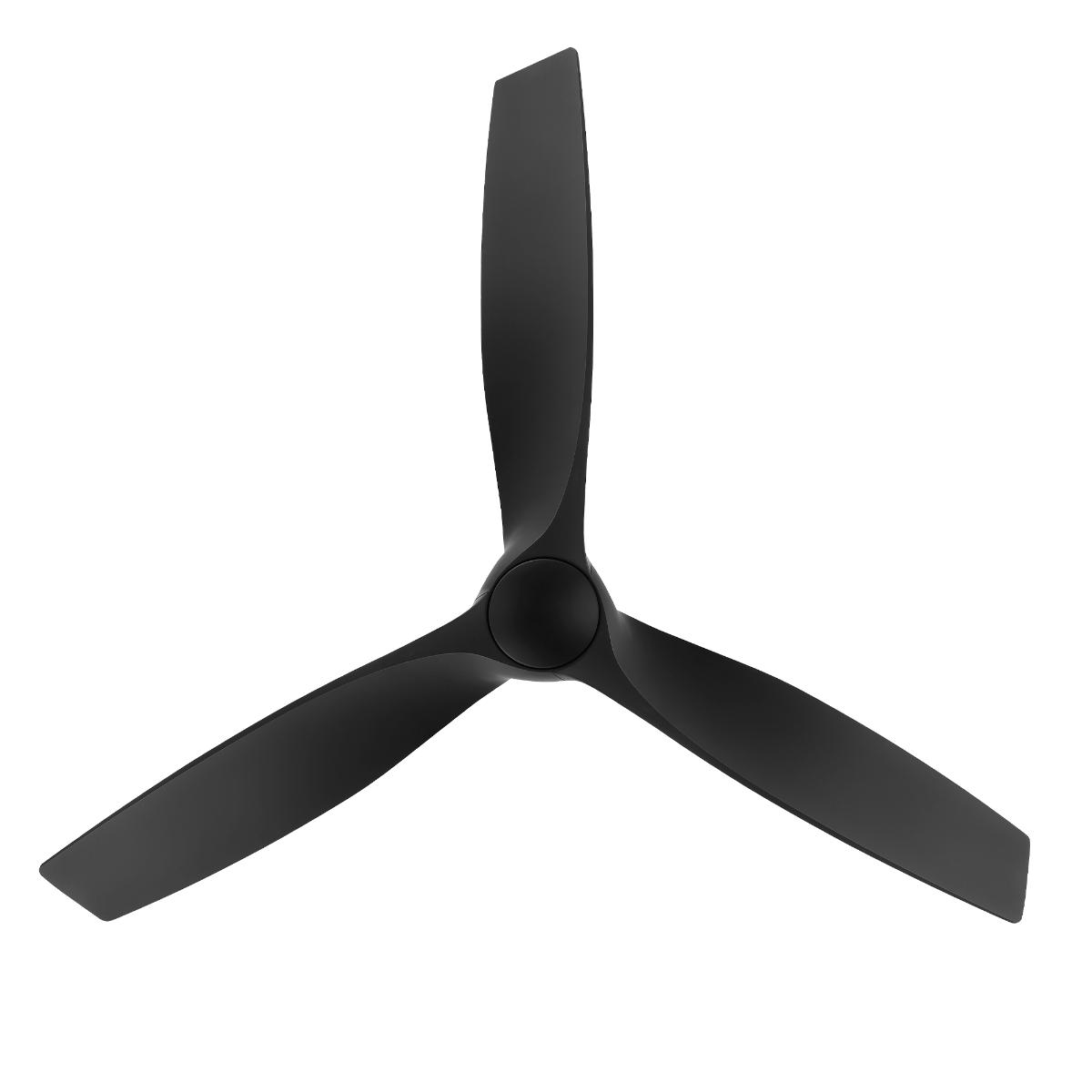

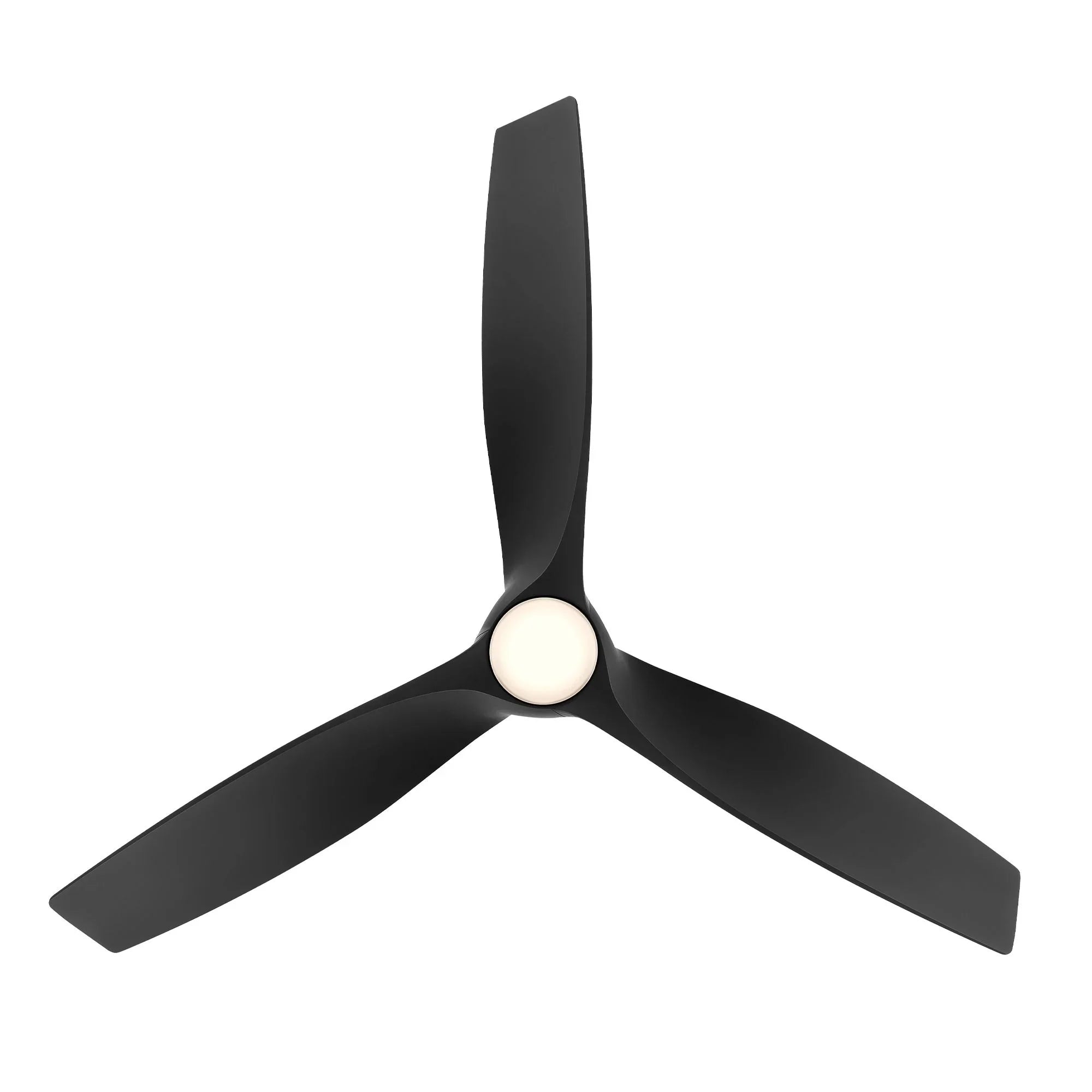

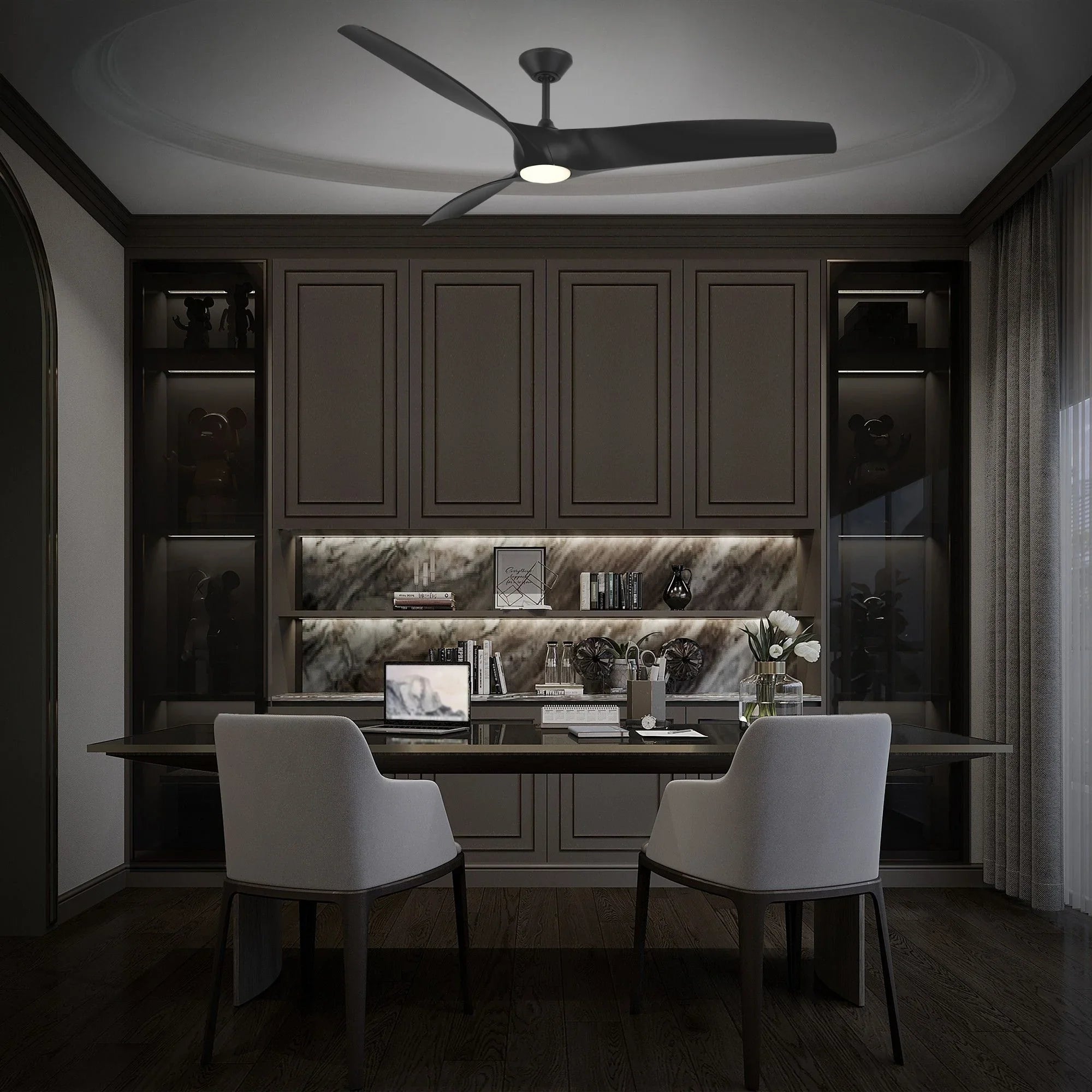

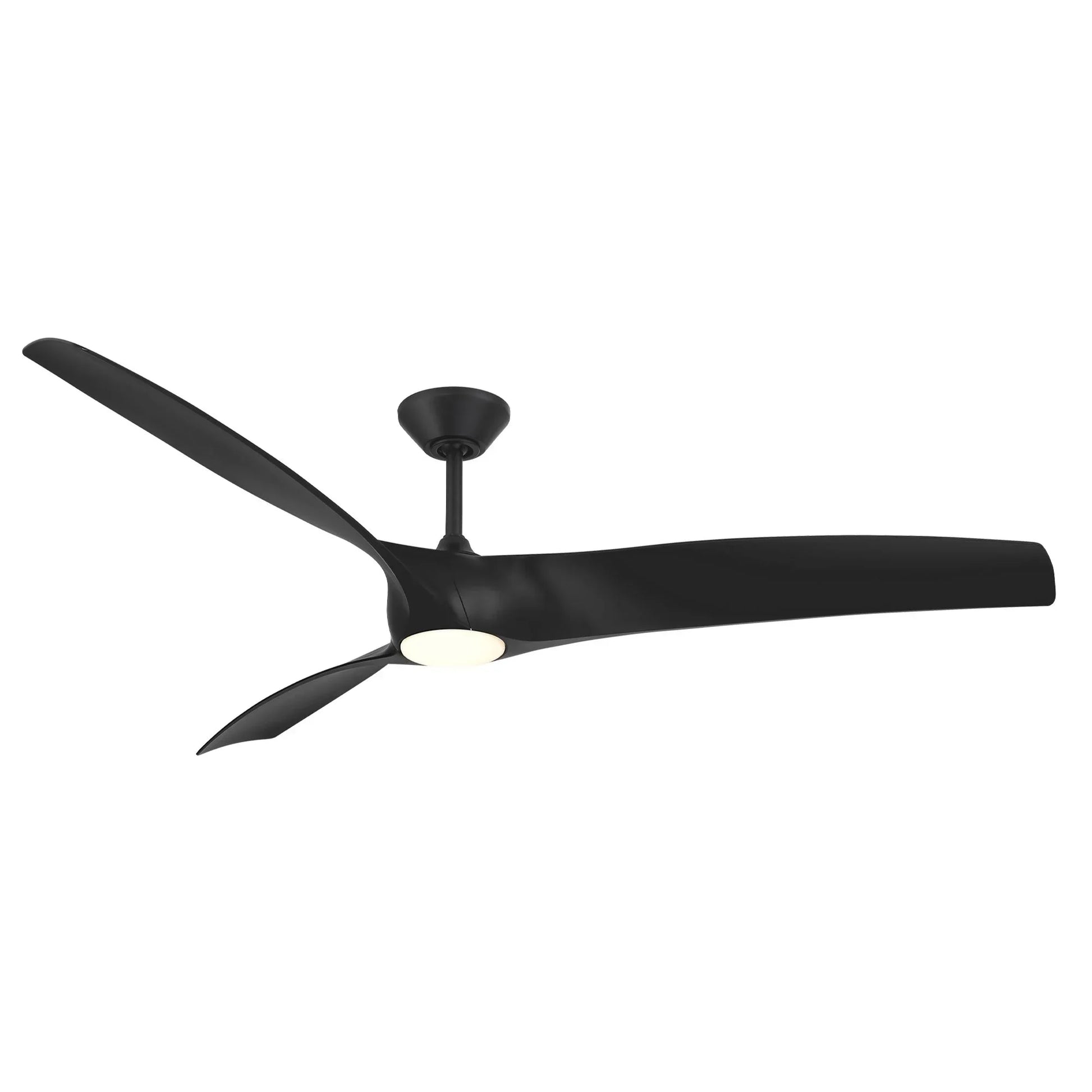

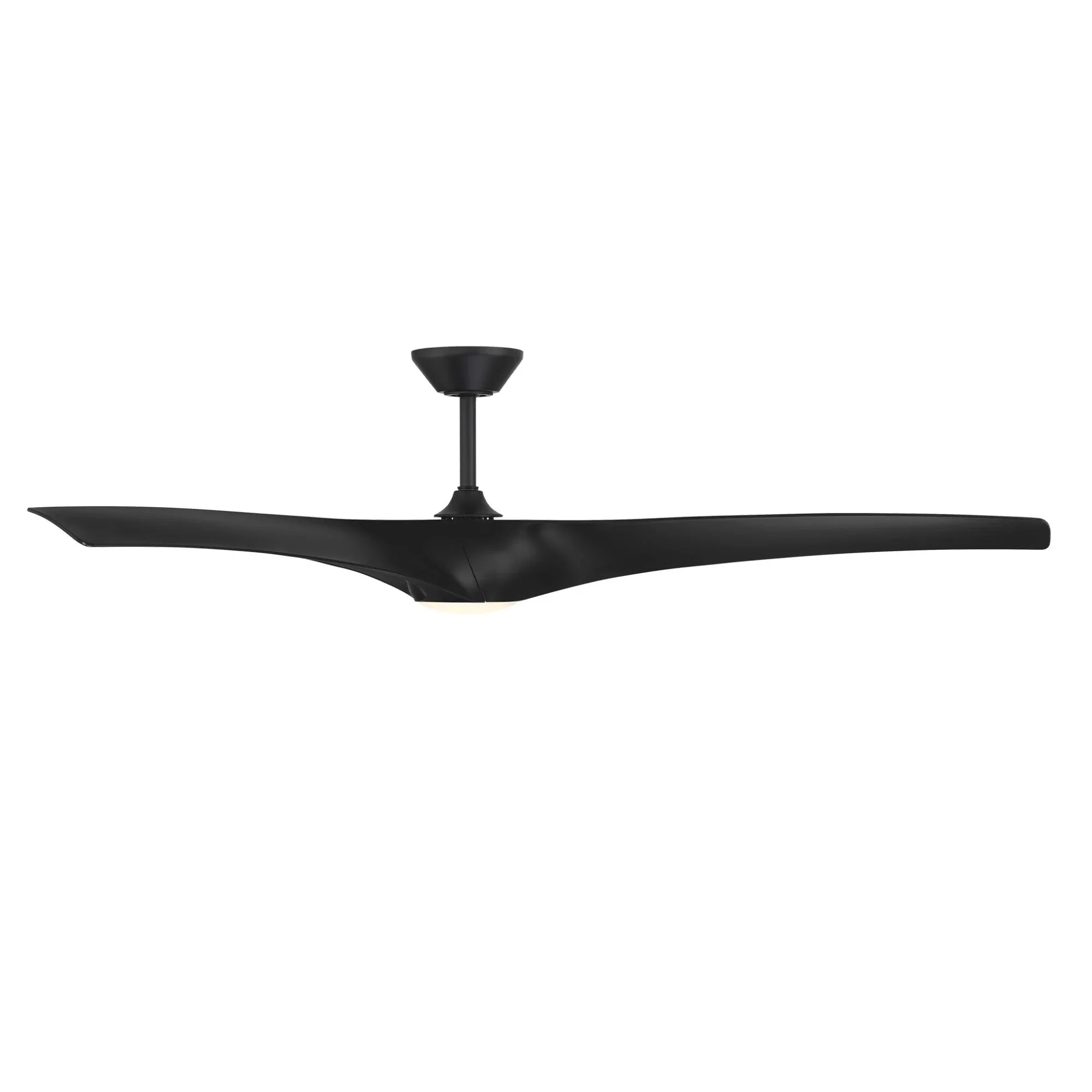

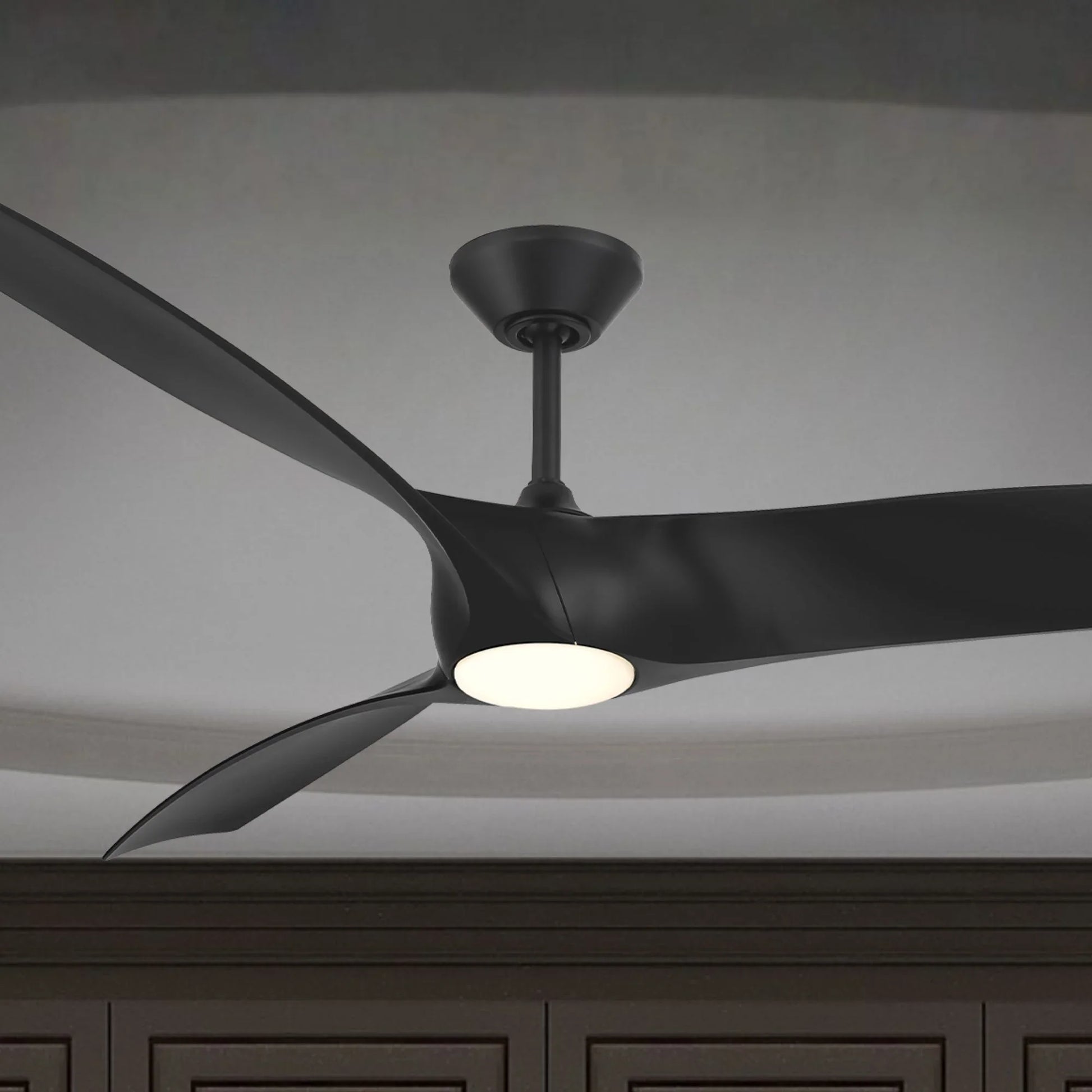

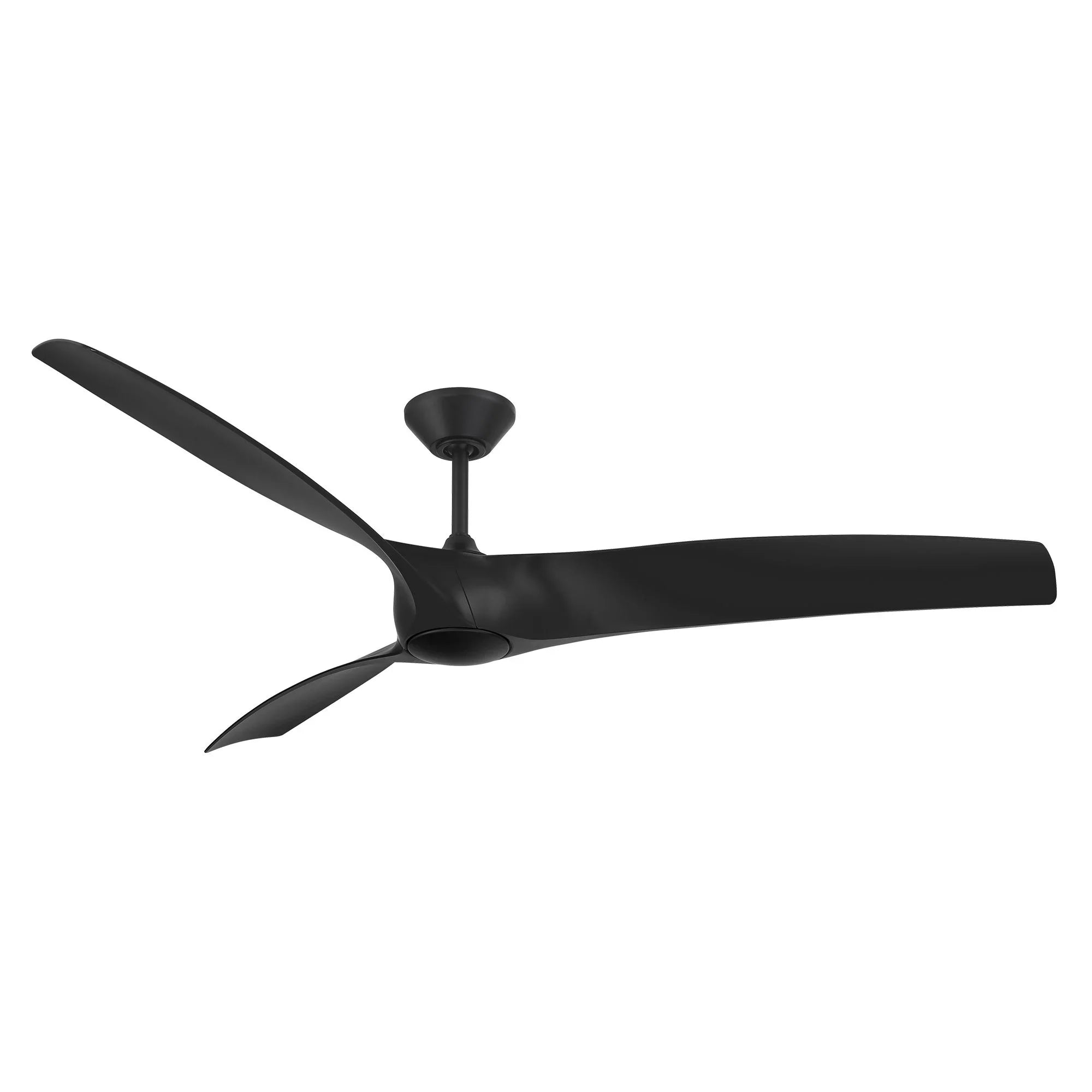

Modern Forms Zephyr 72 in Outdoor LED Smart Ceiling Fan — Matte Black

The Modern Forms Zephyr (model FR-W2006-72L-MB) is a 72-inch smart ceiling fan engineered for large indoor and outdoor spaces. Powered by a whisper-quiet 120x25 sensorless DC motor with 6 fan speeds, it delivers up to 8,554 CFM of airflow at just 33W. The integrated LED luminaire outputs up to 2,159 lumens with selectable color temperatures from 2700K to 5000K. UL/cUL Wet Location rated and Title 20 / Energy Star compliant.

Key Features

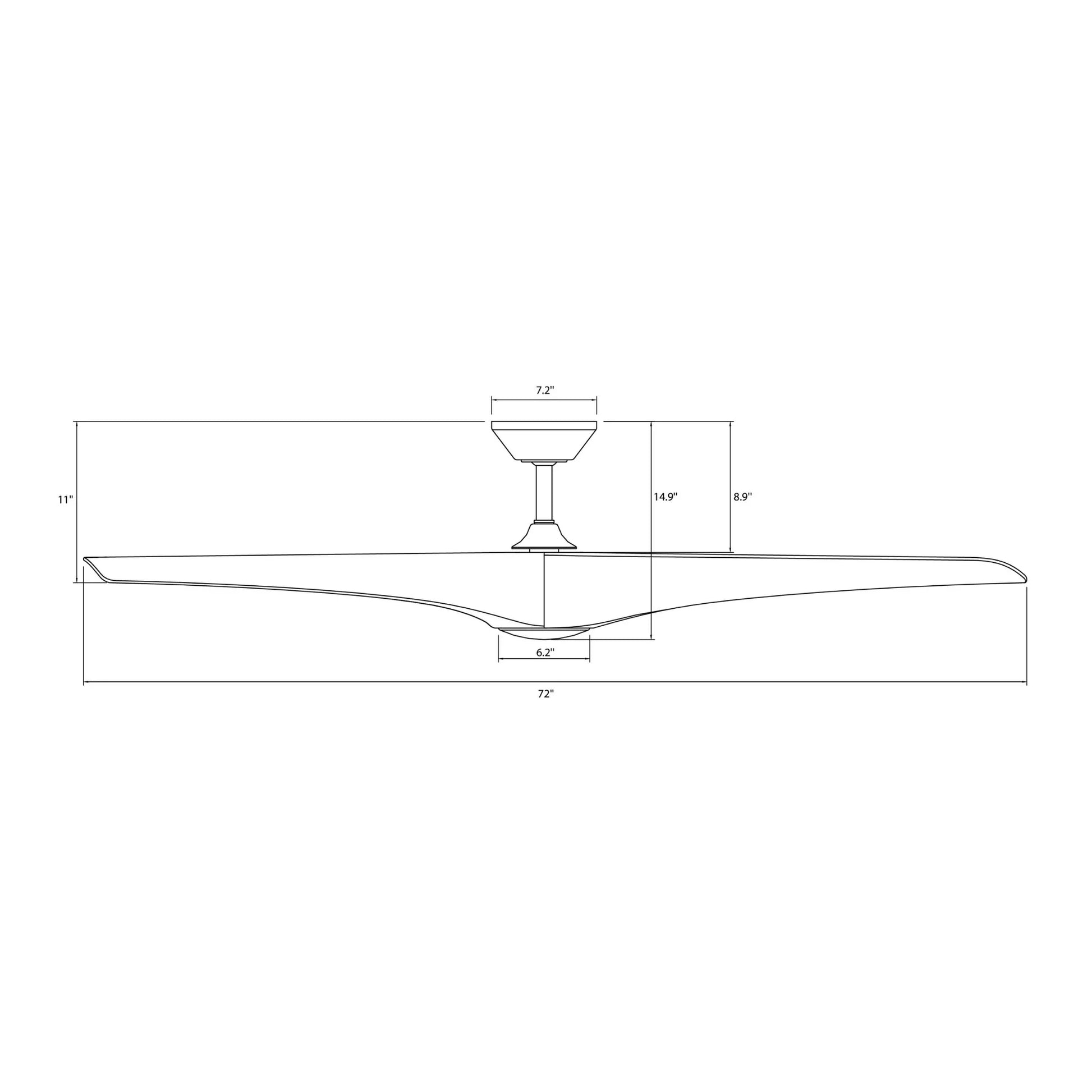

• Blade Span: 72 in | 16 degree pitch
• Motor: Silent 120x25 sensorless DC | 6 speeds | Summer & Winter modes
• Airflow: 6,159 CFM (avg) / 8,554 CFM (high)
• Efficiency: 263 CFM/W
• Total Power: 54W (fan 33W + light 21W)
• Light Output: 1,991–2,159 lumens | CRI 90 | 2700K, 3000K, 4000K, 5000K selectable
• Location Rating: UL/cUL Wet Location | Title 24 JA8-2016 | Title 20 | Energy Star
• Mounting Slope: Up to 30 degrees included | Up to 45 degrees with optional XF-SCK
• Downrod: 3/4 in x 8 in included | Wire: 80 in | Hanging Weight: 17 lbs

Smart & Control Features

Includes a Bluetooth remote control (F-RCBT) for fan speed, light brightness, and Summer/Winter mode. Pairs with the Modern Forms app and integrates with Amazon Alexa, Google Assistant, Control4, Crestron, JOSH, and Samsung SmartThings. Bluetooth and Wi-Fi range up to 150 ft. Optional wall control (F-WCBT) available separately.

Construction & Design

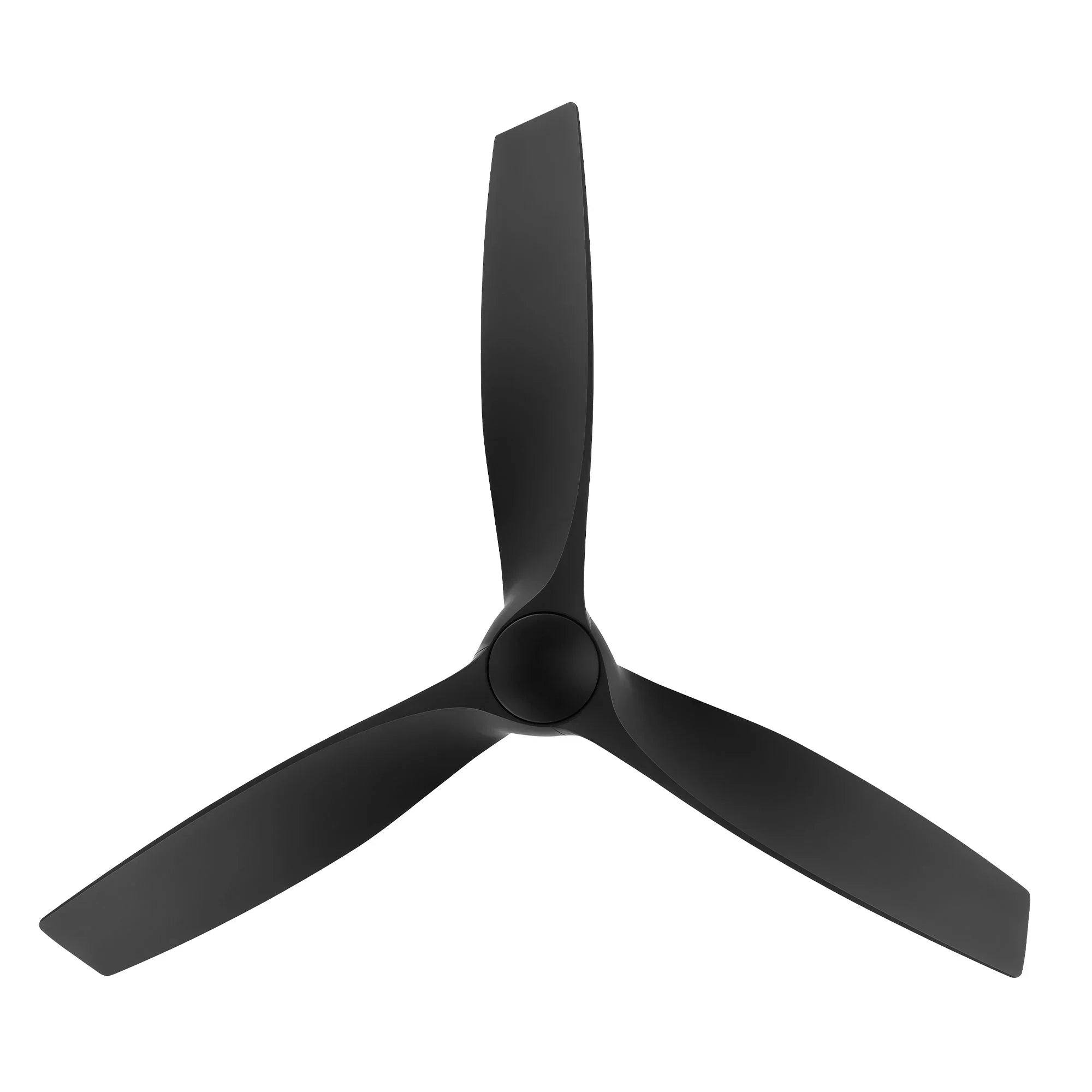

Sleek Matte Black motor housing with matching Matte Black blades at a 16 degree pitch. Crafted from aluminum and ABS with thick, soundless blade construction.

Light Output & Performance

The integrated LED luminaire delivers 1,991–2,159 lumens, CRI 90, rated life of 50,000 hours. Selectable between 2700K, 3000K, 4000K, and 5000K. Fully dimmable via remote or app.

Electrical & Installation

Operates at 120V. Includes 8 in downrod for flat or sloped ceilings up to 30 degrees. Optional XF-SCK Sloped Ceiling Kit supports up to 45 degrees (12/12 pitch). Max downrod length 72 in with 80 in lead wire.

Suggested Downrod by Ceiling Height

• 15 ft ceiling → 72 in downrod
• 14 ft → 60 in | 13 ft → 48 in | 12 ft → 36 in
• 11 ft → 24 in | 10 ft → 18 in | 9 ft → 12 in

Optional Accessories

• F-WCBT — Bluetooth Wall Control
• XF-12 through XF-72 — Downrods (12 in to 72 in)
• XF-I — Downrod Coupler
• XF-SCK — Sloped Ceiling Kit (up to 45 degrees)

What's Included

• 72 in ceiling fan with integrated LED luminaire
• Bluetooth remote control (F-RCBT-WT)
• 8 in downrod (3/4 in diameter)
• Mounting hardware
