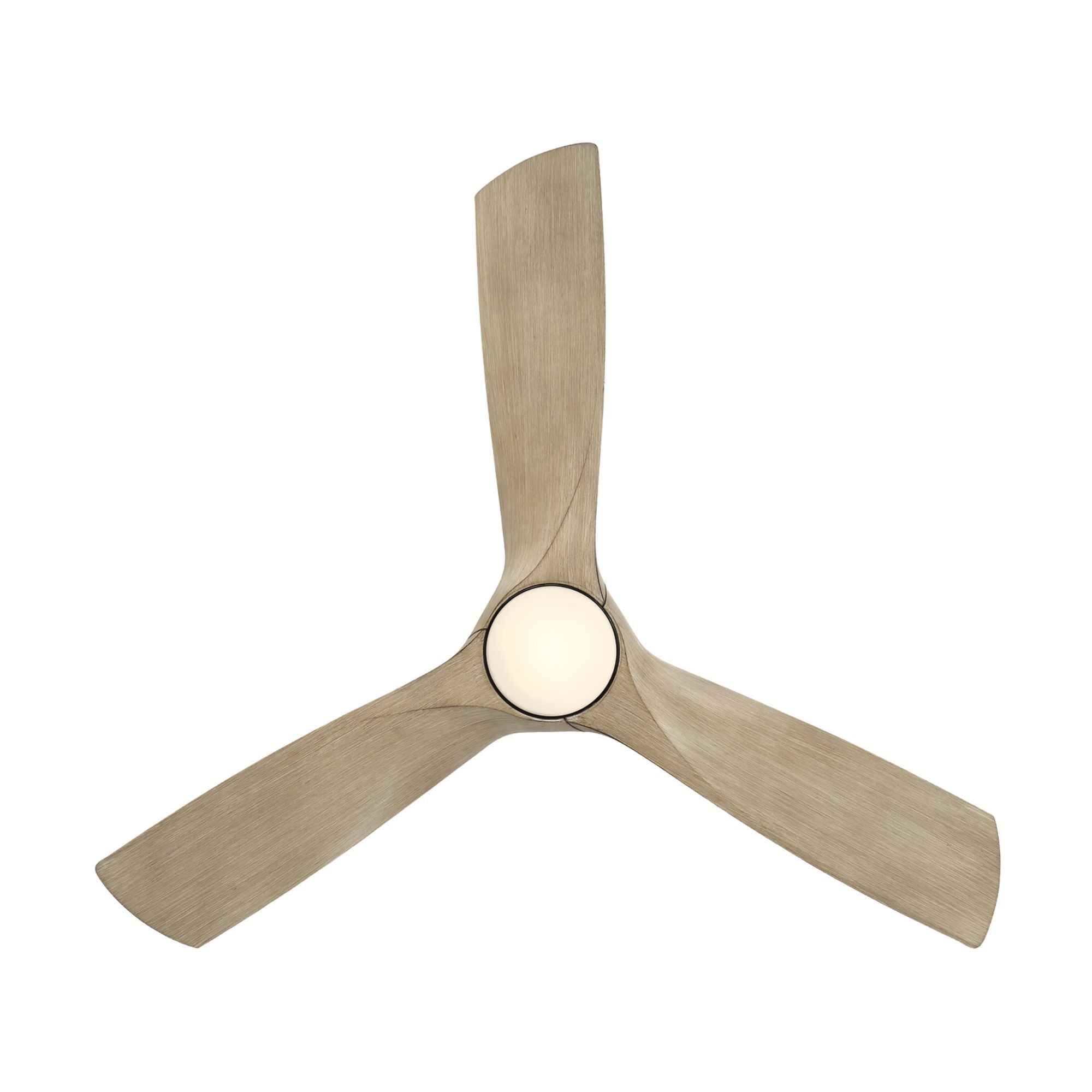

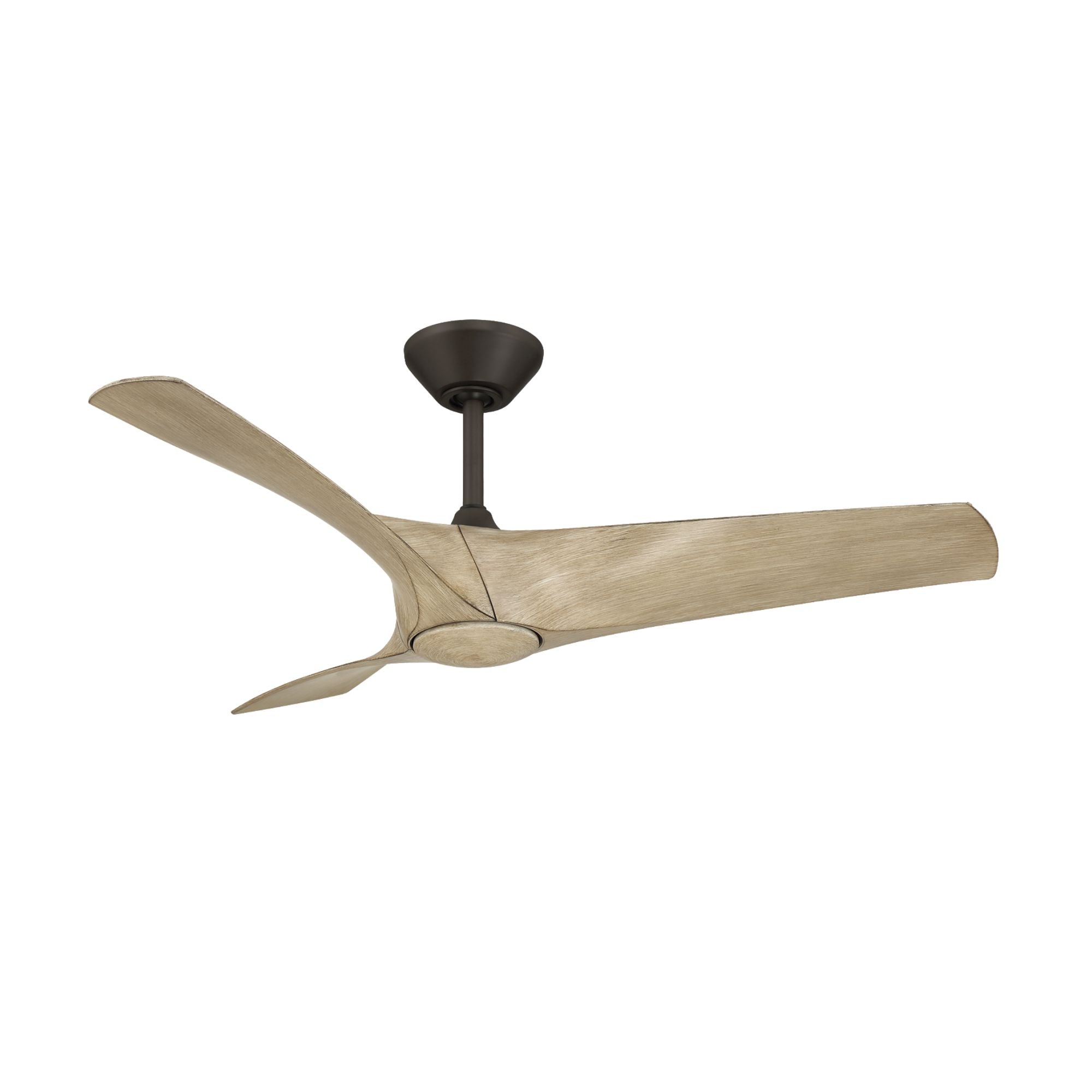

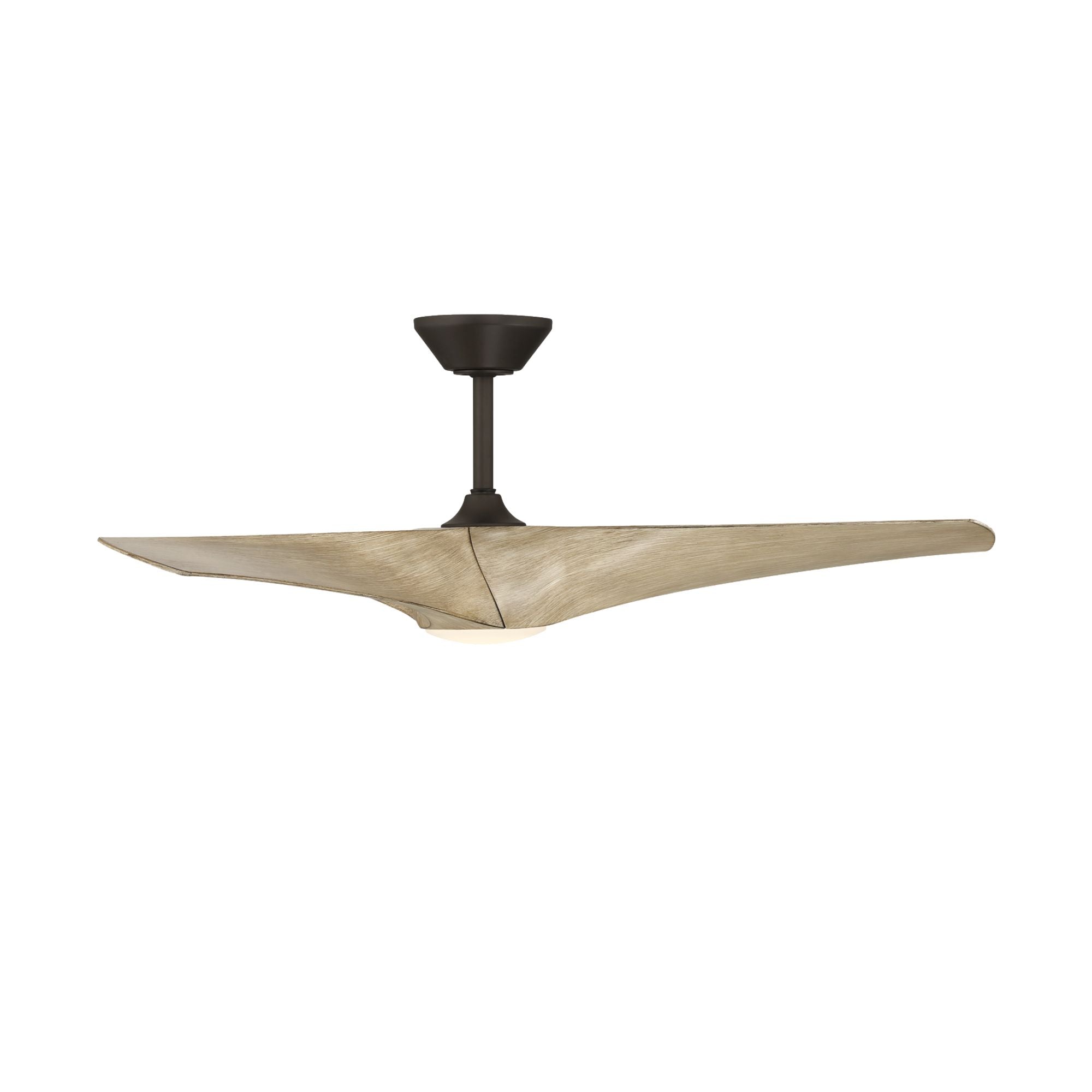

Modern Forms Zephyr 52 in Outdoor LED Smart Ceiling Fan — Bronze / White Oak

The Modern Forms Zephyr (model FR-W2006-52L-BZ/WO) is a 52-inch smart ceiling fan engineered for covered outdoor living and modern interior spaces. Powered by a whisper-quiet 120×20 sensorless DC motor running 6 fan speeds, it delivers up to 4,655 CFM of airflow at just 22W — finished in a warm Bronze motor housing paired with natural White Oak blades that bring an earthy, refined character to any ceiling.

Key Features

• Blade Span: 52 in | 16° pitch | 3 aerodynamic ABS blades
• Motor: Silent 120×20 sensorless DC | 6 speeds | Summer & Winter modes
• Airflow: 2,975 CFM (avg) / 4,655 CFM (high)
• Efficiency: 141 CFM/W at high speed
• Total Power: 49.5W (fan 22W + light 20W)

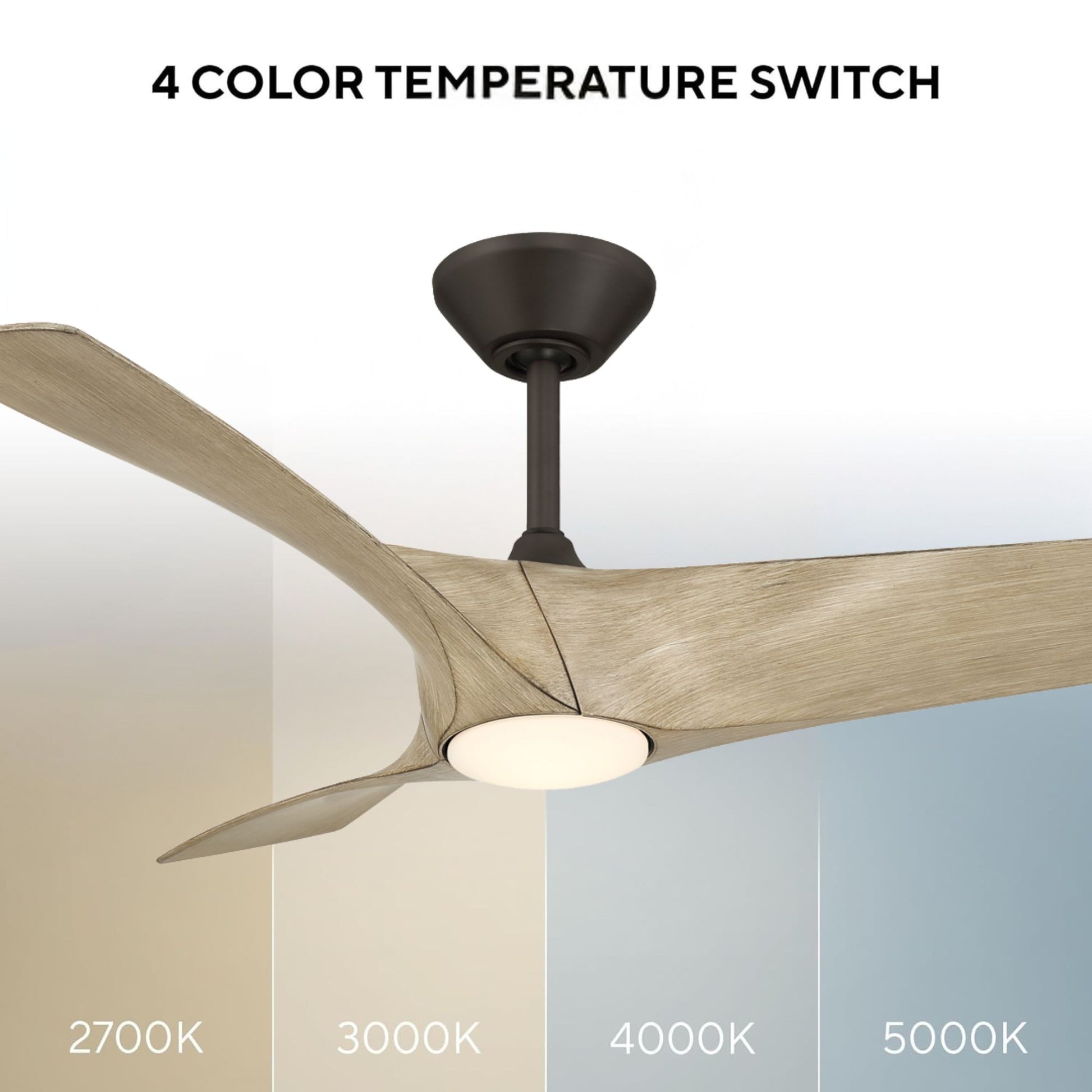

• Light Output: 1,600 lumens delivered | CRI 90 | 2700K, 3000K, 4000K, 5000K selectable
• Location Rating: UL/cUL Wet Location | Title 24 JA8-2016 | Title 20 | Energy Star rated
• Mounting Slope: Up to 30° included | Up to 45° with optional XF-SCK
• Downrod: 3/4 in W × 4.5 in + 8 in H included | Wire: 80 in | Hanging Weight: 17 lbs

Smart & Control Features

Includes a Bluetooth remote control (F-RCBT-WT) for fan speed, light brightness, and Summer/Winter mode switching from anywhere in the room. Pairs seamlessly with the Modern Forms app for full scheduling, dimming, and scene control. Integrates with Amazon Alexa, Google Assistant, Samsung SmartThings, Control4, and JOSH. Bluetooth and Wi-Fi range up to 150 ft. Optional wall control (F-WCBT-WT) available separately for fixed-location control.

Construction & Design

Bronze motor housing paired with natural White Oak blades at a 16° pitch — a warm, organic combination that suits transitional, Mediterranean, and nature-inspired interiors. Crafted from durable aluminum and ABS with thick, aerodynamically soundless blade construction. At just 17 lbs hanging weight, it installs cleanly with the included 8 in downrod.

Light Output & Performance

The integrated opal glass LED luminaire delivers 1,600 lumens, CRI 90, with a rated life of 50,000 hours. Selectable color temperatures between 2700K, 3000K, 4000K, and 5000K let you dial in warm candlelight or crisp daylight. Fully dimmable via remote or app — no separate dimmer required.

Electrical & Installation

Operates at 120V. Total power draw of 49.5W (22W fan + 20W light). Includes 8 in downrod for flat or gently sloped ceilings up to 30°. The optional XF-SCK Sloped Ceiling Kit supports installations up to 45° (12/12 pitch). Max downrod length 72 in with 80 in lead wire.

Suggested Downrod by Ceiling Height

• 9 ft ceiling → 12 in downrod
• 10 ft ceiling → 18 in downrod
• 11 ft ceiling → 24 in downrod
• 12 ft ceiling → 36 in downrod
• 13 ft ceiling → 48 in downrod
• 14 ft ceiling → 60 in downrod
• 15 ft ceiling → 72 in downrod

Optional Accessories

• F-WCBT-WT — Bluetooth Wall Control (White)
• XF-12 through XF-72 — Downrods (12 in to 72 in, 3/4 in diameter)
• XF-I — Downrod Coupler
• XF-SCK — Sloped Ceiling Kit (up to 45° / 12/12 pitch)

What's Included

• 52 in ceiling fan with integrated opal glass LED luminaire
• Bluetooth remote control (F-RCBT-WT)
• 8 in downrod (3/4 in diameter)
• Mounting hardware
