The Modern Forms Renegade FR-W2001-66L-OB/BW is a 66 in wet-rated smart ceiling fan engineered for grand indoor and outdoor spaces where performance and presence are non-negotiable. Seven precision-pitched ABS blades at 14° drive 10,146 CFM through a silent 165×30mm sensorless DC motor, while the integrated 20W LED delivers 1,600 source lumens in a warm 3000K tone. Wi-Fi and Bluetooth connectivity bring seamless smart home integration — voice control via Alexa and Google Assistant, app control via the Modern Forms platform, and compatibility with SmartThings, Control4, and Josh. The Oil Rubbed Bronze housing paired with Barn Wood blades delivers a warm, rustic-industrial aesthetic suited to farmhouse, craftsman, and transitional interiors at grand scale.

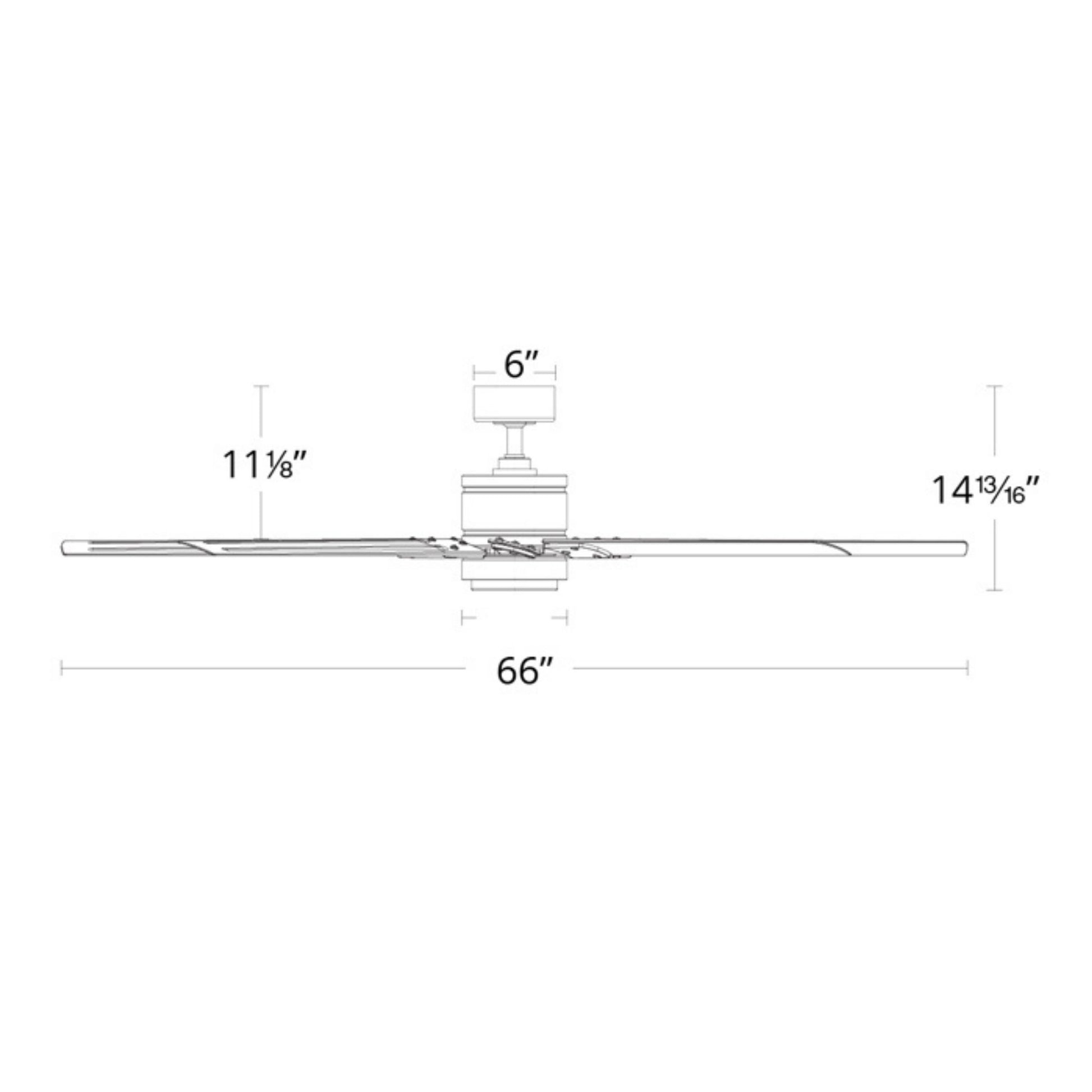

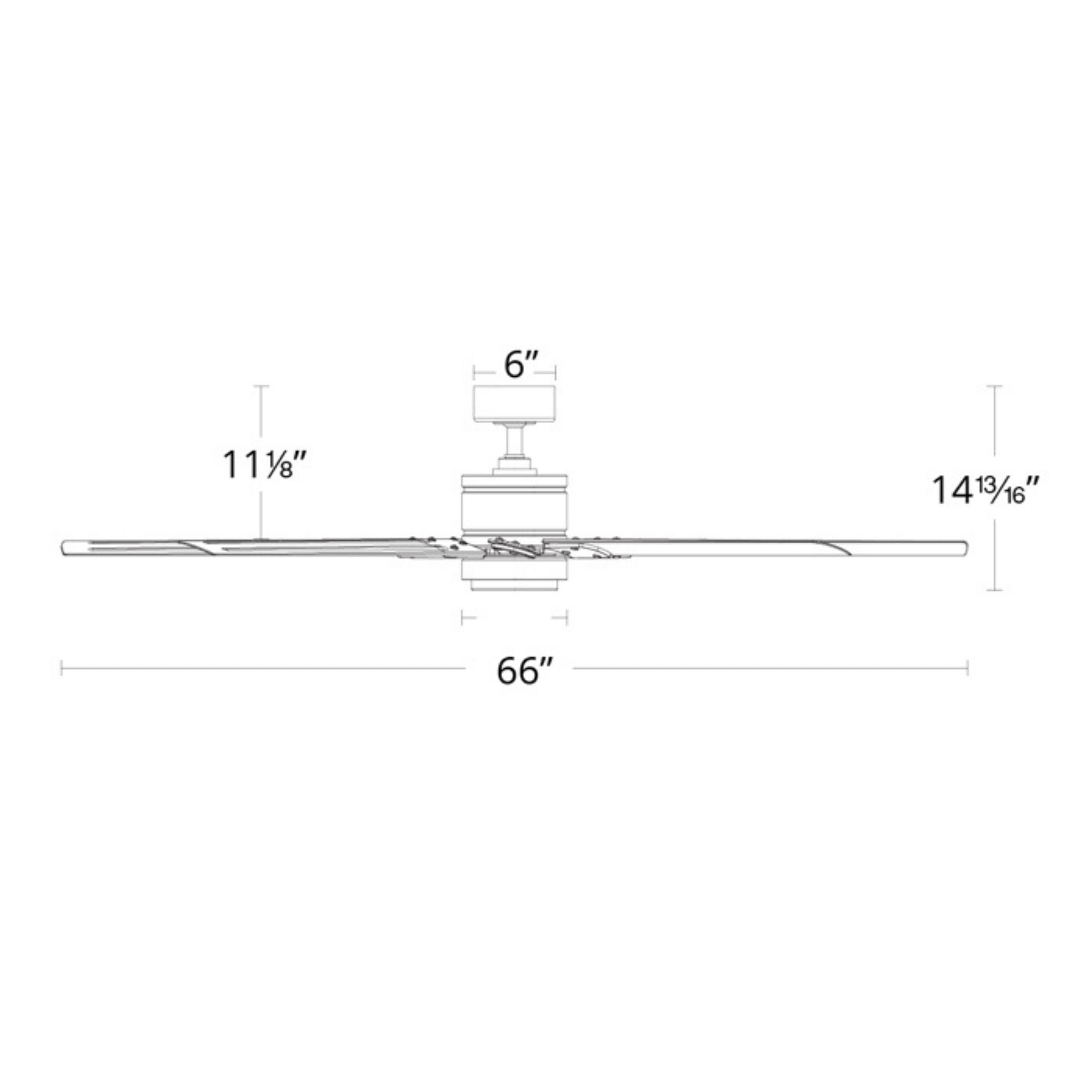

• Blade Span: 66 in — ideal for covered outdoor spaces, great rooms, and open-plan living areas
• Mount Type: Downrod — 3/4 in × 6 in included
• Blades: 7 ABS blades, 14° pitch — Barn Wood, included, non-reversible
• Motor: 165×30mm sensorless DC, silent, 6-speed, Summer & Winter modes
• Airflow: 10,146 CFM high / 7,069 CFM weighted-avg
• Efficiency: 259 CFM/W high / 261 CFM/W weighted-avg — Energy Star Most Efficient 2020
• Wattage: 38W high / 27W weighted-avg (motor) / 52W total
• Estimated Yearly Energy Cost: $8
• Light: 20W integrated LED, 1,600 source lm / 846 delivered lm, CRI 90, 3000K fixed, dimmable, 50,000 hr rated life
• Location: Wet rated — UL/cUL, Title 24 JA8-2016, Title 20, Energy Star
• Wire: 80 in
• Hanging Weight: 19.5 lbs

The FR-W2001-66L-OB/BW includes a Bluetooth Remote Control with 6-speed fan control in Summer & Winter modes, light on/off with dimming, and easy-to-install wall cradle and batteries. Wi-Fi and Bluetooth connectivity (up to 150 ft range) enable voice control via Amazon Alexa and Google Assistant, and app control via the Modern Forms app, with compatibility for SmartThings, Control4, and Josh. Optional Bluetooth Wall Control (F-WCBT-WT) available separately for wall-mounted speed and light control.

Oil Rubbed Bronze aluminum and ABS housing — weather-resistant and wet-rated for covered outdoor use. 7 Barn Wood ABS blades, 14° pitch. Downrod: 3/4 in × 6 in included. Standard mounting brackets support slopes up to 30° (7/12 pitch); optional XF-SCK Sloped Ceiling Kit extends coverage to 45° (12/12 pitch). Uni-pack — blade finish is factory-matched to housing; blade select not available.

20W integrated LED, 1,600 source lumens / 846 delivered lumens, CRI 90, 3000K fixed, dimmable, 50,000 hr rated life. Fan: 10,146 CFM at 259 CFM/W high.

Sensorless DC motor, 52W total. Wet rated — UL/cUL, Title 24 JA8-2016, Title 20, Energy Star Most Efficient 2020. Downrod: 3/4 in included. Max stem tilt: 30° standard / 45° with XF-SCK. Wire: 80 in. Hanging weight: 19.5 lbs. Max recommended downrod: 72 in with 80 in lead wire.

Ships with 6 in downrod. Maintain 7 ft floor-to-blade clearance. Additional Modern Forms downrods (XF series, 3/4 in threaded) available separately (12–72 in).

• 9 ft → 12 in
• 10 ft → 18 in
• 11 ft → 24 in
• 12 ft → 36 in
• 13 ft → 48 in
• 14 ft → 60 in
• 15 ft → 72 in

• Modern Forms Renegade 66 in ceiling fan (motor + 7 Barn Wood blades)
• Integrated 20W LED light kit
• Bluetooth Remote Control (wall cradle and batteries included)
• 6 in downrod (3/4 in)
• Mounting hardware
