Modern Forms Roboto 52 in Outdoor Smart Ceiling Fan DC Brushed Aluminum

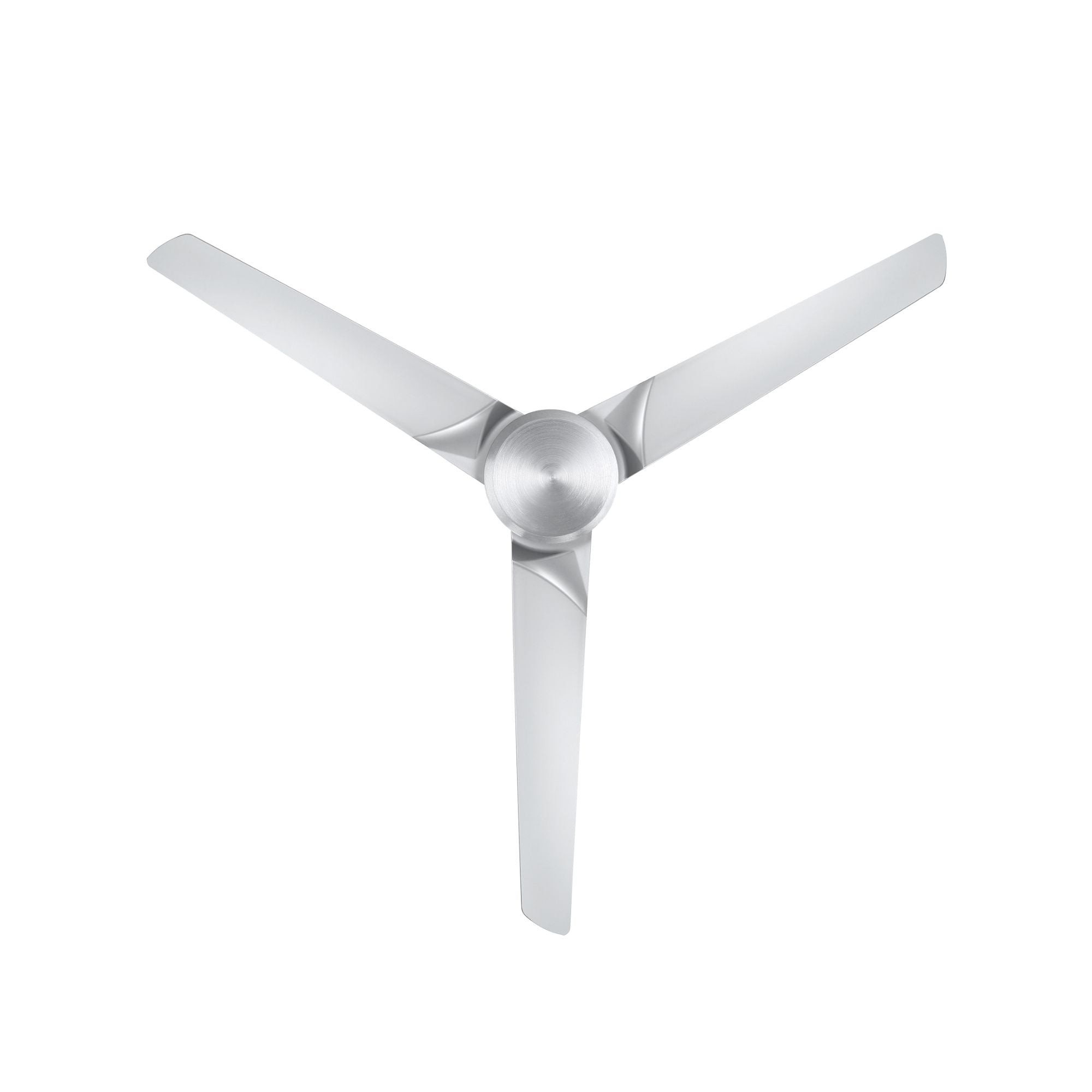

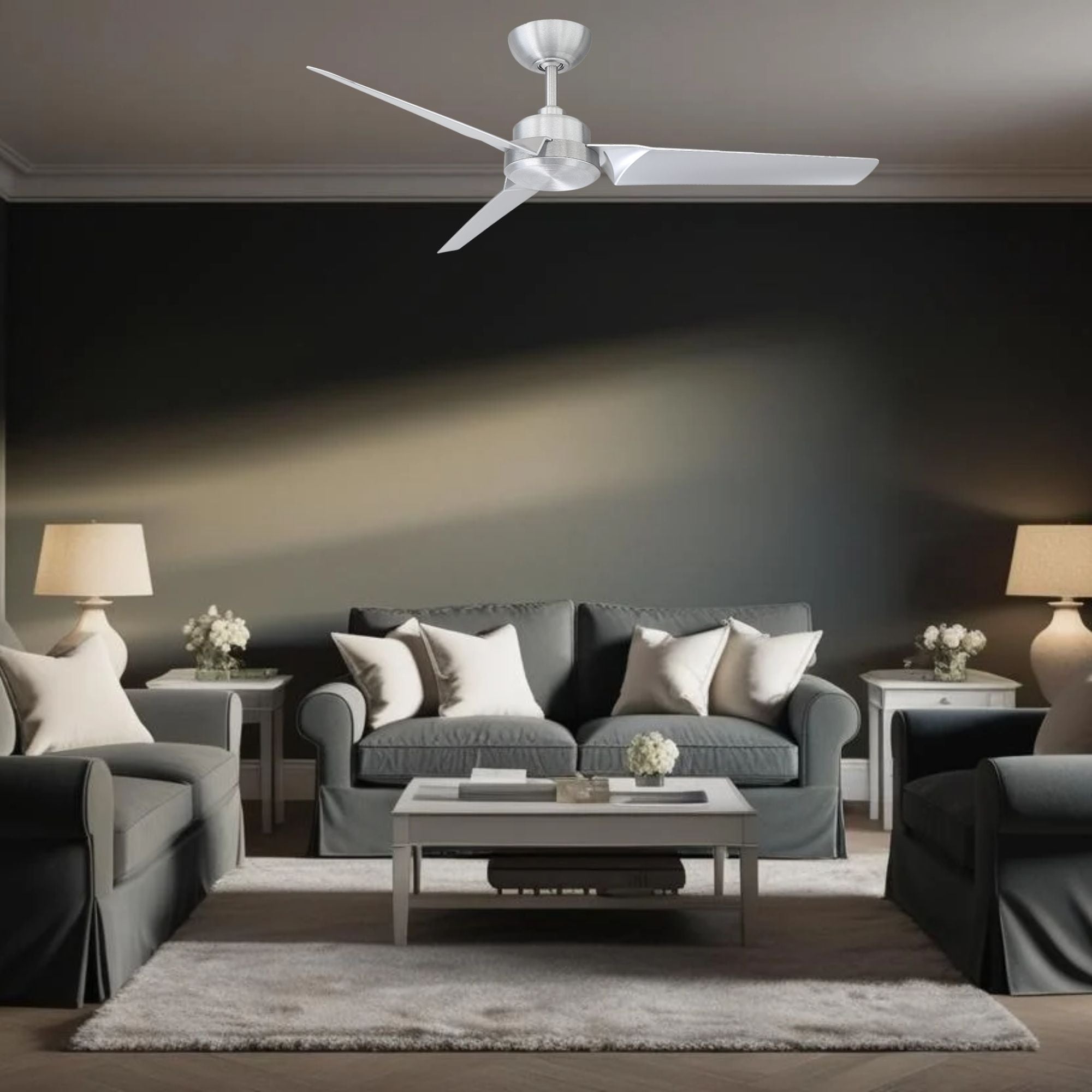

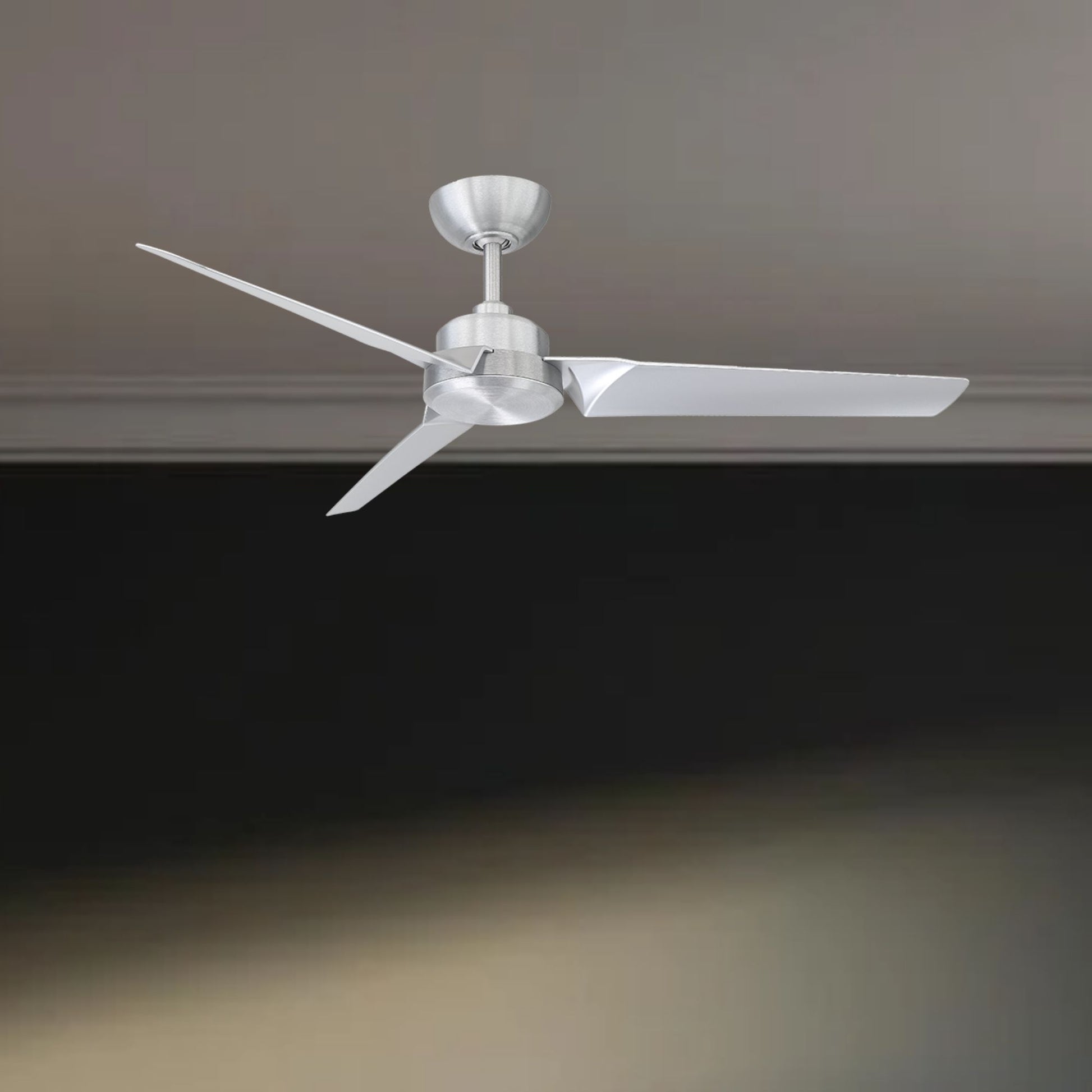

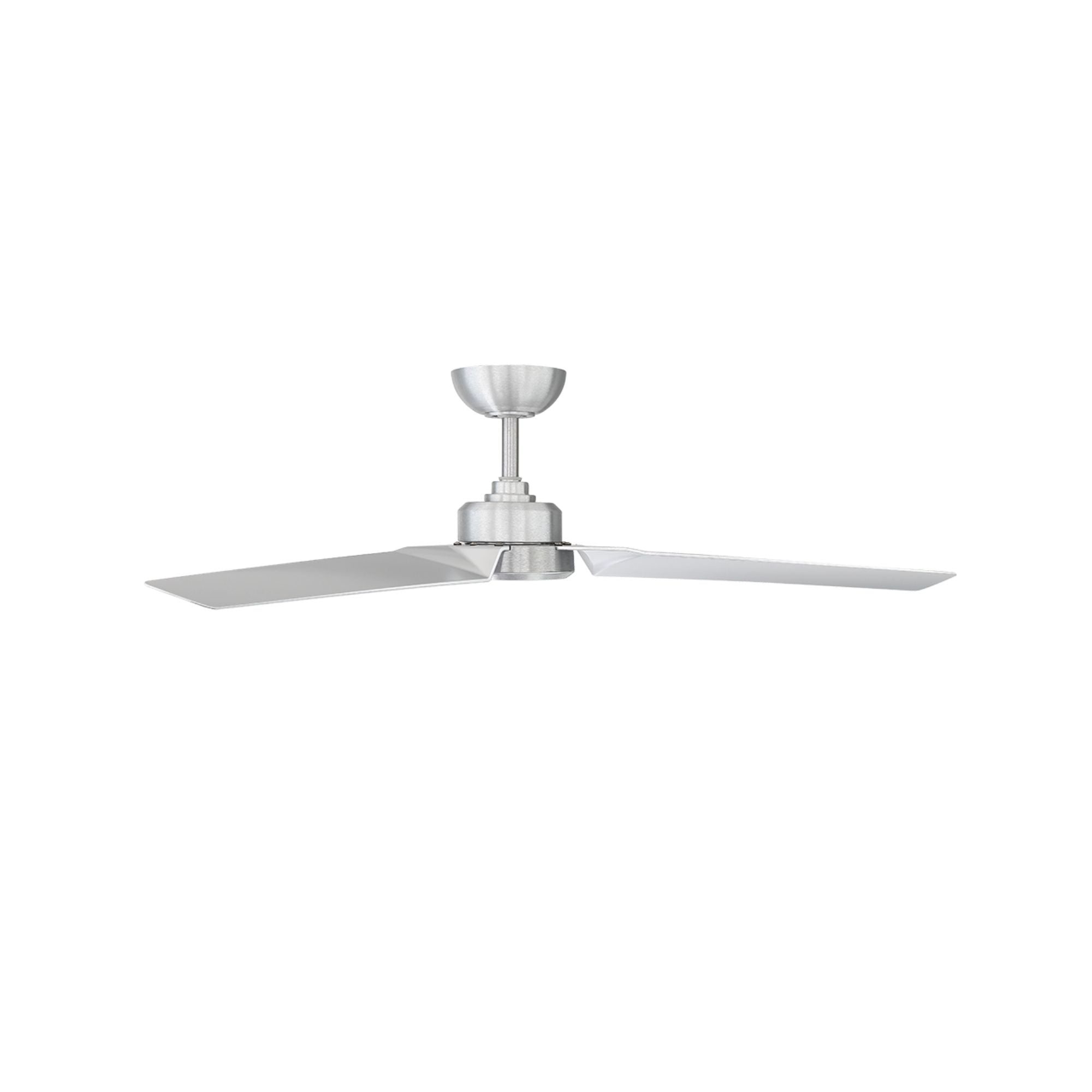

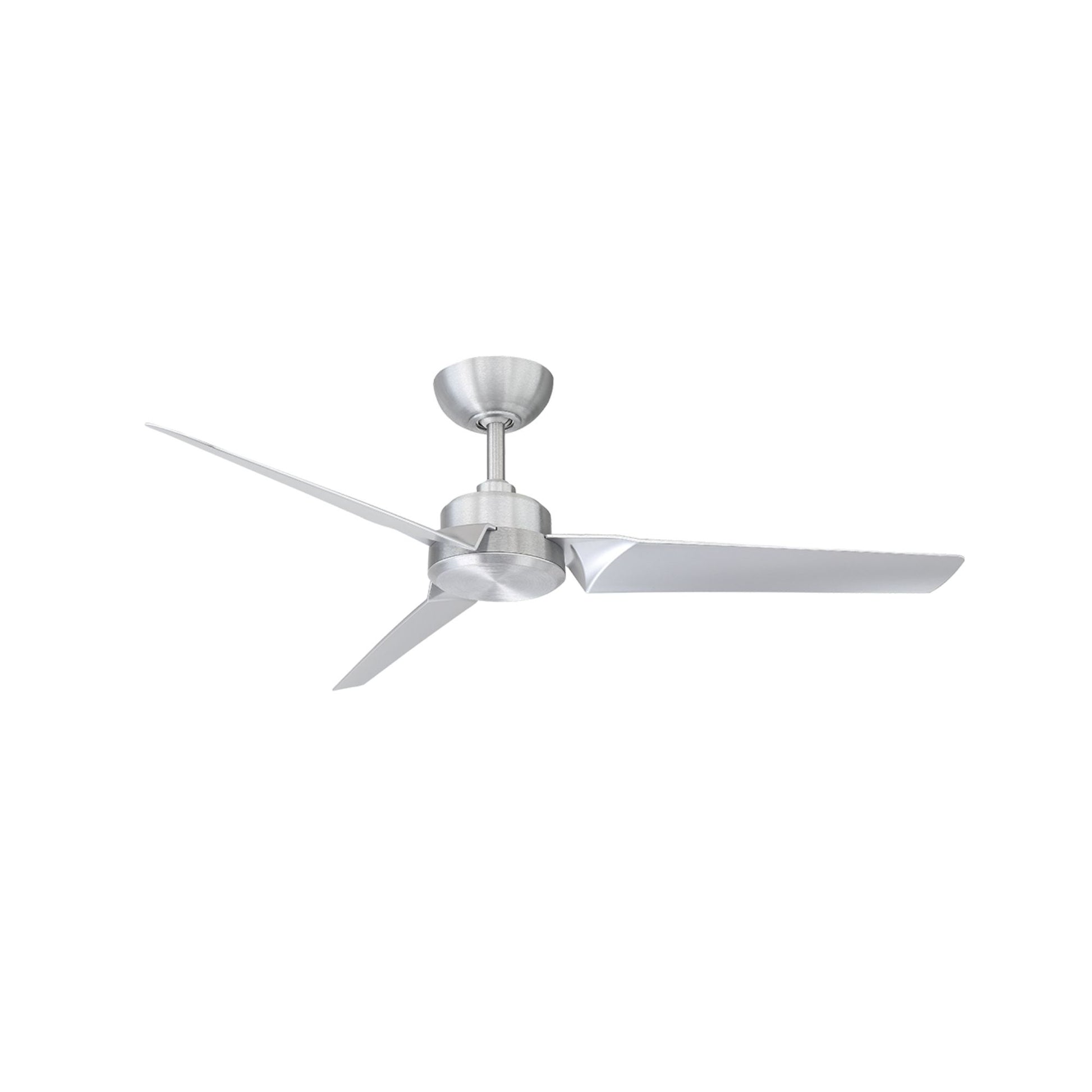

The Modern Forms Roboto FR-W1910-52-BA pairs a Brushed Aluminum housing with three Titanium-finished ABS blades across a 52 in span. A quiet, reversible DC motor delivers 6,026 CFM on high with six speeds and summer/winter modes. Wet Rated construction suits indoor and outdoor spaces, including decks and pergolas. The included Bluetooth remote and Modern Forms app provide speed control and scheduling. This model is supplied without a light.

Key Features

• Blade Configuration: Three ABS blades; 52 in sweep and 14° pitch.
• Motor: 125 × 20 sensorless DC motor; six speeds and reversible summer/winter modes; maximum 164 RPM.
• Airflow: 6,026 CFM on high; 4,047 CFM weighted average.
• Airflow Efficiency: Manufacturer-listed 138 CFM/W on high and 211 CFM/W weighted average.
• Power: 38W total; listed energy use of 38W on high and 13W weighted average.
• Lighting: Non-light model; no light included.
• Location Rating: UL/cUL Wet Location listed for indoor and outdoor use.
• Mounting: Slopes up to 30°; optional XF-SCK kit supports up to 45°, sold separately.
• Included Downrod: 6 in long, 0.75 in wide.
• Lead Wire: 80 in; recommended maximum downrod length of 72 in with supplied wire.

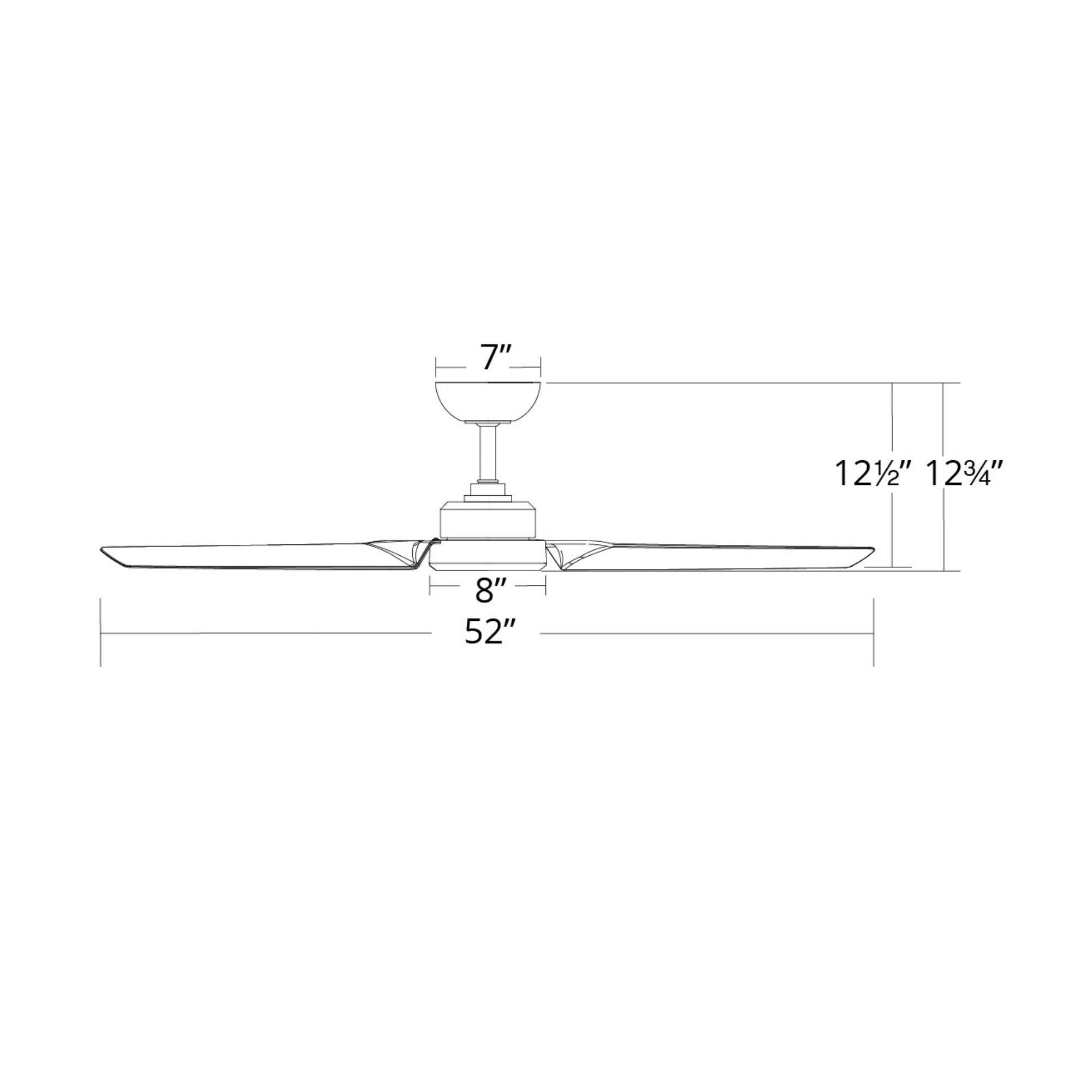

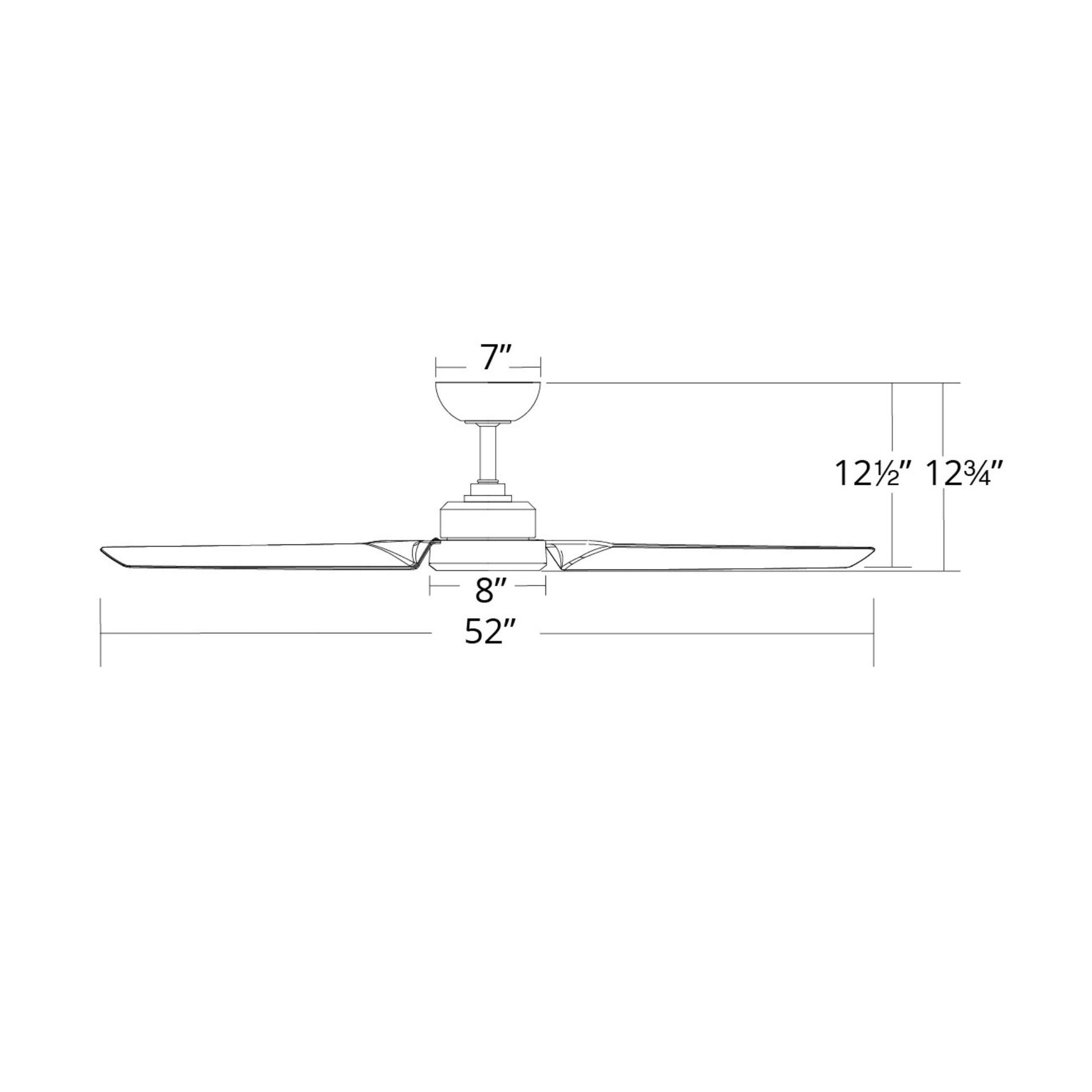

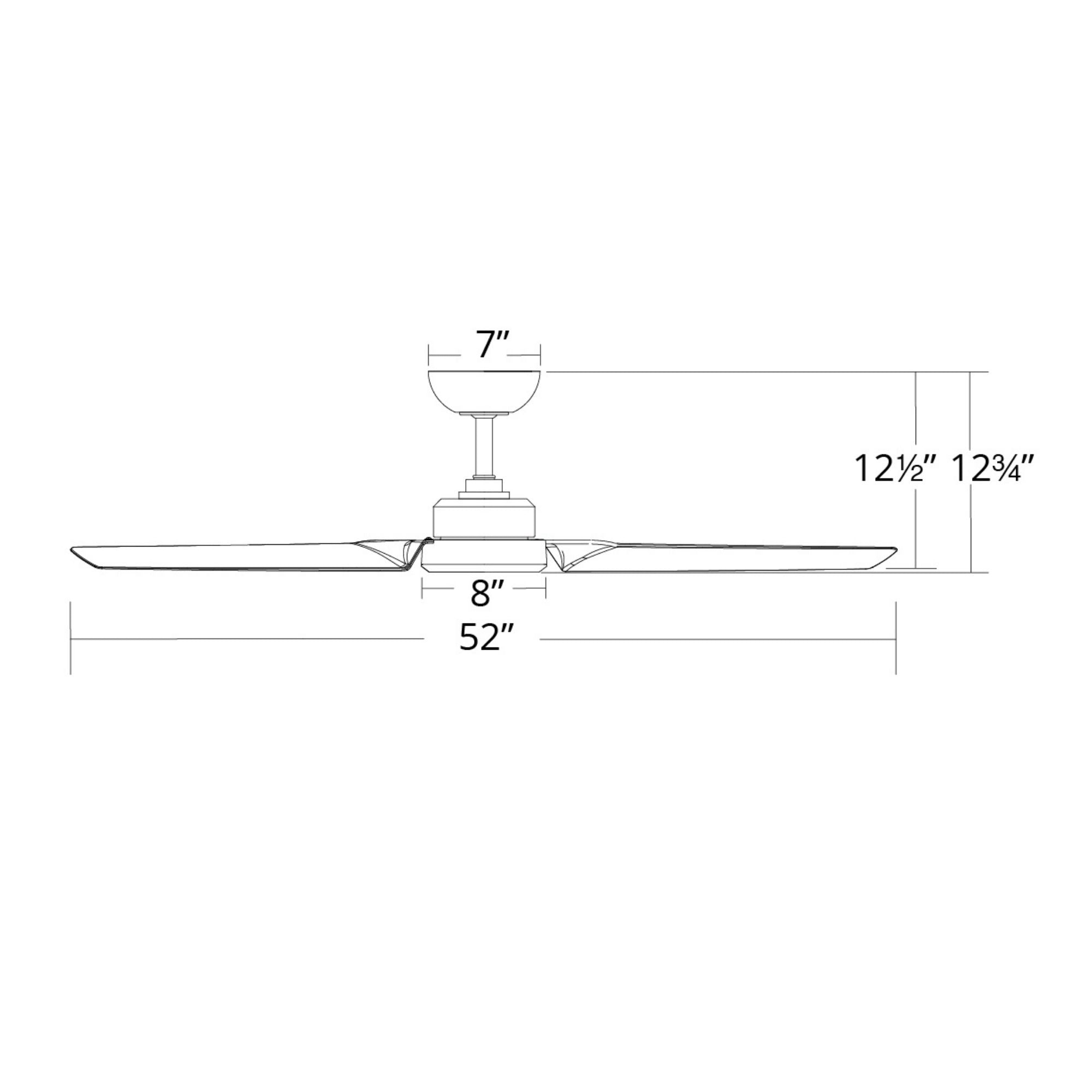

• Dimensions: 52 in diameter × 12.75 in overall height; 12.5 in blade drop; 7 in canopy diameter.
• Hanging Weight: 11.5 lb.
• Controls: Included F-RCBT-WT Bluetooth remote; optional F-WCBT-WT wall control sold separately.

Smart & Control Features

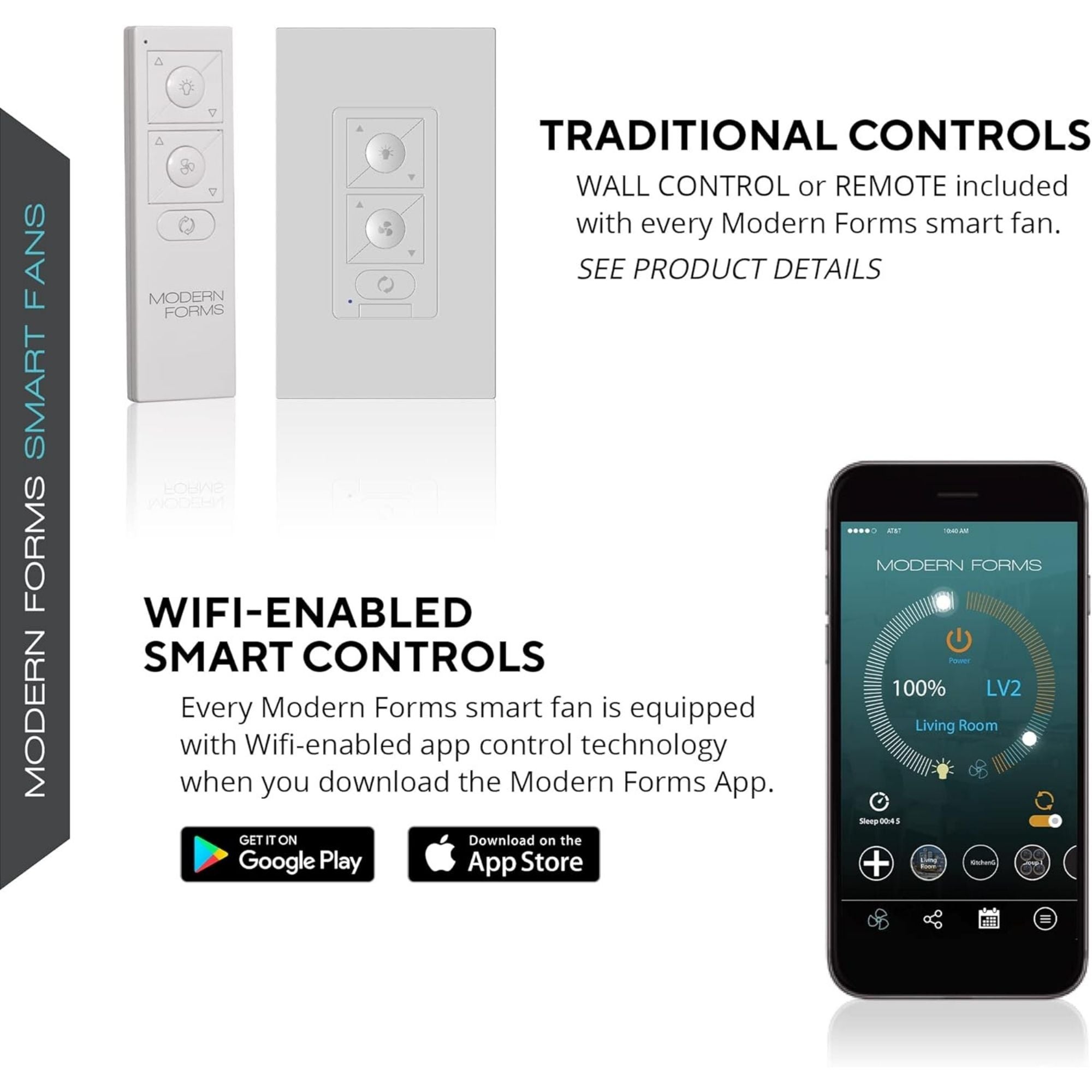

The included F-RCBT-WT Bluetooth remote controls six fan speeds and summer/winter modes. Wi-Fi and Bluetooth connectivity supports the Modern Forms app for speed control and scheduling. Voice integrations include Amazon Alexa and Google Assistant; smart-home integrations include Samsung SmartThings, Control4 and JOSH. The compatible F-WCBT-WT Bluetooth wall control is sold separately and supports multiple control locations.

Construction & Design

Aluminum and ABS construction pairs a Brushed Aluminum housing with three Titanium-finished blades. The clean three-blade profile and non-light design create a streamlined appearance for indoor and outdoor spaces.

Fan Performance

Roboto delivers 6,026 CFM on high and 4,047 CFM weighted-average airflow. The manufacturer lists efficiency at 138 CFM/W on high and 211 CFM/W weighted average. Six speeds and reversible summer/winter modes let you adjust circulation without an integrated light.

Electrical & Installation

The reversible DC motor has 38W total power. Includes a 6 in downrod, 80 in lead wire and a 7 in canopy. Standard mounting supports slopes up to 30°. The compatible XF-SCK sloped-ceiling kit, sold separately, supports ceilings up to 45°. Recommended maximum downrod length is 72 in with the supplied wire.

Suggested Downrod by Ceiling Height

Ships with a 6 in downrod. Longer compatible downrods are available separately.

• 9 ft ceiling: 12 in downrod
• 10 ft ceiling: 18 in downrod
• 11 ft ceiling: 24 in downrod
• 12 ft ceiling: 36 in downrod
• 13 ft ceiling: 48 in downrod
• 14 ft ceiling: 60 in downrod
• 15 ft ceiling: 72 in downrod

What's Included

• Roboto fan with Brushed Aluminum housing and three Titanium-finished blades
• F-RCBT-WT Bluetooth remote with wall cradle and batteries
• 6 in downrod
• Mounting Hardware
