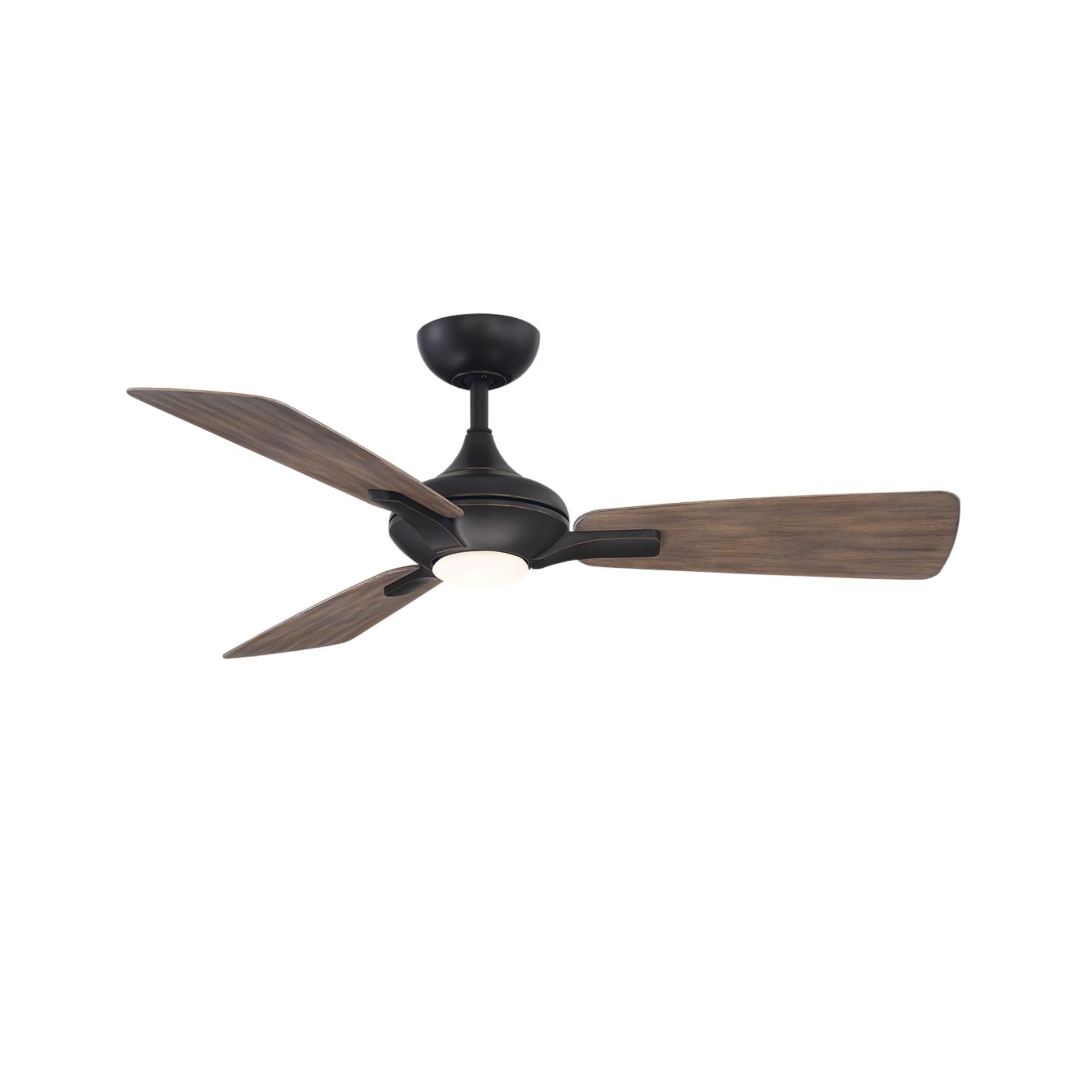

Modern Forms Mykonos 52 in Outdoor Smart LED Ceiling Fan DC Oil Rubbed Bronze Barn Wood

The Modern Forms Mykonos FR-W1819-52L-OB/BW pairs an Oil Rubbed Bronze housing with three Barn Wood-finished ABS blades for a streamlined transitional look. Its 52 in span and reversible DC motor deliver 6,001 CFM on high with six speeds. Wet Rated construction supports indoor and outdoor use, while the included Bluetooth remote and Modern Forms app provide smart control. A 13W dimmable 3000K LED supplies warm lighting with 90 CRI.

Key Features

• Blade Configuration: Three ABS blades; 52 in sweep and 13° pitch.
• Motor: 125 × 12 sensorless DC motor; six speeds, summer/winter modes and maximum 172 RPM.
• Airflow: 6,001 CFM on high; 4,205 CFM weighted average.
• Airflow Efficiency: Listed 162 CFM/W on high; 211 CFM/W weighted average.
• Power: Listed 52.5W total; 32W high-speed and 13W weighted-average motor energy use.
• LED Lighting: 13W, 3000K, 90 CRI; 1,110 source lumens and 381 delivered lumens.
• Dimming & Life: Integrated dimming; 50,000-hour rated LED life.
• Location Rating: UL/cUL Wet Location listed for indoor and outdoor use.
• Mounting: Slopes up to 30°; optional XF-SCK kit supports up to 45°, sold separately.
• Downrod & Wire: Included 4.5 in downrod with 0.75 in inside diameter; 80 in lead wire.

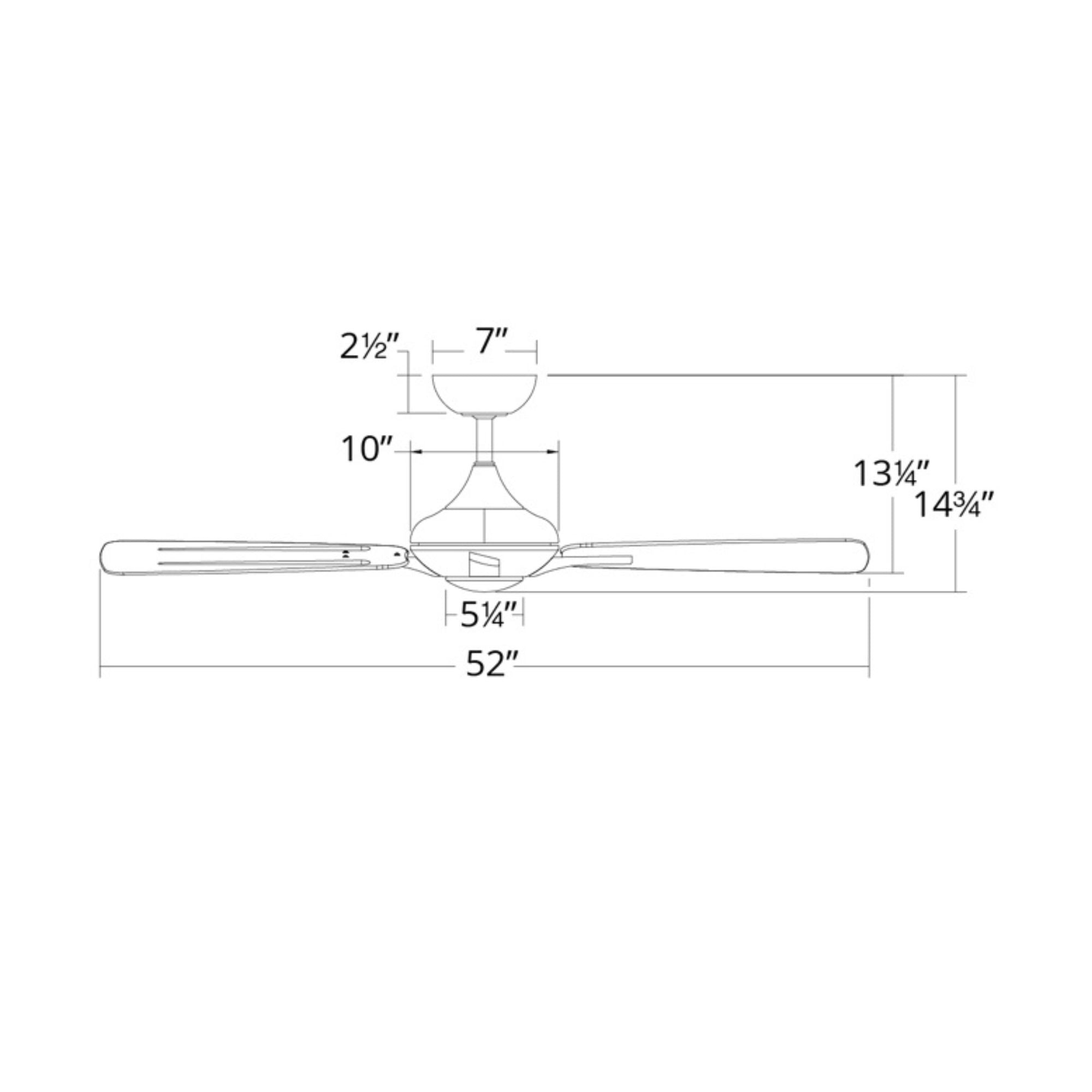

• Dimensions: 52 in diameter × 14.75 in overall height; 13.25 in blade drop; 7 in canopy diameter × 2.5 in height.
• Hanging Weight: 23 lb.
• Controls: Included F-RCBT-WT Bluetooth remote; optional F-WCBT-WT wall control sold separately.

Smart & Control Features

The included F-RCBT-WT Bluetooth remote controls six speeds, light brightness and summer/winter modes. Integrated Wi-Fi and Bluetooth connectivity supports the Modern Forms app, including scheduling. Voice integrations include Amazon Alexa and Google Assistant; smart-home integrations include Samsung SmartThings, Control4 and JOSH. The compatible F-WCBT-WT Bluetooth wall control is sold separately and supports multiple control locations.

Construction & Design

An aluminum housing in Oil Rubbed Bronze contrasts with three Barn Wood-finished ABS blades. The wood-look finish delivers a transitional profile without describing the blades as solid wood.

Light Output & Performance

The 13W integrated LED provides 1,110 source lumens and 381 delivered lumens at 3000K, with 90 CRI and a 50,000-hour rated life. Integrated dimming supports brightness control through the included Bluetooth remote and Modern Forms app. The 2700K and 3500K versions are separate ordering options, not selectable settings on this SKU. Fan airflow reaches 6,001 CFM on high.

Electrical & Installation

The reversible DC motor supports summer/winter operation. Includes a 4.5 in downrod with 0.75 in inside diameter and 80 in wire. Standard mounting supports slopes up to 30°. The compatible XF-SCK sloped-ceiling kit, sold separately, supports ceilings up to 45°. Recommended maximum downrod length is 72 in with the supplied wire.

Suggested Downrod by Ceiling Height

Ships with a 4.5 in downrod. Longer compatible downrods are available separately.

• 9 ft ceiling: 12 in downrod
• 10 ft ceiling: 18 in downrod
• 11 ft ceiling: 24 in downrod
• 12 ft ceiling: 36 in downrod
• 13 ft ceiling: 48 in downrod
• 14 ft ceiling: 60 in downrod
• 15 ft ceiling: 72 in downrod

What's Included

• Mykonos fan with Oil Rubbed Bronze housing and three Barn Wood-finished blades
• Integrated LED light
• F-RCBT-WT Bluetooth remote with wall cradle and batteries
• 4.5 in downrod
• Mounting Hardware
