The Modern Forms Windflower FR-W1815-80L-MB/DK is an 80 in wet-rated smart ceiling fan that commands attention in mid-sized and large spaces with the sculptural drama of twelve blades in motion. Inspired by the classic Holland windmill, twelve Distressed Koa ABS blades at 15° pitch are driven by a whisper-quiet 168x30mm sensorless DC motor delivering 10,223 CFM at high speed at 200 CFM/W efficiency. An integrated 23.5W LED module produces 1,080 delivered lm with a default 3000K color temperature (2700K and 3500K options available), CRI 90, dimmable, rated 50,000 hours. Wet rated and UL/cUL listed, the Matte Black finish with Distressed Koa blades delivers bold architectural presence suited to covered outdoor living spaces, great rooms, vaulted entryways, and statement interiors.

• Blade Span: 80 in, 12 ABS blades, 15° pitch — Distressed Koa finish
• Mount Type: Downrod — 0.75x6 in included, sloped ceiling compatible up to 30° standard / up to 45° with XF-SCK sloped ceiling kit
• Motor: 168x30mm sensorless DC, 6-speed, Summer & Winter modes — Matte Black finish
• Airflow: 10,223 CFM high / 7,690 CFM weighted average
• Efficiency: 200 CFM/W high / 227 CFM/W weighted average
• Wattage: 51W high / 34W weighted average
• Light: 23.5W integrated LED, 1,080 delivered lm, CRI 90, 3000K default (2700K/3500K options), dimmable, 50,000 hr rated life
• Location: Wet rated — UL/cUL listed, Title 24 JA8-2016 compliant, Title 20

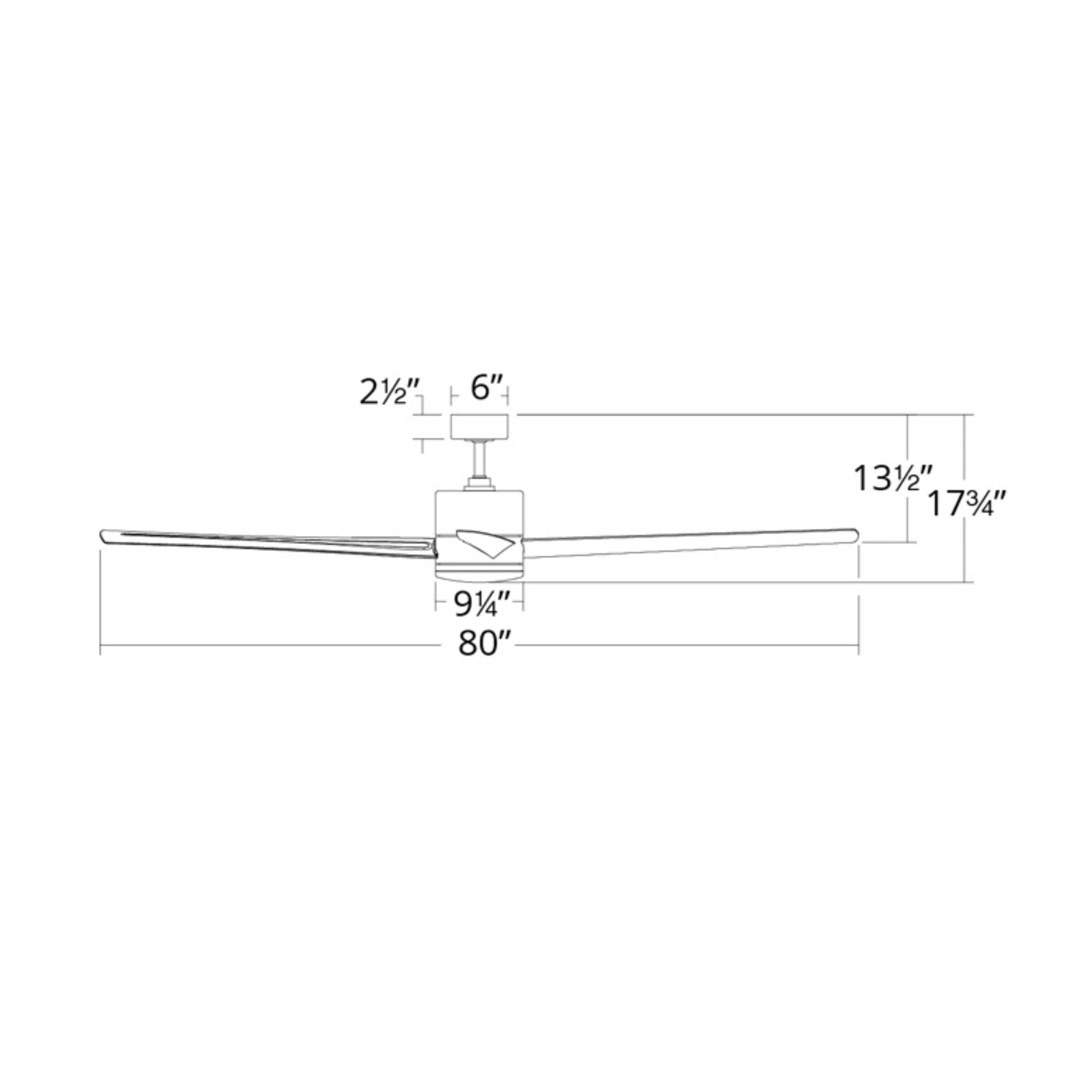

• Weight: 42 lbs / Ceiling to blade: 13.5 in / Overall height: 17.75 in

The FR-W1815-80L-MB/DK features native Wi-Fi smart control via the Modern Forms app — 6-speed fan control through Summer and Winter modes, full-range light dimming, scheduling, and away mode. No hub required. Wi-Fi range up to 150 ft. Includes RF wall control — controls fan speed, Summer & Winter mode switching, and full-range light dimming. Optional Bluetooth Wall Control F-WCBT (White) and Bluetooth Remote Control F-RCBT (White) available separately. Compatible voice and smart home integrations: Amazon Alexa, Google Assistant, Samsung SmartThings, Control4, and Josh. No pull chain.

Matte Black aluminum and ABS motor housing with 12 Distressed Koa ABS blades, 15° pitch. Integrated 23.5W LED module. Downrod: 0.75x6 in included. Wire: 80 in. Sloped ceiling compatible up to 30° with supplied brackets / up to 45° (12/12 pitch) with optional XF-SCK sloped ceiling kit. UL/cUL wet location listed. Title 24 JA8-2016 compliant. Title 20. Lifetime warranty.

23.5W integrated LED, 2,041 initial lumens / 1,080 delivered lumens, CRI 90, 3000K default (2700K and 3500K options available — specify at order with suffix -27 or -35 before finish code), dimmable, 50,000 hr rated life. Fan: 10,223 CFM high at 200 CFM/W.

168x30mm sensorless DC motor, 120V, 6-speed, 74.5W total power. Wet rated — UL/cUL listed. Downrod: 0.75x6 in included. Wire: 80 in. Sloped ceiling compatible up to 30° standard / up to 45° with XF-SCK. Overall height: 17.75 in. Ceiling to blade: 13.5 in. Weight: 42 lbs. Maximum recommended downrod: 72 in with 80 in lead wire.

Ships with 6 in downrod. Maintain 7 ft minimum floor-to-blade clearance. Modern Forms downrods available separately (all 0.75 in diameter, threaded).

• 9 ft → 12 in (XF-12)
• 10 ft → 18 in (XF-18)
• 11 ft → 24 in (XF-24)
• 12 ft → 36 in (XF-36)
• 13 ft → 48 in (XF-48)
• 14 ft → 60 in (XF-60)
• 15 ft → 72 in (XF-72)

• Modern Forms Windflower 80 in ceiling fan (motor + 12 Distressed Koa ABS blades)
• Integrated 23.5W LED light module
• RF wall control
• 0.75x6 in downrod
• Mounting hardware (supports slopes up to 30°)
