Modern Forms Wynd 52 in Outdoor Smart LED Ceiling Fan DC Bronze

The Modern Forms Wynd FR-W1801-52L-BZ pairs transitional styling with a Bronze housing and matching blades. Its 52 in sweep suits living rooms and large bedrooms, while Wet Location-rated construction extends its use outdoors. A quiet sensorless DC motor delivers 6,270 CFM on high with six speeds and summer/winter modes. Integrated dimmable LED lighting, an included Bluetooth remote and the Modern Forms app bring convenient control to everyday comfort.

Key Features

• Blades: Five-blade design; 52 in sweep and 13° pitch.
• Motor: 125 × 30 sensorless DC motor; six speeds, summer/winter modes and maximum 147 RPM.
• Airflow: 6,270 CFM high; 4,286 CFM weighted average.
• Efficiency: 207 CFM/W high and weighted average, as listed.
• Power: 56W total; 26W high and 21W weighted-average fan energy use.
• Rating: UL/cUL Wet Location listed for indoor and outdoor use.
• Mounting: Slopes up to 30°; optional XF-SCK kit supports up to 45°, sold separately.
• Downrod & Wire: 4.5 in × 0.75 in downrod included; 80 in lead wire; recommended maximum downrod length 72 in.

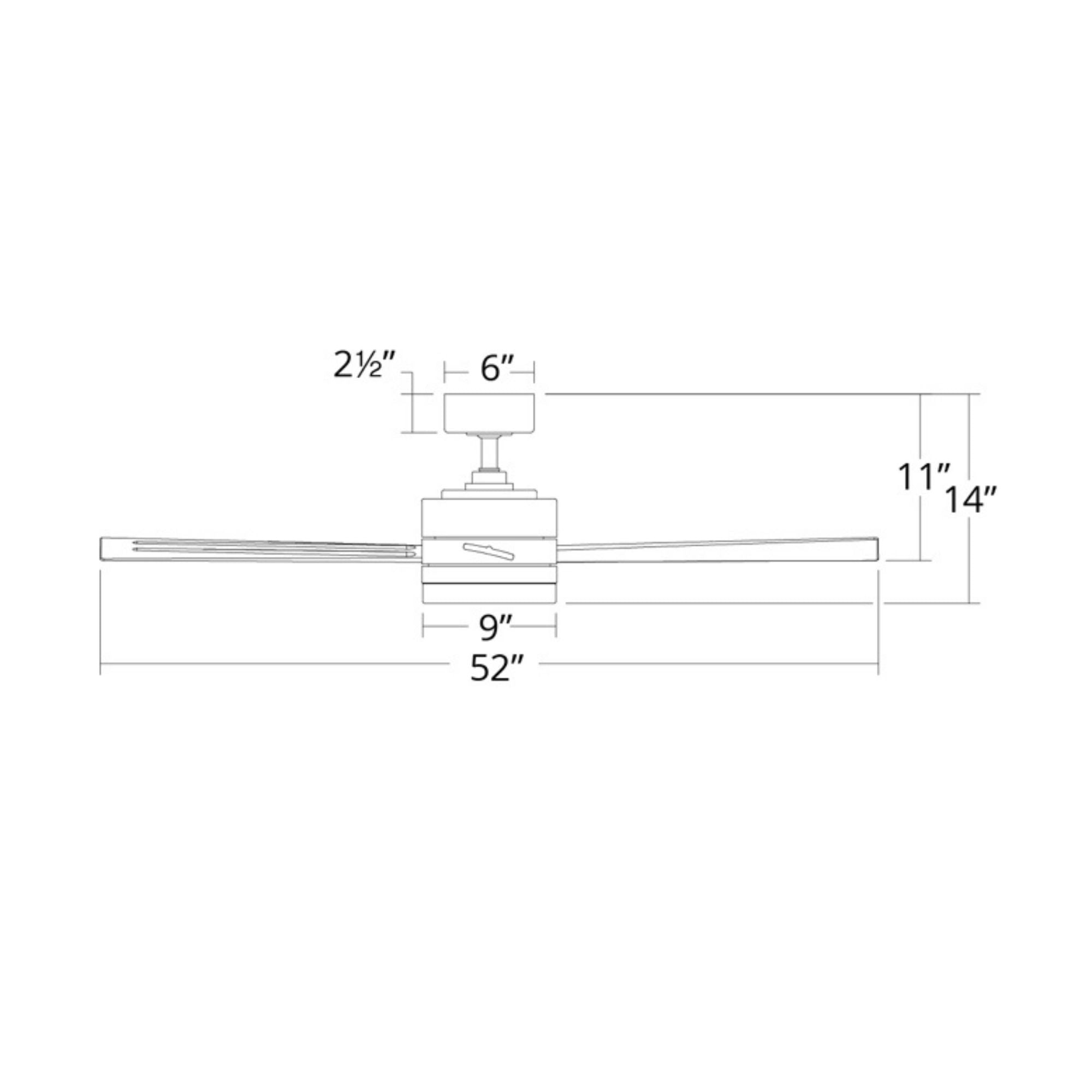

• Dimensions: 52 in diameter; 14 in overall height; 11 in blade drop; 6 in canopy diameter.
• Hanging Weight: 17.5 lb.
• LED: 21W integrated dimmable light; 90 CRI; 1,124 delivered lumens; 50,000-hour rated life.

Smart & Control Features

The included F-RCBT-WT Bluetooth remote controls fan speed, light brightness and summer/winter modes and includes a wall cradle and batteries. The Modern Forms app supports smart fan and light control. Wi-Fi and Bluetooth ranges are listed up to 150 ft, depending on surroundings. Voice integrations include Amazon Alexa and Google Assistant; smart-home integrations include Samsung SmartThings, Control4 and JOSH. The optional F-WCBT-WT Bluetooth wall control, sold separately, controls speed, brightness and motor modes and supports 3-way/4-way and multiple-location control.

Construction & Design

Aluminum and ABS construction combines a Bronze housing with matching Bronze blades. The transitional five-blade profile works with contemporary and traditional spaces. The fan is Energy Star rated, Title 24 JA8-2016 compliant and Title 20 listed.

Light Output & Performance

The integrated 21W LED provides 3000K light, 90 CRI and 1,124 delivered lumens, with a 50,000-hour rated life. Integrated dimming lets you adjust brightness through the included Bluetooth remote, Modern Forms app or optional wall control. Fan performance reaches 6,270 CFM on high and 4,286 CFM weighted average. The family specification lists source output of 1,991–2,159 lumens depending on CCT.

Electrical & Installation

Operates at 120V with a reversible DC motor. Listed total power is 56W, with 26W high-speed and 21W weighted-average fan energy use. Includes a 4.5 in downrod, 80 in lead wire and 6 in canopy. Standard mounting supports slopes up to 30°; the XF-SCK sloped-ceiling kit, sold separately, supports up to 45°. Compatible accessory downrods are 0.75 in wide with threaded motor ends. Recommended maximum downrod length is 72 in with the supplied wire.

Suggested Downrod by Ceiling Height

A 4.5 in downrod is included. Longer compatible downrods are sold separately.

• 9 ft ceiling: 12 in downrod
• 10 ft ceiling: 18 in downrod
• 11 ft ceiling: 24 in downrod
• 12 ft ceiling: 36 in downrod
• 13 ft ceiling: 48 in downrod
• 14 ft ceiling: 60 in downrod
• 15 ft ceiling: 72 in downrod

What's Included

• Wynd fan with Bronze housing and matching blades
• Integrated LED light
• F-RCBT-WT Bluetooth remote, wall cradle and batteries
• 4.5 in downrod
• Mounting Hardware
