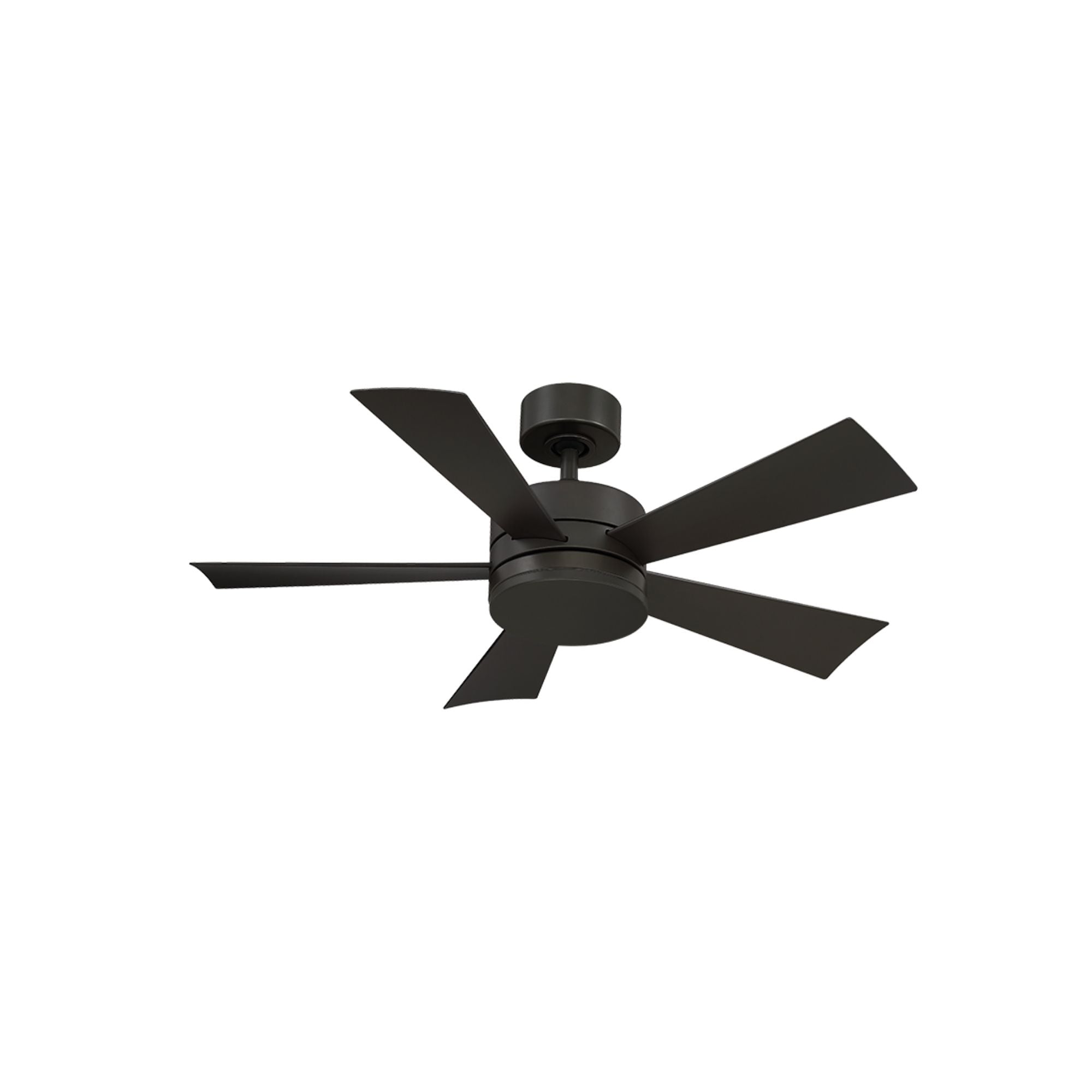

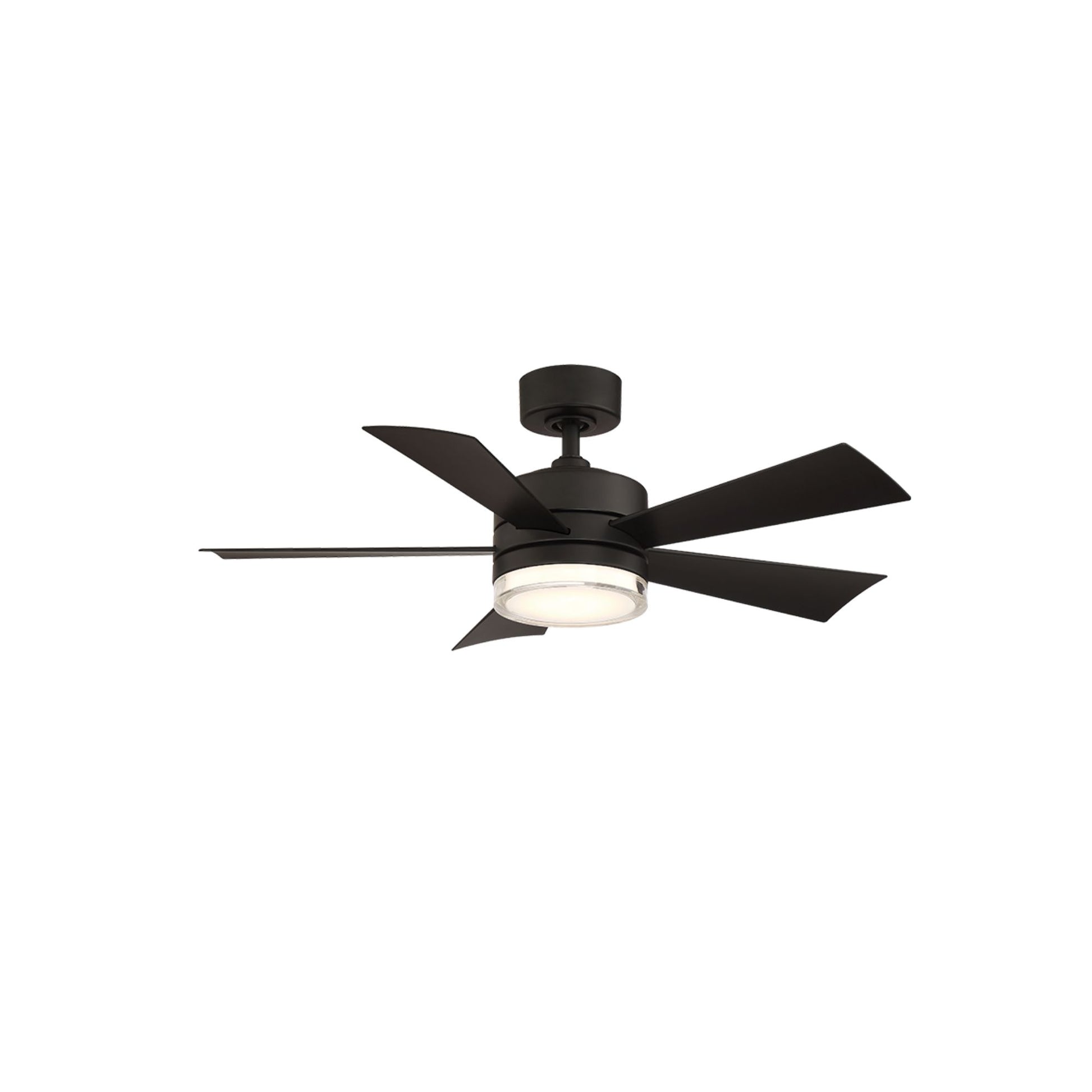

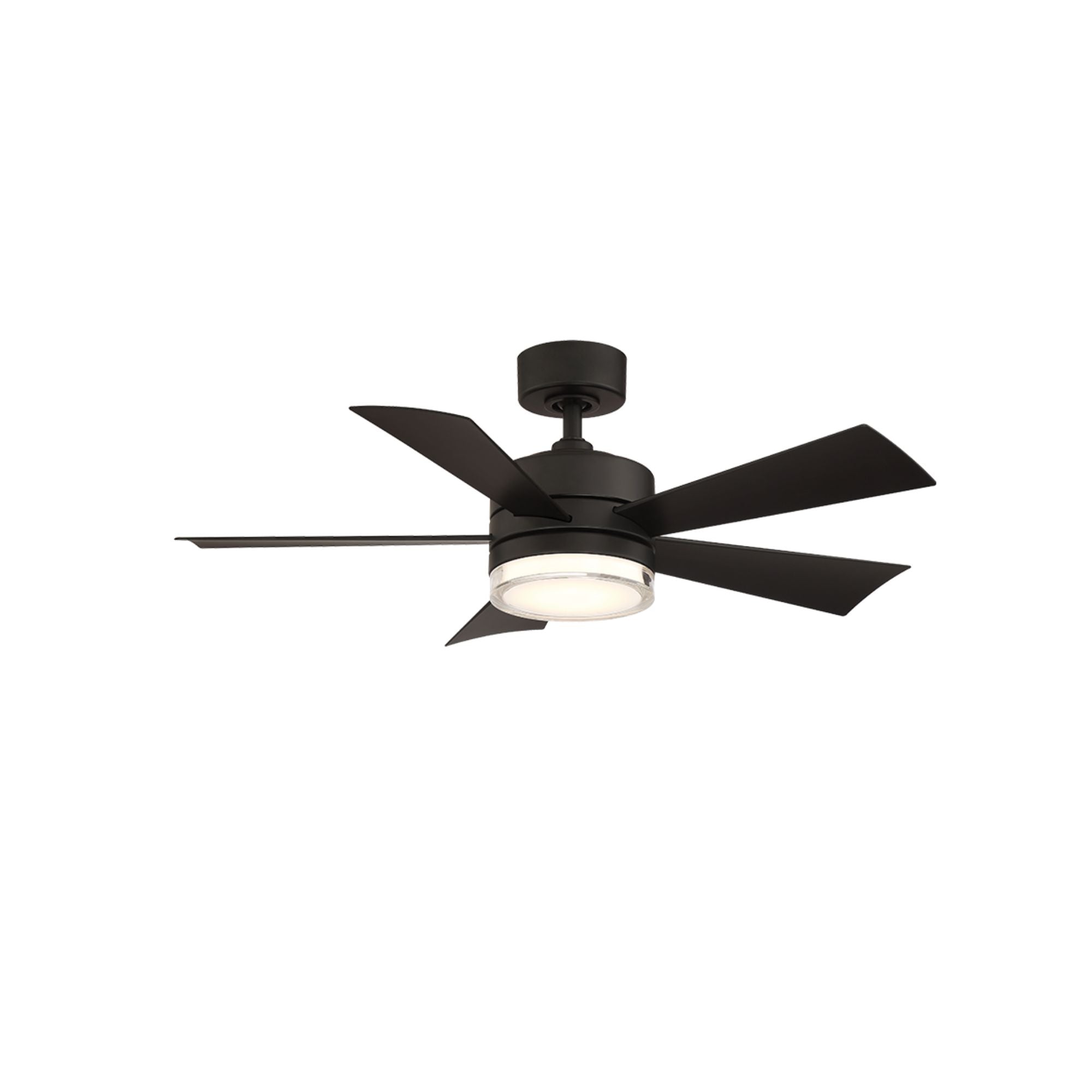

Modern Forms Wynd 42 in Outdoor Smart LED Ceiling Fan DC Matte Black

The Modern Forms Wynd FR-W1801-42L-MB pairs transitional styling with a Matte Black housing and matching blades. Its compact 42 in sweep suits patios and breakfast nooks, while Wet Location-rated construction supports indoor and outdoor use. A quiet sensorless DC motor delivers 4,981 CFM on high with six speeds and summer/winter modes. Integrated dimmable LED lighting, an included Bluetooth remote and the Modern Forms app bring convenient control to everyday comfort.

Key Features

• Blades: Five-blade design; 42 in sweep and 13° pitch.
• Motor: 125 × 20 sensorless DC motor; six speeds, summer/winter modes and maximum 199 RPM.
• Airflow: 4,981 CFM high; 3,199 CFM weighted average.
• Efficiency: 193 CFM/W high; 211 CFM/W weighted average, as listed.
• Power: 44.5W total; 25W high and 13W weighted-average fan energy use.
• Rating: UL/cUL Wet Location listed for indoor and outdoor use.
• Mounting: Slopes up to 30°; optional XF-SCK kit supports up to 45°, sold separately.
• Downrod & Wire: 4.5 in × 0.75 in downrod included; 80 in lead wire; recommended maximum downrod length 72 in.

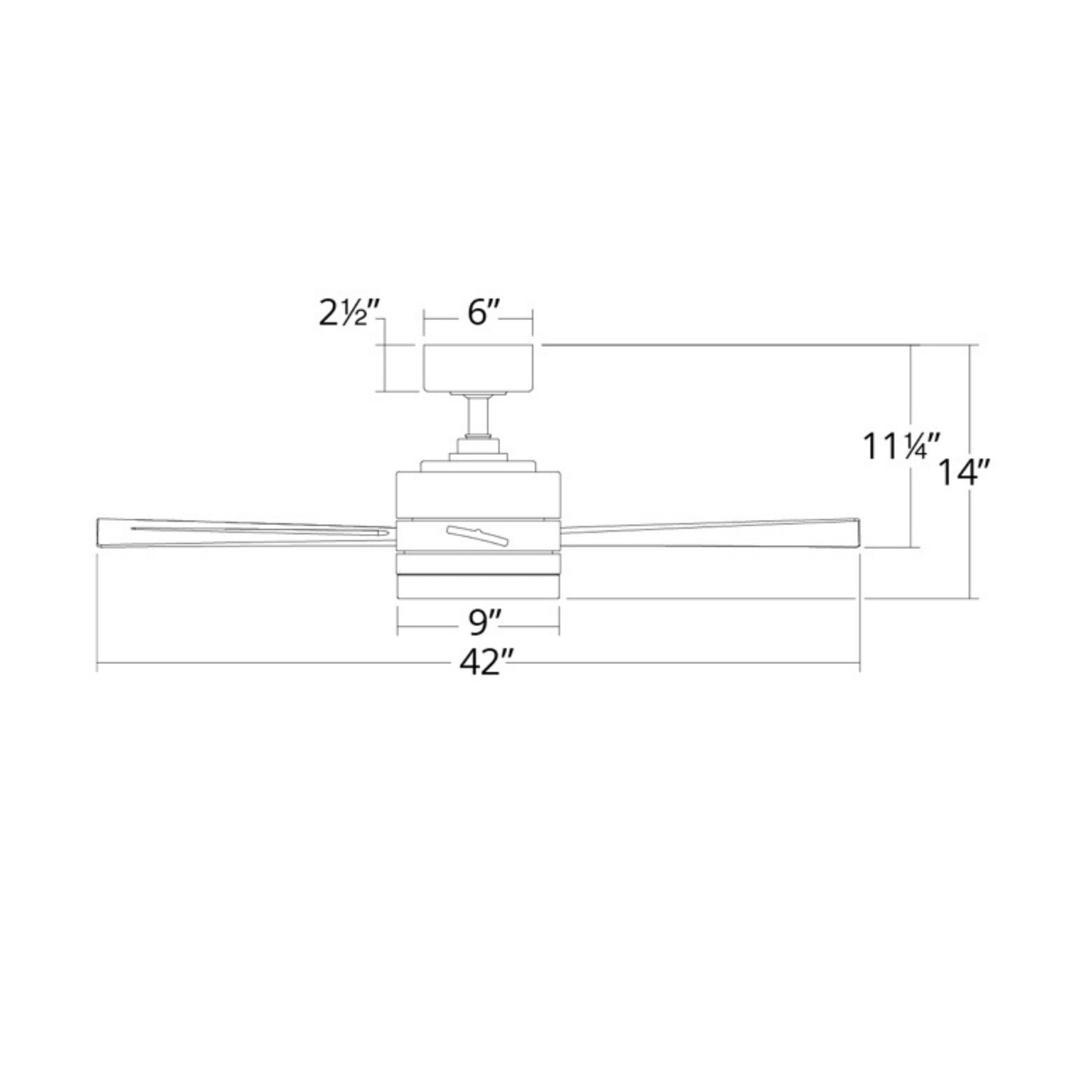

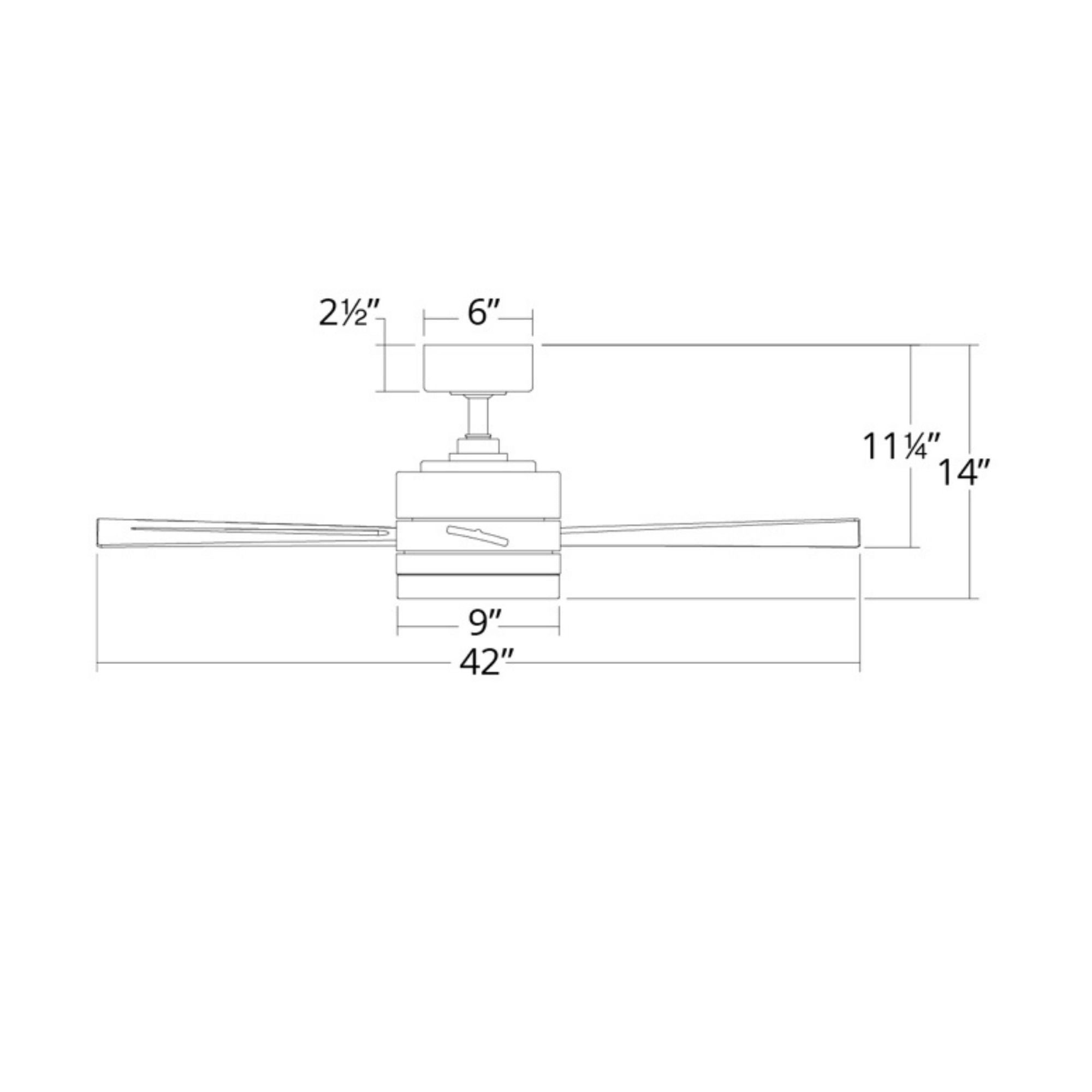

• Dimensions: 42 in diameter; 14 in overall height; 11.25 in blade drop; 6 in canopy diameter.
• Hanging Weight: 15.5 lb.
• LED: 21W integrated dimmable light; 90 CRI; 1,124 delivered lumens; 50,000-hour rated life.

Smart & Control Features

The included F-RCBT-WT Bluetooth remote controls fan speed, light brightness and summer/winter modes and includes a wall cradle and batteries. The Modern Forms app supports smart fan and light control. Wi-Fi and Bluetooth ranges are listed up to 150 ft, depending on surroundings. Voice integrations include Amazon Alexa and Google Assistant; smart-home integrations include Samsung SmartThings, Control4 and JOSH. The optional F-WCBT-WT Bluetooth wall control, sold separately, controls speed, brightness and motor modes and supports 3-way/4-way and multiple-location control.

Construction & Design

Aluminum and ABS construction combines a Matte Black housing with matching Matte Black blades. The transitional five-blade profile works with contemporary and traditional spaces. The fan is Energy Star rated, Title 24 JA8-2016 compliant and Title 20 listed.

Light Output & Performance

The integrated 21W LED provides 3000K light, 90 CRI and 1,124 delivered lumens, with a 50,000-hour rated life. Integrated dimming lets you adjust brightness through the included Bluetooth remote, Modern Forms app or optional wall control. Fan performance reaches 4,981 CFM on high and 3,199 CFM weighted average. The family specification lists source output of 1,991–2,159 lumens depending on CCT.

Electrical & Installation

Operates at 120V with a reversible DC motor. Listed total power is 44.5W, with 25W high-speed and 13W weighted-average fan energy use. Includes a 4.5 in downrod, 80 in lead wire and 6 in canopy. Standard mounting supports slopes up to 30°; the XF-SCK sloped-ceiling kit, sold separately, supports up to 45°. Compatible accessory downrods are 0.75 in wide with threaded motor ends. Recommended maximum downrod length is 72 in with the supplied wire.

Suggested Downrod by Ceiling Height

A 4.5 in downrod is included. Longer compatible downrods are sold separately.

• 9 ft ceiling: 12 in downrod
• 10 ft ceiling: 18 in downrod
• 11 ft ceiling: 24 in downrod
• 12 ft ceiling: 36 in downrod
• 13 ft ceiling: 48 in downrod
• 14 ft ceiling: 60 in downrod
• 15 ft ceiling: 72 in downrod

What's Included

• Wynd fan with Matte Black housing and matching blades
• Integrated LED light
• F-RCBT-WT Bluetooth remote, wall cradle and batteries
• 4.5 in downrod
• Mounting Hardware
