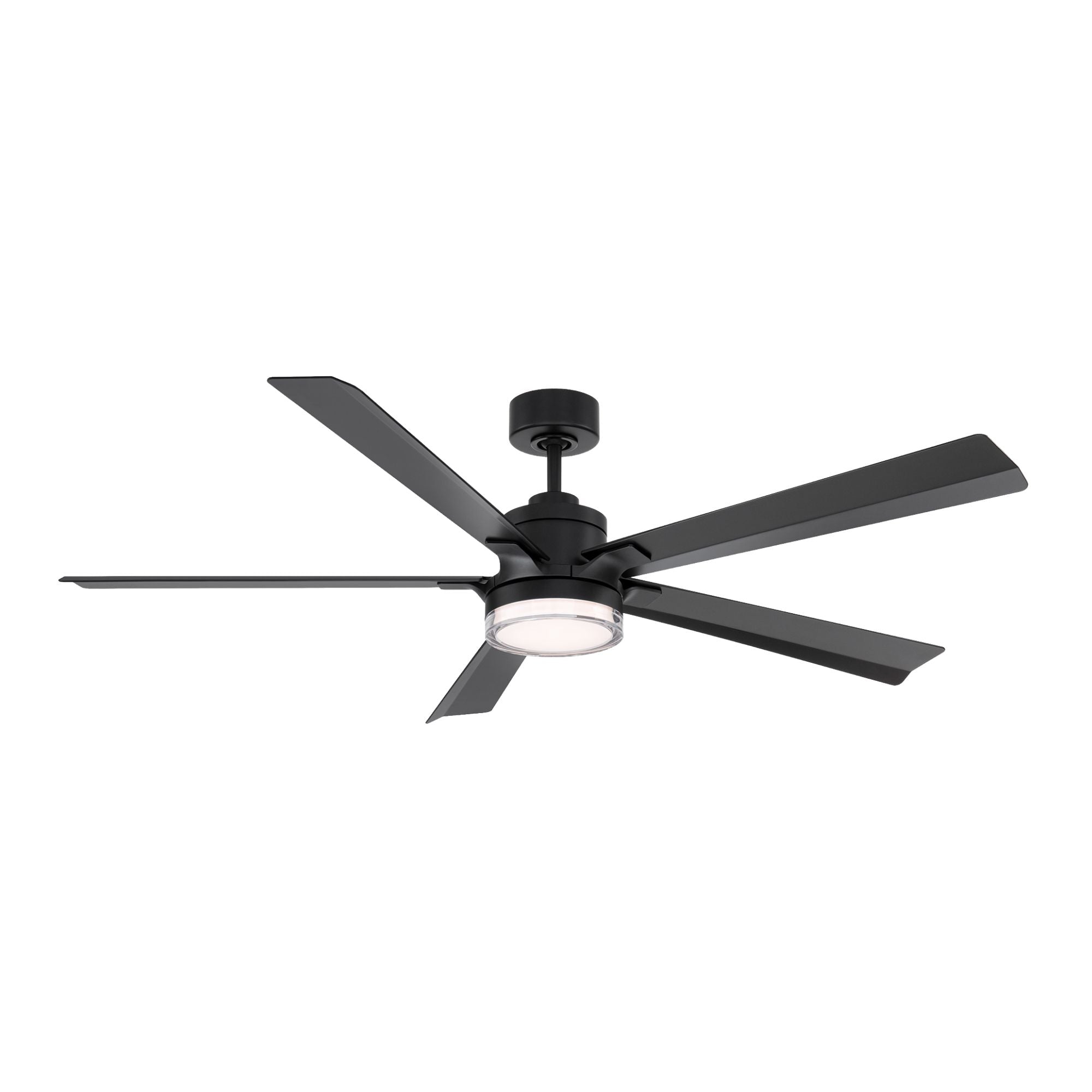

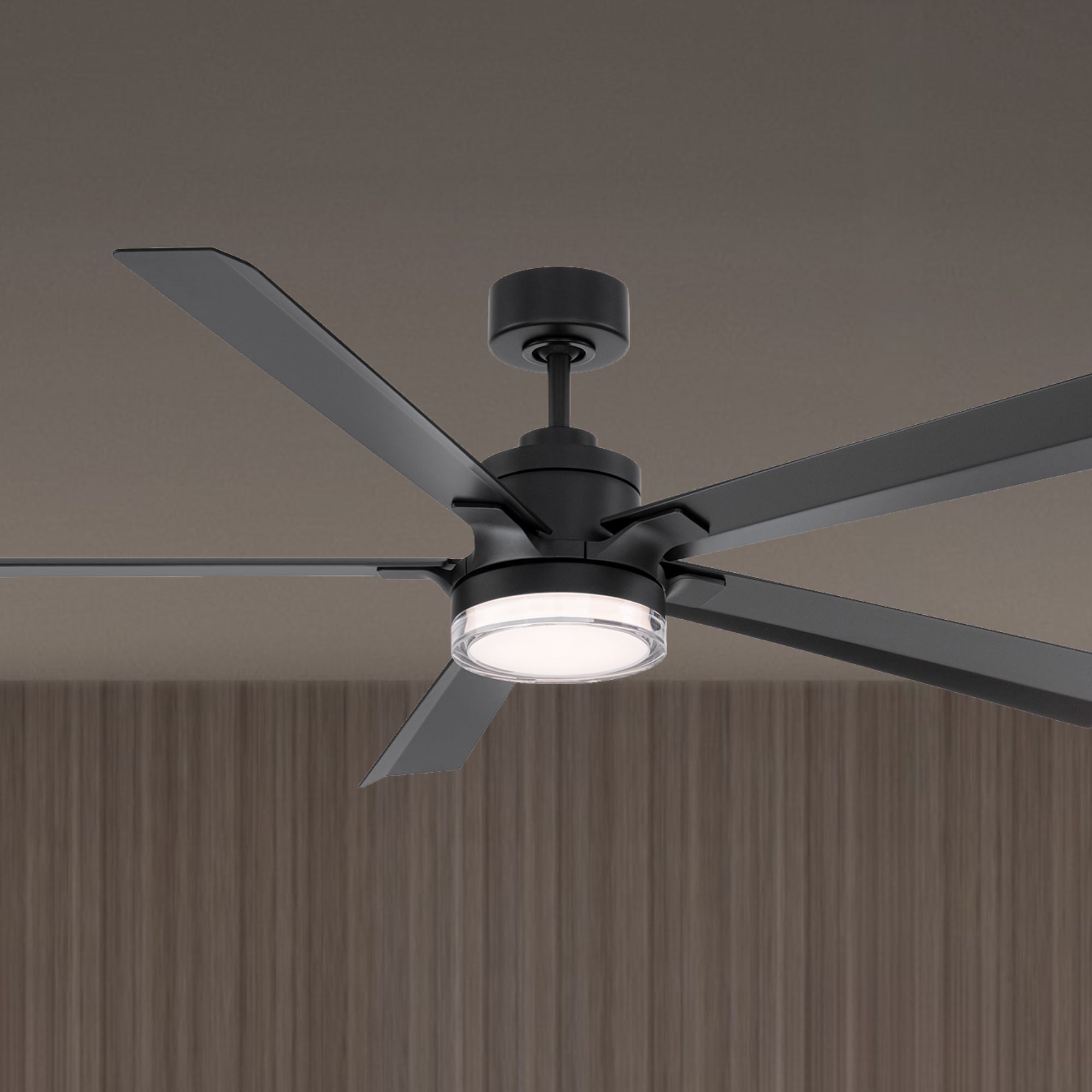

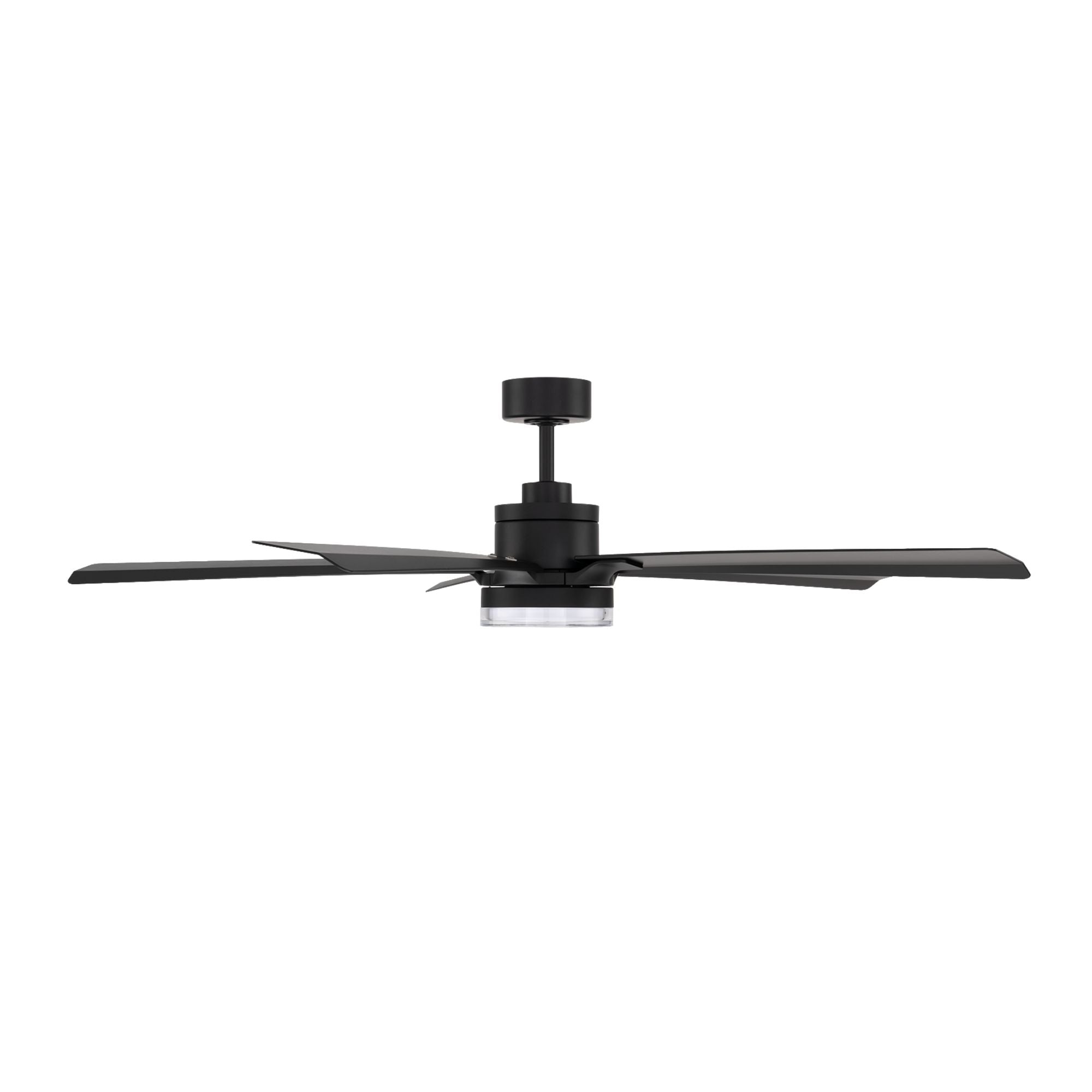

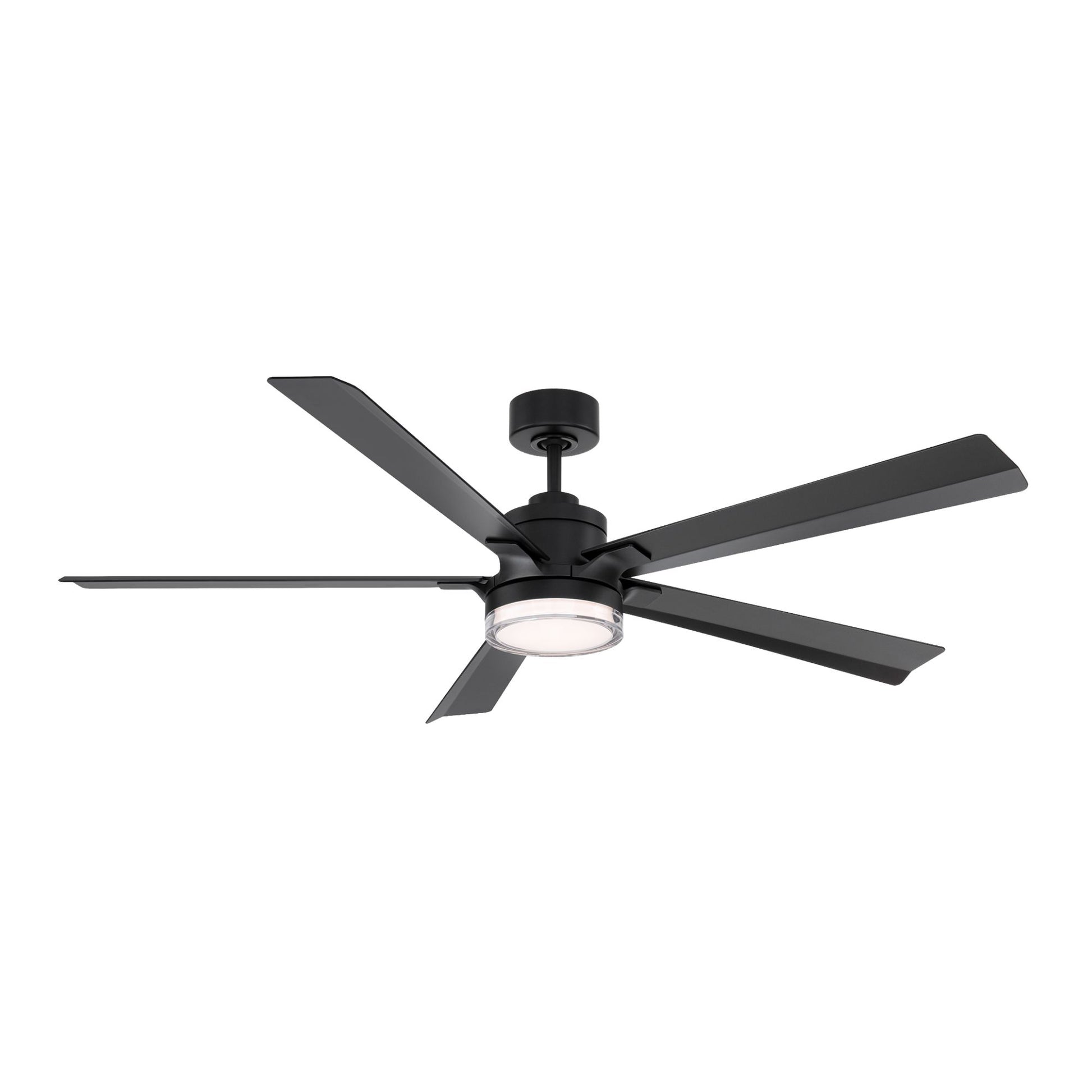

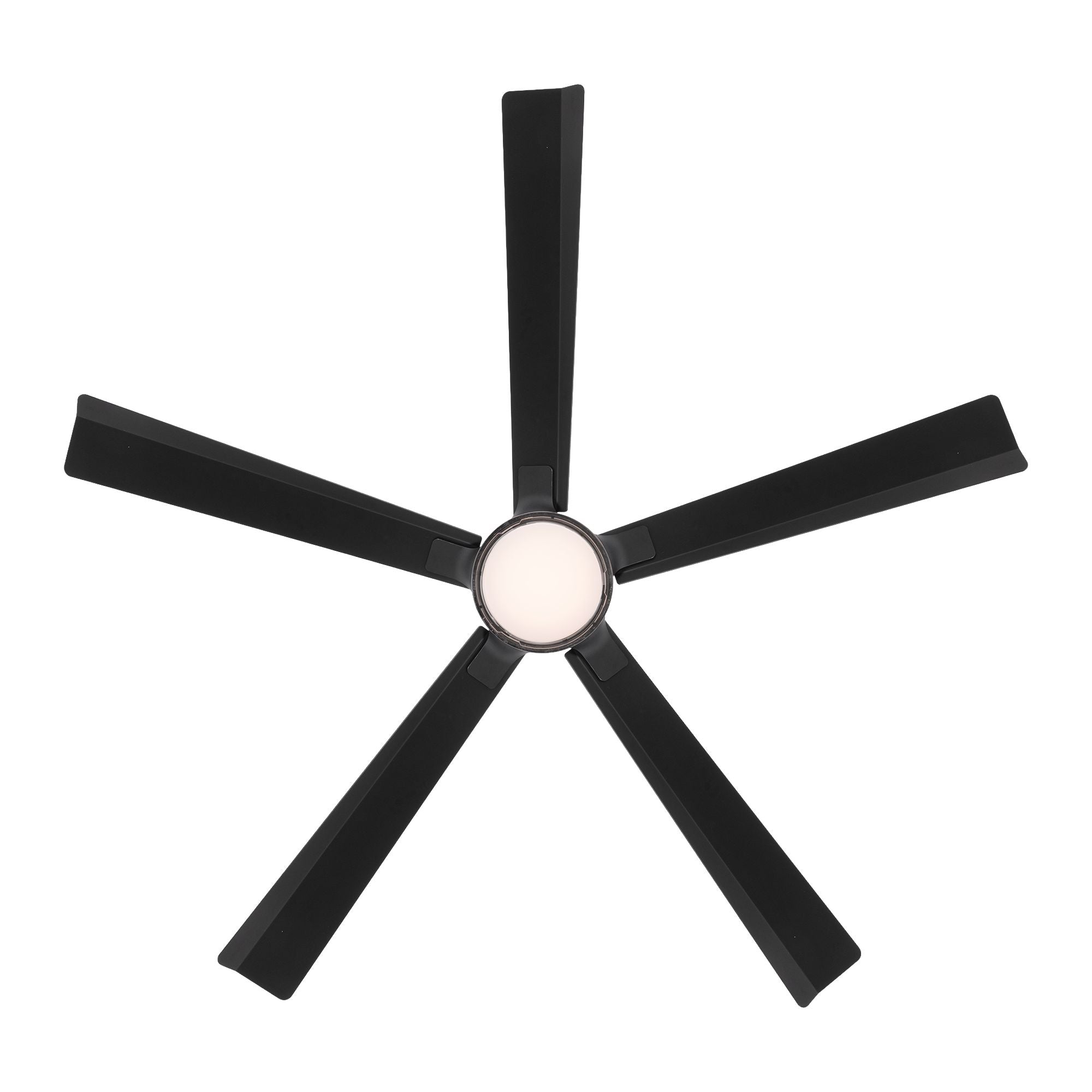

The Modern Forms Radiant FR-D2603-64L-MB is a five-blade 64 in downrod smart ceiling fan in Matte Black with matching Matte Black blades — new for 2026. Powered by a whisper-quiet DC 153×20 sensorless motor with native WiFi and Bluetooth, it delivers 9,179 CFM at high speed. Its defining feature: a seamlessly integrated uplight + downlight LED system that illuminates both the room below and the ceiling above, creating a soft architectural glow. UL/cUL Damp Location listed, Title 24, Title 20, and Energy Star compliant.

• Blade Span: 64 in / 5 ABS blades / 10° pitch / Matte Black
• Motor: DC 153×20 sensorless / 6 speeds / Summer & Winter modes / reversible
• Airflow: 9,179 CFM at high / 6,194 CFM weighted average
• Efficiency: 206 CFM/W at high speed / 200 CFM/W weighted average
• Wattage: 44.5W at high / 31W weighted average / 90.5W total
• Downlight: 30W integrated LED — 3,749–3,887 delivered lumens (CCT-based) / CRI 90 / CCT selectable 2700K•3000K•3500K•4000K•5000K / rated 50,000 hrs / dimmable
• Uplight: 16W integrated LED — 898–1,007 lumens (CCT-based) / same CCT range / dimmable
• Total Delivered Lumens: 3,088 (downlight + uplight combined)
• Location Rating: UL/cUL Damp Location listed — suitable for indoor and covered outdoor spaces.
• Mount Type: Downrod — 0.75 in ID × 6 in downrod included / slope compatible up to 30° standard

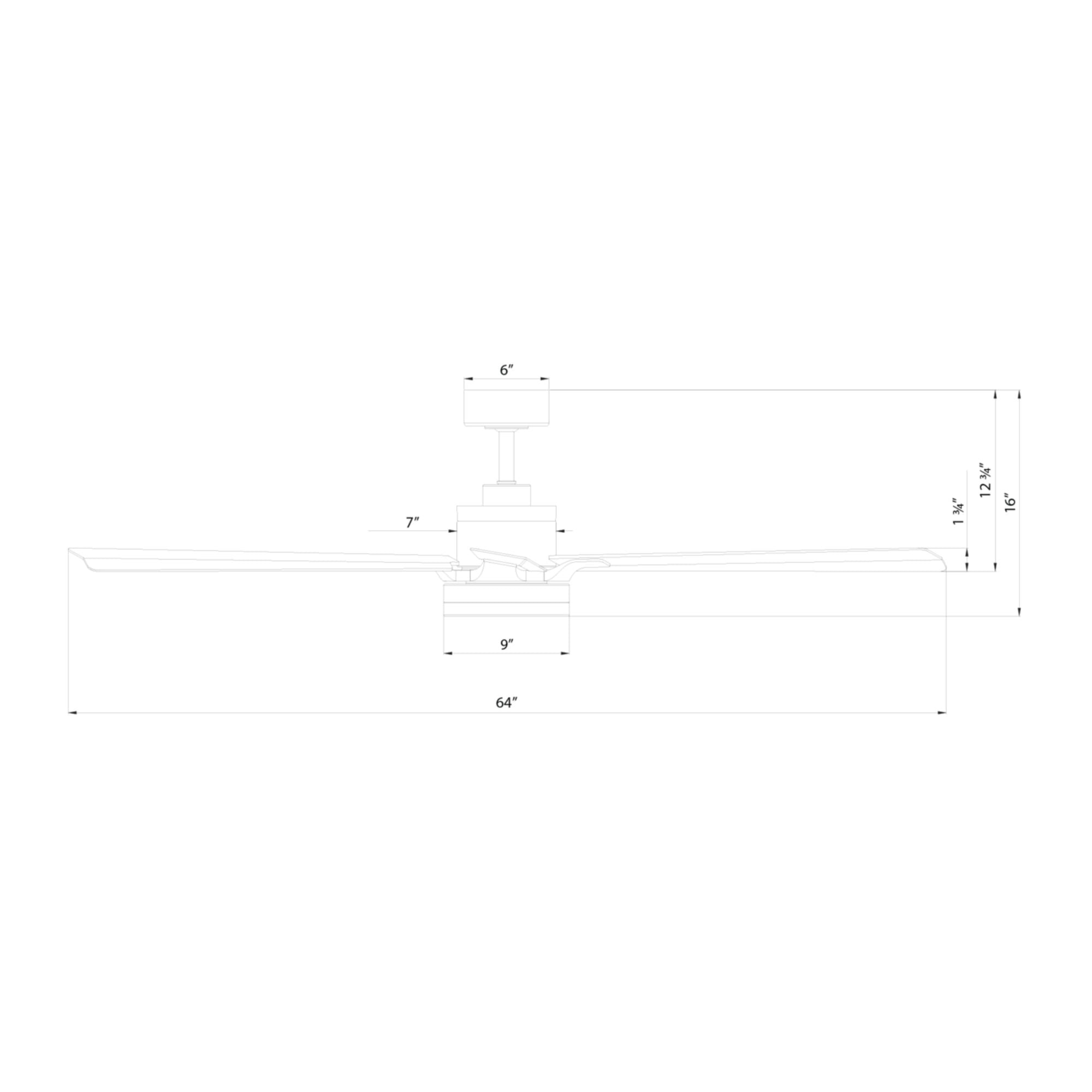

• Ceiling to Blade: 12¾ in / Ceiling to lowest point: 16 in
• Weight: 21.2 lbs
• Certifications: UL/cUL Damp Location / Title 24 JA8-2020 / Title 20 / Energy Star

Included Remote — F4-RCUBT-WT Bluetooth Remote: 6-speed fan control in Summer & Winter modes, On/Off, light dimmer. Native WiFi + Bluetooth — WiFi range up to 150 ft / Bluetooth range up to 150 ft. MyWAC App (iOS/Android): full fan and light control, scheduling, and smart home integration. Voice Control: Amazon Alexa, Google Assistant, Control4, JOSH. Compatible Wall Control — F4-WCUBT-WT (sold separately): Bluetooth wall control for fan speed, light brightness, and Summer/Winter mode switching.

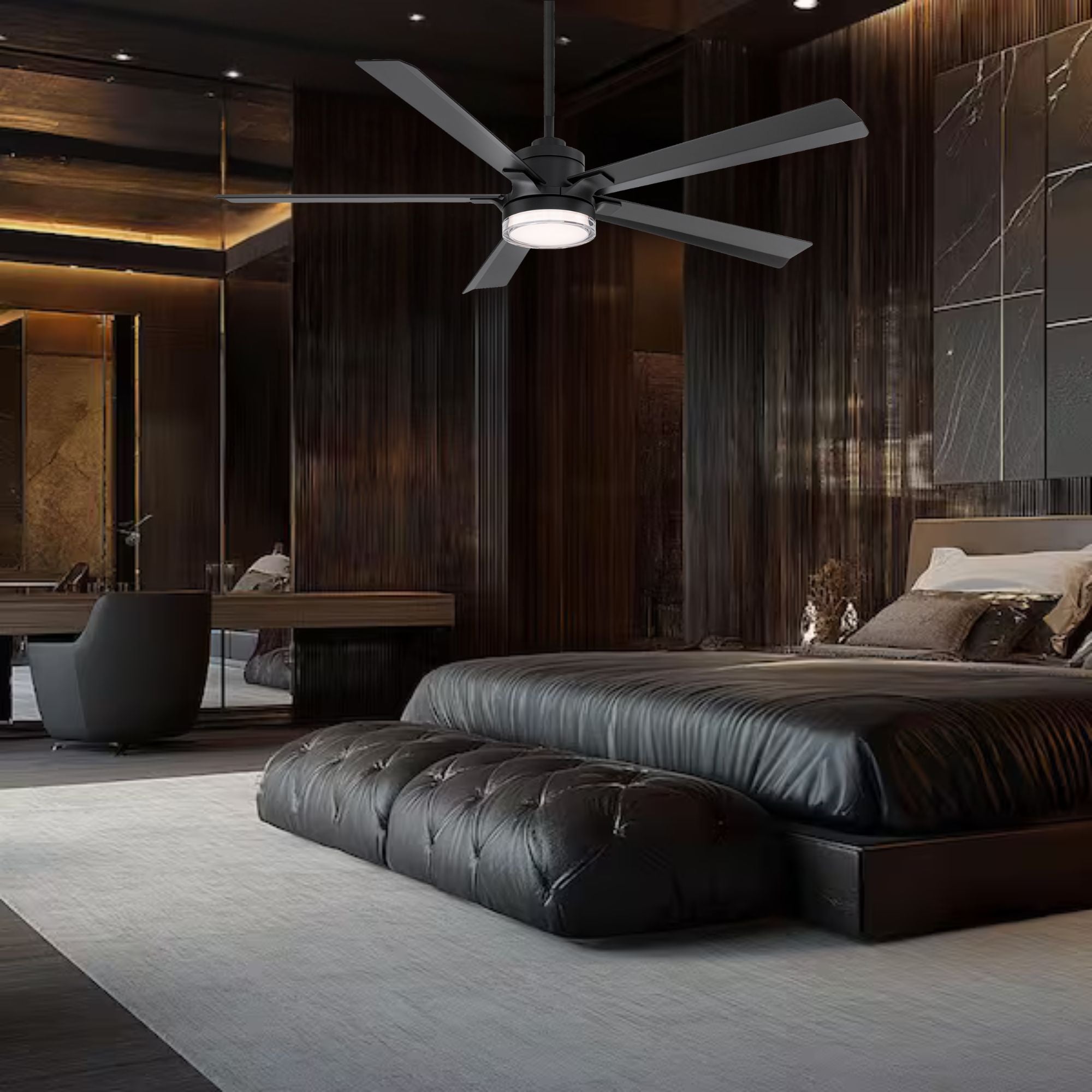

Aluminum and ABS construction in Matte Black with five matching Matte Black ABS blades at 10° pitch. Net weight: 21.2 lbs. The Radiant’s five-blade silhouette at 64 inches in all-Matte Black commands large spaces with a seamless, dramatic presence — ideal for modern, industrial, and contemporary great rooms where the integrated uplight adds dramatic ceiling illumination.

The FR-D2603-64L-MB features a dual-zone LED system: a 30W downlight delivering up to 3,887 lumens (CCT-dependent) and a 16W uplight delivering up to 1,007 lumens, for a combined total of 3,088 delivered lumens. CCT is selectable across 2700K, 3000K, 3500K, 4000K, and 5000K with CRI 90. Both zones are independently dimmable via the F4-RCUBT-WT remote or MyWAC app. Shown with Injection-Molded Acrylic diffuser.

120V AC, 60Hz. Wire length: 66 in (with connectors). Ships with a 0.75 in ID × 6 in downrod. Slope compatible up to 30° standard; up to 45° with optional XF-SCK Sloped Ceiling Kit (sold separately). Ceiling-to-blade clearance: 12¾ in. Ceiling to lowest point: 16 in. Maximum recommended downrod length: 72 in. Fan must be attached to a securely anchored electrical junction box rated for the fan weight.

A 6 in downrod is included. Additional downrods available separately (XF-12 through XF-72). All downrods are 0.75 in. Ideal distance from floor to fan blades is 8 to 9 feet.

• 9 ft ceiling → 12 in downrod
• 10 ft ceiling → 18 in downrod
• 11 ft ceiling → 24 in downrod
• 12 ft ceiling → 36 in downrod
• 13 ft ceiling → 48 in downrod
• 14 ft ceiling → 60 in downrod
• 15 ft ceiling → 72 in downrod

• FR-D2603-64L-MB ceiling fan (Matte Black body + 5 Matte Black ABS blades + 30W downlight + 16W uplight integrated LED)
• F4-RCUBT-WT Bluetooth Remote Control
• 0.75 in ID × 6 in downrod
• Mounting hardware
