Modern Forms Carve 72 in LED Smart Ceiling Fan — Matte Black

The Modern Forms Carve (model FR-D2504-72L-MB) is a 72 in wet-location smart ceiling fan with integrated LED luminaire in an all-over Matte Black finish — aluminum housing and three Balsa Wood blades in matching Matte Black at a 20° pitch. Powered by a whisper-quiet 128×20mm sensorless DC motor running 6 speeds, it delivers up to 7,708 CFM at 61W total — 219 CFM/W weighted-average efficiency — while the integrated LED light kit outputs up to 2,159 lumens with selectable CCT (2700K, 3000K, 4000K, 5000K) and integrated dimming. For the fan-only version of this model, see FR-D2504-72-MB.

Key Features

• Blade Span: 72 in | 20° pitch | 3 Matte Black Balsa Wood blades
• Motor: 128×20mm sensorless DC | 6 speeds | Silent | Reversible | Summer & Winter modes
• Airflow: 7,708 CFM (high) | 5,254 CFM (weighted average)
• Efficiency: 219 CFM/W (weighted average) | Max RPM: 116
• Total Wattage: 61W (fan 40W + light 21W) | Est. yearly energy cost: $7

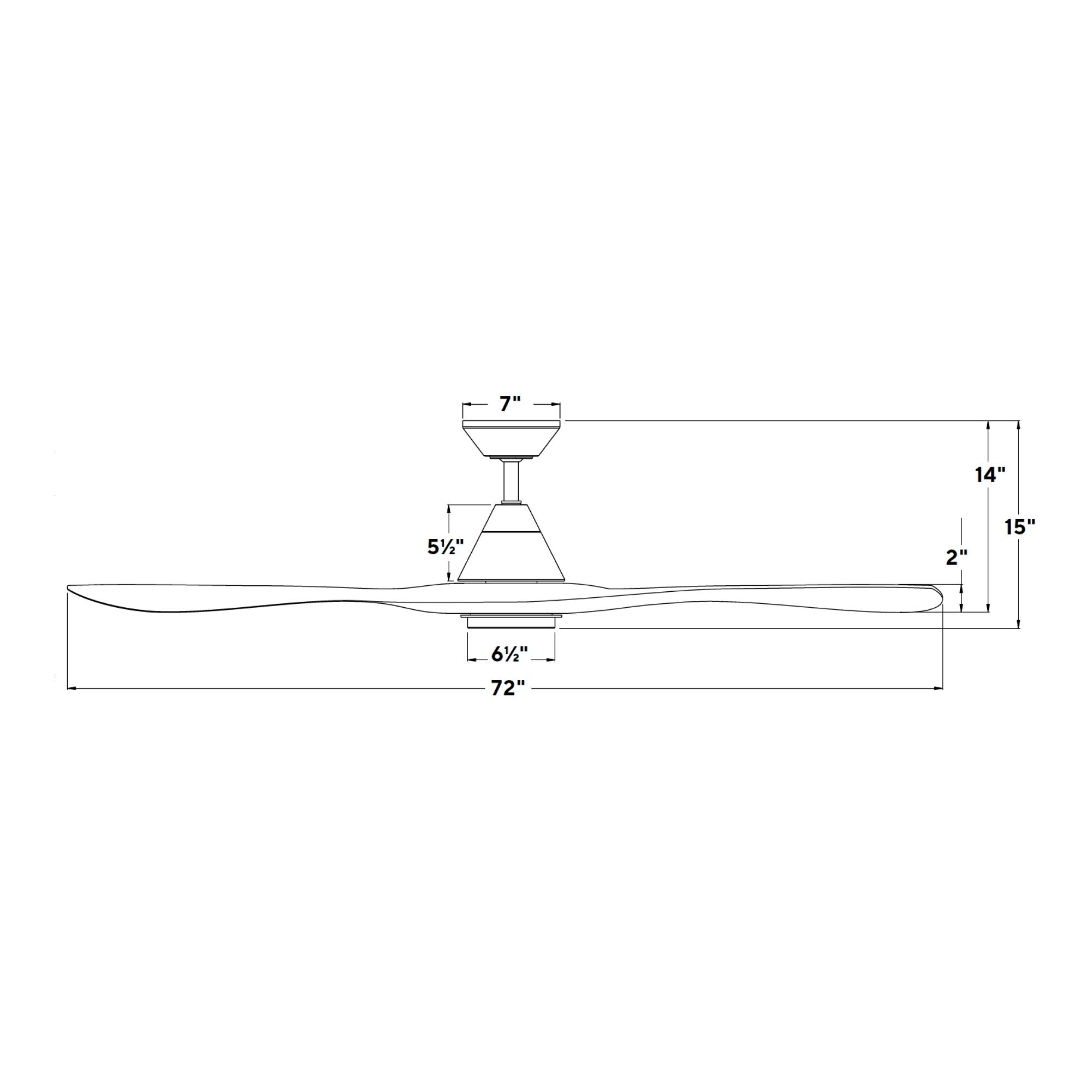

• Overall Dimensions: 72 in DIA × 15 in H
• Location Rating: UL/cUL Wet Location Listed — Indoor & Outdoor | Title 24 JA8-2016 | Title 20 | Energy Star
• Mounting: Downrod Mount | Sloped ceiling compatible up to 30° (up to 45° with XF-SCK kit)
• Downrod: 0.75 in W × 6 in H included
• Wire: 80 in | Weight: 15 lbs

Smart & Control Features

Wi-Fi and Bluetooth enabled (up to 150 ft range each). Compatible with the Modern Forms app for fan speed, direction, light brightness, CCT, and scheduling. Works with Amazon Alexa, Google Assistant, SmartThings, ecobee, Control4, and JOSH. Includes handheld remote control. Optional Bluetooth wall control (F-WCBT-WT) controls both fan speed and light brightness and is sold separately.

Construction & Design

All-Matte-Black aluminum housing and three matching Matte Black Balsa Wood blades — a bold, commanding monochromatic statement that dominates grand contemporary, industrial, and minimalist interiors. Overall dimensions: 72 in DIA × 15 in H. Wet rated for indoor and outdoor use. Weight: 15 lbs.

Light Output & Performance

The FR-D2504-72L-MB includes an integrated LED luminaire rated at 21W, delivering 1,991–2,159 lumens (CCT-dependent) and 1,408 delivered lumens. The light features selectable CCT — 2700K, 3000K, 4000K, and 5000K — with integrated dimming and a CRI of 90 for accurate, vivid color rendering. Rated for 50,000 hours of use.

Electrical & Installation

Total power: 61W. Downrod: 0.75 in W × 6 in H included. Sloped ceiling compatible up to 30° standard; up to 45° with optional XF-SCK slope kit. UL/cUL wet location listed. Title 24 JA8-2016 and Title 20 compliant. Energy Star certified.

Suggested Downrod by Ceiling Height

• 8 ft ceiling → 6 in downrod (included)
• 9 ft ceiling → 12 in downrod (XF-12)
• 10 ft ceiling → 18 in downrod (XF-18)
• 11 ft ceiling → 24 in downrod (XF-24)
• 12 ft ceiling → 36 in downrod (XF-36)
• 13 ft ceiling → 48 in downrod (XF-48)
• 14 ft ceiling → 60 in downrod (XF-60)
• 15 ft ceiling → 72 in downrod (XF-72)
• Note: Max recommended downrod length is 72 in with 80 in lead wire

Optional Accessories

• F-WCBT-WT — Bluetooth Wall Control (White) — controls fan speed and light brightness
• XF-SCK — Sloped Ceiling Kit (for slopes up to 45°)
• XF-I — Downrod Coupler

What's Included

• 72 in LED ceiling fan — Matte Black with Matte Black blades
• Integrated LED luminaire
• Handheld remote control
• 0.75 in × 6 in downrod
• Mounting hardware
