Modern Forms Carve 72 in Smart Ceiling Fan — Antique Nickel with Dark Walnut Blades

The Modern Forms Carve (model FR-D2504-72-AN/DW) is a 72 in wet-location smart ceiling fan pairing a refined Antique Nickel aluminum housing with three precision-crafted Dark Walnut Balsa Wood blades at a 20° pitch. Powered by a whisper-quiet 128×20mm sensorless DC motor running 6 speeds, it delivers up to 7,708 CFM at 40W — 219 CFM/W weighted-average efficiency — for grand living rooms, great rooms, open-plan spaces, and outdoor areas. This is a fan-only model and is not light kit compatible.

Key Features

• Blade Span: 72 in | 20° pitch | 3 Dark Walnut Balsa Wood blades
• Motor: 128×20mm sensorless DC | 6 speeds | Silent | Reversible | Summer & Winter modes
• Airflow: 7,708 CFM (high) | 5,254 CFM (weighted average)
• Efficiency: 219 CFM/W (weighted average) | Max RPM: 116
• Wattage: 40W (high) | 26W (weighted average) | Est. yearly energy cost: $7

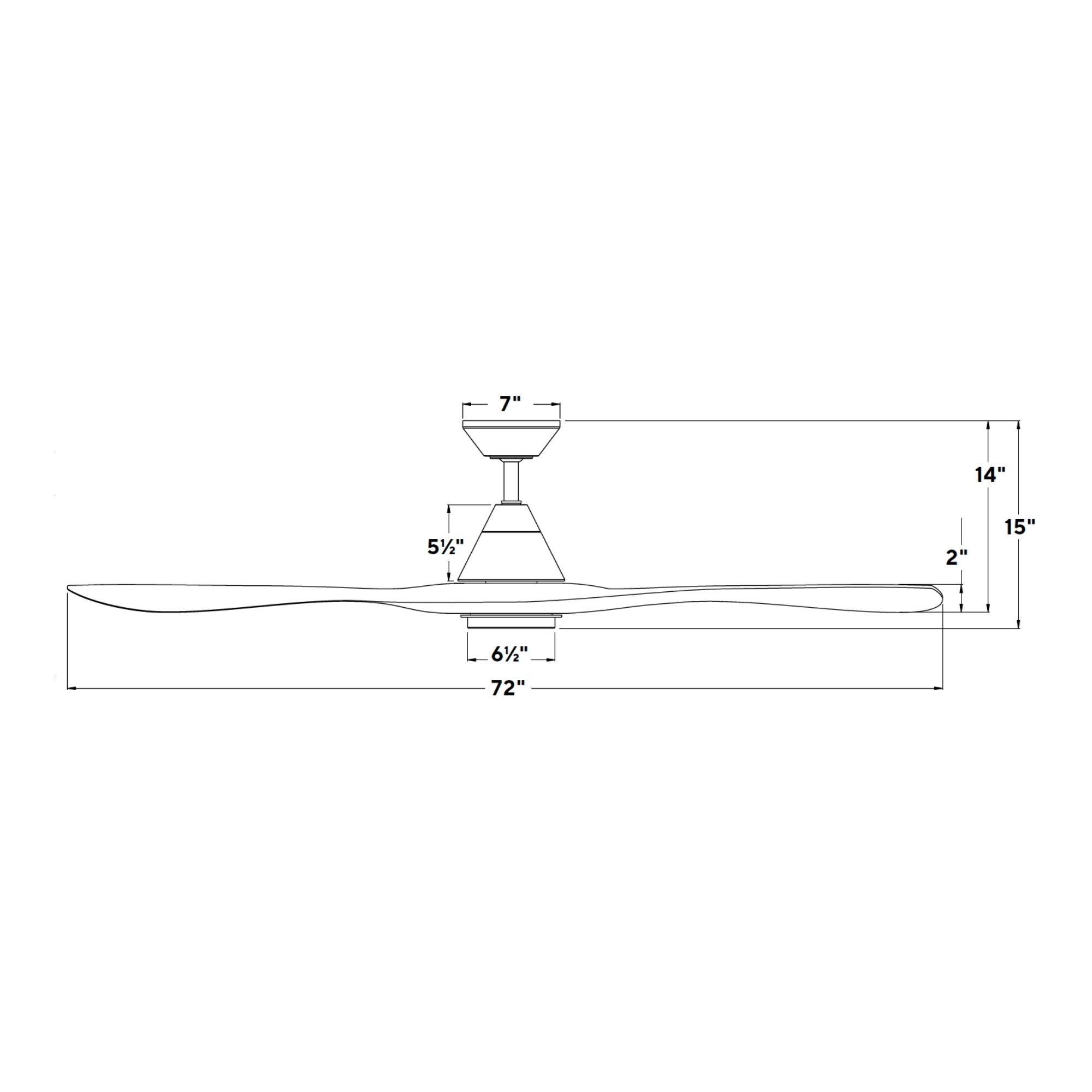

• Overall Dimensions: 72 in DIA × 15 in H
• Location Rating: UL/cUL Wet Location Listed — Indoor & Outdoor | Title 24 JA8-2016 | Title 20 | Energy Star
• Mounting: Downrod Mount | Sloped ceiling compatible up to 30° (up to 45° with XF-SCK kit)
• Downrod: 0.75 in W × 6 in H included
• Wire: 80 in | Weight: 15 lbs
• Light: Not light kit compatible

Smart & Control Features

Wi-Fi and Bluetooth enabled (up to 150 ft range each). Compatible with the Modern Forms app for speed, direction, and scheduling control. Works with Amazon Alexa, Google Assistant, SmartThings, ecobee, Control4, and JOSH. Includes handheld remote control. Optional Bluetooth wall control (F-WCBT-WT) sold separately.

Construction & Design

Antique Nickel aluminum housing paired with three Dark Walnut Balsa Wood blades — a rich, sophisticated pairing of cool metallic sheen and deep warm wood that anchors grand contemporary and transitional interiors with quiet authority. Overall dimensions: 72 in DIA × 15 in H. Wet rated for indoor and outdoor use. Weight: 15 lbs.

Light Output & Performance

This model is not light kit compatible and does not support a luminaire. It is designed as a fan-only model.

Electrical & Installation

Total power: 40W. Downrod: 0.75 in W × 6 in H included. Sloped ceiling compatible up to 30° standard; up to 45° with optional XF-SCK slope kit. UL/cUL wet location listed. Title 24 JA8-2016 and Title 20 compliant. Energy Star certified.

Suggested Downrod by Ceiling Height

• 9 ft ceiling → 12 in downrod (XF-12)
• 10 ft ceiling → 18 in downrod (XF-18)
• 11 ft ceiling → 24 in downrod (XF-24)
• 12 ft ceiling → 36 in downrod (XF-36)
• 13 ft ceiling → 48 in downrod (XF-48)
• 14 ft ceiling → 60 in downrod (XF-60)
• 15 ft ceiling → 72 in downrod (XF-72)
• Note: Max recommended downrod length is 72 in with 80 in lead wire

Optional Accessories

• F-WCBT-WT — Bluetooth Wall Control (White)
• XF-SCK — Sloped Ceiling Kit (for slopes up to 45°)
• XF-I — Downrod Coupler

What's Included

• 72 in ceiling fan — Antique Nickel with Dark Walnut blades
• Light covers (flat + industrial)
• Handheld remote control
• 0.75 in × 6 in downrod
• Mounting hardware
