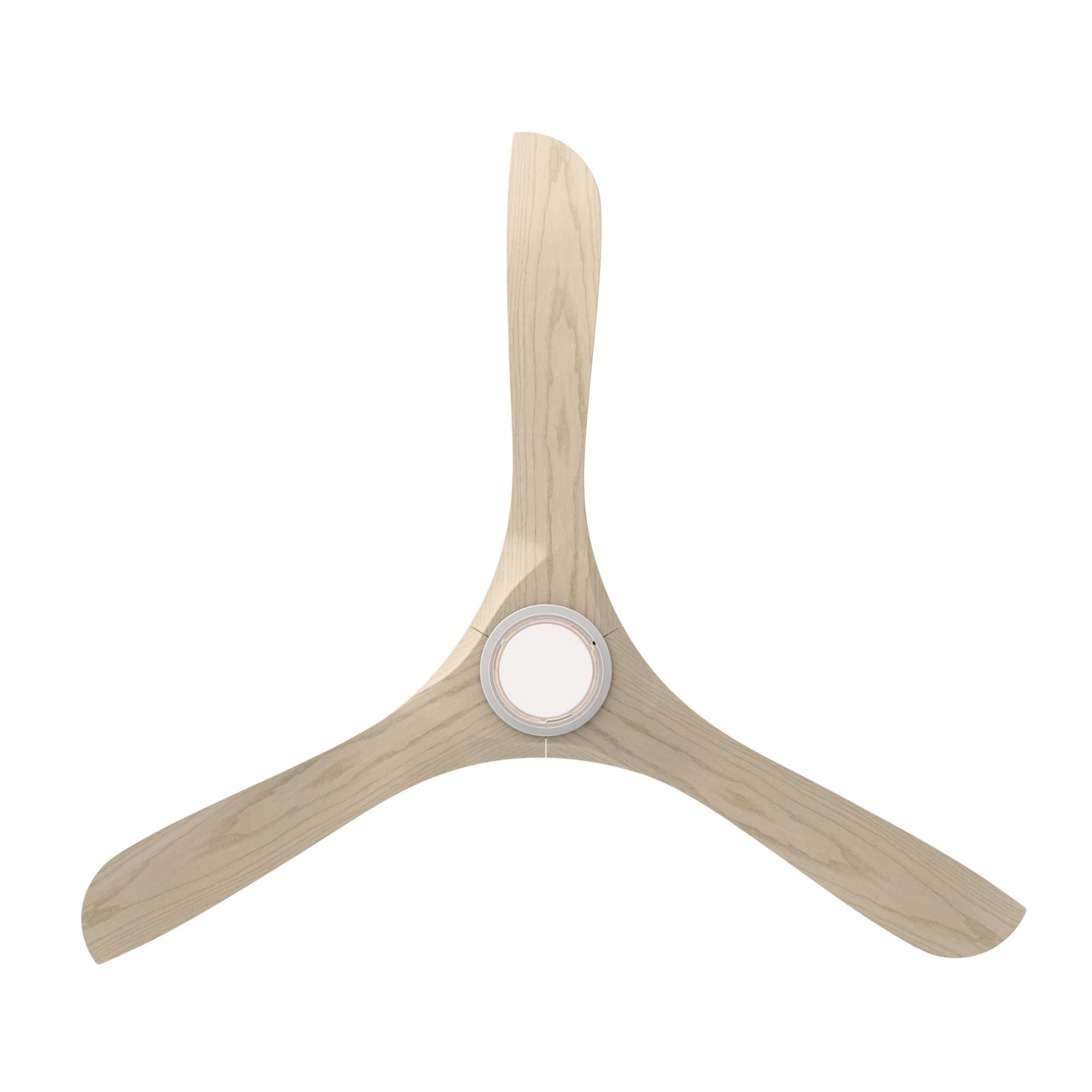

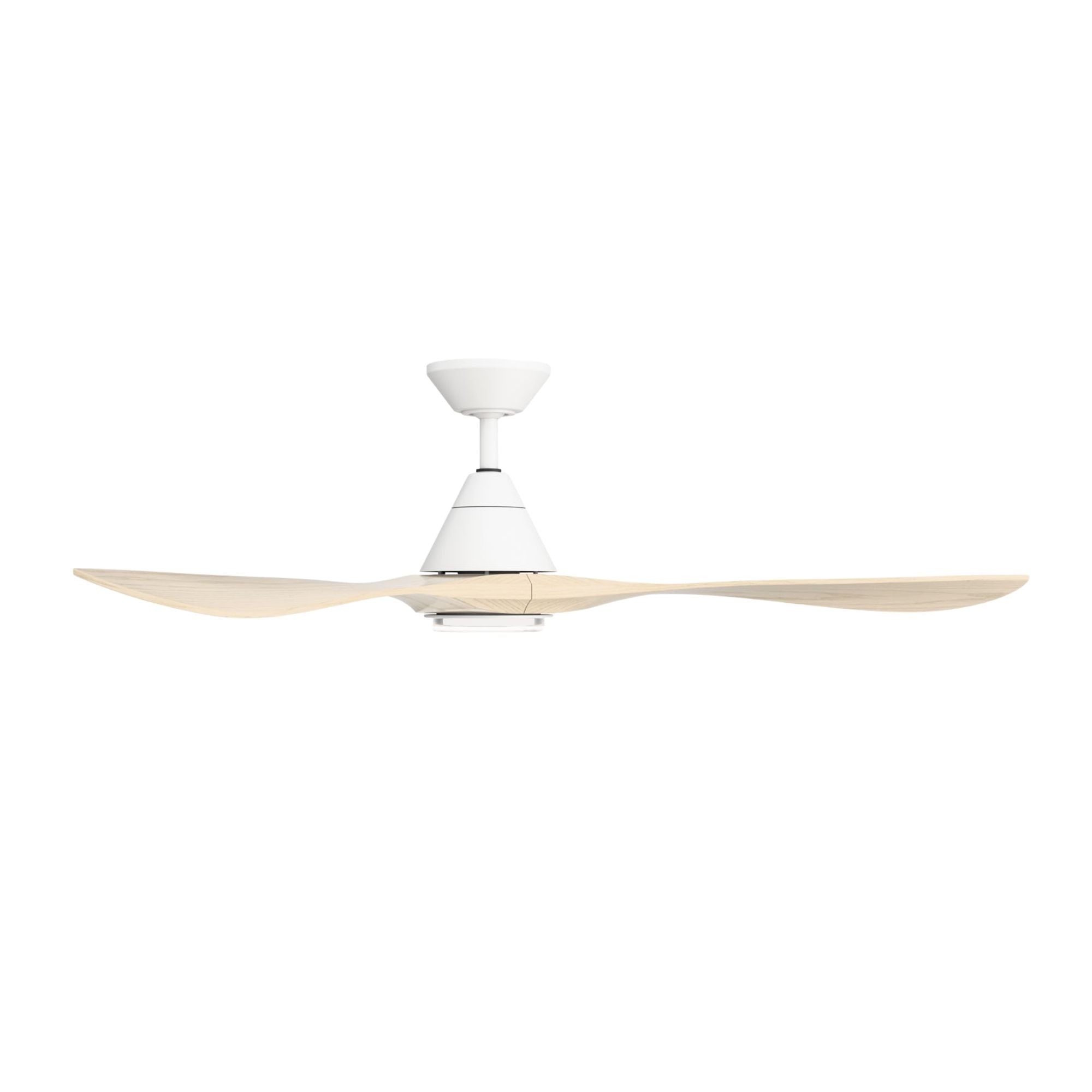

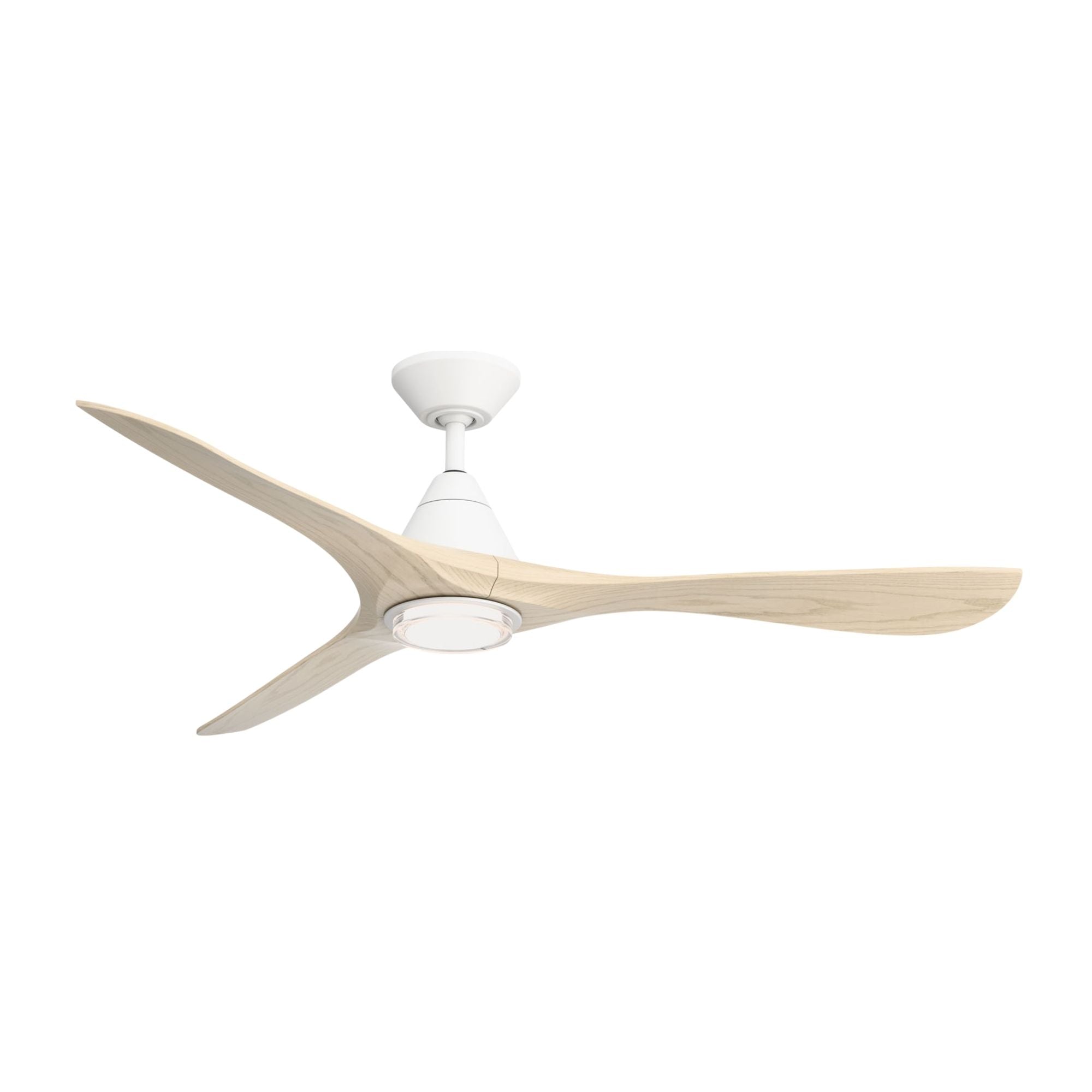

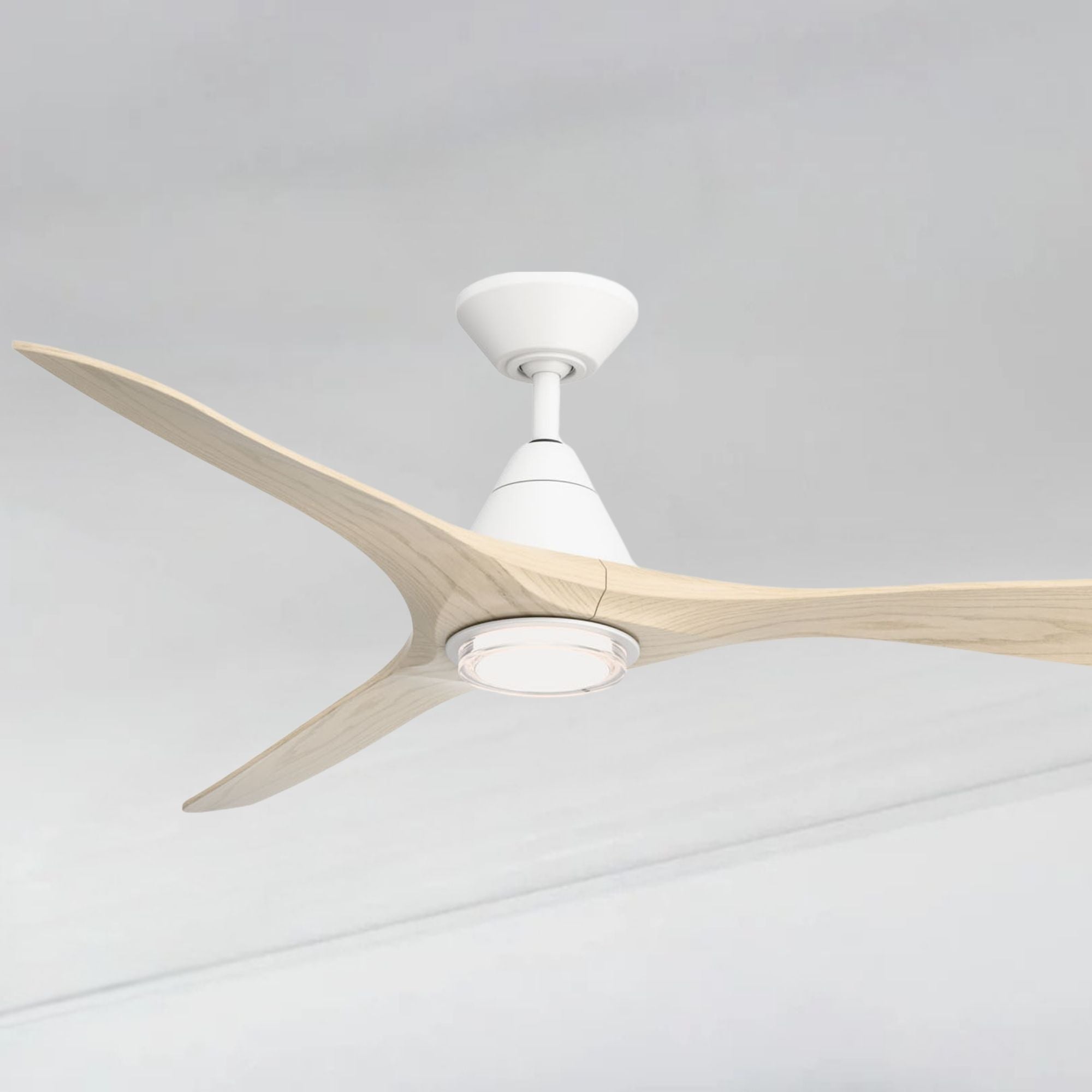

Modern Forms Carve 60 in LED Smart Ceiling Fan — Matte White with White Oak Blades

The Modern Forms Carve (model FR-D2504-60L-MW/WO) is a 60 in wet-location smart ceiling fan with integrated LED luminaire, pairing a clean Matte White aluminum housing with three precision-crafted White Oak Balsa Wood blades at a 20° pitch. Powered by a whisper-quiet 128×20mm sensorless DC motor running 6 speeds, it delivers up to 6,959 CFM at 61W total — 189 CFM/W weighted-average efficiency — with an integrated 21W LED light for large living rooms, great rooms, and outdoor spaces. For the fan-only version, see sister model FR-D2504-60-MW/WO.

Key Features

• Blade Span: 60 in | 20° pitch | 3 White Oak Balsa Wood blades
• Motor: 128×20mm sensorless DC | 6 speeds | Silent | Reversible | Summer & Winter modes
• Airflow: 6,959 CFM (high) | 4,378 CFM (weighted average)
• Efficiency: 189 CFM/W (weighted average) | Max RPM: 156
• Wattage: 61W total (fan + light) | 27/40W fan | Est. yearly energy cost: $7

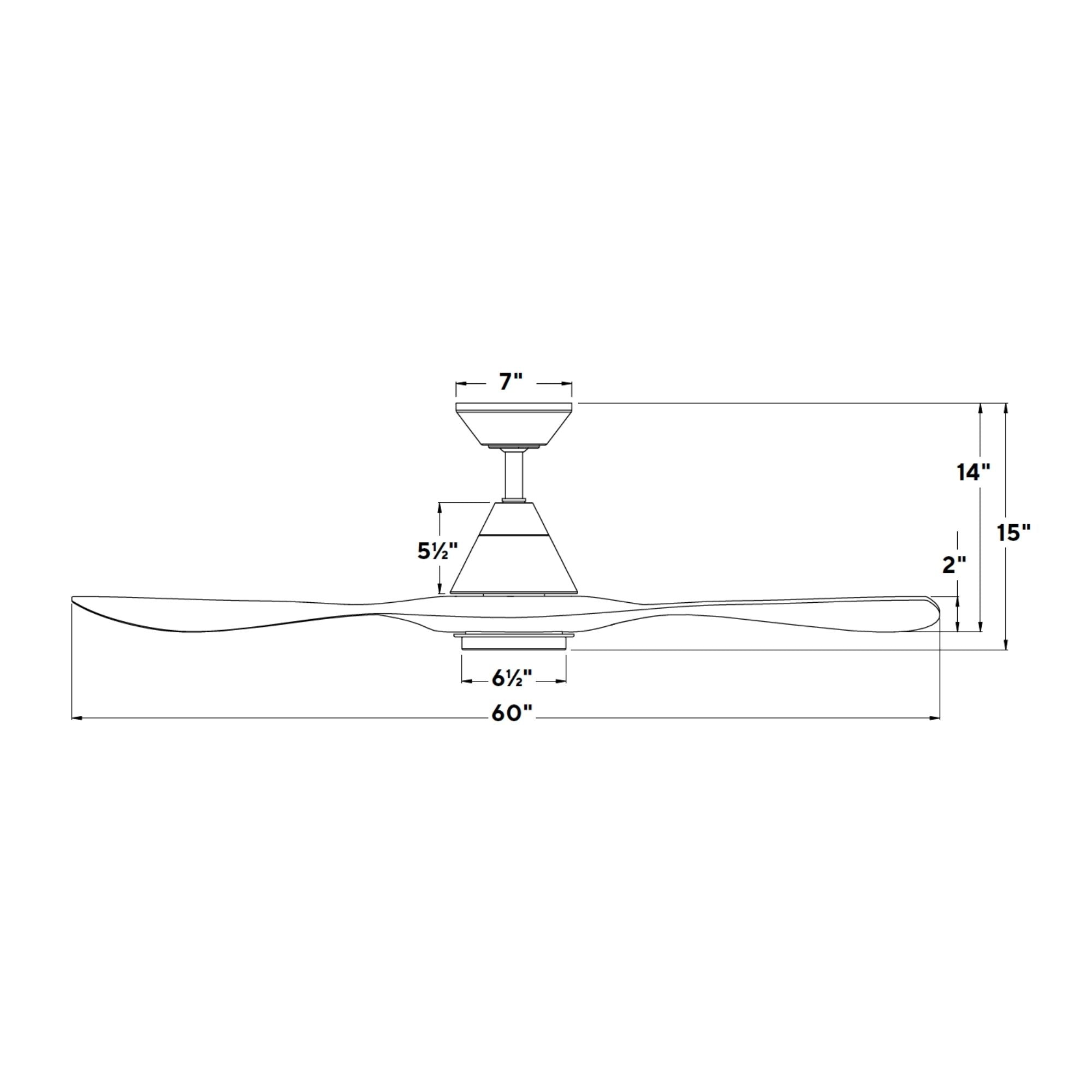

• Overall Dimensions: 60 in DIA × 15 in H
• Location Rating: UL/cUL Wet Location Listed — Indoor & Outdoor | Title 24 JA8-2016 | Title 20 | Energy Star
• Mounting: Downrod Mount | Sloped ceiling compatible up to 30° (up to 45° with XF-SCK kit)
• Downrod: 0.75 in W × 6 in H included
• Wire: 80 in | Weight: 13.7 lbs
• Light: 21W integrated LED | 1,991–2,159 delivered lumens | 2700K/3000K/4000K/5000K CCT | CRI 90 | 50,000 hr rated life | Integrated dimming

Smart & Control Features

Wi-Fi and Bluetooth enabled (up to 150 ft range each). Compatible with the Modern Forms app for speed, direction, dimming, CCT, and scheduling control. Works with Amazon Alexa, Google Assistant, SmartThings, ecobee, Control4, and JOSH. Includes Bluetooth remote control (F-RCBT-WT). Optional Bluetooth wall control (F-WCBT-WT) sold separately.

Construction & Design

Matte White aluminum housing paired with three White Oak Balsa Wood blades — an all-white-and-natural tonal pairing that blends seamlessly into bright, airy interiors with a light Scandinavian warmth — ideal for coastal, minimalist, and transitional spaces. Overall dimensions: 60 in DIA × 15 in H. Wet rated for indoor and outdoor use. Weight: 13.7 lbs.

Light Output & Performance

The integrated 21W LED luminaire delivers 1,991–2,159 lumens (based on CCT selection) with selectable color temperatures of 2700K, 3000K, 4000K, and 5000K. CRI 90 for excellent color accuracy. Integrated dimming. Rated 50,000 hours. No separate cover or luminaire required — light is built in. For the fan-only version of this model, see FR-D2504-60-MW/WO.

Electrical & Installation

Total power: 61W (fan + light). Downrod: 0.75 in W × 6 in H included. Sloped ceiling compatible up to 30° standard; up to 45° with optional XF-SCK slope kit. UL/cUL wet location listed. Title 24 JA8-2016 and Title 20 compliant. Energy Star certified.

Suggested Downrod by Ceiling Height

• 8 ft ceiling → 6 in downrod (included)
• 9 ft ceiling → 12 in downrod (XF-12)
• 10 ft ceiling → 18 in downrod (XF-18)
• 11 ft ceiling → 24 in downrod (XF-24)
• 12 ft ceiling → 36 in downrod (XF-36)
• 13 ft ceiling → 48 in downrod (XF-48)
• 14 ft ceiling → 60 in downrod (XF-60)
• 15 ft ceiling → 72 in downrod (XF-72)
• Note: Max recommended downrod length is 72 in with 80 in lead wire

Optional Accessories

• F-WCBT-WT — Bluetooth Wall Control (White)
• F-RCBT-WT — Additional Bluetooth Remote Control (White)
• XF-SCK — Sloped Ceiling Kit (for slopes up to 45°)
• XF-I — Downrod Coupler

What's Included

• 60 in LED ceiling fan — Matte White with White Oak blades
• Integrated LED luminaire
• Bluetooth remote control (F-RCBT-WT)
• 0.75 in × 6 in downrod
• Mounting hardware
