Modern Forms Carve 60" LED Smart Ceiling Fan DC Motor Matte Black Dark Walnut
Available in stock (119)
Shipping at a Glance
Standard items: Free standard shipping on eligible orders $99+
Oversized items, 48″ or longer on any packed side: Free standard shipping on eligible orders $1,000+
Alaska and Hawaii: Calculated shipping rates apply at checkout. Free shipping is not available.
Free-shipping offers apply only to eligible destinations in the contiguous United States, including Washington, D.C. Destination exclusions and carrier-rated-area exceptions apply. Mixed-item orders may have additional shipping charges.
Where We Ship
We ship to covered destinations in the contiguous United States, including Washington, D.C., and to Alaska and Hawaii. Alaska and Hawaii are served at calculated checkout rates without free shipping. Service availability depends on the destination, order, and carrier.
We do not ship to P.O. Boxes, military addresses (including APO/FPO/DPO), or international destinations.
Oversized and Specialty Items
An item is oversized when any packed dimension (length, width, or height) measures 48 inches or longer. Eligible oversized orders qualify for the $1,000 free-standard-shipping offer shown above.
Other specialty, commercial, or made-to-order items, including those requiring specialized freight, significant weight handling, or custom production, may have separate shipping terms. Refer to the product page and checkout for applicable terms.
How Shipping Charges Are Calculated
Shipping charges vary by item, shipping profile, and destination and are calculated at checkout. Carrier-rated areas are not included in the free-shipping offers. Final eligibility, available services, and charges are shown at checkout.
Orders containing items from different shipping profiles may combine shipping charges. Meeting one item's free-shipping threshold does not necessarily make shipping free for the entire order.
Processing and Made-to-Order Lead Times
Most in-stock items are processed and ready to ship within 1–3 business days. Some require 3–5 business days, as noted on the individual product page. Processing times are estimates and apply to Monday–Friday, excluding holidays.
Made-to-order items are produced specifically for your order. The estimated production lead time is listed on the product page and is the time required to produce the item before it ships.
For items showing “live stock,” this indicates current inventory levels. Processing times still apply.
Tracking and Freight Delivery
You will receive tracking information by email when your order ships.
Delivery times for specialty and commercial items can vary. You will receive an estimated delivery window and tracking details. For large freight deliveries, the carrier may contact you directly to schedule a delivery appointment.
Damaged Shipments and Contact
For damaged shipments, shipping questions, or lead-time assistance, contact customerservice@beeslighting.com.
Please inspect and count your items upon delivery. Report damage, defects, or incorrect items immediately. Our Return & Refund Policy requires claims to be reported within 7 days of delivery to be eligible for a refund.
Photograph any damage or incorrect items and keep all original packaging. Document visible delivery issues before signing; for freight deliveries, note them on the Bill of Lading (BOL). Record and report any damage discovered after delivery immediately.
For full claim instructions and return and refund terms, see the “Damages and issues” section of our Return & Refund Policy. For answers to other common questions, visit our FAQs.
About this item
About this item
- 6,959 CFM + Integrated 21W LED: 128×20mm sensorless DC motor at 189 CFM/W — silent 6-speed airflow with selectable 2700K–5000K CCT, CRI 90, 1,991–2,159 lumens
- Matte Black + Dark Walnut: Aluminum housing with three Balsa Wood blades — rich moody depth and bold contemporary drama for grand living spaces
- Full Smart Home Integration: Wi-Fi + Bluetooth (150 ft) | Modern Forms app | Alexa, Google, SmartThings, ecobee, Control4, JOSH compatible
- UL/cUL Wet Rated: Indoor and outdoor use | Title 24 JA8-2016 | Title 20 | Energy Star certified
- Includes Bluetooth Remote: F-RCBT-WT included | Optional wall control F-WCBT-WT sold separately | Sloped ceiling compatible up to 30° (45° with XF-SCK)
Description
Description

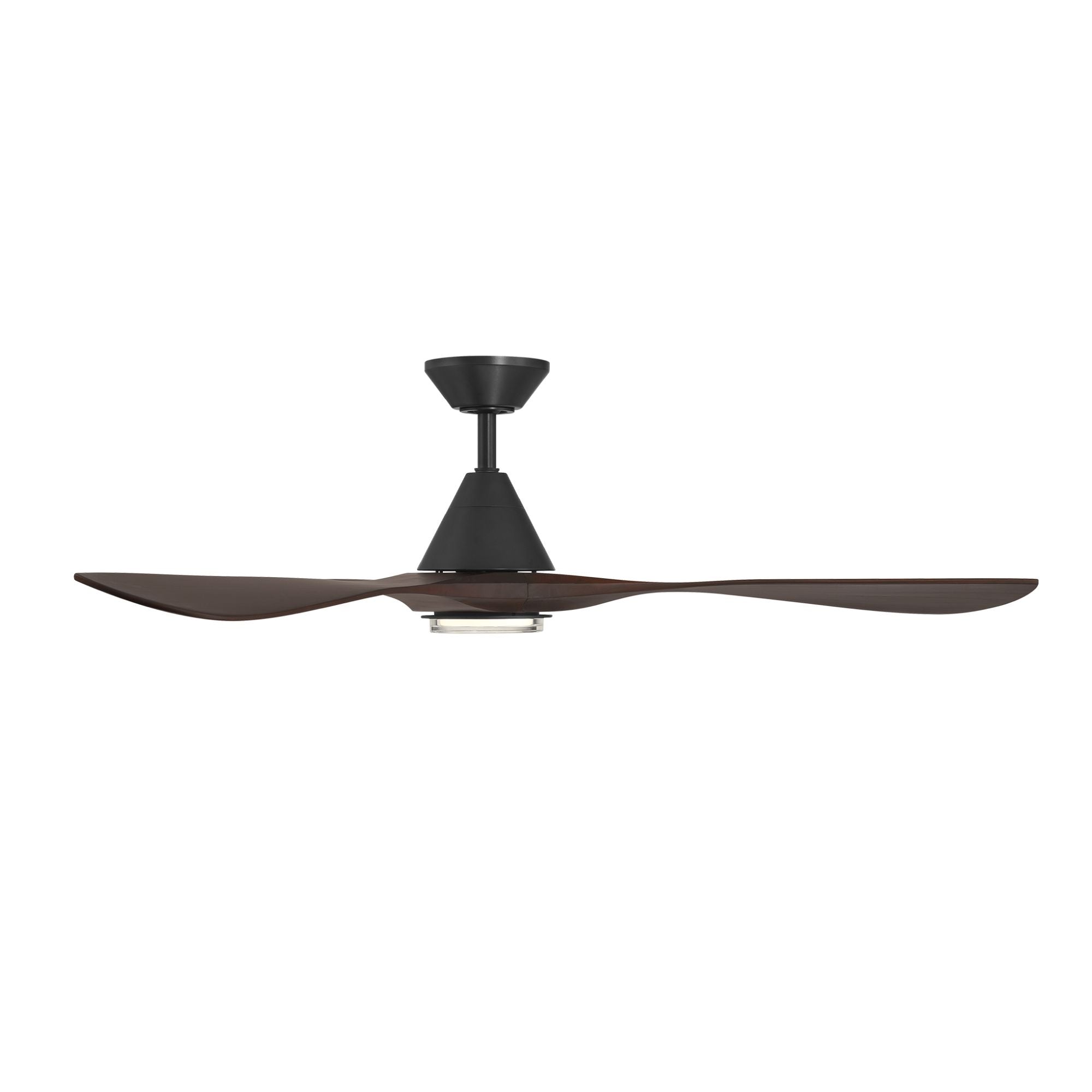

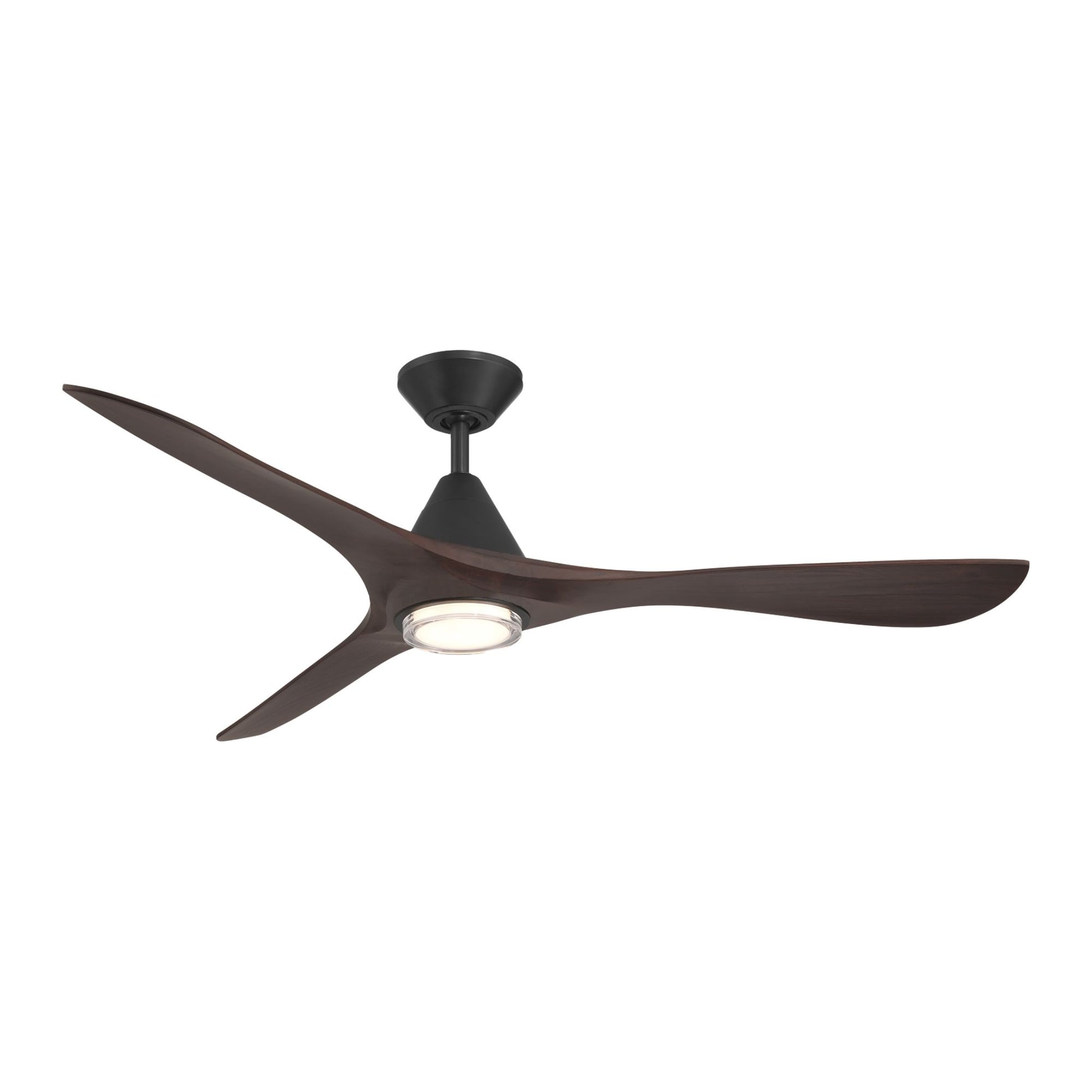

Modern Forms Carve 60 in LED Smart Ceiling Fan — Matte Black with Dark Walnut Blades
The Modern Forms Carve (model FR-D2504-60L-MB/DW) is a 60 in wet-location smart ceiling fan with integrated LED luminaire, pairing a bold Matte Black aluminum housing with three precision-crafted Dark Walnut Balsa Wood blades at a 20° pitch. Powered by a whisper-quiet 128×20mm sensorless DC motor running 6 speeds, it delivers up to 6,959 CFM at 61W total — 189 CFM/W weighted-average efficiency — with an integrated 21W LED light for large living rooms, great rooms, and outdoor spaces. For the fan-only version, see sister model FR-D2504-60-MB/DW.
Key Features
- Blade Span: 60 in | 20° pitch | 3 Dark Walnut Balsa Wood blades
- Motor: 128×20mm sensorless DC | 6 speeds | Silent | Reversible | Summer & Winter modes
- Airflow: 6,959 CFM (high) | 4,378 CFM (weighted average)
- Efficiency: 189 CFM/W (weighted average) | Max RPM: 156
- Wattage: 61W total (fan + light) | 27/40W fan | Est. yearly energy cost: $7

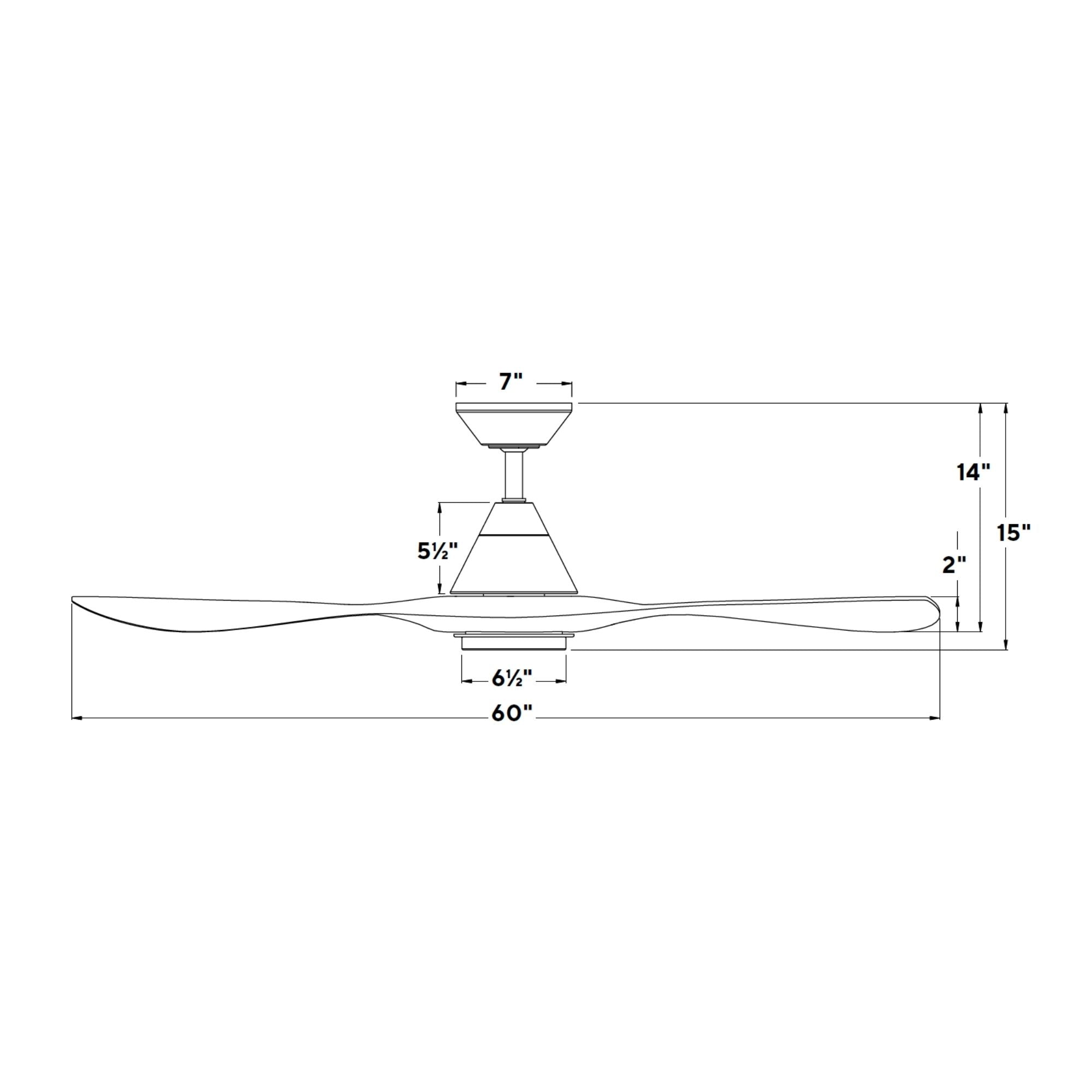

- Overall Dimensions: 60 in DIA × 15 in H
- Location Rating: UL/cUL Wet Location Listed — Indoor & Outdoor | Title 24 JA8-2016 | Title 20 | Energy Star
- Mounting: Downrod Mount | Sloped ceiling compatible up to 30° (up to 45° with XF-SCK kit)
- Downrod: 0.75 in W × 6 in H included
- Wire: 80 in | Weight: 13.7 lbs
- Light: 21W integrated LED | 1,991–2,159 delivered lumens | 2700K/3000K/4000K/5000K CCT | CRI 90 | 50,000 hr rated life | Integrated dimming
Smart & Control Features
Wi-Fi and Bluetooth enabled (up to 150 ft range each). Compatible with the Modern Forms app for speed, direction, dimming, CCT, and scheduling control. Works with Amazon Alexa, Google Assistant, SmartThings, ecobee, Control4, and JOSH. Includes Bluetooth remote control (F-RCBT-WT). Optional Bluetooth wall control (F-WCBT-WT) sold separately.
Construction & Design
Matte Black aluminum housing paired with three Dark Walnut Balsa Wood blades — a rich, moody combination that brings depth, warmth, and bold contemporary drama to grand living spaces and outdoor areas. Overall dimensions: 60 in DIA × 15 in H. Wet rated for indoor and outdoor use. Weight: 13.7 lbs.
Light Output & Performance
The integrated 21W LED luminaire delivers 1,991–2,159 lumens (based on CCT selection) with selectable color temperatures of 2700K, 3000K, 4000K, and 5000K. CRI 90 for excellent color accuracy. Integrated dimming. Rated 50,000 hours. No separate cover or luminaire required — light is built in. For the fan-only version of this model, see FR-D2504-60-MB/DW.
Electrical & Installation
Total power: 61W (fan + light). Downrod: 0.75 in W × 6 in H included. Sloped ceiling compatible up to 30° standard; up to 45° with optional XF-SCK slope kit. UL/cUL wet location listed. Title 24 JA8-2016 and Title 20 compliant. Energy Star certified.
Suggested Downrod by Ceiling Height
- 8 ft ceiling → 6 in downrod (included)
- 9 ft ceiling → 12 in downrod (XF-12)
- 10 ft ceiling → 18 in downrod (XF-18)
- 11 ft ceiling → 24 in downrod (XF-24)
- 12 ft ceiling → 36 in downrod (XF-36)
- 13 ft ceiling → 48 in downrod (XF-48)
- 14 ft ceiling → 60 in downrod (XF-60)
- 15 ft ceiling → 72 in downrod (XF-72)
- Note: Max recommended downrod length is 72 in with 80 in lead wire
Optional Accessories
- F-WCBT-WT — Bluetooth Wall Control (White)
- F-RCBT-WT — Additional Bluetooth Remote Control (White)
- XF-SCK — Sloped Ceiling Kit (for slopes up to 45°)
- XF-I — Downrod Coupler
What's Included
- 60 in LED ceiling fan — Matte Black with Dark Walnut blades
- Integrated LED luminaire
- Bluetooth remote control (F-RCBT-WT)
- 0.75 in × 6 in downrod
- Mounting hardware
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Fan Information
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
Does the Modern Forms Carve FR-D2504-60L-MB/DW include a light?
Does the Modern Forms Carve FR-D2504-60L-MB/DW include a light?
What smart home systems does the Carve FR-D2504-60L-MB/DW work with?
What smart home systems does the Carve FR-D2504-60L-MB/DW work with?
What control is included with the Carve FR-D2504-60L-MB/DW?
What control is included with the Carve FR-D2504-60L-MB/DW?
Is the Carve FR-D2504-60L-MB/DW compatible with sloped ceilings?
Is the Carve FR-D2504-60L-MB/DW compatible with sloped ceilings?
How powerful is the Modern Forms Carve FR-D2504-60L-MB/DW?
How powerful is the Modern Forms Carve FR-D2504-60L-MB/DW?
