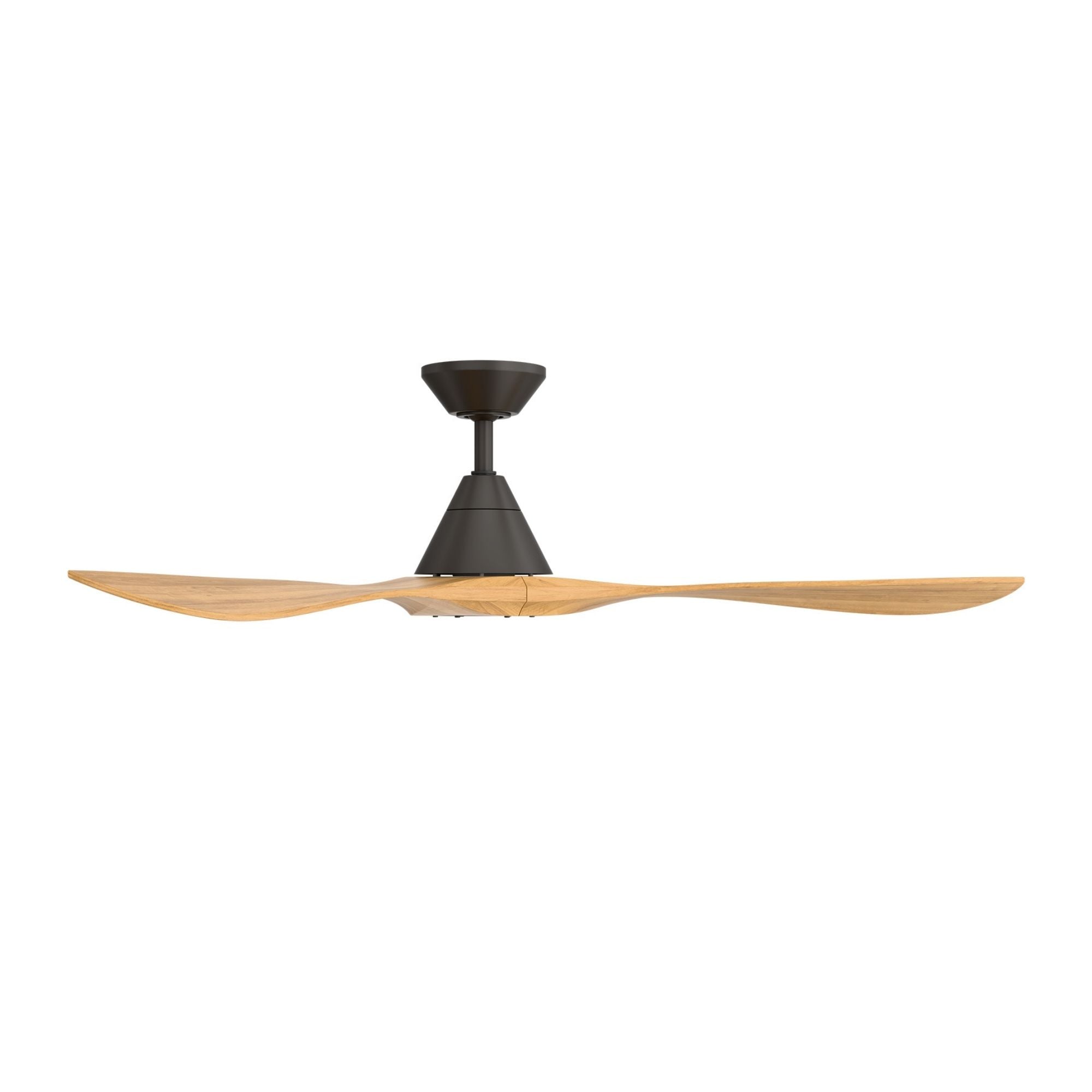

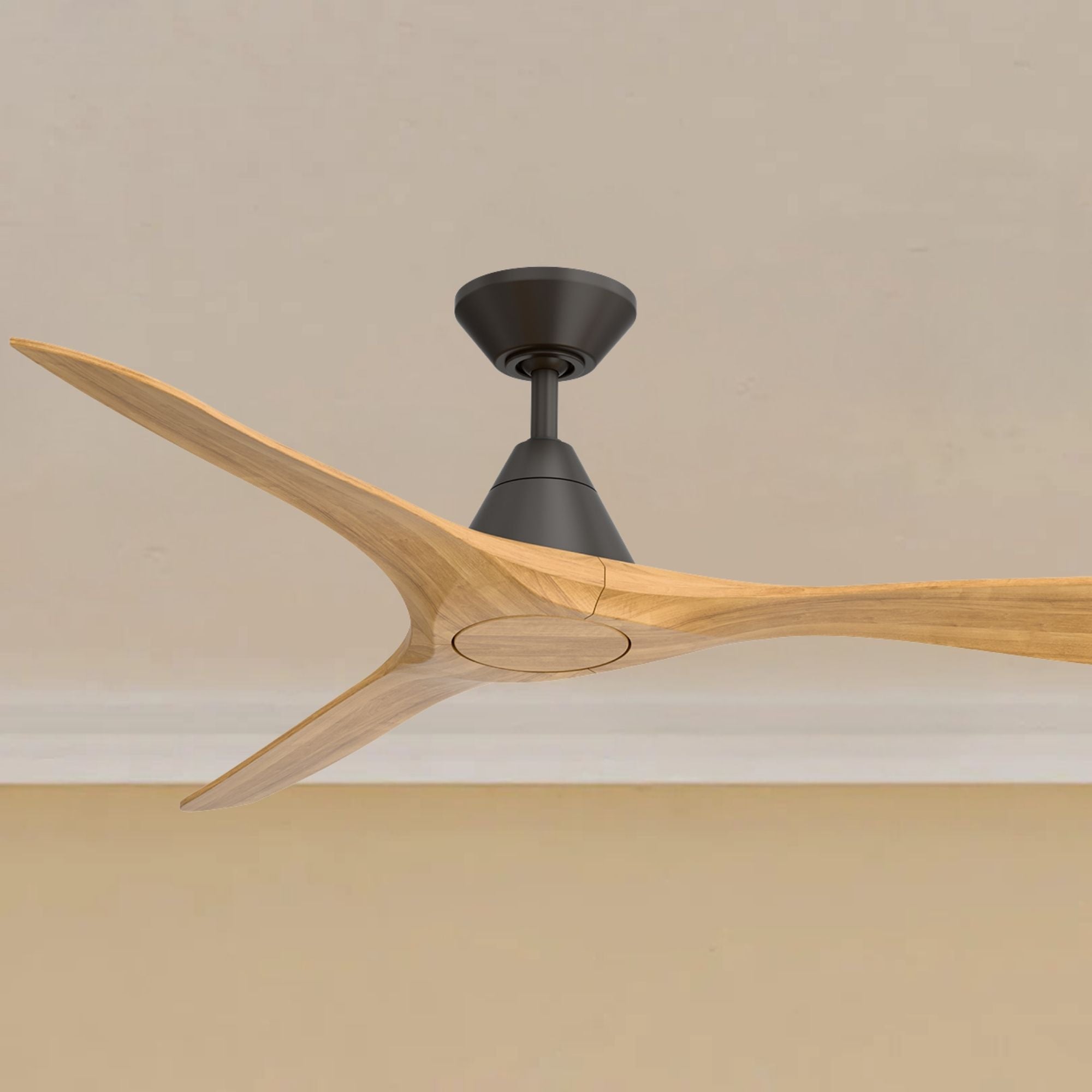

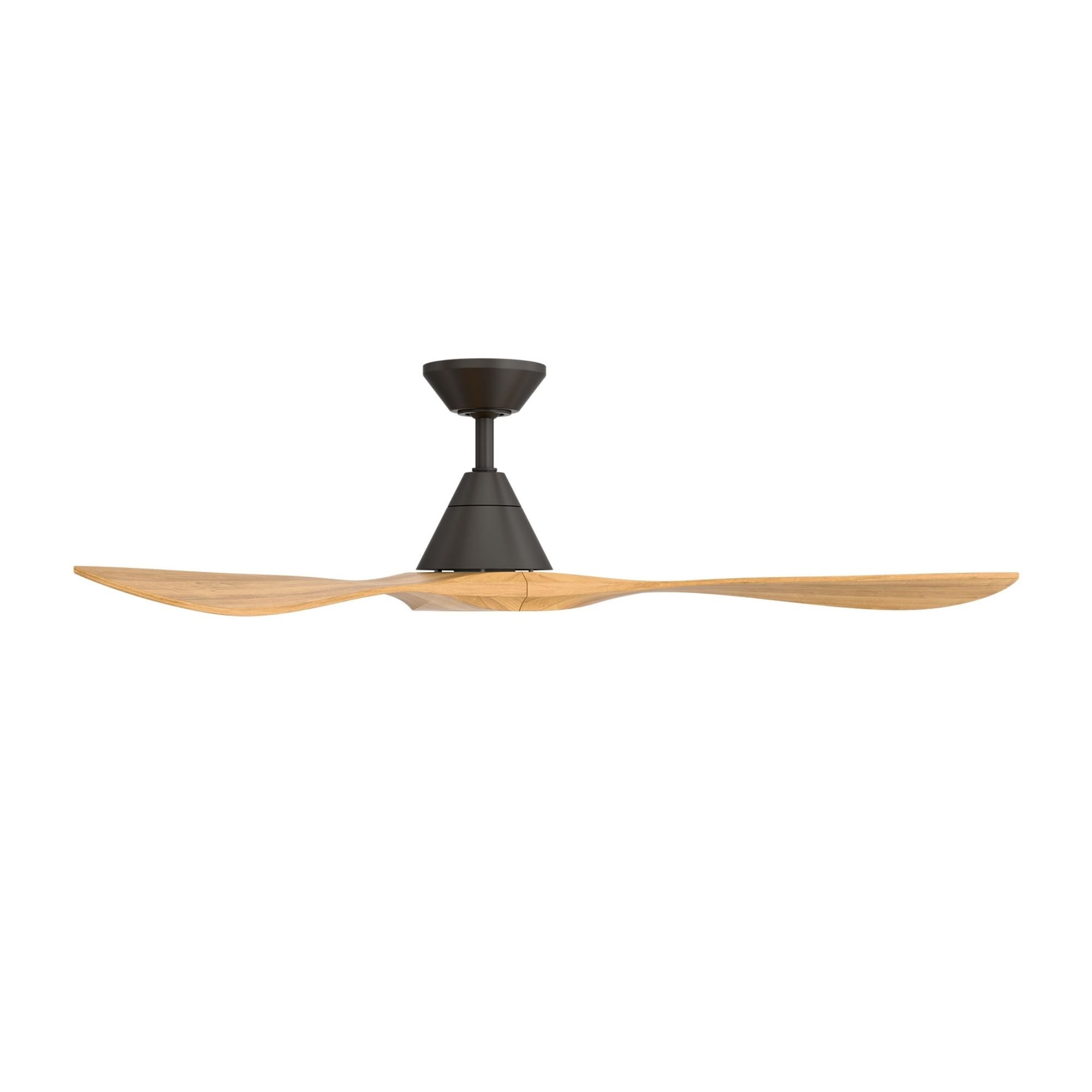

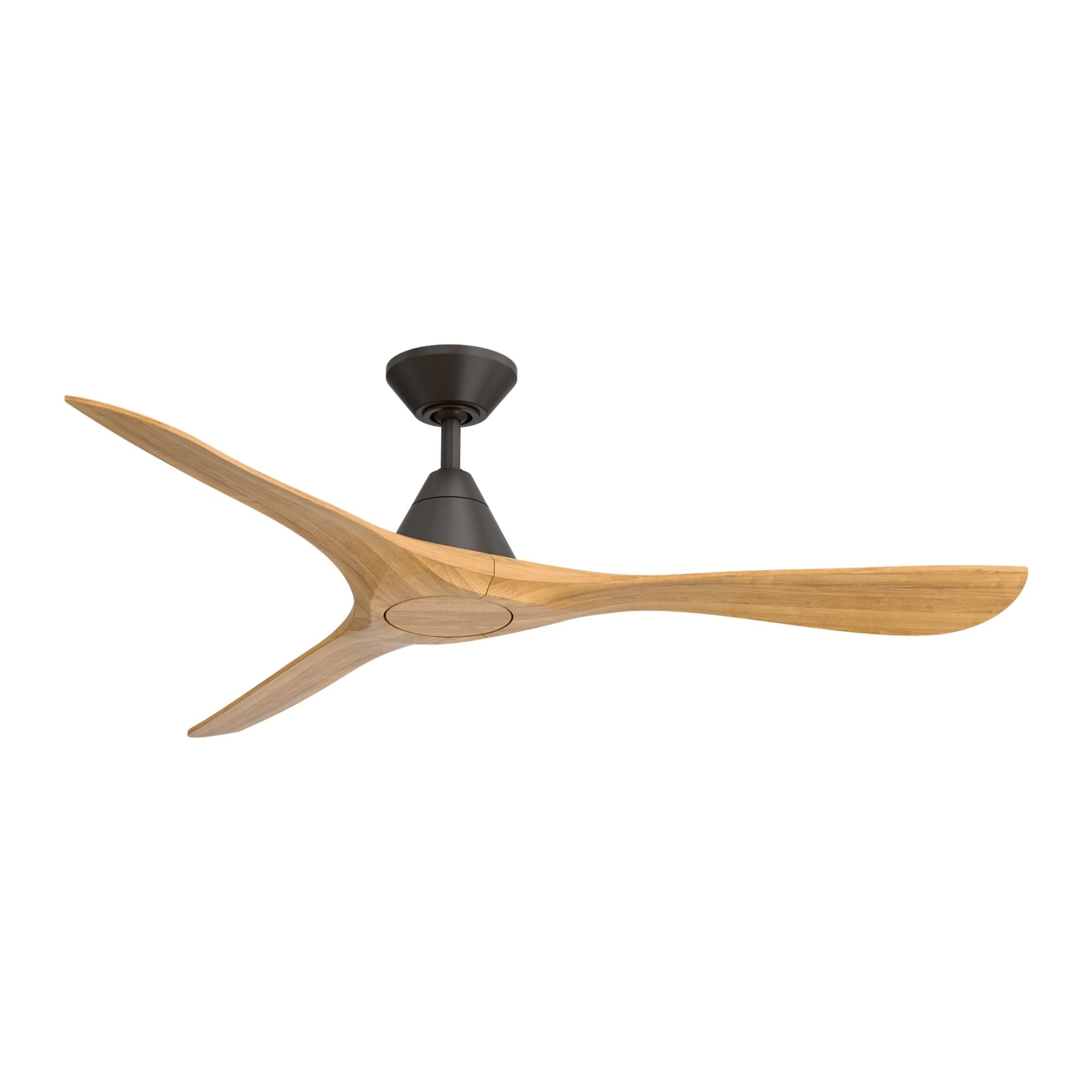

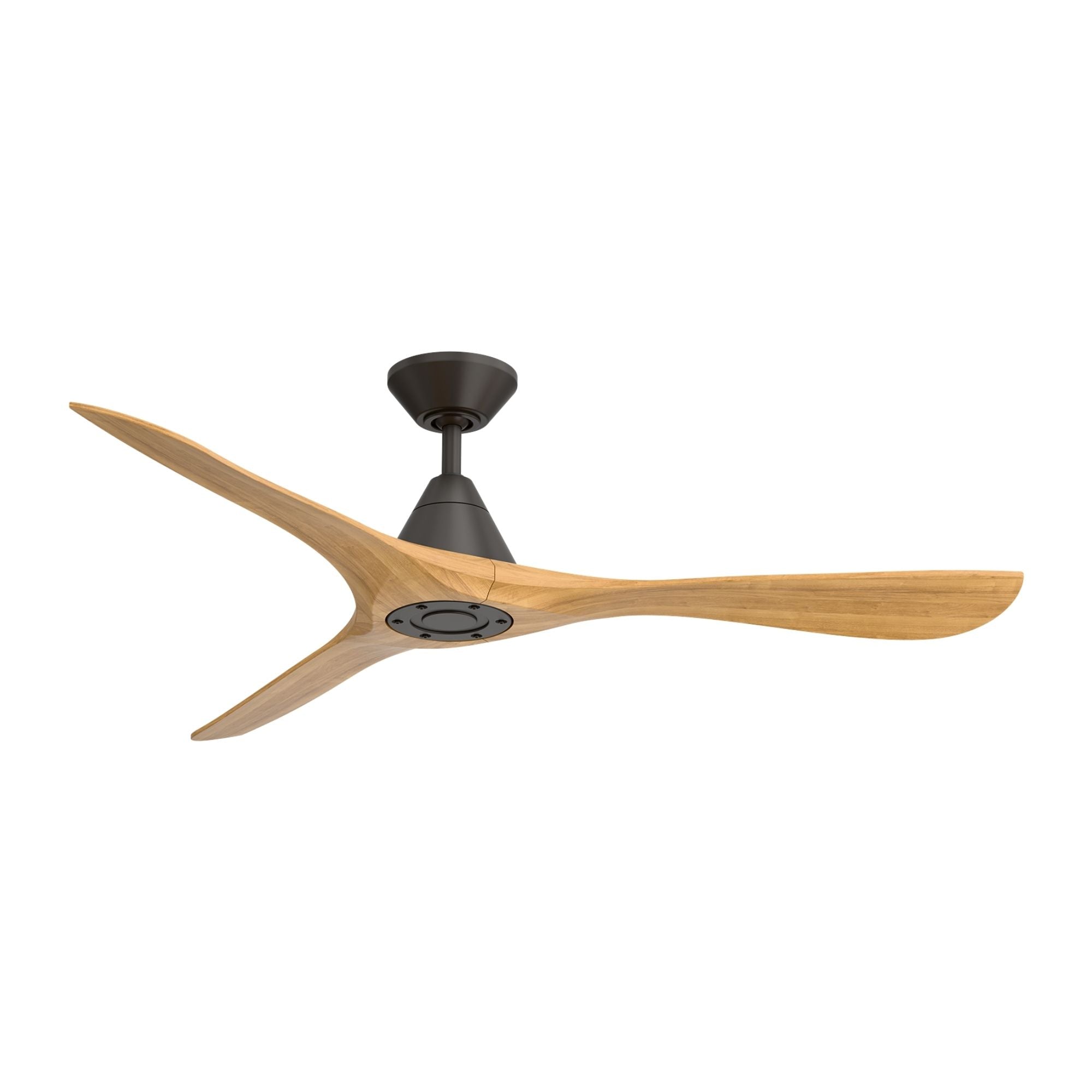

Modern Forms Carve 60 in Smart Ceiling Fan — Bronze with Honey Oak Blades

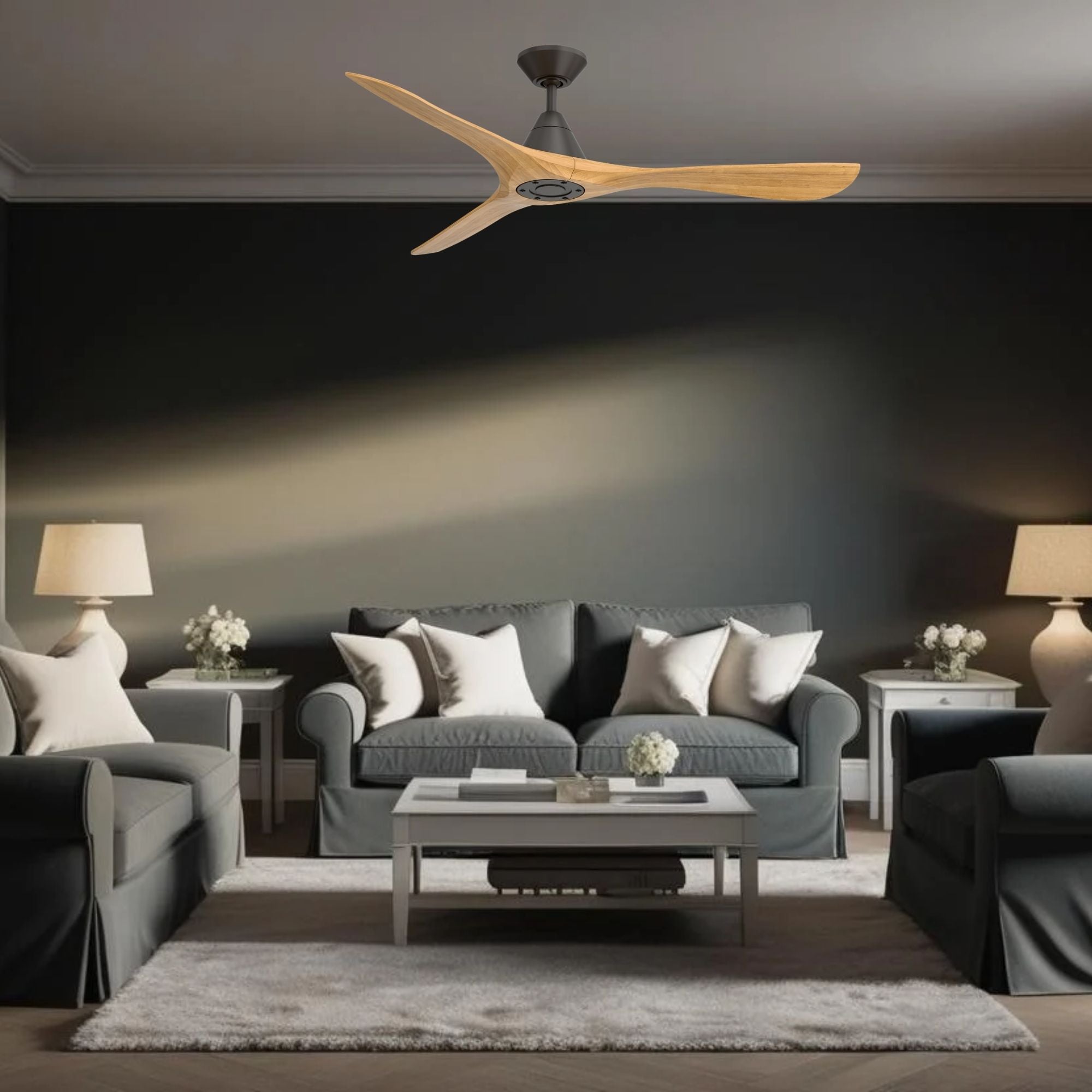

The Modern Forms Carve (model FR-D2504-60-BZ/HO) is a 60 in damp-rated smart ceiling fan that pairs a rich Bronze aluminum housing with three precision-crafted Honey Oak Balsa Wood blades at a 20° pitch. Powered by a whisper-quiet 120×28mm sensorless DC motor running 6 speeds, it delivers up to 6,959 CFM at 40W — 189 CFM/W weighted-average efficiency — for large living rooms, great rooms, and covered outdoor spaces. This is a fan-only model — not light kit compatible. For an integrated LED version, see sister model FR-D2504-60L-BZ/HO.

Key Features

• Blade Span: 60 in | 20° pitch | 3 Honey Oak Balsa Wood blades
• Motor: 120×28mm sensorless DC | 6 speeds | Silent | Reversible | Summer & Winter modes
• Airflow: 6,959 CFM (high) | 4,378 CFM (weighted average)
• Efficiency: 189 CFM/W (weighted average) | Max RPM: 156
• Wattage: 40W (high) | 27W (weighted average) | Est. yearly energy cost: $7

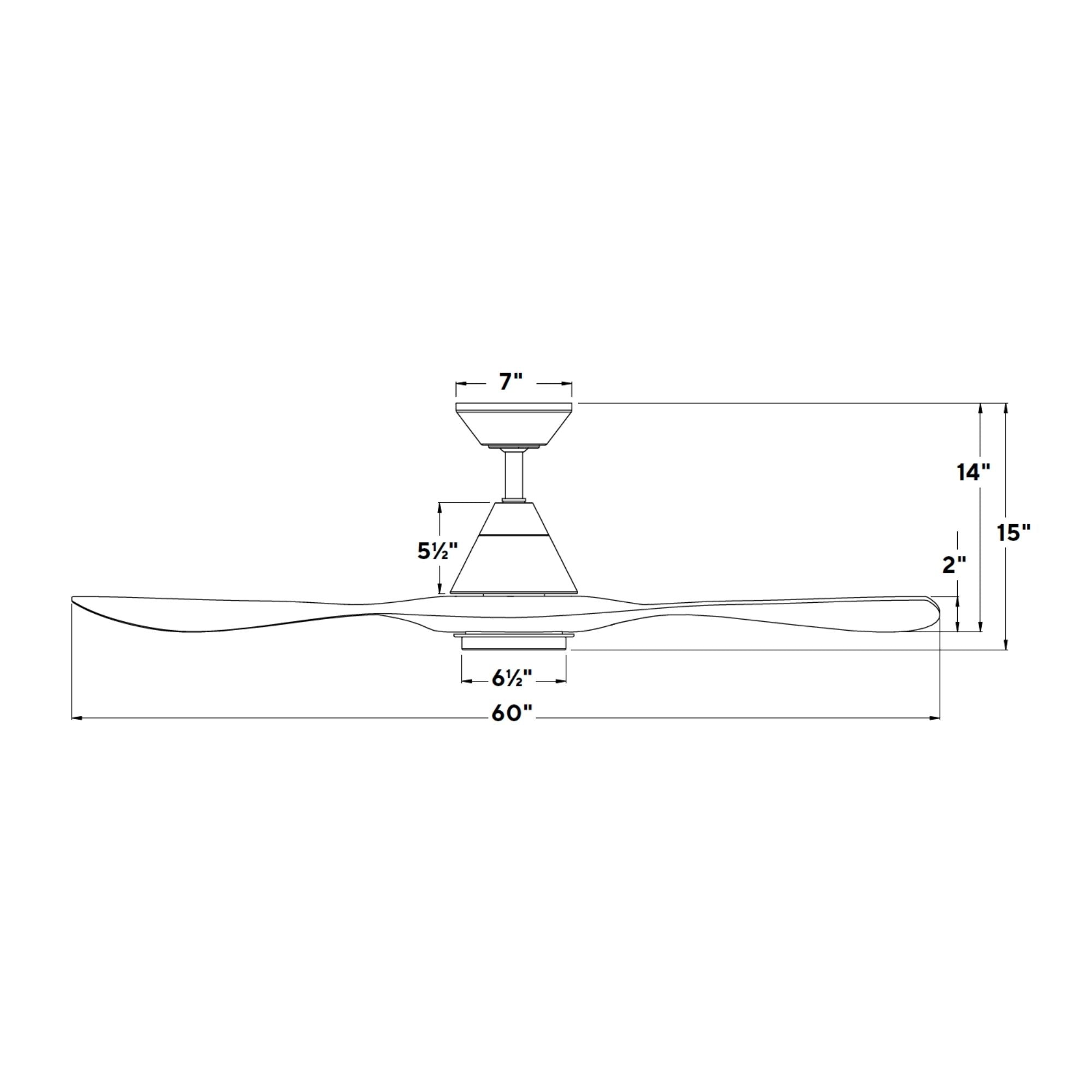

• Overall Dimensions: 60 in DIA × 15 in H
• Location Rating: UL/cUL Damp Location Listed — Indoor & Covered Outdoor | Title 24 JA8-2016 | Title 20 | Energy Star
• Mounting: Downrod Mount | Sloped ceiling compatible up to 30° (up to 45° with XF-SCK kit)
• Downrod: 0.75 in W × 6 in H included
• Wire: 80 in | Weight: 13.7 lbs
• Light: Not light kit compatible. For integrated LED, see FR-D2504-60L-BZ/HO

Smart & Control Features

Wi-Fi and Bluetooth enabled (up to 150 ft range each). Compatible with the Modern Forms app for speed, direction, and scheduling control. Works with Amazon Alexa, Google Assistant, SmartThings, ecobee, Control4, and JOSH. Includes handheld remote control. Optional Bluetooth wall control (F-WCBT) sold separately.

Construction & Design

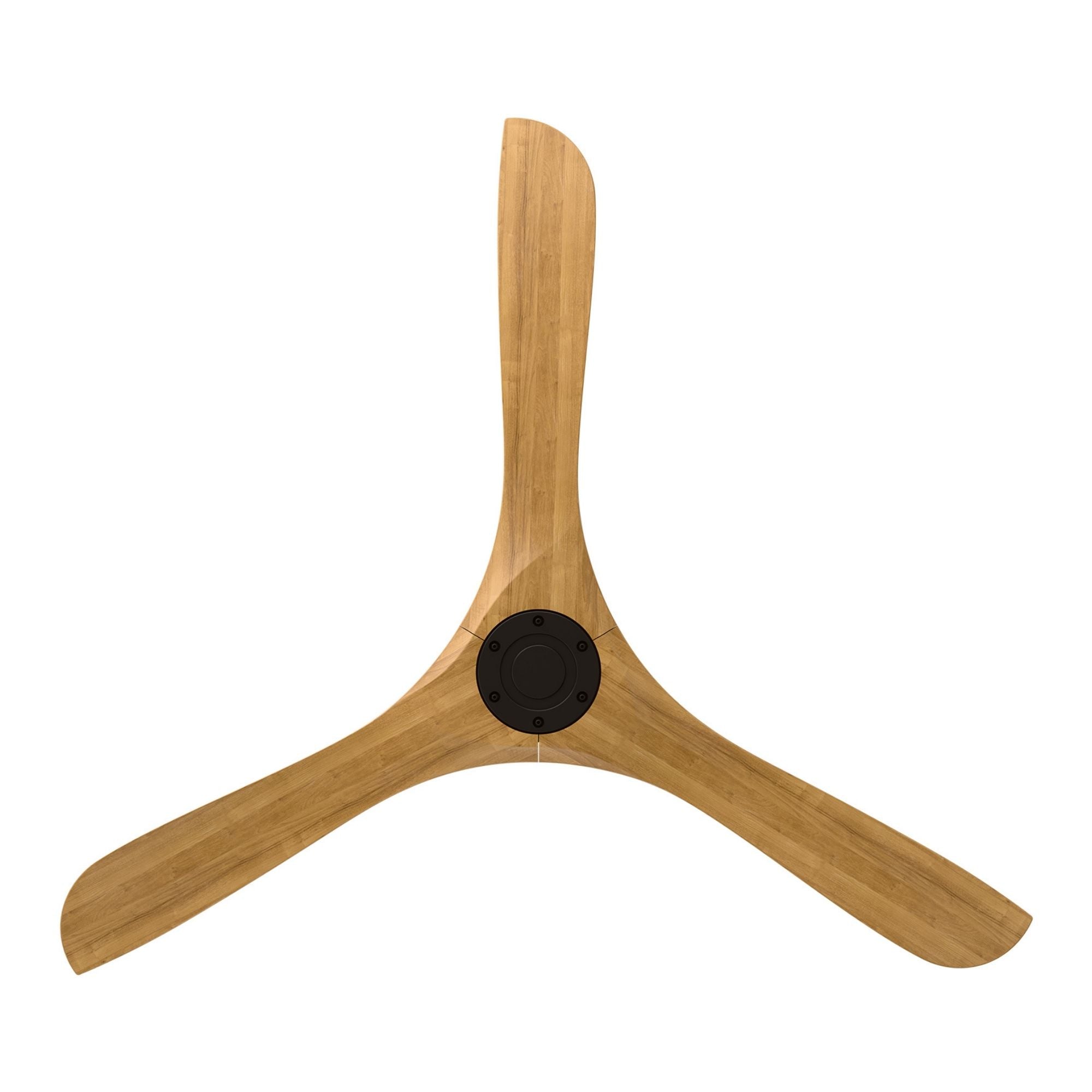

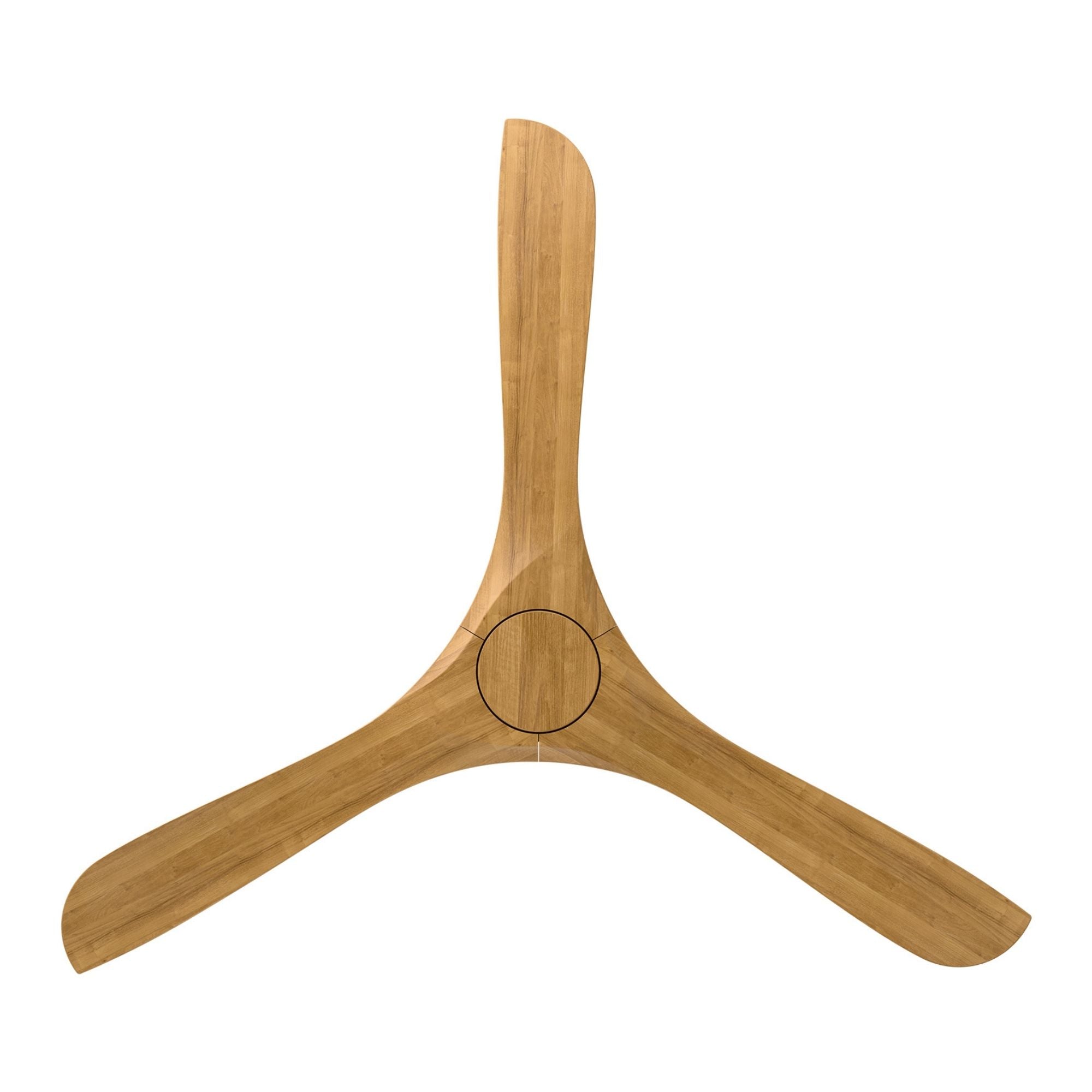

Aluminum housing in Bronze paired with three Honey Oak Balsa Wood blades — a sun-warmed, golden-earthy pairing that brings organic richness and natural radiance to large contemporary and coastal-transitional interiors. Overall dimensions: 60 in DIA × 15 in H. Damp rated for covered outdoor spaces. Weight: 13.7 lbs.

Light Output & Performance

This model is not light kit compatible and does not support a separate luminaire. It is designed as a fan-only model. For the same fan with an integrated LED light kit, see the sister model FR-D2504-60L-BZ/HO.

Electrical & Installation

Total power: 40W. Downrod: 0.75 in W × 6 in H included. Sloped ceiling compatible up to 30° standard; up to 45° with optional XF-SCK slope kit. UL/cUL damp location listed. Title 24 JA8-2016 and Title 20 compliant. Energy Star certified.

Suggested Downrod by Ceiling Height

• 8 ft ceiling → 6 in downrod (included)
• 9 ft ceiling → 12 in downrod (XF-12)
• 10 ft ceiling → 18 in downrod (XF-18)
• 11 ft ceiling → 24 in downrod (XF-24)
• 12 ft ceiling → 36 in downrod (XF-36)
• 13 ft ceiling → 48 in downrod (XF-48)
• 14 ft ceiling → 60 in downrod (XF-60)
• 15 ft ceiling → 72 in downrod (XF-72)
• Note: Max recommended downrod length is 72 in with 80 in lead wire

Optional Accessories

• F-WCBT-WT — Bluetooth Wall Control (White)
• XF-SCK — Sloped Ceiling Kit (for slopes up to 45°)
• XF-I — Downrod Coupler

What's Included

• 60 in ceiling fan — Bronze with Honey Oak blades
• Light covers (flat + industrial)
• Handheld remote control
• 0.75 in × 6 in downrod
• Mounting hardware
