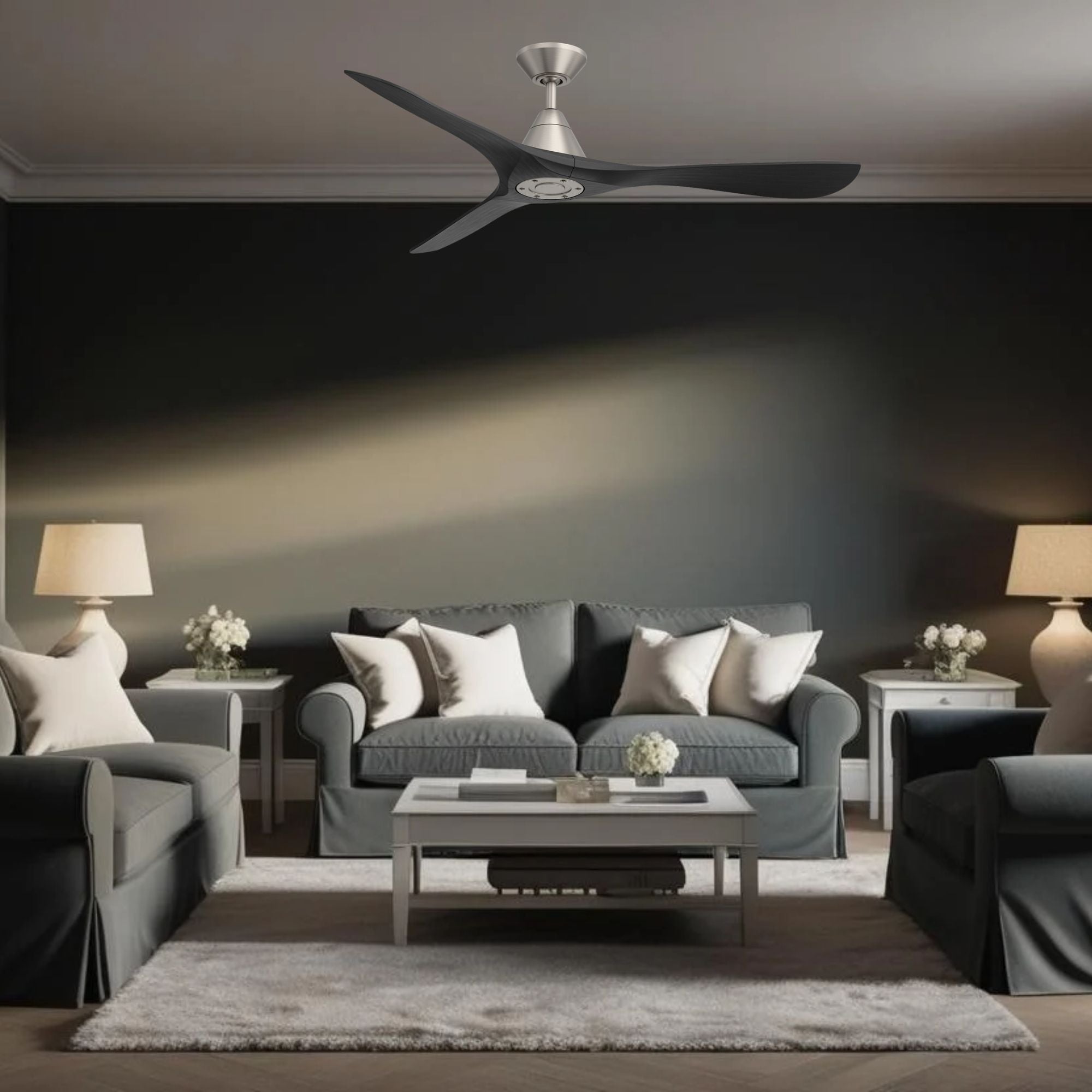

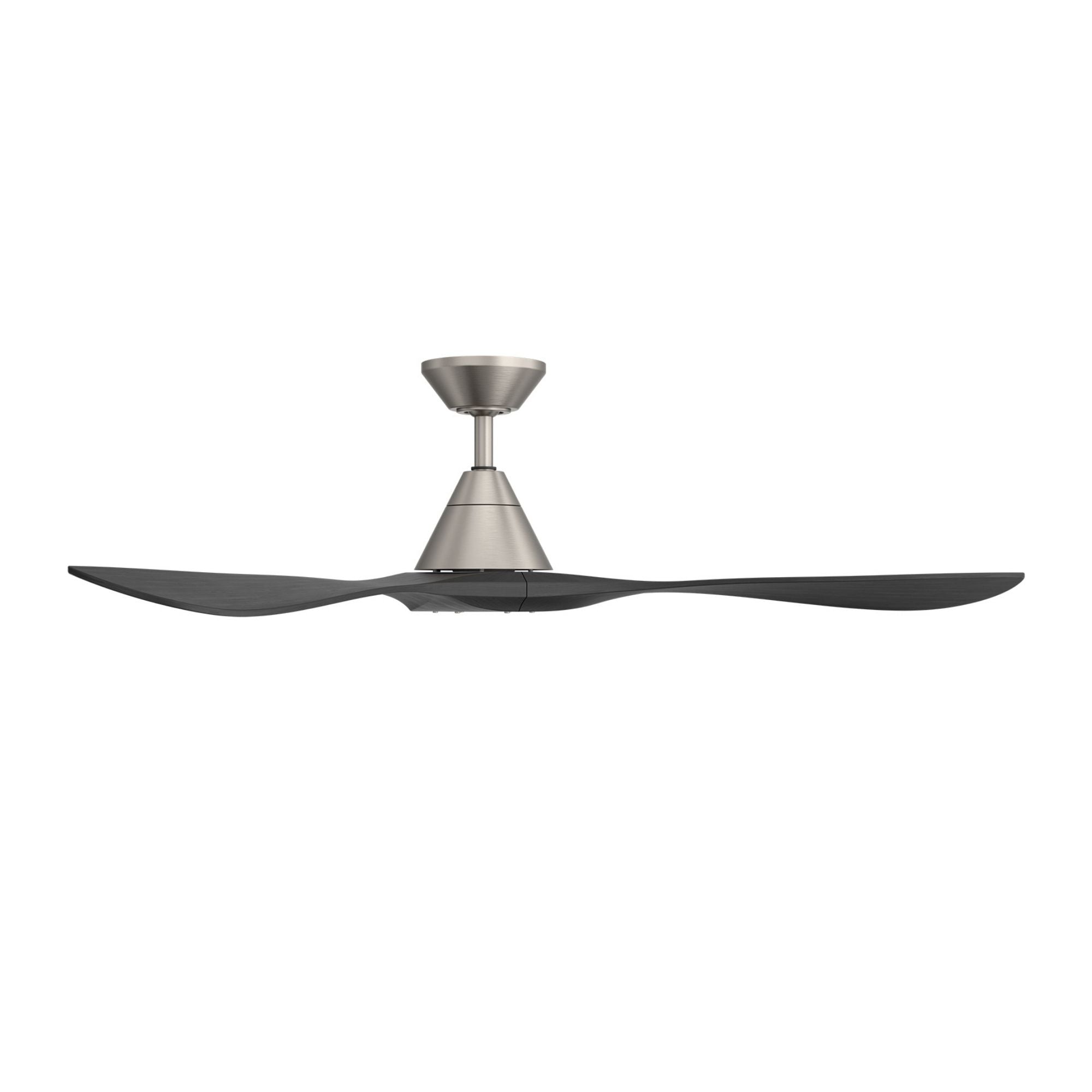

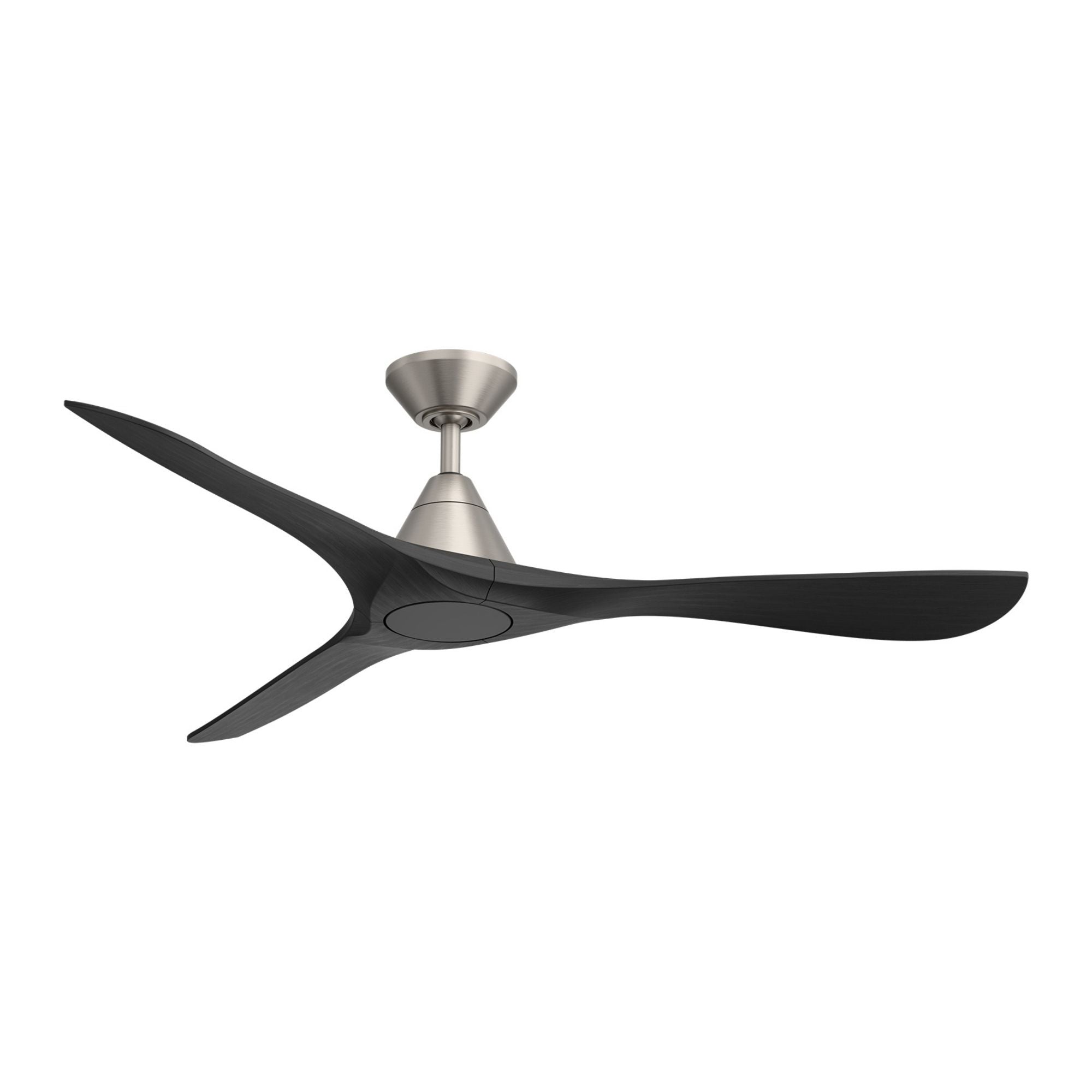

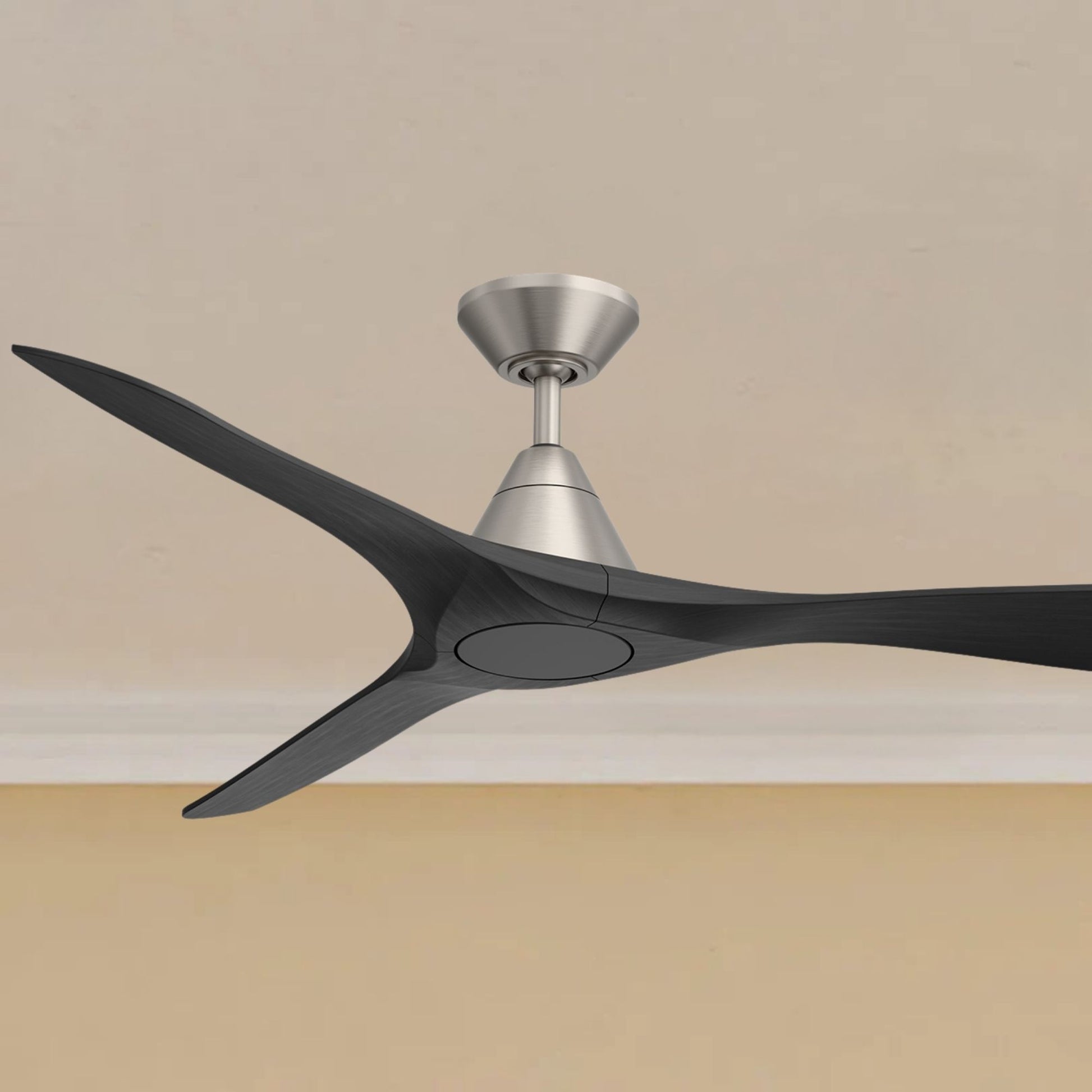

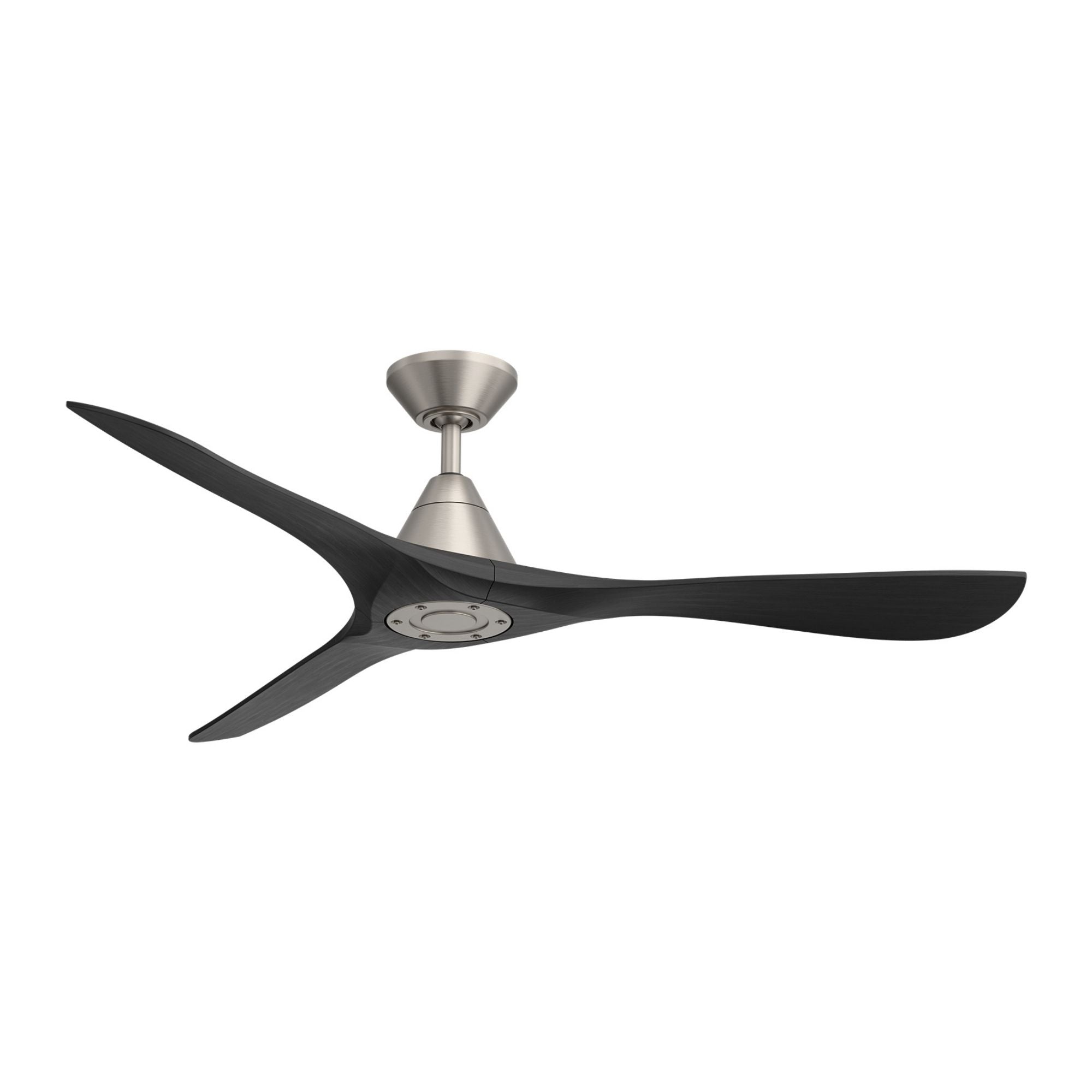

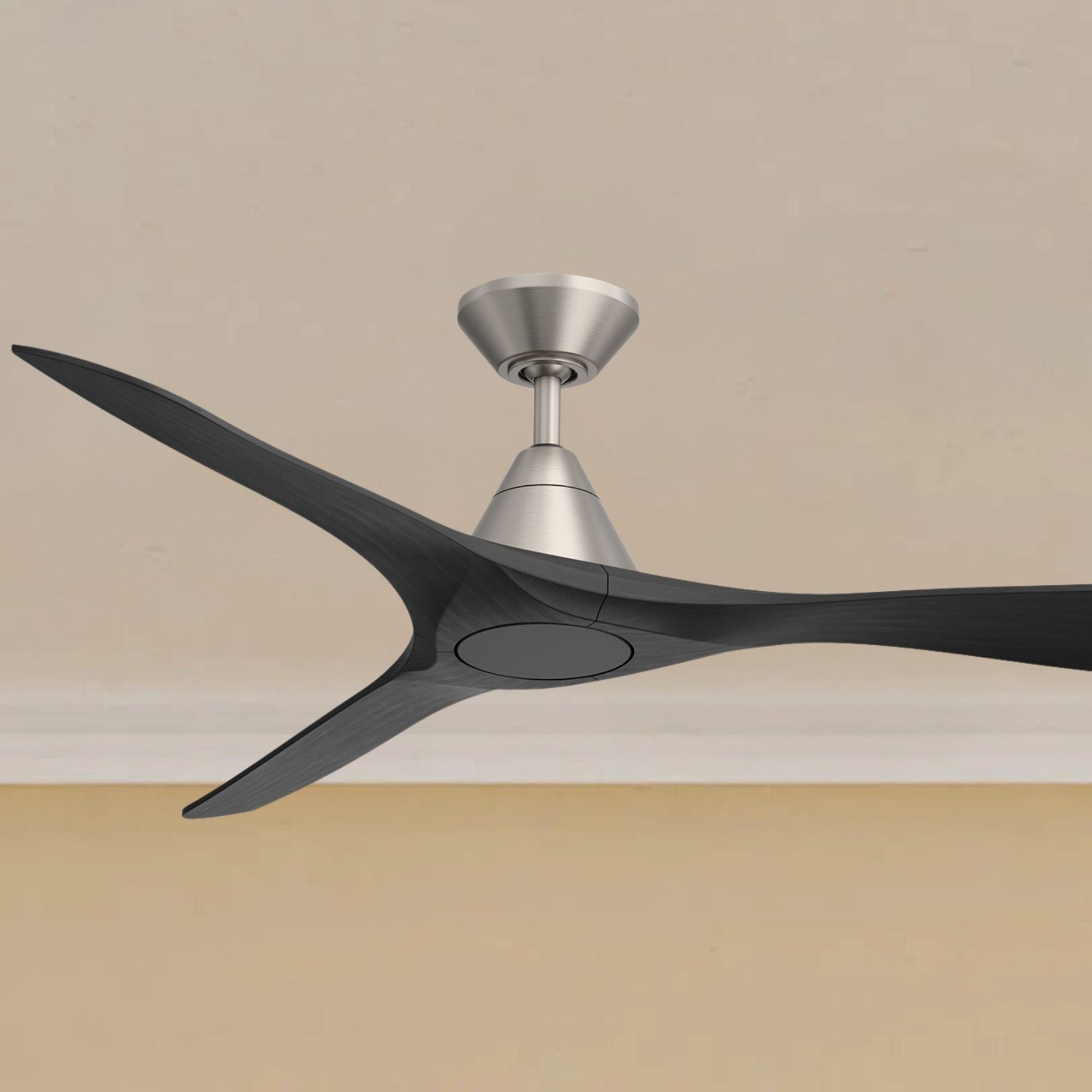

Modern Forms Carve 60 in Smart Ceiling Fan — Antique Nickel with Matte Black Blades

The Modern Forms Carve (model FR-D2504-60-AN/MB) is a 60 in damp-rated smart ceiling fan that pairs a warm Antique Nickel aluminum housing with three precision-crafted Matte Black Balsa Wood blades at a 20° pitch. Powered by a whisper-quiet 120×28mm sensorless DC motor running 6 speeds, it delivers up to 6,959 CFM at 40W — 189 CFM/W weighted-average efficiency — for large living rooms, great rooms, and covered outdoor spaces. LED luminaire not included — light covers are included; purchase luminaire separately if light is needed.

Key Features

• Blade Span: 60 in | 20° pitch | 3 Matte Black Balsa Wood blades
• Motor: 120×28mm sensorless DC | 6 speeds | Silent | Reversible | Summer & Winter modes
• Airflow: 6,959 CFM (high) | 4,378 CFM (weighted average)
• Efficiency: 189 CFM/W (weighted average) | Max RPM: 156
• Wattage: 40W (high) | 27W (weighted average) | Est. yearly energy cost: $7

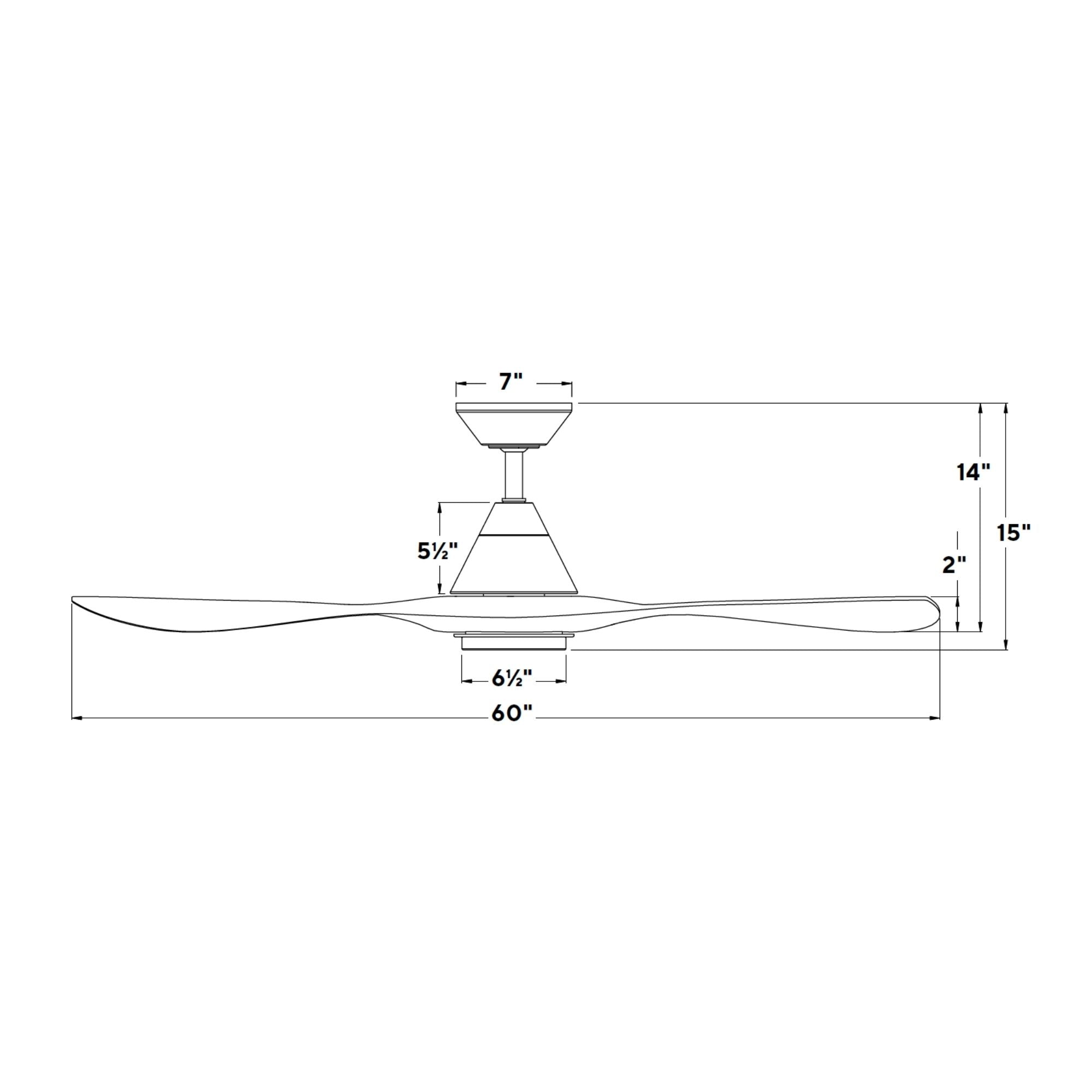

• Overall Dimensions: 60 in DIA × 15 in H
• Location Rating: UL/cUL Damp Location Listed — Indoor & Covered Outdoor | Title 24 JA8-2016 | Title 20 | Energy Star
• Mounting: Downrod Mount | Sloped ceiling compatible up to 30° (up to 45° with XF-SCK kit)
• Downrod: 0.75 in W × 6 in H included
• Wire: 80 in | Weight: 13.7 lbs
• Light: LED luminaire not included — light covers included. Purchase luminaire separately if light is needed

Smart & Control Features

Wi-Fi and Bluetooth enabled (up to 150 ft range each). Compatible with the Modern Forms app for speed, direction, and scheduling control. Works with Amazon Alexa, Google Assistant, SmartThings, ecobee, Control4, and JOSH. Includes handheld remote control. Optional Bluetooth wall control (F-WCBT) sold separately.

Construction & Design

Aluminum housing in Antique Nickel paired with three Matte Black Balsa Wood blades — a bold contrast that brings a modern-industrial edge to large contemporary and transitional interiors. Overall dimensions: 60 in DIA × 15 in H. Damp rated for covered outdoor spaces. Weight: 13.7 lbs.

Light Output & Performance

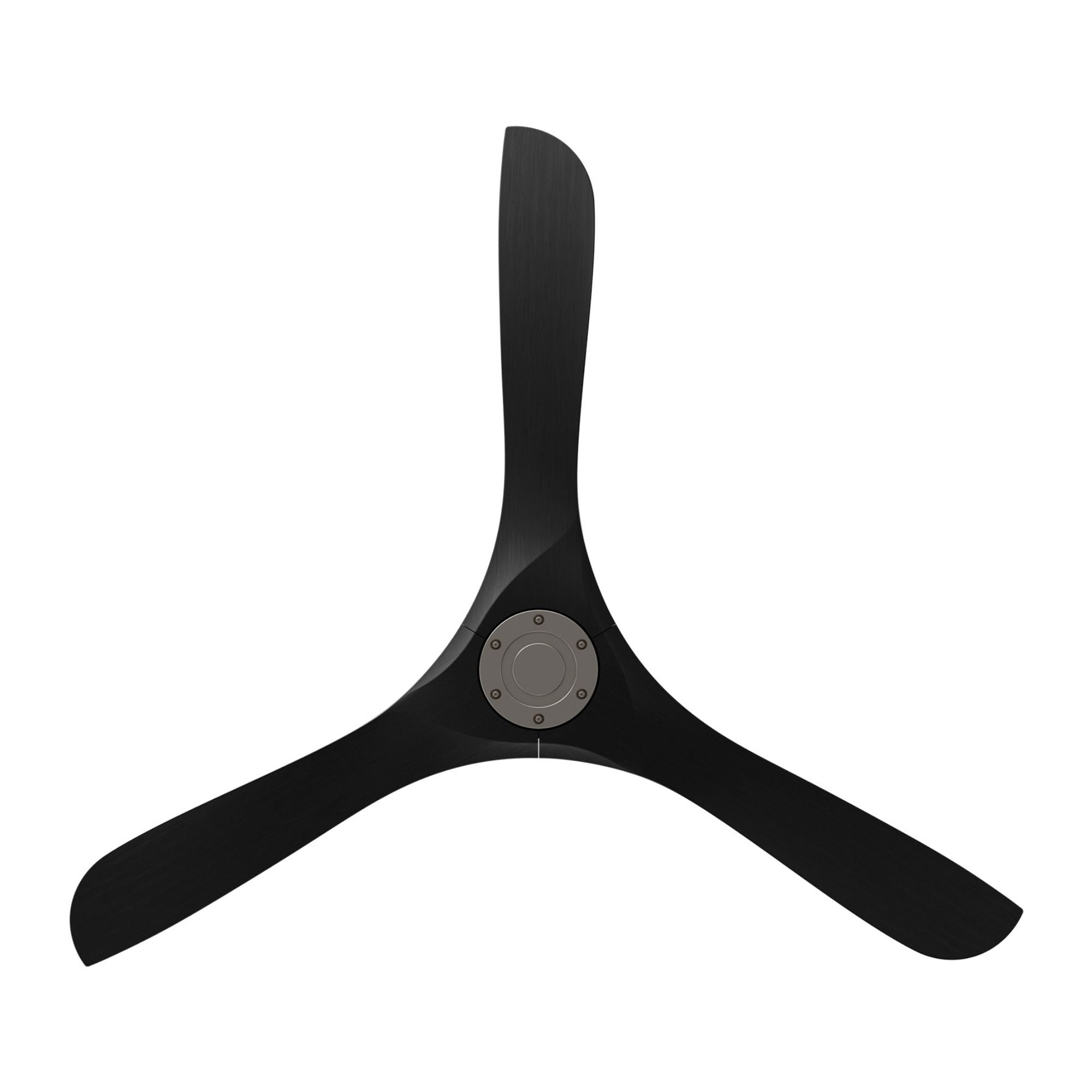

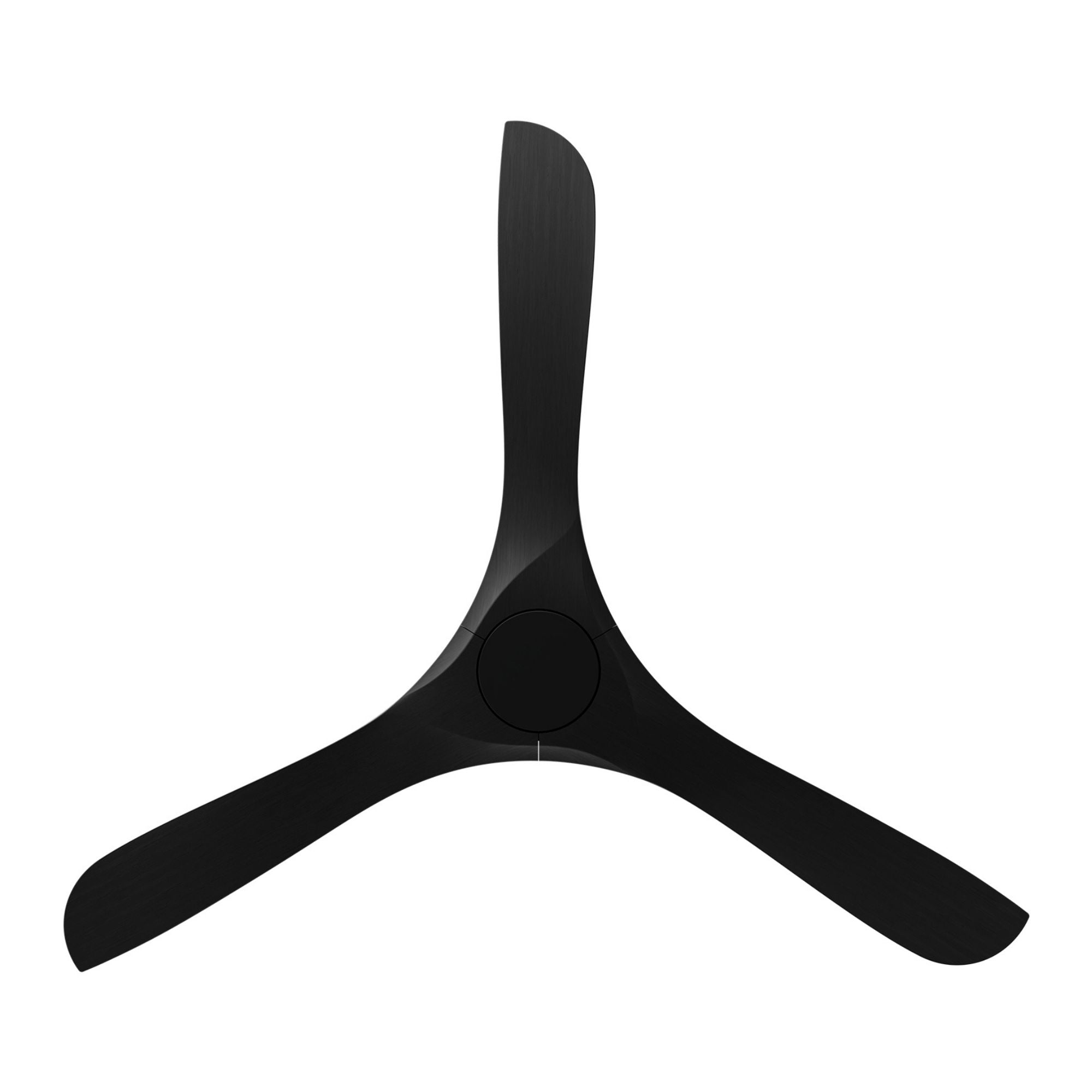

LED luminaire is not included with this model — light covers are included (flat cover matches housing finish; industrial cover matches housing finish). To add lighting, purchase a compatible Modern Forms luminaire separately.

Electrical & Installation

Total power: 40W. Downrod: 0.75 in W × 6 in H included. Sloped ceiling compatible up to 30° standard; up to 45° with optional XF-SCK slope kit. UL/cUL damp location listed. Title 24 JA8-2016 and Title 20 compliant. Energy Star certified.

Suggested Downrod by Ceiling Height

• 8 ft ceiling → 6 in downrod (included)
• 9 ft ceiling → 12 in downrod (XF-12)
• 10 ft ceiling → 18 in downrod (XF-18)
• 11 ft ceiling → 24 in downrod (XF-24)
• 12 ft ceiling → 36 in downrod (XF-36)
• 13 ft ceiling → 48 in downrod (XF-48)
• 14 ft ceiling → 60 in downrod (XF-60)
• 15 ft ceiling → 72 in downrod (XF-72)
• Note: Max recommended downrod length is 72 in with 80 in lead wire

Optional Accessories

• F-WCBT-WT — Bluetooth Wall Control (White)
• XF-SCK — Sloped Ceiling Kit (for slopes up to 45°)
• XF-I — Downrod Coupler

What's Included

• 60 in ceiling fan — Antique Nickel with Matte Black blades
• Light covers (flat + industrial)
• Handheld remote control
• 0.75 in × 6 in downrod
• Mounting hardware
