Modern Forms Tip Top 52 in Outdoor Smart Ceiling Fan Matte Black
Available in stock (80)
About this item
About this item
- Max Airflow: 5,187 CFM high / 3,491 CFM weighted avg — Energy Star rated, ideal for covered patios and living rooms up to 225 sq ft
- Silent DC Motor: 120x12 sensorless DC, 6 speeds, Summer & Winter modes — runs at just 16W at high speed
- Wet Location Rated: UL/cUL listed, Title 20 & Energy Star compliant — sun-facing porches, covered patios, or indoors
- Smart Control: F-RCBT-WT Bluetooth remote included; Modern Forms app, Alexa, Google Assistant, SmartThings, Control4, Crestron & Josh.ai
- Selectable CCT LED: 1,497–1,594 lumens, CRI 90, 2700K–5000K dimmable — 50,000-hour rated life
We process payments securely and do not store credit card information.
Description
Description

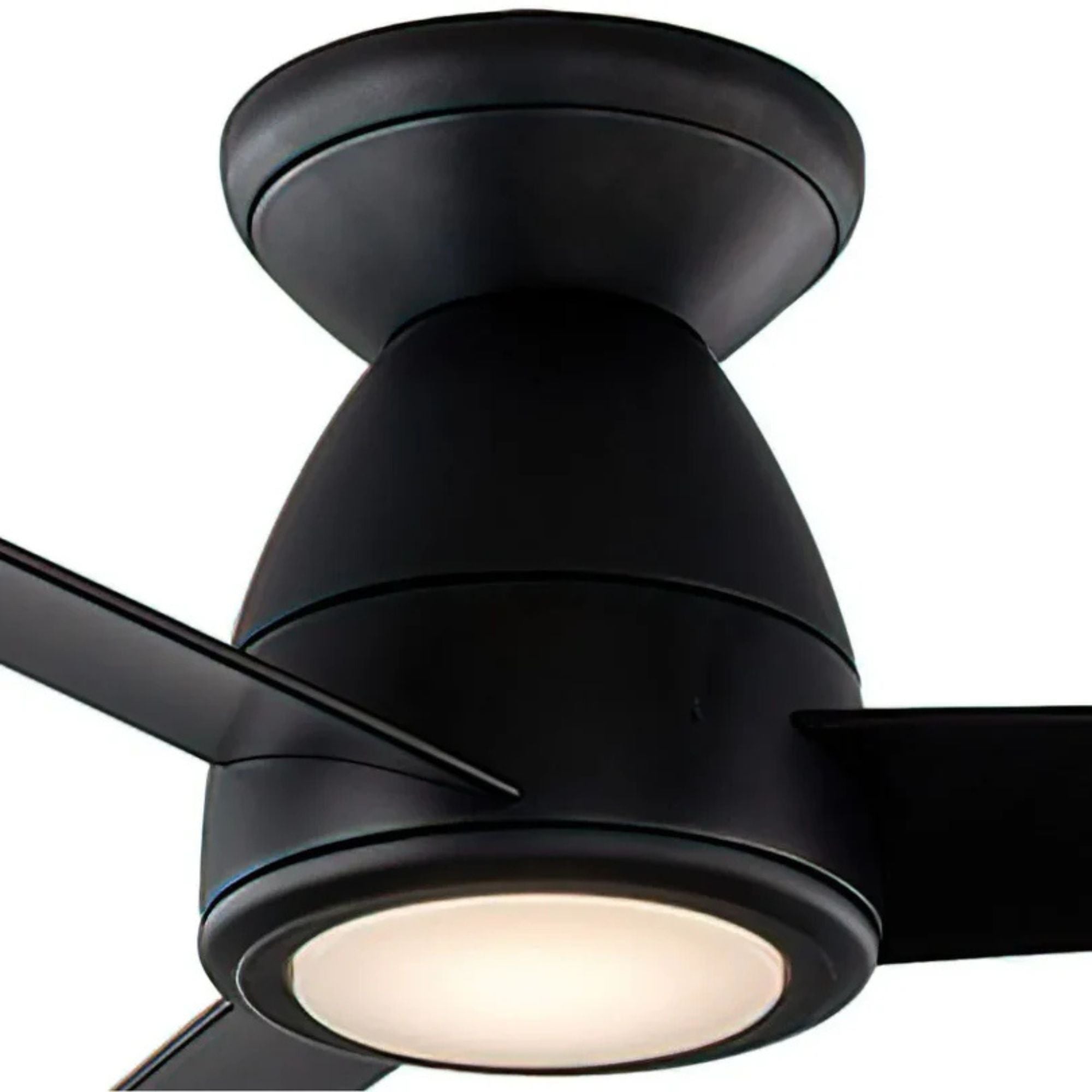

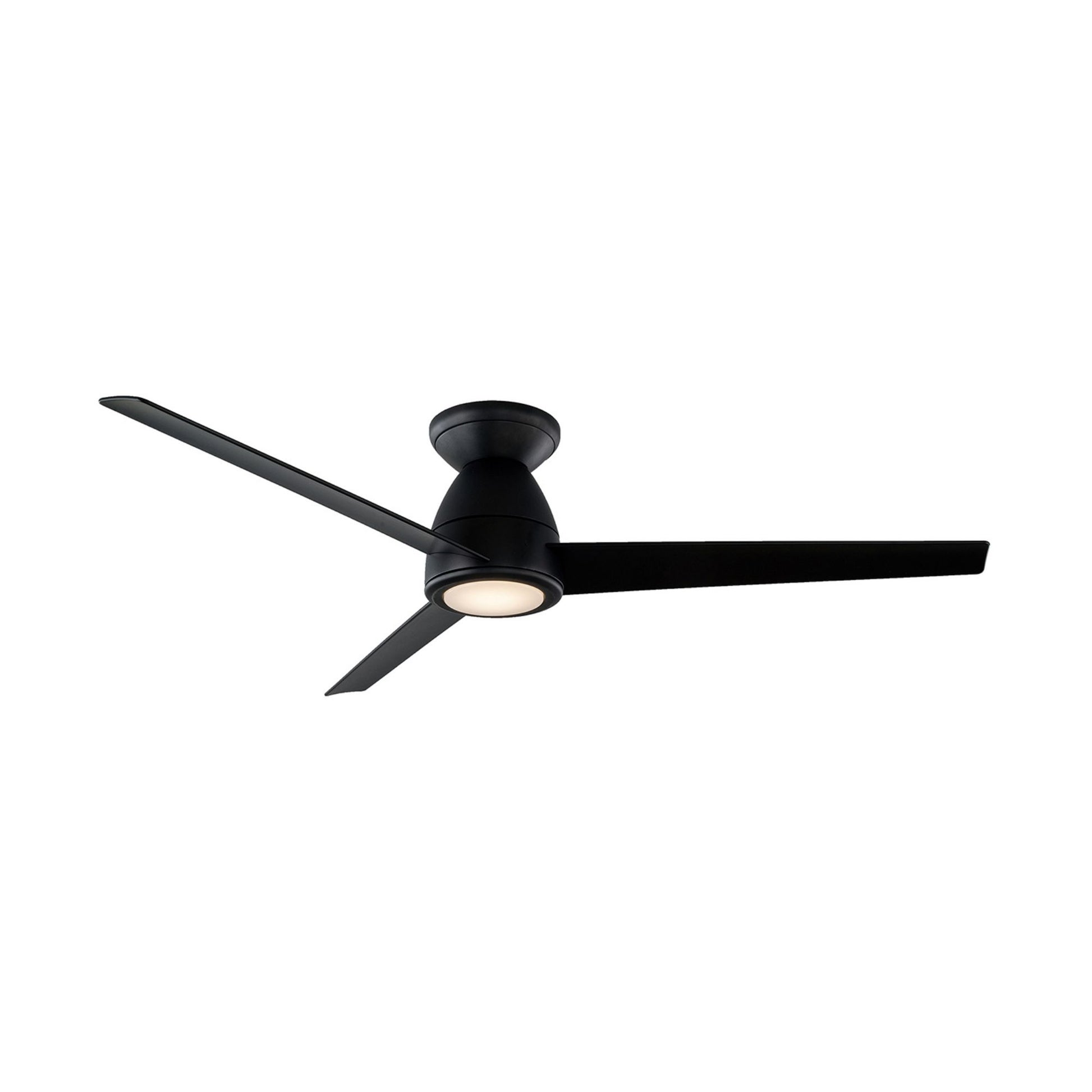

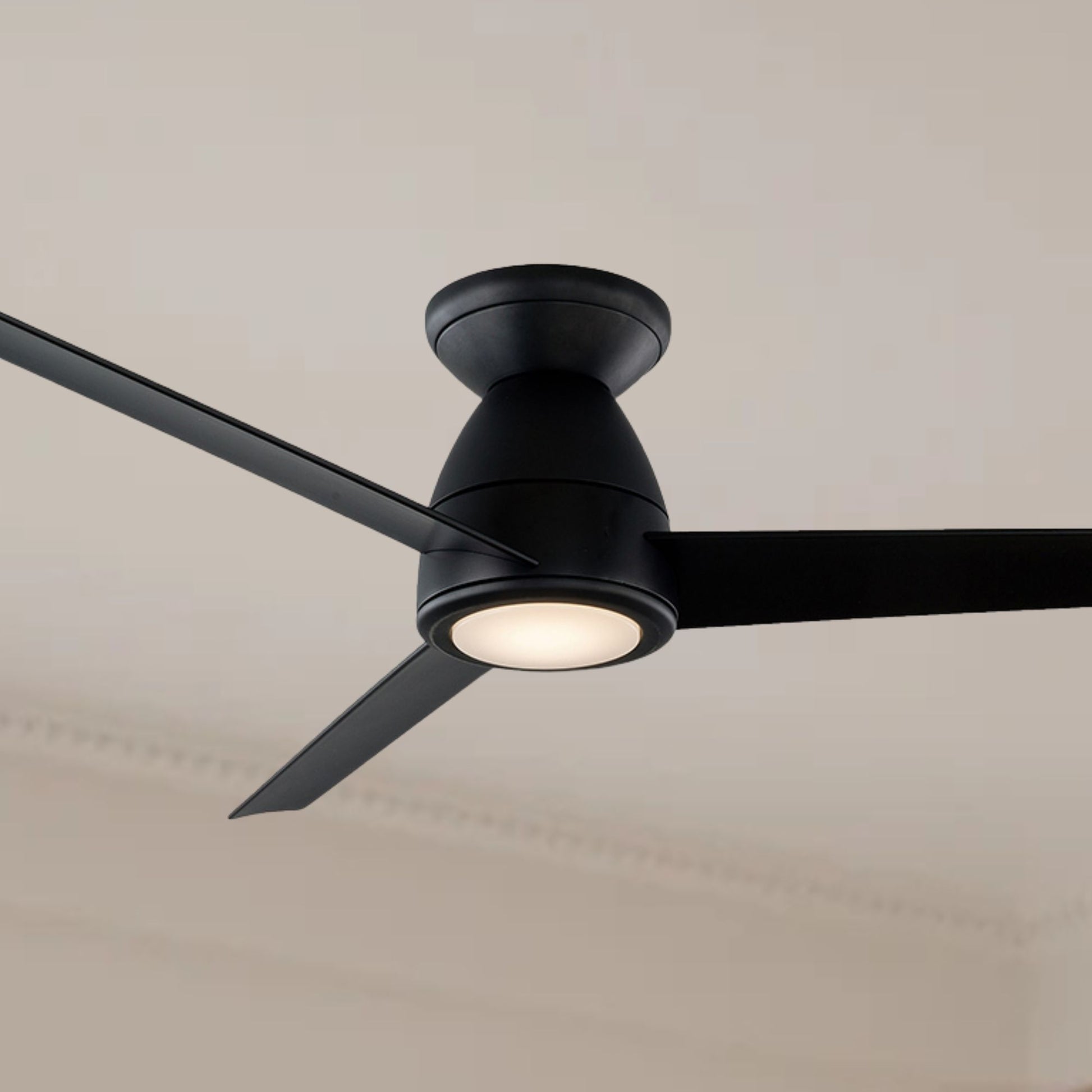

Modern Forms Tip Top 52 in Outdoor LED Smart Ceiling Fan — Matte Black
The Modern Forms Tip Top (model FH-W2004-52L-MB) is a 52 in flush mount smart ceiling fan engineered for sun-facing porches, covered patios, and stylish living rooms. Powered by a whisper-quiet 120x12 sensorless DC motor with 6 fan speeds, it delivers up to 5,187 CFM of airflow at just 19W. The integrated LED luminaire outputs up to 1,594 lumens with selectable color temperatures from 2700K to 5000K. UL/cUL Wet Location rated, Title 20, and Energy Star compliant.
Key Features
- Blade Span: 52 in | 18 degree pitch | 3 Matte Black ABS blades
- Motor: Silent 120x12 sensorless DC | 6 speeds | Summer & Winter modes
- Airflow: 3,491 CFM (weighted avg) / 5,187 CFM (high)
- Efficiency: 223 CFM/W
- Total Power: 35W (fan 16W + light 16W)
- Light Output: 1,497–1,594 lumens | CRI 90 | 2700K, 3000K, 4000K, 5000K selectable

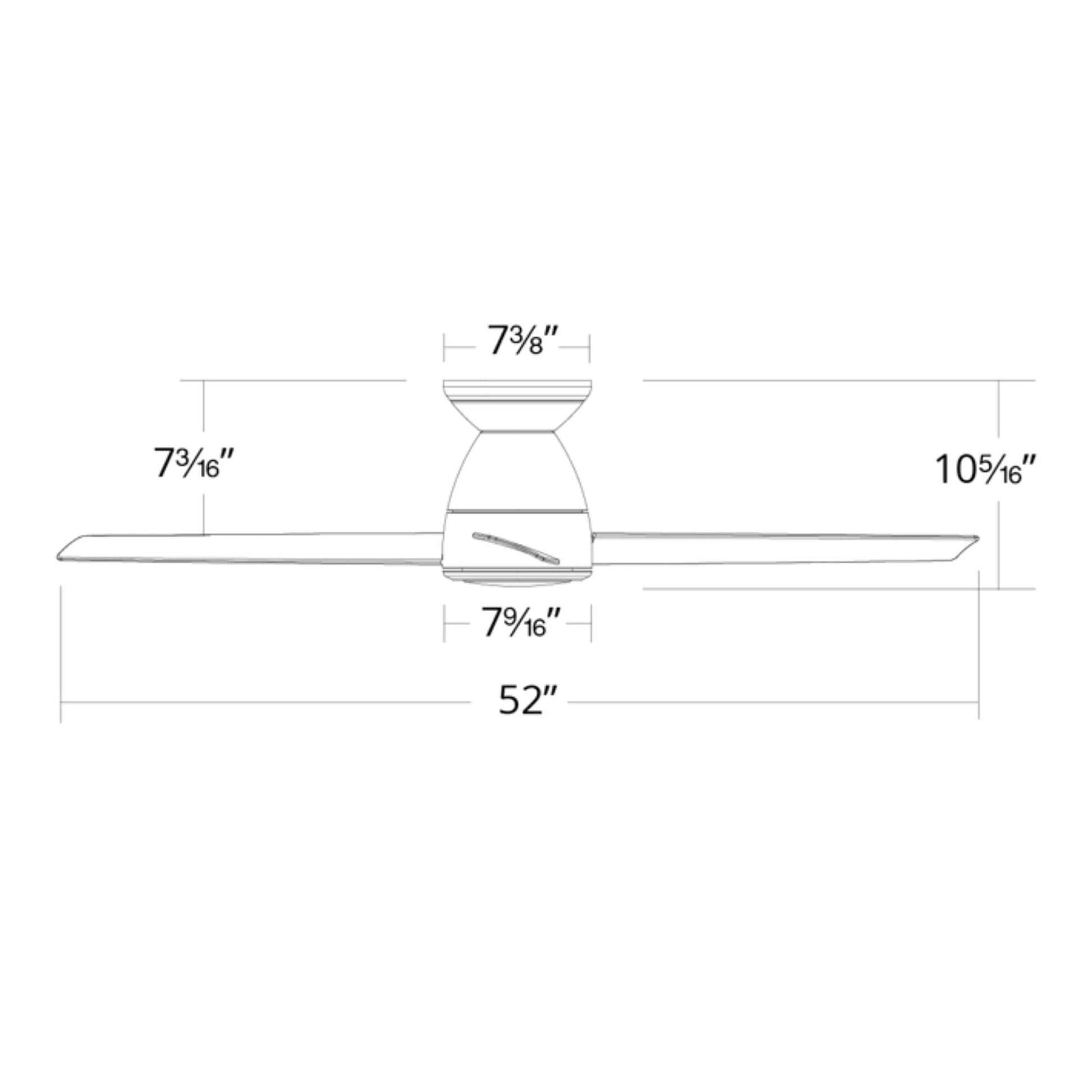

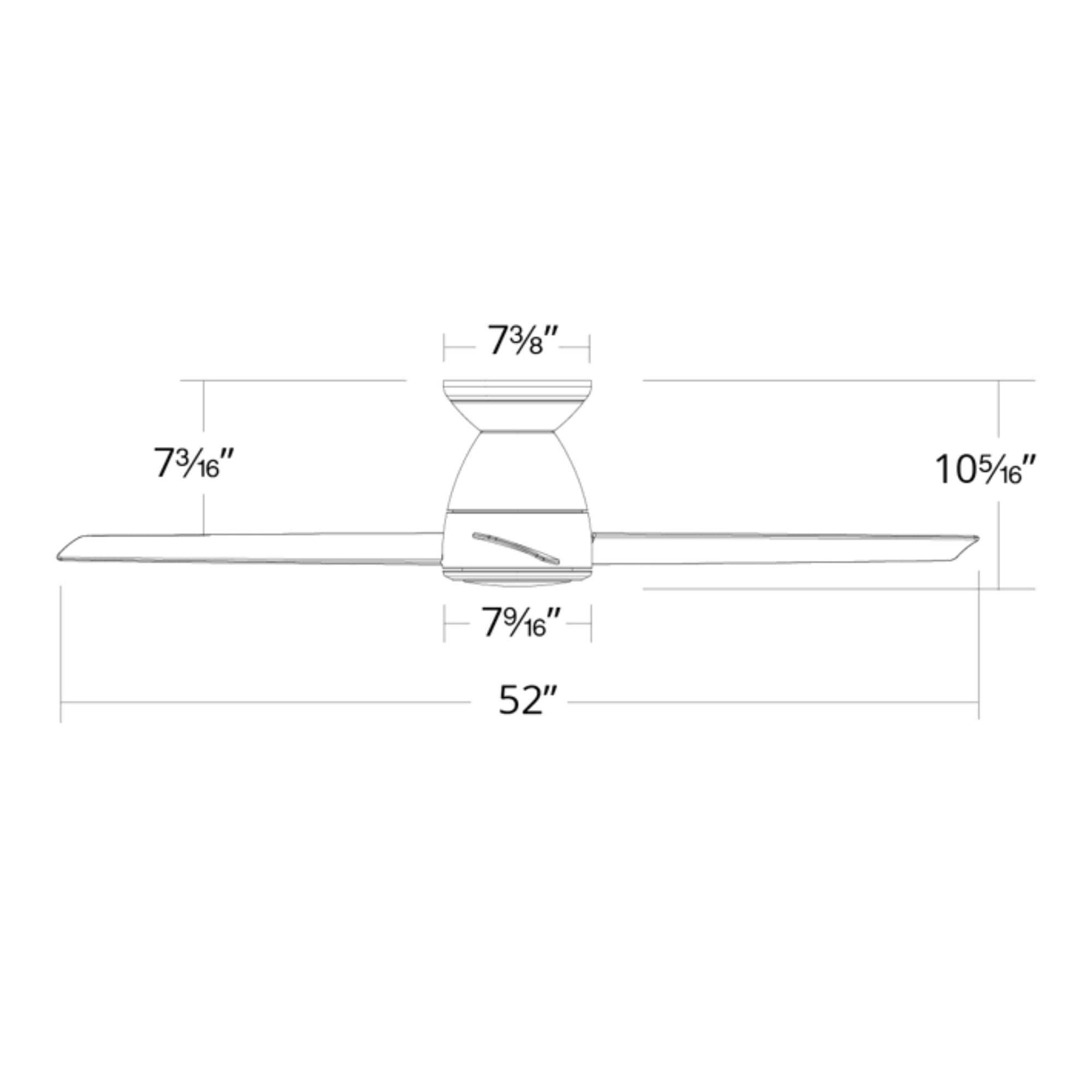

- Overall Dimensions: 52 in DIA x 10.56 in H | Canopy: 7.375 in W
- Location Rating: UL/cUL Wet Location | Title 24 JA8-2016 | Title 20 | Energy Star
- Mounting: Flush mount only | Not compatible with sloped ceilings
- Wire: 8 in | Hanging Weight: 11 lbs
Smart & Control Features
Includes the F-RCBT-WT Bluetooth remote control — 6-speed fan control (forward & reverse) plus full-range light dimmer. Pairs with the Modern Forms app for full control from anywhere, including Adaptive Learning, group control, and energy scheduling. Integrates with Amazon Alexa, Google Assistant, Samsung SmartThings, Control4, Crestron, and Josh.ai. WiFi and Bluetooth range up to 150 ft. Optional wall control (F-WCBT-WT) available separately for 3 or 4-way setup.
Construction & Design
Matte Black aluminum motor housing paired with three aerodynamic ABS blades at an 18 degree pitch. Flush mount profile keeps the fan close to the ceiling for rooms with lower clearance. Overall dimensions: 52 in DIA x 10.56 in H with a 7.375 in canopy width. Hanging weight: 11 lbs.
Light Output & Performance
The integrated LED luminaire delivers 1,497–1,594 lumens, CRI 90, rated life of 50,000 hours. Selectable between 2700K, 3000K, 4000K, and 5000K. Fully dimmable via F-RCBT-WT remote or Modern Forms app.
Electrical & Installation
Operates at 120V. Flush mount installation only — not compatible with sloped or vaulted ceilings. Total power: 35W. Fan motor: 16W. LED light: 16W. Wire length: 8 in. Hanging weight: 11 lbs.
Recommended Ceiling Height
This fan is a flush mount design and does not use a downrod. It is best suited for ceilings between 8 ft and 9 ft in height. For ceilings 10 ft or higher, consider a fan with a downrod mount for optimal airflow and clearance.
Optional Accessories
- F-WCBT-WT — Bluetooth Wall Control (3 or 4-way setup)
- F-RCBT-WT — Additional Bluetooth Hand-Held Remote
What's Included
- 52 in ceiling fan with integrated LED luminaire
- F-RCBT-WT Bluetooth remote control (6-speed, full-range light dimmer)
- Flush mount hardware
- User manual
