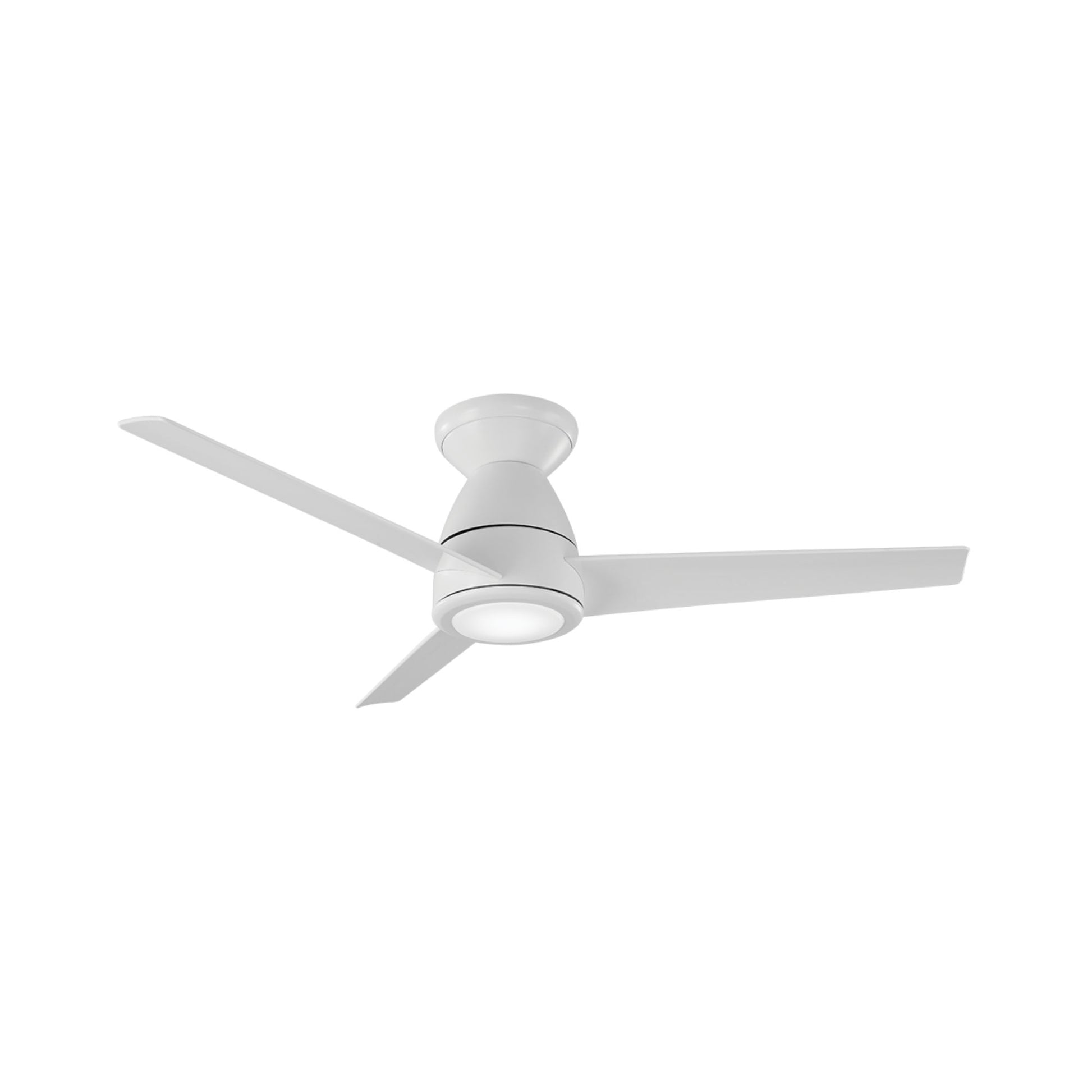

Modern Forms Tip Top 44 in Outdoor LED Smart Ceiling Fan — Matte White

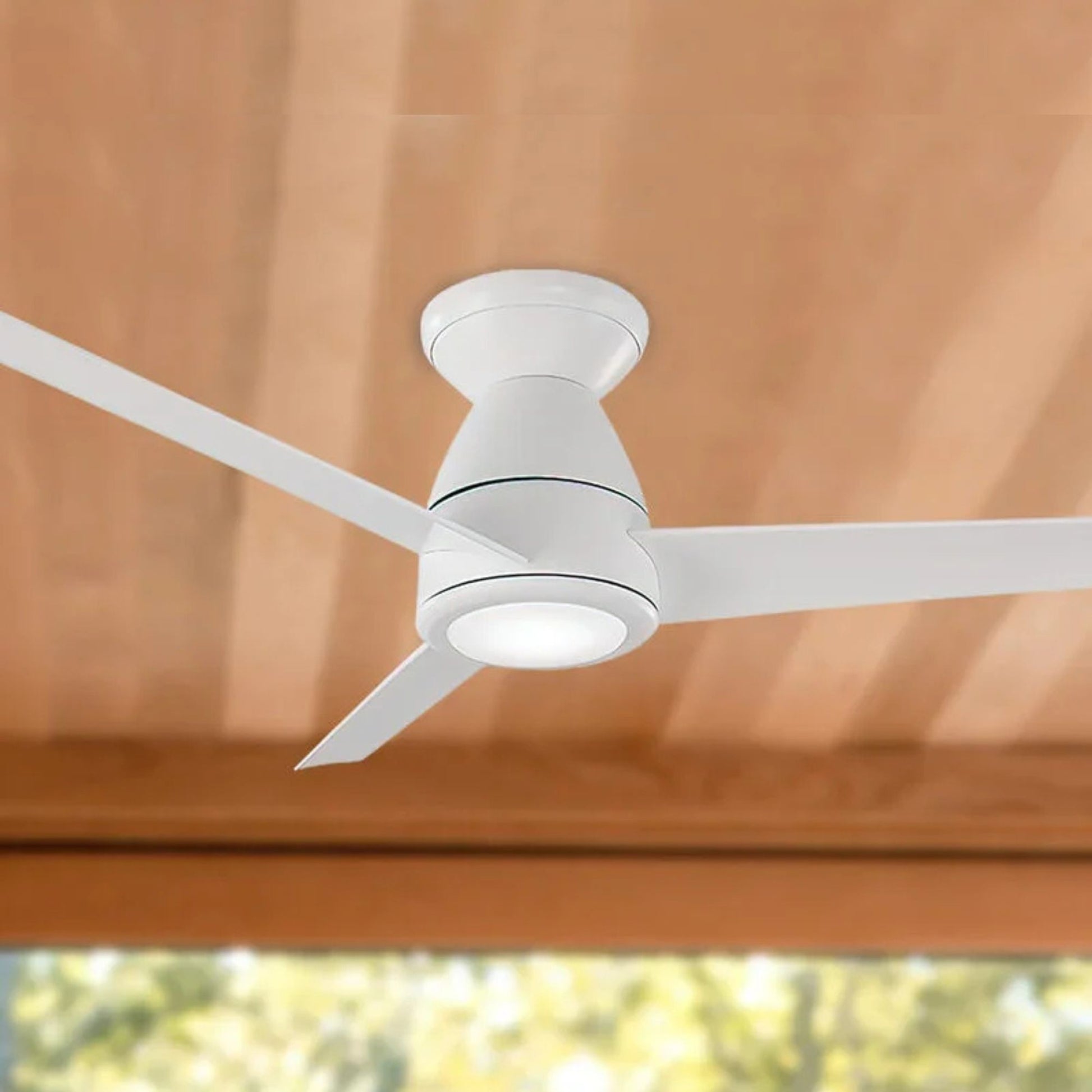

The Modern Forms Tip Top (model FH-W2004-44L-MW) is a 44 in flush mount smart ceiling fan engineered for sun-facing porches, covered patios, and stylish living rooms. Powered by a whisper-quiet 120x12 sensorless DC motor with 6 fan speeds, it delivers up to 4,313 CFM of airflow at just 16W. The integrated LED luminaire outputs up to 1,594 lumens with selectable color temperatures from 2700K to 5000K. UL/cUL Wet Location rated, Title 20, and Energy Star compliant.

Key Features

• Blade Span: 44 in | 18 degree pitch | 3 Matte White ABS blades
• Motor: Silent 120x12 sensorless DC | 6 speeds | Summer & Winter modes
• Airflow: 2,798 CFM (weighted avg) / 4,313 CFM (high)
• Efficiency: 211 CFM/W
• Total Power: 32W (fan 13W + light 16W)
• Light Output: 1,497–1,594 lumens | CRI 90 | 2700K, 3000K, 4000K, 5000K selectable
• Overall Dimensions: 44 in DIA x 10⁵⁄₁₆ in H | Canopy: 7⅜ in W
• Location Rating: UL/cUL Wet Location | Title 24 JA8-2016 | Title 20 | Energy Star
• Mounting: Flush mount only | Not compatible with sloped ceilings
• Wire: 8 in | Hanging Weight: 11 lbs

Smart & Control Features

Includes the F-RCBT-WT Bluetooth remote control — 6-speed fan control (forward & reverse) plus full-range light dimmer. Pairs with the Modern Forms app for full control from anywhere, including Adaptive Learning, group control, and energy scheduling. Integrates with Amazon Alexa, Google Assistant, Samsung SmartThings, Control4, Crestron, and Josh.ai. WiFi and Bluetooth range up to 150 ft. Optional wall control (F-WCBT-WT) available separately for 3 or 4-way setup.

Construction & Design

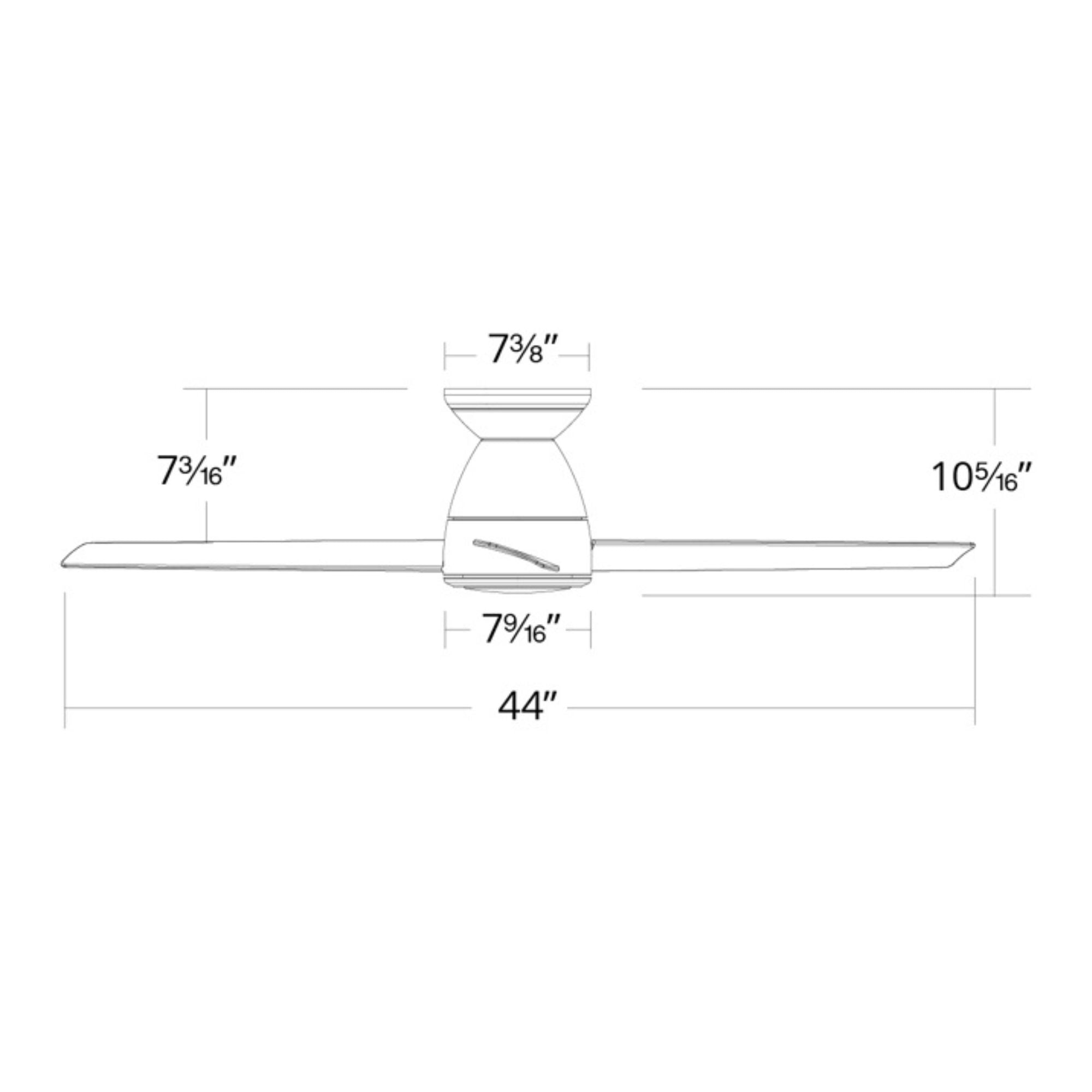

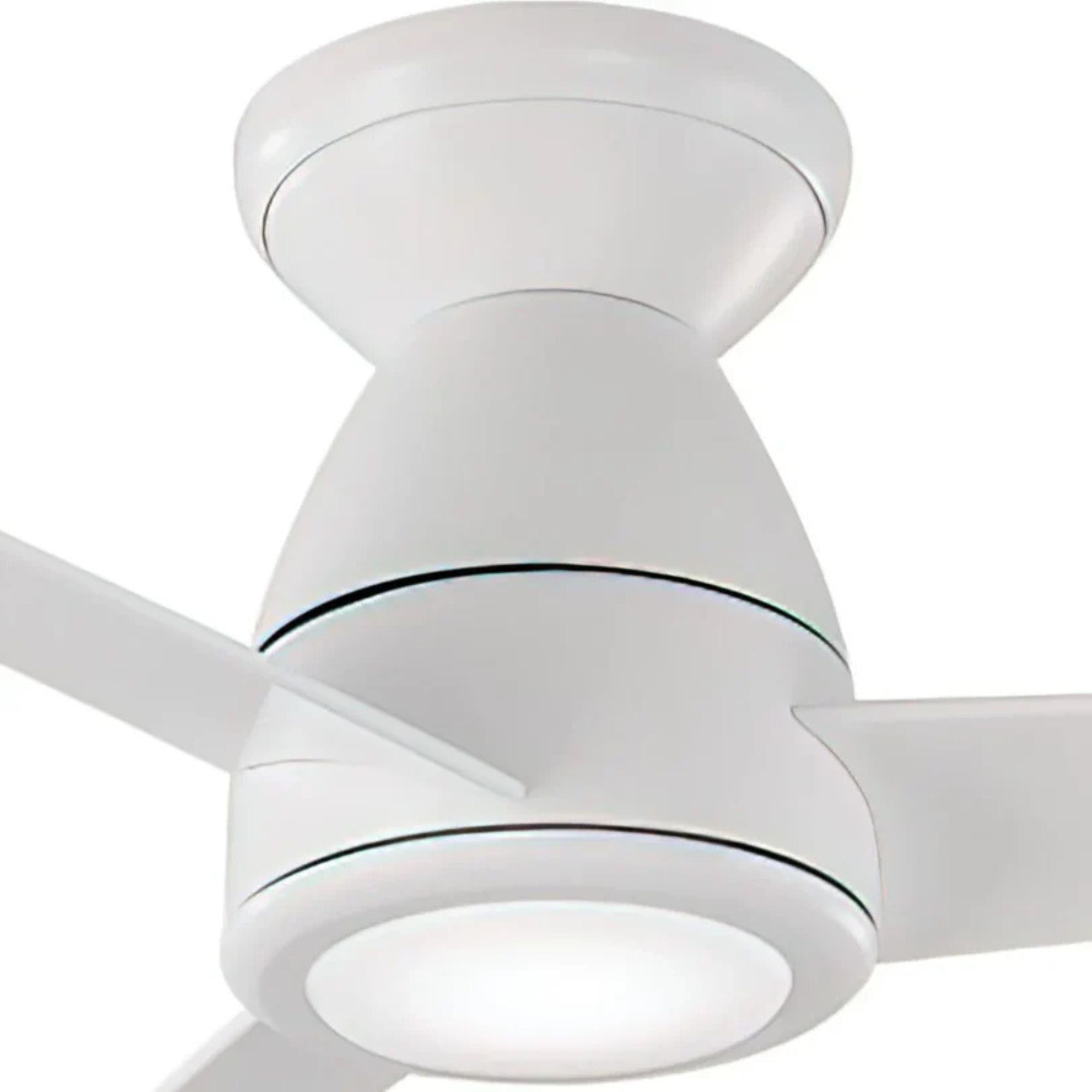

Matte White aluminum motor housing paired with three aerodynamic ABS blades at an 18 degree pitch. Flush mount profile keeps the fan close to the ceiling for rooms with lower clearance. Overall dimensions: 44 in DIA x 10⁵⁄₁₆ in H with a 7⅜ in canopy width. Hanging weight: 11 lbs.

Light Output & Performance

The integrated LED luminaire delivers 1,497–1,594 lumens, CRI 90, rated life of 50,000 hours. Selectable between 2700K, 3000K, 4000K, and 5000K. Fully dimmable via F-RCBT-WT remote or Modern Forms app.

Electrical & Installation

Operates at 120V. Flush mount installation only — not compatible with sloped or vaulted ceilings. Total power: 32W. Fan motor: 13W. LED light: 16W. Wire length: 8 in. Hanging weight: 11 lbs.

Recommended Ceiling Height

This fan is a flush mount design and does not use a downrod. It is best suited for ceilings between 8 ft and 9 ft in height. For ceilings 10 ft or higher, consider a fan with a downrod mount for optimal airflow and clearance.

Optional Accessories

• F-WCBT-WT — Bluetooth Wall Control (3 or 4-way setup)
• F-RCBT-WT — Additional Bluetooth Hand-Held Remote

What’s Included

• 44 in ceiling fan with integrated LED luminaire
• F-RCBT-WT Bluetooth remote control (6-speed, full-range light dimmer)
• Flush mount hardware
• User manual
