Modern Forms Vox 26 in Outdoor Smart Flush Mount LED Ceiling Fan DC Bronze

The Modern Forms Vox FH-W1802-26L-BZ combines a compact 26 in span with a low-profile flush mount design and matching Bronze housing and blades. Its quiet, reversible DC motor offers six speeds and delivers 2,715 CFM on high, making Vox a practical choice for smaller spaces. An integrated dimmable 3000K LED provides illumination, while Wet Location-rated construction supports indoor and outdoor use. The included Bluetooth remote and Modern Forms app via Wi-Fi provide convenient control and scheduling.

Key Features

• Blade Configuration: 26 in sweep; ABS blades with 13° pitch.
• Motor: 125 × 20 sensorless DC motor; six speeds and reversible summer/winter modes; maximum 348 RPM.
• Airflow: 2,715 CFM on high; 1,624 CFM weighted average.
• Airflow Efficiency: Listed 161 CFM/W on high; 132 CFM/W weighted average.
• Power: 39.5W listed total power; 32W high-speed and 20W weighted-average energy use.
• Location Rating: UL/cUL Wet Location listed.
• Mounting: Flush mount configuration.

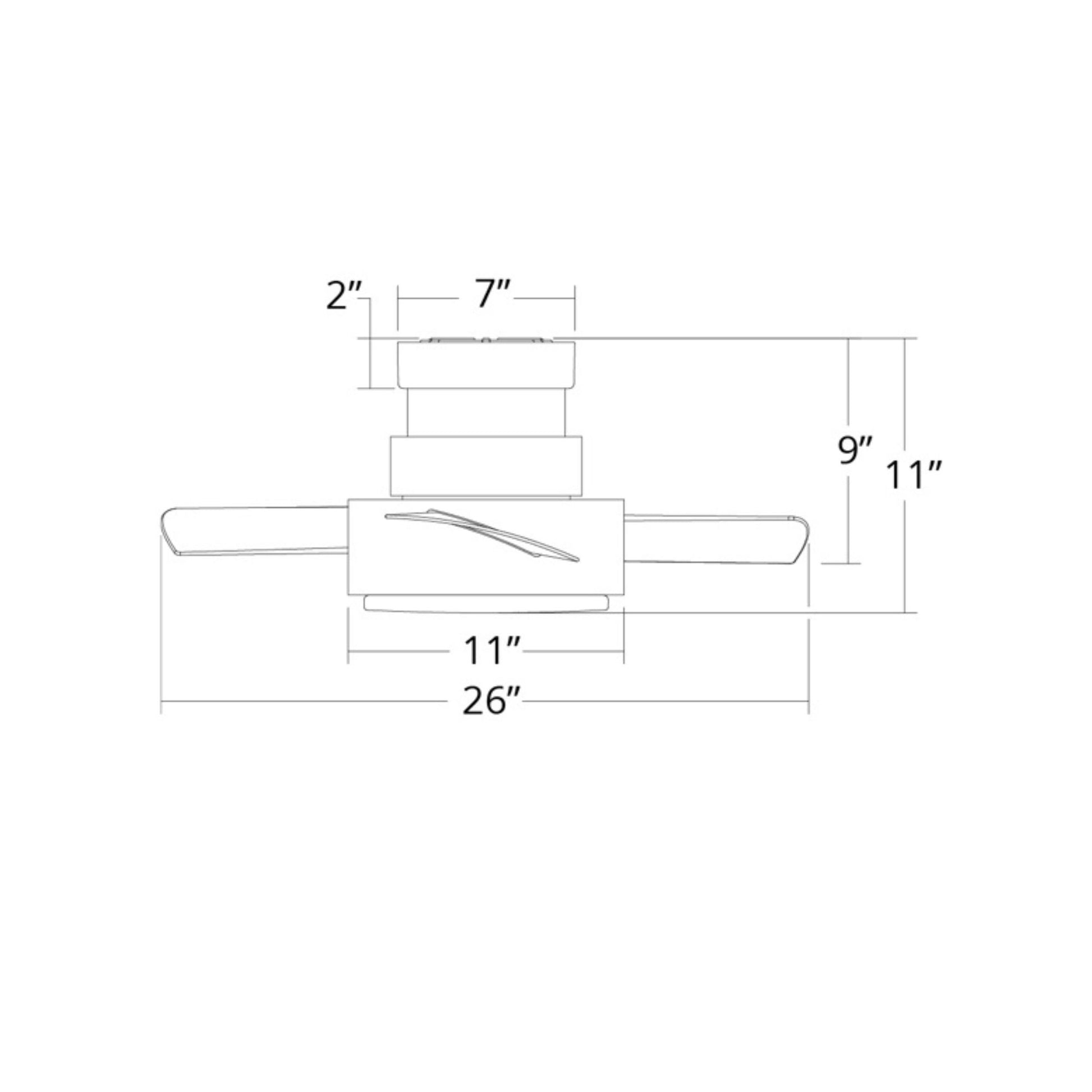

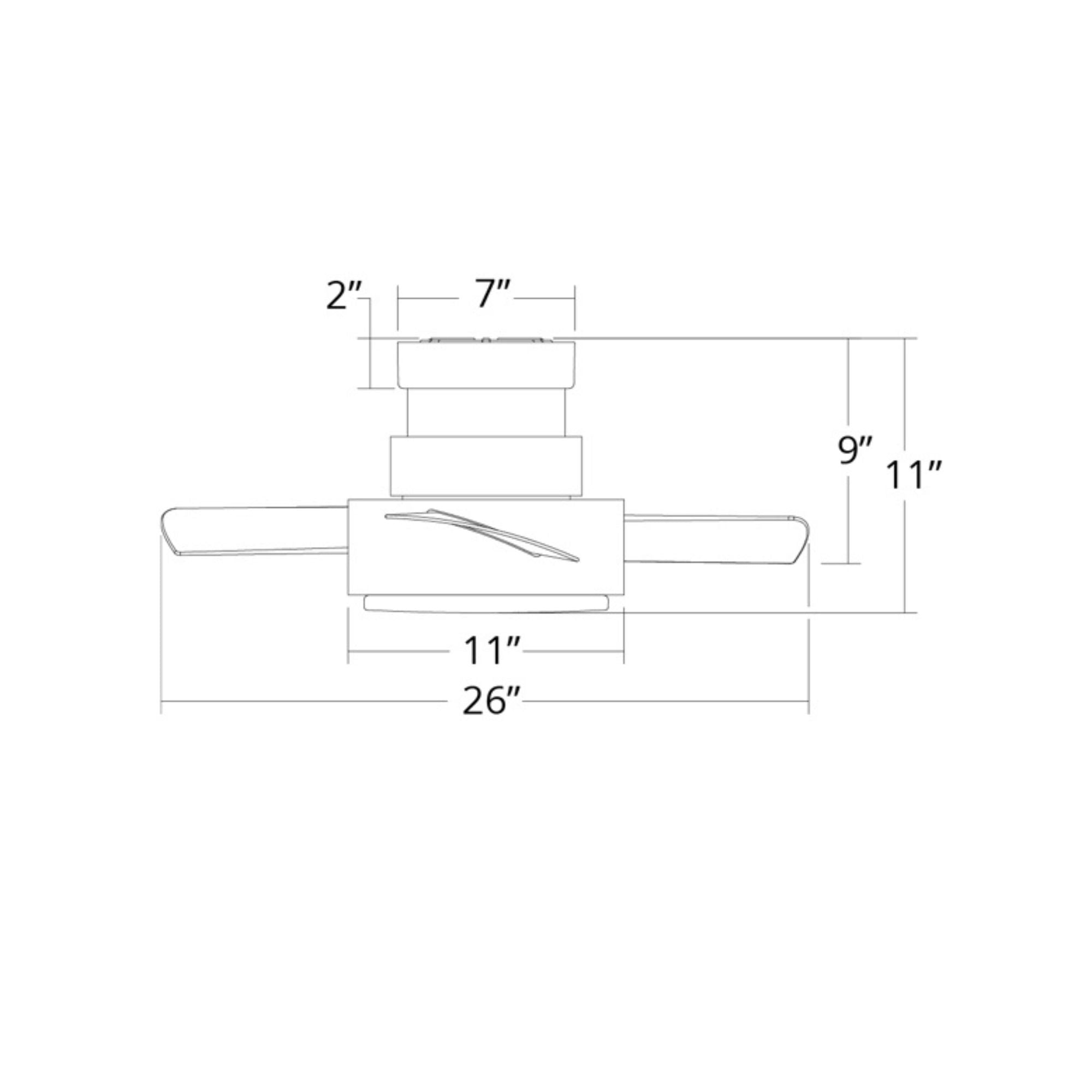

• Dimensions: 26 in diameter × 11 in overall height; 9 in blade drop; 7 in canopy diameter.
• Lead Wire: 8 in.
• Hanging Weight: 13 lb.
• LED: 23.5W; 3000K; 90 CRI; 2,100 source lumens and 1,013 delivered lumens; integrated dimming; 50,000-hour rated life.
• Standards: Energy Star rated; Title 24 JA8-2016 compliant; Title 20.

Smart & Control Features

The included F-RCBT-WT Bluetooth remote controls fan speed, light brightness and summer/winter modes. Wi-Fi and Bluetooth connectivity supports the Modern Forms app for control and scheduling. Voice integrations include Amazon Alexa and Google Assistant; smart-home integrations include Samsung SmartThings, ecobee, Control4 and JOSH. The compatible F-WCBT-WT Bluetooth wall control is sold separately, with optional wall controls supporting 3-way and 4-way operation.

Construction & Design

Aluminum and ABS construction pairs a Bronze housing with Bronze blades. A compact profile and integrated LED create a streamlined design for smaller rooms.

Light Output & Performance

The integrated 23.5W LED produces 2,100 source lumens and 1,013 delivered lumens at 3000K, with 90 CRI and a 50,000-hour rated life. Integrated dimming and brightness control through the included remote or optional wall control let you adjust illumination; the Modern Forms app provides smart control. The fan delivers 2,715 CFM on high and 1,624 CFM weighted-average airflow.

Electrical & Installation

Operates at 120V with a reversible DC motor. The specification sheet lists 39.5W total power, 32W high-speed and 20W weighted-average energy use, with a 23.5W LED. This flush-mounted model has an 8 in lead wire and 7 in canopy, with an 11 in overall drop. Install on a flat ceiling using the flush-mount installation instructions.

Recommended Ceiling Height

The low-profile flush mount design suits lower ceilings. Allow for the 9 in ceiling-to-blade drop when checking the required blade-to-floor clearance for your installation.

What's Included

• Vox FH-W1802-26L-BZ fan with Bronze housing and blades
• Integrated 3000K LED
• F-RCBT-WT Bluetooth remote with wall cradle and batteries
• Mounting Hardware
