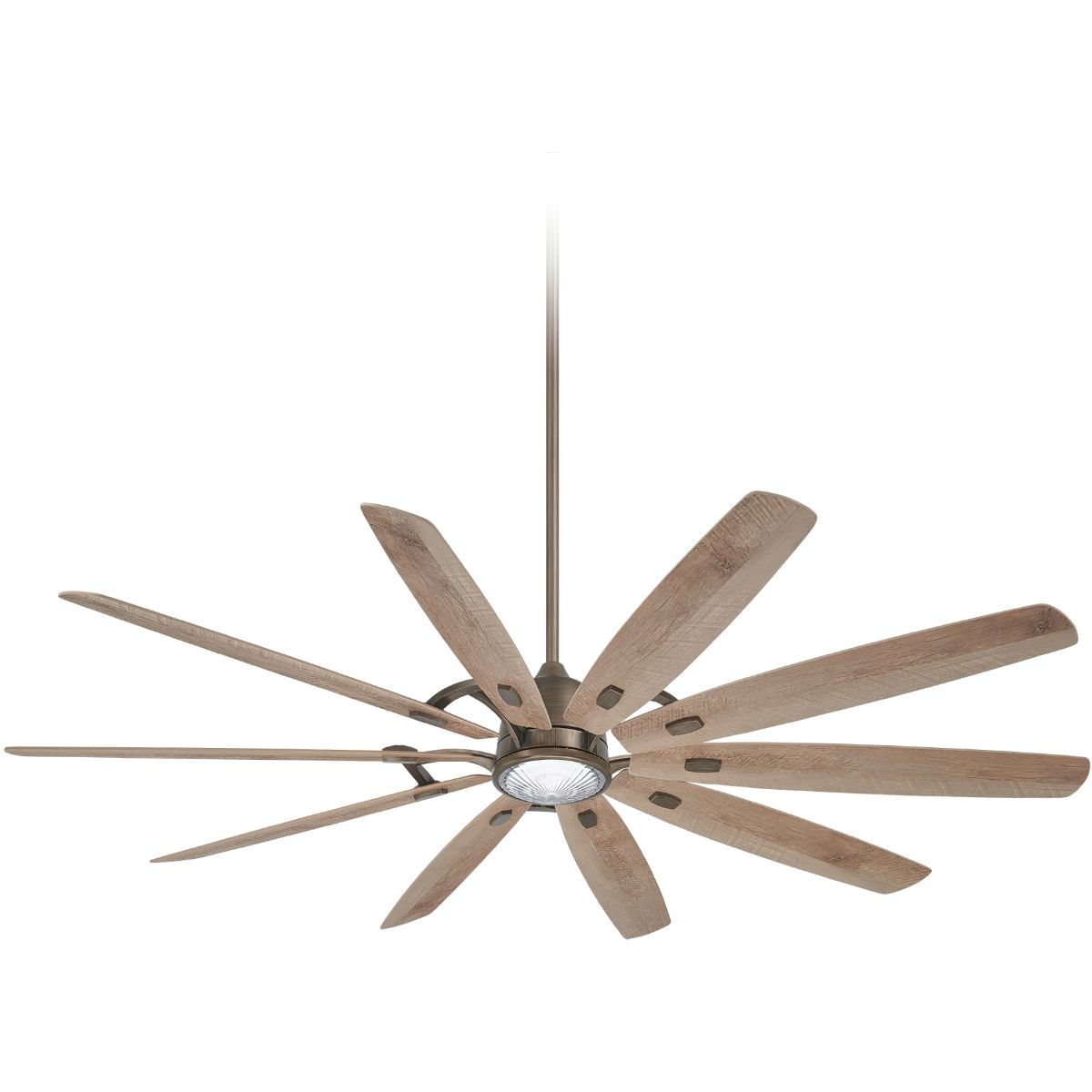

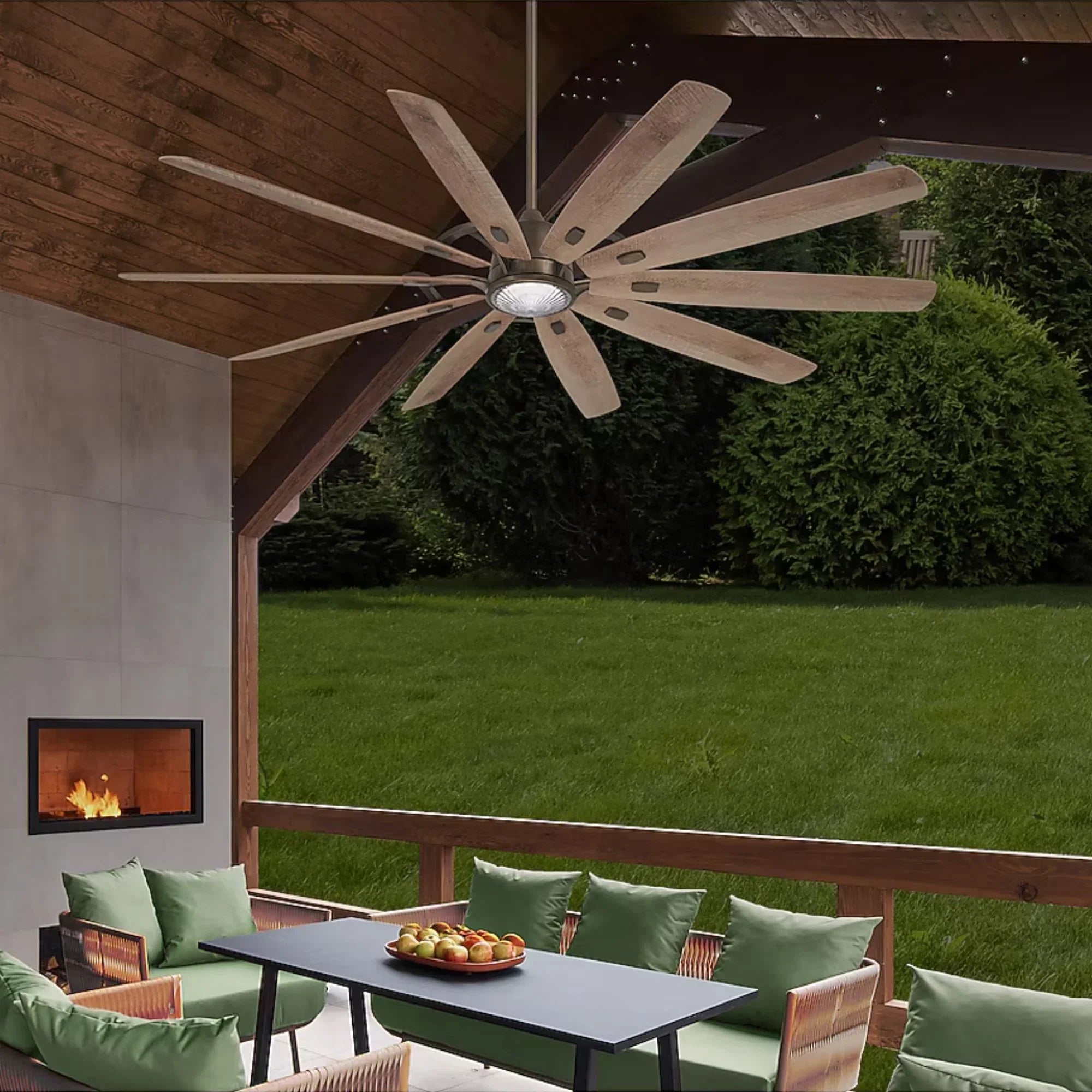

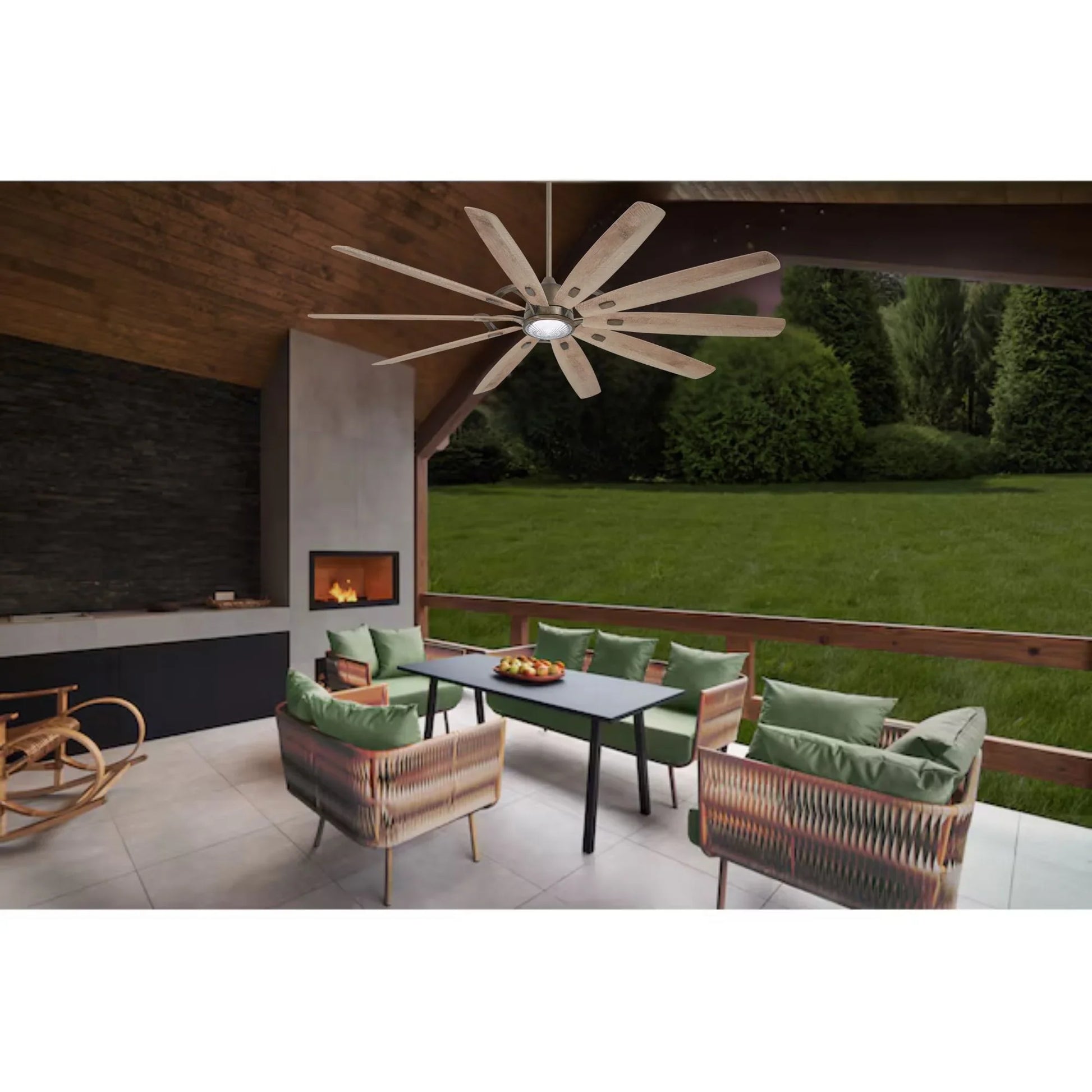

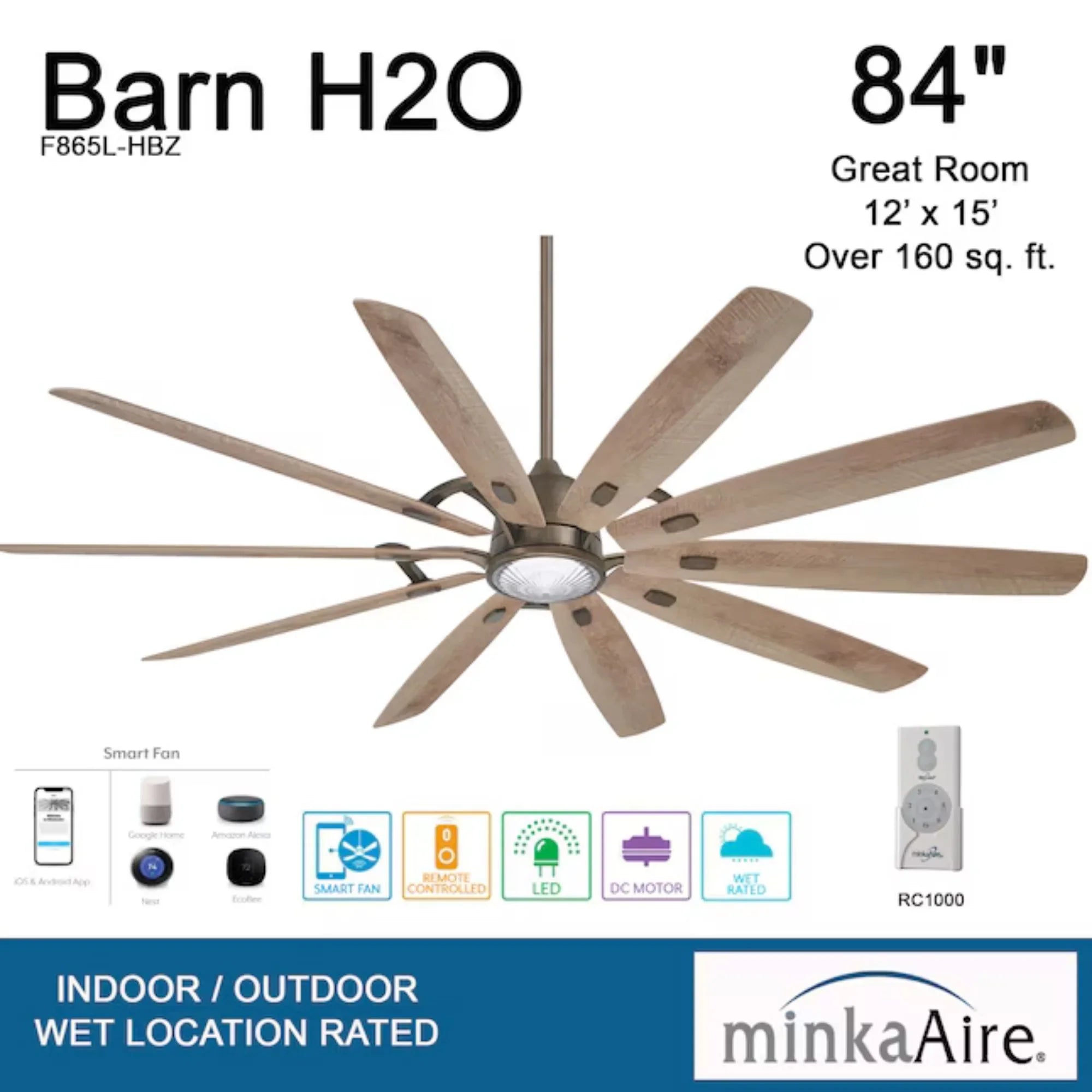

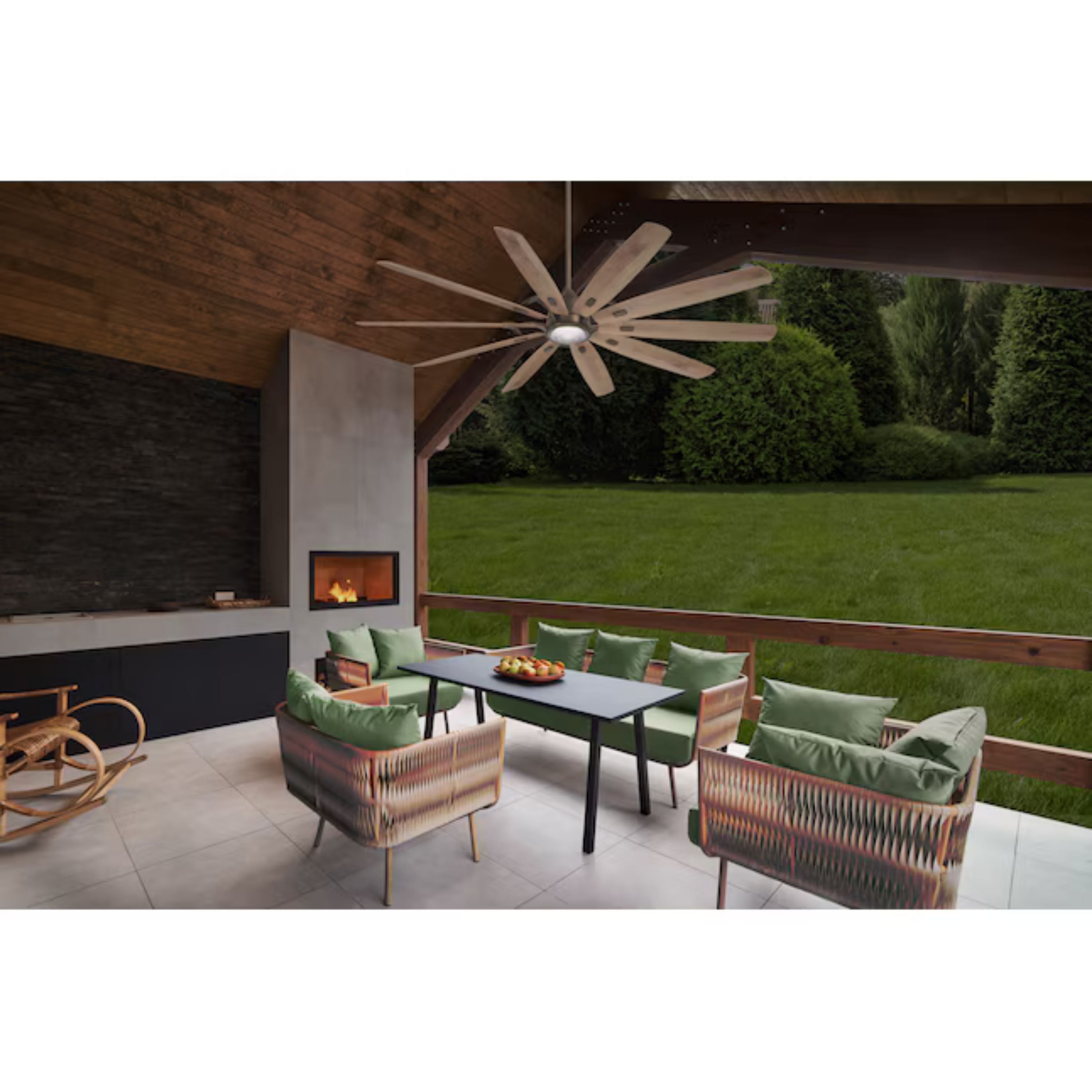

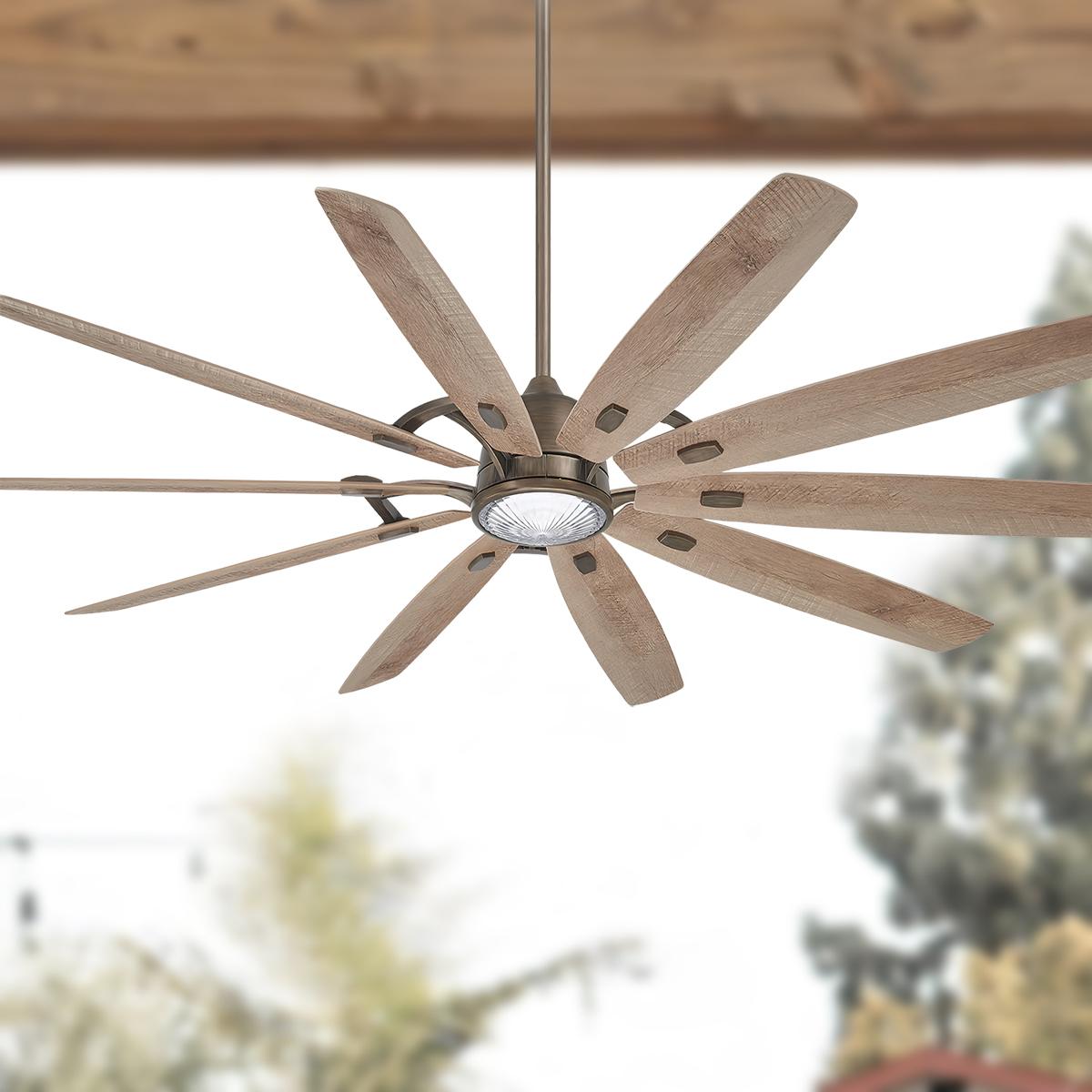

The Minka Aire Barn H2O F865L-HBZ is an 84 in wet-rated smart ceiling fan built for grand covered outdoor spaces and large interior great rooms. Ten Barnwood ABS blades at 16° pitch are driven by a whisper-quiet 168x30mm DC motor delivering a commanding 12,402 CFM at high speed at 255.82 CFM/W efficiency. An integrated 40W LED module with a clear ribbed glass shade produces 2,085 delivered lm at a warm 3000K, CRI 93, dimmable, 30,000 hr rated life. Wet rated and UL listed for wet locations, the Heirloom Bronze finish with Barnwood blades delivers warm, rustic character ideal for covered patios, lanais, vaulted great rooms, and open-plan spaces over 160 sq ft. Bond smart control integrated — compatible with Bond Hub BD-1000 for app and voice control. RC1000 remote included.

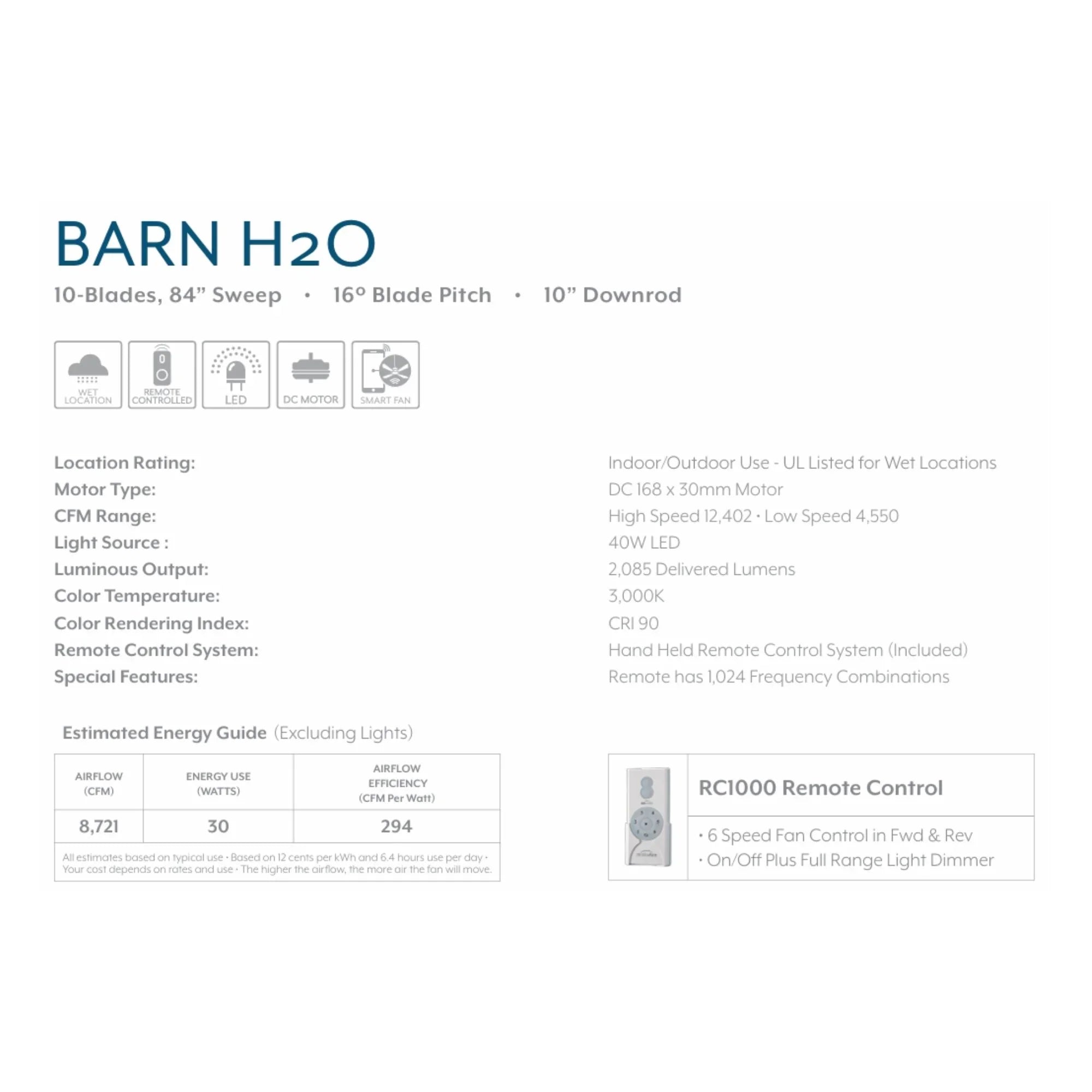

• Blade Span: 84 in, 10 ABS blades, 16° pitch — Barnwood finish
• Mount Type: Downrod — 10 in included (0.75 in OD), slope compatible to 21°
• Motor: 168x30mm DC, 6-speed, reversible — Heirloom Bronze finish
• Airflow: 12,402 CFM high / 4,550 CFM low
• Efficiency: 255.82 CFM/W high / 1,085.92 CFM/W low
• Wattage: 48.48W high / 4.19W low
• Light: 40W integrated LED, 2,085 delivered lm, CRI 93, 3000K fixed, dimmable, 30,000 hr rated life — clear ribbed glass shade
• Location: Wet rated — UL listed for wet locations

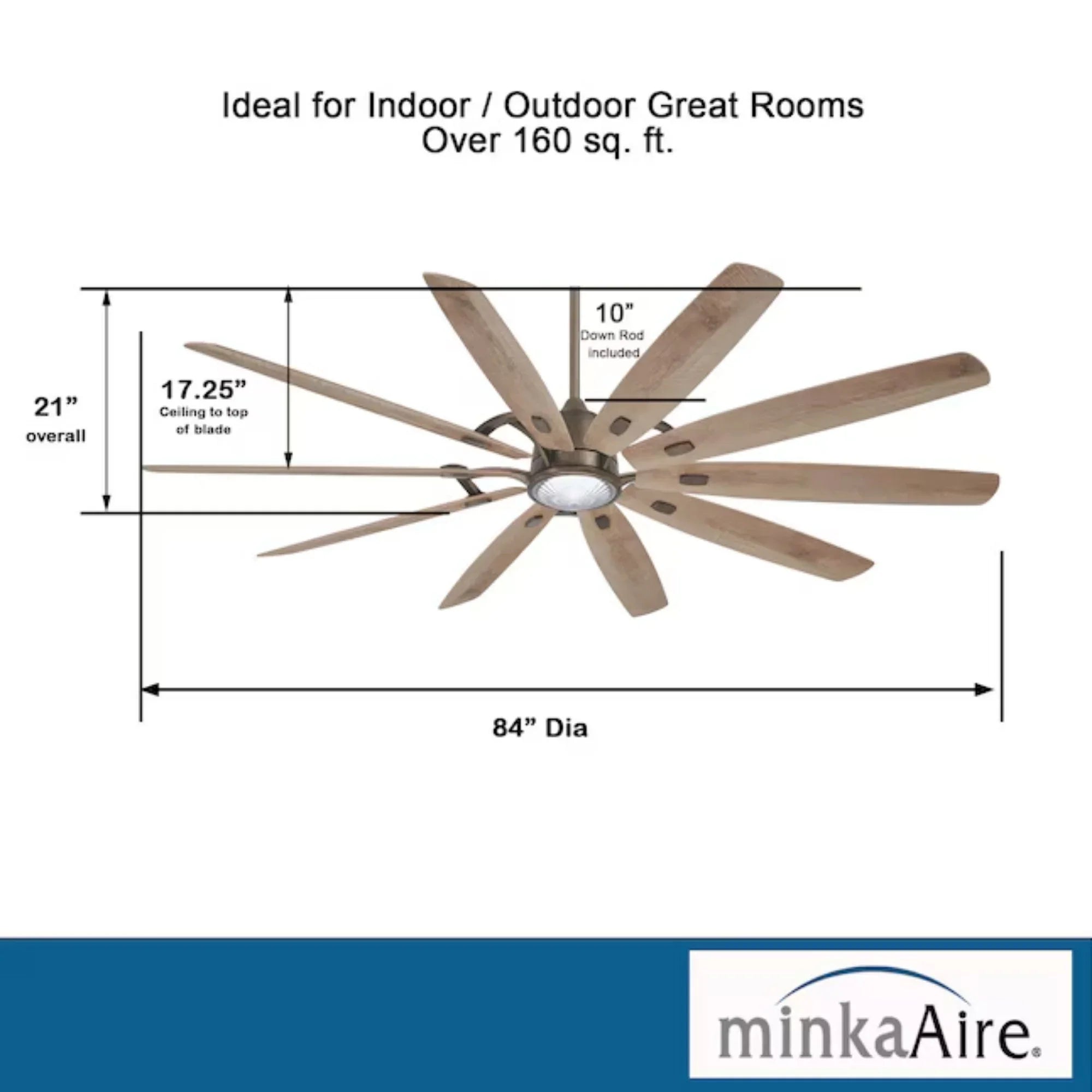

• Ceiling to Blade: 17.24 in

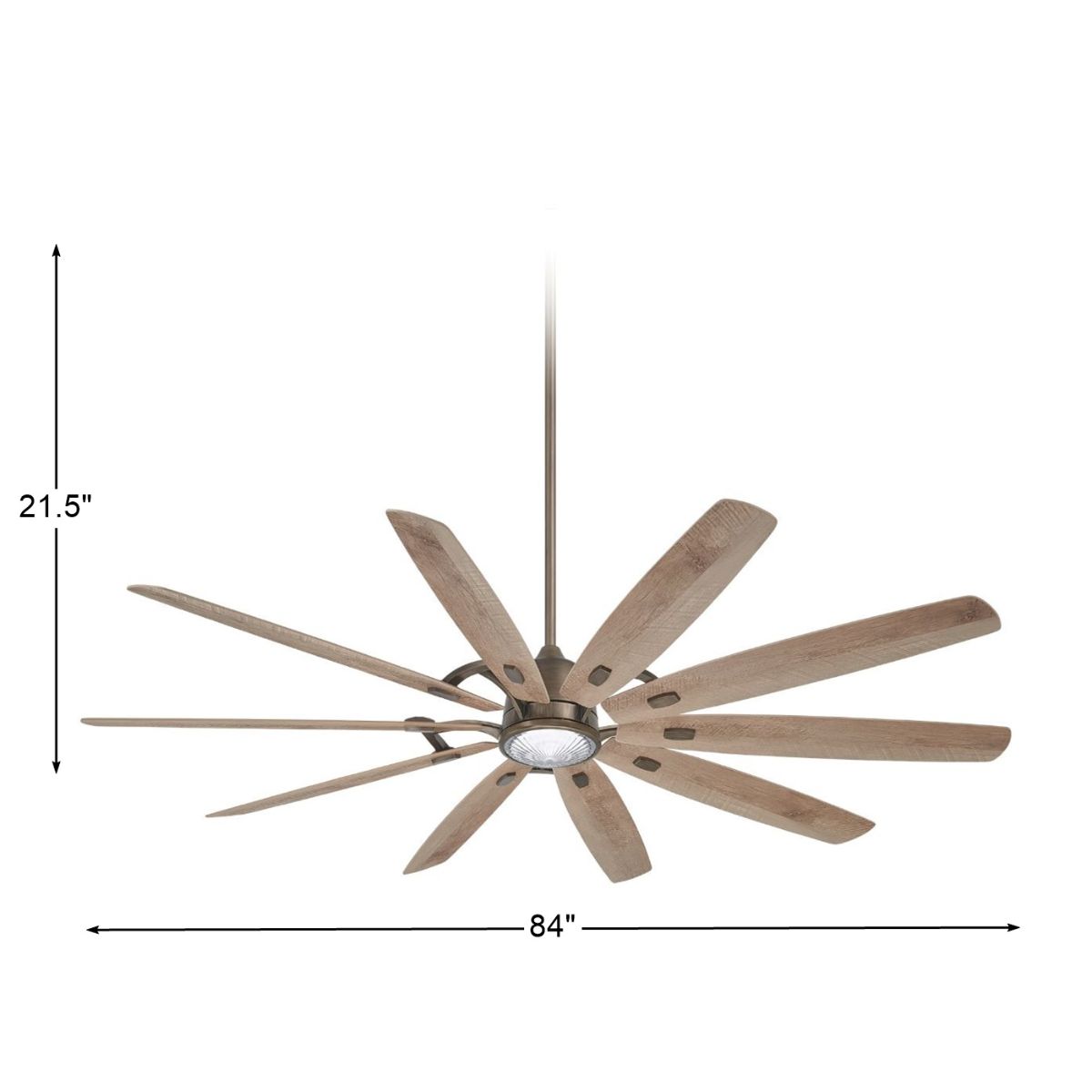

• Overall Height: 21 in

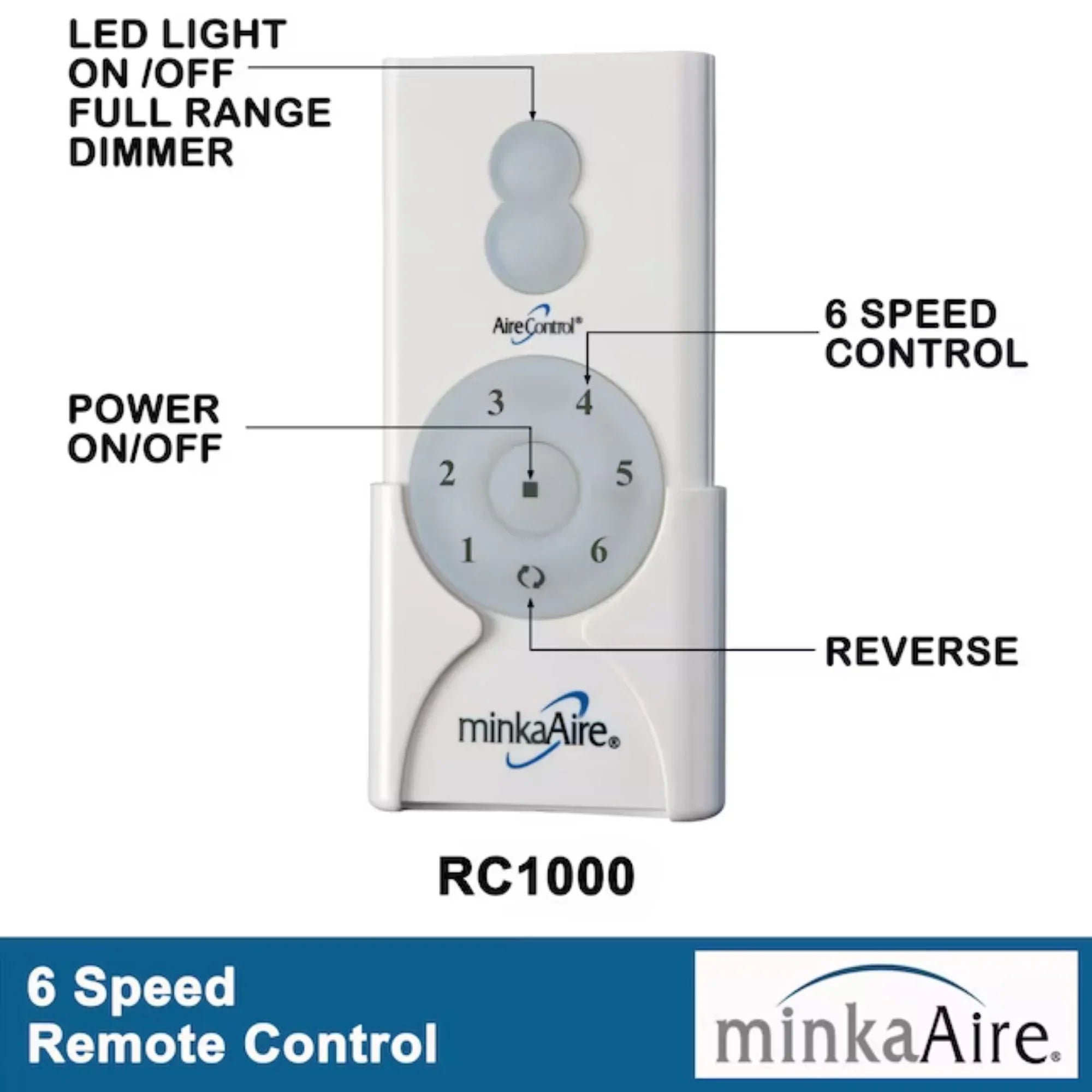

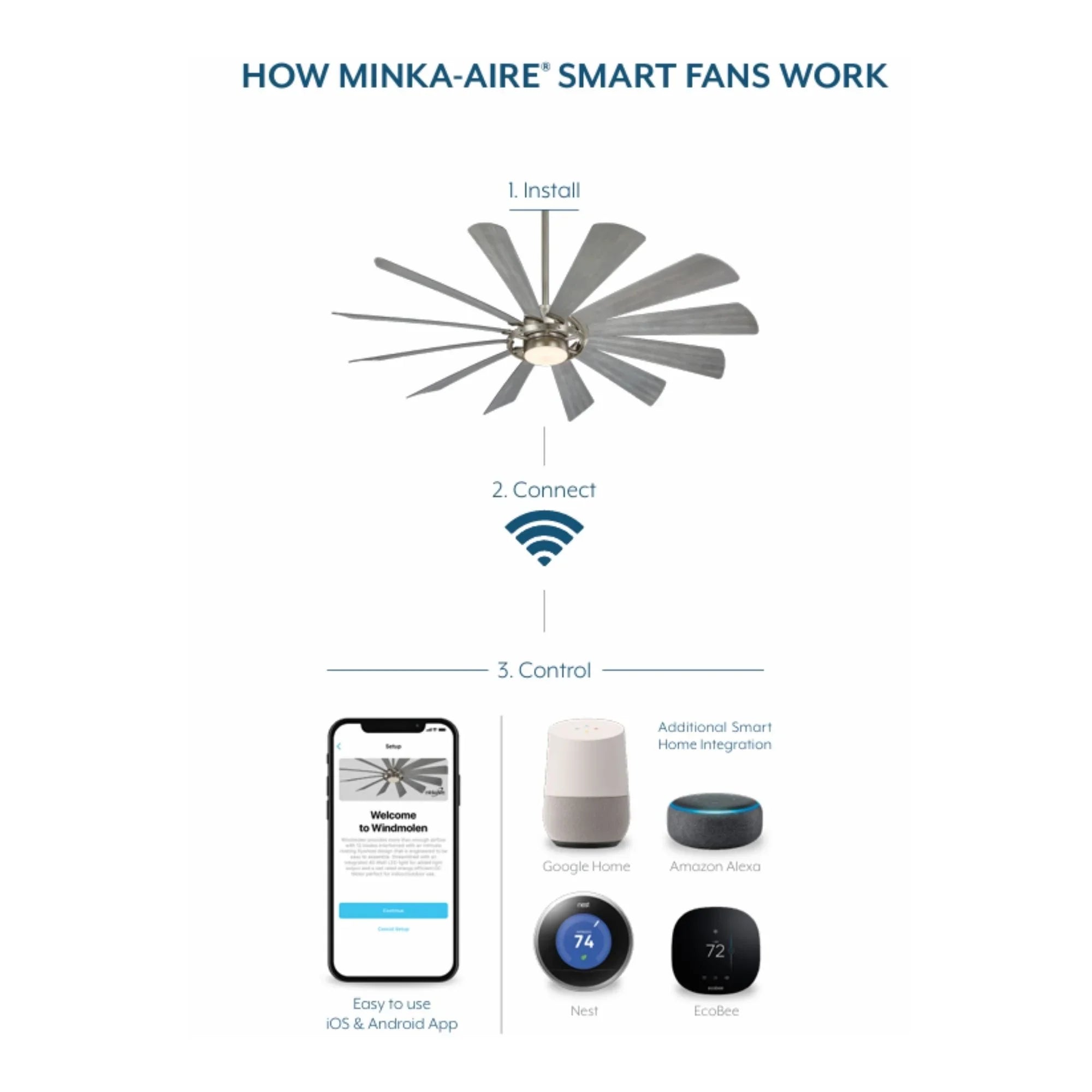

The F865L-HBZ includes the RC1000 remote control — 6-speed fan control in Forward & Reverse, on/off plus full-range light dimmer. Compatible wall control: WC1000 (sold separately). Bond smart control integrated — compatible with Bond Hub BD-1000 (sold separately) for fan speed, direction, and light control via the Bond app. Confirmed voice and smart home integrations: Google Home, Amazon Alexa, Nest, and Ecobee.

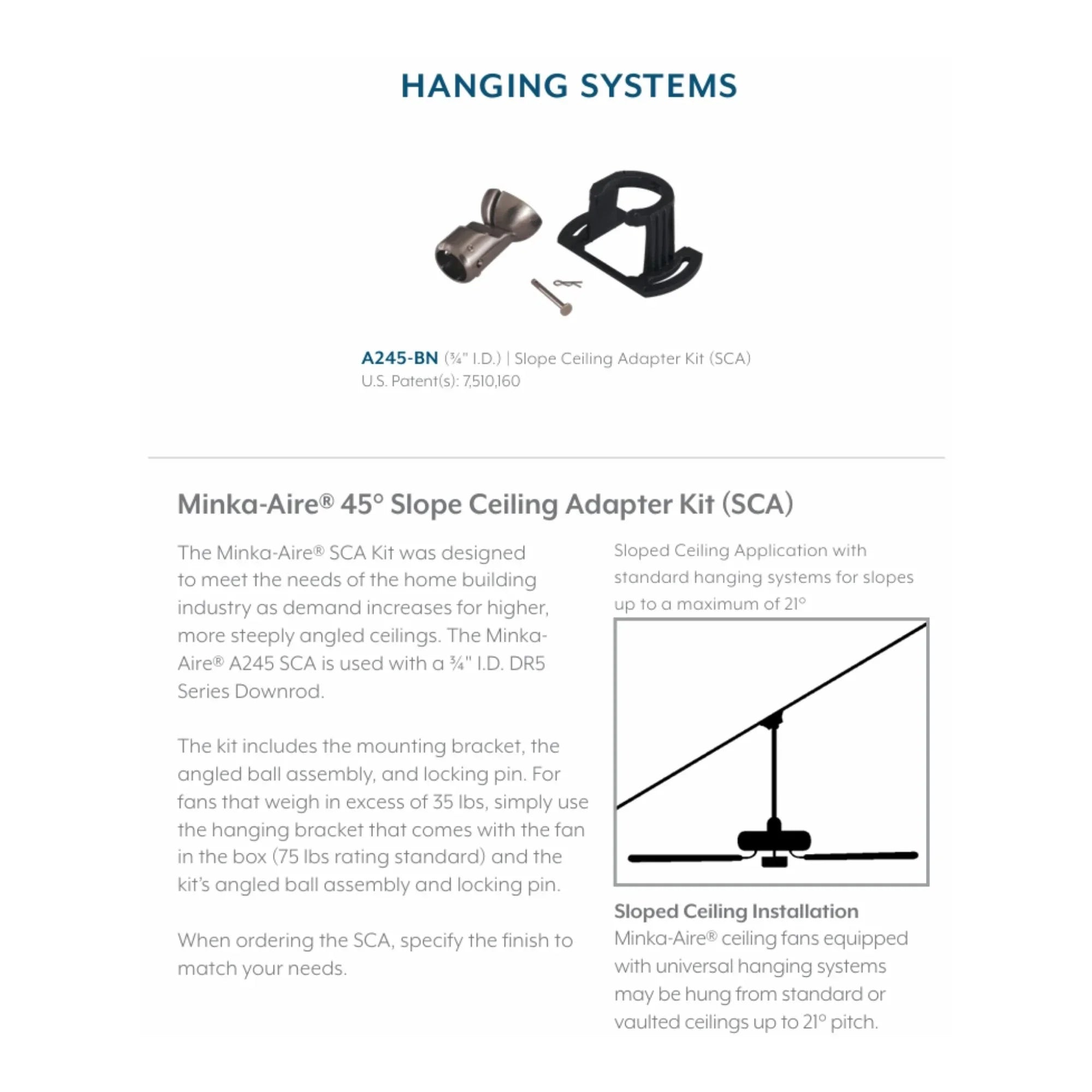

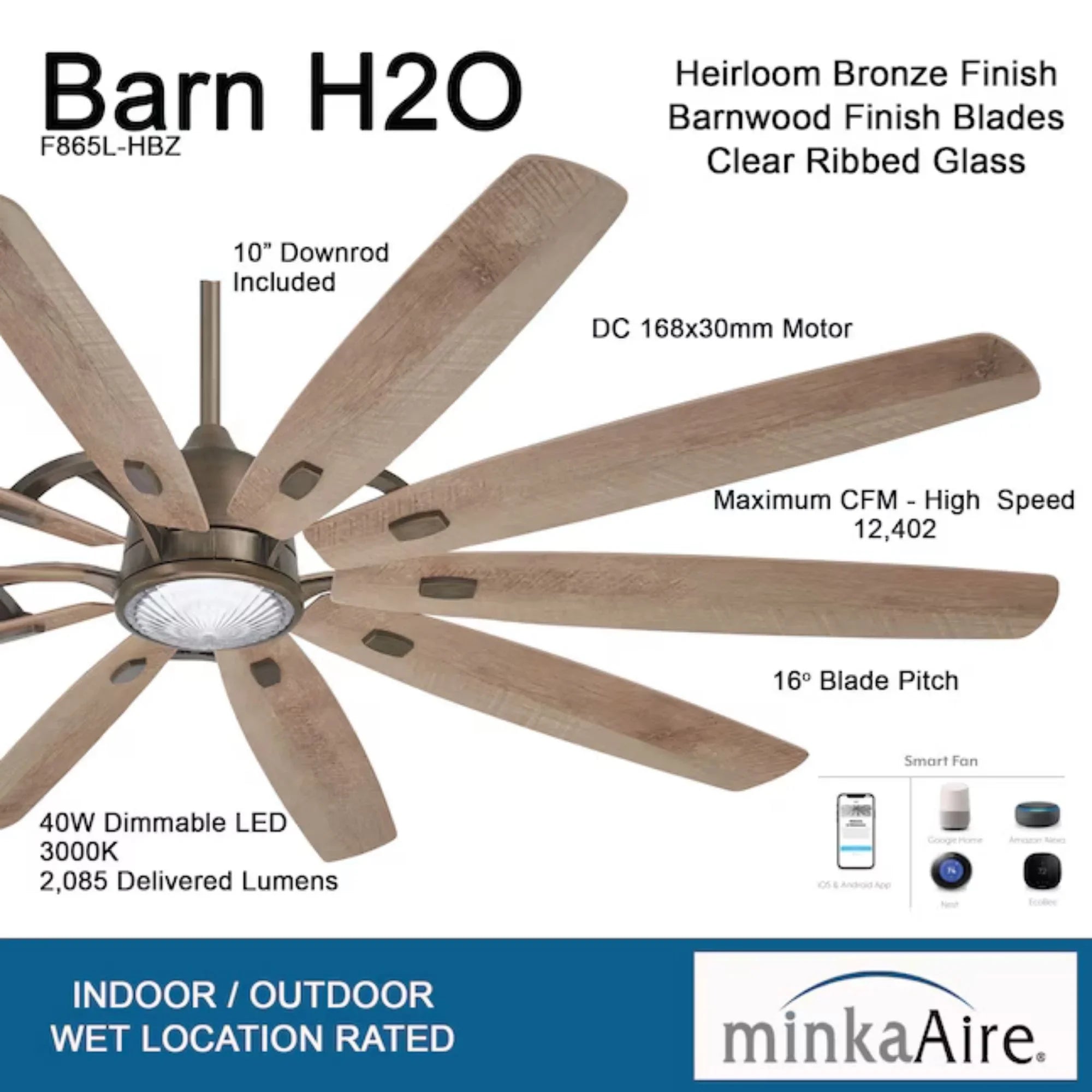

Heirloom Bronze motor housing with 10 Barnwood ABS blades, 16° pitch. Integrated 40W LED module with clear ribbed glass shade (9x9x2.5 in). Downrod: 10 in included (0.75 in OD). Wire: 80 in. Slope compatible to 21° — Minka Aire 45° Slope Ceiling Adapter Kit A245-HBZ (Heirloom Bronze) available separately. UL listed for wet locations. Limited 1-year warranty on components, lifetime warranty on motor.

40W integrated LED (Silverstone AC 40W LED Module), 3,609 initial lumens / 2,085 delivered lumens, CRI 93, 3000K fixed, dimmable, 30,000 hr rated life. Clear ribbed glass shade.

168x30mm DC motor, 120V, 6-speed. Wet rated — UL listed for wet locations. Downrod: 10 in included (0.75 in OD). Wire: 80 in. Slope compatible to 21° — A245-HBZ Slope Ceiling Adapter Kit (Heirloom Bronze) available separately for up to 45°. Overall height: 21 in. Ceiling to blade: 17.24 in. Weight: 43.21 lbs. Limited 1-year warranty on components, lifetime warranty on motor.

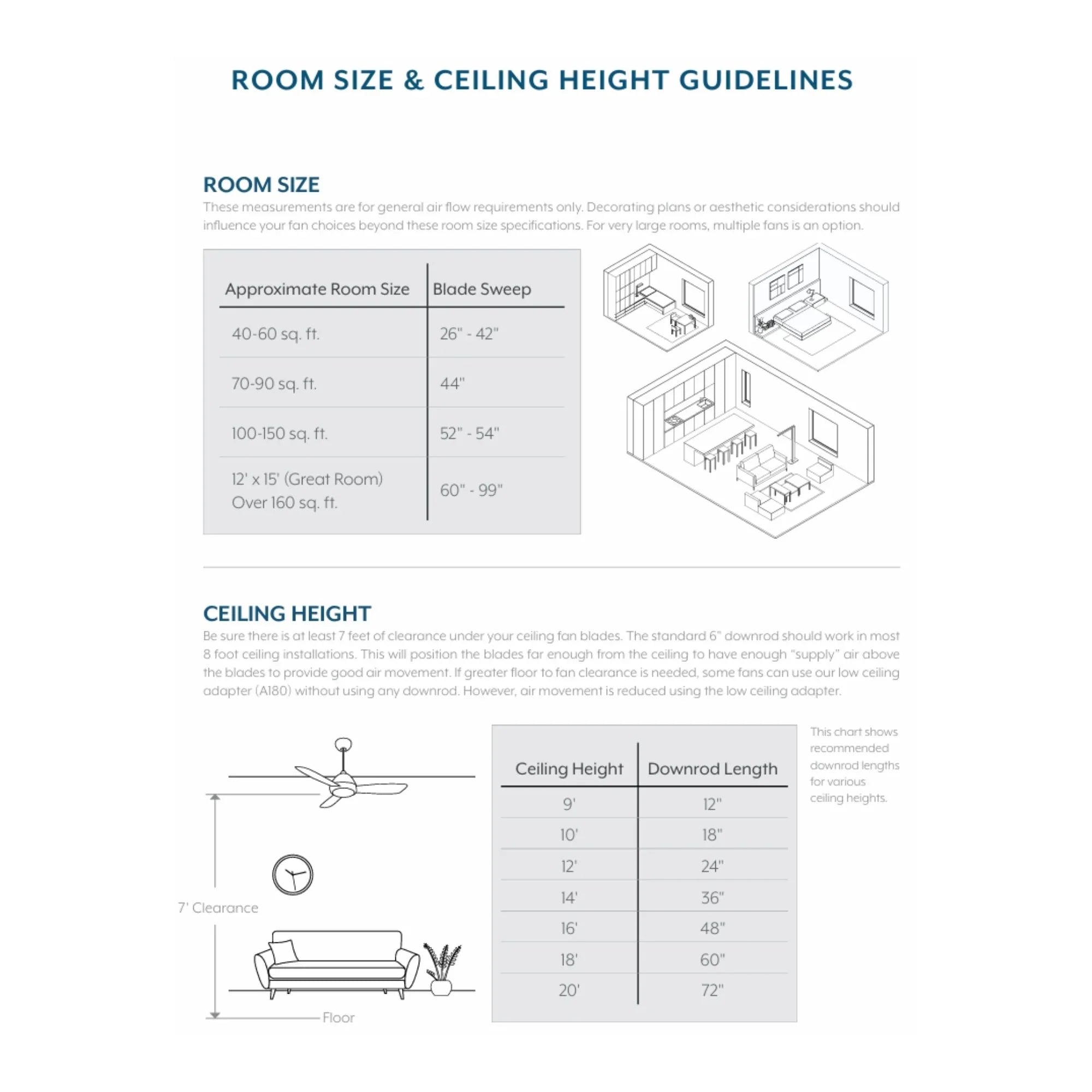

Ships with 10 in downrod. Maintain 7 ft minimum floor-to-blade clearance. Additional Minka Aire downrods available separately.

• 9 ft → 12 in
• 10 ft → 18 in
• 12 ft → 24 in
• 14 ft → 36 in
• 16 ft → 48 in
• 18 ft → 60 in
• 20 ft → 72 in

• Minka Aire Barn H2O 84 in ceiling fan (motor + 10 Barnwood ABS blades)
• Integrated 40W LED light module (clear ribbed glass shade)
• RC1000 remote control
• 10 in downrod (0.75 in OD)
• Mounting hardware
