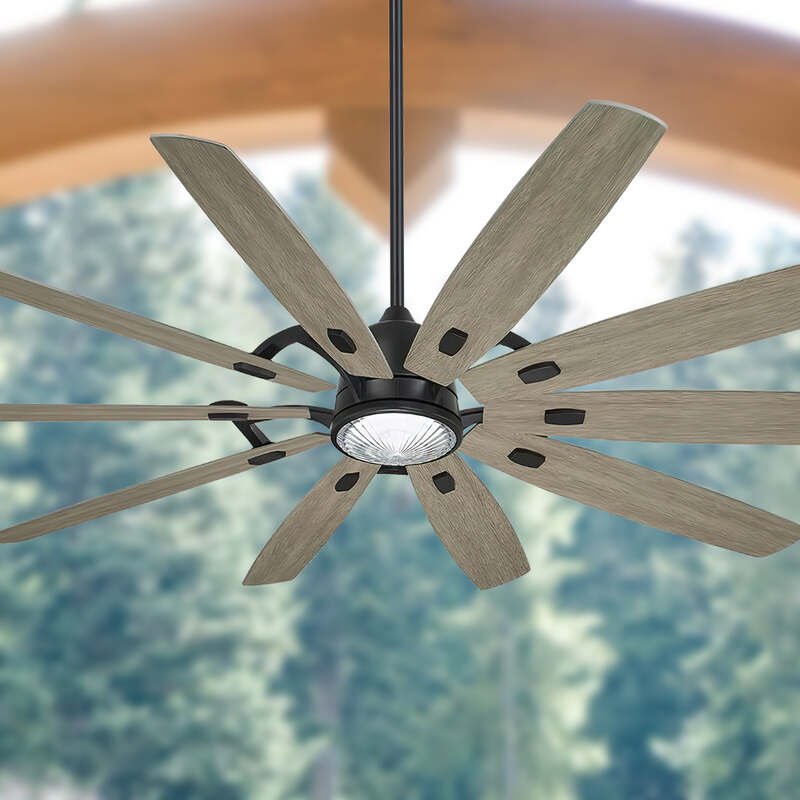

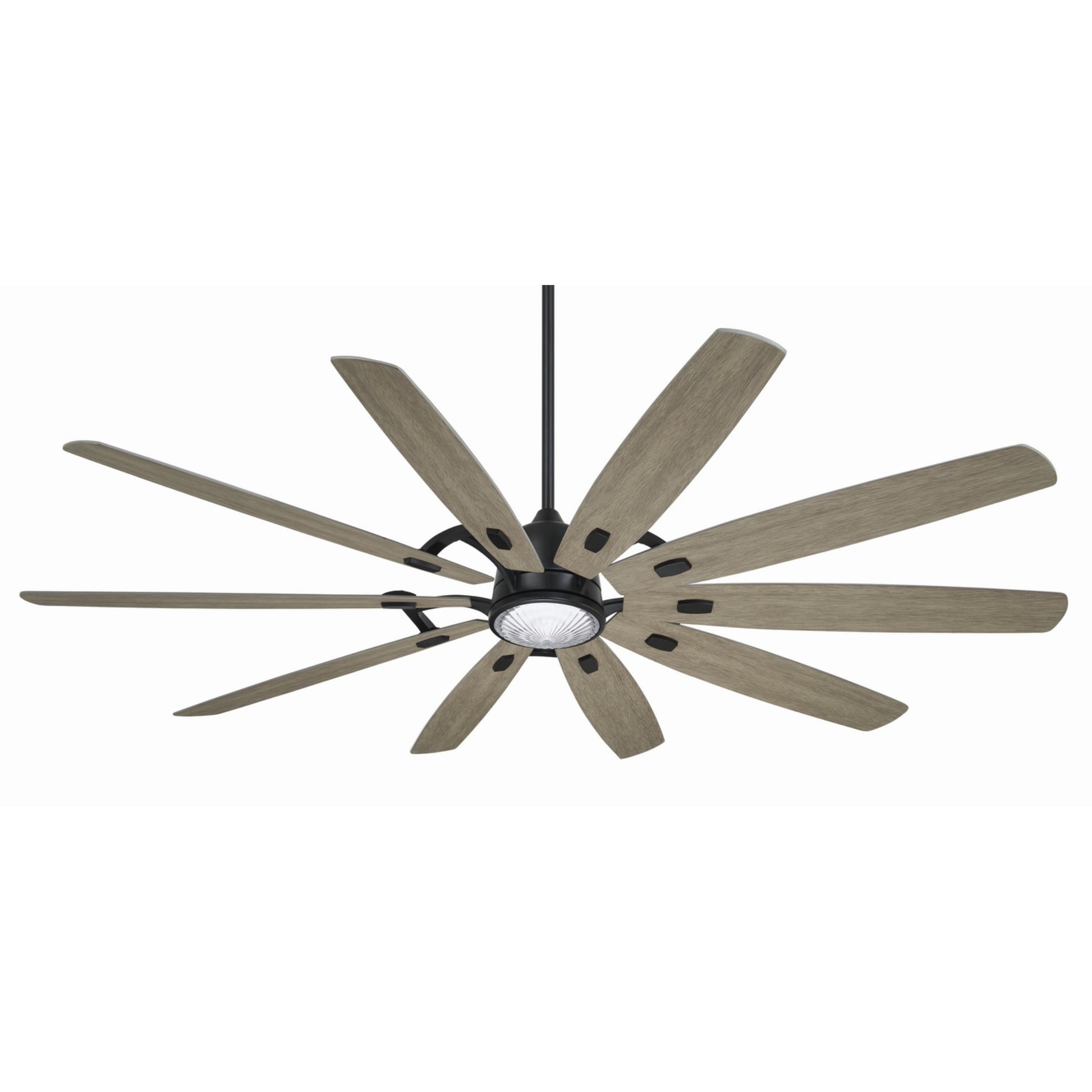

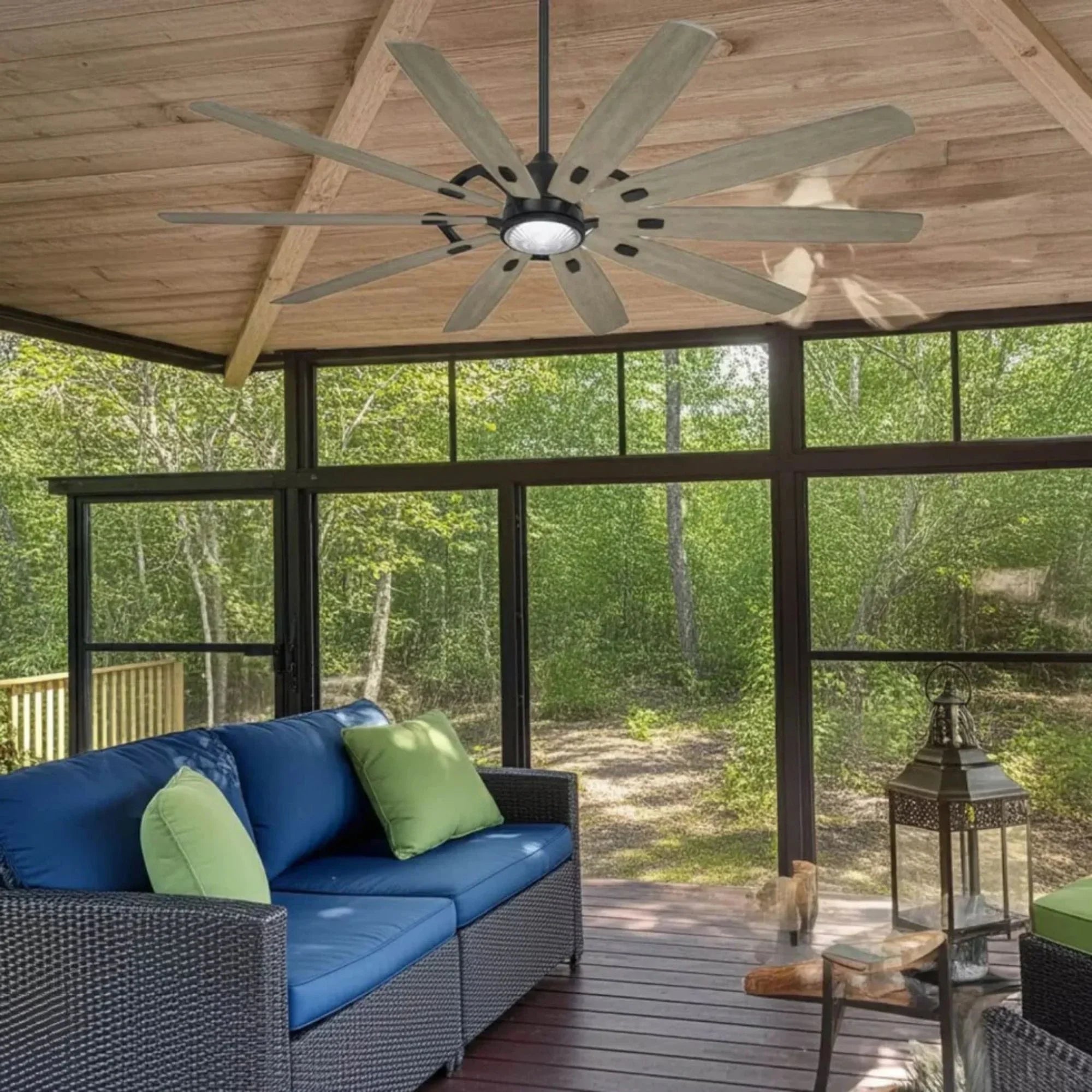

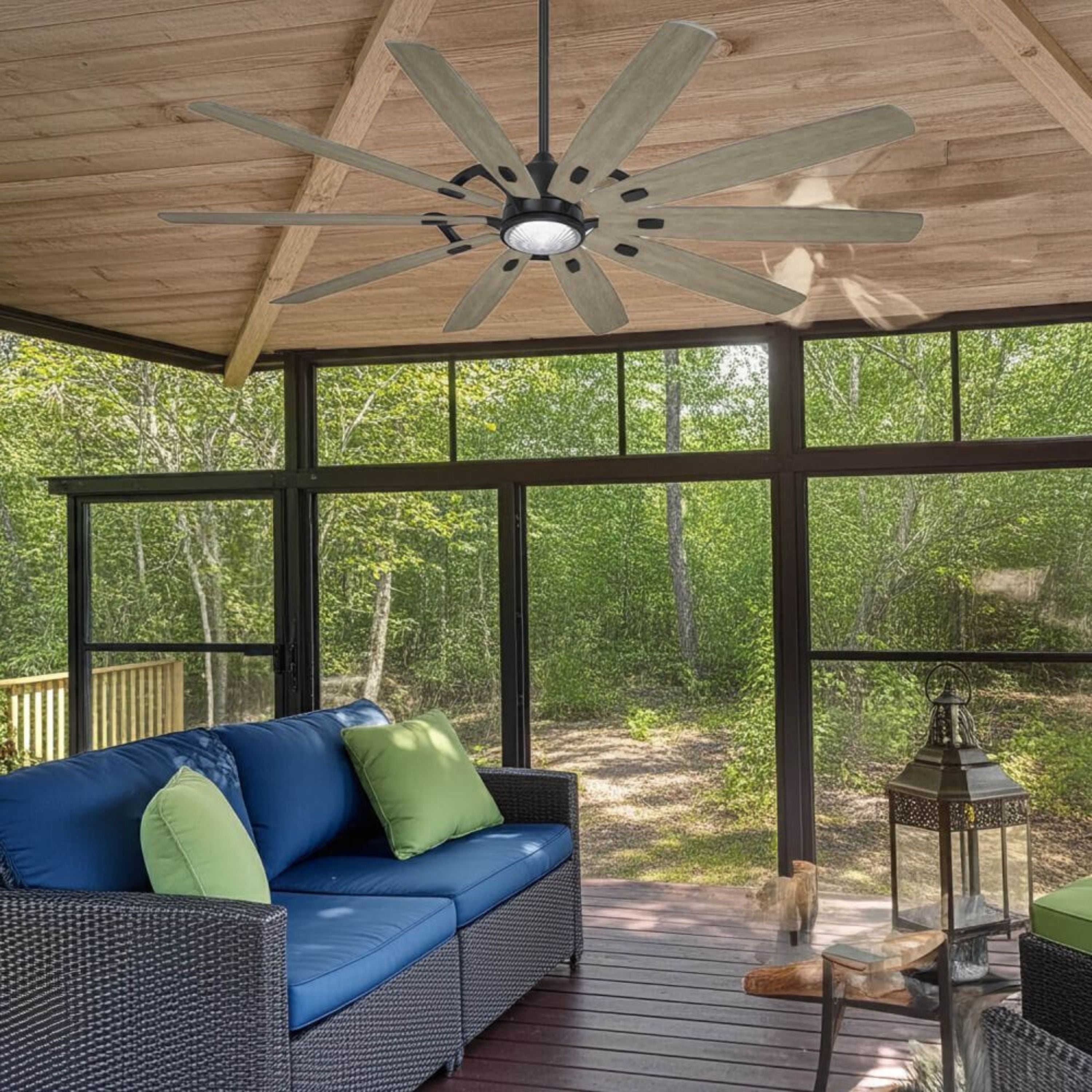

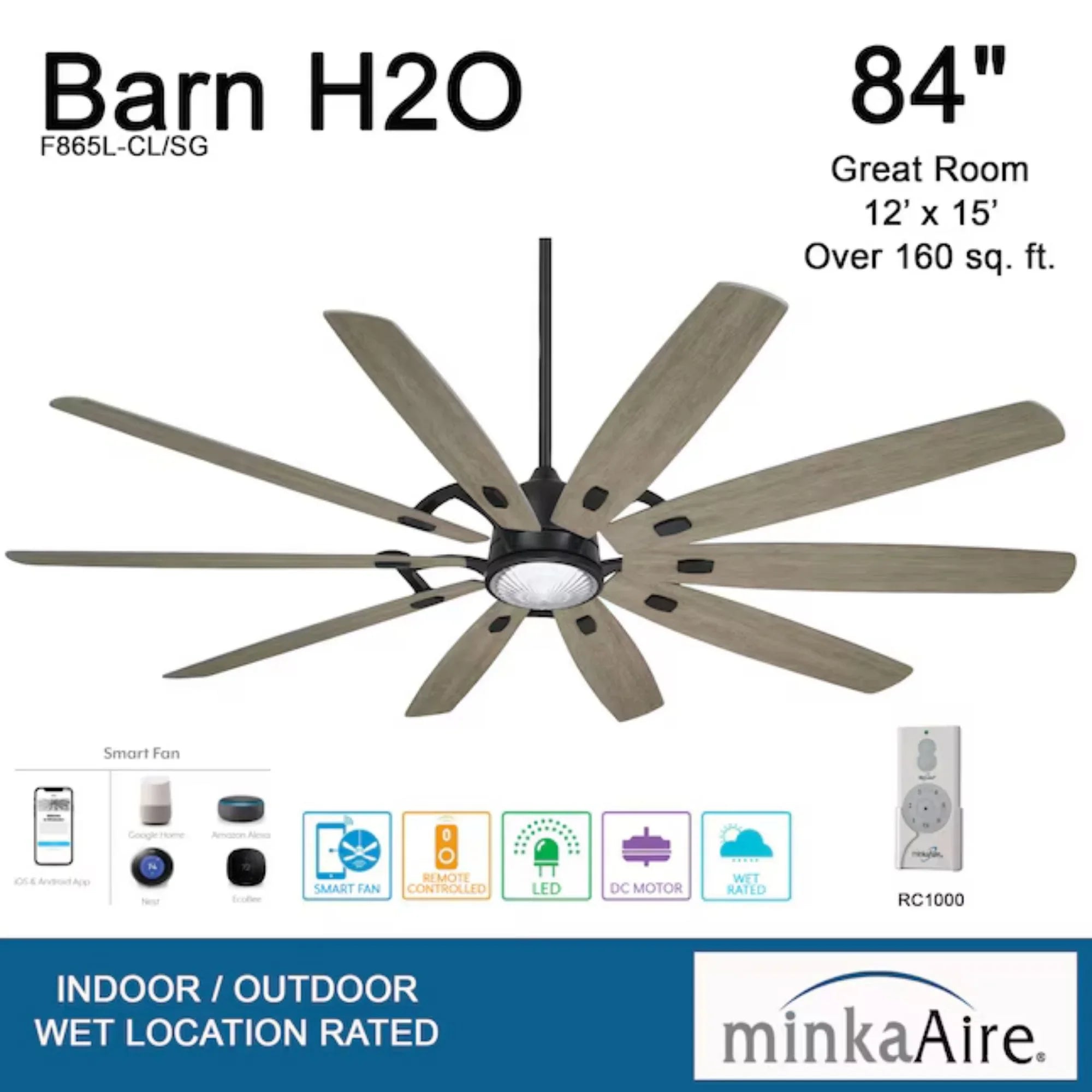

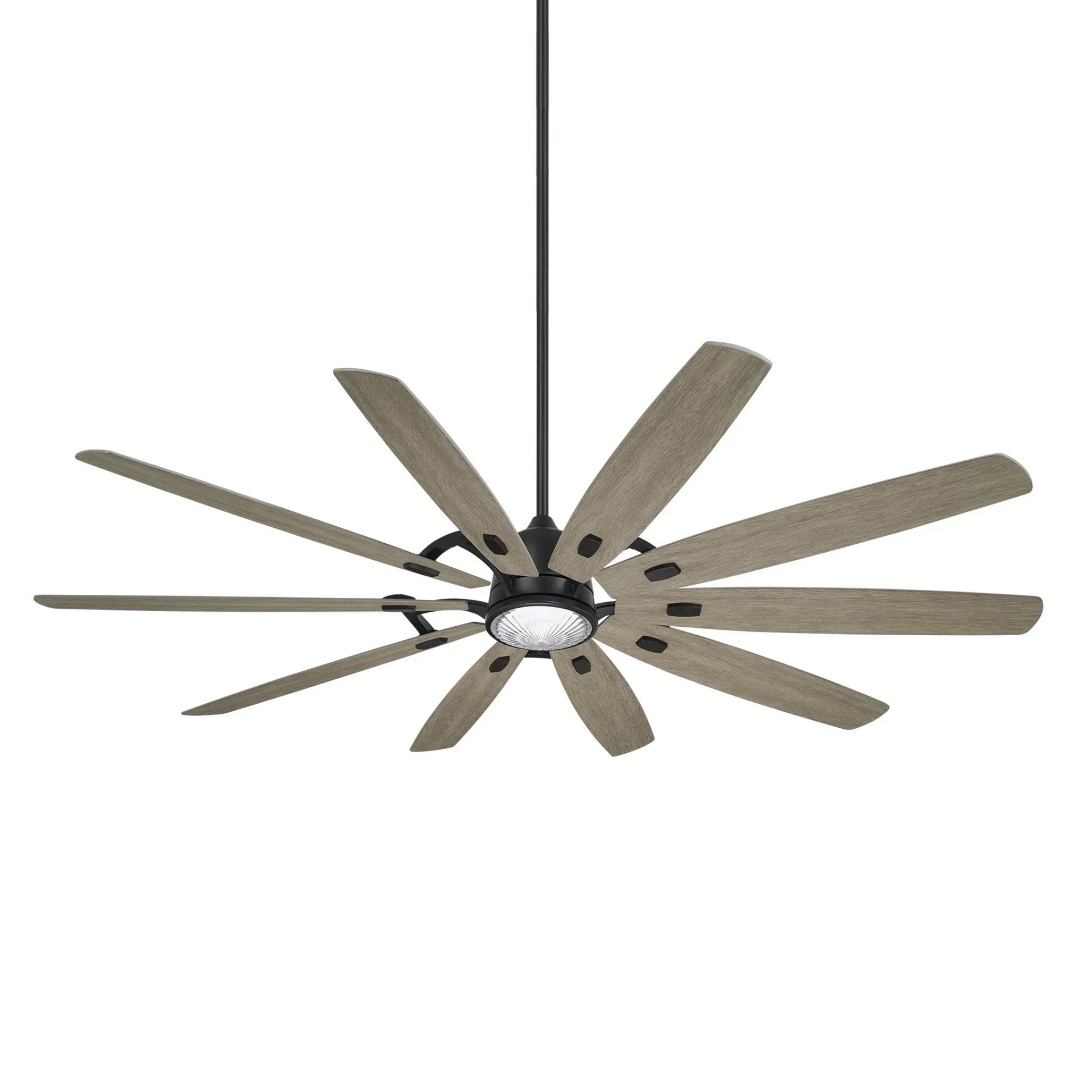

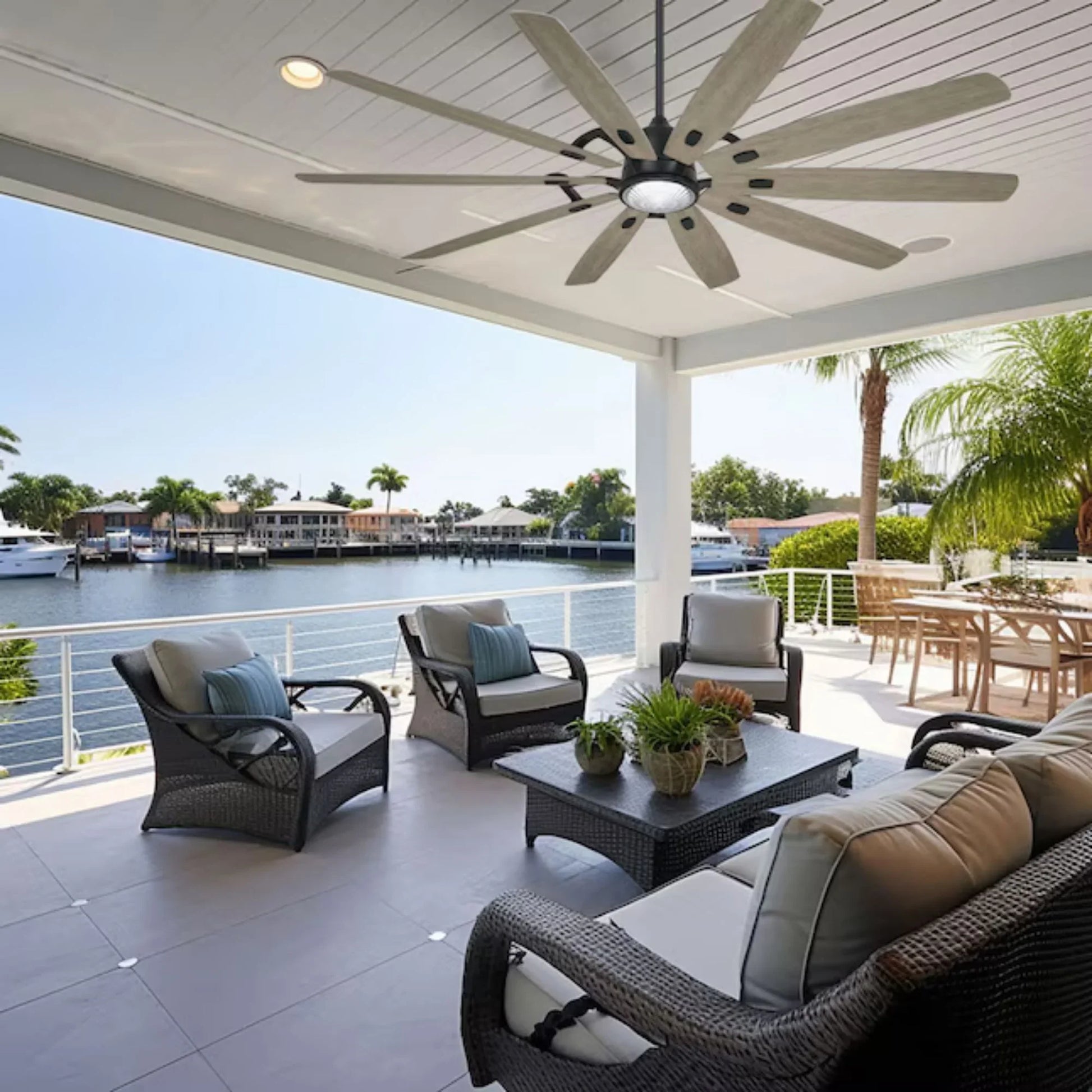

The Minka Aire Barn H2O F865L-CL/SG is an 84 in wet-rated smart ceiling fan built for grand covered outdoor spaces and large interior great rooms. Ten Seashore Grey ABS blades at 16° pitch are driven by a whisper-quiet 168x30mm DC motor delivering a commanding 12,402 CFM at high speed at 255.82 CFM/W efficiency. An integrated 40W LED module with a clear ribbed glass shade produces 2,085 delivered lm at a warm 3000K, CRI 93, dimmable, 30,000 hr rated life. Wet rated and UL listed for wet locations, the Coal finish with Seashore Grey blades delivers bold, coastal-modern contrast ideal for covered patios, lanais, vaulted great rooms, and open-plan spaces over 160 sq ft. Bond smart control integrated — compatible with Bond Hub BD-1000 for app and voice control. RC1000 remote included.

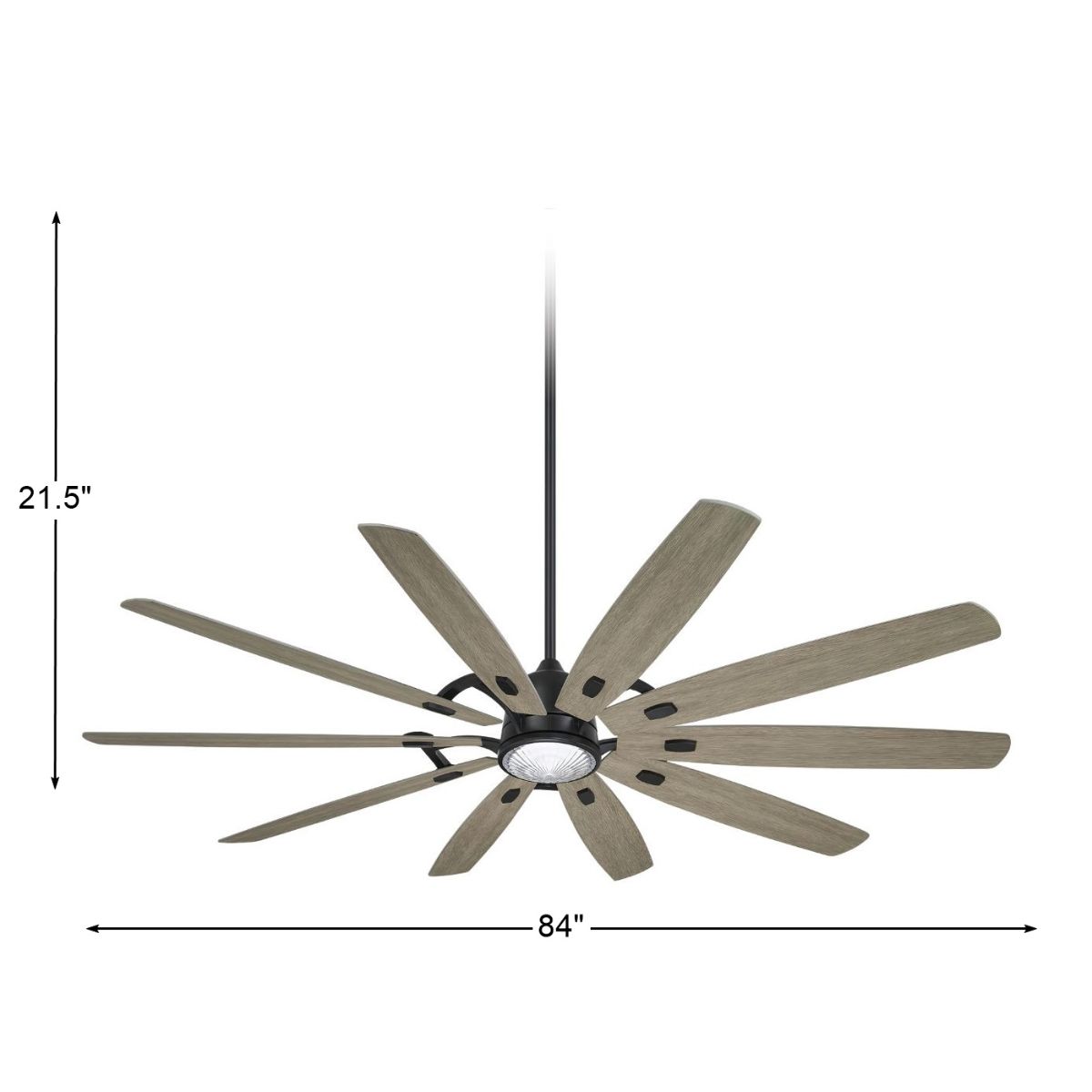

• Blade Span: 84 in, 10 ABS blades, 16° pitch — Seashore Grey finish
• Mount Type: Downrod — 10 in included (0.75 in OD), slope compatible to 21°
• Motor: 168x30mm DC, 6-speed, reversible — Coal finish
• Airflow: 12,402 CFM high / 4,550 CFM low
• Efficiency: 255.82 CFM/W high / 1,085.92 CFM/W low
• Wattage: 48.48W high / 4.19W low
• Light: 40W integrated LED, 2,085 delivered lm, CRI 93, 3000K fixed, dimmable, 30,000 hr rated life — clear ribbed glass shade
• Location: Wet rated — UL listed for wet locations

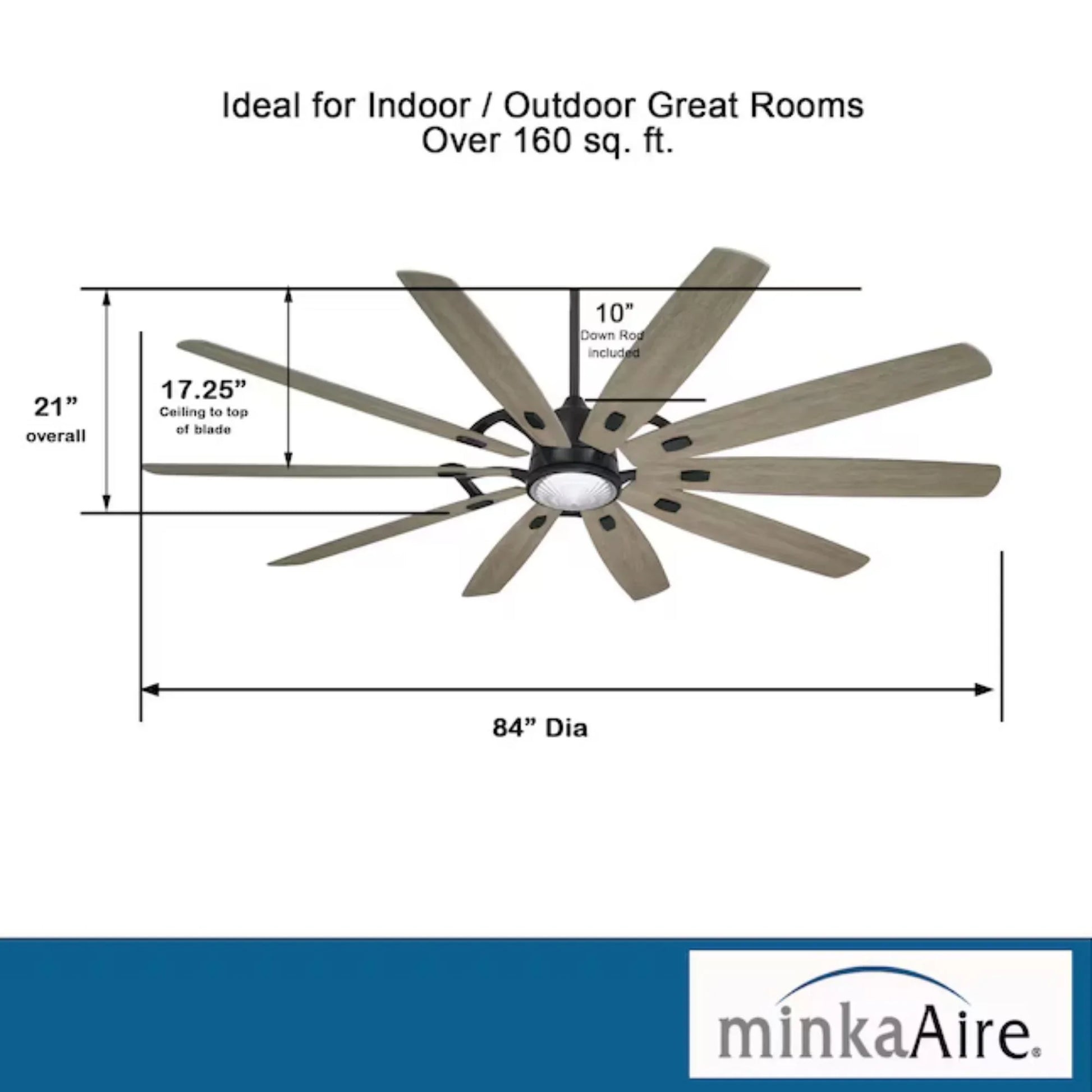

• Ceiling to Blade: 17.24 in
• Overall Height: 21 in

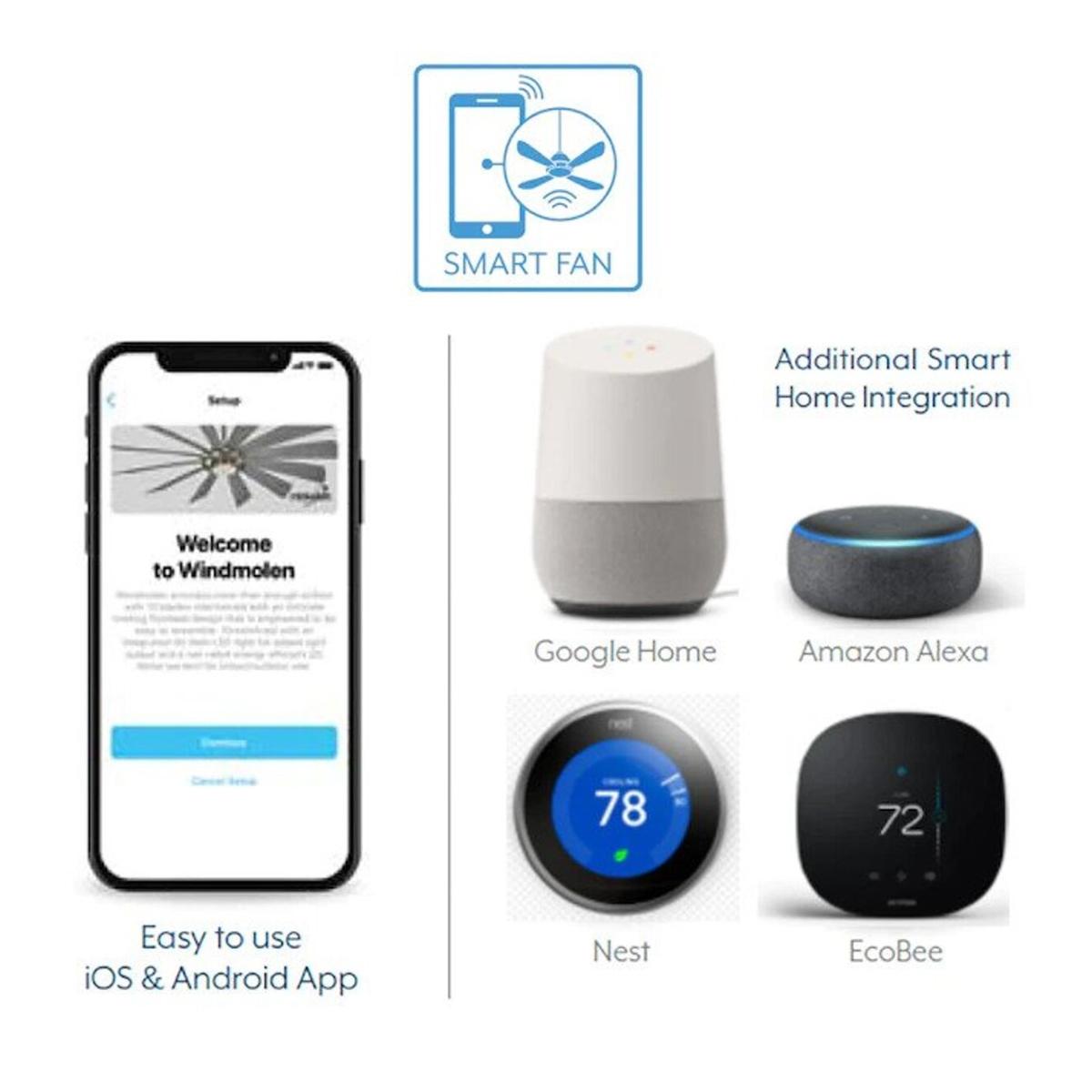

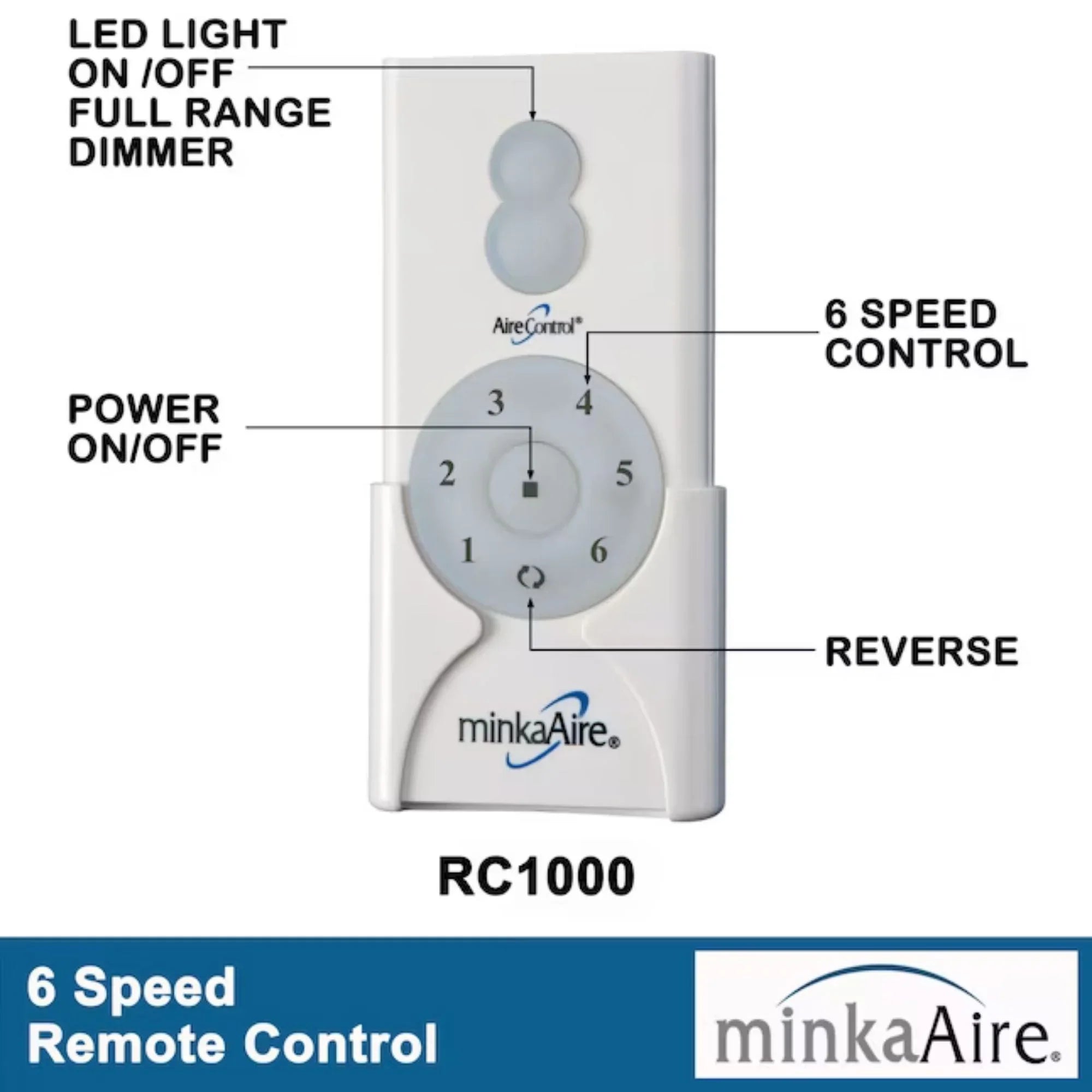

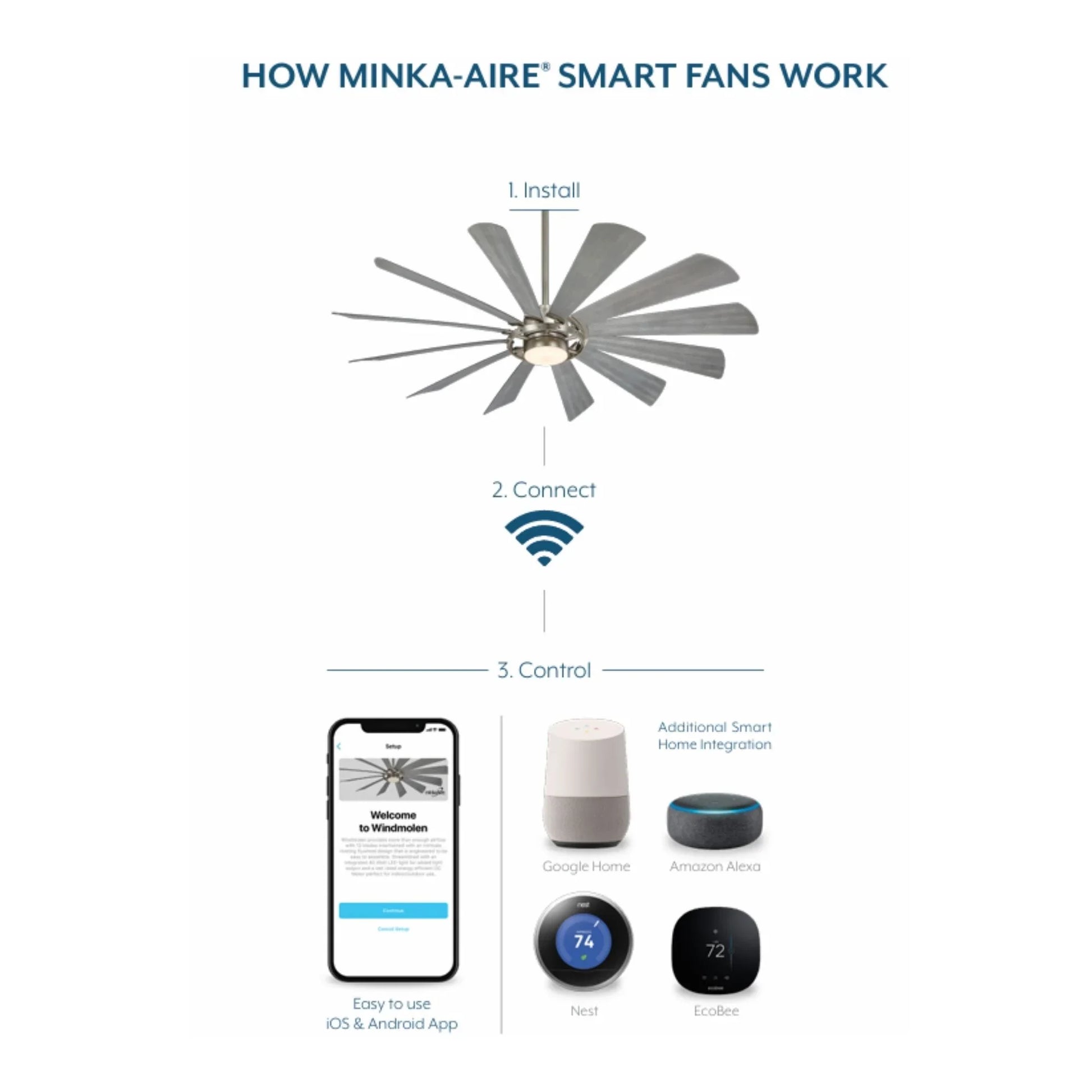

The F865L-CL/SG includes the RC1000 remote control — 6-speed fan control in Forward & Reverse, on/off plus full-range light dimmer. Compatible wall control: WC1000 (sold separately). Bond smart control integrated — compatible with Bond Hub BD-1000 (sold separately) for fan speed, direction, and light control via the Bond app. Confirmed voice and smart home integrations: Google Home, Amazon Alexa, Nest, and Ecobee.

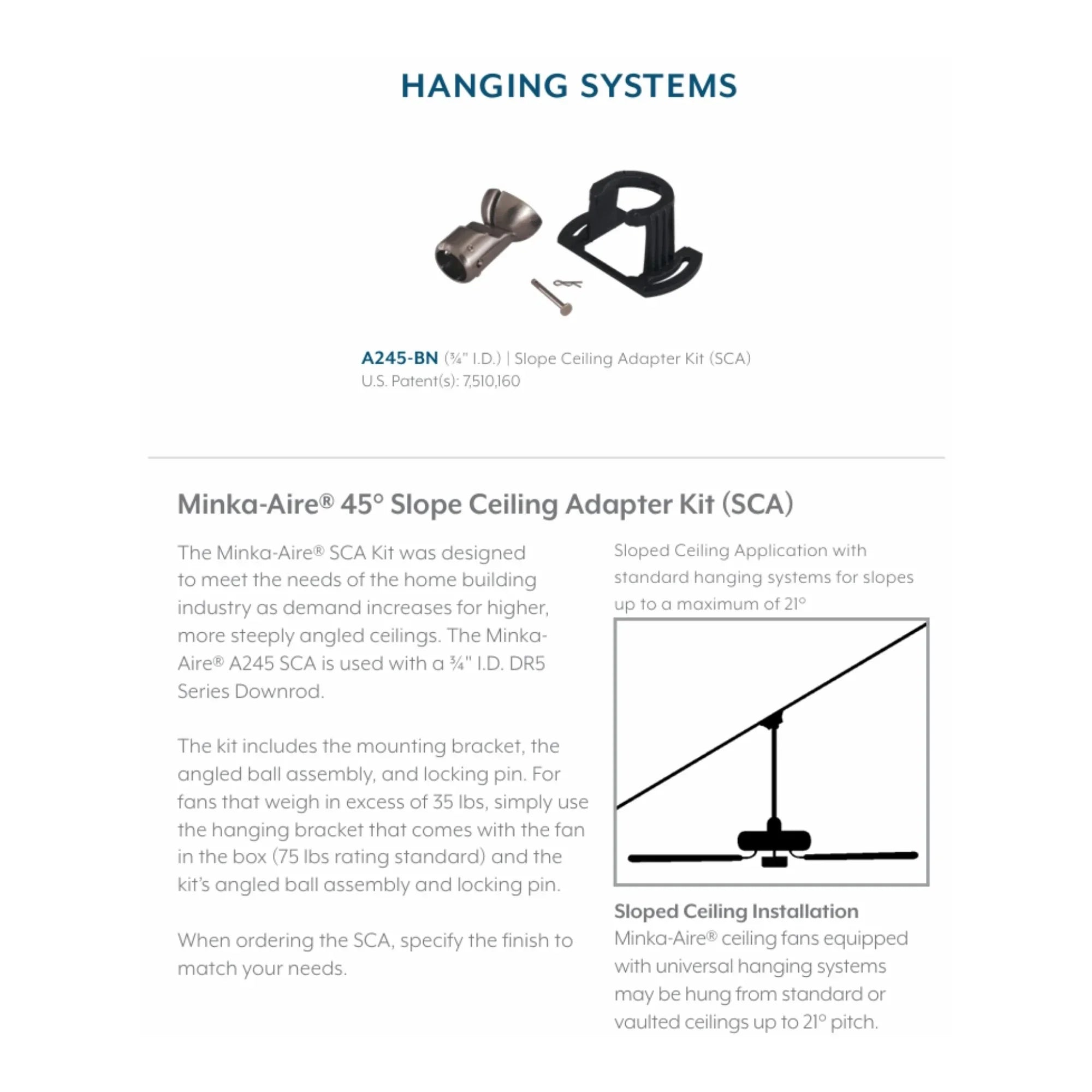

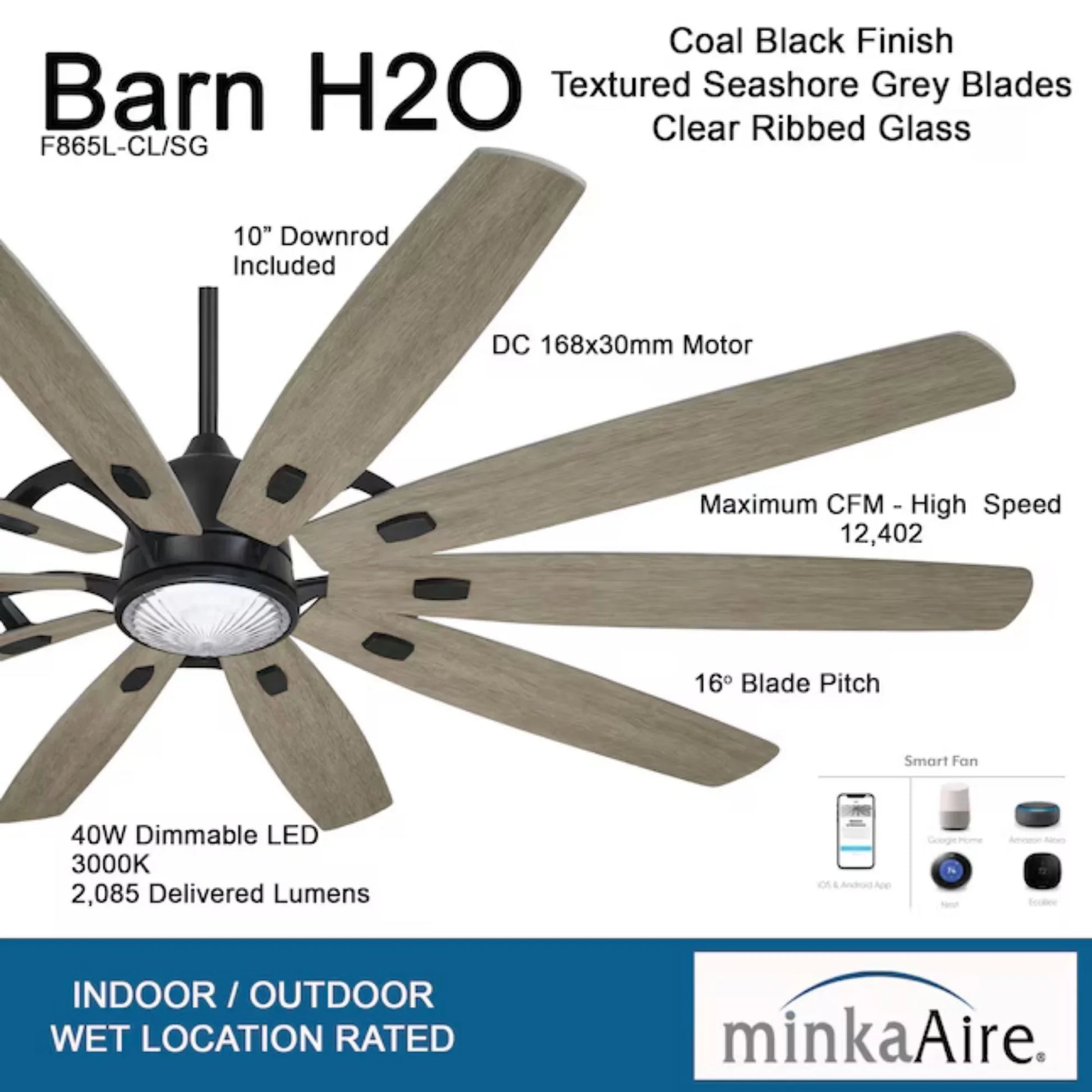

Coal motor housing with 10 Seashore Grey ABS blades, 16° pitch. Integrated 40W LED module with clear ribbed glass shade (9x9x2.5 in). Downrod: 10 in included (0.75 in OD). Wire: 80 in. Slope compatible to 21° — Minka Aire 45° Slope Ceiling Adapter Kit A245-CL (Coal) available separately. UL listed for wet locations. Limited 1-year warranty on components, lifetime warranty on motor.

40W integrated LED (Silverstone AC 40W LED Module), 3,609 initial lumens / 2,085 delivered lumens, CRI 93, 3000K fixed, dimmable, 30,000 hr rated life. Clear ribbed glass shade.

168x30mm DC motor, 120V, 6-speed. Wet rated — UL listed for wet locations. Downrod: 10 in included (0.75 in OD). Wire: 80 in. Slope compatible to 21° — A245-CL Slope Ceiling Adapter Kit (Coal) available separately for up to 45°. Overall height: 21 in. Ceiling to blade: 17.24 in. Weight: 43.21 lbs. Limited 1-year warranty on components, lifetime warranty on motor.

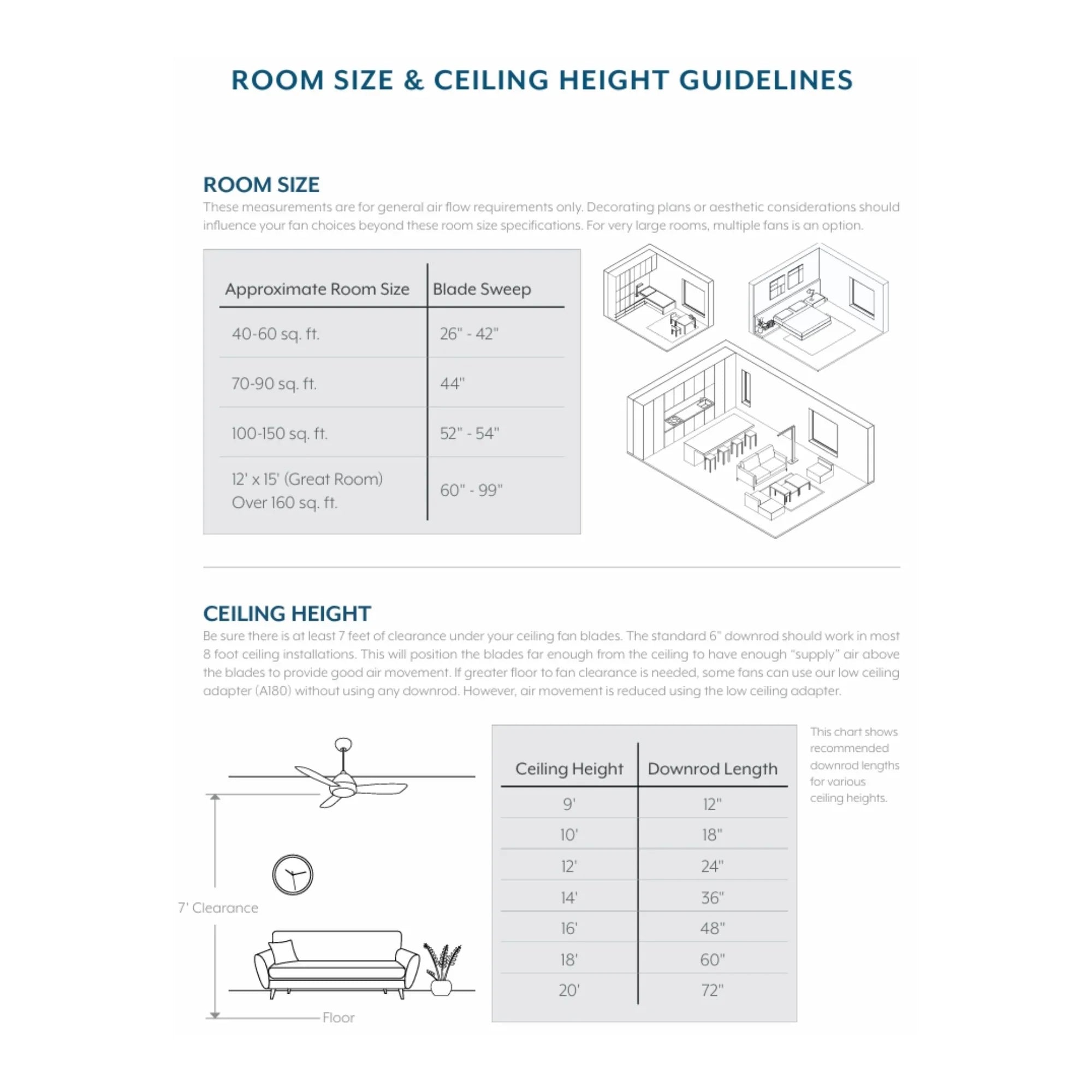

Ships with 10 in downrod. Maintain 7 ft minimum floor-to-blade clearance. Additional Minka Aire downrods available separately.

• 9 ft → 12 in
• 10 ft → 18 in
• 12 ft → 24 in
• 14 ft → 36 in
• 16 ft → 48 in
• 18 ft → 60 in
• 20 ft → 72 in

• Minka Aire Barn H2O 84 in ceiling fan (motor + 10 Seashore Grey ABS blades)
• Integrated 40W LED light module (clear ribbed glass shade)
• RC1000 remote control
• 10 in downrod (0.75 in OD)
• Mounting hardware
