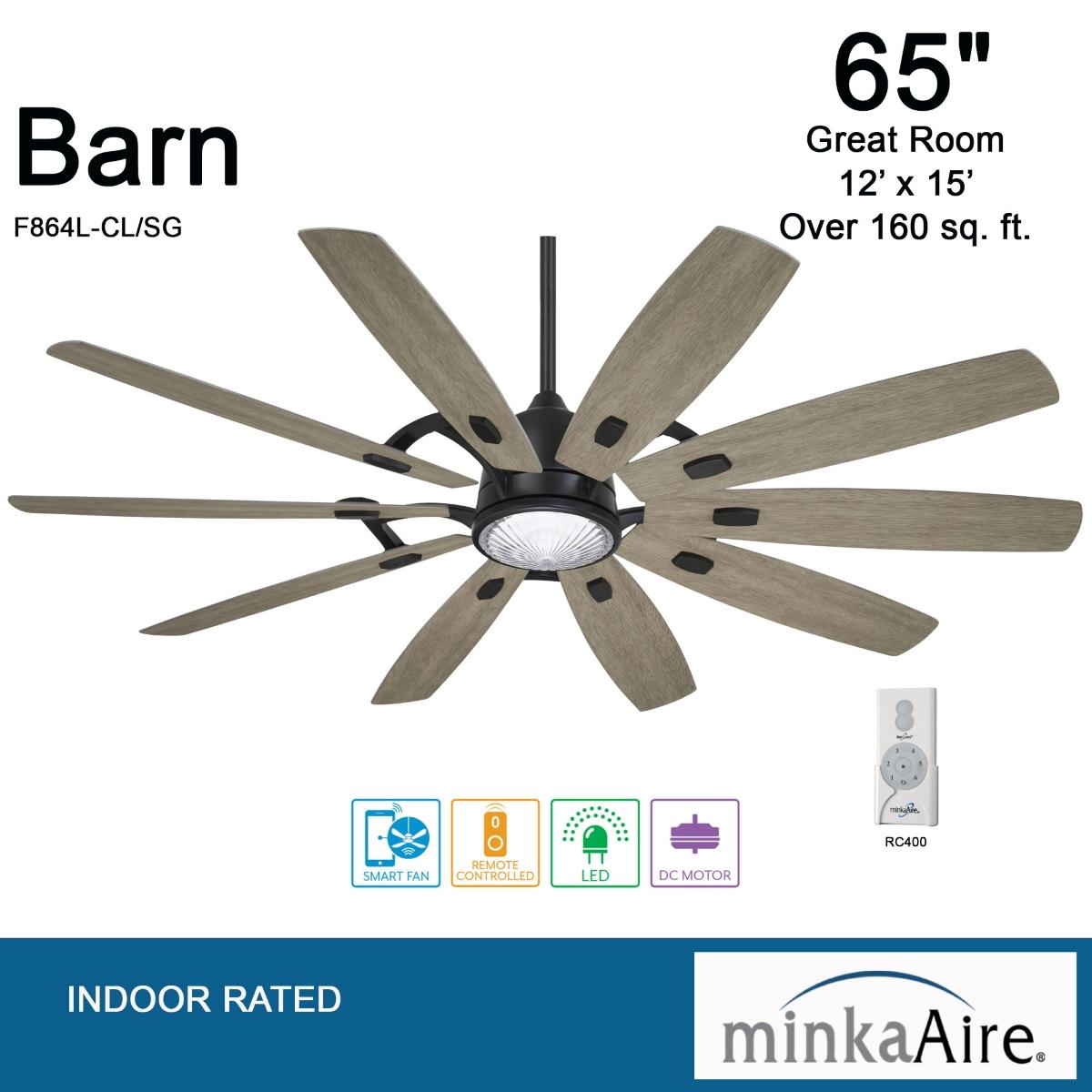

The Minka Aire Barn F864L-CL/SG is a 65 in dry-rated smart ceiling fan that brings bold, coastal-modern contrast to large interior spaces. Ten Seashore Grey plywood blades at 16° pitch are driven by a whisper-quiet 168x30mm DC motor delivering 8,707 CFM at high speed at 172.28 CFM/W efficiency. An integrated 30W LED module with a clear ribbed glass shade produces 815.6 delivered lm with selectable 5CCT: 2700K, 3000K, 3500K, 4000K, and 5000K, CRI 90, dimmable, 30,000 hr rated life. Dry rated and ETL listed, the Coal finish with Seashore Grey blades delivers a sharp, refined aesthetic suited to contemporary living rooms, dining rooms, and open-plan spaces. Bond smart control integrated — compatible with Bond Hub BD-1000 for smart home integration.

• Blade Span: 65 in, 10 plywood blades, 16° pitch — Seashore Grey finish
• Mount Type: Downrod — 10 in included (0.75 in OD), slope compatible to 18°
• Motor: 168x30mm DC, 6-speed, reversible — Coal finish
• Airflow: 8,707 CFM high / 3,364 CFM low
• Efficiency: 172.28 CFM/W high / 687.93 CFM/W low
• Wattage: 50.54W high / 4.89W low
• Light: 30W integrated LED, 815.6 delivered lm, CRI 90, 5CCT (2700/3000/3500/4000/5000K), dimmable, 30,000 hr rated life — clear ribbed glass shade
• Location: Dry rated — ETL listed, Title 20
• Weight: 32.41 lbs / Ceiling to blade: 18.2 in / Overall height: 21.5 in

The F864L-CL/SG features integrated smart control via the Bond Hub BD-1000 — control fan speed, direction, and light via the Bond app and compatible voice assistants. Bond Hub BD-1000 sold separately. Compatible remote: RC1000 (sold separately) — 6-speed fan control, reversible direction, full-range light dimmer. Compatible wall control: WC1000 (sold separately). No pull chain. No remote or wall control included.

Coal motor housing with 10 Seashore Grey plywood blades, 16° pitch. Integrated 30W LED module with clear ribbed glass shade. Downrod: 10 in included (0.75 in OD). Wire: 80 in. Slope compatible to 18°. ETL listed. Title 20. Limited 1-year warranty on components, lifetime warranty on motor.

30W integrated LED, 2,664.5 initial lumens / 815.6 delivered lumens, CRI 90, 5CCT selectable: 2700K, 3000K, 3500K, 4000K, 5000K, dimmable, 30,000 hr rated life. Clear ribbed glass shade.

168x30mm DC motor, 120V, 6-speed. Dry rated — ETL listed, Title 20. Downrod: 10 in included (0.75 in OD). Wire: 80 in. Slope compatible to 18°. Overall height: 21.5 in. Ceiling to blade: 18.2 in. Weight: 32.41 lbs. Limited 1-year warranty on components, lifetime warranty on motor.

Ships with 10 in downrod. Maintain 7 ft minimum floor-to-blade clearance. Additional Minka Aire downrods available separately.

• 9 ft → 12 in
• 10 ft → 18 in
• 12 ft → 24 in
• 14 ft → 36 in
• 16 ft → 48 in
• 18 ft → 60 in
• 20 ft → 72 in

• Minka Aire Barn 65 in ceiling fan (motor + 10 Seashore Grey plywood blades)
• Integrated 30W LED light module (clear ribbed glass shade)
• 10 in downrod (0.75 in OD)
• Mounting hardware
