Minka Aire Pinup 60 in Indoor LED Ceiling Fan DC Flat White
Available in stock (25)
About this item
About this item
- Airflow & Efficiency: 6,533 CFM high (164.02 CFM/W, 39.83W) / 2,565 CFM low — ETL Listed for Dry Locations, Energy Star certified — ideal for large indoor spaces up to 400 sq ft.
- DC Motor: 172×12mm, 6 speeds, reversible rotation — 10-blade counter-rotating design (5×60 in + 5×41 in) in all Flat White ABS for whisper-quiet year-round indoor comfort.
- Dry Rated: ETL Listed for Dry Locations, Energy Star certified — living rooms, dining rooms, open-plan interior spaces and statement ceilings.
- Control: RC1000 remote included (6-speed, full-range dimmer), WC1000 wall control sold separately — Bond BD-1000 smart hub compatible (sold separately), Bond Home app (iOS/Android), Alexa, Google Home, Ecobee, Control4.
- LED Light Kit: 20W integrated LED, 1,527.2 lm delivered, 3000K, CRI 95, 30,000 hrs, dimmable — frosted polycarbonate lens.
Description
Description

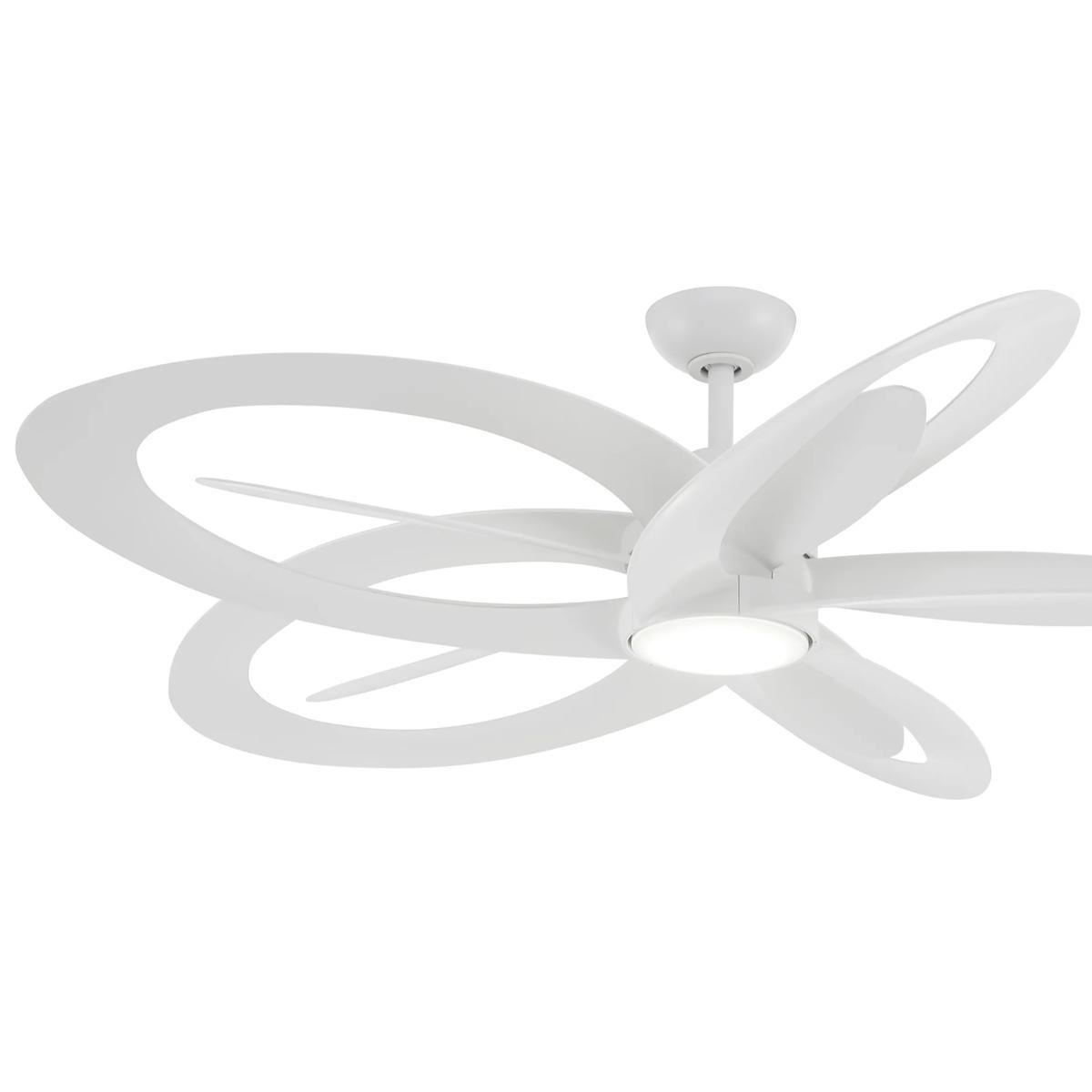

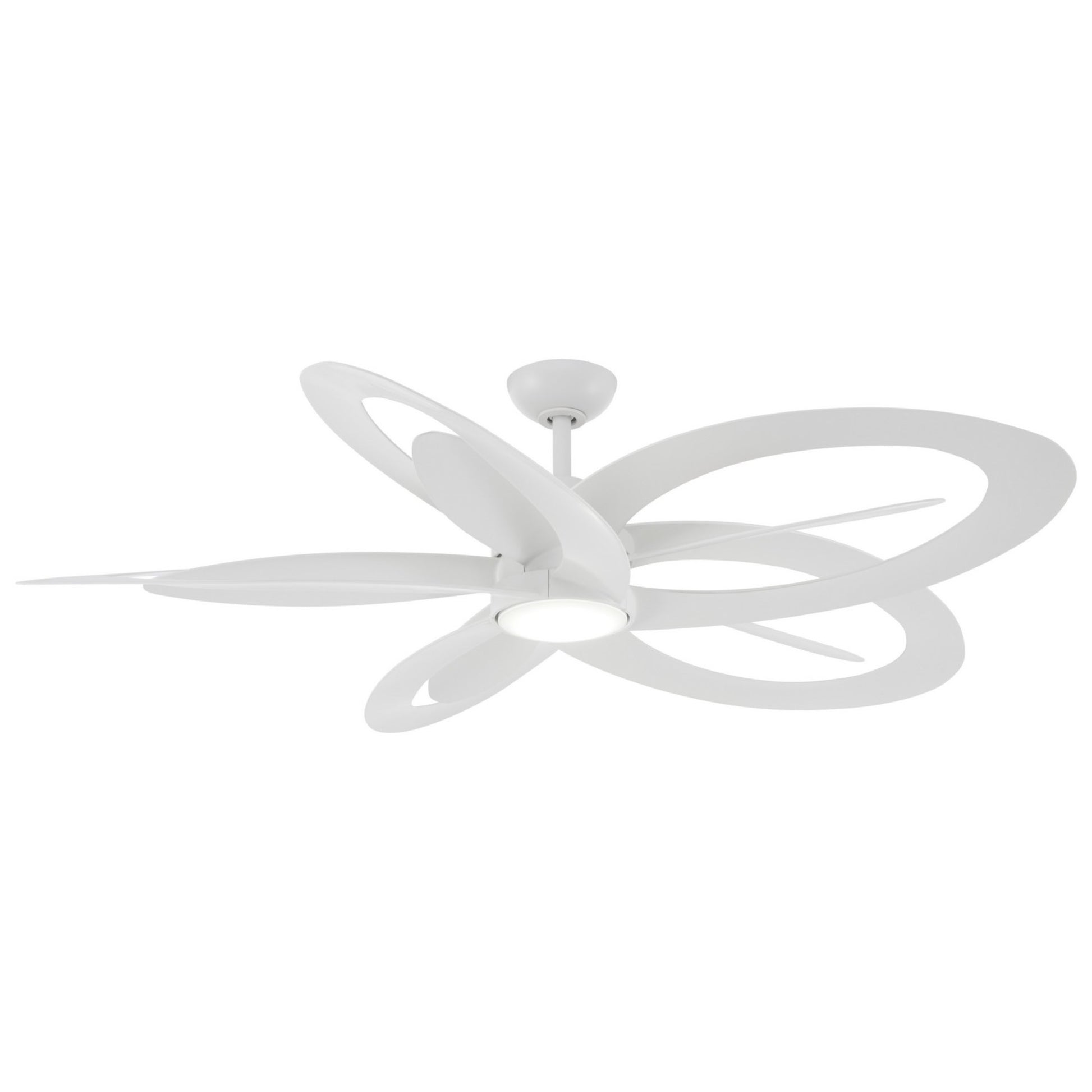

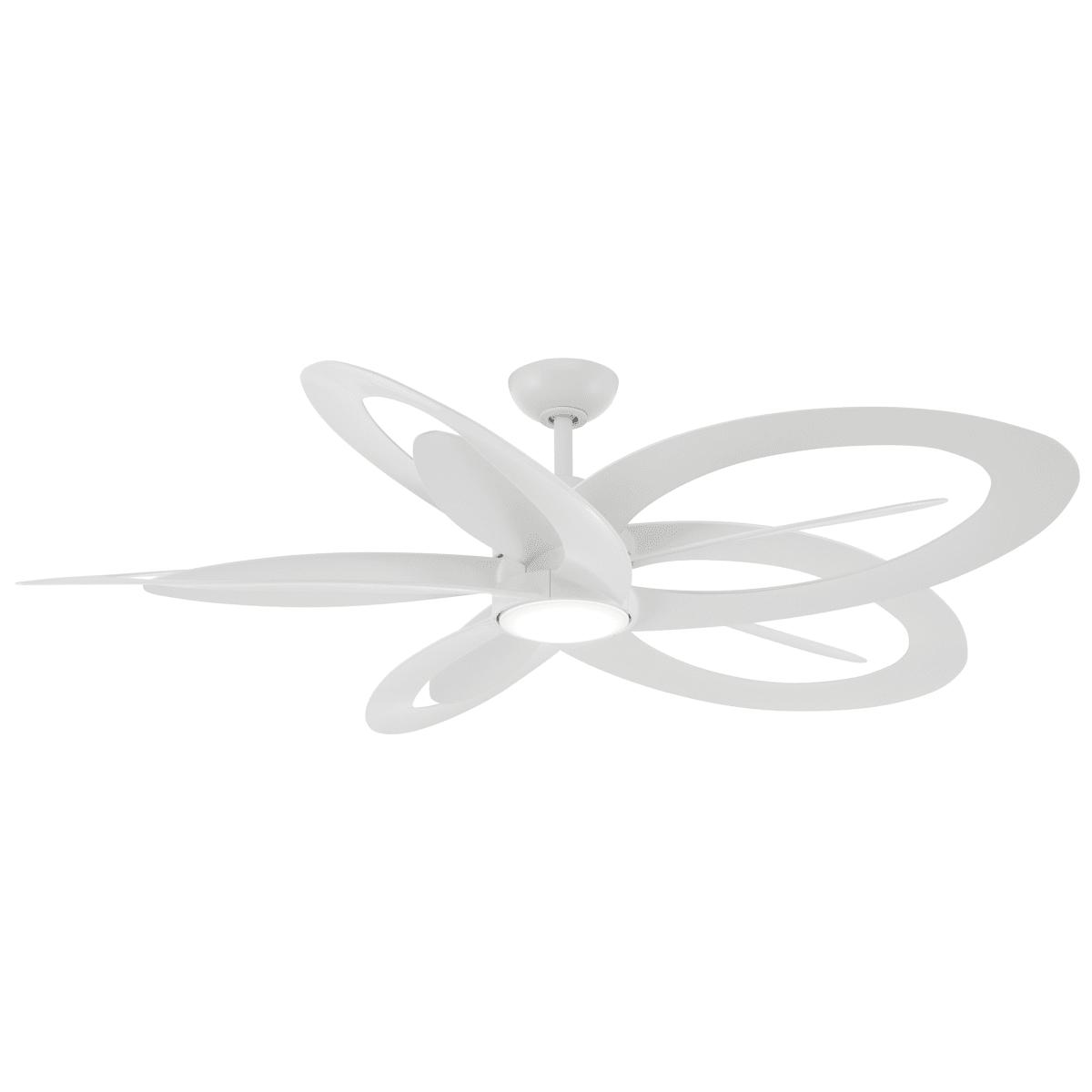

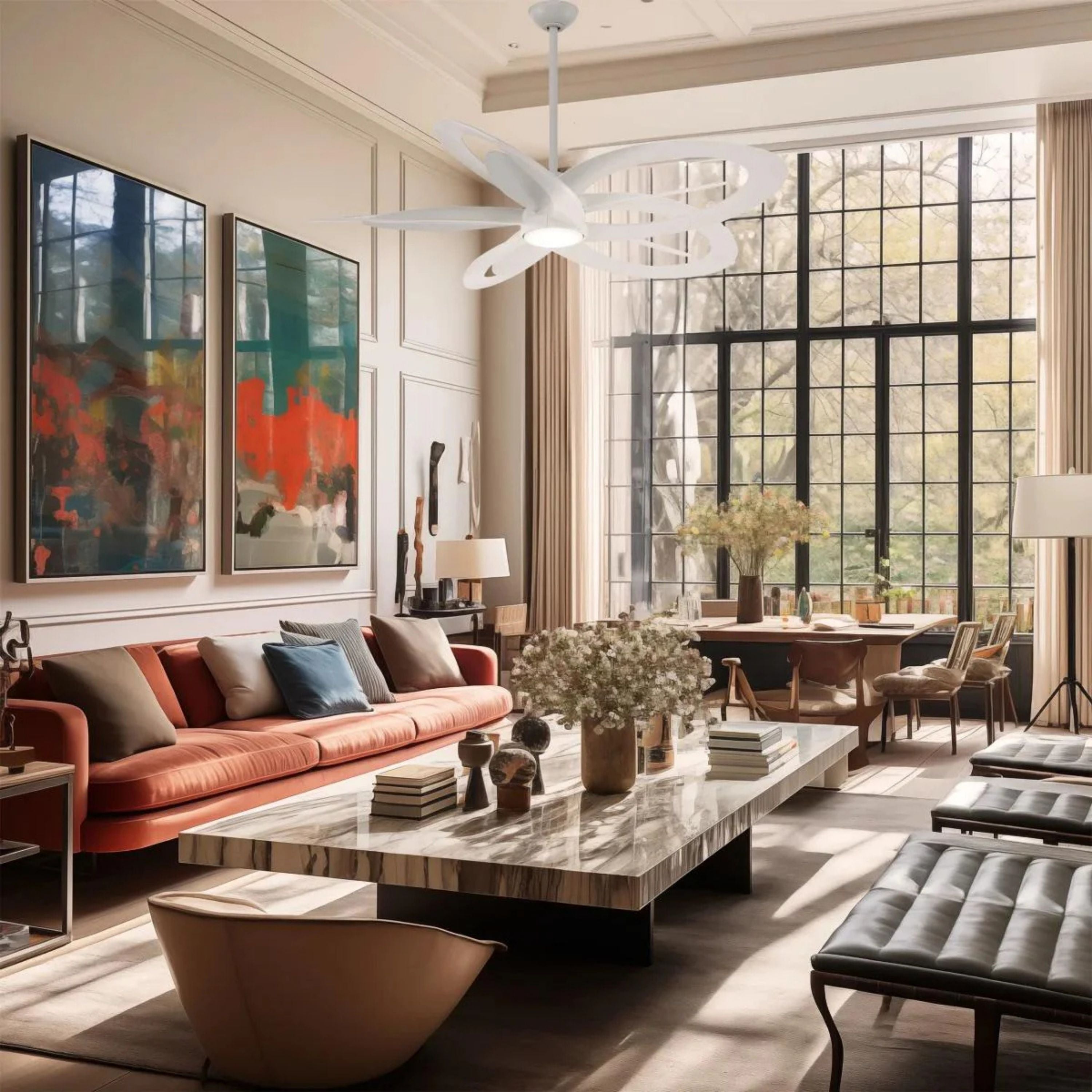

The Minka Aire Pinup F862L-WHF is a sculptural 10-blade 60 in downrod LED ceiling fan in an all-Flat White finish with matching Flat White ABS blades and an integrated 20W LED with frosted polycarbonate lens. Its signature counter-rotating dual blade set — five blades at 60 in sweep plus five blades at 41 in sweep — maximizes airflow efficiency with exceptional visual impact. Powered by a whisper-quiet DC 172×12mm motor, it delivers 6,533 CFM at high speed — 164.02 CFM/W efficiency. Compatible with the Bond BD-1000 smart hub (sold separately), RC1000 remote included, ETL Listed for dry locations, Energy Star certified.

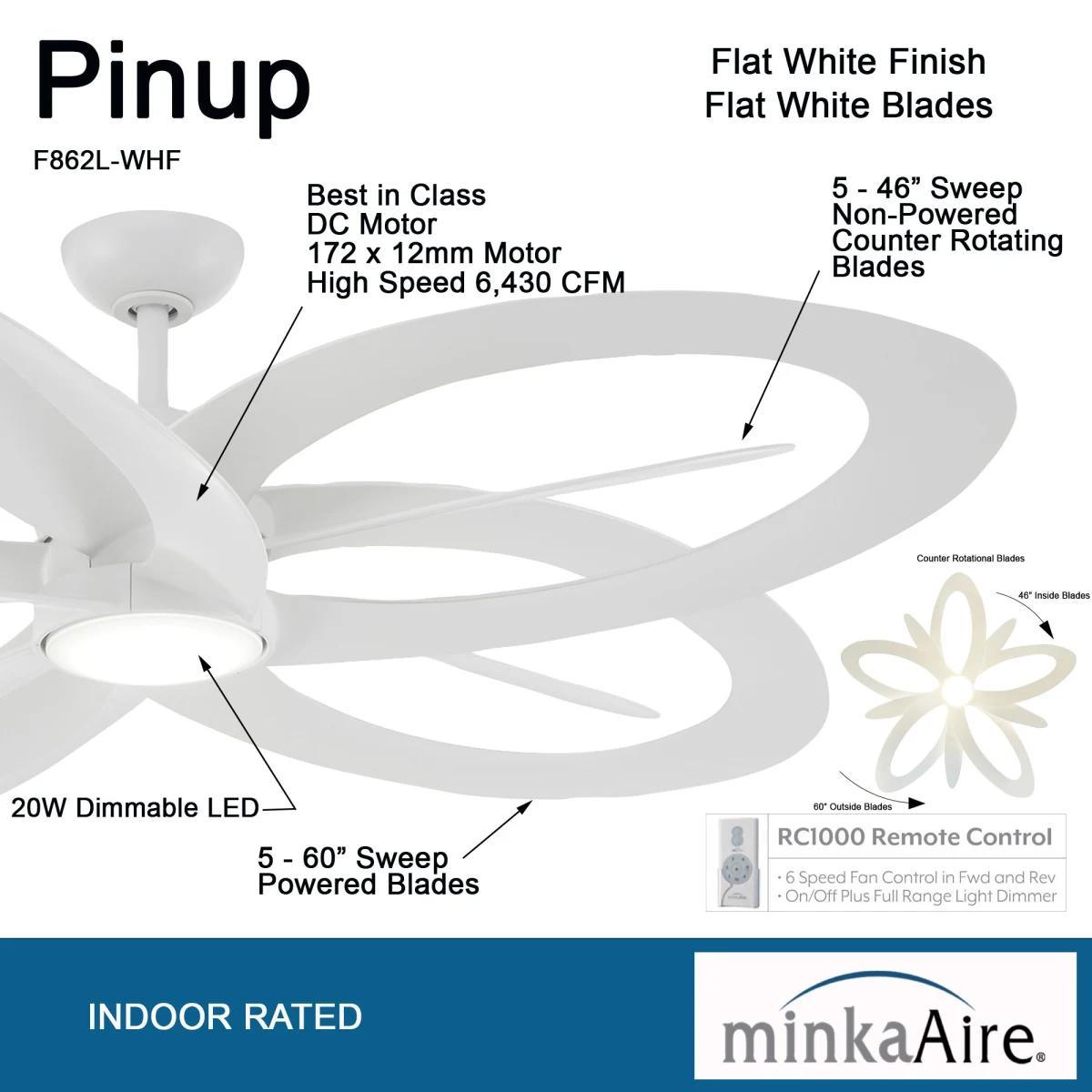

Key Features- Blade Span: 60 in outer / 41 in inner — 10 ABS blades (5+5 counter-rotating), 18° pitch, Flat White
- Motor: DC 172×12mm, 6 speeds, reversible rotation
- Airflow: 6,533 CFM high / 2,565 CFM low — 164.02 CFM/W high / 716.48 CFM/W low
- Wattage: 39.83W high / 3.58W low

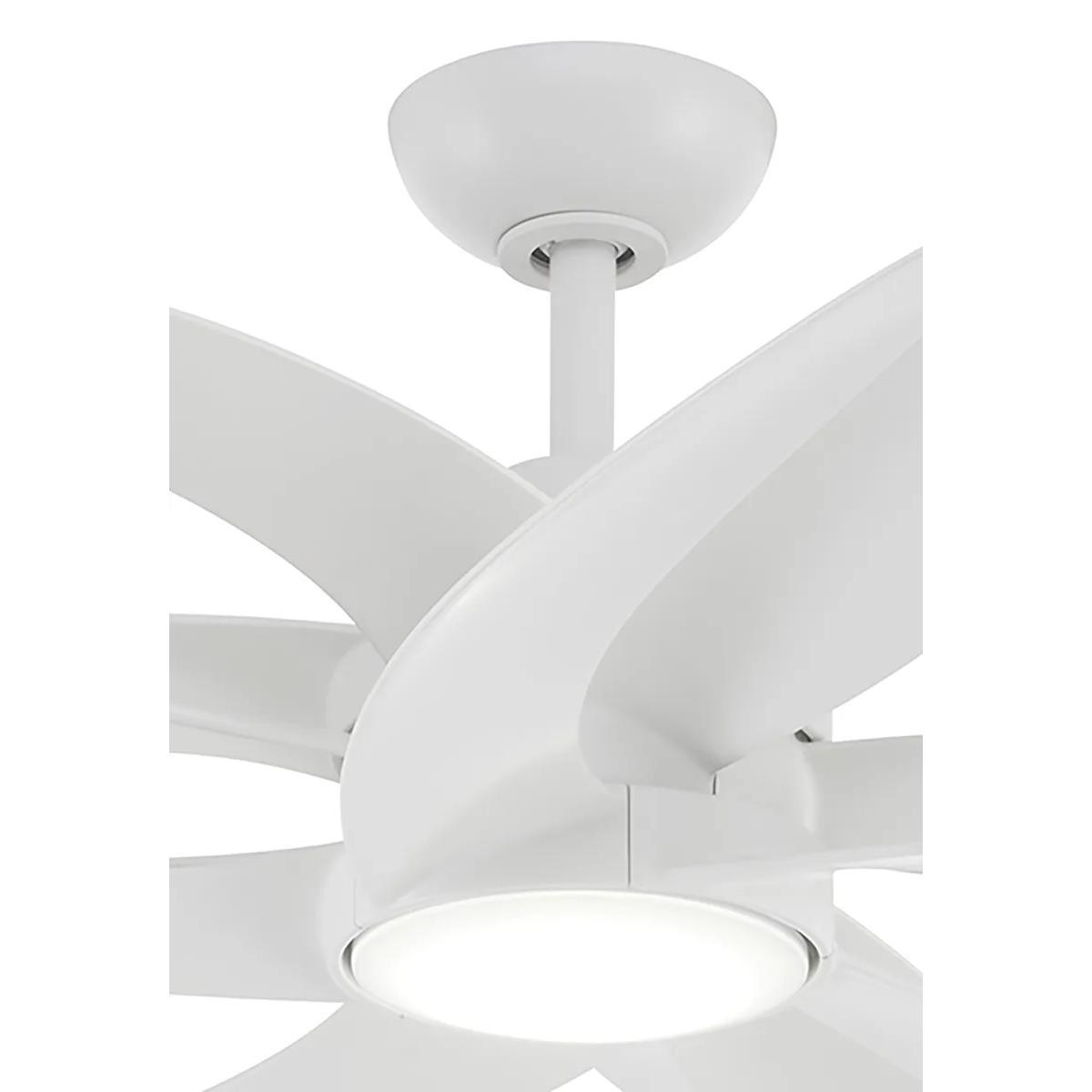

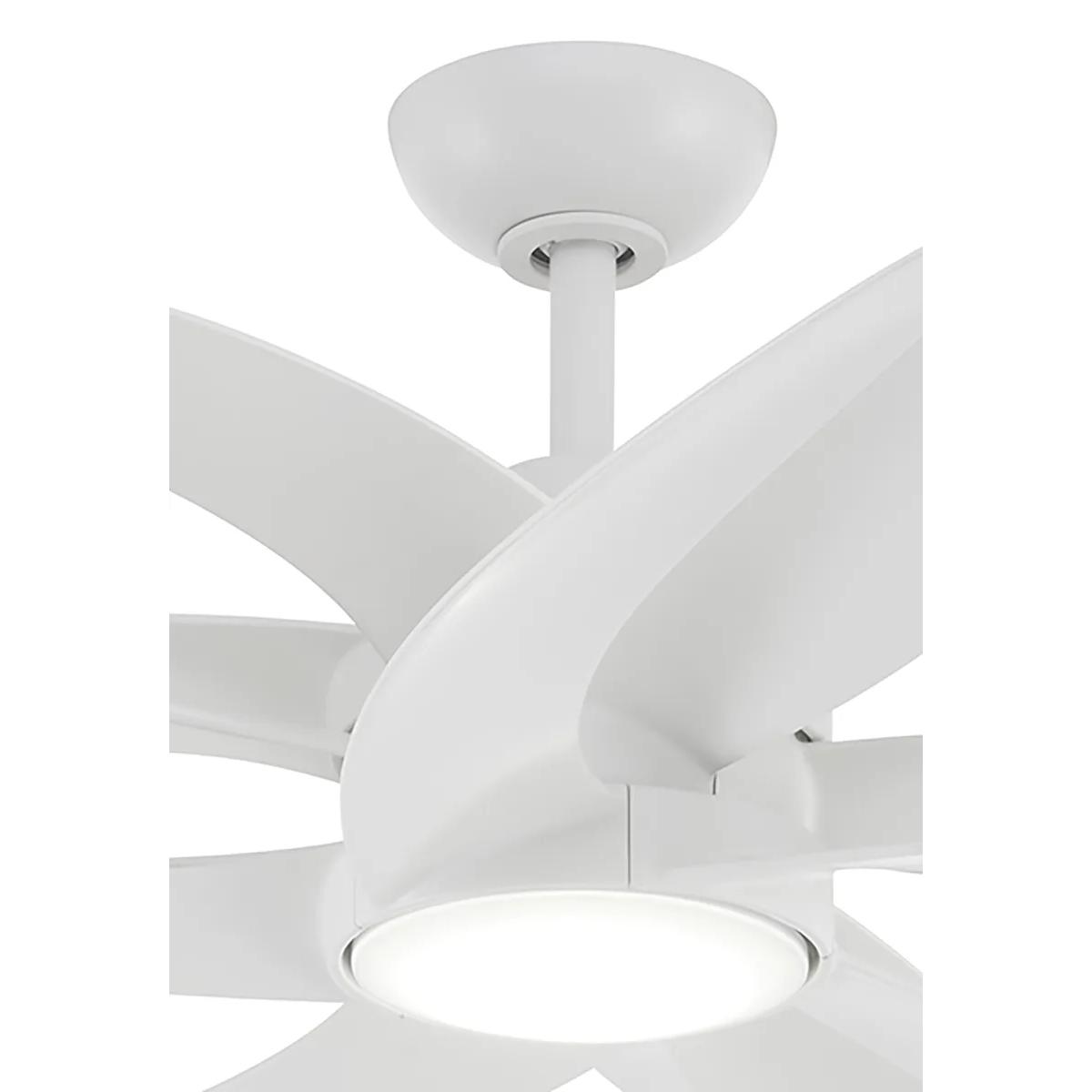

- Light Kit: Integrated 20W LED — 1,527.2 delivered lm, 3000K, CRI 95, 30,000 hrs, dimmable, frosted polycarbonate lens
- Location Rating: ETL Listed for Dry Locations — Indoor use only. Energy Star certified.
- Control: RC1000 remote included — compatible with Bond BD-1000 smart hub (sold separately)
- Mount: Downrod — 0.75 in × 6 in downrod included, slope compatible to 18° / up to 45° with optional A245
- Ceiling to Blade: 12.5 in / Lowest point: 15.5 in / Weight: 21.3 lbs
RC1000 Remote Control — included: 6-speed fan control in Forward & Reverse, On/Off plus full-range light dimmer. Compatible wall control: WC1000 (sold separately). The Pinup is compatible with the Bond BD-1000 smart hub (sold separately) for smart home integration via the Bond Home app (iOS & Android) with voice integrations: Amazon Alexa, Google Home, Ecobee, and Control4.

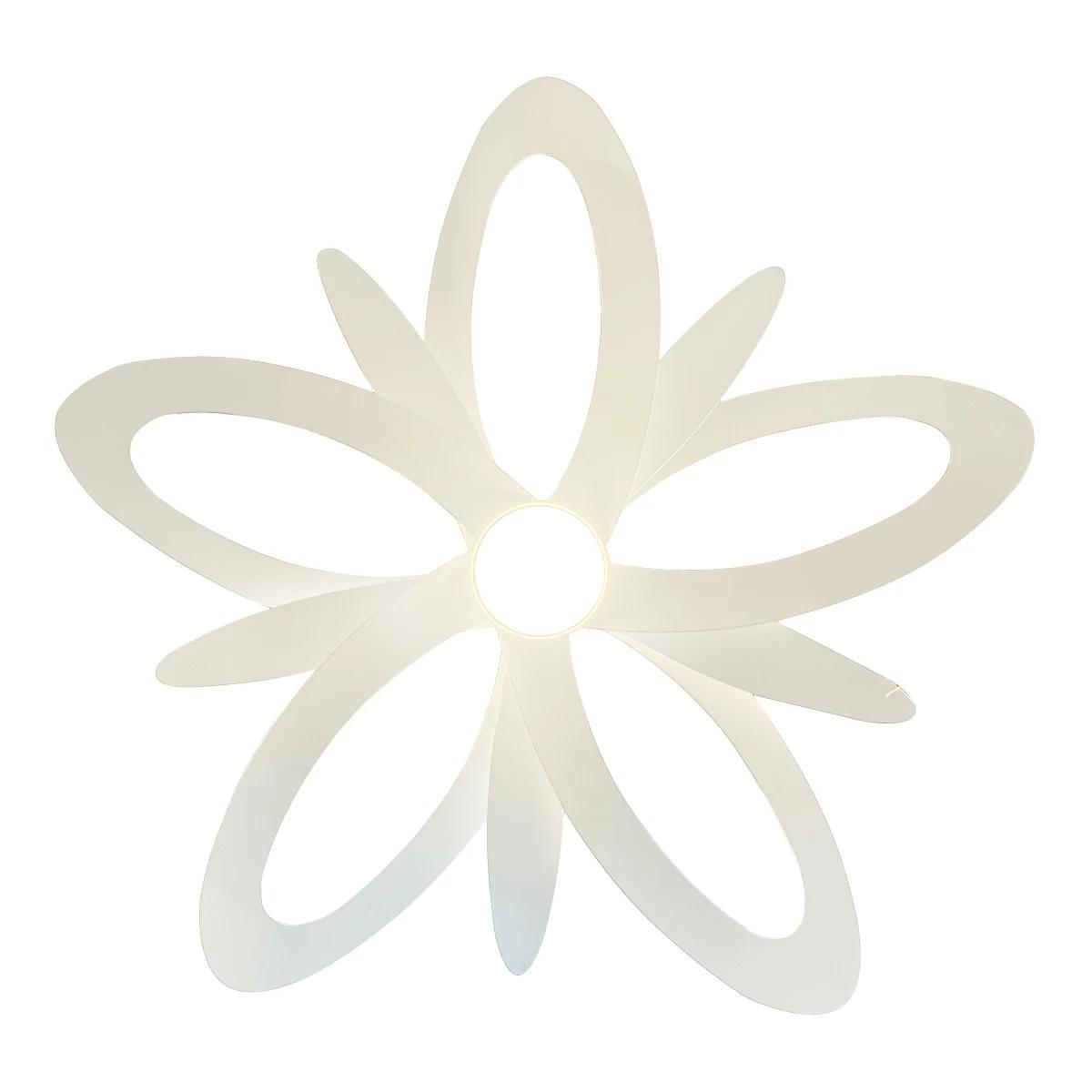

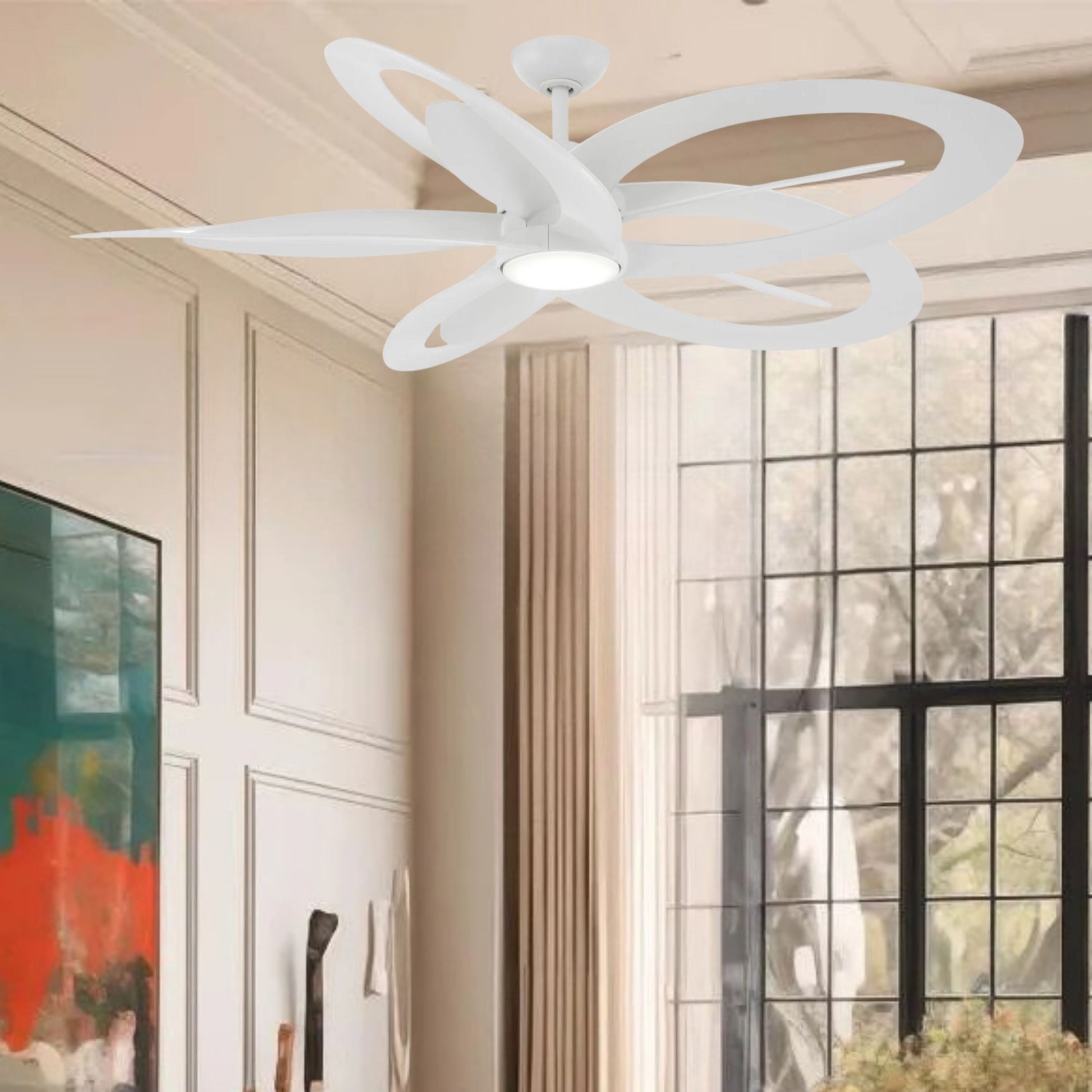

Construction & DesignAll-Flat White motor housing with ten sculpted Flat White ABS blades arranged in two counter-rotating sets — five at 60 in sweep and five at 41 in sweep — at 18° pitch. Net weight: 21.3 lbs. The Pinup’s organic, petal-like blade silhouette in Flat White brings an airy sculptural elegance to any space — a striking centrepiece for coastal, Scandinavian, and contemporary interiors where light and form take centre stage.
Light Output & PerformanceThe F862L-WHF delivers 6,533 CFM at high speed (164.02 CFM/W, 39.83W) and 2,565 CFM at low speed (716.48 CFM/W, 3.58W). The integrated 20W LED provides 1,527.2 delivered lumens (2,338.8 initial lumens) at 3000K warm white, CRI 95, rated 30,000 hours, fully dimmable, through a frosted polycarbonate lens. Its 60 in sweep is ideal for medium to large indoor spaces up to approximately 400 sq ft.
Electrical & Installation120V DC, 60Hz. Wire: 80 in. Ships with 0.75 in × 6 in downrod. Slope ceiling compatible to 18°; for steeper pitches up to 45°, the optional sloped ceiling adapter A245 is available separately. Fan must be attached to a securely anchored electrical junction box rated for the fan weight. ETL Listed for Dry Locations. Energy Star certified.
Suggested Downrod by Ceiling HeightA 6 in downrod is included. Additional downrods available separately. Ideal distance from floor to fan blades is 7 to 9 feet.
- 9 ft ceiling → 12 in downrod
- 10 ft ceiling → 18 in downrod
- 12 ft ceiling → 24 in downrod
- 14 ft ceiling → 36 in downrod
- 16 ft ceiling → 48 in downrod
- 18 ft ceiling → 60 in downrod
- 20 ft ceiling → 72 in downrod
- F862L-WHF ceiling fan (Flat White body + 10 Flat White ABS blades)
- Integrated 20W LED light kit with frosted polycarbonate lens
- RC1000 remote control
- 0.75 in × 6 in downrod
- Mounting hardware
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Fan Information
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What environments is the Minka Aire Pinup F862L-WHF rated for?
What environments is the Minka Aire Pinup F862L-WHF rated for?
How is the Minka Aire Pinup F862L-WHF controlled?
How is the Minka Aire Pinup F862L-WHF controlled?
What LED does the Minka Aire Pinup F862L-WHF include?
What LED does the Minka Aire Pinup F862L-WHF include?
Can the Minka Aire Pinup F862L-WHF be installed on a sloped ceiling?
Can the Minka Aire Pinup F862L-WHF be installed on a sloped ceiling?
What is the airflow performance of the Minka Aire Pinup F862L-WHF?
What is the airflow performance of the Minka Aire Pinup F862L-WHF?
