The Minka Aire Pike F774L-WHF is a three-blade 56 in downrod LED ceiling fan in an all-Flat White finish with matching Flat White ABS blades and an integrated 20W LED with etched polycarbonate lens. Powered by a whisper-quiet DC 145×18mm motor, it delivers 5,499 CFM at high speed — 127 CFM/W efficiency. Compatible with the Bond BD-1000 smart hub (sold separately), RC1000 remote included, ETL Listed for dry locations, Energy Star, Title 20 & Title 24 compliant, FCC compliant.

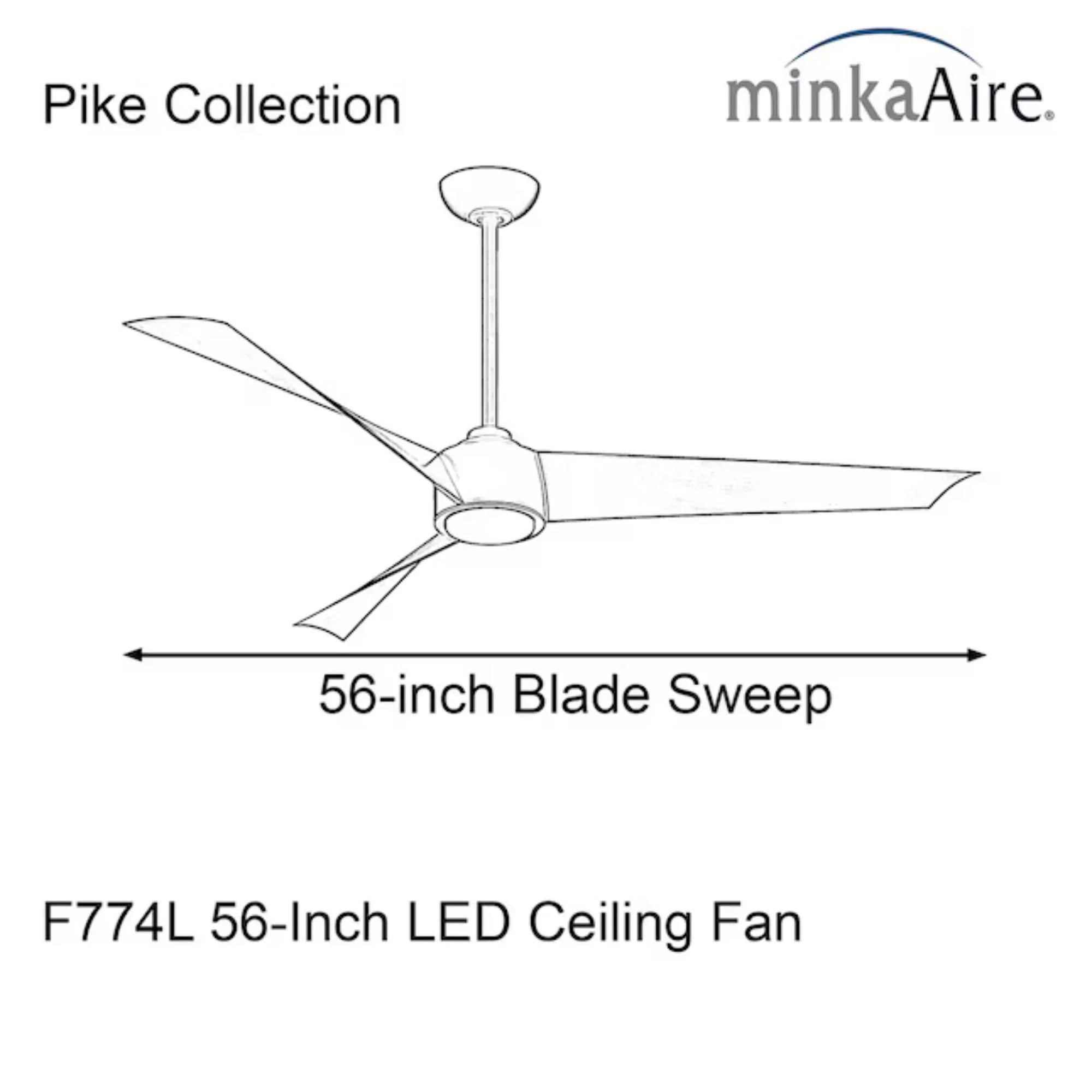

• Blade Span: 56 in, 3 ABS blades, 12° pitch, Flat White
• Motor: DC 145×18mm, 6 speeds, reversible rotation
• Airflow: 5,499 CFM high / 2,033 CFM low — 127 CFM/W high / 579 CFM/W low
• Wattage: 43.3W high / 3.5W low

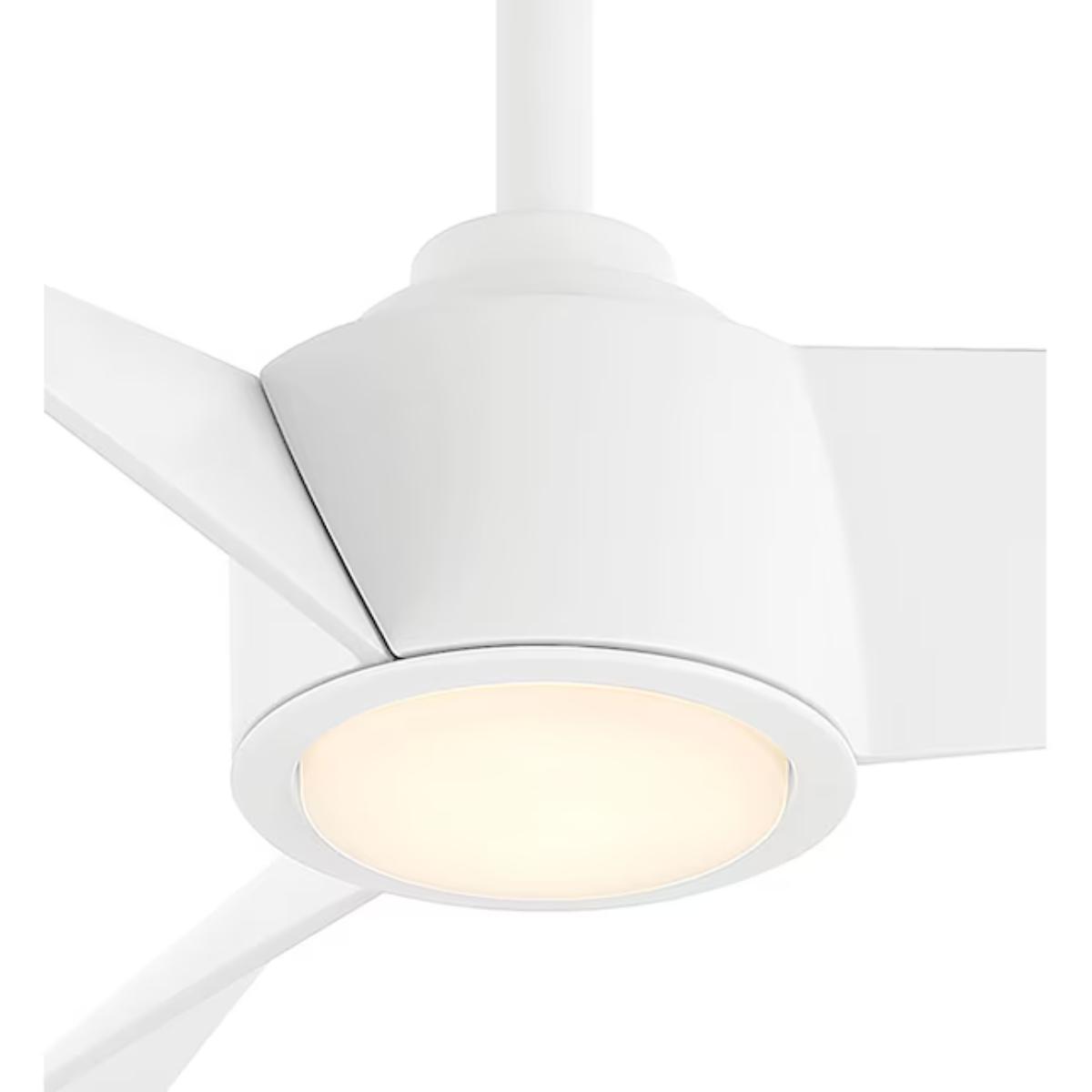

• Light Kit: Integrated 20W LED — 1,602.5 delivered lm, 3000K, CRI 90, 30,000 hrs, dimmable, etched polycarbonate lens
• Location Rating: ETL Listed for Dry Locations — Indoor use only. Energy Star rated. Title 20 & Title 24 compliant. FCC compliant.
• Control: RC1000 remote included — compatible with Bond BD-1000 smart hub (sold separately)
• Mount: Downrod — 0.75 in × 6 in downrod included, slope compatible to 18° / up to 45° with optional A245
• Ceiling to Blade: 11.5 in / Lowest point: 13.25 in / Weight: 10.75 lbs

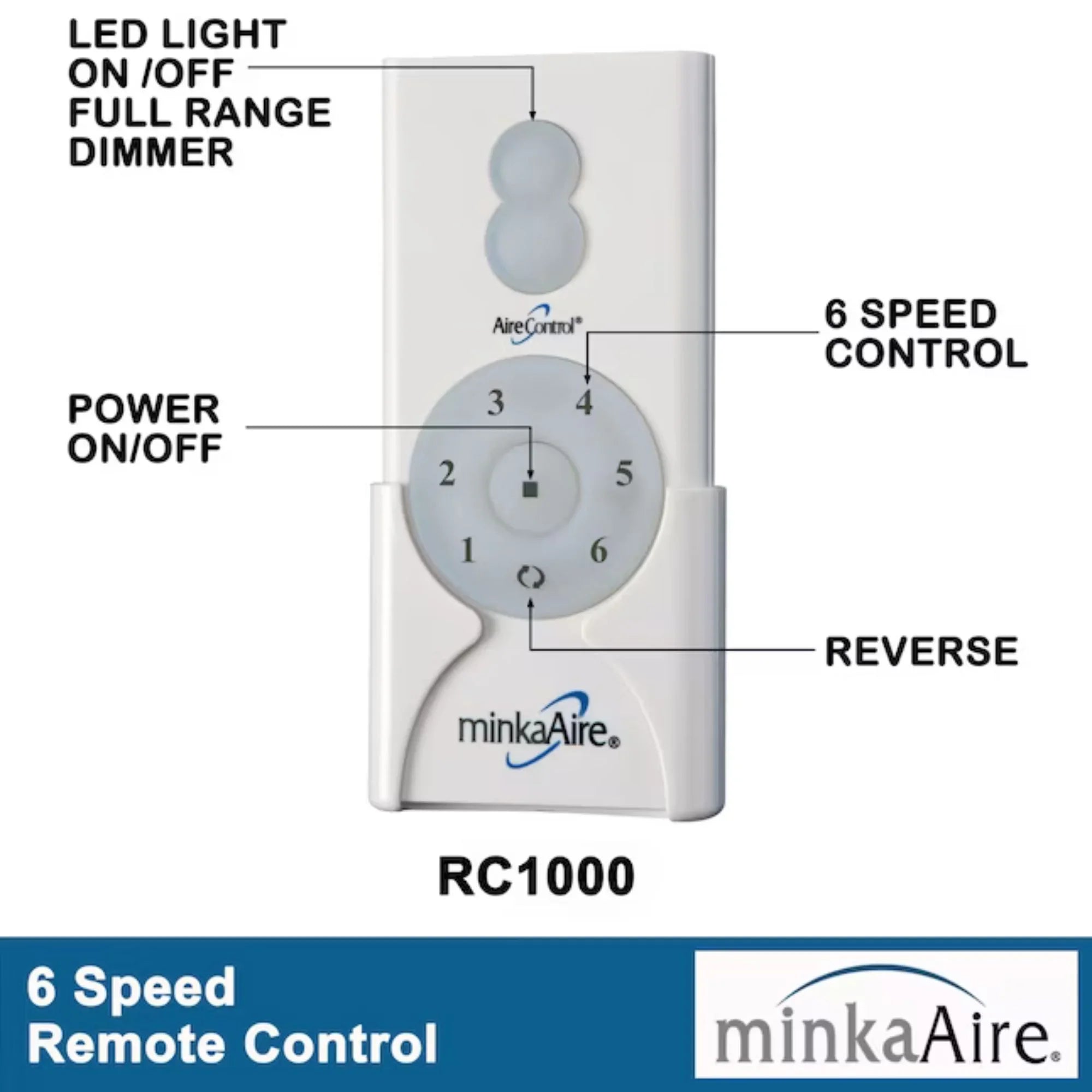

RC1000 Remote Control — included: 6-speed fan control in Forward & Reverse, On/Off plus full-range light dimmer. Compatible wall control: WC1000 (sold separately). The Pike is compatible with the Bond BD-1000 smart hub (sold separately) for smart home integration via the Bond Home app (iOS & Android) with voice integrations: Amazon Alexa, Google Home, Ecobee, and Control4.

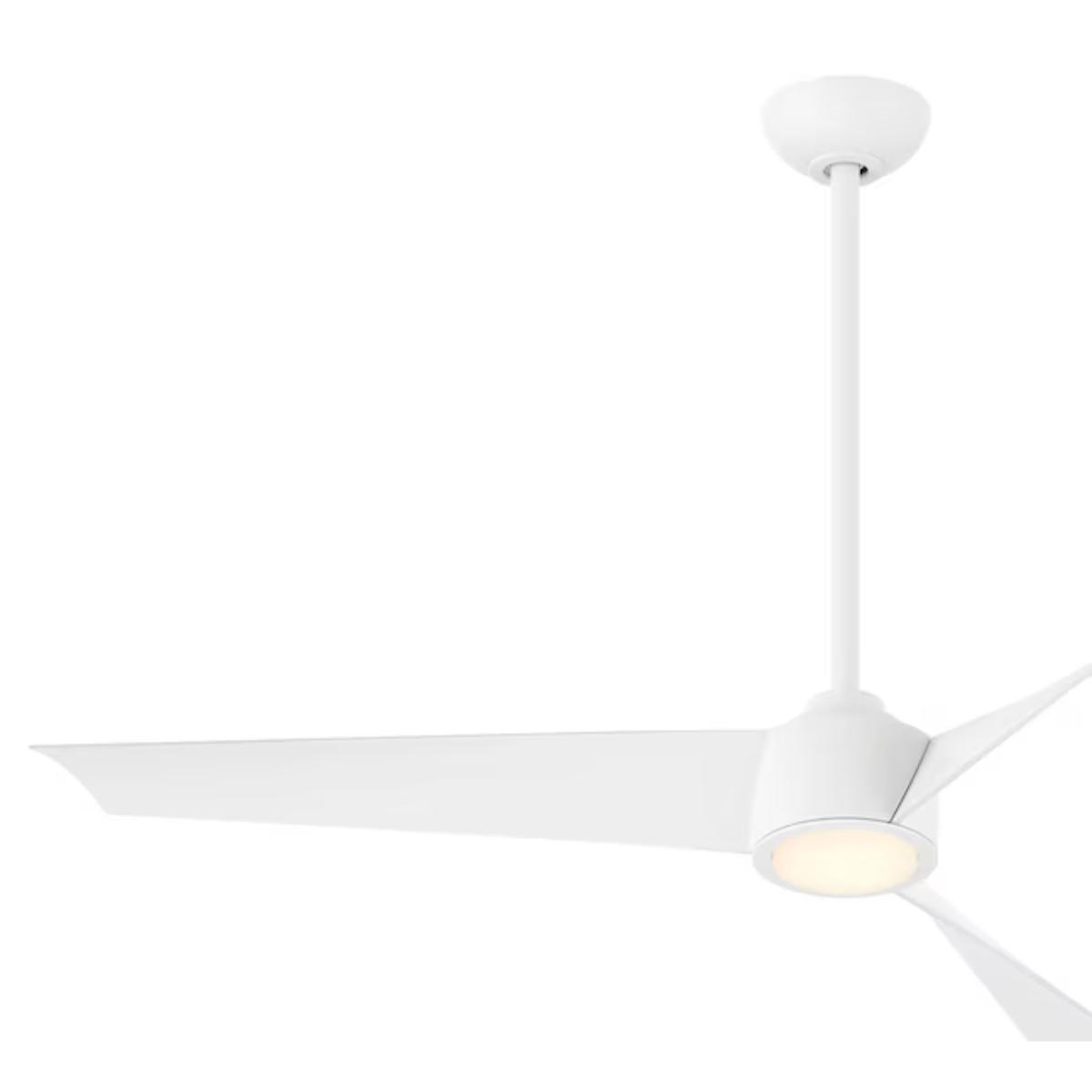

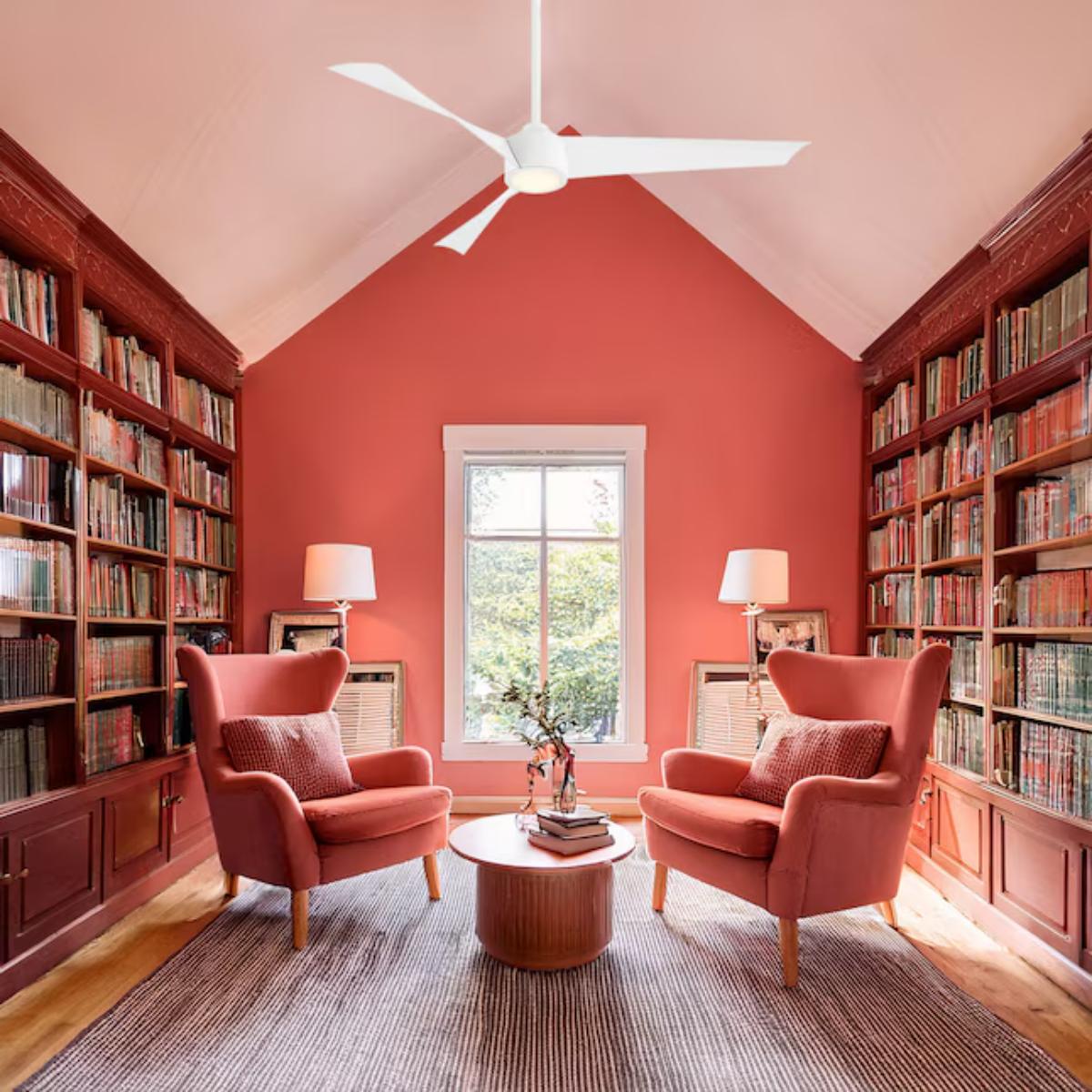

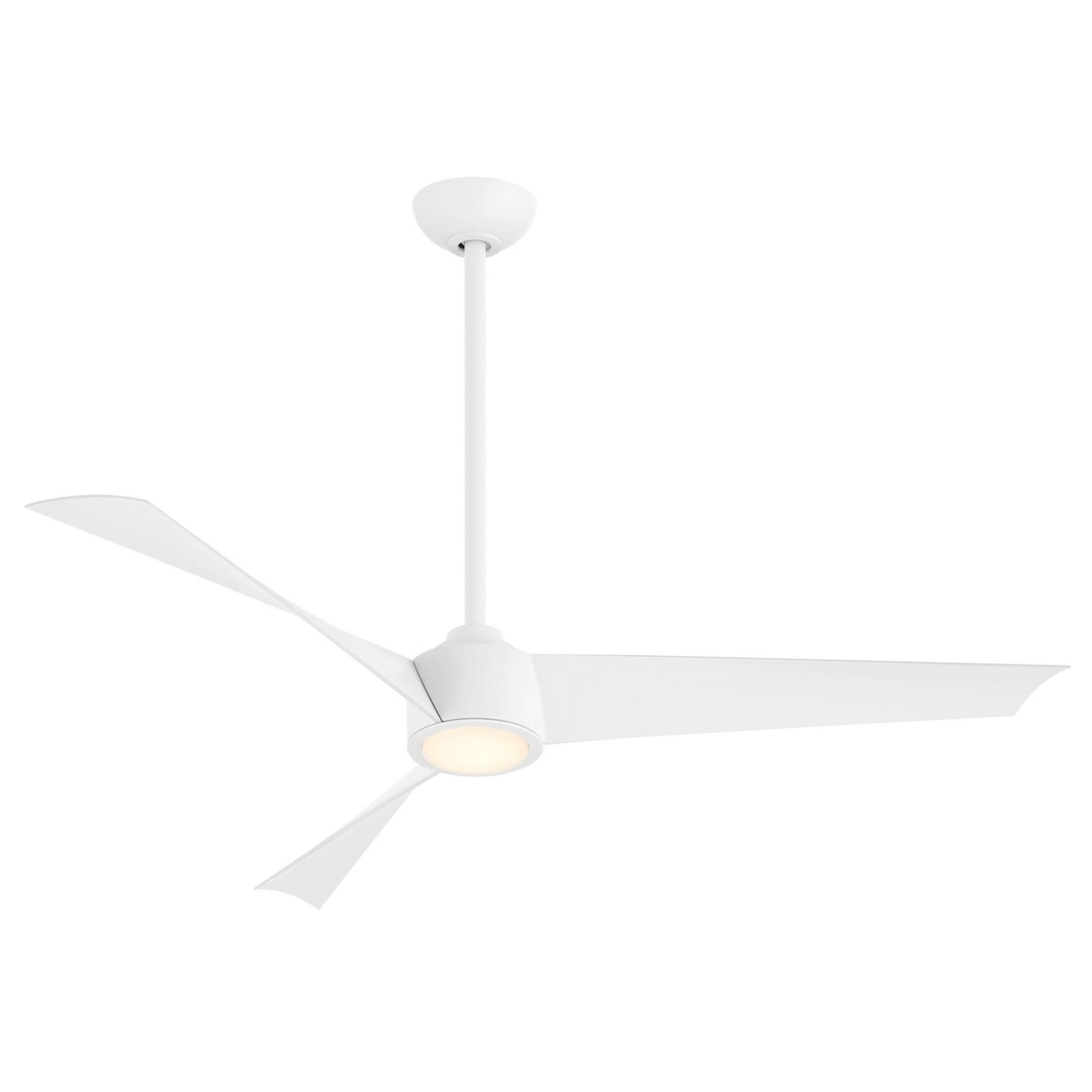

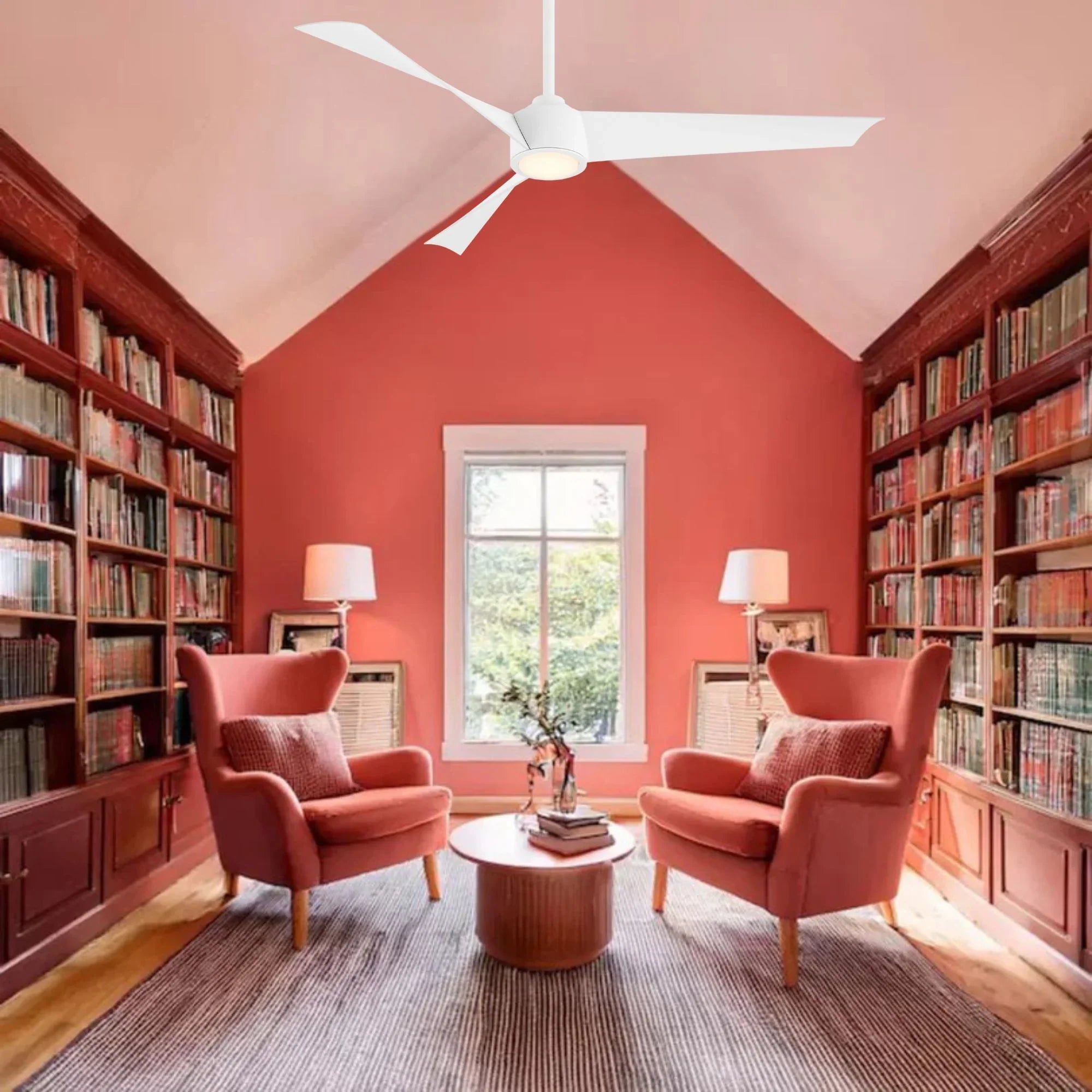

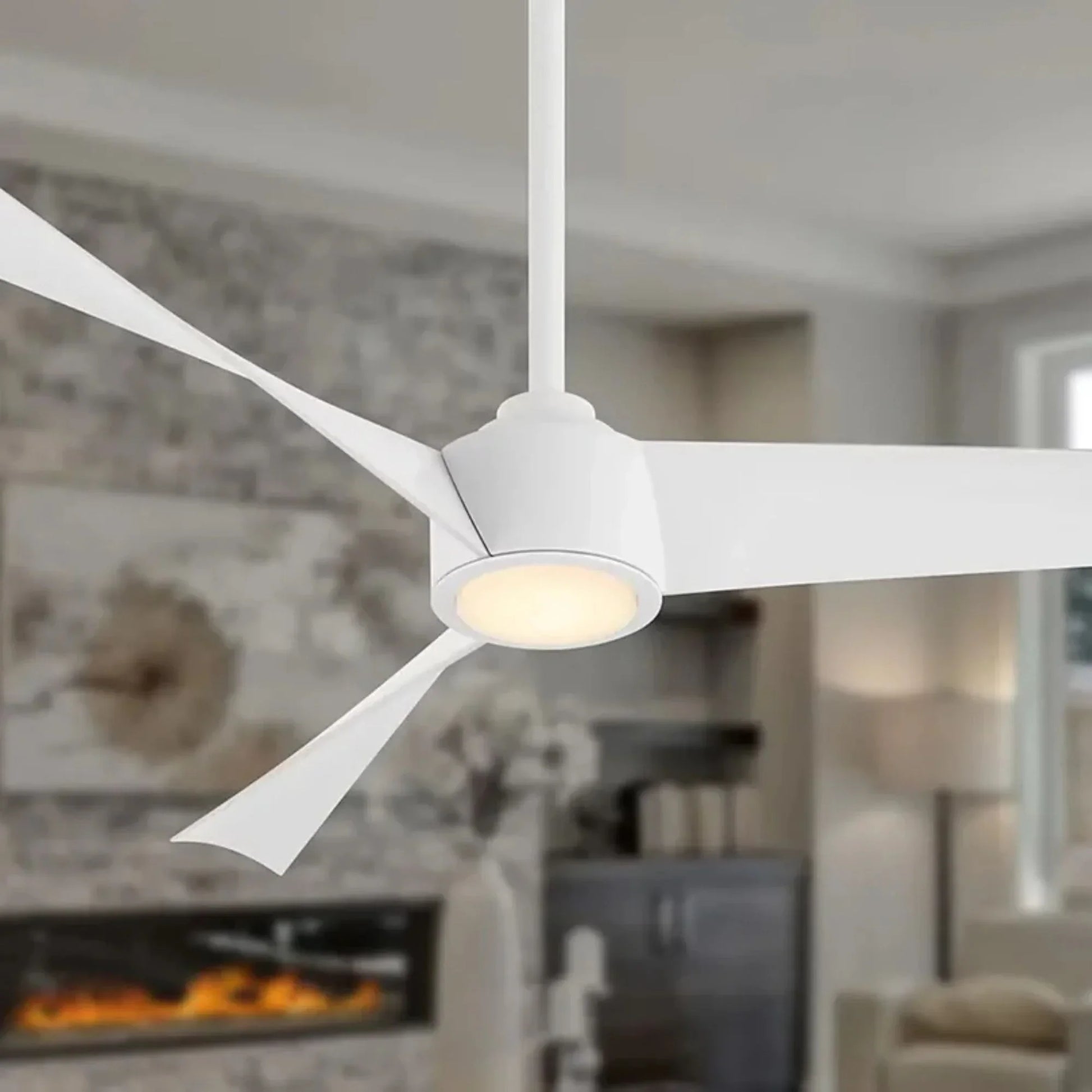

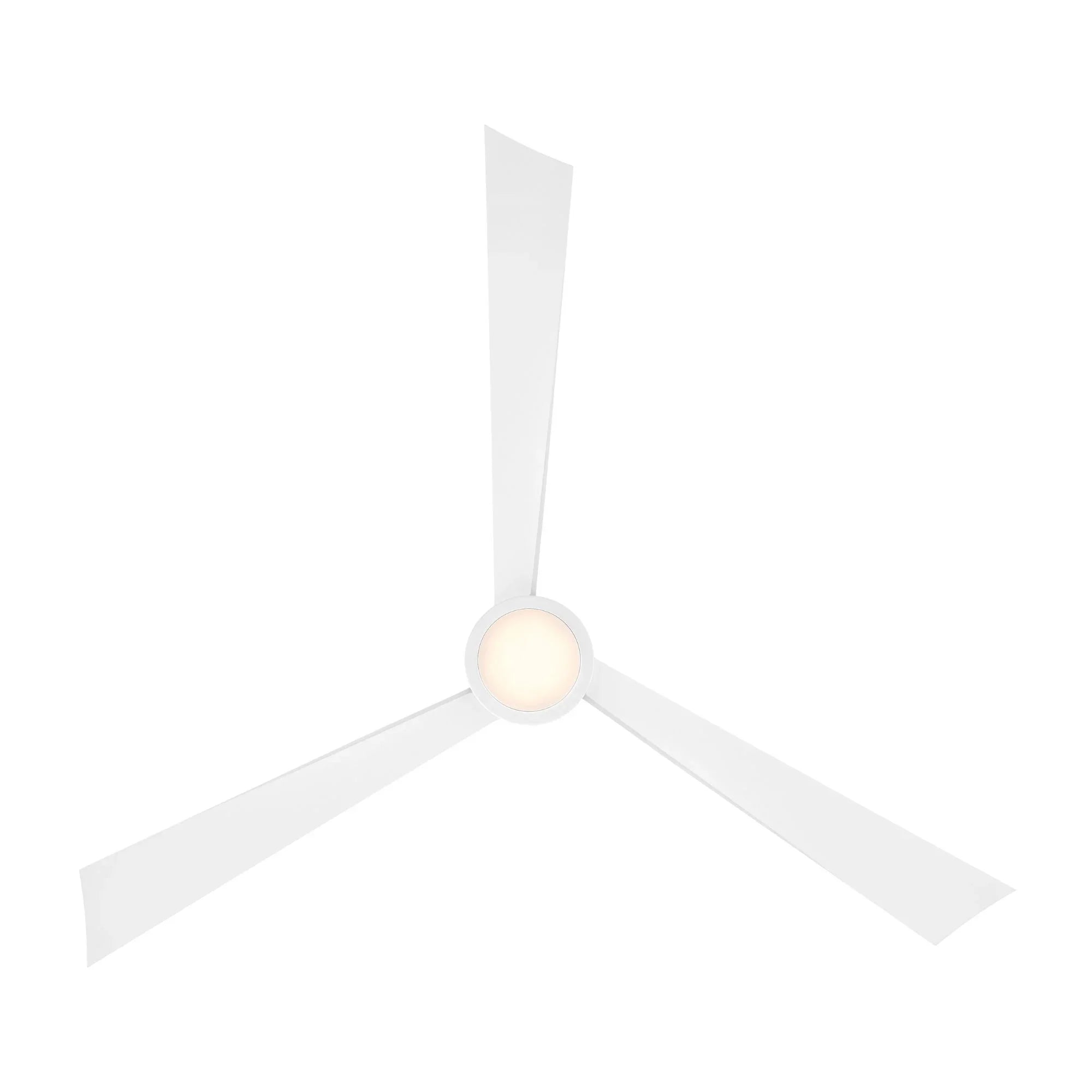

All-Flat White motor housing with three clean Flat White ABS blades at 12° pitch. Net weight: 10.75 lbs. The Pike’s seamless all-white silhouette brings an airy, effortless lightness to any space — a timeless choice for coastal, Scandinavian, and contemporary interiors where brightness and simplicity define the design.

The F774L-WHF delivers 5,499 CFM at high speed (127 CFM/W, 43.3W) and 2,033 CFM at low speed (579 CFM/W, 3.5W). The integrated 20W LED provides 1,602.5 delivered lumens (2,153.6 initial lumens) at 3000K warm white, CRI 90, rated 30,000 hours, fully dimmable, through an etched polycarbonate lens. Its 56 in span is ideal for medium to large indoor spaces up to approximately 350 sq ft.

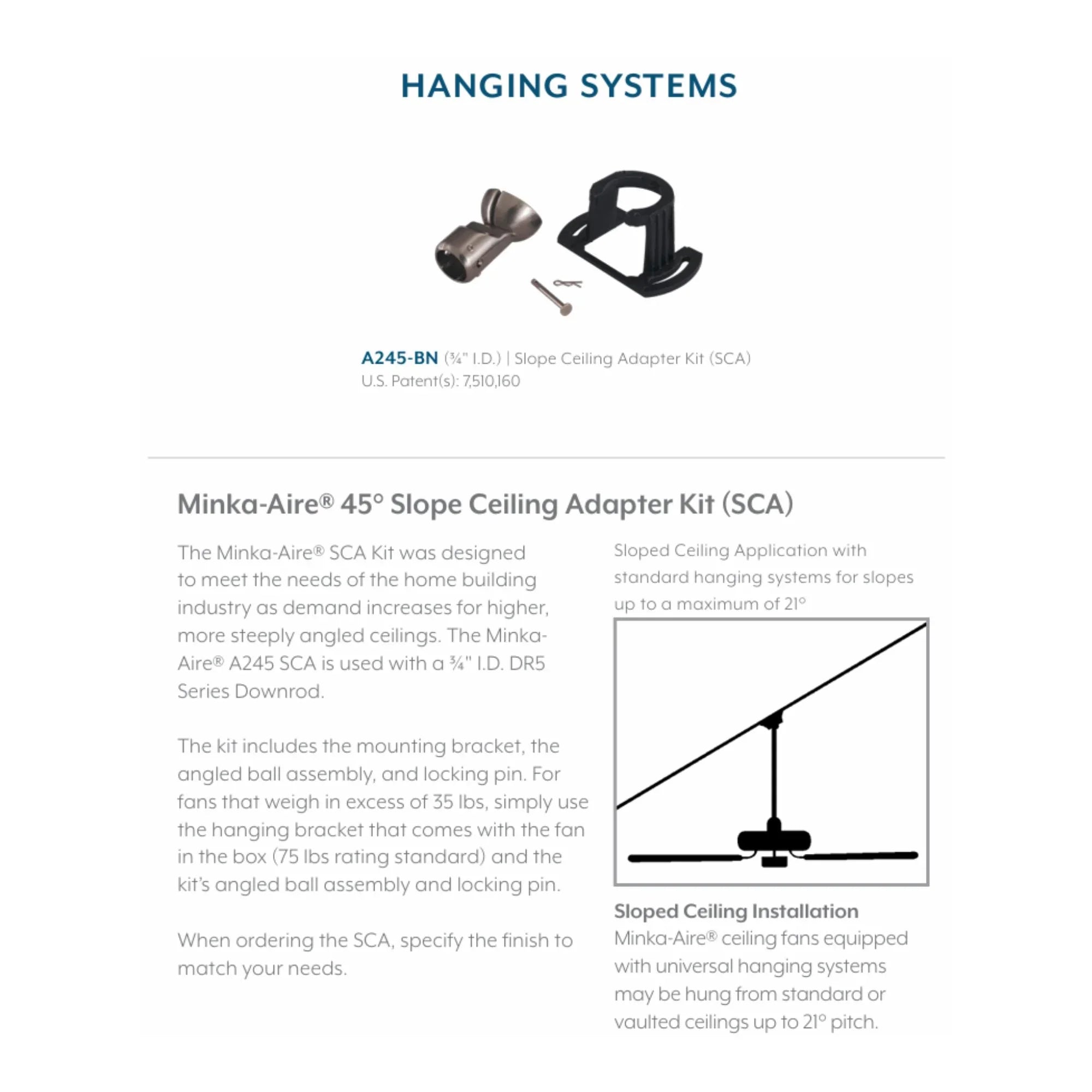

120V DC, 60Hz. Wire: 80 in. Ships with 0.75 in × 6 in downrod. Slope ceiling compatible to 18°; for steeper pitches up to 45°, the optional sloped ceiling adapter A245 is available separately. Fan must be attached to a securely anchored electrical junction box rated for the fan weight. ETL Listed for Dry Locations. Energy Star rated. Title 20 & Title 24 compliant. FCC compliant.

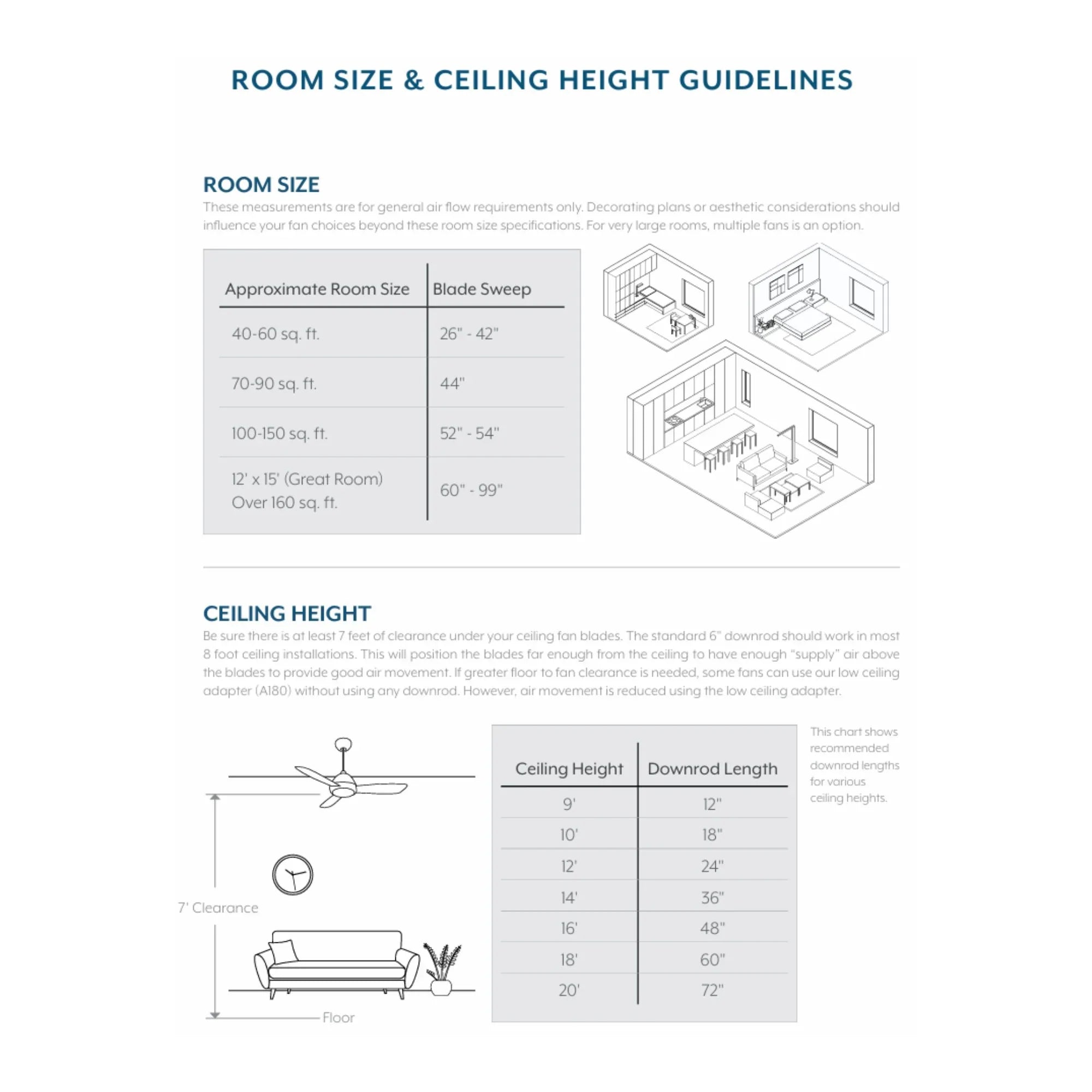

A 6 in downrod is included. Additional downrods available separately. Ideal distance from floor to fan blades is 7 to 9 feet.

• 9 ft ceiling → 12 in downrod
• 10 ft ceiling → 18 in downrod
• 12 ft ceiling → 24 in downrod
• 14 ft ceiling → 36 in downrod
• 16 ft ceiling → 48 in downrod
• 18 ft ceiling → 60 in downrod
• 20 ft ceiling → 72 in downrod

• F774L-WHF ceiling fan (Flat White body + 3 Flat White ABS blades)
• Integrated 20W LED light kit with etched polycarbonate lens
• RC1000 remote control
• 0.75 in × 6 in downrod
• Mounting hardware
