Minka Aire Brenix 60 in Indoor LED Smart Ceiling Fan DC Motor Heritage Brass Coal
Available in stock (156)
About this item
About this item
- High-Performance Airflow: 5,713 CFM at high speed and 2,205 CFM at low speed — ideal for rooms up to 400 sq ft at 176 CFM/W efficiency.
- Whisper-Quiet DC Motor: 126×12mm DC motor with 6 speeds, Summer & Winter reversible modes, and a fraction of the energy draw of AC motors.
- Indoor Dry Location Rated: ETL-listed and Title 20 compliant — suited for living rooms, bedrooms, and dining areas.
- Native WiFi Smart Control: RC1000 remote included; Minka Aire app (iOS & Android) with Alexa, Google Home, Nest, and Ecobee — no hub required.
- Integrated 5-CCT LED: 2,346 lumens, CRI 90, 2700K–5000K selectable, fully dimmable, 50,000-hour rated life — all at 24W combined.
We process payments securely and do not store credit card information.
Description
Description

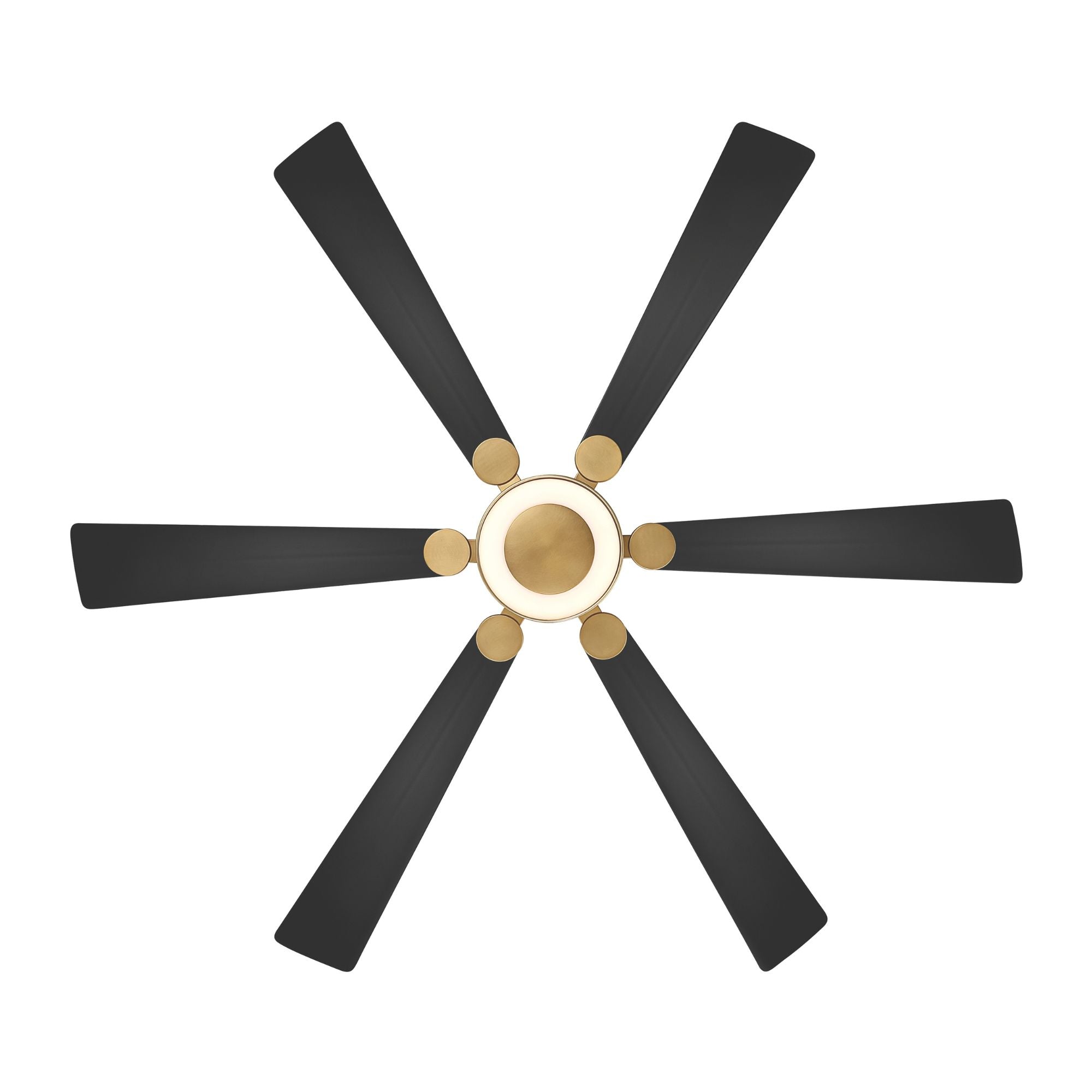

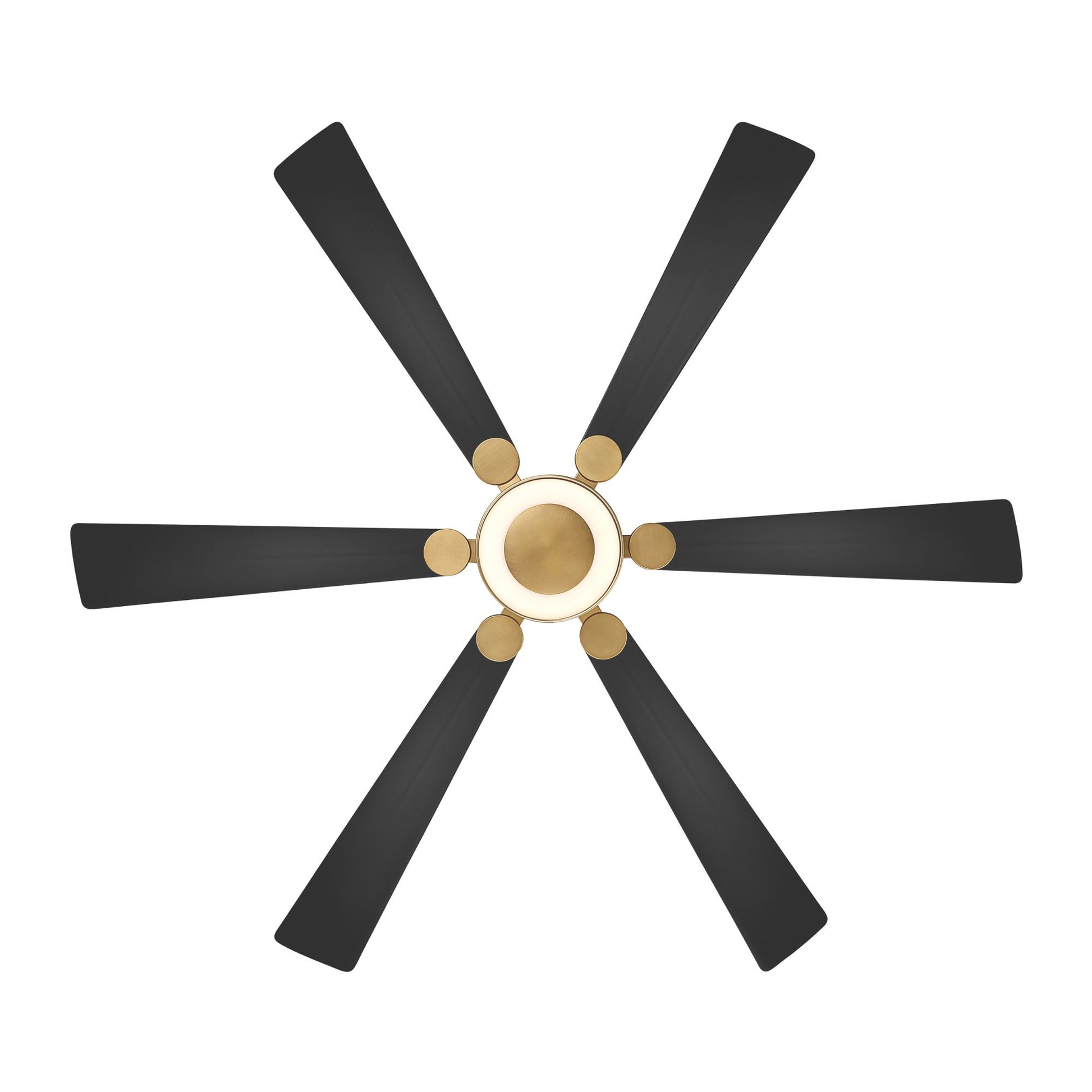

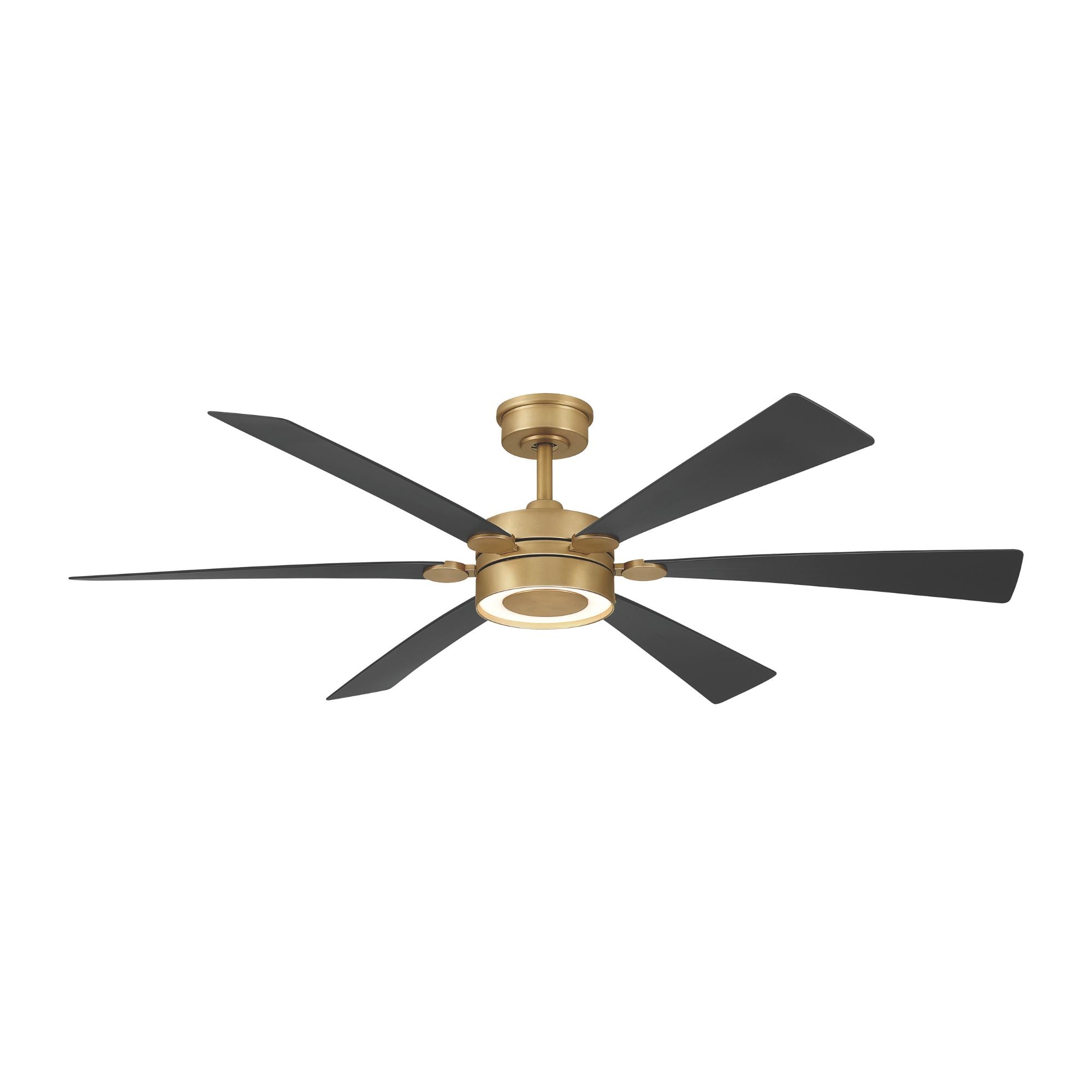

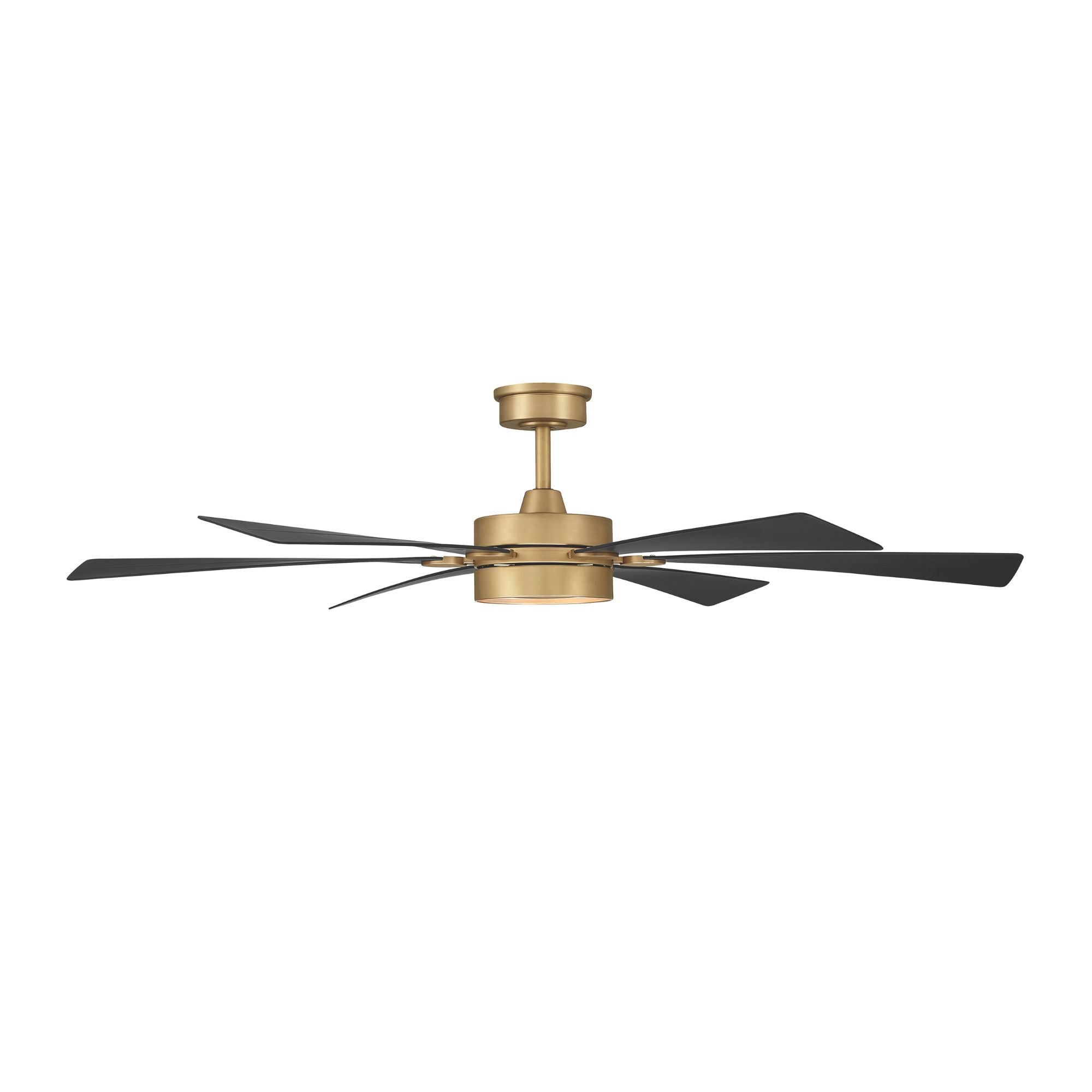

The Minka Aire Brenix F773L-HBR/CL is a 60 in indoor ceiling fan with a DC motor delivering 5,713 CFM at high speed and 176 CFM/W efficiency. Six Coal ABS blades sweep at 16 degrees, and the integrated 5-CCT LED outputs 2,346 lumens from 2700K to 5000K. Native WiFi, full voice assistant support, and a Dry rating make it a smart upgrade for living rooms and primary bedrooms.

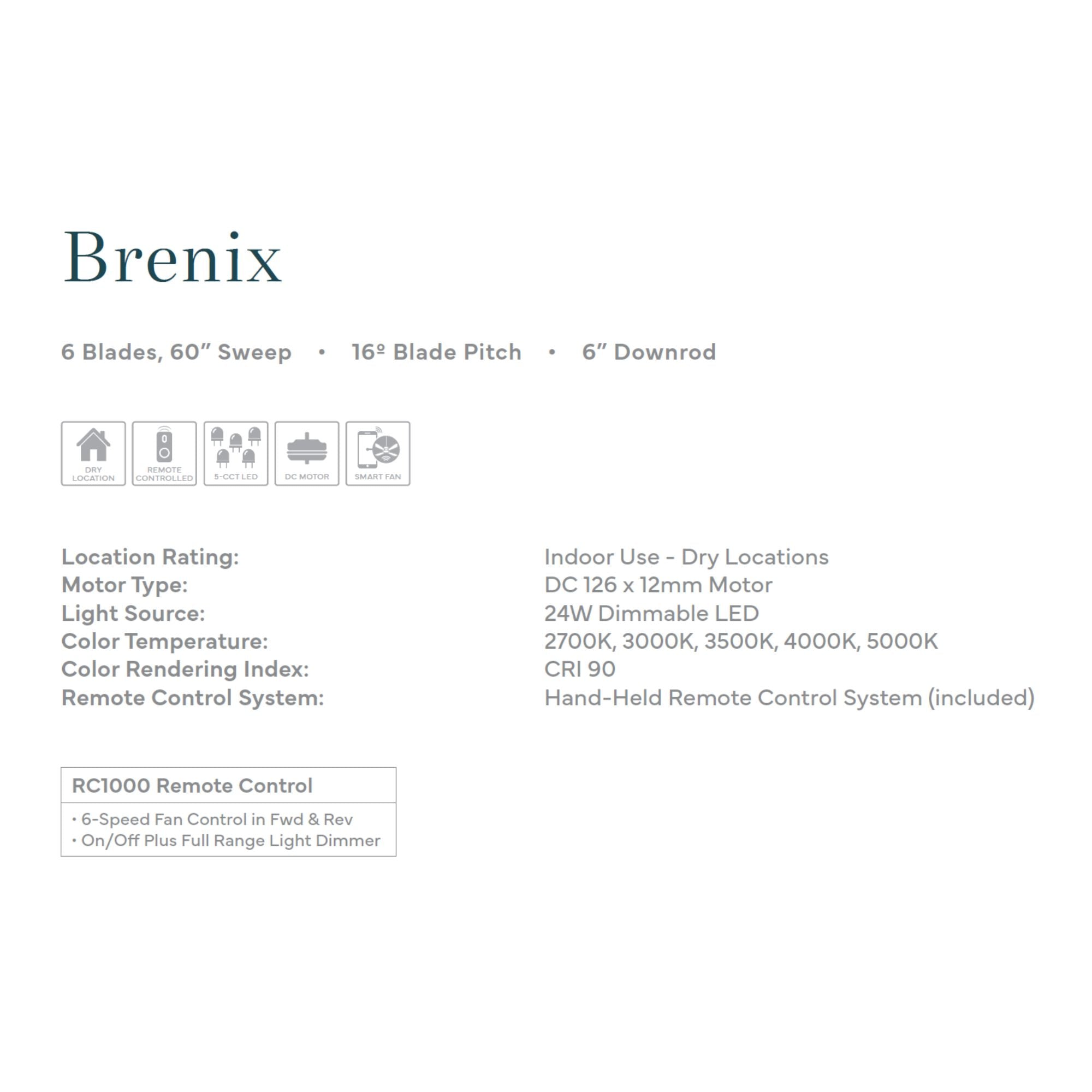

Key Features- Blade Span: 60 in — suited for rooms up to approximately 400 sq ft

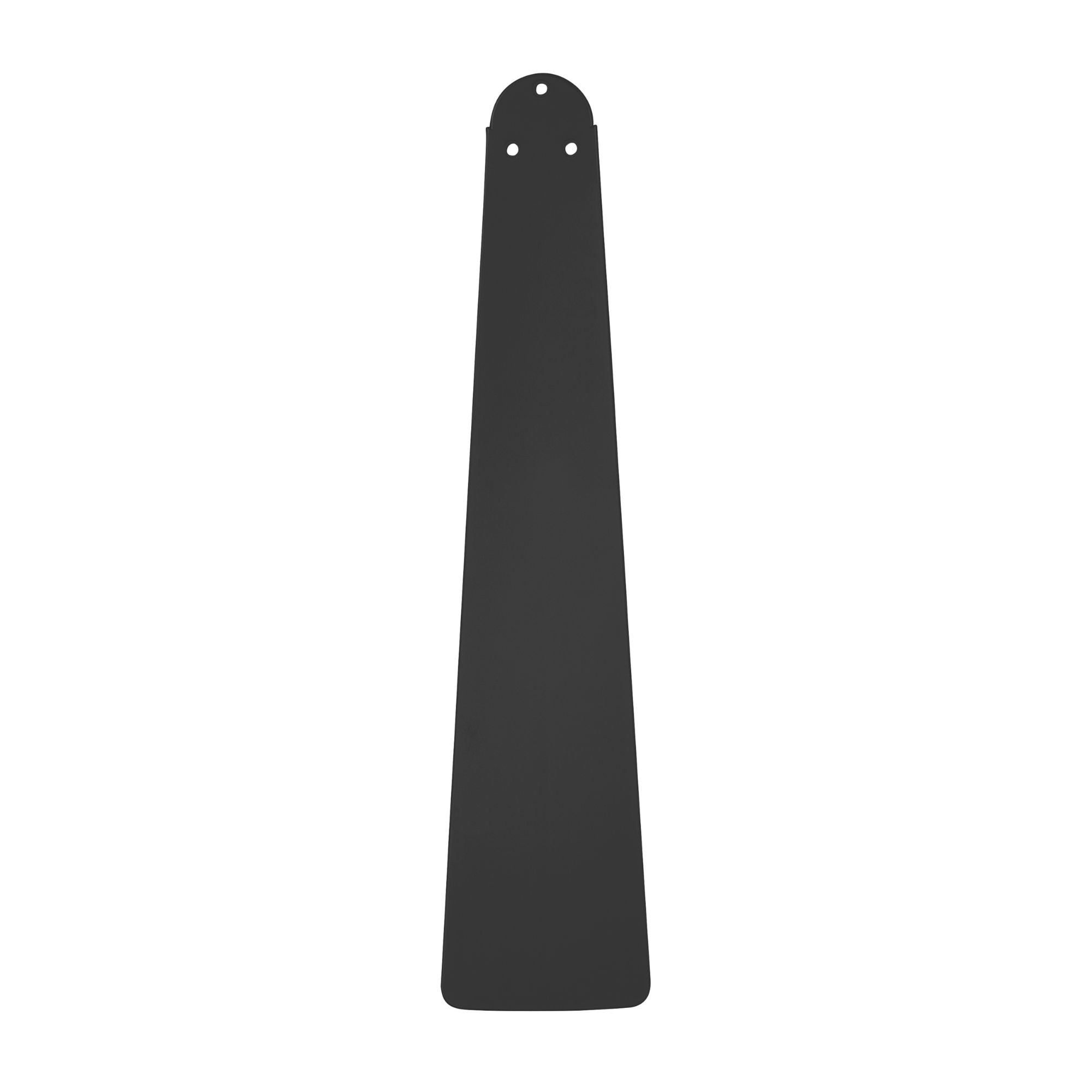

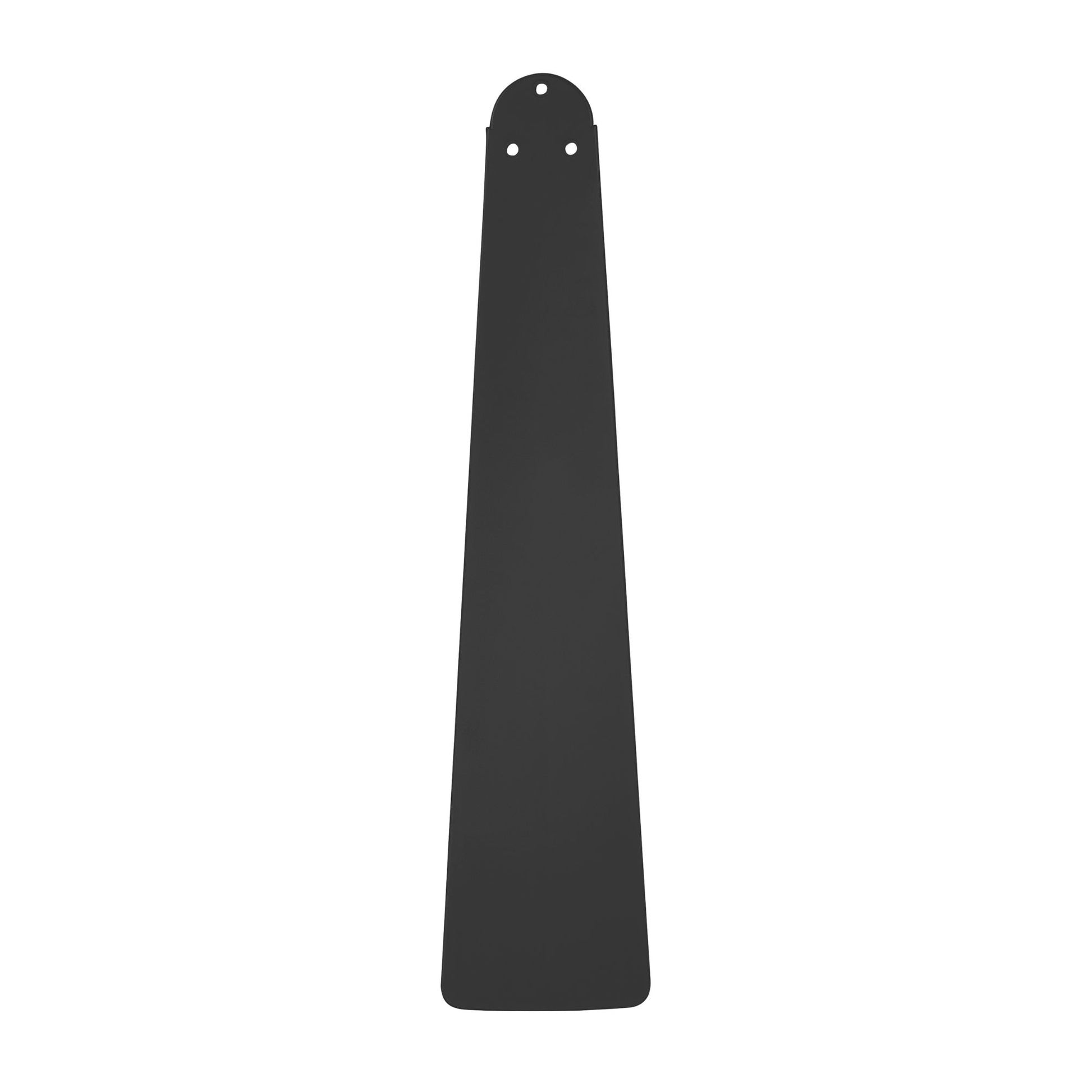

- Number of Blades: 6 ABS blades in Coal finish
- Blade Pitch: 16 degrees for optimized airflow delivery
- Motor Type & Size: DC motor, 126×12mm — 6 speeds, Summer & Winter reversible modes
- Airflow: 5,713 CFM at high speed / 2,205 CFM at low speed
- Efficiency: 176 CFM/W at high speed (Energy Guide: 660 CFM/W at low speed)
- Total Wattage: 24W (fan + LED light kit combined)
- Light Output: 2,346 lumens, 5-CCT (2700K–5000K), CRI 90, dimmable, 50,000-hr life
- Location Rating: Dry — indoor use only

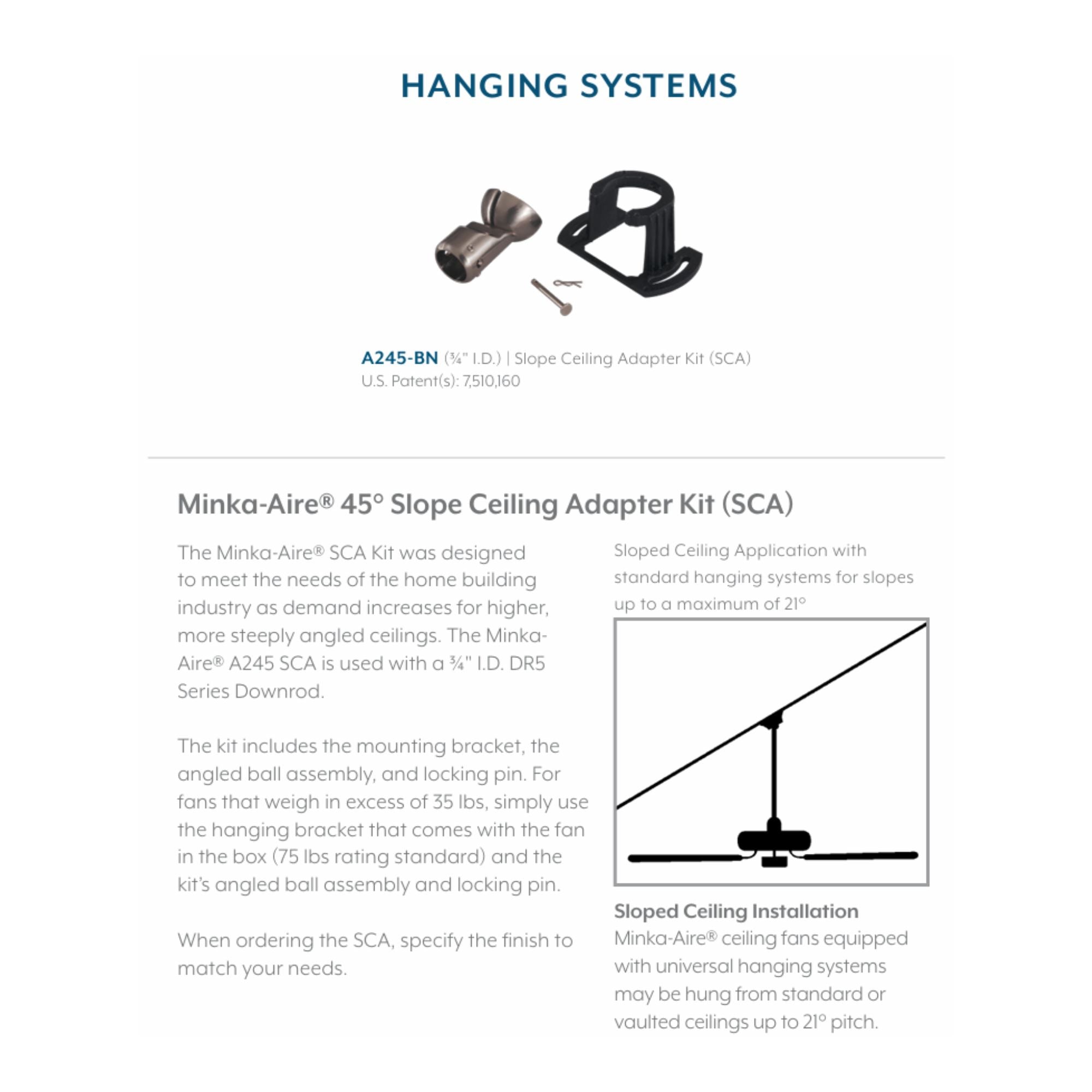

- Sloped Ceiling: Compatible up to 18 degrees standard
- Downrod & Wire: 6 in downrod included; 74 in lead wire

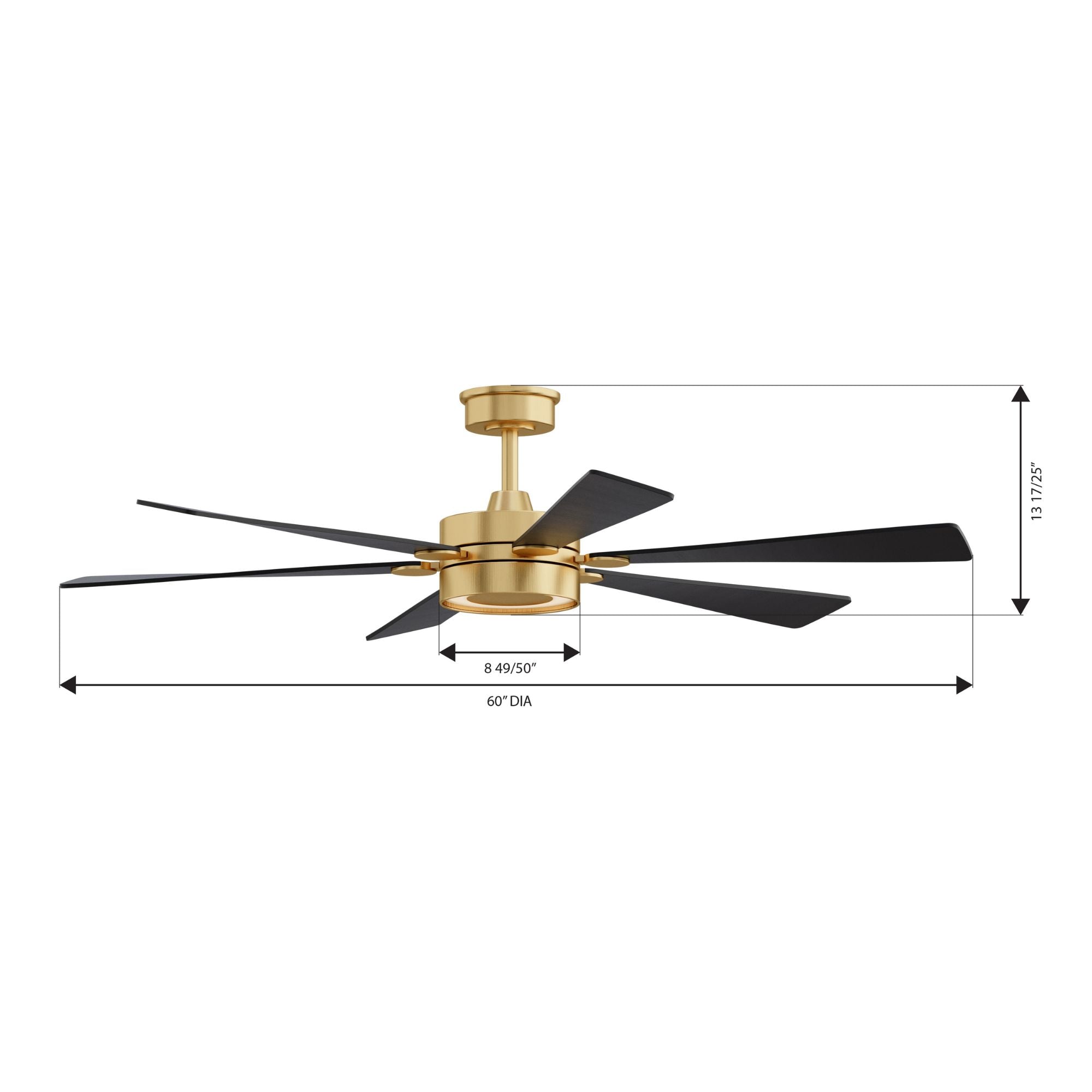

- Overall Dimensions: 60 in DIA × 13.75 in H
- Canopy Dimensions: 5.88 in × 2.48 in

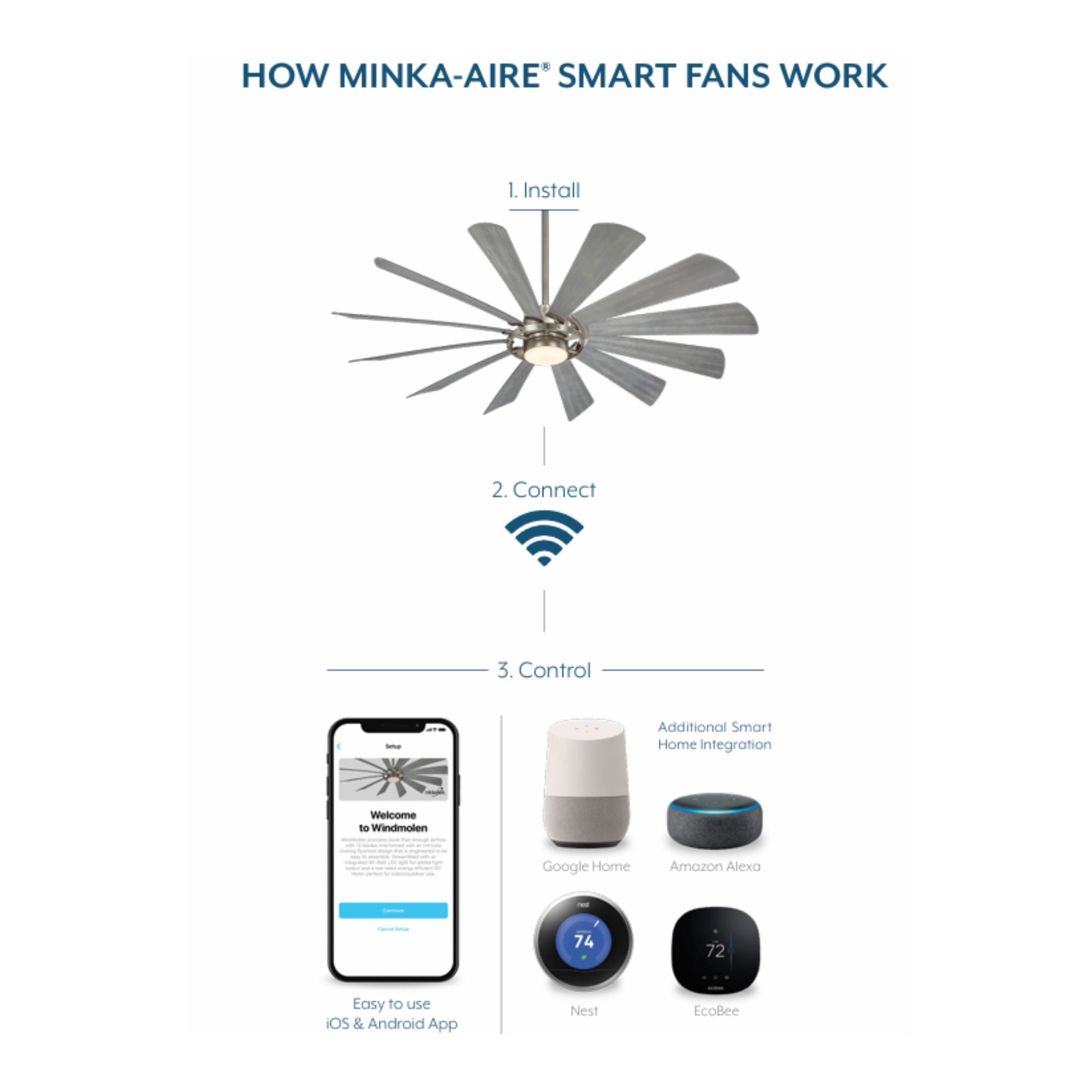

Includes the RC1000 remote with 6-speed control and full-range dimming. Connects via native WiFi to the Minka Aire app (iOS & Android) — no hub required. Voice control: Amazon Alexa, Google Home, Nest, and Ecobee. WC1000 wall control sold separately.

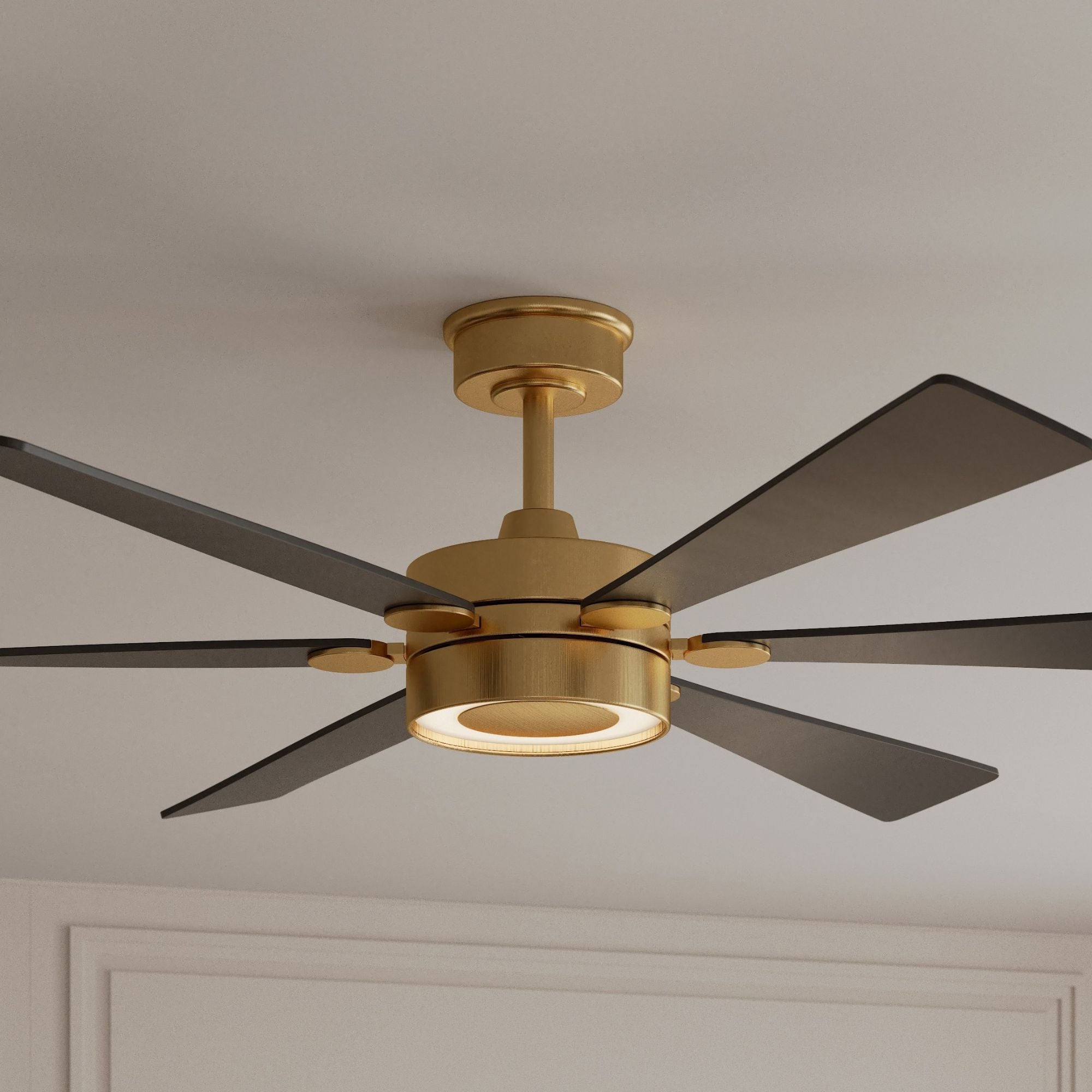

Construction & DesignHeritage Brass motor housing pairs with Coal ABS blades at a 16-degree pitch. Etched acrylic lens (8.59 in × 8.59 in × 0.74 in) diffuses the 5-CCT LED. Overall height 13.75 in; canopy 5.88 in × 2.48 in. The bold Coal blade finish lends a contemporary-industrial edge to the transitional Heritage Brass body.
Light Output & Performance2,346 initial lumens (1,543 delivered) at CRI 90 with five selectable CCTs — 2700K through 5000K. Fully dimmable via RC1000 or Minka Aire app. LED rated for 50,000 hours. Total draw: 24W (fan + light).
Electrical & InstallationOperates on 120V, 24W combined. Reversible DC motor with Summer/Winter modes. Includes 6 in downrod and 74 in lead wire. Sloped ceiling compatible up to 18 degrees — no kit needed. Canopy: 5.88 in × 2.48 in.

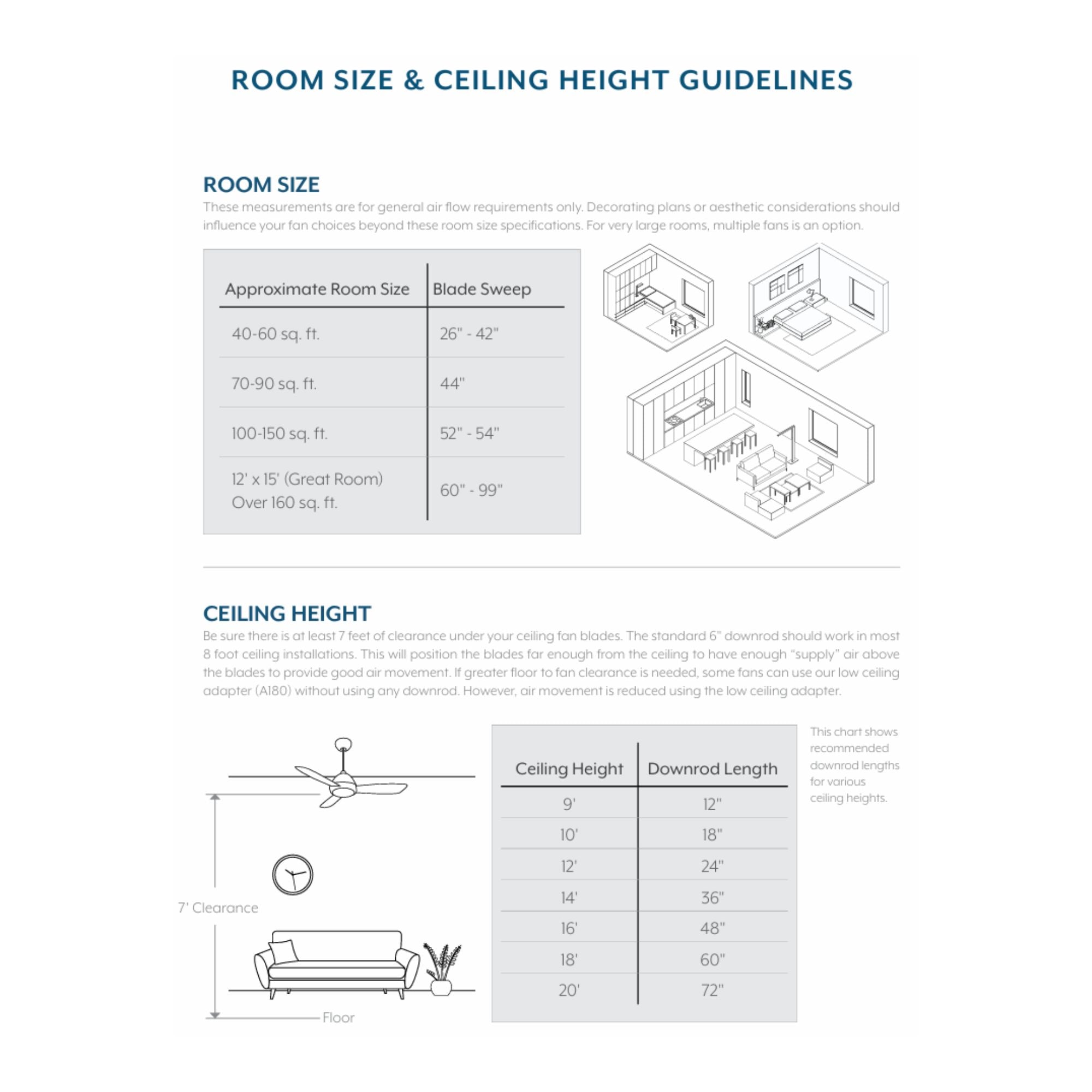

Suggested Downrod by Ceiling HeightThis fan ships with a 6 in downrod included. Use the chart below for optimal blade clearance:
- 9 ft ceiling → 12 in downrod
- 10 ft ceiling → 18 in downrod
- 12 ft ceiling → 24 in downrod
- 14 ft ceiling → 36 in downrod
- 16 ft ceiling → 48 in downrod
- 18 ft ceiling → 60 in downrod
- 20 ft ceiling → 72 in downrod
- Brenix 60 in ceiling fan (motor + blades)
- Integrated LED light kit
- RC1000 remote control
- 6 in downrod
- Canopy and mounting hardware
