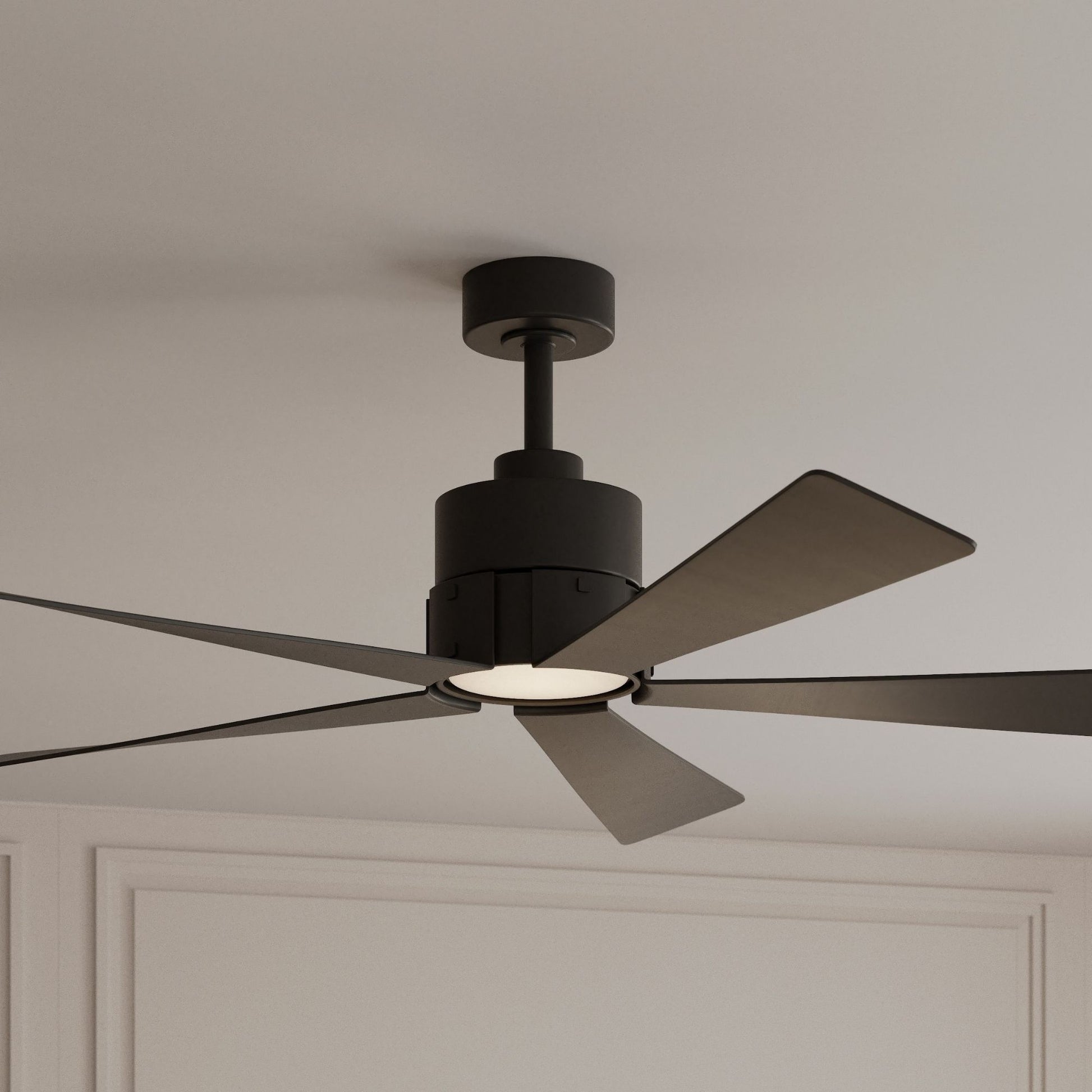

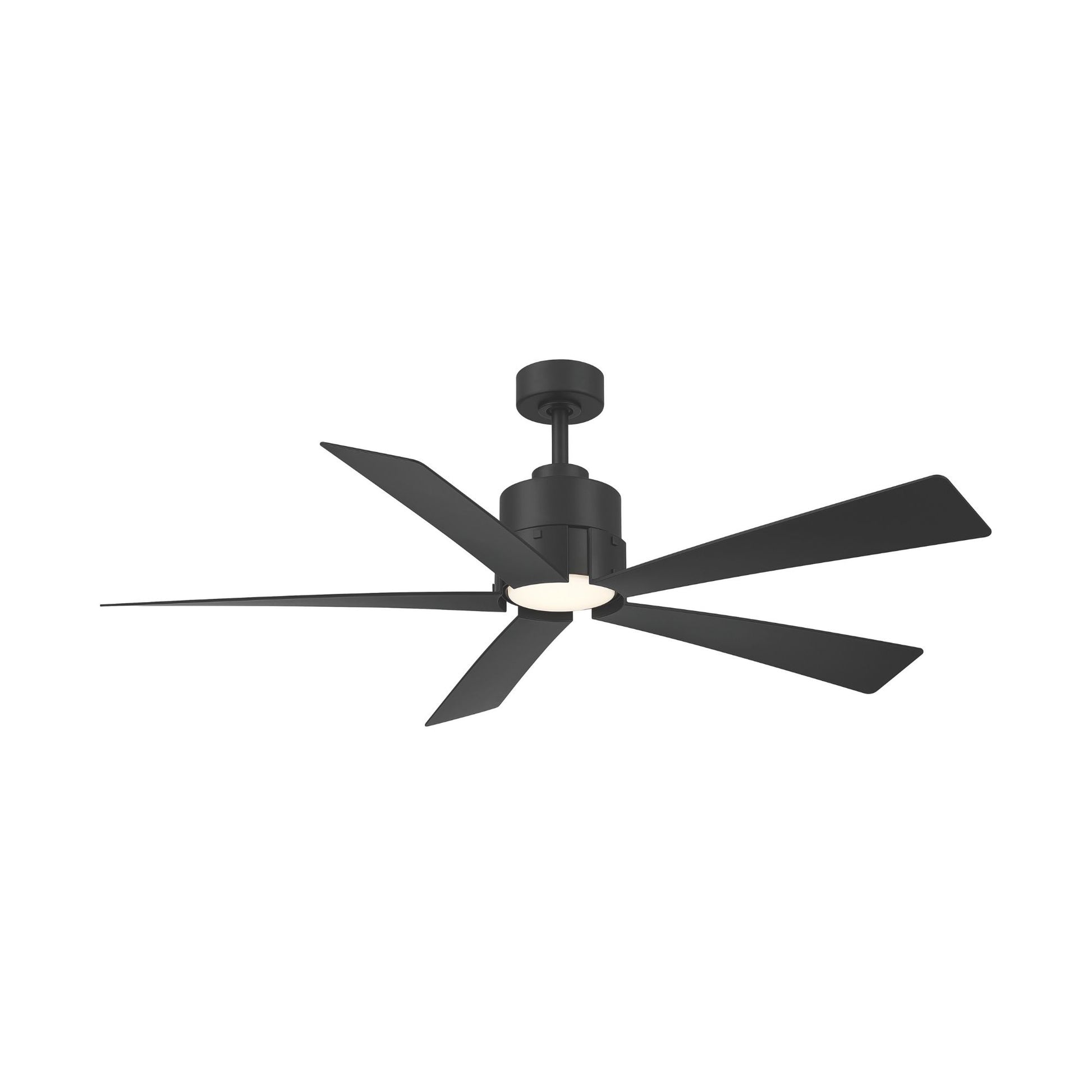

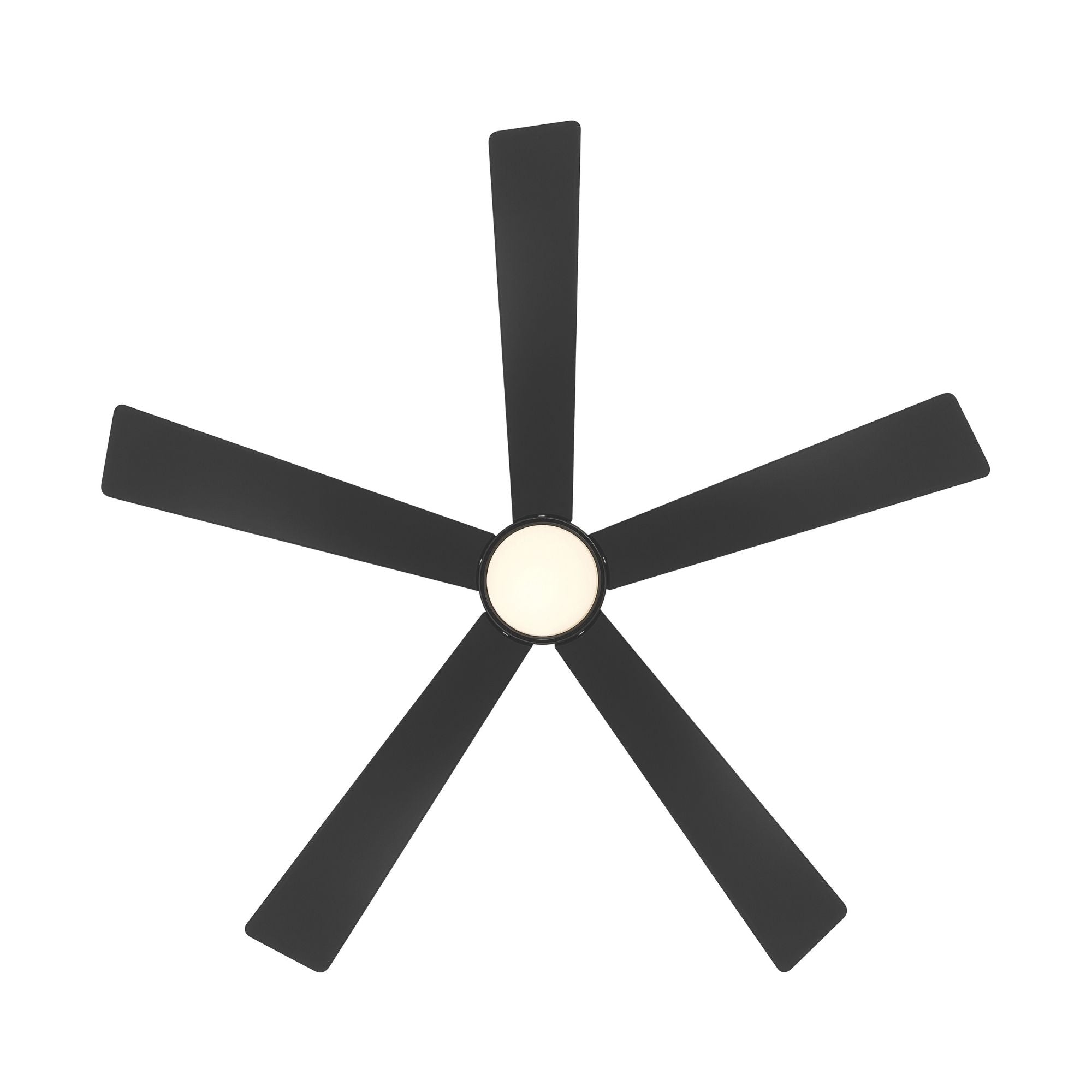

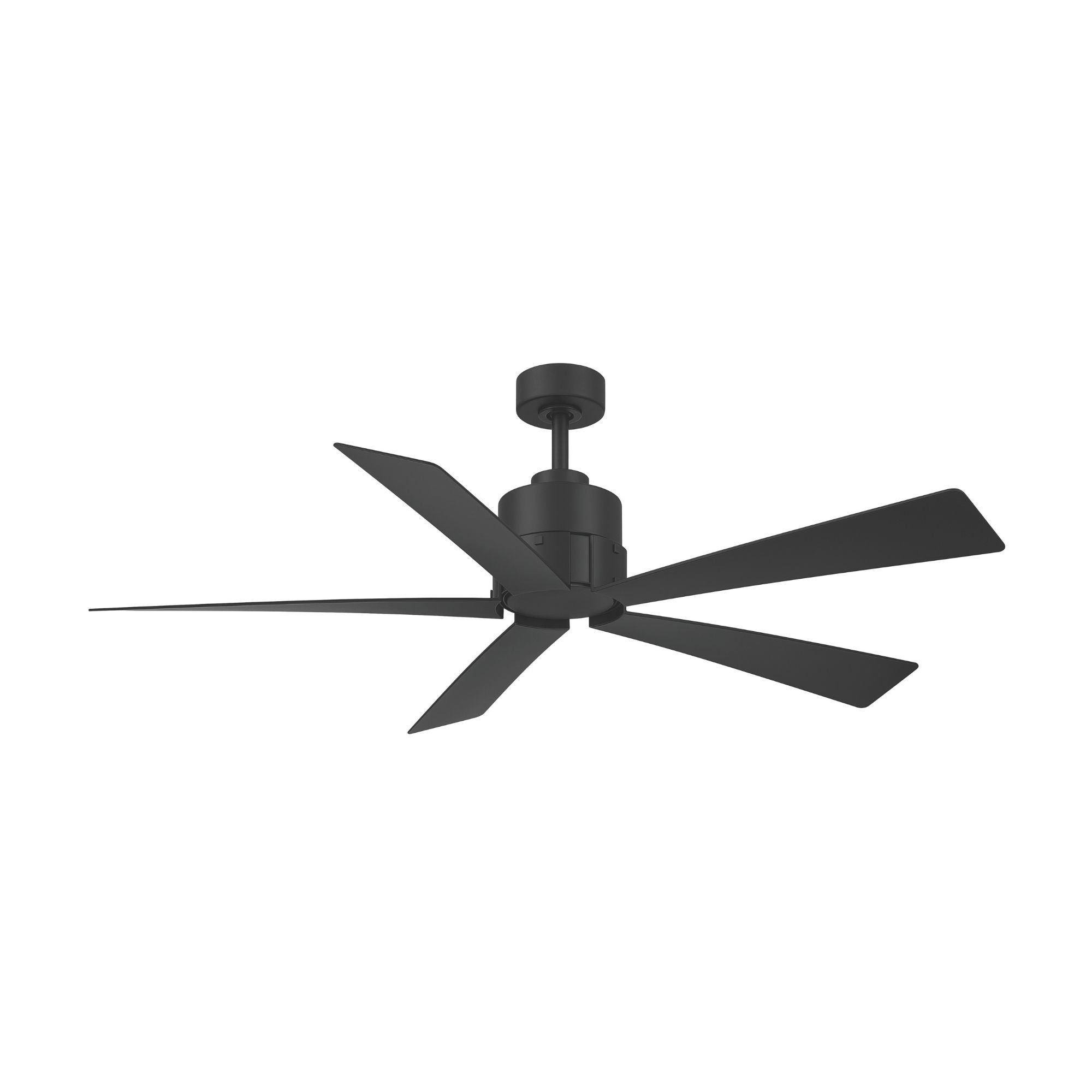

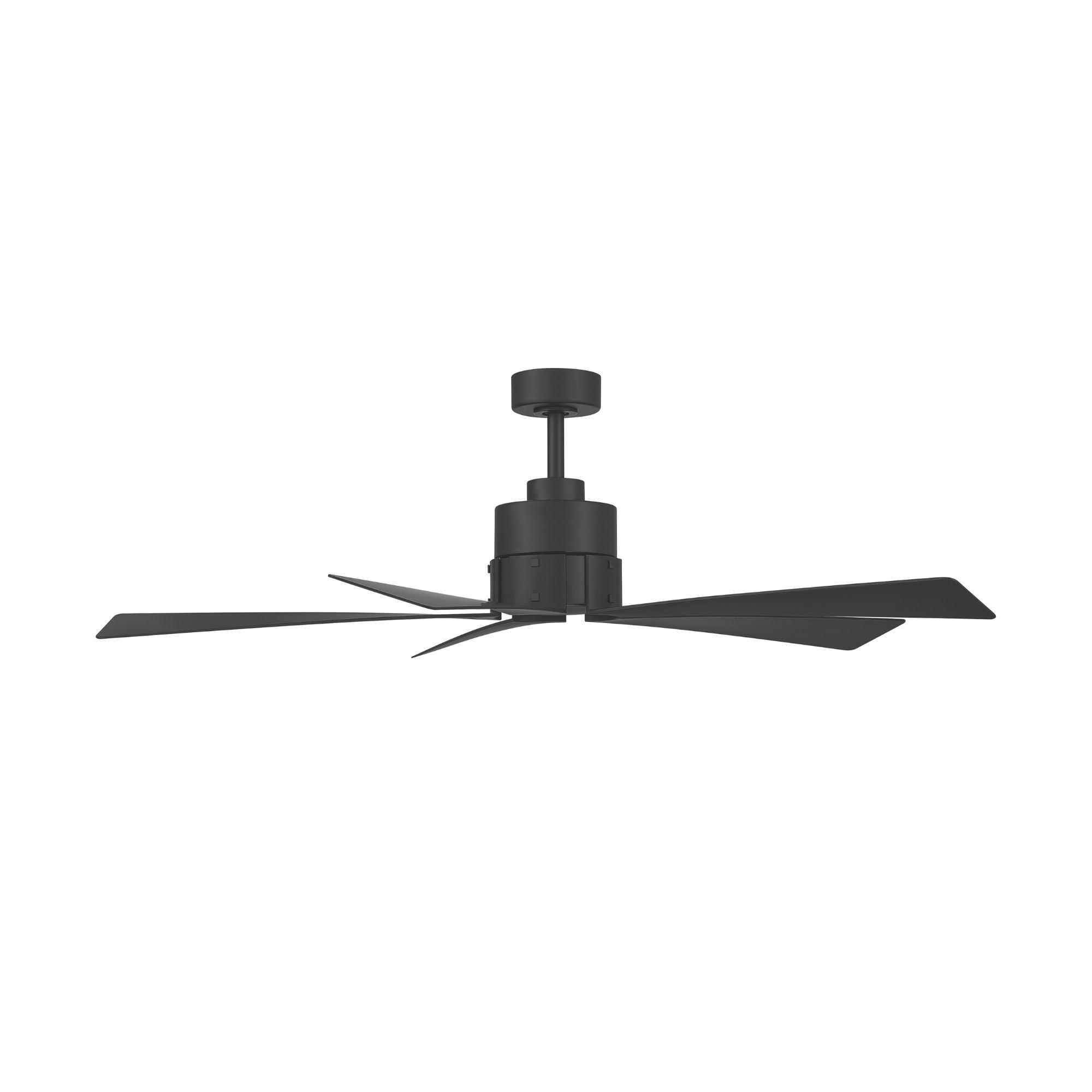

The Minka Aire Oovin F766L-CL is a five-blade 54 in downrod smart LED ceiling fan in Coal Black finish with matching Coal Black ABS blades and an integrated 20W 5CCT LED with etched opal glass shade. Powered by a whisper-quiet DC 126×10mm motor, it delivers 5,346 CFM at high speed — 166.29 CFM/W efficiency. Integrated native Bond smart control, RC1000 remote included, ETL Listed for dry locations, Title 20 compliant. 1-year component warranty, Lifetime motor warranty.

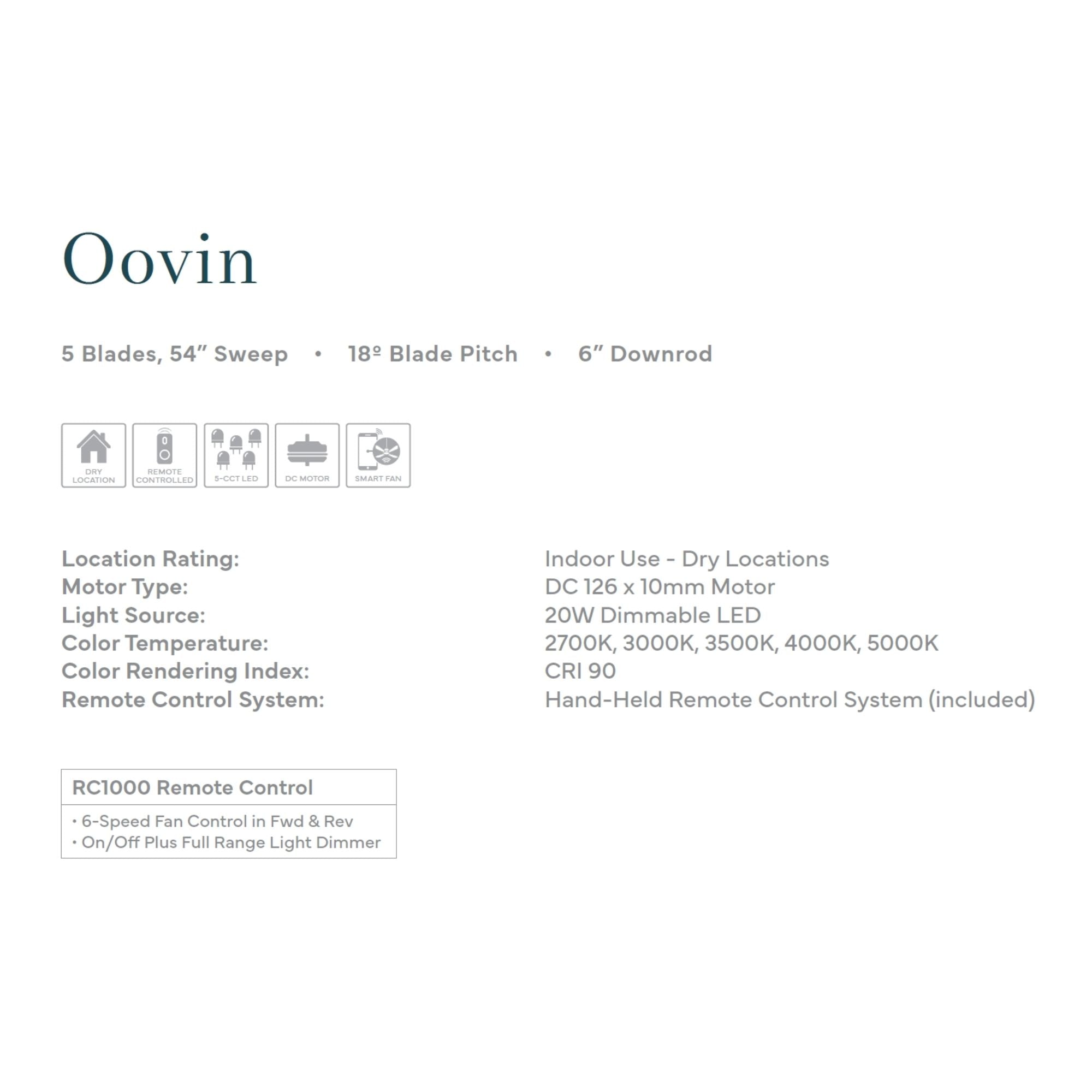

• Blade Span: 54 in, 5 ABS blades, 18° pitch, Coal Black
• Motor: DC 126×10mm, 6 speeds, reversible rotation
• Airflow: 5,346 CFM high / 2,136 CFM low — 166.29 CFM/W high / 677.97 CFM/W low
• Wattage: 32.15W high / 3.15W low
• Light Kit: Integrated 20W 5CCT LED — 560.8 delivered lm, selectable 2700K–5000K, CRI 90, 50,000 hrs, dimmable, etched opal glass shade
• Location Rating: ETL Listed for Dry Locations — Indoor use only. Title 20 compliant. 1-year component / Lifetime motor warranty.
• Smart Control: Integrated native Bond smart control — Bond Home app (iOS & Android) + voice control
• Mount: Downrod — 0.75 in × 6 in downrod included, slope compatible to 18°

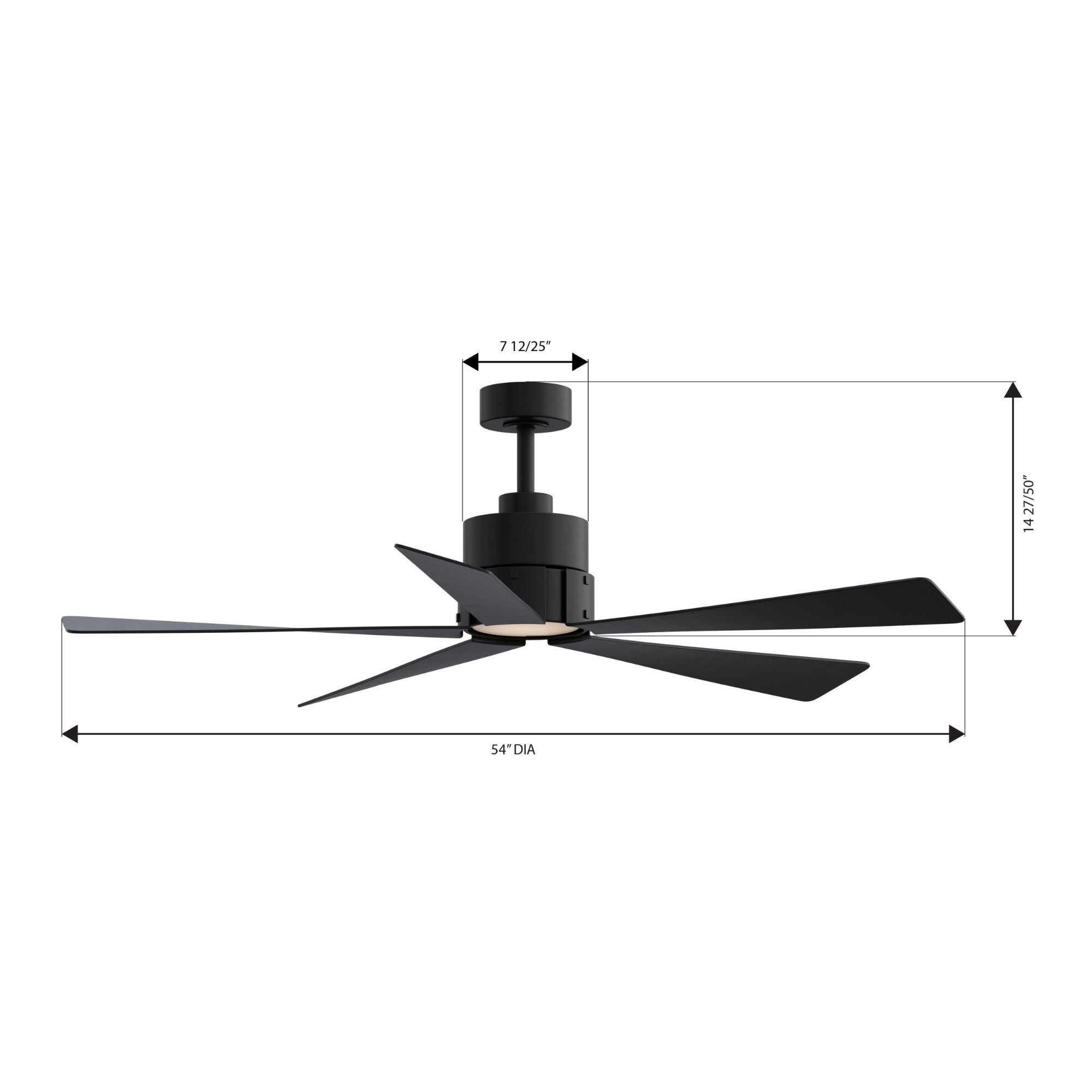

• Ceiling to Blade: 15 in / Lowest point: 15.5 in / Weight: 15.76 lbs

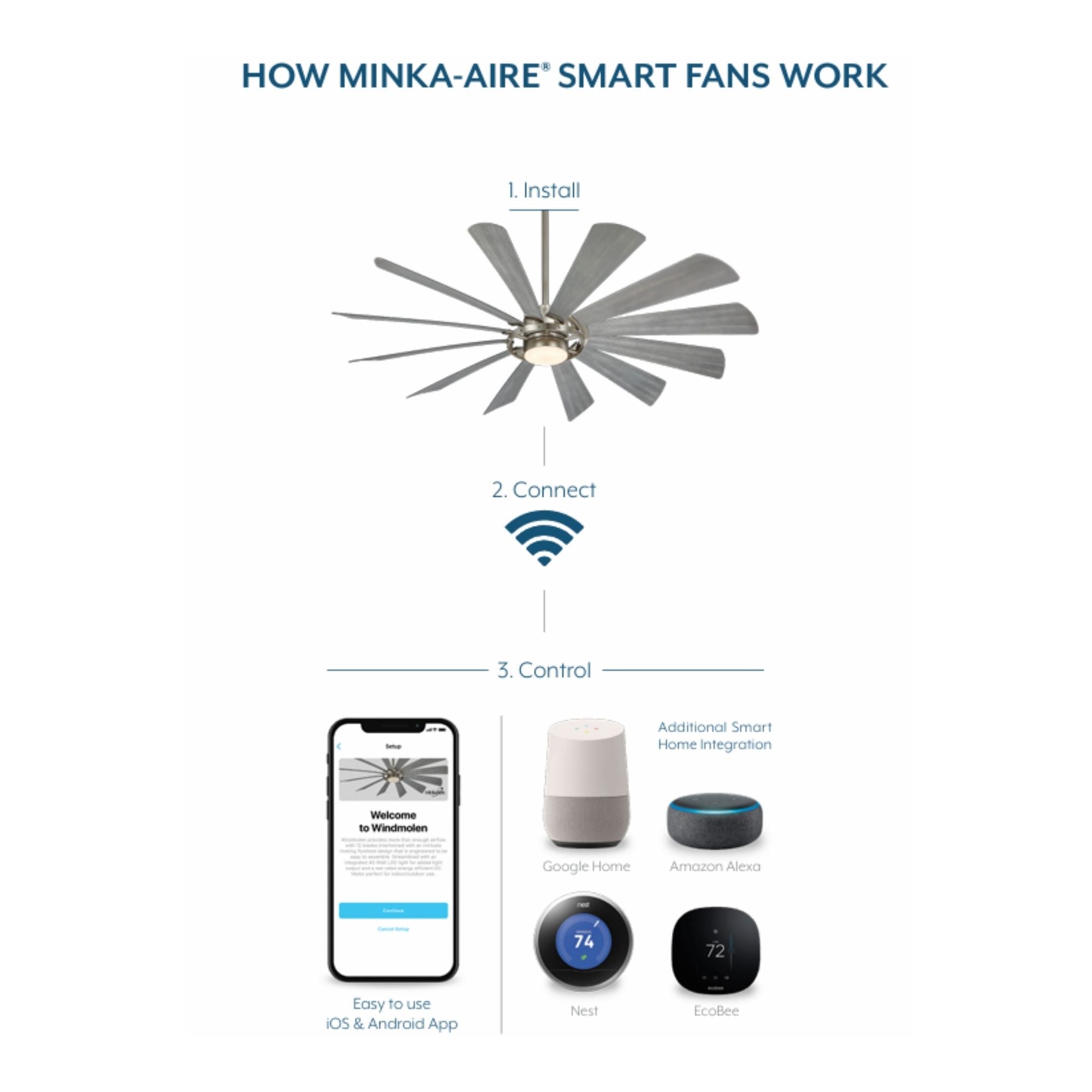

RC1000 Remote Control — included: 6-speed fan control in Forward & Reverse, On/Off plus full-range light dimmer. Compatible wall control: WC1000 (sold separately). The Oovin features integrated native Bond smart control — no separate hub required. Operate via the Bond Home app (iOS & Android) with voice integrations: Amazon Alexa, Google Home, Ecobee, and Control4.

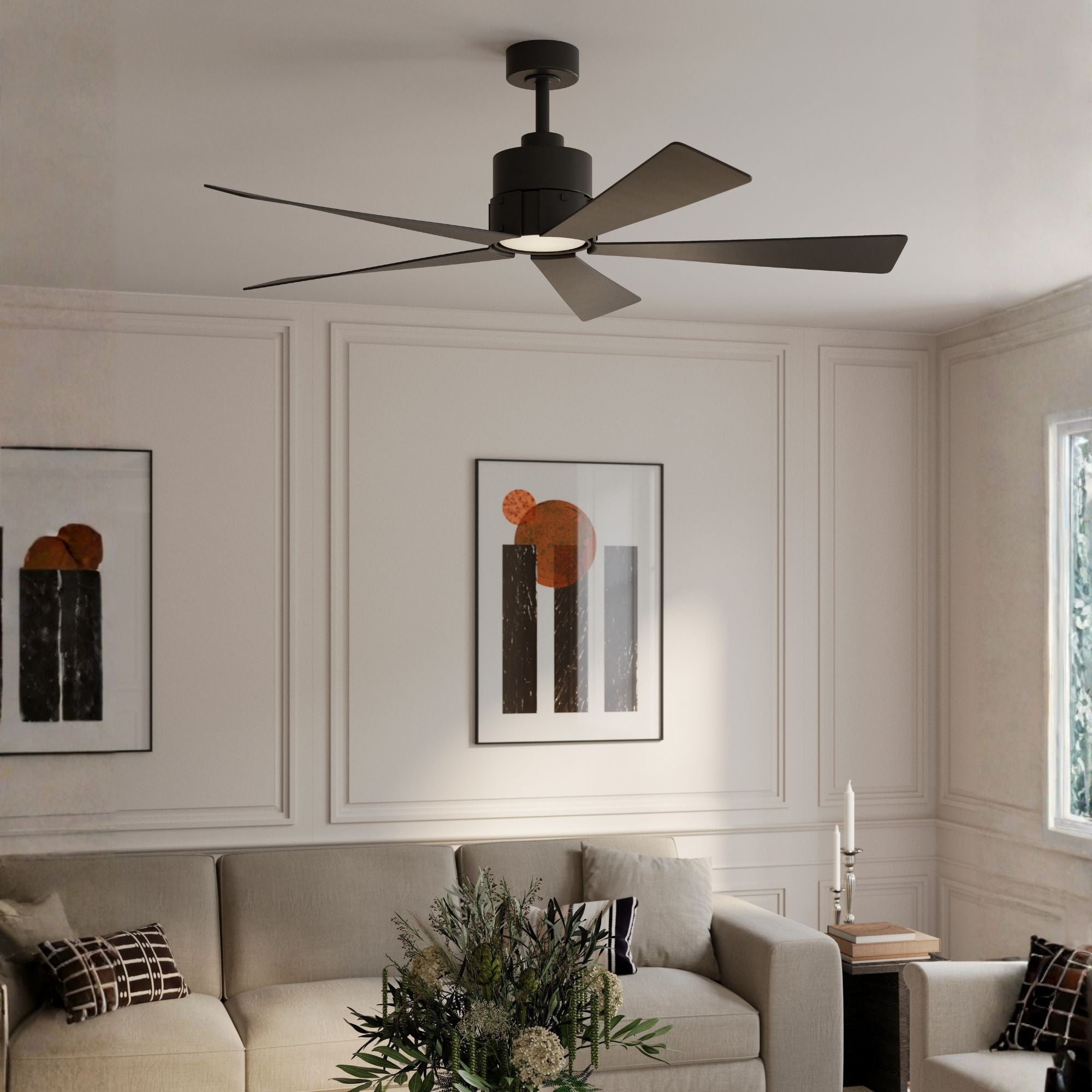

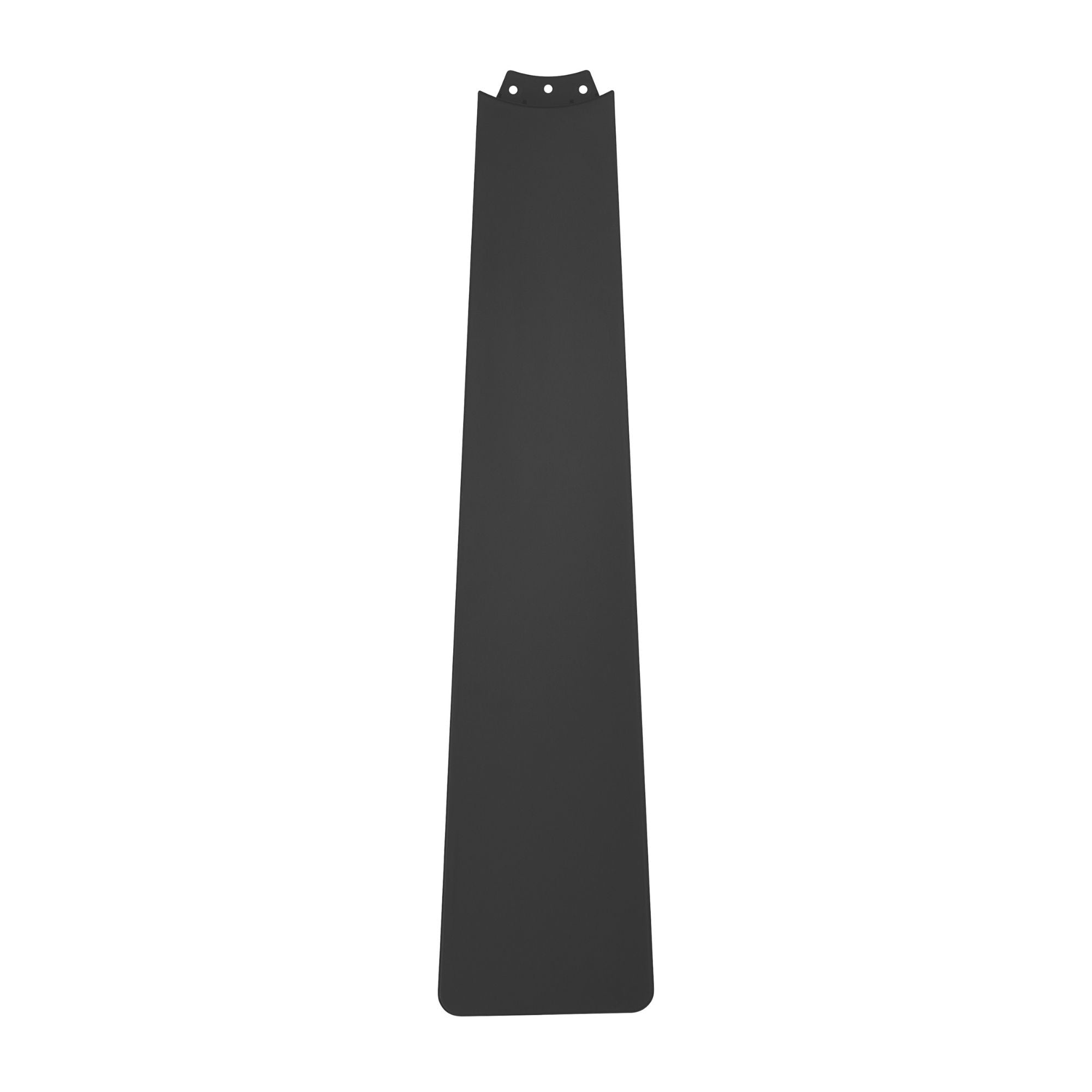

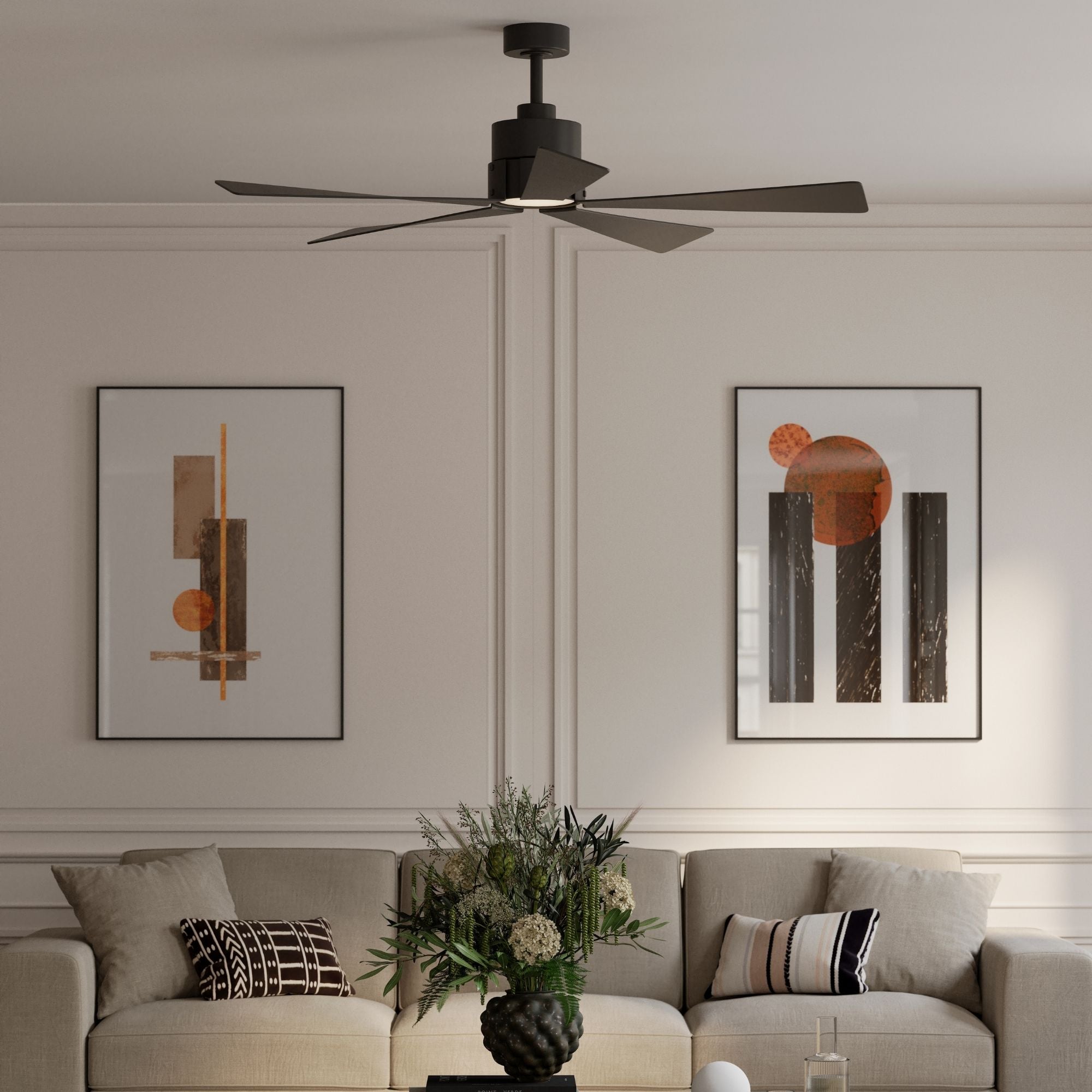

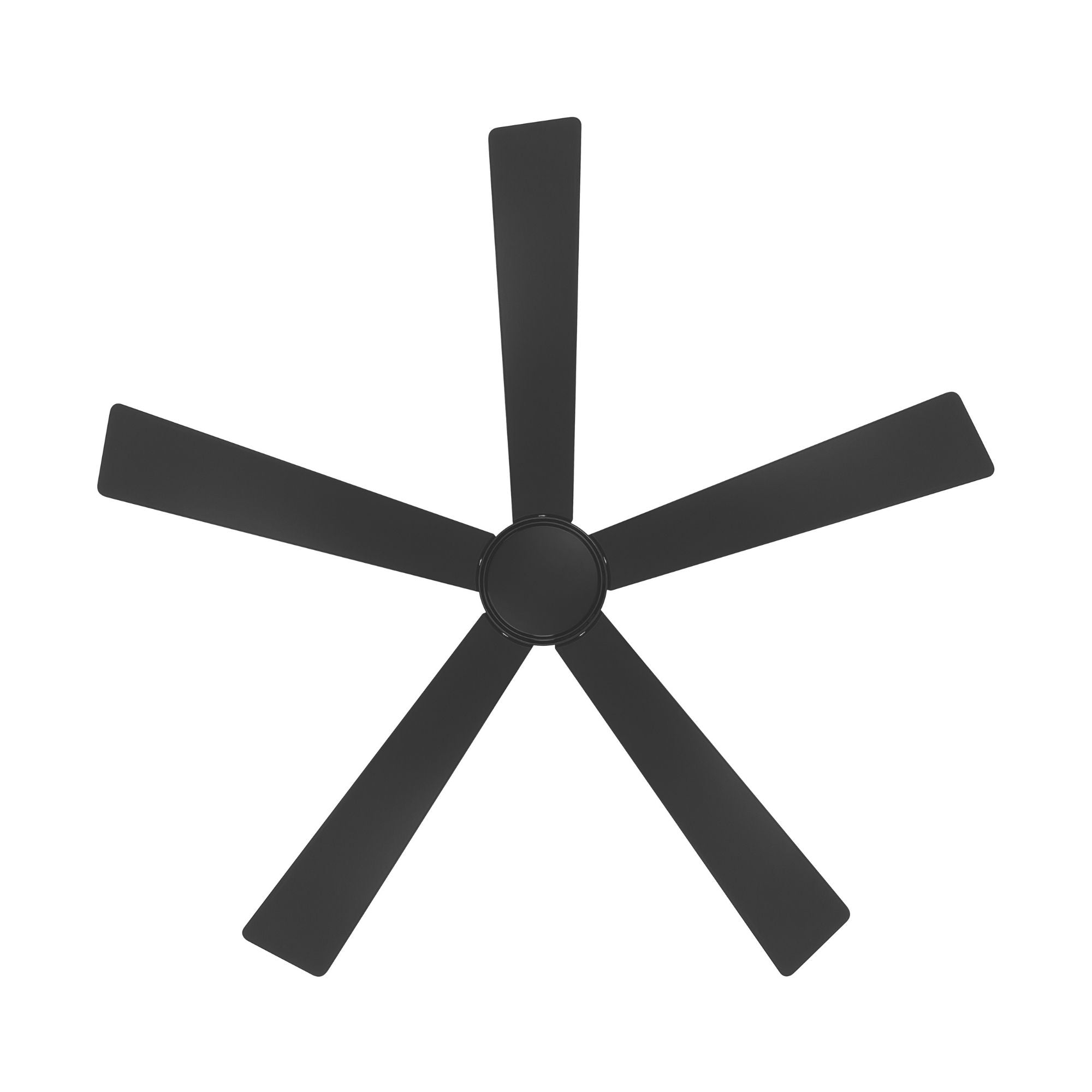

All-Coal Black motor housing and matching Coal Black ABS blades at 18° pitch — a seamless monochromatic silhouette with five sweeping blades and an etched opal glass diffuser. Net weight: 15.76 lbs. The Oovin’s refined all-black aesthetic and 5CCT tunable light make it equally at home in modern living rooms, home offices, and open-plan spaces.

The F766L-CL delivers 5,346 CFM at high speed (166.29 CFM/W, 32.15W) and 2,136 CFM at low speed (677.97 CFM/W, 3.15W). The integrated 20W 5CCT LED provides 560.8 delivered lumens (1,658.6 initial lumens) with selectable color temperatures from warm 2700K to daylight 5000K, CRI 90, rated an exceptional 50,000 hours, fully dimmable, through an etched opal glass shade. Its 54 in span is ideal for medium to large indoor spaces up to approximately 350 sq ft.

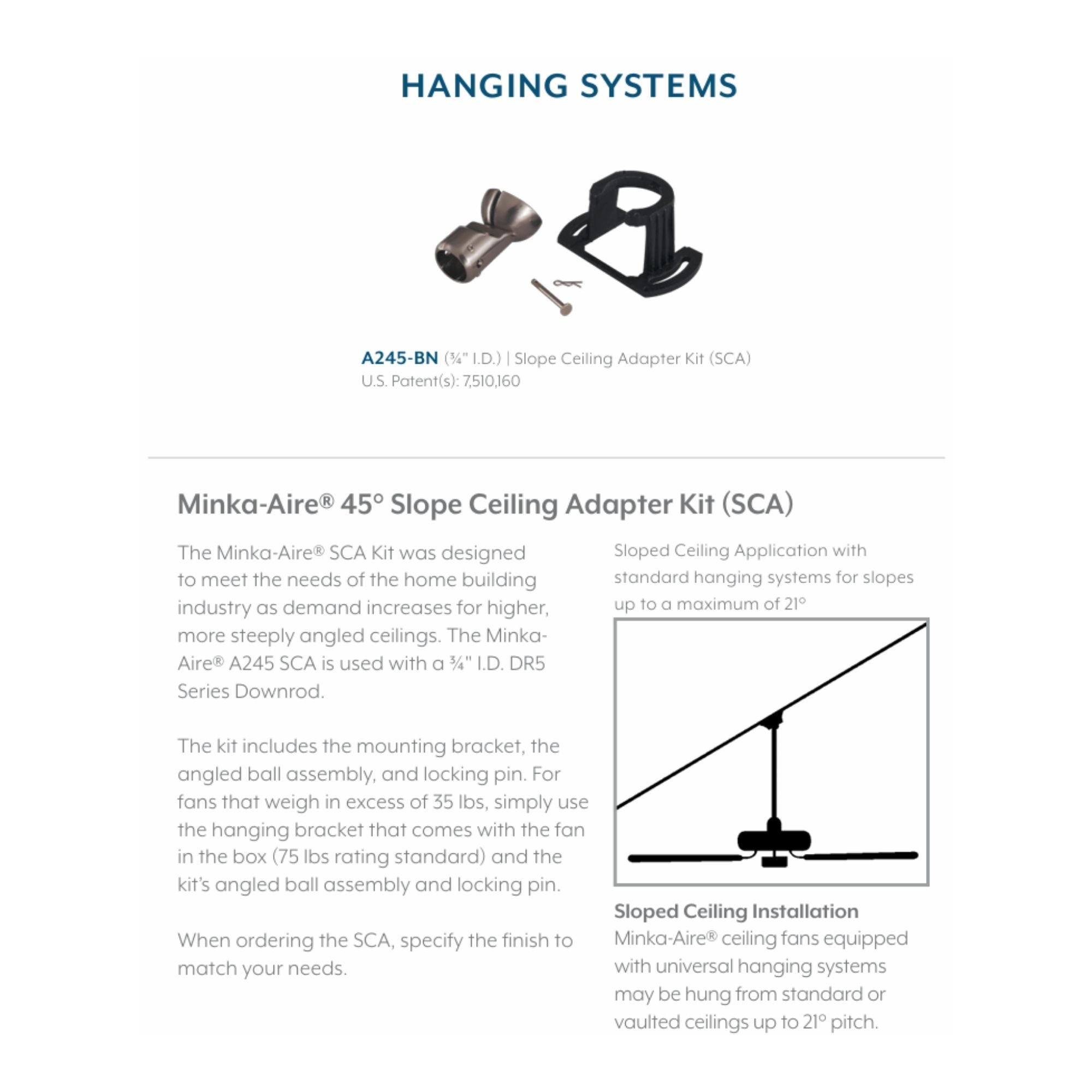

120V DC, 60Hz. Wire: 74 in. Ships with 0.75 in × 6 in downrod. Slope ceiling compatible to 18°. Fan must be attached to a securely anchored electrical junction box rated for the fan weight. ETL Listed for Dry Locations. Title 20 compliant. 1-year limited component warranty; Lifetime warranty on fan motor.

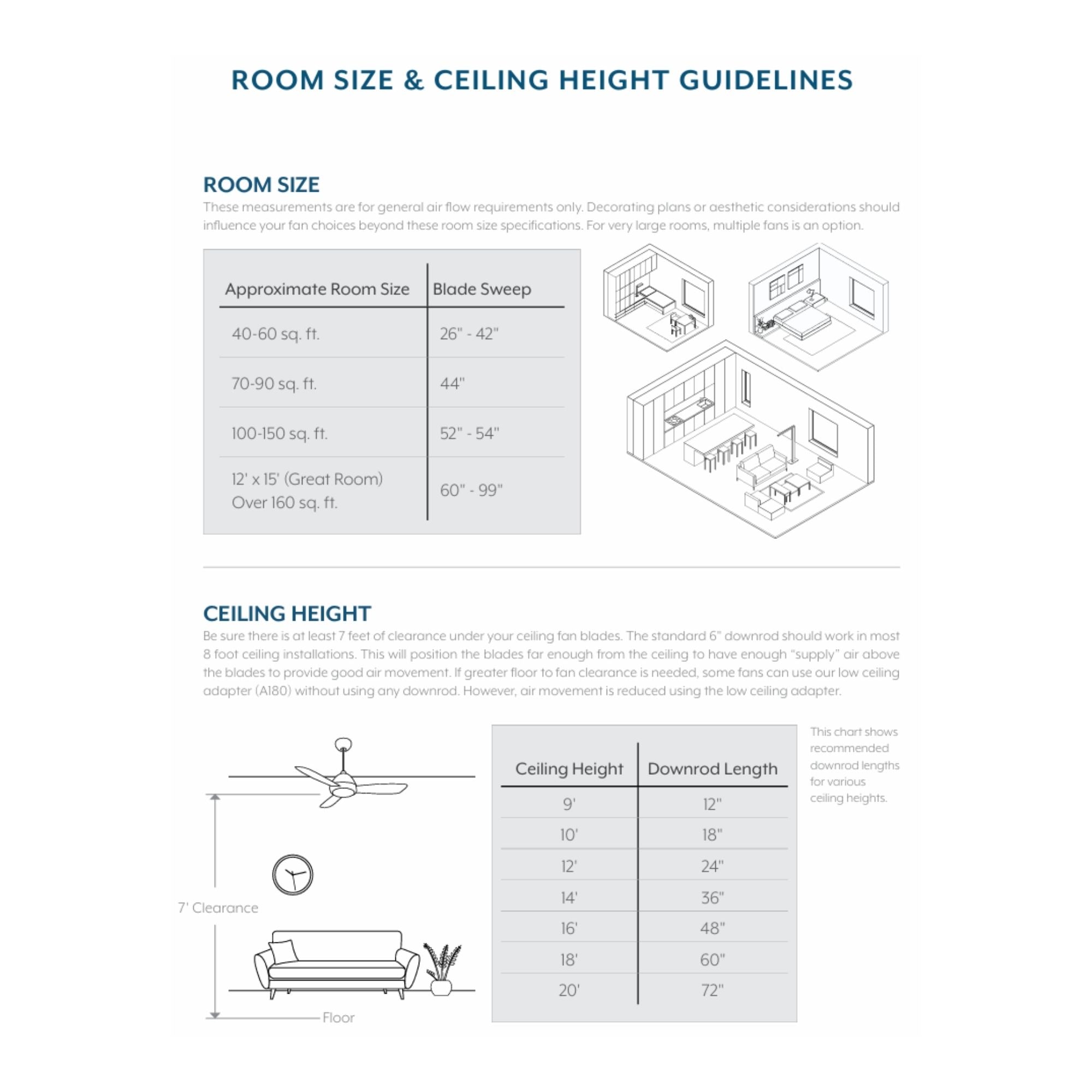

A 6 in downrod is included. Additional downrods available separately. Ideal distance from floor to fan blades is 7 to 9 feet.

• 9 ft ceiling → 12 in downrod
• 10 ft ceiling → 18 in downrod
• 12 ft ceiling → 24 in downrod
• 14 ft ceiling → 36 in downrod
• 16 ft ceiling → 48 in downrod
• 18 ft ceiling → 60 in downrod
• 20 ft ceiling → 72 in downrod

• F766L-CL ceiling fan (Coal Black body + 5 Coal Black ABS blades)
• Integrated 20W 5CCT LED light kit with etched opal glass shade
• RC1000 remote control
• 0.75 in × 6 in downrod
• Mounting hardware
