Minka Aire Transonic 56 in Indoor LED Ceiling Fan AC Coal Black
Available in stock (222)
About this item
About this item
- Airflow & Efficiency: 5,811 CFM high (89.08 CFM/W, 65.22W) / 2,501 CFM low — Energy Guide 4,259 CFM — ideal for large indoor rooms up to 350 sq ft.
- AC Motor: 172×16mm AC — 3 speeds, Summer & Winter reversible rotation — five-blade 56 in span, 12° pitch — lifetime warranty.
- Dry Rated: ETL Listed for Dry Locations — living rooms, dining rooms, great rooms, and large open-plan interiors.
- Control: RCS213-S remote included (5-speed, full-range dimmer) — WCS213-S or WC116LD wall control sold separately.
- LED Light Kit: 30W integrated LED — 2,268.6 lm delivered, 3000K, CRI 94, 50,000 hrs, dimmable — frosted white polycarbonate lens.
We process payments securely and do not store credit card information.
Description
Description

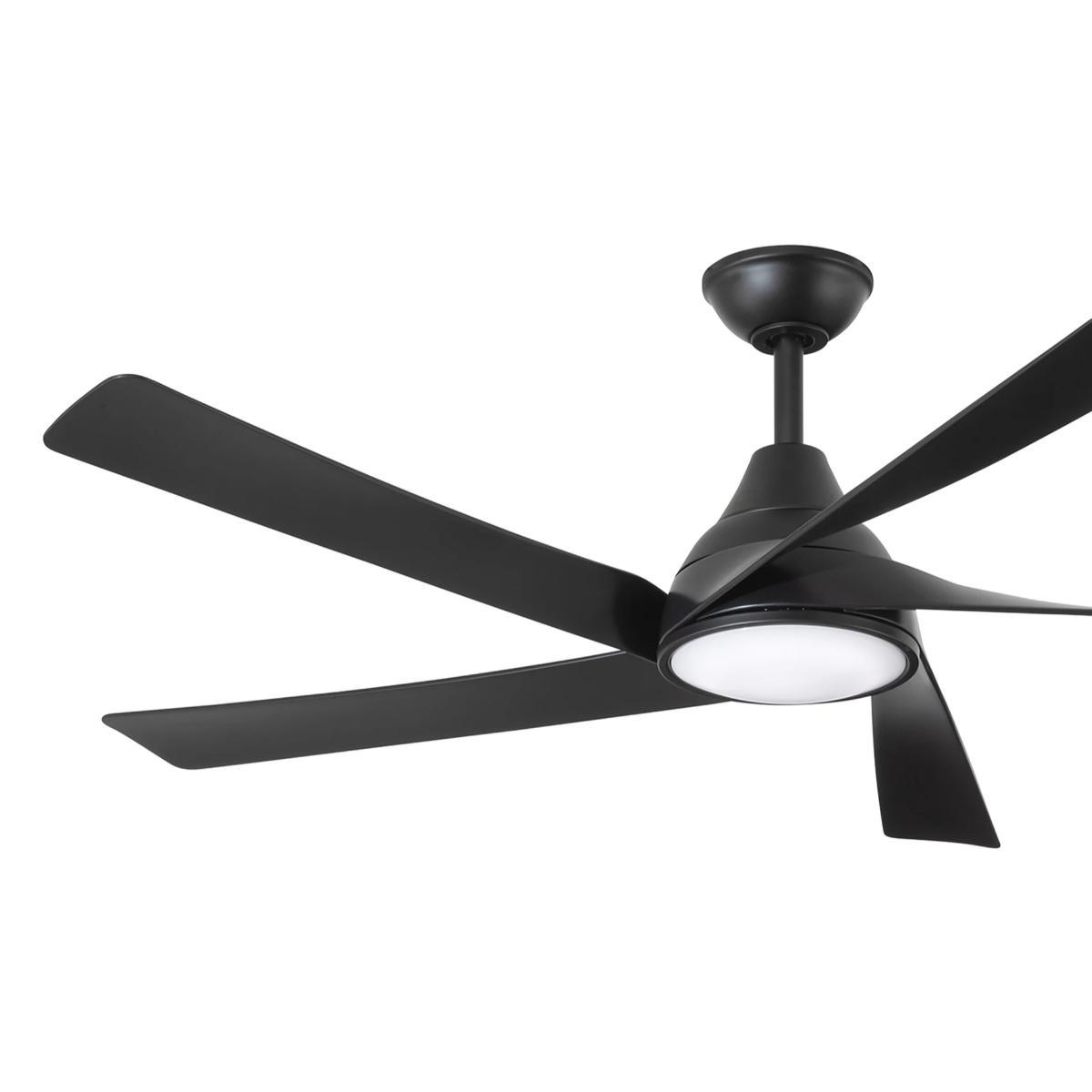

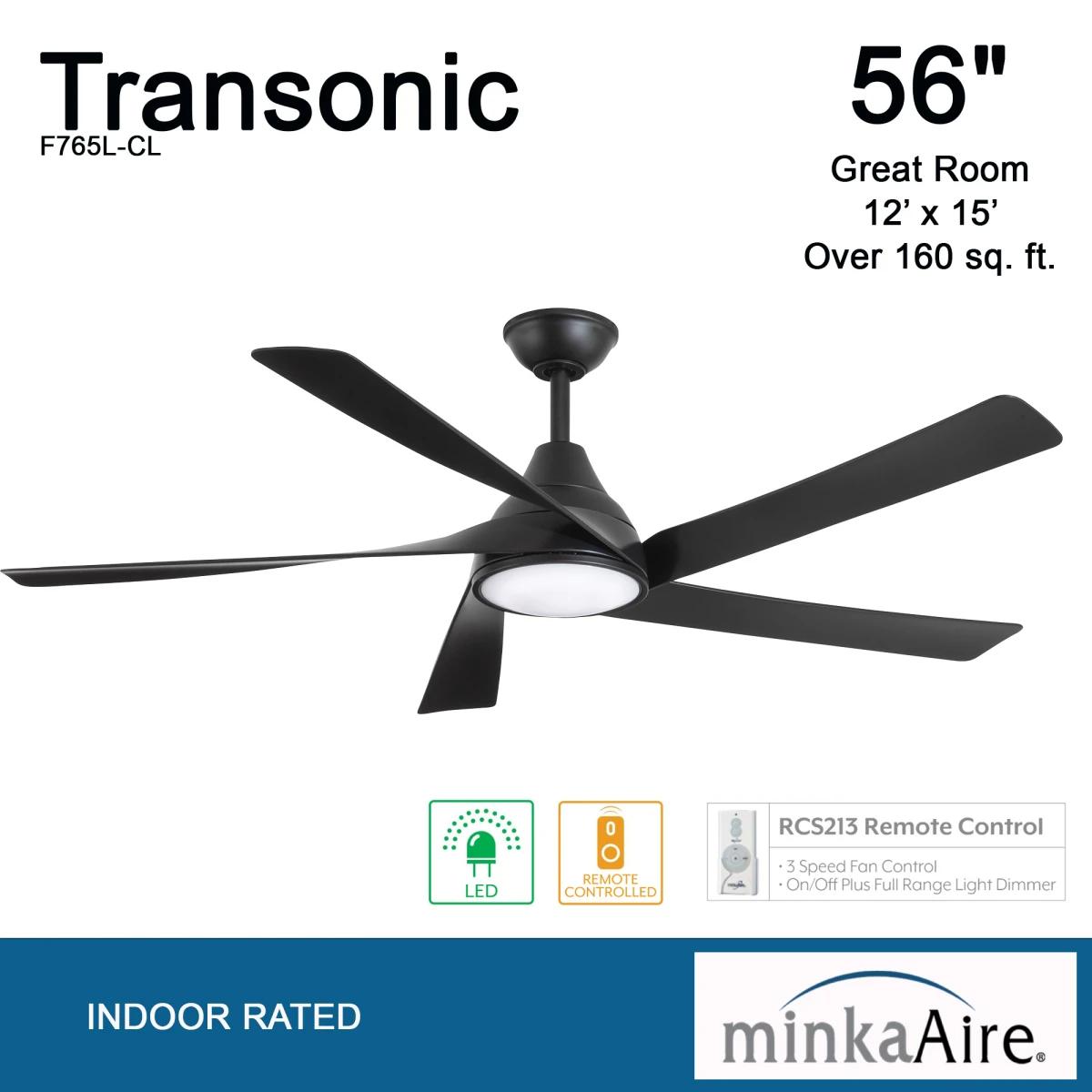

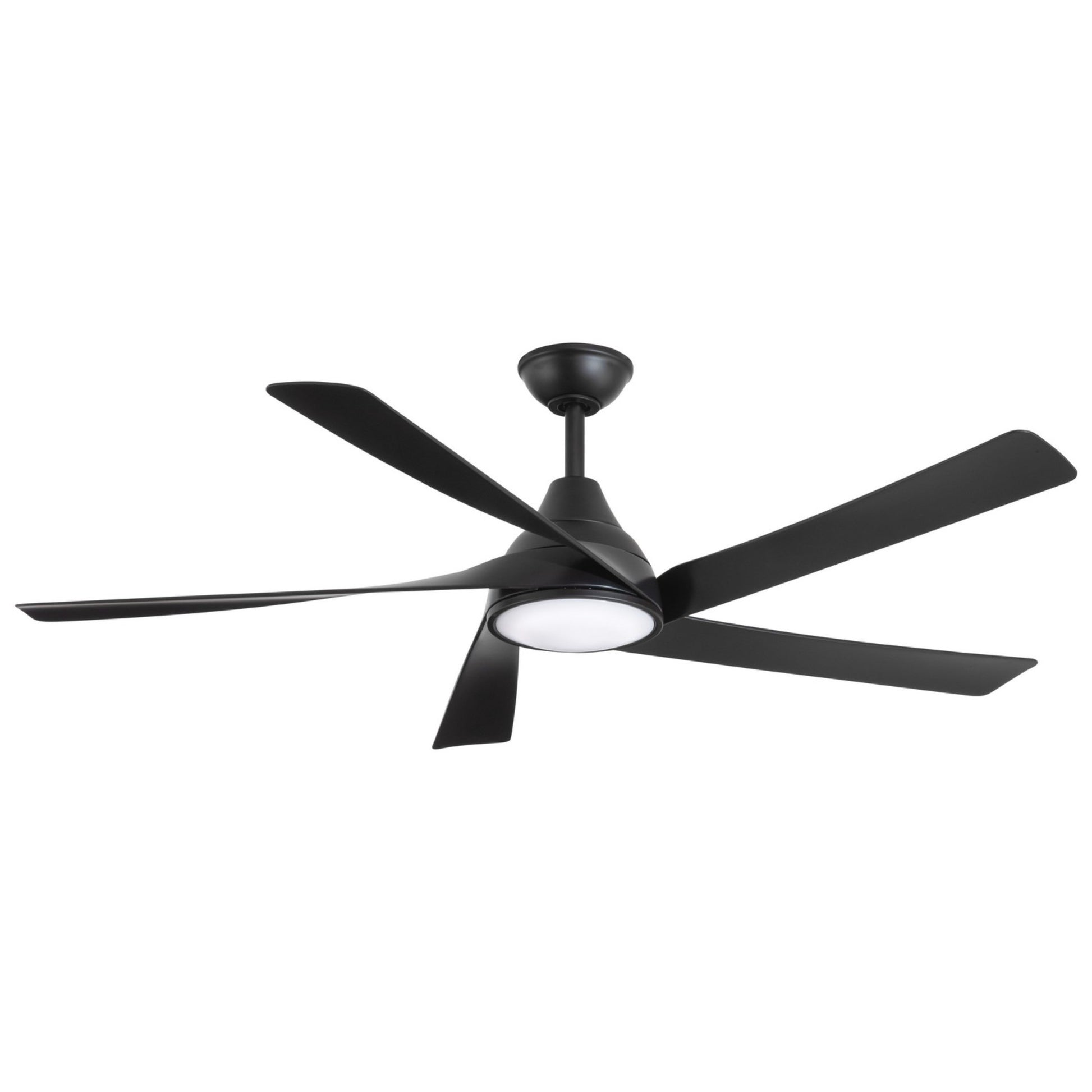

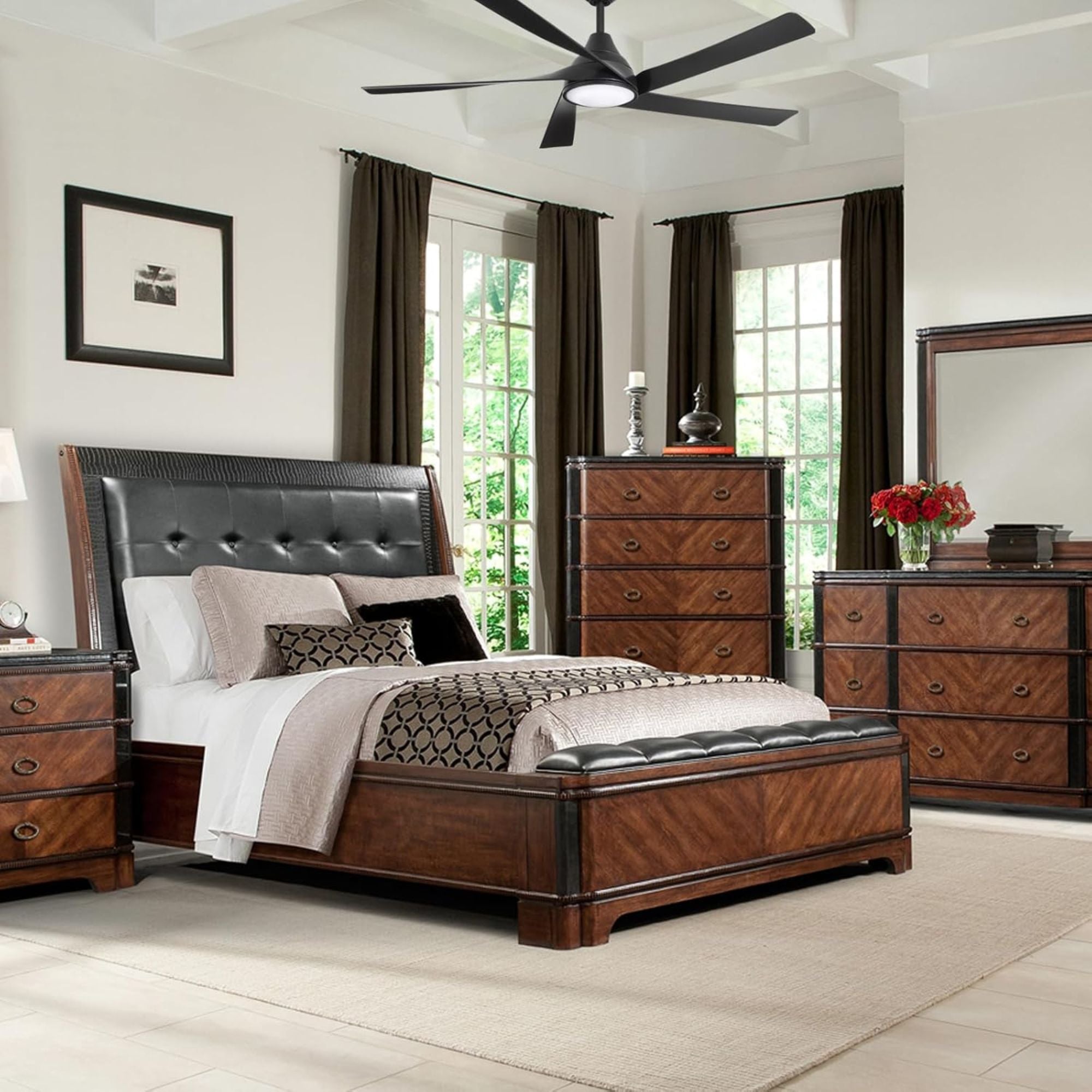

The Minka Aire Transonic F765L-CL is a five-blade 56 in downrod LED ceiling fan in all-Coal Black finish with matching Coal Black ABS blades and an integrated 30W LED with frosted white polycarbonate lens. Powered by an AC 172×16mm motor, it delivers 5,811 CFM at high speed — 89.08 CFM/W efficiency. ETL Listed for dry locations, backed by a lifetime warranty.
Key Features- Blade Span: 56 in, 5 ABS blades, 12° pitch, Coal Black
- Motor: AC 172×16mm, 3 speeds, reversible rotation
- Airflow: 5,811 CFM high / 2,501 CFM low — 89.08 CFM/W high / 161.5 CFM/W low
- Wattage: 65.22W high / 15.48W low
- Light Kit: Integrated 30W LED — 2,268.6 delivered lm, 3000K, CRI 94, 50,000 hrs, dimmable, frosted white polycarbonate lens
- Location Rating: ETL Listed for Dry Locations — Indoor use only.

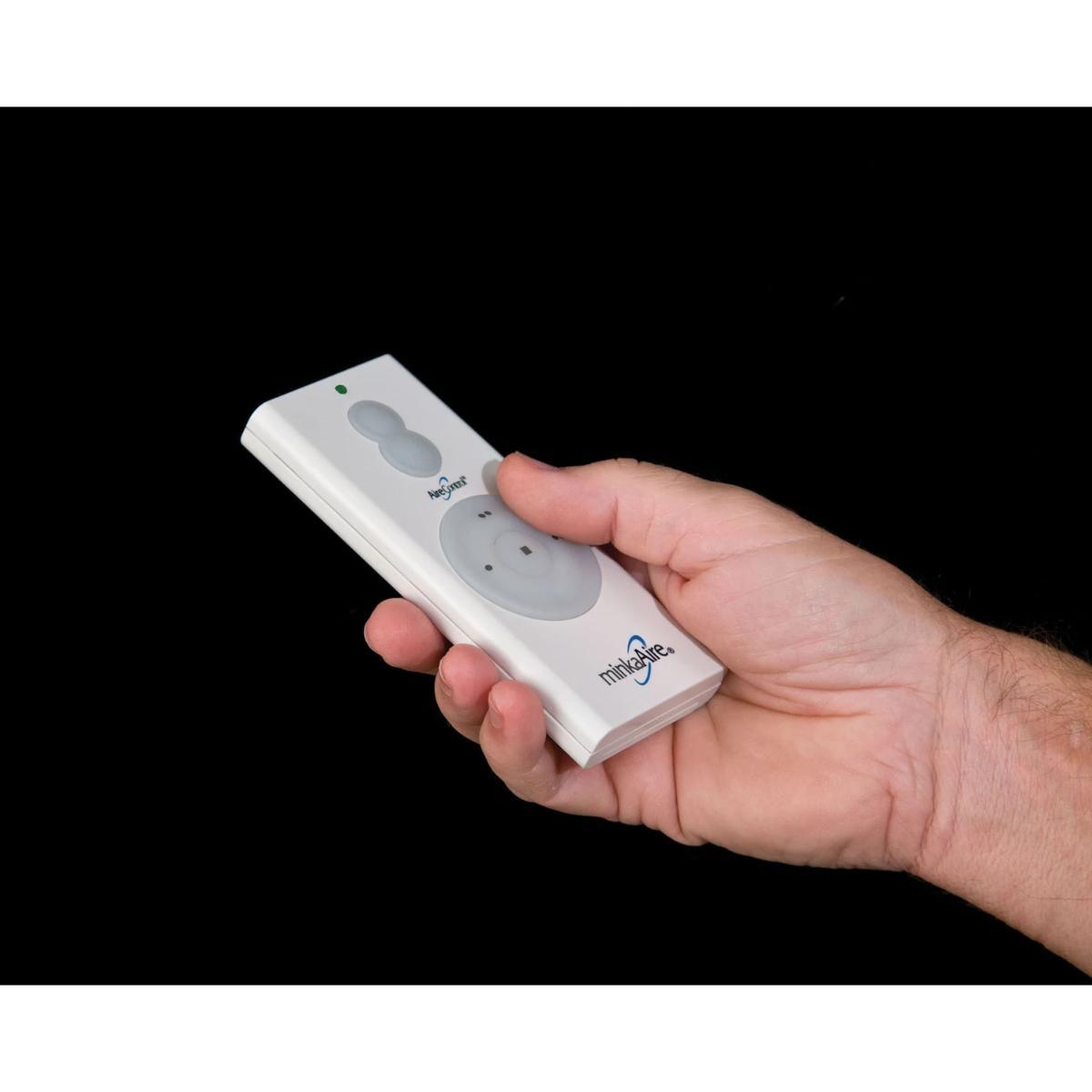

- Control: RCS213-S remote included — 5-speed fan control, On/Off plus full-range light dimmer
- Mount: Downrod — 0.75 in × 6 in downrod included, slope compatible up to 45° with A245 adapter (sold separately)
- Ceiling to Blade: 12.6 in / Lowest point: 15.5 in / Weight: 18.72 lbs

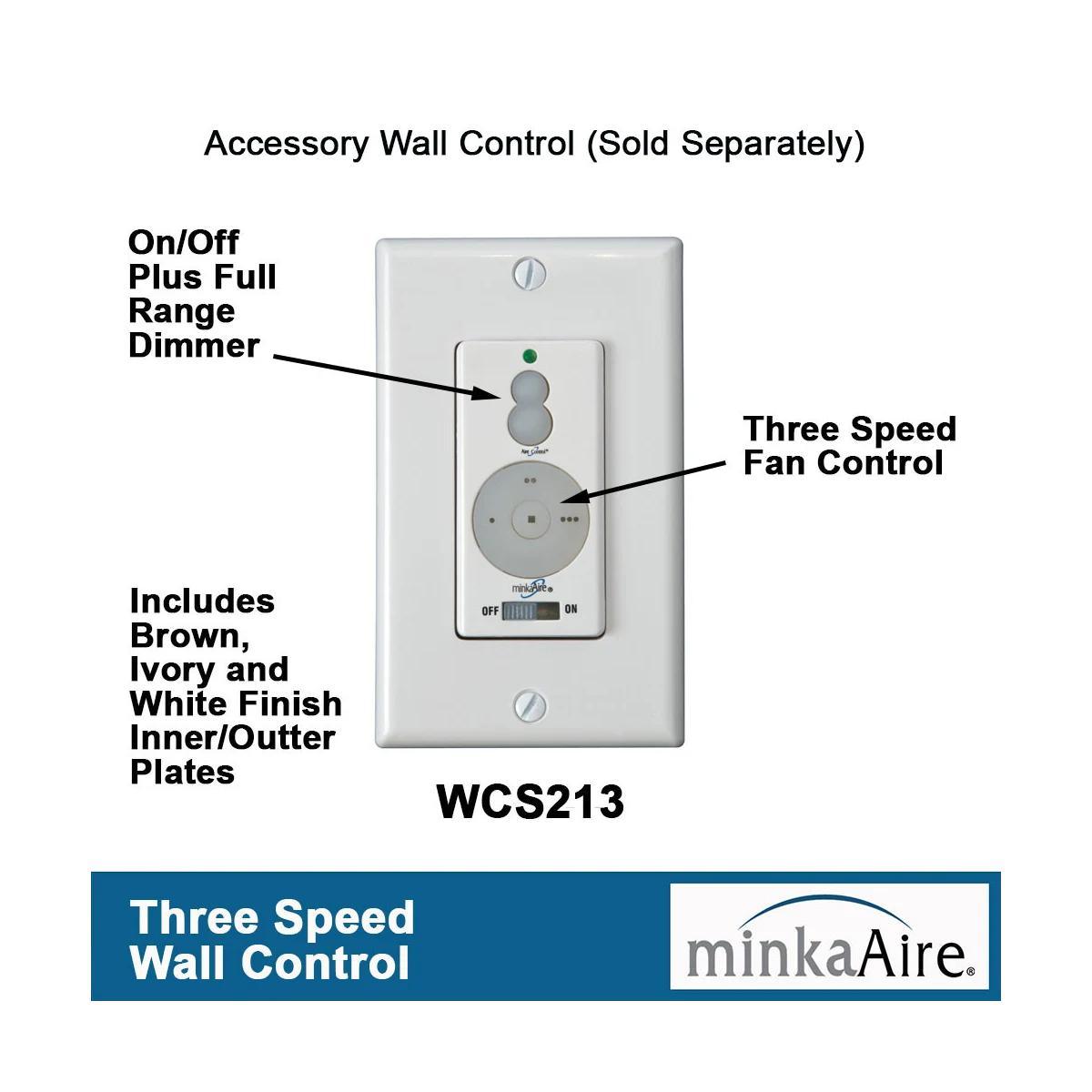

The Transonic F765L-CL includes the RCS213-S Remote Control — 5-speed fan control, On/Off plus full-range light dimmer. Compatible wall controls: WCS213-S or WC116LD for direct wire applications (both sold separately).

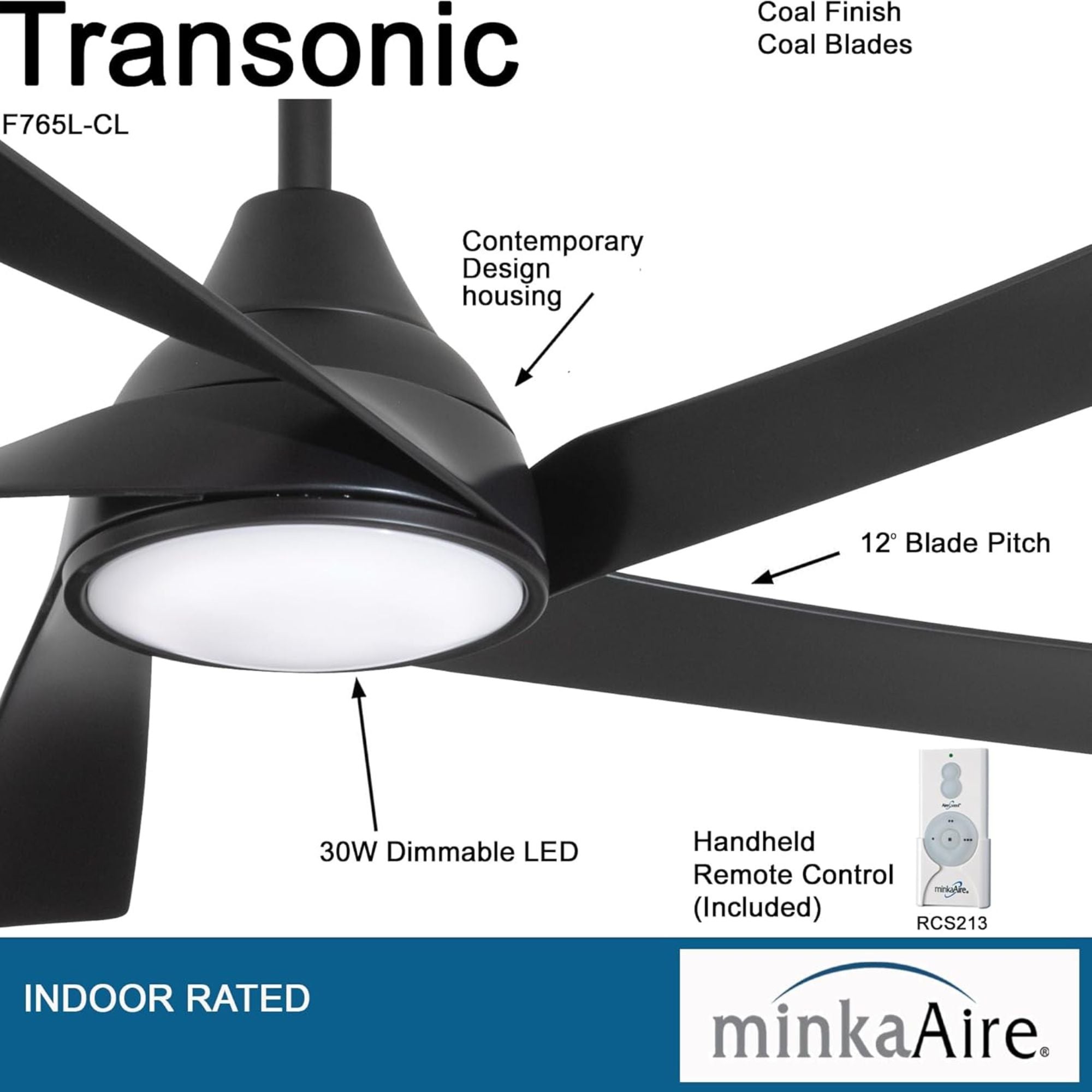

Construction & DesignAll-Coal Black motor housing with five sweeping Coal Black ABS blades at 12° pitch and a frosted white polycarbonate lens. Net weight: 18.72 lbs. The Transonic’s streamlined five-blade all-Coal Black silhouette commands bold, graphic authority in contemporary, industrial, and modern interiors. Backed by a lifetime warranty.
Light Output & PerformanceThe F765L-CL delivers 5,811 CFM at high speed (89.08 CFM/W, 65.22W) and 2,501 CFM at low speed (161.5 CFM/W, 15.48W). The integrated 30W LED provides 2,268.6 delivered lumens (2,750.1 initial lumens) at 3000K warm white, CRI 94, rated 50,000 hours, fully dimmable, through a frosted white polycarbonate lens. Its 56 in span is ideal for large indoor spaces up to approximately 350 sq ft.
Electrical & Installation120V AC, 60Hz. Wire: 80 in. Ships with 0.75 in × 6 in downrod. Slope ceiling compatible; for pitches up to 45°, the Minka Aire 45 Degree Sloped Ceiling Adapter A245 is available separately. Fan must be attached to a securely anchored electrical junction box rated for the fan weight. ETL Listed for Dry Locations.
Suggested Downrod by Ceiling HeightA 6 in downrod is included. Additional downrods available separately. Ideal distance from floor to fan blades is 7 to 9 feet.
- 9 ft ceiling → 12 in downrod
- 10 ft ceiling → 18 in downrod
- 12 ft ceiling → 24 in downrod
- 14 ft ceiling → 36 in downrod
- 16 ft ceiling → 48 in downrod
- 18 ft ceiling → 60 in downrod
- 20 ft ceiling → 72 in downrod
- F765L-CL ceiling fan (Coal Black body + 5 Coal Black ABS blades)
- Integrated 30W LED light kit with frosted white polycarbonate lens
- RCS213-S remote control
- 0.75 in × 6 in downrod
- Mounting hardware
- 45° Sloped Ceiling Adapter A245 available separately
