Minka Aire Transonic 56" Indoor LED Ceiling Fan AC Brushed Nickel
Available in stock (27)
About this item
About this item
- Airflow & Efficiency: 5,811 CFM high (89.08 CFM/W, 65.22W) / 2,501 CFM low — Energy Guide 4,259 CFM — ideal for large indoor rooms up to 350 sq ft.
- AC Motor: 172×16mm AC — 3 speeds, Summer & Winter reversible rotation — five-blade 56 in span, 12° pitch — lifetime warranty.
- Dry Rated: ETL Listed for Dry Locations — living rooms, dining rooms, great rooms, and large open-plan interiors.
- Control: RCS213-S remote included (5-speed, full-range dimmer) — WCS213-S or WC116LD wall control sold separately.
- LED Light Kit: 30W integrated LED — 2,268.6 lm delivered, 3000K, CRI 94, 50,000 hrs, dimmable — frosted white polycarbonate lens.
Description
Description

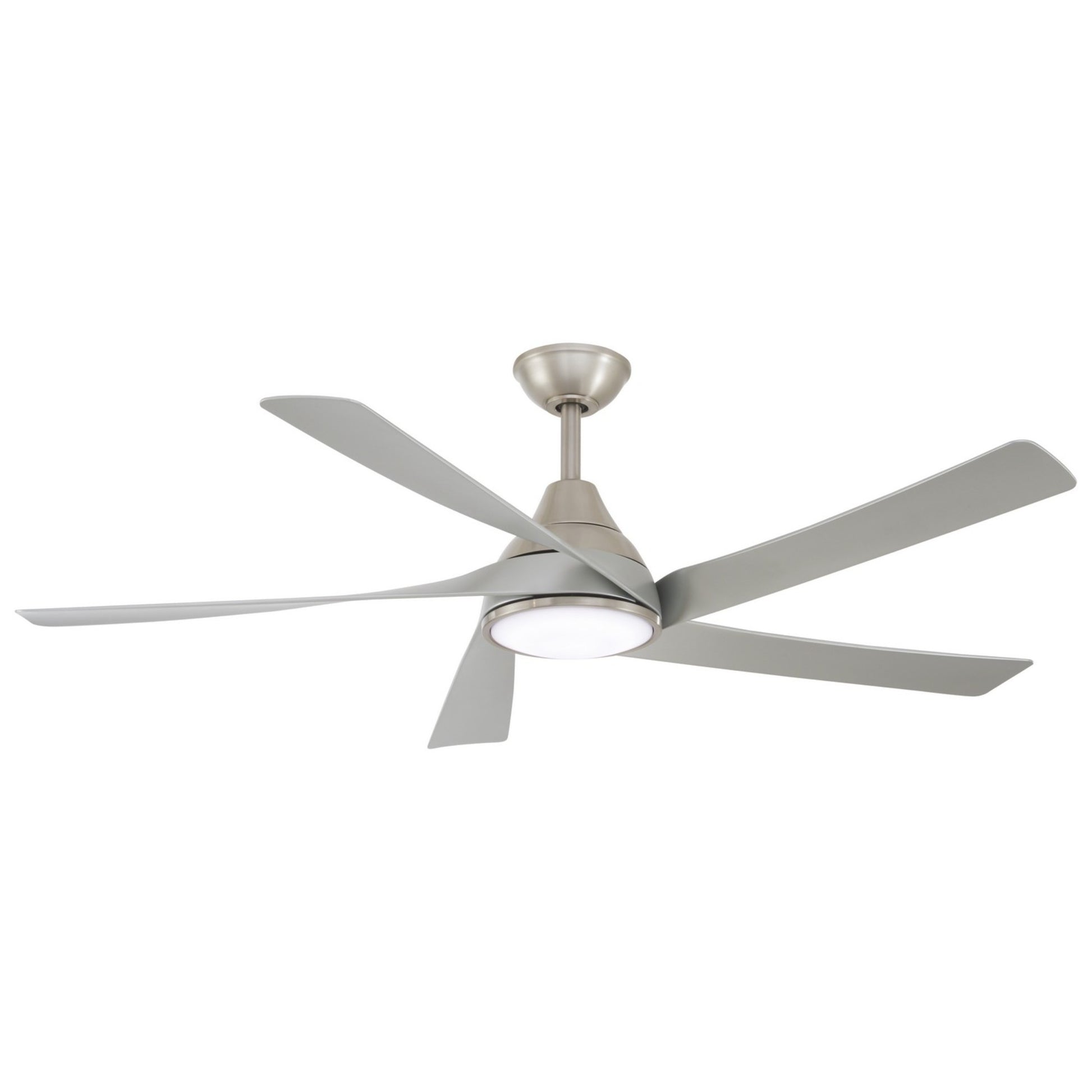

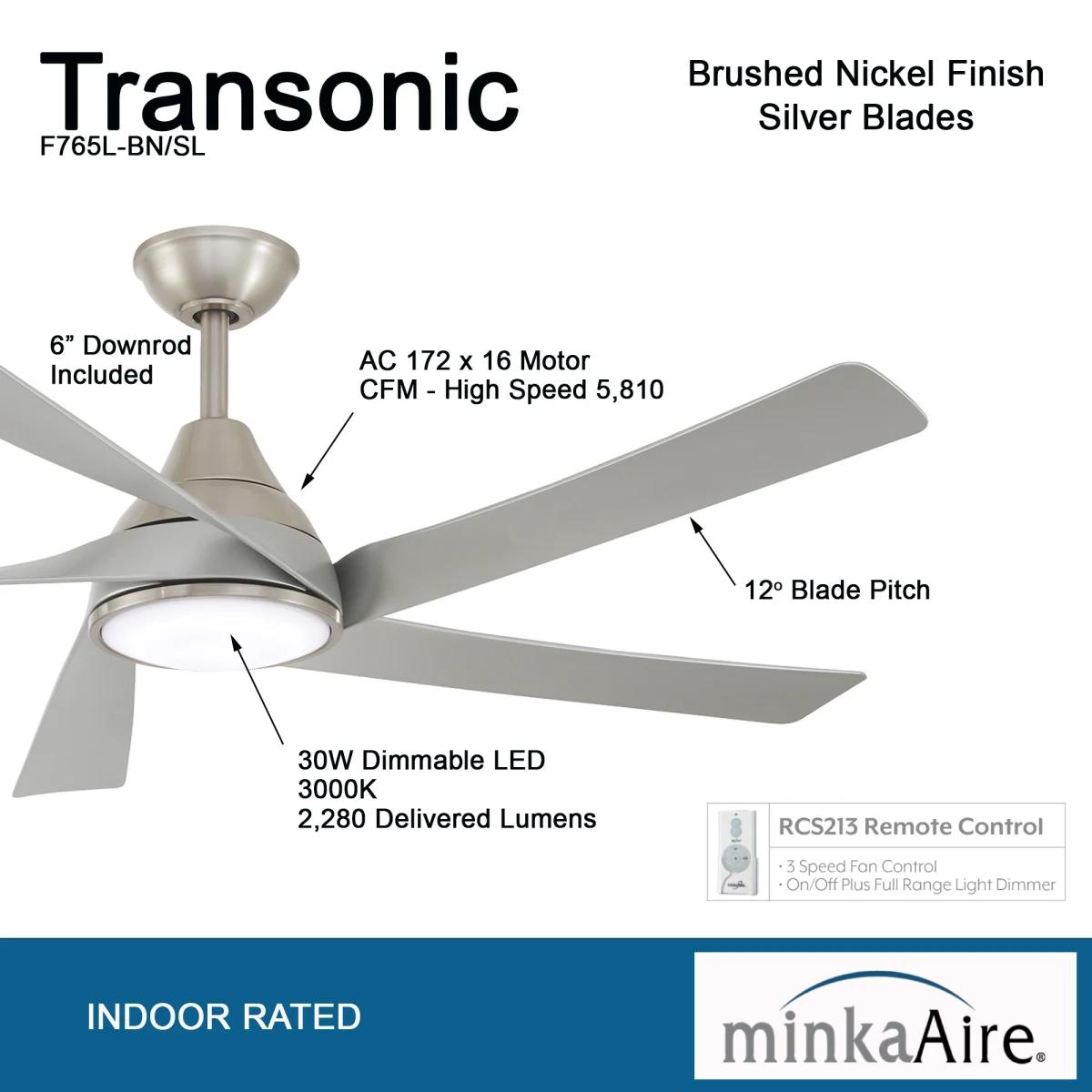

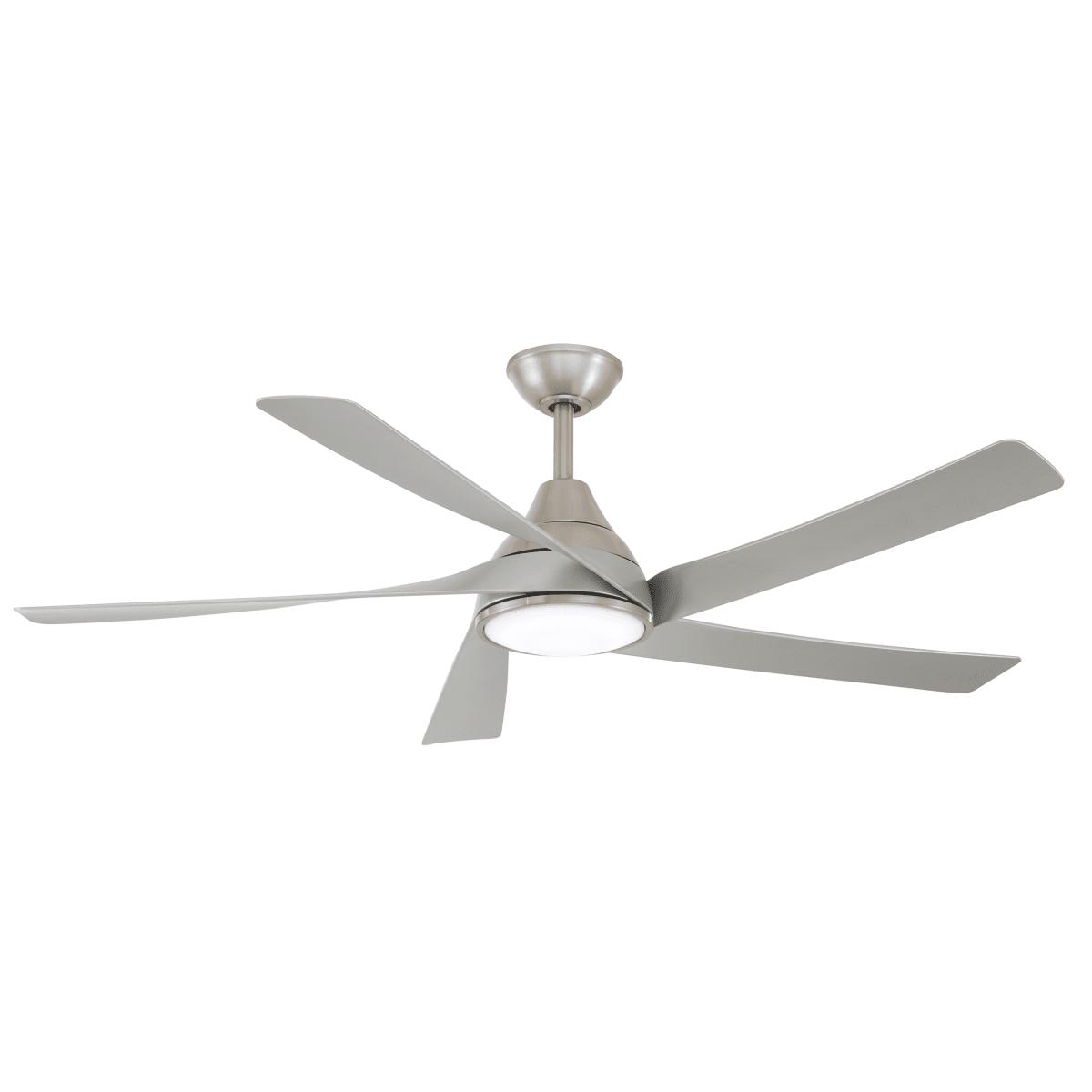

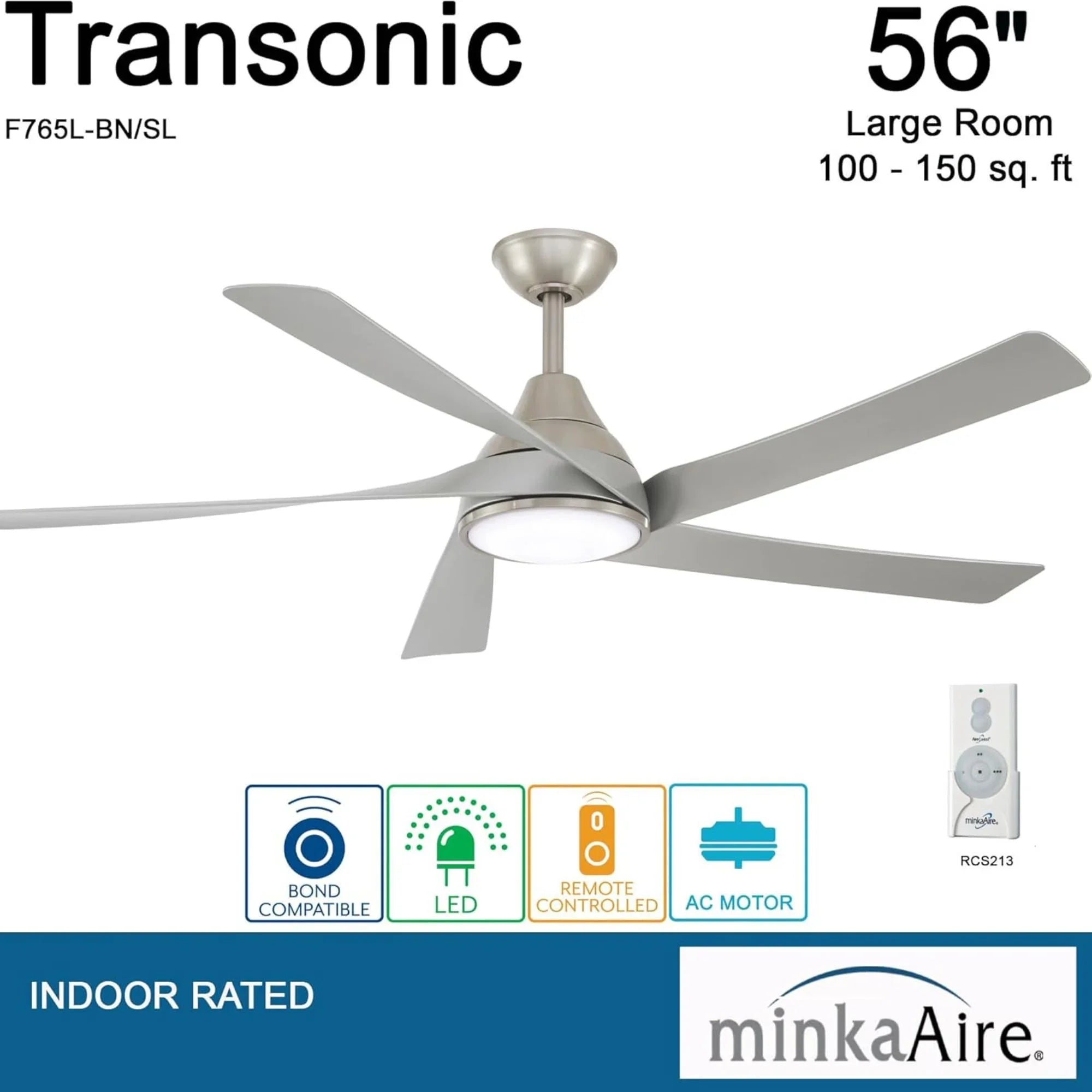

The Minka Aire Transonic F765L-BN/SL is a five-blade 56 in downrod LED ceiling fan in Brushed Nickel finish with contrasting Silver ABS blades and an integrated 30W LED with frosted white polycarbonate lens. Powered by an AC 172×16mm motor, it delivers 5,811 CFM at high speed — 89.08 CFM/W efficiency. ETL Listed for dry locations, backed by a lifetime warranty.
Key Features- Blade Span: 56 in, 5 ABS blades, 12° pitch, Silver
- Motor: AC 172×16mm, 3 speeds, reversible rotation
- Airflow: 5,811 CFM high / 2,501 CFM low — 89.08 CFM/W high / 161.5 CFM/W low
- Wattage: 65.22W high / 15.48W low
- Light Kit: Integrated 30W LED — 2,268.6 delivered lm, 3000K, CRI 94, 50,000 hrs, dimmable, frosted white polycarbonate lens
- Location Rating: ETL Listed for Dry Locations — Indoor use only.
- Control: RCS213-S remote included — 5-speed fan control, On/Off plus full-range light dimmer
- Mount: Downrod — 0.75 in × 6 in downrod included, slope compatible up to 45° with A245 adapter (sold separately)
- Ceiling to Blade: 12.6 in / Lowest point: 15.5 in / Weight: 18.72 lbs
The Transonic F765L-BN/SL includes the RCS213-S Remote Control — 5-speed fan control, On/Off plus full-range light dimmer. Compatible wall controls: WCS213-S or WC116LD for direct wire applications (both sold separately).

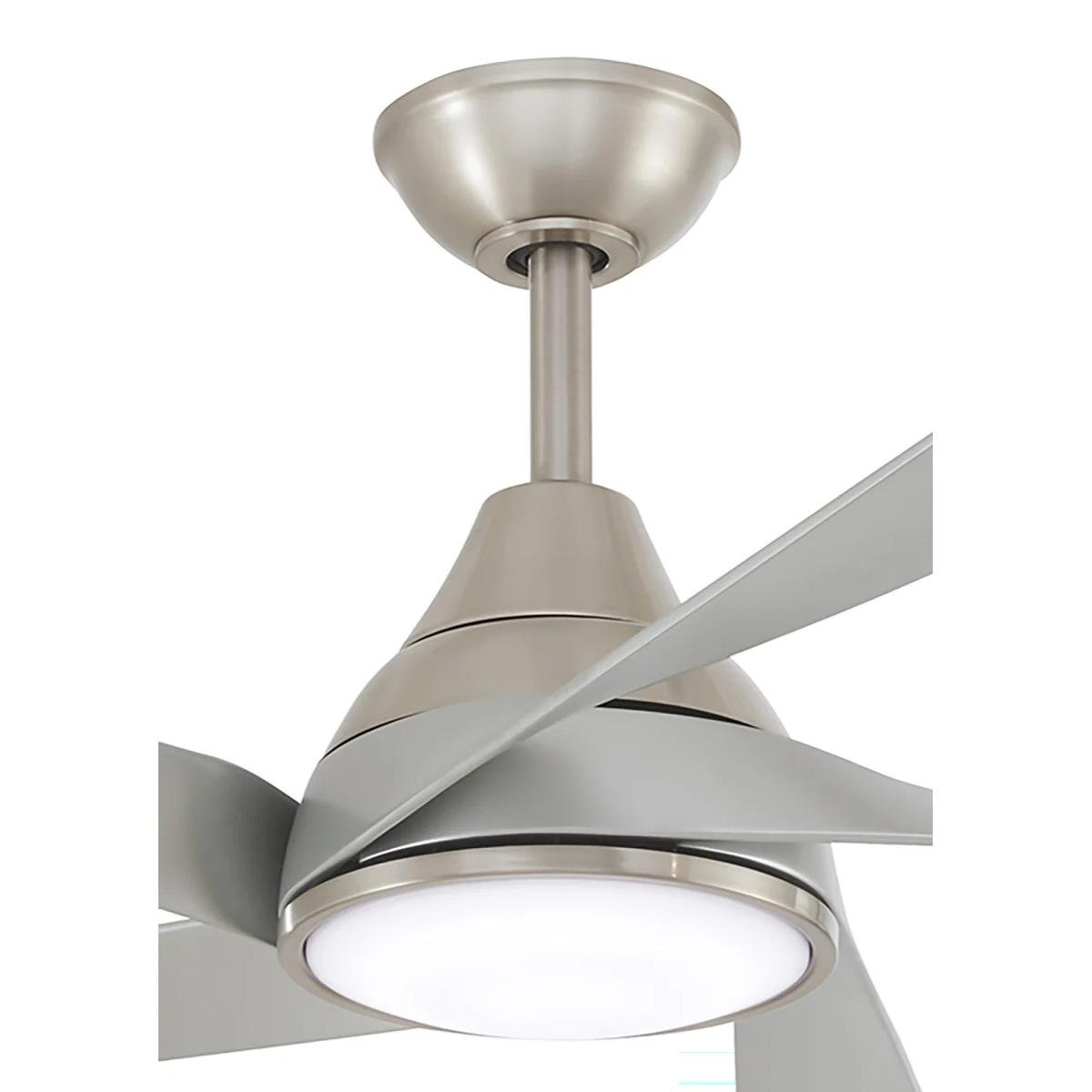

Construction & DesignBrushed Nickel motor housing with five sweeping Silver ABS blades at 12° pitch and a frosted white polycarbonate lens. Net weight: 18.72 lbs. The Transonic’s streamlined five-blade silhouette in Brushed Nickel and Silver delivers a refined, aerodynamic presence in large contemporary and modern interiors. Backed by a lifetime warranty.
Light Output & PerformanceThe F765L-BN/SL delivers 5,811 CFM at high speed (89.08 CFM/W, 65.22W) and 2,501 CFM at low speed (161.5 CFM/W, 15.48W). The integrated 30W LED provides 2,268.6 delivered lumens (2,750.1 initial lumens) at 3000K warm white, CRI 94, rated 50,000 hours, fully dimmable, through a frosted white polycarbonate lens. Its 56 in span is ideal for large indoor spaces up to approximately 350 sq ft.
Electrical & Installation120V AC, 60Hz. Wire: 80 in. Ships with 0.75 in × 6 in downrod. Slope ceiling compatible; for pitches up to 45°, the Minka Aire 45 Degree Sloped Ceiling Adapter A245 is available separately. Fan must be attached to a securely anchored electrical junction box rated for the fan weight. ETL Listed for Dry Locations.
Suggested Downrod by Ceiling HeightA 6 in downrod is included. Additional downrods available separately. Ideal distance from floor to fan blades is 7 to 9 feet.
- 9 ft ceiling → 12 in downrod
- 10 ft ceiling → 18 in downrod
- 12 ft ceiling → 24 in downrod
- 14 ft ceiling → 36 in downrod
- 16 ft ceiling → 48 in downrod
- 18 ft ceiling → 60 in downrod
- 20 ft ceiling → 72 in downrod
- F765L-BN/SL ceiling fan (Brushed Nickel body + 5 Silver ABS blades)
- Integrated 30W LED light kit with frosted white polycarbonate lens
- RCS213-S remote control
- 0.75 in × 6 in downrod
- Mounting hardware
- 45° Sloped Ceiling Adapter A245 available separately
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Fan Information
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What environments is the Minka Aire Transonic F765L-BN/SL rated for?
What environments is the Minka Aire Transonic F765L-BN/SL rated for?
How is the Minka Aire Transonic F765L-BN/SL controlled?
How is the Minka Aire Transonic F765L-BN/SL controlled?
What LED does the Minka Aire Transonic F765L-BN/SL include?
What LED does the Minka Aire Transonic F765L-BN/SL include?
Can the Minka Aire Transonic F765L-BN/SL be installed on a sloped ceiling?
Can the Minka Aire Transonic F765L-BN/SL be installed on a sloped ceiling?
What is the airflow performance of the Minka Aire Transonic F765L-BN/SL?
What is the airflow performance of the Minka Aire Transonic F765L-BN/SL?
