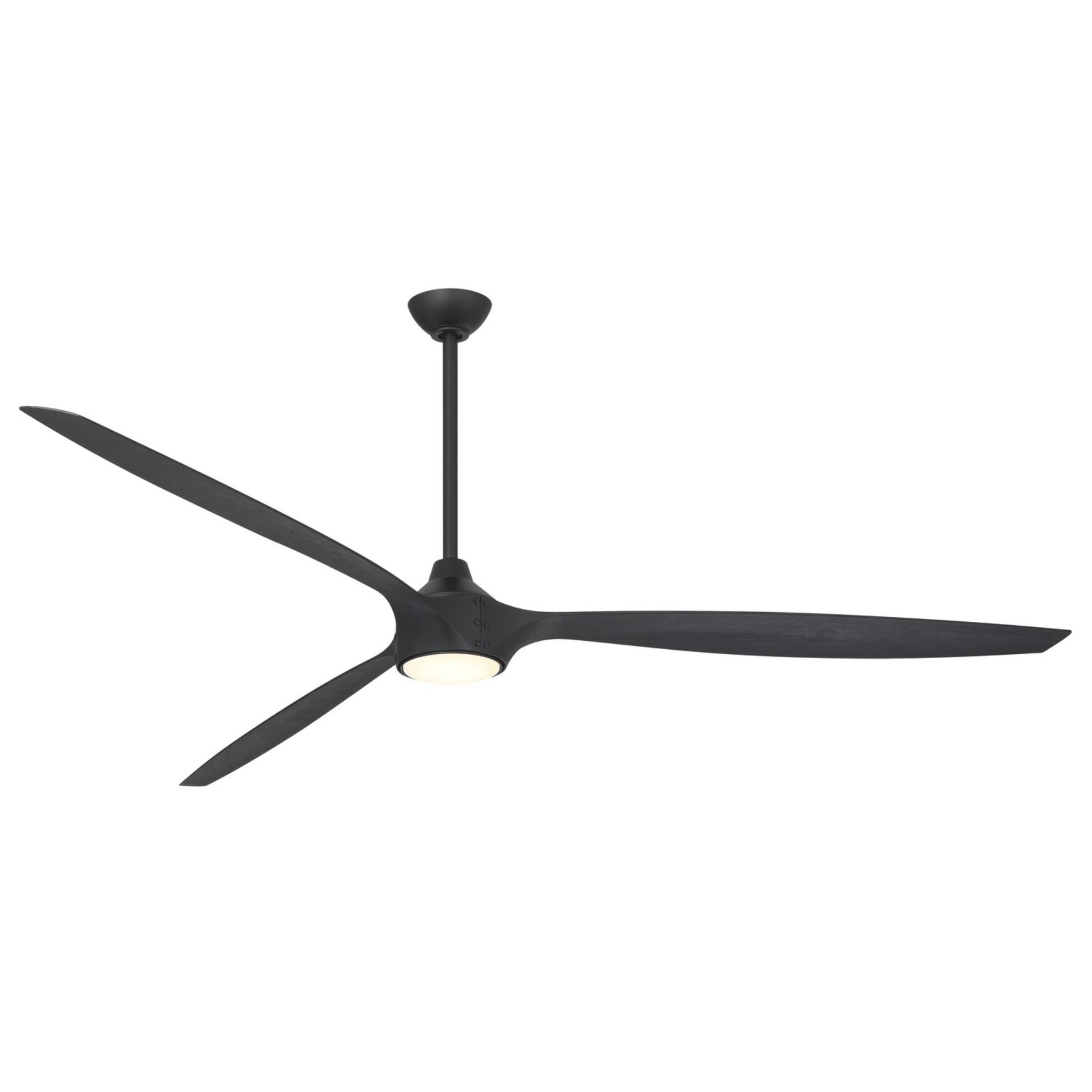

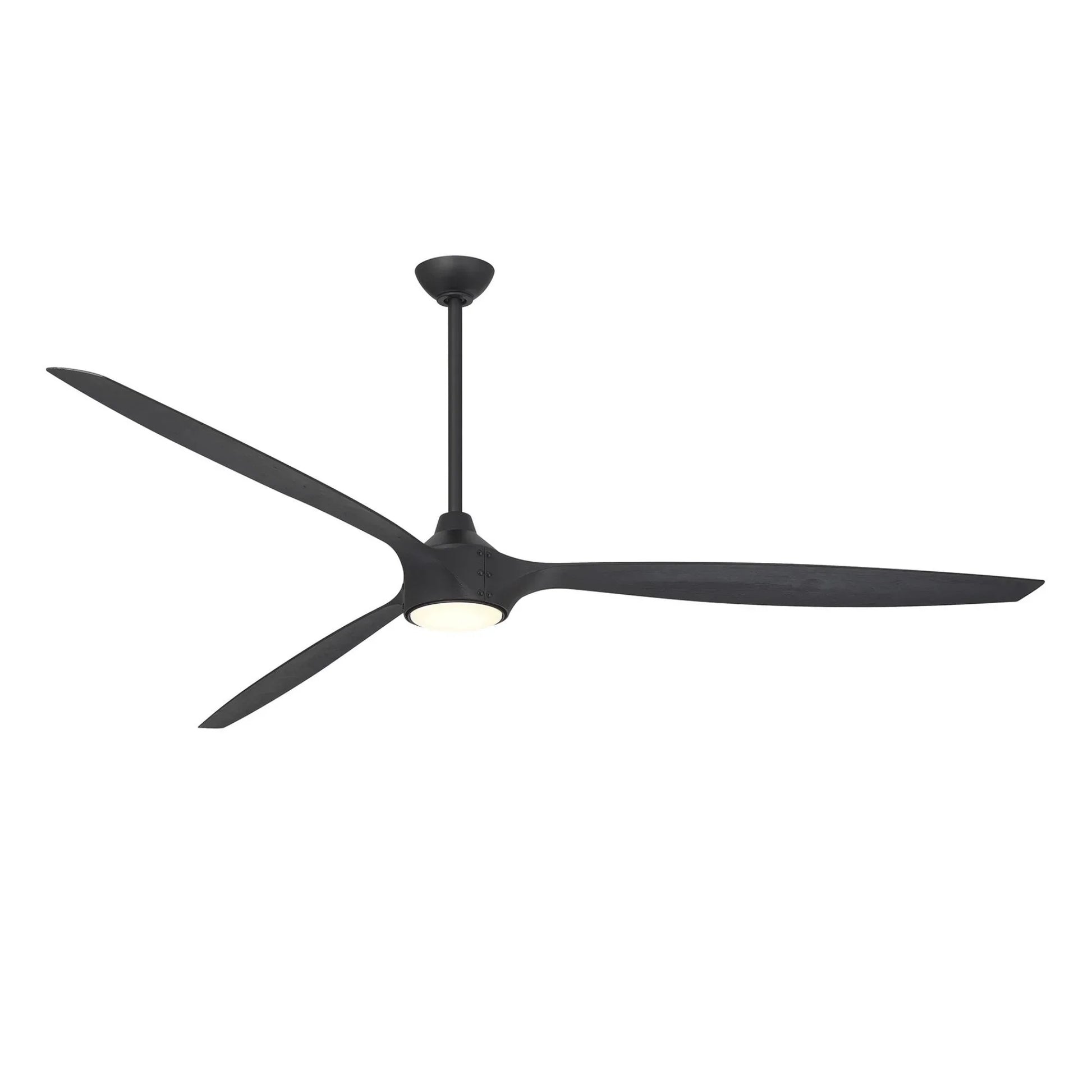

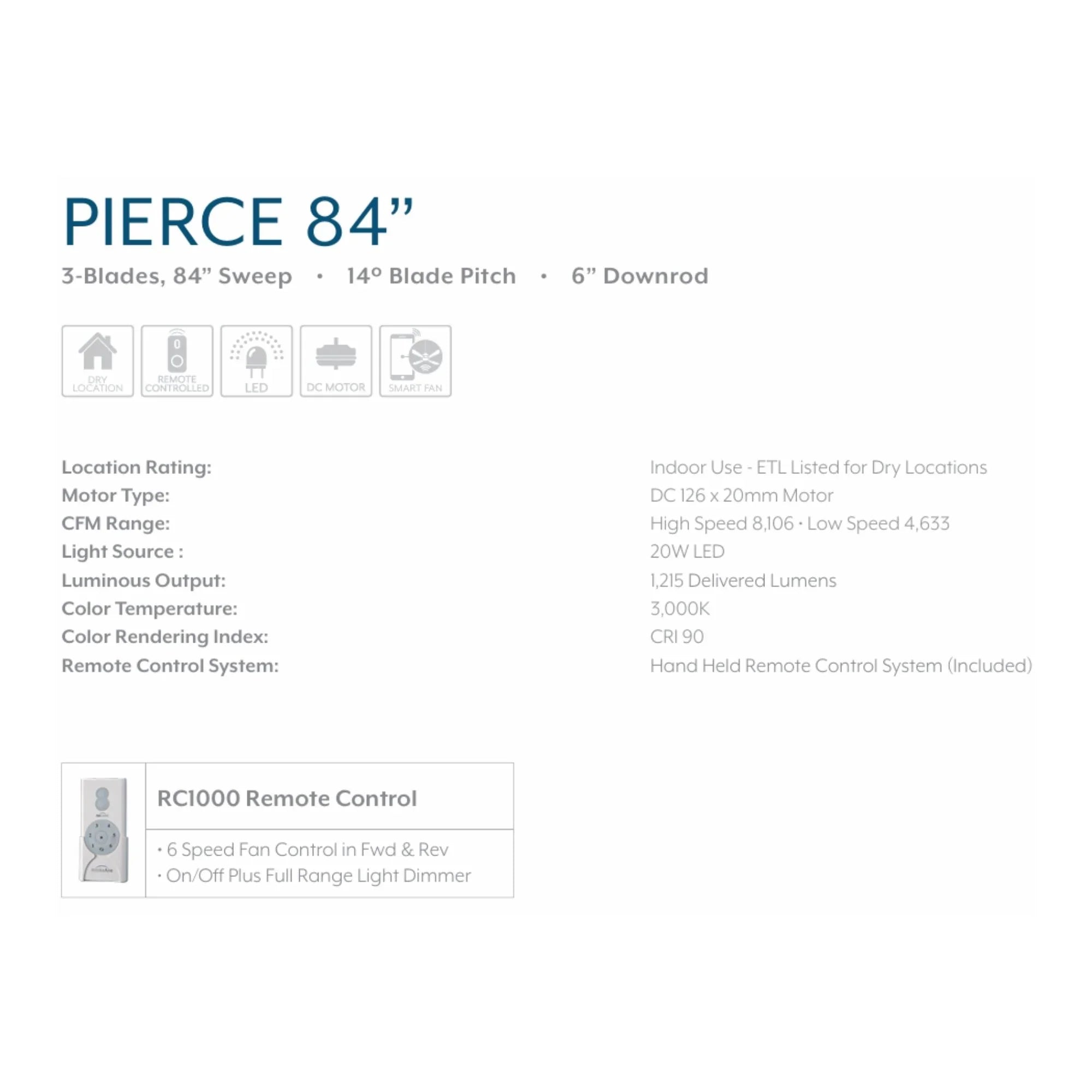

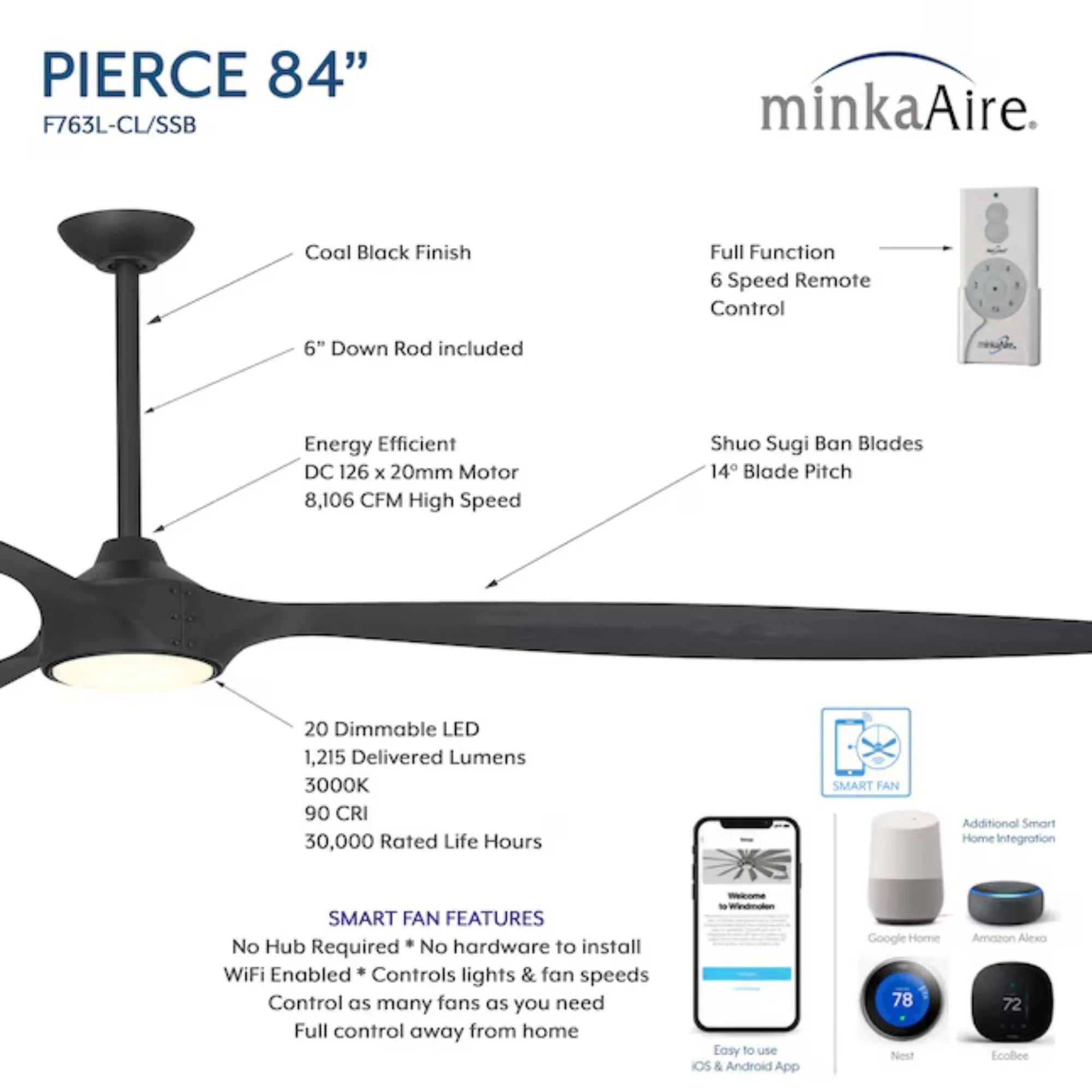

The Minka Aire Pierce F763L-CL/SSB is a three-blade 84 in downrod smart LED ceiling fan in Coal Black finish with Shao Sugi Ban ABS blades — a finish inspired by the ancient Japanese charred-wood technique — and an integrated 20W LED with etched polycarbonate lens. Powered by a whisper-quiet DC 126×20mm motor, it delivers an exceptional 8,106 CFM at high speed — 231.65 CFM/W efficiency. Integrated native Bond smart control, RC1000 remote included, ETL Listed for dry locations, Title 20 compliant, FCC compliant. 1-year limited warranty.

• Blade Span: 84 in, 3 ABS blades, 15° pitch, Shao Sugi Ban
• Motor: DC 126×20mm, 6 speeds, reversible rotation
• Airflow: 8,106 CFM high / 4,633 CFM low — 231.65 CFM/W high / 671.51 CFM/W low
• Wattage: 34.99W high / 6.9W low

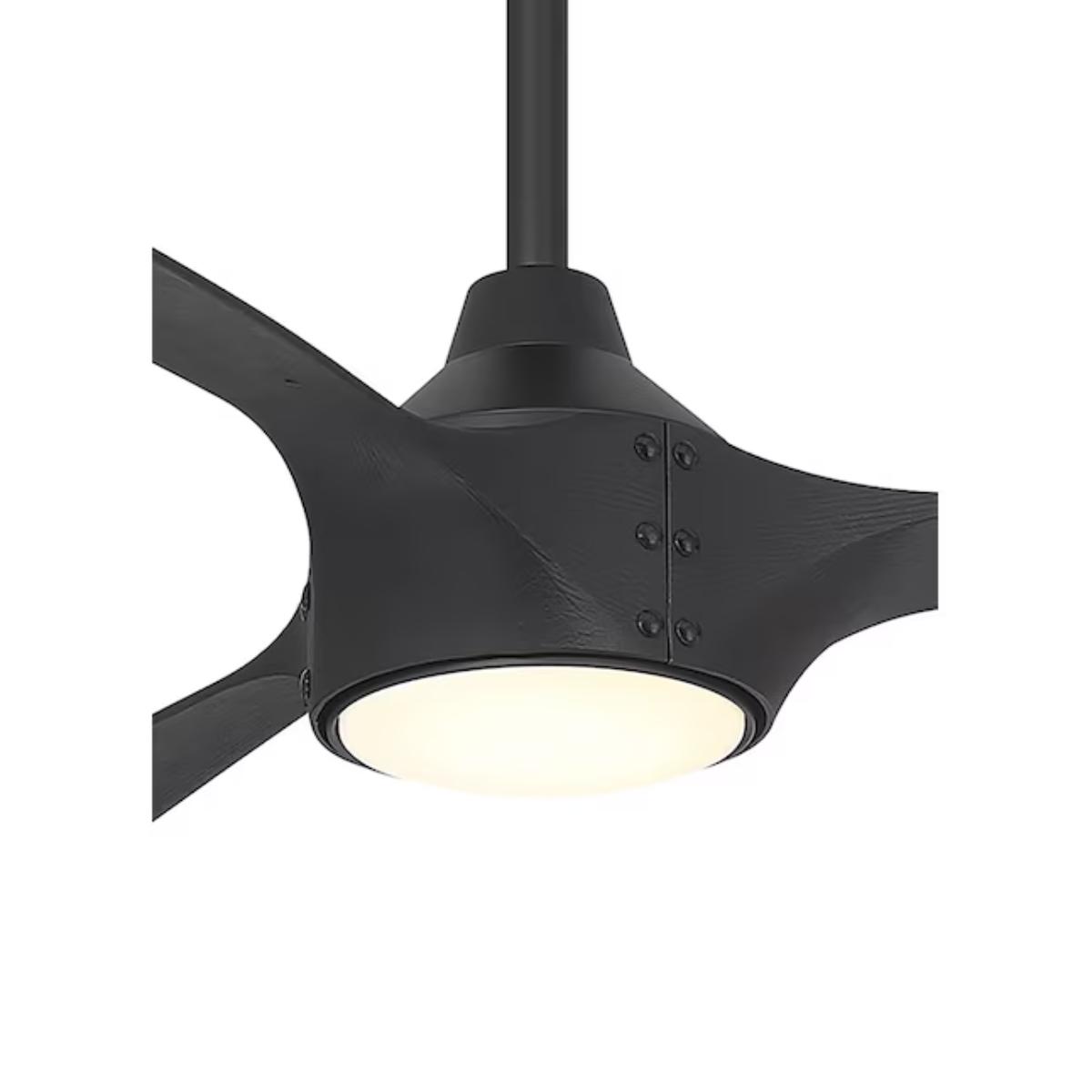

• Light Kit: Integrated 20W LED — 1,052.5 delivered lm, 3000K, CRI 90, 30,000 hrs, dimmable, etched polycarbonate lens
• Location Rating: ETL Listed for Dry Locations — Indoor use only. Title 20 compliant. FCC compliant. 1-year limited warranty.
• Smart Control: Integrated native Bond smart control — Bond Home app (iOS & Android) + voice control
• Mount: Downrod — 0.75 in × 6 in downrod included, slope compatible to 18° / up to 45° with optional A245

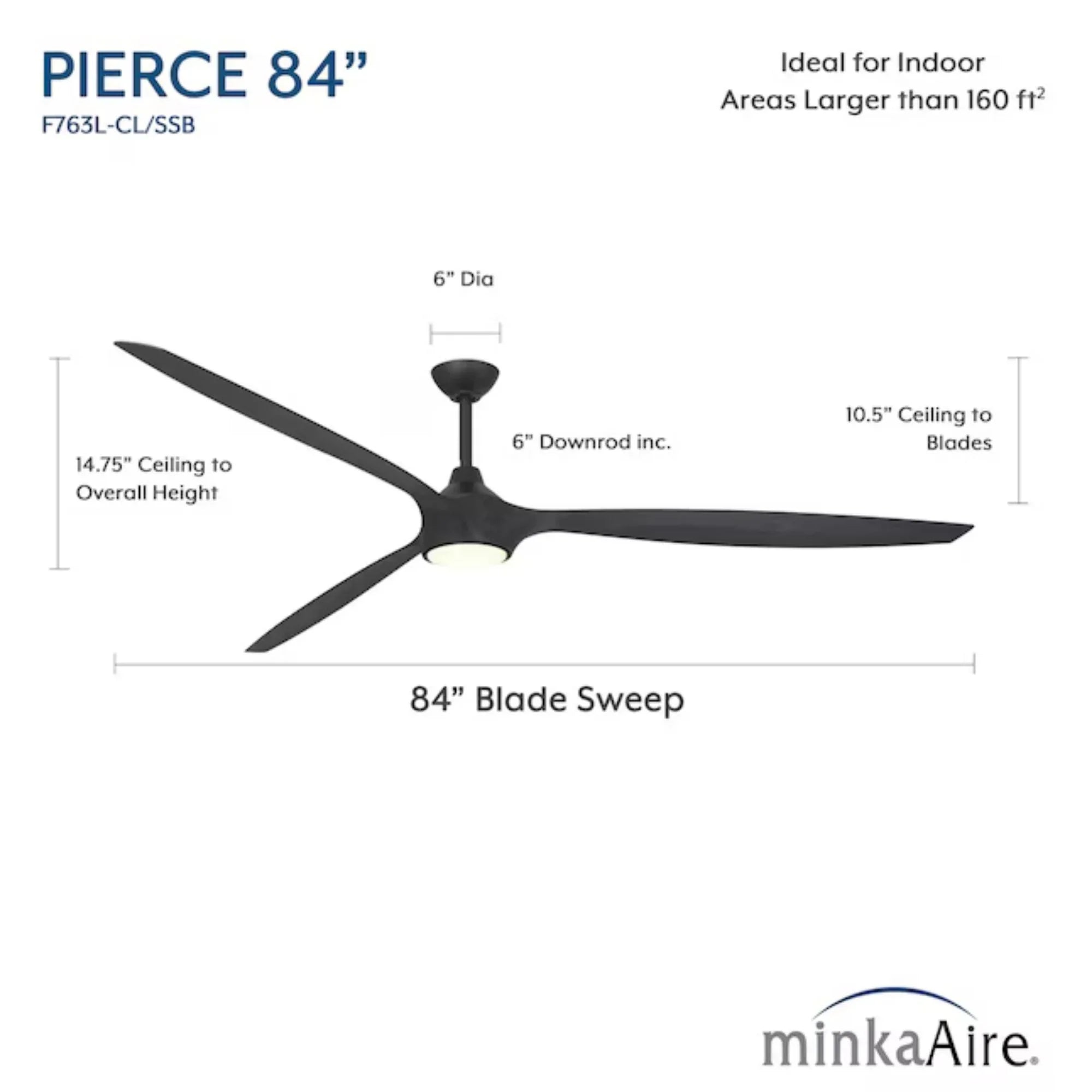

• Ceiling to Blade: 12 in / Lowest point: 15 in / Weight: 14.88 lbs

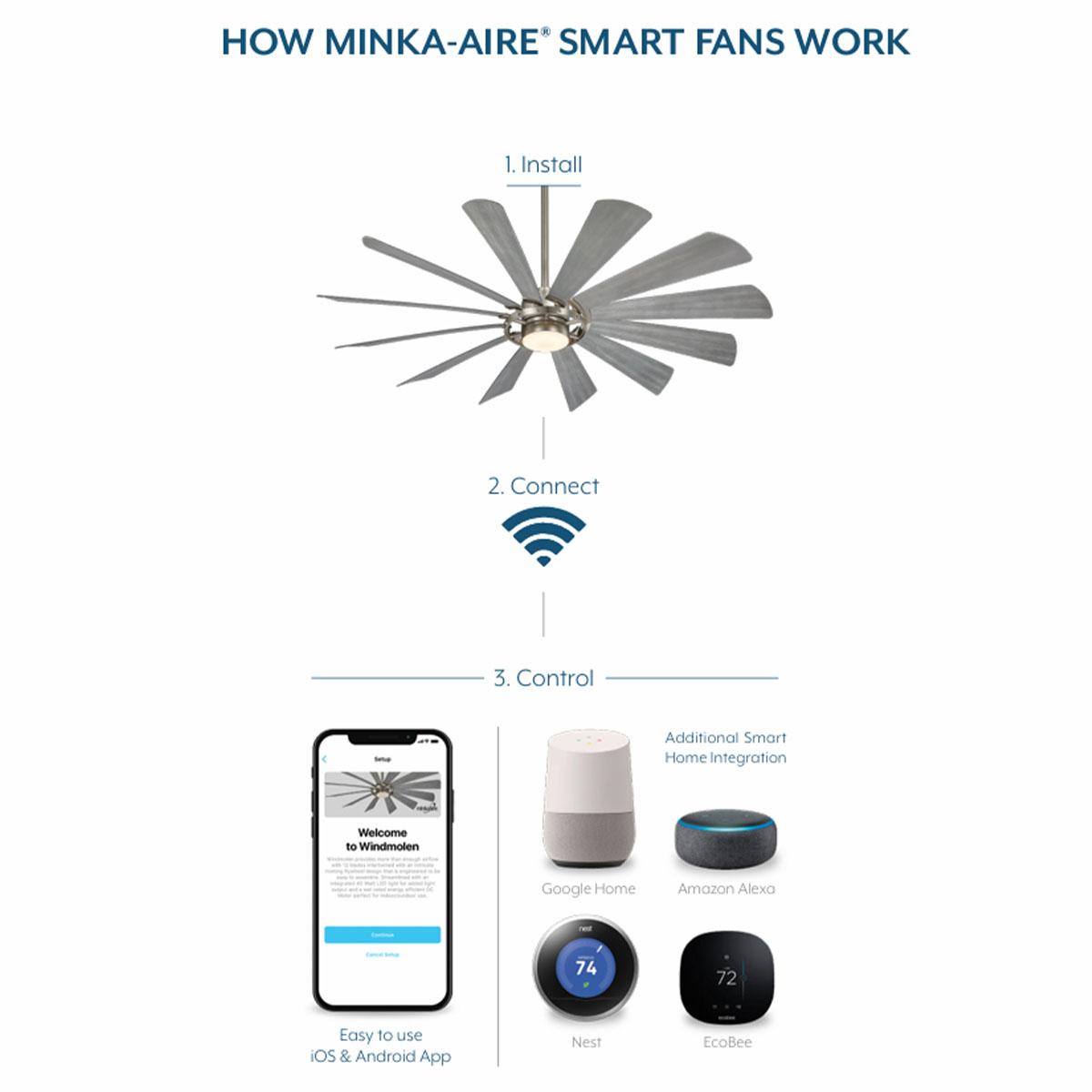

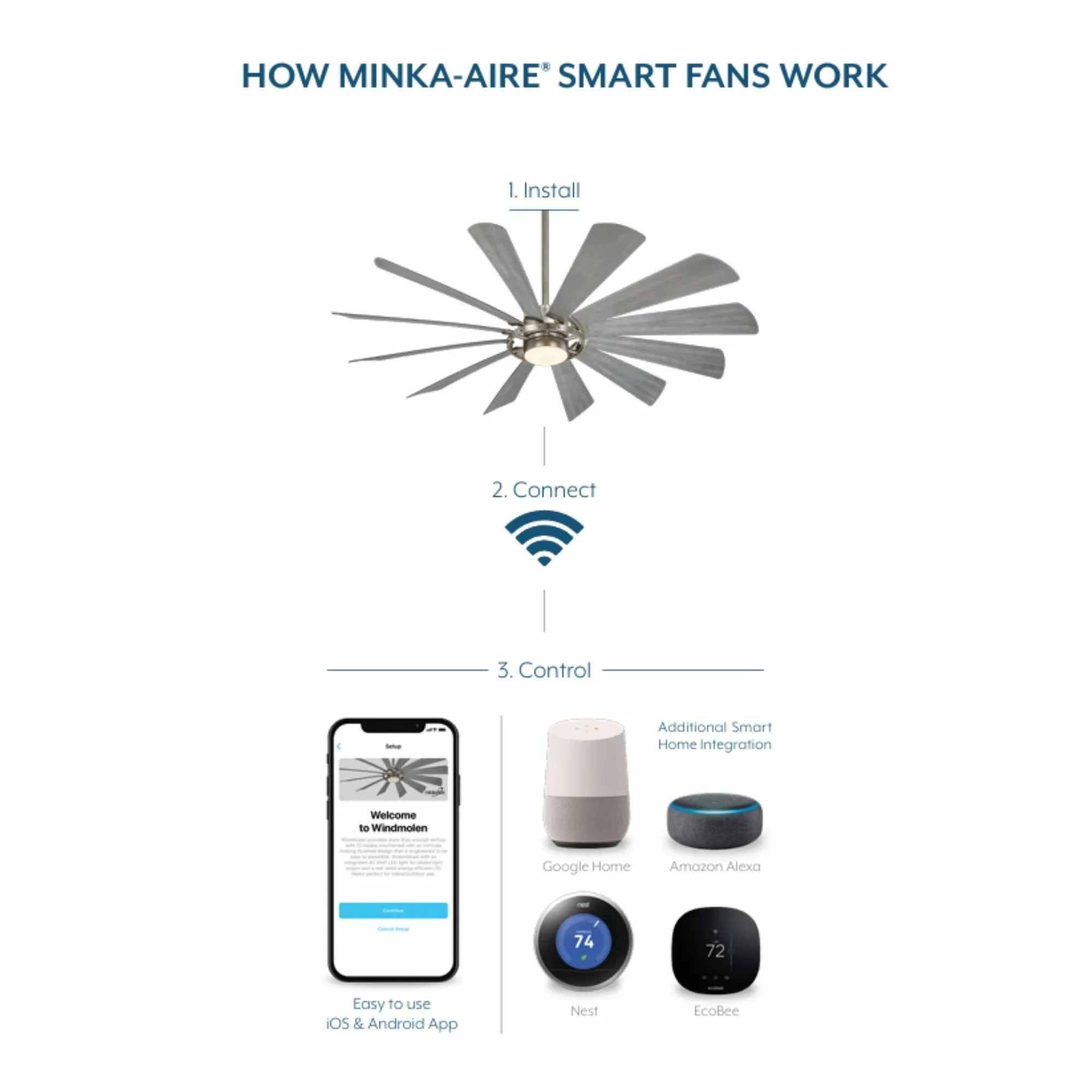

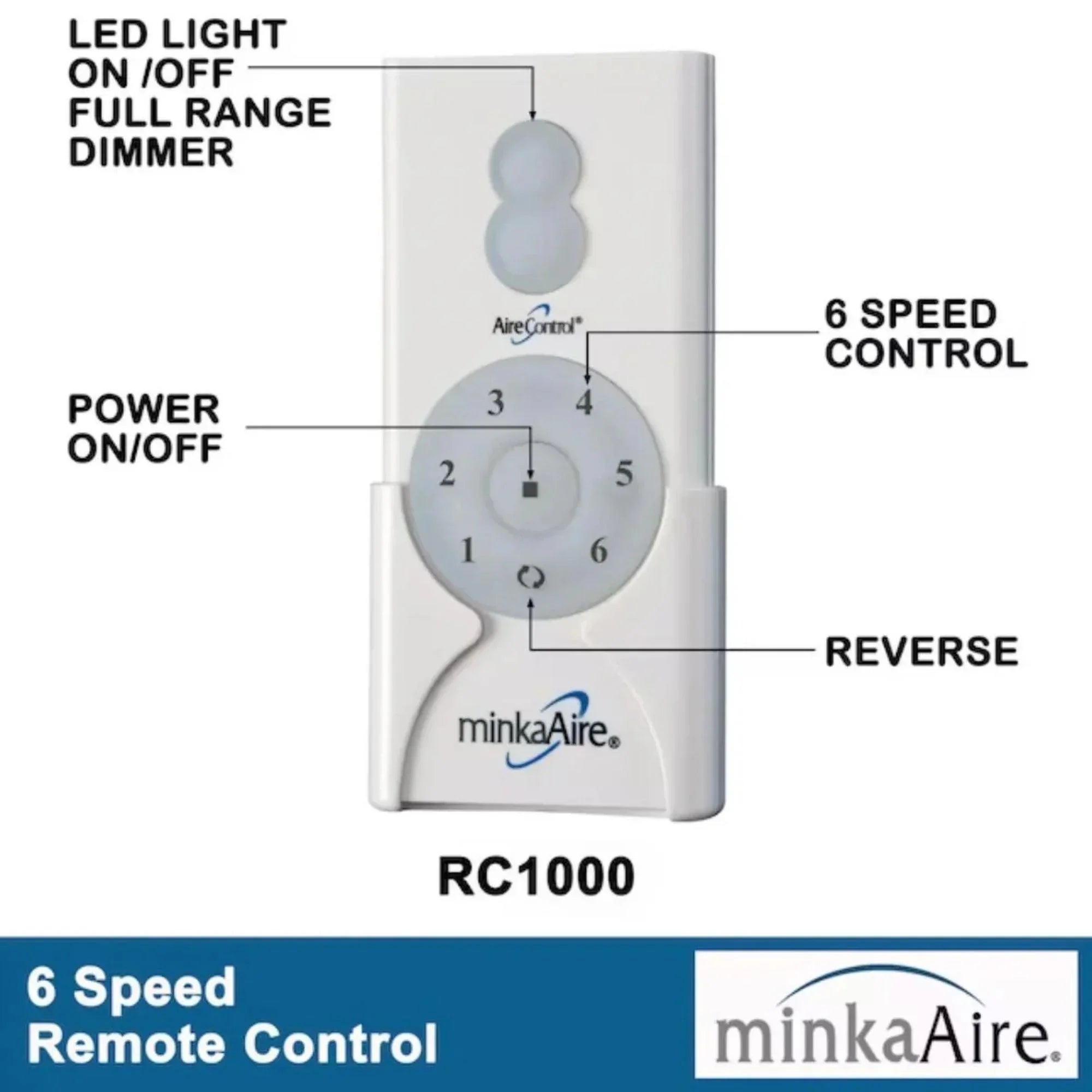

RC1000 Remote Control — included: 6-speed fan control in Forward & Reverse, On/Off plus full-range light dimmer. Compatible wall control: WC1000 (sold separately). The Pierce features integrated native Bond smart control — no separate hub required. Operate via the Bond Home app (iOS & Android) with voice integrations: Amazon Alexa, Google Home, Ecobee, and Control4.

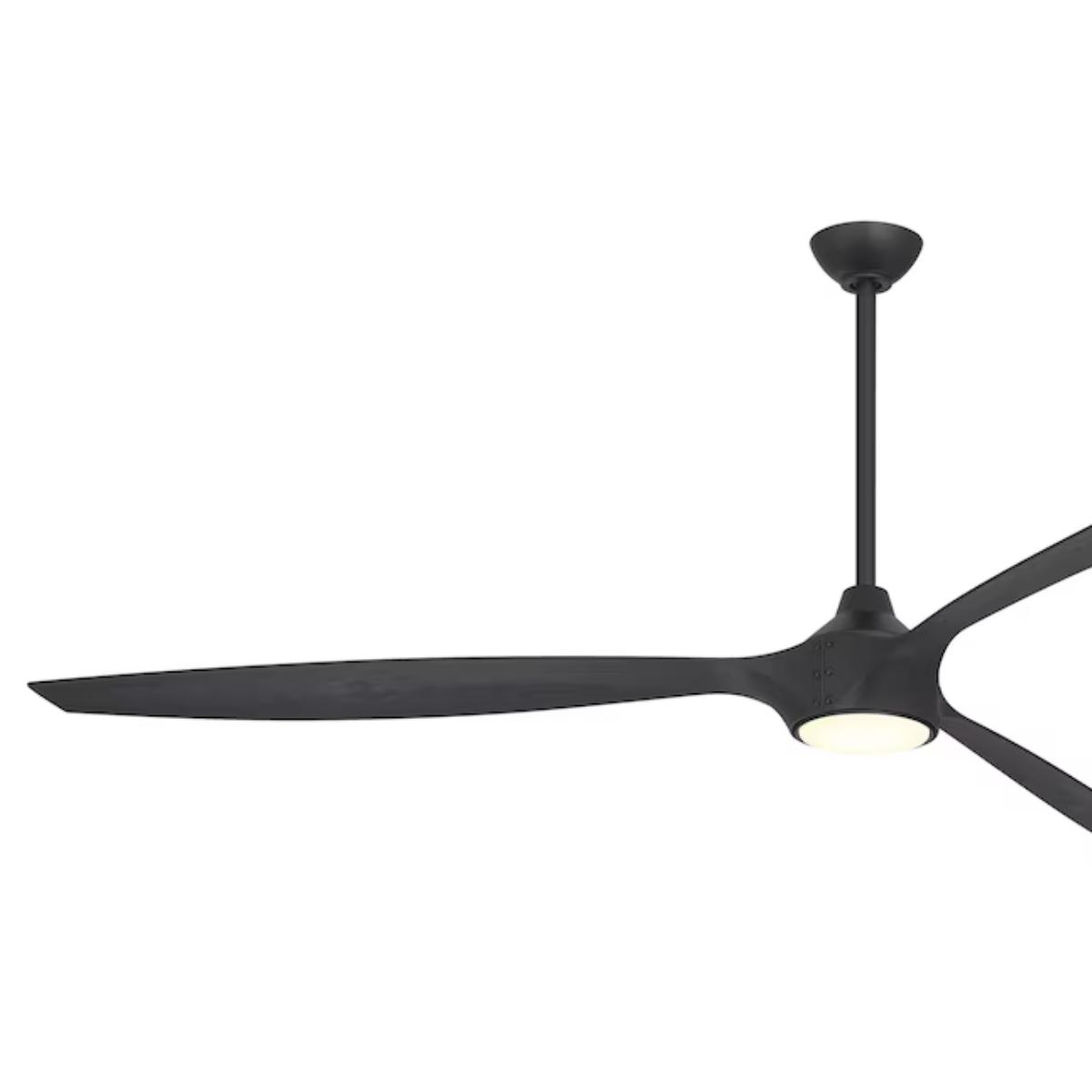

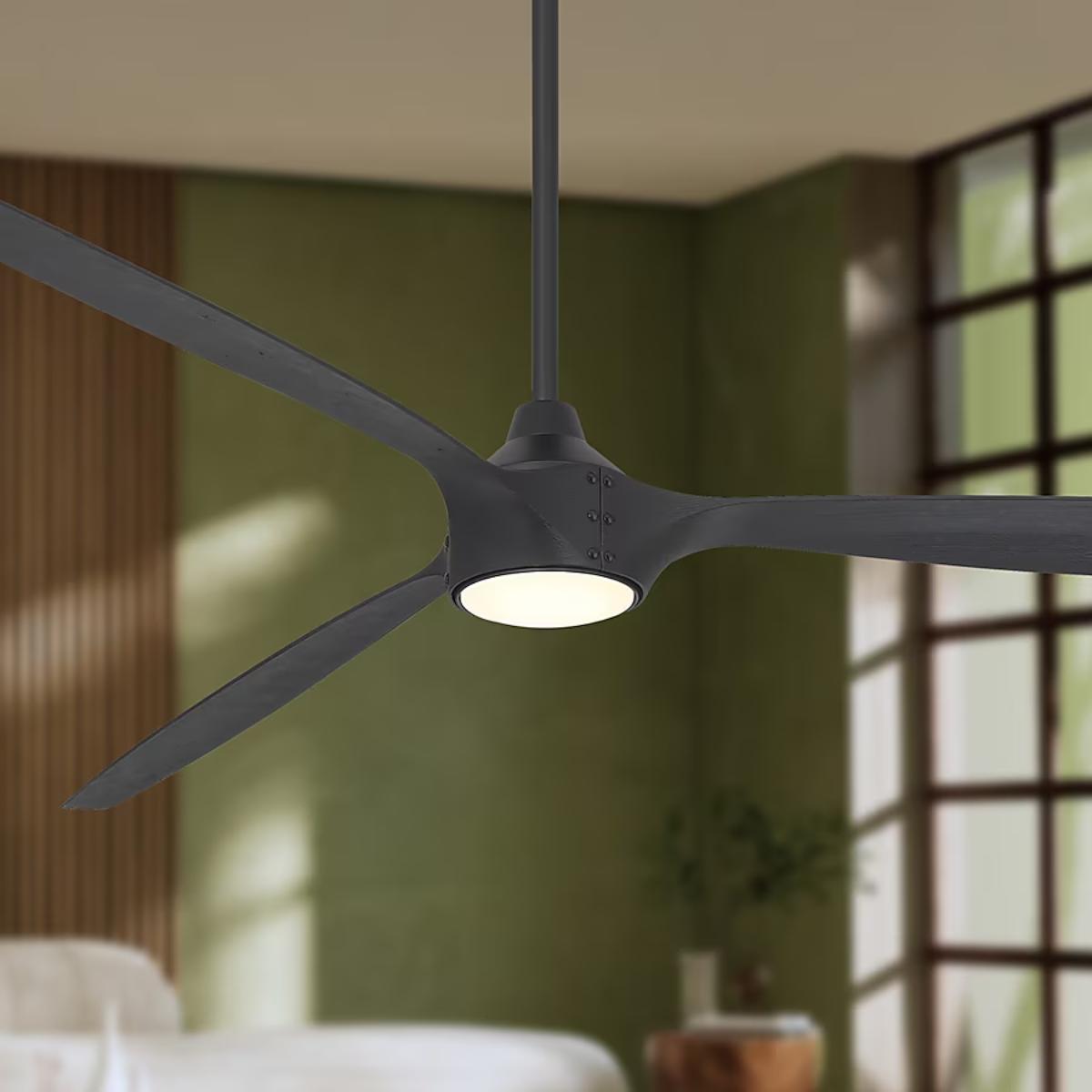

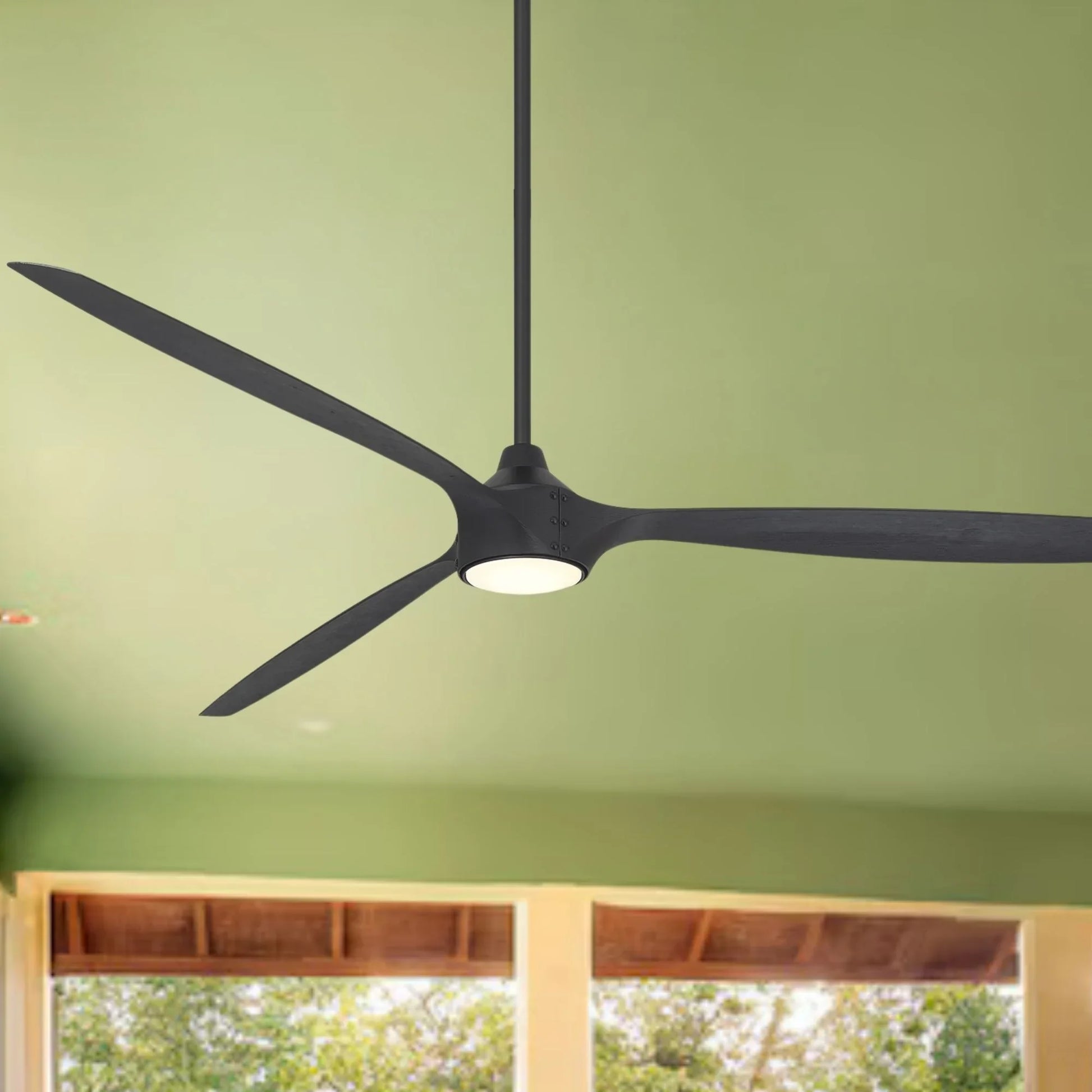

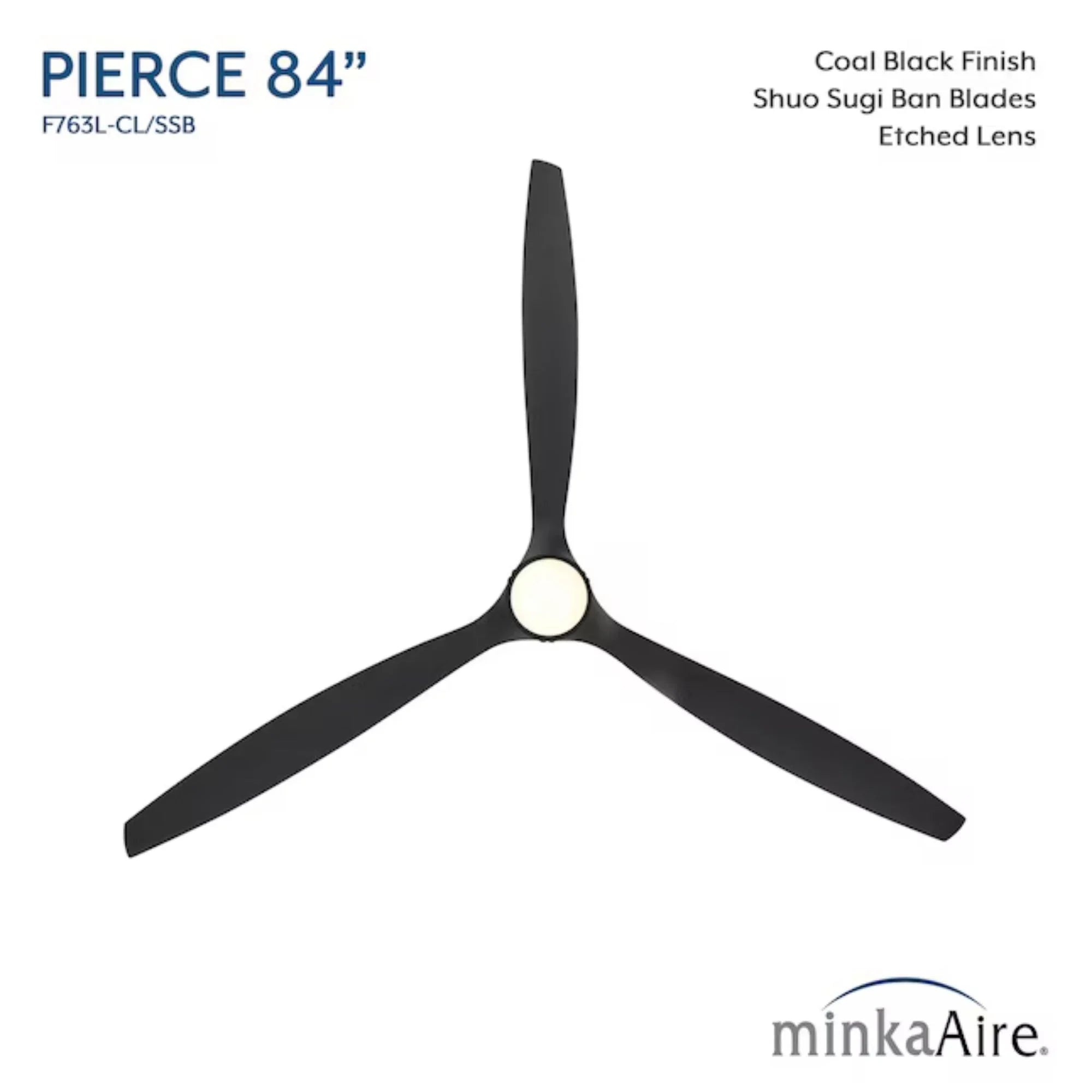

All-Coal Black motor housing with three dramatic Shao Sugi Ban ABS blades at 15° pitch — inspired by the Japanese art of charring wood for preservation and beauty. Net weight: 14.88 lbs. At 84 in, the Pierce’s all-dark monochromatic silhouette commands large spaces with architectural boldness, suited to modern, industrial, and Japanese-inspired interiors.

The F763L-CL/SSB delivers 8,106 CFM at high speed (231.65 CFM/W, 34.99W) and 4,633 CFM at low speed (671.51 CFM/W, 6.9W). The integrated 20W LED provides 1,052.5 delivered lumens (1,653.85 initial lumens) at 3000K warm white, CRI 90, rated 30,000 hours, fully dimmable, through an etched polycarbonate lens. Its 84 in span is ideal for great rooms, open-plan living areas, and large indoor spaces up to approximately 600 sq ft.

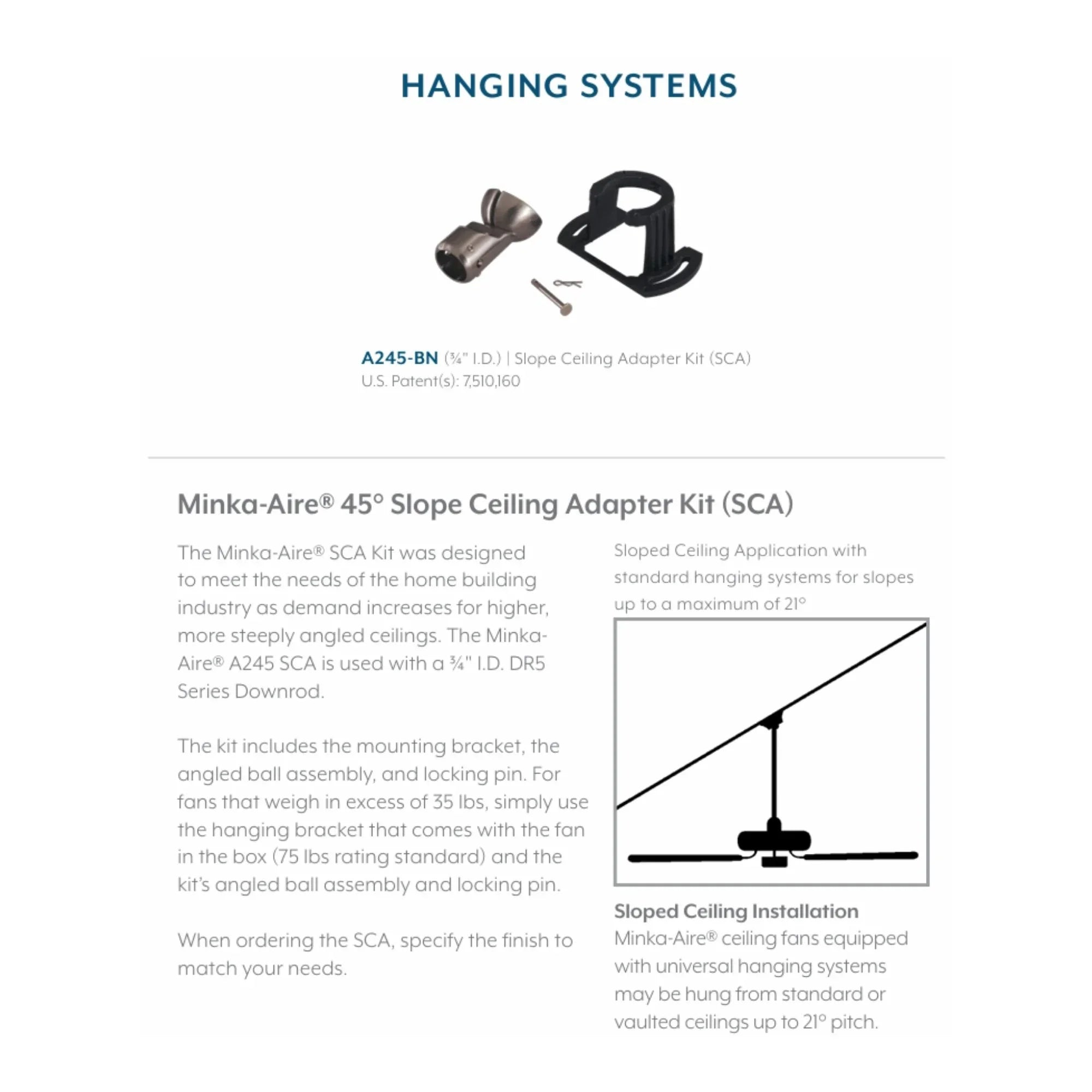

120V DC, 60Hz. Wire: 74 in. Ships with 0.75 in × 6 in downrod. Slope ceiling compatible to 18°; for steeper pitches up to 45°, the optional sloped ceiling adapter A245 is available separately. Fan must be attached to a securely anchored electrical junction box rated for the fan weight. ETL Listed for Dry Locations. Title 20 compliant. FCC compliant. 1-year limited manufacturer’s warranty.

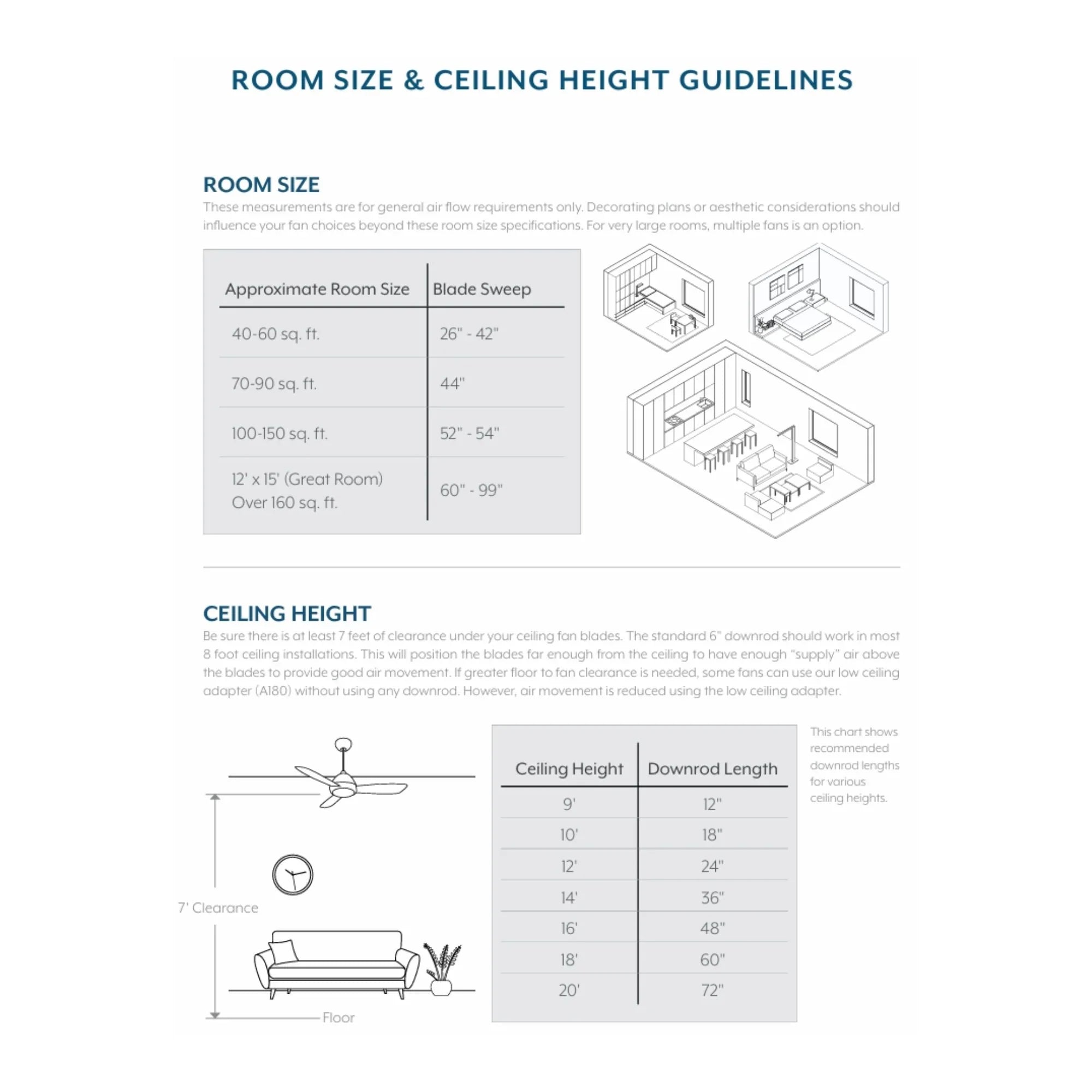

A 6 in downrod is included. Additional downrods available separately. Ideal distance from floor to fan blades is 7 to 9 feet.

• 9 ft ceiling → 12 in downrod
• 10 ft ceiling → 18 in downrod
• 12 ft ceiling → 24 in downrod
• 14 ft ceiling → 36 in downrod
• 16 ft ceiling → 48 in downrod
• 18 ft ceiling → 60 in downrod
• 20 ft ceiling → 72 in downrod

• F763L-CL/SSB ceiling fan (Coal Black body + 3 Shao Sugi Ban ABS blades)
• Integrated 20W LED light kit with etched polycarbonate lens
• RC1000 remote control
• 0.75 in × 6 in downrod
• Mounting hardware
