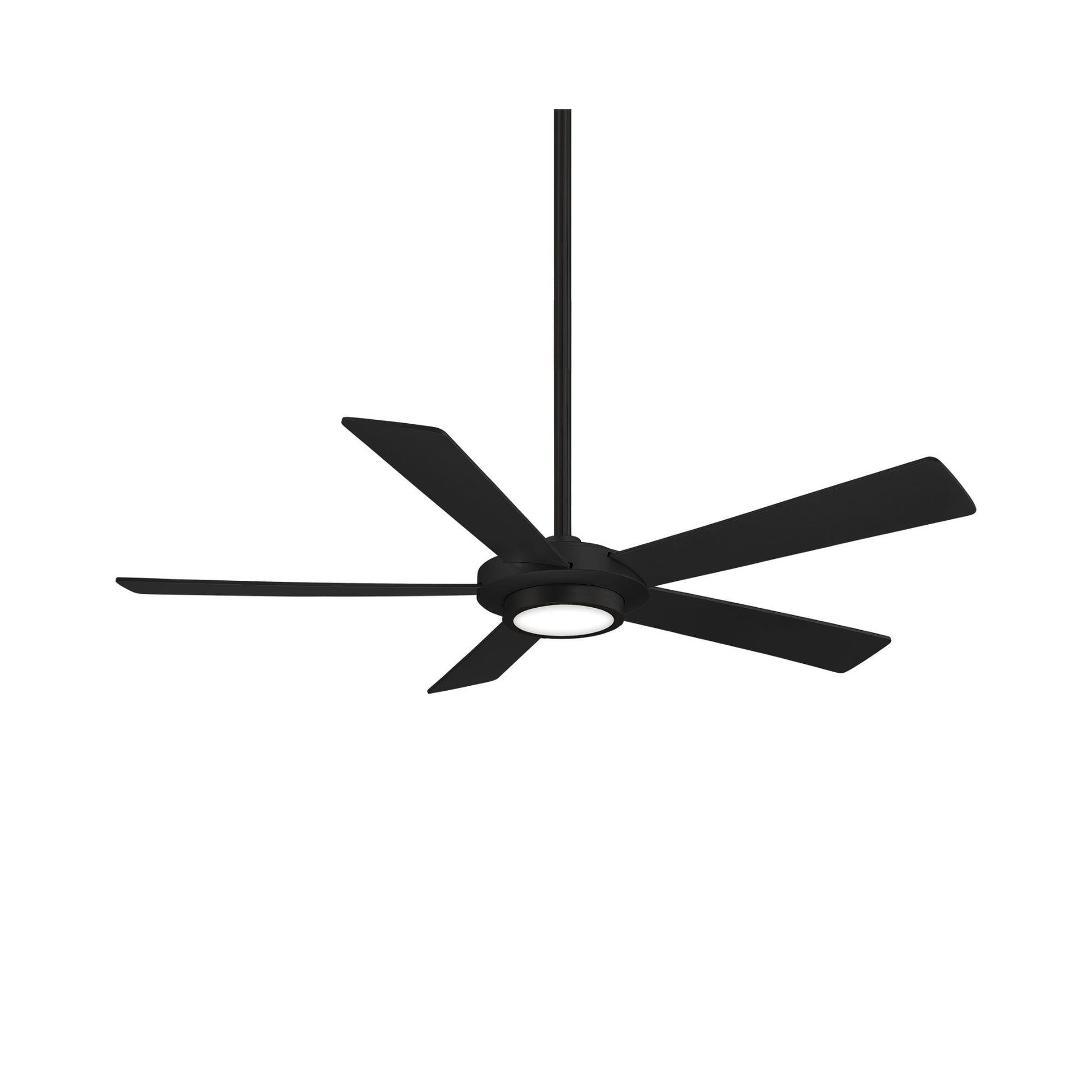

Minka Aire Sabot 52 in DC LED Ceiling Fan — Coal Black

The Minka Aire Sabot (model F745-CL) is a 52 in dry-rated DC ceiling fan that delivers serious airflow performance in a clean, modern silhouette. Powered by a high-efficiency 172×12mm DC motor, it reaches up to 4,942 CFM at high speed with an exceptional efficiency of 136 CFM/W — all at just 36.42W. Five Coal Black plywood blades against a matching Coal Black motor housing create a bold, unified profile that works equally well in contemporary, industrial, and transitional interiors. The integrated 20W LED luminaire delivers warm, dimmable light through a frosted white polycarbonate lens. ENERGY STAR® rated, ETL Listed, and Bond Compatible for smart home integration.

Key Features

• Blade Span: 52 in | 5 Coal Black plywood blades | 12° pitch
• Motor: DC — 172×12mm | 6 speeds | Reversible rotation
• Airflow: 1,344 CFM (low) / 4,942 CFM (high)
• Efficiency: 136 CFM/W at high speed
• Total Power: 36.42W (high) / 2.6W (low)
• RPM: 51 (low) / 180 (high)
• Integrated LED: 20W | 1,041 delivered lumens | 3000K | CRI 83 | Dimmable | 30,000 hr rated life
• Lens: Frosted White polycarbonate (6.61 in W × 0.44 in H)

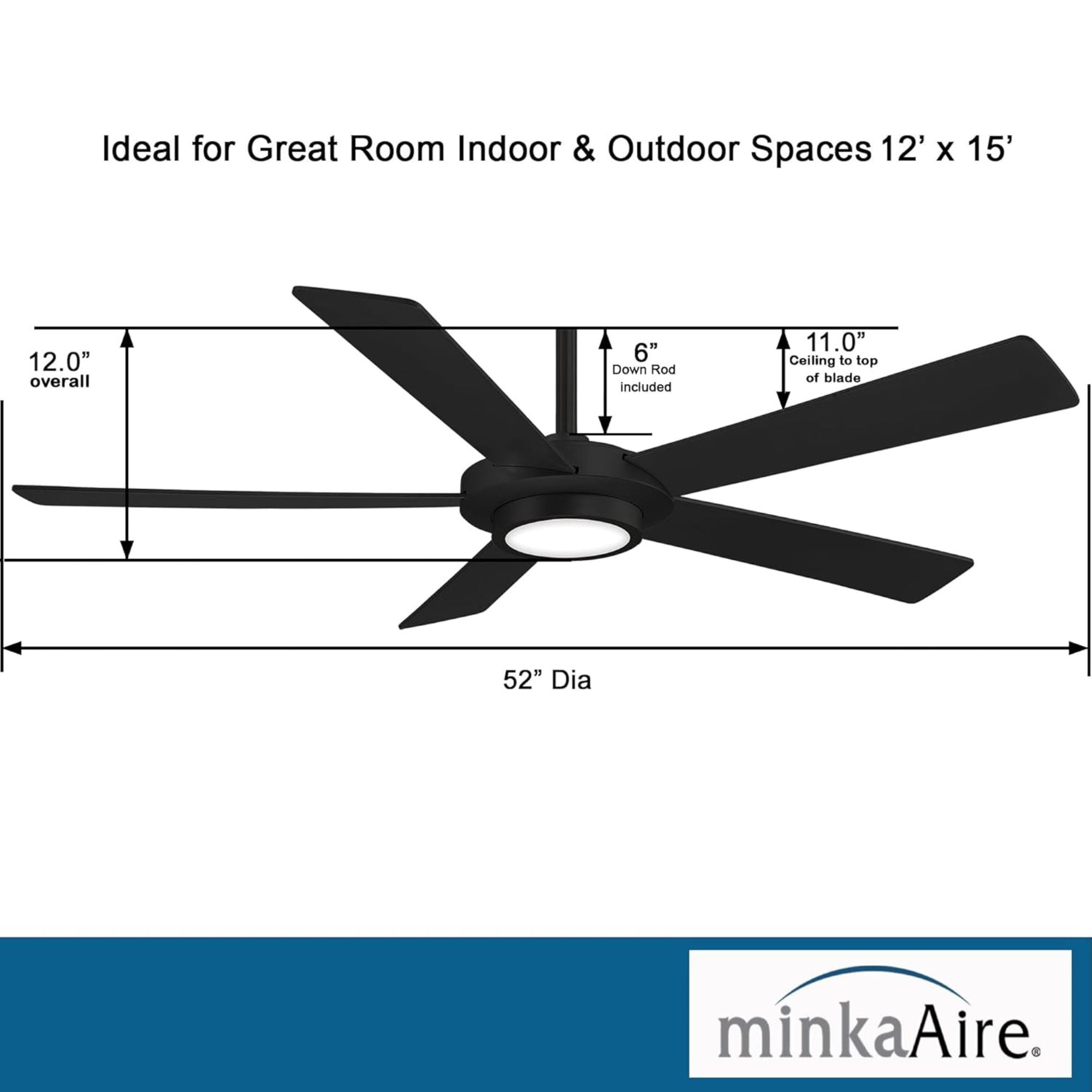

• Overall Dimensions: 52 in DIA × 12 in H | Ceiling-to-blade: 11 in
• Location Rating: Dry (Indoor use only)
• Sloped Ceiling Compatible: Yes
• Downrod: 6 in included (0.75 in diameter) | Wire: 80 in | Weight: 12.61 lbs
• ENERGY STAR® | ETL Listed | Bond Compatible | Limited Lifetime Warranty

Control Features

The Sabot F745-CL ships with an RC600 remote control — 6-speed fan control, forward/reverse operation, and LED dimming. No pull chain. The WC600 wall control is available separately for hardwired 3 or 4-way switching. For smart home integration, the fan is compatible with the BD-1000 Bond Bridge, enabling app and voice control. No integrated WiFi or Bluetooth.

Construction & Design

The Sabot’s 172×12mm DC motor operates quietly and efficiently across all 6 speeds, housed in a low-profile 52 in DIA × 12 in H body. Five Coal Black plywood blades at a 12° pitch complete the all-black monochromatic profile — a sharp, graphic statement ideal for modern lofts, urban interiors, and bold contemporary spaces. Ceiling-to-blade clearance: 11 in. Product weight: 12.61 lbs. Wire length: 80 in.

Light Output & Performance

The integrated 20W LED array delivers 1,041 lumens of warm, dimmable light at 3000K with a CRI of 83, diffused through a frosted white polycarbonate lens (PF745-CVR). Rated for 30,000 hours. This model is not light kit compatible — no additional light kit or adapter can be added.

Electrical & Installation

Operates at 120V. DC motor — 6-speed energy-efficient operation. High: 180 RPM / 4,942 CFM / 36.42W. Low: 51 RPM / 1,344 CFM / 2.6W. Dry location rated — suitable for all indoor spaces. Sloped ceiling compatible. Includes 6 in downrod (0.75 in diameter). Wire length: 80 in.

Suggested Downrod by Ceiling Height

• 8 ft ceiling → 6 in downrod (included)
• 9 ft ceiling → 12 in downrod
• 10 ft ceiling → 18 in downrod
• 12 ft ceiling → 24 in downrod
• 14 ft ceiling → 36 in downrod
• 16 ft ceiling → 48 in downrod
• 18 ft ceiling → 60 in downrod
• 20 ft ceiling → 72 in downrod

What’s Included

• Minka Aire Sabot F745-CL 52 in DC LED ceiling fan
• Integrated 20W LED array (pre-installed)
• RC600 remote control
• 6 in downrod
• Mounting hardware
